CSC 660: Advanced OS Virtual Filesystem CSC 660: Advanced Operating Systems 1

CSC 660: Advanced OS Virtual Filesystem CSC 660: Advanced Operating Systems 1

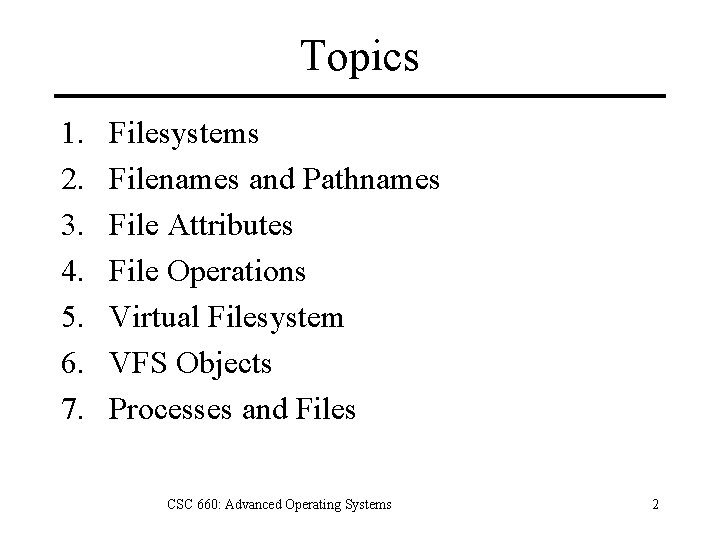

Topics 1. 2. 3. 4. 5. 6. 7. Filesystems Filenames and Pathnames File Attributes

Topics 1. 2. 3. 4. 5. 6. 7. Filesystems Filenames and Pathnames File Attributes File Operations Virtual Filesystem VFS Objects Processes and Files CSC 660: Advanced Operating Systems 2

Why filesystems? Access by Physical Disk Filesystem Blocks Bytes Addressing Block # Pathname Security

Why filesystems? Access by Physical Disk Filesystem Blocks Bytes Addressing Block # Pathname Security ACLs None Reliability Corruption on crash Robust response to system failures. CSC 660: Advanced Operating Systems 3

Tree Structure / bin boot ls tmp usr bin grub lib var X 11

Tree Structure / bin boot ls tmp usr bin grub lib var X 11 R 6 less vmlinuz menu. lst bin zip xclock CSC 660: Advanced Operating Systems lib xterm 4

Filenames and Pathnames • Filenames – Human-readable identifier for data. – File suffixes have

Filenames and Pathnames • Filenames – Human-readable identifier for data. – File suffixes have special meanings in Windows. • Directories – Store lists of filename/location mappings. • Pathnames – Identify file in directory hierarchy. – Ex: /usr/X 11 R 6/bin/xclock CSC 660: Advanced Operating Systems 5

File Attributes • Filename and Data • Location • File Type – – •

File Attributes • Filename and Data • Location • File Type – – • • • Regular files Directories Device (block + char) files IPC files Ownership Access Control List Locking Size Timestamps CSC 660: Advanced Operating Systems 6

File Operations • • • Create Delete Open Close Read Write • • •

File Operations • • • Create Delete Open Close Read Write • • • CSC 660: Advanced Operating Systems Append Seek Get Attributes Set Attributes Rename 7

File Descriptors User process reference to a file. A non-negative integer unique to process.

File Descriptors User process reference to a file. A non-negative integer unique to process. Returned by open or creat system calls. Used as argument to other file system calls. View with: ls –l /proc/self/fd Common file descriptors: 0 STDIN 1 STDOUT 2 STDERR CSC 660: Advanced Operating Systems 8

Process File Context • Root directory – Usually /, but can change for security.

Process File Context • Root directory – Usually /, but can change for security. • Current working directory – Default location for file commands. – Relative pathnames are relative to CWD. • Open file table – Maps file descriptors to kernel file objects. – files_struct member of task_struct CSC 660: Advanced Operating Systems 9

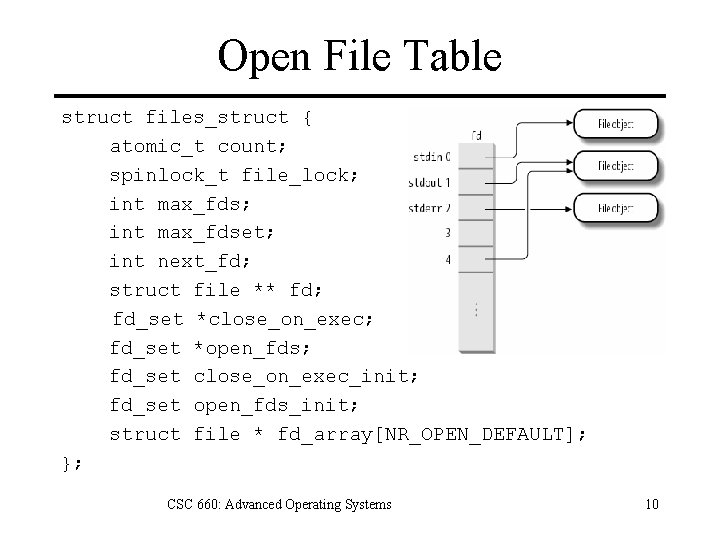

Open File Table struct files_struct { atomic_t count; spinlock_t file_lock; int max_fdset; int next_fd;

Open File Table struct files_struct { atomic_t count; spinlock_t file_lock; int max_fdset; int next_fd; struct file ** fd; fd_set *close_on_exec; fd_set *open_fds; fd_set close_on_exec_init; fd_set open_fds_init; struct file * fd_array[NR_OPEN_DEFAULT]; }; CSC 660: Advanced Operating Systems 10

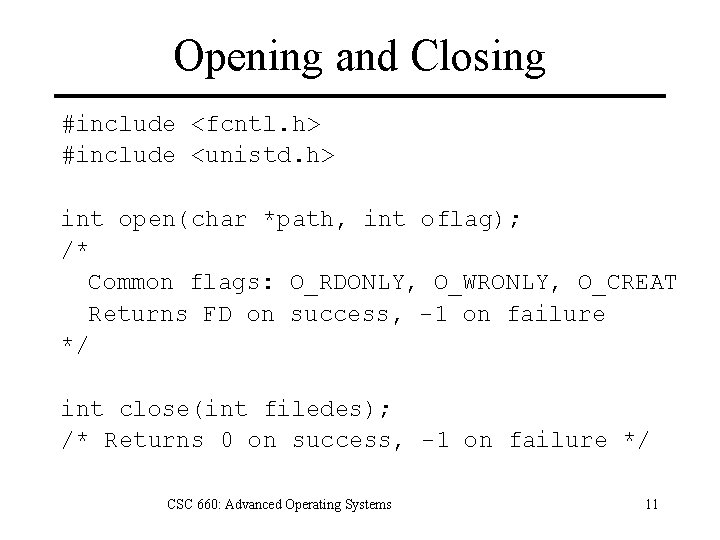

Opening and Closing #include <fcntl. h> #include <unistd. h> int open(char *path, int oflag);

Opening and Closing #include <fcntl. h> #include <unistd. h> int open(char *path, int oflag); /* Common flags: O_RDONLY, O_WRONLY, O_CREAT Returns FD on success, -1 on failure */ int close(int filedes); /* Returns 0 on success, -1 on failure */ CSC 660: Advanced Operating Systems 11

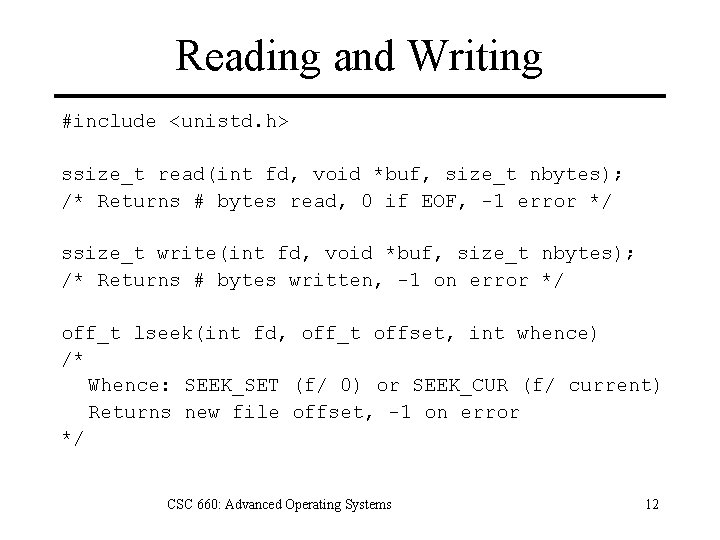

Reading and Writing #include <unistd. h> ssize_t read(int fd, void *buf, size_t nbytes); /*

Reading and Writing #include <unistd. h> ssize_t read(int fd, void *buf, size_t nbytes); /* Returns # bytes read, 0 if EOF, -1 error */ ssize_t write(int fd, void *buf, size_t nbytes); /* Returns # bytes written, -1 on error */ off_t lseek(int fd, off_t offset, int whence) /* Whence: SEEK_SET (f/ 0) or SEEK_CUR (f/ current) Returns new file offset, -1 on error */ CSC 660: Advanced Operating Systems 12

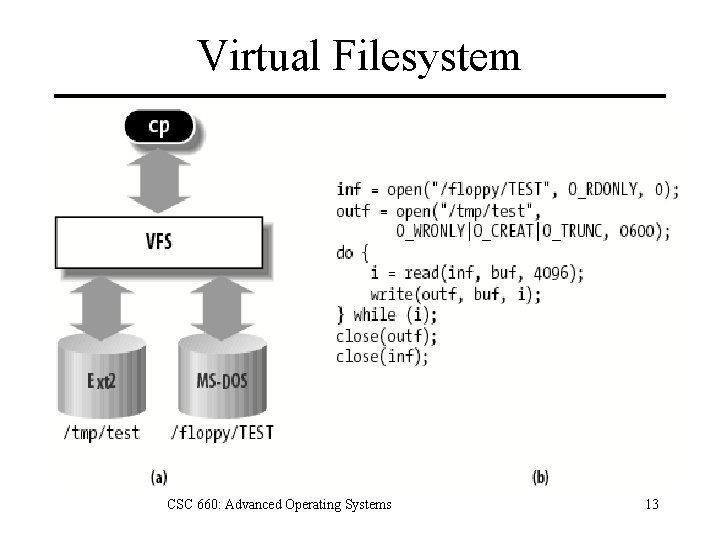

Virtual Filesystem CSC 660: Advanced Operating Systems 13

Virtual Filesystem CSC 660: Advanced Operating Systems 13

Classes of Filesystems • Disk-based filesystems – Linux (ext 2, ext 3, reiserfs) –

Classes of Filesystems • Disk-based filesystems – Linux (ext 2, ext 3, reiserfs) – UNIX (ufs, minix, JFS, XFS) – MS (FAT, VFAT, NTFS) and other proprietary – ISO 9660 CD-ROM, UDF DVD • Network filesystems – NFS, AFS, CIFS • Special filesystems – Procfs, sysfs CSC 660: Advanced Operating Systems 14

VFS Objects • superblock – Represents a mounted filesystem. • inode – Represents a

VFS Objects • superblock – Represents a mounted filesystem. • inode – Represents a specific file. • dentry – Represents a directory entry, a single path comp. • file – Represents an open file associated w/ a process. CSC 660: Advanced Operating Systems 15

VFS Objects • Directories are files – Directories are handled by file objects. –

VFS Objects • Directories are files – Directories are handled by file objects. – dentry objects are path components, not dirs. • Each object contains an operations object – Define methods kernel invokes on object. – Defined as struct of function pointers. • What if a fs doesn’t have a type of object? – Objects of that type made on the fly for VFS. CSC 660: Advanced Operating Systems 16

VFS Objects CSC 660: Advanced Operating Systems 17

VFS Objects CSC 660: Advanced Operating Systems 17

struct super_block Type struct list_head dev_t u_long Field s_list s_dev s_blocksize Description Superblock linked

struct super_block Type struct list_head dev_t u_long Field s_list s_dev s_blocksize Description Superblock linked list Device identifier Block size in bytes u_char struct super_operations * struct semaphore struct list_head s_dirt s_op Dirty (modified) flag Superblock methods s_lock s_inodes s_io s_files Superblock semaphore List of all inodes Inodes waiting for write List of file objects CSC 660: Advanced Operating Systems 18

struct inode Type struct list_head inode_operations Field i_list i_dentry *i_op Description Inode linked list

struct inode Type struct list_head inode_operations Field i_list i_dentry *i_op Description Inode linked list List of dentries to this inode Inode methods u_long atomic_t umode_t u_long uid_t, gid_t loff_t struct timespec i_ino i_count i_mode i_nlink i_{uid, gid} i_size i_[amc]time Inode number Reference count ACL for file Number of hard links UID and GID of owner File size in bytes Last access, modify, change CSC 660: Advanced Operating Systems 19

Inode Operations int create(struct inode *dir, struct dentry *dentry, int mode) struct dentry *lookup(struct

Inode Operations int create(struct inode *dir, struct dentry *dentry, int mode) struct dentry *lookup(struct inode *dir, struct dentry *dentry) int link(struct dentry *old, struct inode *dir, struct dentry *dentry) int unlink(struct inode *dir, struct dentry *dentry) int symlink(struct inode *dir, struct dentry *dentry, const char *symname) int mkdir(struct inode *dir, struct dentry *dentry, int mode) int rmdir(struct inode *dir, struct dentry *dentry) int rename(struct inode *old_dir, struct dentry *old, struct inode *new_dir, struct dentry *new) int readlink(struct dentry *dentry, char *buffer, int buflen) CSC 660: Advanced Operating Systems 20

Dentry Objects • Path components – Ex: /bin/vi has 3 dentries: /, etc, and

Dentry Objects • Path components – Ex: /bin/vi has 3 dentries: /, etc, and vi • Not an on-disk data structure – Constructed on fly from pathname string. – Cached by the kernel to avoid re-construction. • States – Used: corresponds to valid inode in use. – Unused: valid inode not currently used (cached). – Negative: invalid path, no corresponding inode CSC 660: Advanced Operating Systems 21

struct dentry Type atomic_t spinlock_t struct inode Field d_count d_lock *d_inode Description Usage count

struct dentry Type atomic_t spinlock_t struct inode Field d_count d_lock *d_inode Description Usage count Lock for this dentry Corresponding inode struct dentry_operations struct list_head *d_op Dentry methods d_lru d_child d_subdirs d_alias List of unused dentries. Dir dentries of same parent. Subdirectory dentries. Dentries w/ same inode. CSC 660: Advanced Operating Systems 22

File Objects In-memory representation of open files. Created in response to open() call. Destroyed

File Objects In-memory representation of open files. Created in response to open() call. Destroyed in response to close() call. Multiple file objects can exist for same file. Different processes can open same file. File object records process-specific status info (seek point, access mode. ) CSC 660: Advanced Operating Systems 23

struct file Type struct list_head struct dentry atomic_t Field f_list *f_dentry f_count Description Linked

struct file Type struct list_head struct dentry atomic_t Field f_list *f_dentry f_count Description Linked list of file objects Associated dentry object Usage count u_int struct file_operations * mode_t loff_t u_int f_flags f_op Flags specified on open() File methods (open, read, write, readdir, ioctl) f_mode f_pos f_{uid, gid} f_error File access mode File offset User’s UID and GID Error code CSC 660: Advanced Operating Systems 24

References 1. 2. 3. 4. 5. 6. Daniel P. Bovet and Marco Cesati, Understanding

References 1. 2. 3. 4. 5. 6. Daniel P. Bovet and Marco Cesati, Understanding the Linux Kernel, 3 rd edition, O’Reilly, 2005. Robert Love, Linux Kernel Development, 2 nd edition, Prentice-Hall, 2005. Claudia Rodriguez et al, The Linux Kernel Primer, Prentice-Hall, 2005. Peter Salzman et. al. , Linux Kernel Module Programming Guide, version 2. 6. 1, 2005. Avi Silberchatz et. al. , Operating System Concepts, 7 th edition, 2004. Andrew S. Tanenbaum, Modern Operating Systems, 3 rd edition, Prentice-Hall, 2005. CSC 660: Advanced Operating Systems 25
