CSC 660 Advanced OS Synchronization CSC 660 Advanced

CSC 660: Advanced OS Synchronization CSC 660: Advanced Operating Systems 1

Topics 1. 2. 3. 4. 5. 6. 7. 8. Race Conditions Critical Sections Kernel Concurrency What needs Protection? Atomic Operations Spin Locks Semaphores Deadlock CSC 660: Advanced Operating Systems 2

Race Condition Example 1. Process A read in, stores in local var slot. 2. Timer interrupt. 3. Scheduler switches to process B. 4. Process B reads in, stores in local var slot. 5. Process B stores filename in slot 7 (slot). 6. Process B updates in to be 8. 7. Scheduler eventually switches to process A. 8. Process A writes filename in slot 7 (slot). 9. Process A computes in = slot + 1. 10. Process A updates in to be 8. CSC 660: Advanced Operating Systems 3

Race Condition Example Process A 4 abc. pdf 5 prog. c 6 as 2. txt 7 out = 4 in = 7 Process B CSC 660: Advanced Operating Systems 4

Critical Sections How can we prevent race conditions? Prohibit multiple processes from accessing shared resource at the same time. Critical section: code that accesses shared resource. CSC 660: Advanced Operating Systems 5

Critical Sections 1. No two processes may be simultaneously inside their critical sections. 2. No assumptions may be made about speed or number of CPUs. 3. No process running outside its critical section may block other processes from entering the critical section. 4. No process should have to wait forever to enter its critical section. CSC 660: Advanced Operating Systems 6

Critical Sections CSC 660: Advanced Operating Systems 7

Why do we need atomicity? Problem: Two processes incrementing i. Uniprocessor Version A: read i(7) A: incr i(7 -> 8) B: read i(8) B: incr i(8 -> 9) Process A read i(7) incr i(7 -> 8) write i(8) CSC 660: Advanced Operating Systems Process B read i(7) incr i(7 -> 8) write i(8) 8

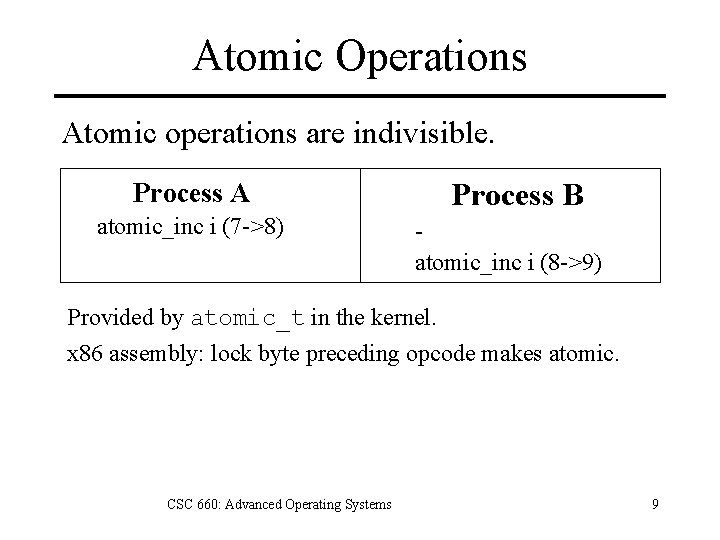

Atomic Operations Atomic operations are indivisible. Process B Process A atomic_inc i (7 ->8) atomic_inc i (8 ->9) Provided by atomic_t in the kernel. x 86 assembly: lock byte preceding opcode makes atomic. CSC 660: Advanced Operating Systems 9

Atomicity doesn’t provide Ordering One atomic order of operations: Process A atomic_inc i (7 ->8) Process B atomic_inc i (8 ->9) Another atomic order of operations: Process A Process B atomic_inc i (8 ->9) atomic_inc i (7 ->8) CSC 660: Advanced Operating Systems 10

Locking What if operation too complex to be atomic? CPU can’t have a dedicated instruction for every operation that might need to be atomic. Ex: adding a node to a doubly-linked list. Locking Require that thread lock the object before access. Other threads must wait until object unlocked. Locking is simple enough to be atomic. Ex: Acquire lock before modifying linked list. CSC 660: Advanced Operating Systems 11

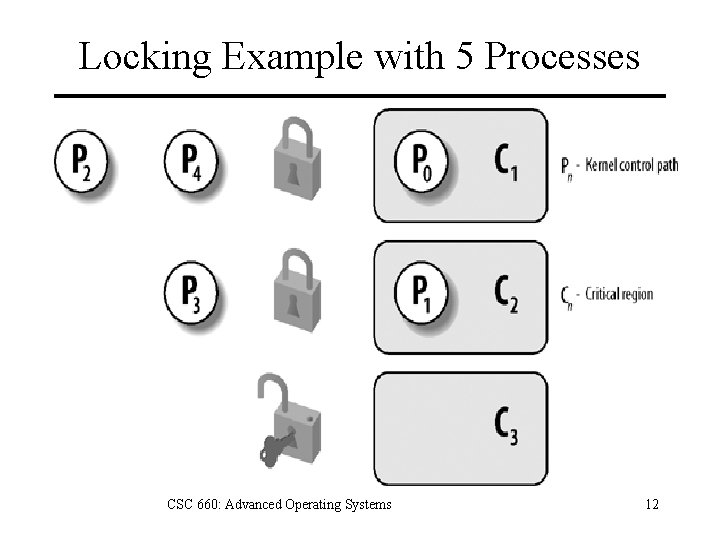

Locking Example with 5 Processes CSC 660: Advanced Operating Systems 12

Deadlocks Single process deadlock: A: spin_lock(A) Two process deadlock: Process A Process B down(A) down(B) down(A) CSC 660: Advanced Operating Systems 13

Deadlock Prevention Lock Ordering If you acquire multiple locks, you must always acquire them in the same order. Don’t double acquire a lock. Always use interrupt-disabling variants of spin_lock() in interrupt context. Always release locks. Be sure that your code will always make appropriate calls to release locks. CSC 660: Advanced Operating Systems 14

Sources of Concurrency 1. 2. 3. 4. 5. Interrupts Softirqs and tasklets Kernel preemption Sleeping SMP CSC 660: Advanced Operating Systems 15

Kernel Preemption Processes can be preempted while in kernel functions. Process A is running an exception handler. It can be preempted if a higher priority process B becomes runnable. Process A is running an exception handler and its time quantum expires. The scheduler will schedule another process to run. Preemption disabled when preempt_count > 0: Interrupt handlers. Soft. IRQs and tasklets. Code that explicitly sets preempt_count. CSC 660: Advanced Operating Systems 16

What needs Protection? What needs protection? Global kernel data structures. Shared data between process/interrupt context. Shared data between interrupt handlers. What doesn’t? Data local to executing thread (i. e. , stack. ) Local variables. Dynamically allocated data w/ only local ptrs. Per-CPU data doesn’t need SMP protection. CSC 660: Advanced Operating Systems 17

Where is Synchronization Unnecessary? • An interrupt handler cannot be interrupted by the same interrupt that it handles. • Kernel control path performing interrupt handling cannot be interrupted by a bottom half or system call service routine. • Soft. IRQs and tasklets cannot be interleaved on the same CPU. • The same tasklet cannot be executed simultaneously on multiple CPUs. CSC 660: Advanced Operating Systems 18

Kernel Synchronization Techniques Technique Per-CPU vars Atomic operation Memory barrier Description Each CPU has data Atomic operation Avoid re-ordering Scope All CPUs Local or All CPUs Spin lock Semaphore Seqlocks Lock w/ busy wait Lock w/ sleep wait Lock on access ctr All CPUs Interrupt disabling Soft. IRQ disabling Read-copy-update (RCU) cli on a single CPU Local CPU Forbid Soft. IRQs Local CPU Lock-free access to All CPUs shared data via ptrs. CSC 660: Advanced Operating Systems 19

Per-CPU Variables One variable exists for each CPU in system. Avoid need for synchronization between CPUs. Potential sources of concurrency Interrupts Kernel-preemption Must disable kernel-preemption What if process pre-empted after initial read, then moved to another CPU before write? CSC 660: Advanced Operating Systems 20

Per-CPU Variables int cpu; /* Disable kernel preemption and set cpu to current processor # */ cpu = get_cpu(); /* Manipulate Per-CPU data */ put_cpu(); CSC 660: Advanced Operating Systems 21

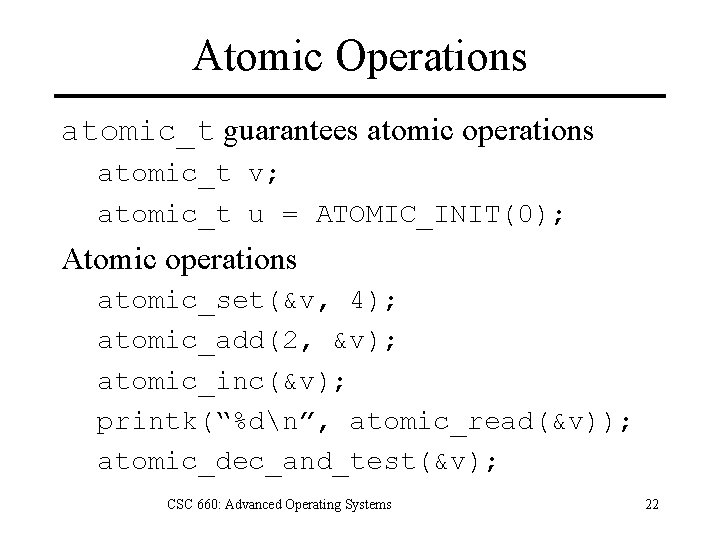

Atomic Operations atomic_t guarantees atomic operations atomic_t v; atomic_t u = ATOMIC_INIT(0); Atomic operations atomic_set(&v, 4); atomic_add(2, &v); atomic_inc(&v); printk(“%dn”, atomic_read(&v)); atomic_dec_and_test(&v); CSC 660: Advanced Operating Systems 22

Barriers provide Ordering Optimization Barriers Prevent compiler from re-ordering instructions. Compiler doesn’t know when interrupts or other processors may read/write your data. Kernel provides barrier() macro. Memory Barriers Read/write barriers prevent loads/stores from being re-ordered across barrier. Kernel provides rmb(), wmb() macros. All syncronization primitives act as barriers. CSC 660: Advanced Operating Systems 23

Using a Spin Lock spinlock_t my_lock = SPIN_LOCK_UNLOCKED; spin_lock(&my_lock); /* critical section */ spin_unlock(&my_lock); CSC 660: Advanced Operating Systems 24

Spin Locks If lock “open” Sets lock bit with atomic test-and-set. Continues into critical section. else lock “closed” Code “spins” in busy wait loop until available. Waits are typically much less than 1 ms. Kernel-preemption can run other processes while task is busy waiting. CSC 660: Advanced Operating Systems 25

spinlock_t slock Spin lock state. 1 is unlocked. <1 is locked. break_lock Flag signals that task is busy waiting for this lock. CSC 660: Advanced Operating Systems 26

Inside a Spin Lock 1. Disables kernel pre-emption. 2. Atomic test-and-sets lock. 3. If old value positive Lock acquired. 4. Else Enables pre-emption. If break_lock is 0, sets to 1 to indicate a task is waiting. Busy wait loop while (spin_is_locked(lock)) cpu_relax(); # pause instruction on P 4 Goto 1. CSC 660: Advanced Operating Systems 27

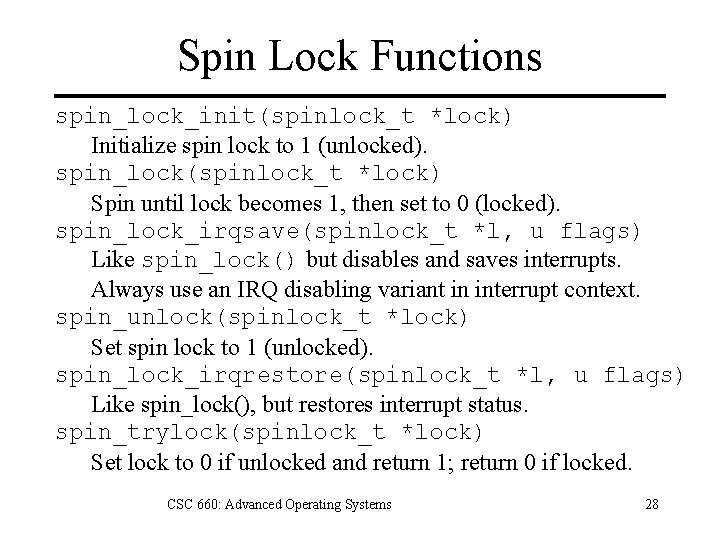

Spin Lock Functions spin_lock_init(spinlock_t *lock) Initialize spin lock to 1 (unlocked). spin_lock(spinlock_t *lock) Spin until lock becomes 1, then set to 0 (locked). spin_lock_irqsave(spinlock_t *l, u flags) Like spin_lock() but disables and saves interrupts. Always use an IRQ disabling variant in interrupt context. spin_unlock(spinlock_t *lock) Set spin lock to 1 (unlocked). spin_lock_irqrestore(spinlock_t *l, u flags) Like spin_lock(), but restores interrupt status. spin_trylock(spinlock_t *lock) Set lock to 0 if unlocked and return 1; return 0 if locked. CSC 660: Advanced Operating Systems 28

Read/Write Spinlocks • • Multiple readers can acquire lock simultaneously. Only one writer can have the lock at a time. Increase concurrency by allowing many readers. Example use: task list CSC 660: Advanced Operating Systems 29

Seqlocks Read/write lock where writers never wait. Seqlock = spinlock + sequence counter. typedef struct { unsigned sequence; spinlock_t lock; } seqlock_t Writers gain immediate access. Readers have to check sequence before and after their read of the data to detect writes. CSC 660: Advanced Operating Systems 30

Using Seqlocks Writers write_seqlock(); /*. . . critical section. . . */ write_sequnlock(); Readers unsigned int seq; do { seq = read_seqbegin(&seqlock); /*. . . critical section. . . */ } while (read_seqretry(&seqlock, seq)); CSC 660: Advanced Operating Systems 31

Semaphores If semaphore “open” Task acquires semaphore. else Task placed on wait queue and sleeps. Task awakened when semaphore released. CSC 660: Advanced Operating Systems 32

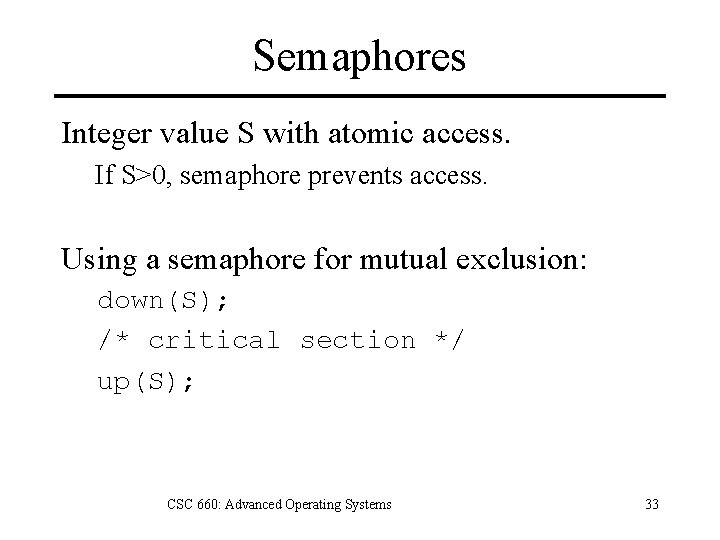

Semaphores Integer value S with atomic access. If S>0, semaphore prevents access. Using a semaphore for mutual exclusion: down(S); /* critical section */ up(S); CSC 660: Advanced Operating Systems 33

Semaphores Down (P): Request to enter critical region. If S > 0, decrements S, enters region. Else process sleeps until semaphore is released. Up (V): Request to exit critical region. Increments S. If S > 0, wakes sleeping processes. CSC 660: Advanced Operating Systems 34

Linux Semaphores DECLARE_MUTEX(sem); Static declares a mutex semaphore. void init_MUTEX(struct semaphore *sem); Dynamic declaration of a mutex semaphore. void down(struct semaphore *sem); Decrements semaphore and sleeps. int down_interruptible(struct semaphore *sem); Same as down() but returns on user interrupt. int down_trylock(struct semaphore *sem); Same as down() but returns immediately if not available. void up(struct semaphore *sem); Releases semaphore. CSC 660: Advanced Operating Systems 35

Linux Semaphores #include <asm/semaphore. h> struct semaphore sem; init_MUTEX(&sem); if (down_interruptible(&sem)) return –ERESTARTSYS; /* user interrupt */ /* * critical section */ up(&sem); CSC 660: Advanced Operating Systems 36

Read/Write Semaphores One writer or many readers can hold lock. static DECLARE_RWSEM(my_rwsem); down_read(&my_rwsem); /* critical section (read only) */ up_read(&my_rwsem); down_write(&my_rwsem); /* critical section (read/write) */ up_write(&my_rwsem); CSC 660: Advanced Operating Systems 37

Spin Locks vs. Semaphores Spin Locks Busy waits waste CPU cycles. Can use in interrupt context, as does not sleep. Cannot use when code sleeps while holding lock. Use for locks held a short time. Semaphores Context switch on sleep is expensive. Sleeps, so cannot use in interrupt context. Can use when code sleeps while holding lock. Use for locks that held a long time. CSC 660: Advanced Operating Systems 38

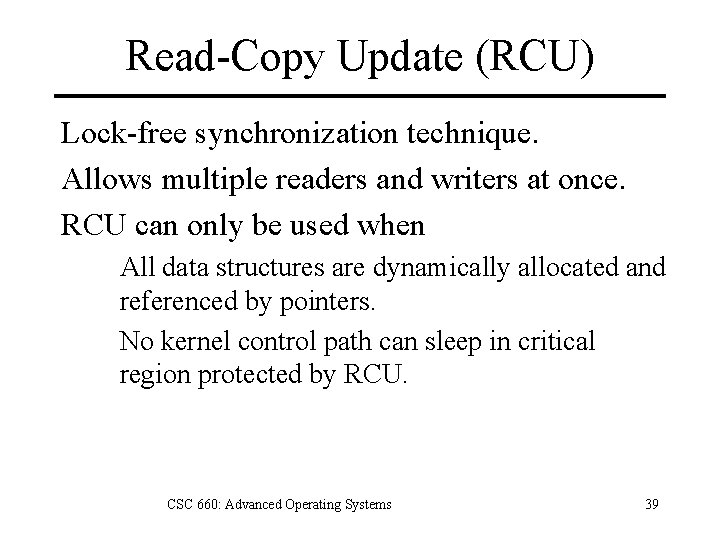

Read-Copy Update (RCU) Lock-free synchronization technique. Allows multiple readers and writers at once. RCU can only be used when All data structures are dynamically allocated and referenced by pointers. No kernel control path can sleep in critical region protected by RCU. CSC 660: Advanced Operating Systems 39

Read-Copy Update (RCU) Reader rcu_read_lock(); /* disables kernel preemption */ /* Critical region (read only) */ rcu_read_unlock(); Writer Makes a copy of data structure. Modifies the copy. Switches pointer to point to copy. Deallocates old struct when all readers are done. CSC 660: Advanced Operating Systems 40

Key Points • Synchronization essential for using shared kernel data. – Sources of concurrency: interrupts, bottoms, kernel preemption, SMP – Atomic operations required to provide synchronization. • Kernel provides two major types w/ RW variants – Spin Locks (non-sleeping busy wait lock) – Semaphores (sleeping lock) • 2. 6 kernel provides new synchronization constructs – Seqlocks – RCU • System performance depends strongly on the type of synchronization used. • Locks must be acquired in consistent order to avoid deadlocks. CSC 660: Advanced Operating Systems 41

References 1. 2. 3. 4. 5. 6. Daniel P. Bovet and Marco Cesati, Understanding the Linux Kernel, 3 rd edition, O’Reilly, 2005. Johnathan Corbet et. al. , Linux Device Drivers, 3 rd edition, O’Reilly, 2005. Robert Love, Linux Kernel Development, 2 nd edition, Prentice-Hall, 2005. Claudia Rodriguez et al, The Linux Kernel Primer, Prentice-Hall, 2005. Peter Salzman et. al. , Linux Kernel Module Programming Guide, version 2. 6. 1, 2005. Andrew S. Tanenbaum, Modern Operating Systems, 3 rd edition, Prentice-Hall, 2005. CSC 660: Advanced Operating Systems 42
