CSC 660: Advanced OS Synchronization CSC 660: Advanced Operating Systems 1

CSC 660: Advanced OS Synchronization CSC 660: Advanced Operating Systems 1

Topics 1. 2. 3. 4. 5. 6. 7. 8. Race Conditions Critical Sections Kernel

Topics 1. 2. 3. 4. 5. 6. 7. 8. Race Conditions Critical Sections Kernel Concurrency What needs Protection? Atomic Operations Spin Locks Semaphores Deadlock CSC 660: Advanced Operating Systems 2

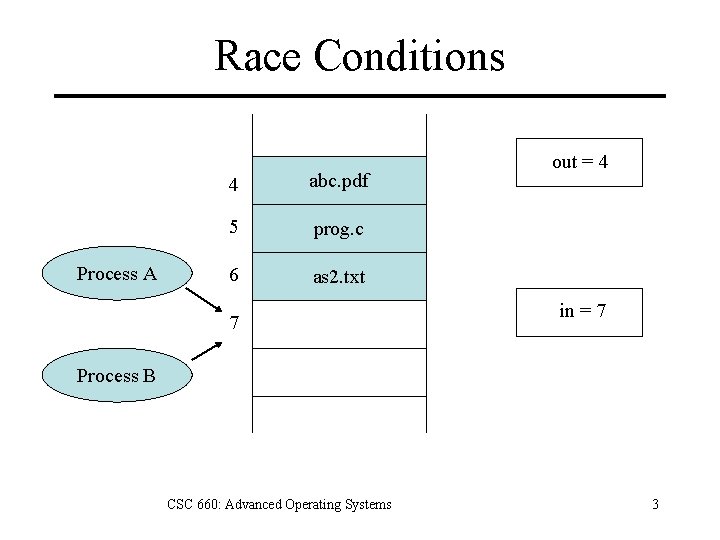

Race Conditions Process A 4 abc. pdf 5 prog. c 6 as 2. txt

Race Conditions Process A 4 abc. pdf 5 prog. c 6 as 2. txt 7 out = 4 in = 7 Process B CSC 660: Advanced Operating Systems 3

Race Conditions 1. Process A read in, stores in local var slot. 2. Timer

Race Conditions 1. Process A read in, stores in local var slot. 2. Timer interrupt. 3. Scheduler switches to process B. 4. Process B reads in, stores in local var slot. 5. Process B stores filename in slot 7 (slot). 6. Process B updates in to be 8. 7. Scheduler eventually switches to process A. 8. Process A writes filename in slot 7 (slot). 9. Process A computes in = slot + 1. 10. Process A updates in to be 8. CSC 660: Advanced Operating Systems 4

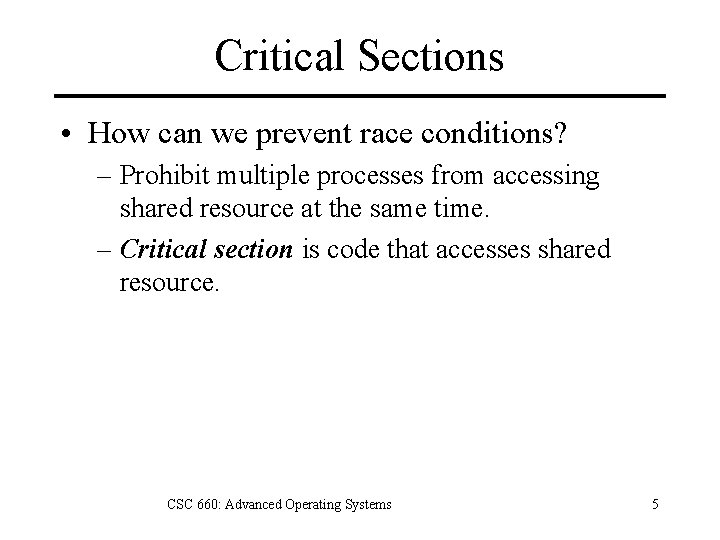

Critical Sections • How can we prevent race conditions? – Prohibit multiple processes from

Critical Sections • How can we prevent race conditions? – Prohibit multiple processes from accessing shared resource at the same time. – Critical section is code that accesses shared resource. CSC 660: Advanced Operating Systems 5

Critical Sections 1. No two processes may be simultaneously inside their critical sections. 2.

Critical Sections 1. No two processes may be simultaneously inside their critical sections. 2. No assumptions may be made about speed or number of CPUs. 3. No process running outside its critical section may block other processes. 4. No process should have to wait forever to enter its critical section. CSC 660: Advanced Operating Systems 6

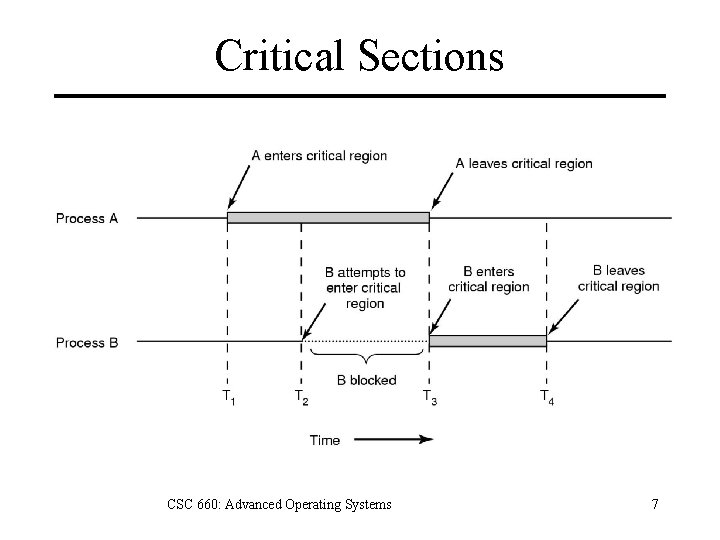

Critical Sections CSC 660: Advanced Operating Systems 7

Critical Sections CSC 660: Advanced Operating Systems 7

Kernel Concurrency 1. 2. 3. 4. 5. Interrupts Softirqs and tasklets Kernel preemption Sleeping

Kernel Concurrency 1. 2. 3. 4. 5. Interrupts Softirqs and tasklets Kernel preemption Sleeping SMP CSC 660: Advanced Operating Systems 8

What needs Protection? • What needs protection? – Global kernel data structures. – Shared

What needs Protection? • What needs protection? – Global kernel data structures. – Shared data between process/interrupt context. – Shared data between interrupt handlers. • What doesn’t? – Data local to executing thread (i. e. , stack. ) – Local variables. – Dynamically allocated data w/ only local ptrs. – Per-CPU data doesn’t need SMP protection. CSC 660: Advanced Operating Systems 9

Why do we need atomicity? Problem: Two processes incrementing i. Uniprocessor Version A: read

Why do we need atomicity? Problem: Two processes incrementing i. Uniprocessor Version A: read i(7) A: incr i(7 -> 8) B: read i(8) B: incr i(8 -> 9) Process A read i(7) incr i(7 -> 8) write i(8) CSC 660: Advanced Operating Systems Process B read i(7) incr i(7 -> 8) write i(8) 10

Atomic Operations Atomic operations are indivisible. Process A atomic_inc i (7 ->8) Process B

Atomic Operations Atomic operations are indivisible. Process A atomic_inc i (7 ->8) Process B atomic_inc i (8 ->9) Provided by atomic_t in the kernel. Operations: atomic_{read, set, add, sub, inc, dec_and_test) x 86 assembly: lock byte preceding opcode makes atomic. CSC 660: Advanced Operating Systems 11

Atomicity doesn’t provide Ordering One atomic order of operations: Process A atomic_inc i (7

Atomicity doesn’t provide Ordering One atomic order of operations: Process A atomic_inc i (7 ->8) Process B atomic_inc i (8 ->9) Another atomic order of operations: Process A Process B atomic_inc i (8 ->9) atomic_inc i (7 ->8) CSC 660: Advanced Operating Systems 12

Barriers provide Ordering • Optimization Barriers – Prevent compiler from re-ordering instructions. – Compiler

Barriers provide Ordering • Optimization Barriers – Prevent compiler from re-ordering instructions. – Compiler doesn’t know when interrupts or other processors may read/write your data. – Kernel provides barrier() macro. • Memory Barriers – Read/write barriers prevent loads/stores from being re-ordered across barrier. – Kernel provides rmb(), wmb() macros. CSC 660: Advanced Operating Systems 13

Spin Locks • If lock “open” – Sets lock bit with atomic test-and-set. –

Spin Locks • If lock “open” – Sets lock bit with atomic test-and-set. – Continues into critical region. • else lock “closed” – Code “spins” in busy wait loop until available. – Kernel-preemption or SMP will interrupt. CSC 660: Advanced Operating Systems 14

Spin Lock Functions spin_lock_init(spinlock_t *lock) Initialize spin lock to 1 (unlocked). spin_lock(spinlock_t *lock) Spin

Spin Lock Functions spin_lock_init(spinlock_t *lock) Initialize spin lock to 1 (unlocked). spin_lock(spinlock_t *lock) Spin until lock becomes 1, then set to 0 (locked). spin_lock_irqsave(spinlock_t *l, u flags) Like spin_lock() but disables and saves interrupts. Always use an IRQ disabling variant in interrupt context. spin_unlock(spinlock_t *lock) Set spin lock to 1 (unlocked). spin_lock_irqrestore(spinlock_t *l, u flags) Like spin_lock(), but restores interrupt status. spin_trylock(spinlock_t *lock) Set lock to 0 if unlocked and return 1; return 0 if locked. CSC 660: Advanced Operating Systems 15

Spin Lock 1. Disables kernel pre-emption. 2. Atomic test-and-sets lock. 3. If old value

Spin Lock 1. Disables kernel pre-emption. 2. Atomic test-and-sets lock. 3. If old value positive Lock acquired. 4. Else Enables pre-emption. If break_lock is 0, sets to 1 to indicate a task is waiting. Busy wait loop while (spin_is_locked(lock)) cpu_relax(); # pause instruction on P 4 Goto 1. CSC 660: Advanced Operating Systems 16

Semaphores Integer value with atomic access. If S>0, semaphore prevents access. Using a semaphore

Semaphores Integer value with atomic access. If S>0, semaphore prevents access. Using a semaphore for mutual exclusion: down(S); /* critical section */ up(S); CSC 660: Advanced Operating Systems 17

Semaphores Down (P): Request to enter critical region. If S > 0, decrements S,

Semaphores Down (P): Request to enter critical region. If S > 0, decrements S, enters region. Else process sleeps until semaphore is released. Up (V): Request to exit critical region. Increments S. If S > 0, wakes sleeping processes. CSC 660: Advanced Operating Systems 18

Linux Semaphores DECLARE_MUTEX(sem); Static declares a mutex semaphore. void init_MUTEX(struct semaphore *sem); Dynamic declaration

Linux Semaphores DECLARE_MUTEX(sem); Static declares a mutex semaphore. void init_MUTEX(struct semaphore *sem); Dynamic declaration of a mutex semaphore. void down(struct semaphore *sem); Decrements semaphore and sleeps. int down_interruptible(struct semaphore *sem); Same as down() but returns on user interrupt. int down_trylock(struct semaphore *sem); Same as down() but returns immediately if not available. void up(struct semaphore *sem); Releases semaphore. CSC 660: Advanced Operating Systems 19

Linux Semaphores #include <asm/semaphore. h> struct semaphore sem; init_MUTEX(&sem); if (down_interruptible(&sem)) return –ERESTARTSYS; /*

Linux Semaphores #include <asm/semaphore. h> struct semaphore sem; init_MUTEX(&sem); if (down_interruptible(&sem)) return –ERESTARTSYS; /* user interrupt */ /* * critical section */ up(&sem); CSC 660: Advanced Operating Systems 20

Tradeoffs Spin Locks Busy waits waste CPU cycles. Semaphores Context switch on sleep is

Tradeoffs Spin Locks Busy waits waste CPU cycles. Semaphores Context switch on sleep is expensive. CSC 660: Advanced Operating Systems 21

Deadlocks Single process deadlock: A: spin_lock(A) Two process deadlock: Process A Process B down(A)

Deadlocks Single process deadlock: A: spin_lock(A) Two process deadlock: Process A Process B down(A) down(B) down(A) CSC 660: Advanced Operating Systems 22

Deadlock Prevention Lock Ordering If you acquire multiple locks, you must always acquire them

Deadlock Prevention Lock Ordering If you acquire multiple locks, you must always acquire them in the same order. Don’t double acquire a lock. Always use interrupt-disabling variants of spin_lock() in interrupt context. Always release locks. Be sure that your code will always make appropriate calls to release locks. CSC 660: Advanced Operating Systems 23

Key Points • Synchronization is essential for accessing shared kernel data structures. • Kernel

Key Points • Synchronization is essential for accessing shared kernel data structures. • Kernel provides two major types: – Spin Locks – Semaphores – and many variants. • System performance depends strongly on the type of synchronization used. • Synchronization must be used carefully and consistently to avoid deadlocks. CSC 660: Advanced Operating Systems 24

References 1. 2. 3. 4. 5. 6. Daniel P. Bovet and Marco Cesati, Understanding

References 1. 2. 3. 4. 5. 6. Daniel P. Bovet and Marco Cesati, Understanding the Linux Kernel, 3 rd edition, O’Reilly, 2005. Johnathan Corbet et. al. , Linux Device Drivers, 3 rd edition, O’Reilly, 2005. Robert Love, Linux Kernel Development, 2 nd edition, Prentice-Hall, 2005. Claudia Rodriguez et al, The Linux Kernel Primer, Prentice-Hall, 2005. Peter Salzman et. al. , Linux Kernel Module Programming Guide, version 2. 6. 1, 2005. Andrew S. Tanenbaum, Modern Operating Systems, 3 rd edition, Prentice-Hall, 2005. CSC 660: Advanced Operating Systems 25
