CSC 453 Database Systems Lecture Tanu Malik College

CSC 453 Database Systems Lecture Tanu Malik College of CDM De. Paul University

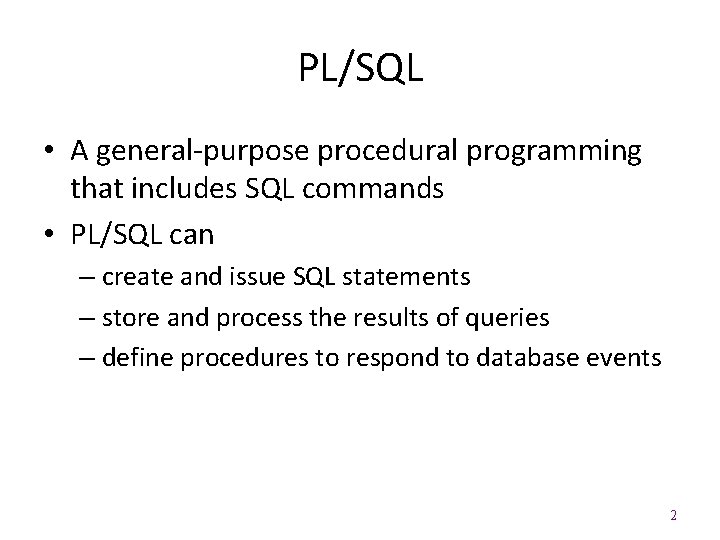

PL/SQL • A general-purpose procedural programming that includes SQL commands • PL/SQL can – create and issue SQL statements – store and process the results of queries – define procedures to respond to database events 2

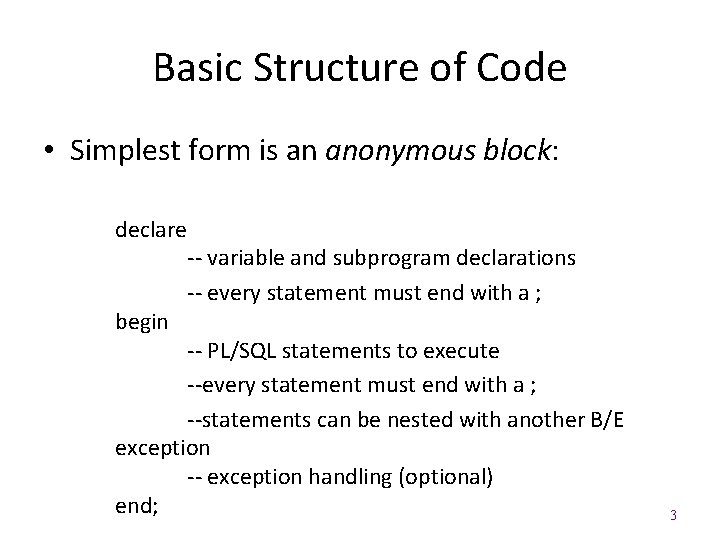

Basic Structure of Code • Simplest form is an anonymous block: declare begin -- variable and subprogram declarations -- every statement must end with a ; -- PL/SQL statements to execute --every statement must end with a ; --statements can be nested with another B/E exception -- exception handling (optional) end; 3

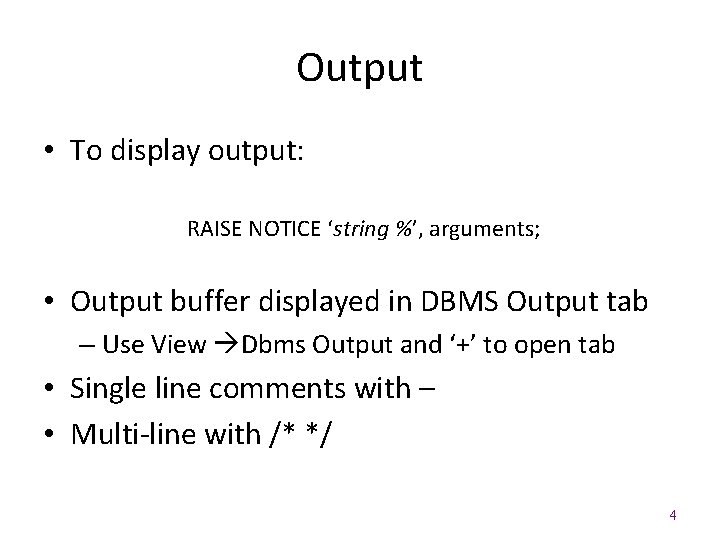

Output • To display output: RAISE NOTICE ‘string %’, arguments; • Output buffer displayed in DBMS Output tab – Use View Dbms Output and ‘+’ to open tab • Single line comments with – • Multi-line with /* */ 4

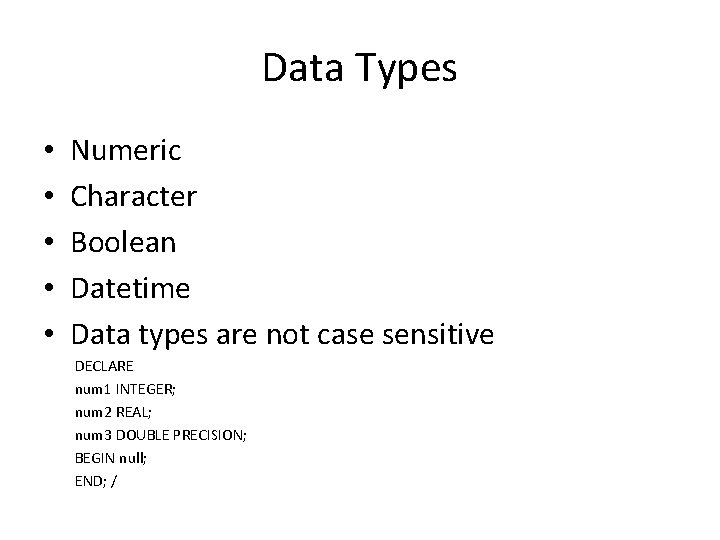

Data Types • • • Numeric Character Boolean Datetime Data types are not case sensitive DECLARE num 1 INTEGER; num 2 REAL; num 3 DOUBLE PRECISION; BEGIN null; END; /

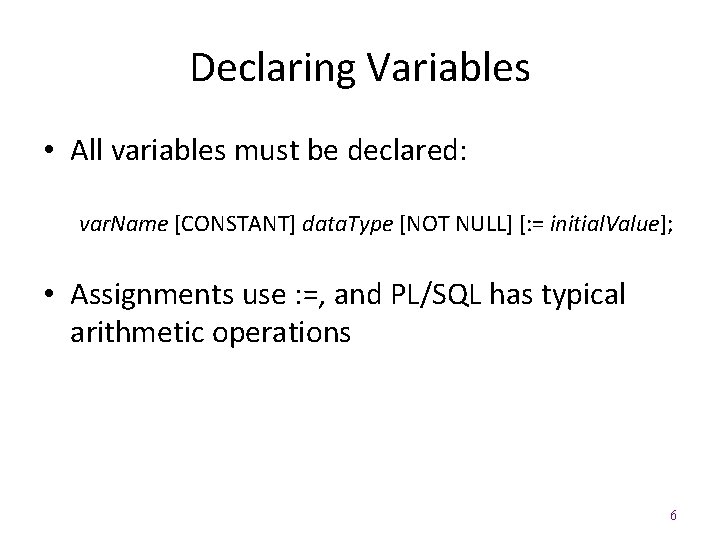

Declaring Variables • All variables must be declared: var. Name [CONSTANT] data. Type [NOT NULL] [: = initial. Value]; • Assignments use : =, and PL/SQL has typical arithmetic operations 6

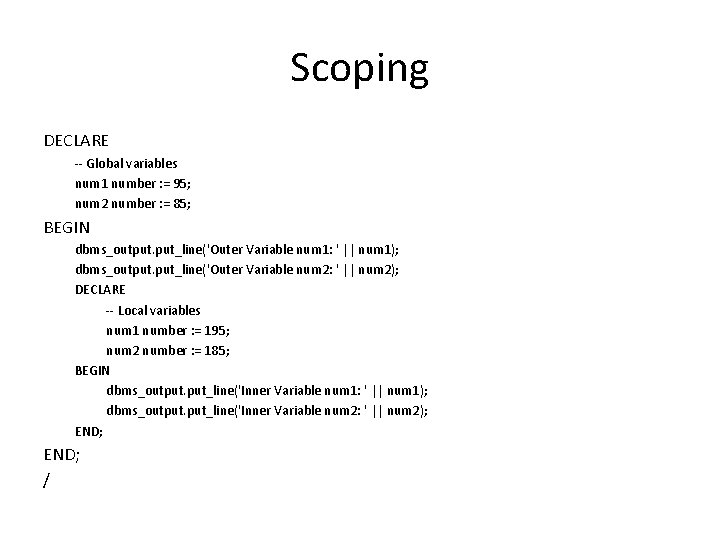

Scoping DECLARE -- Global variables num 1 number : = 95; num 2 number : = 85; BEGIN dbms_output. put_line('Outer Variable num 1: ' || num 1); dbms_output. put_line('Outer Variable num 2: ' || num 2); DECLARE -- Local variables num 1 number : = 195; num 2 number : = 185; BEGIN dbms_output. put_line('Inner Variable num 1: ' || num 1); dbms_output. put_line('Inner Variable num 2: ' || num 2); END; /

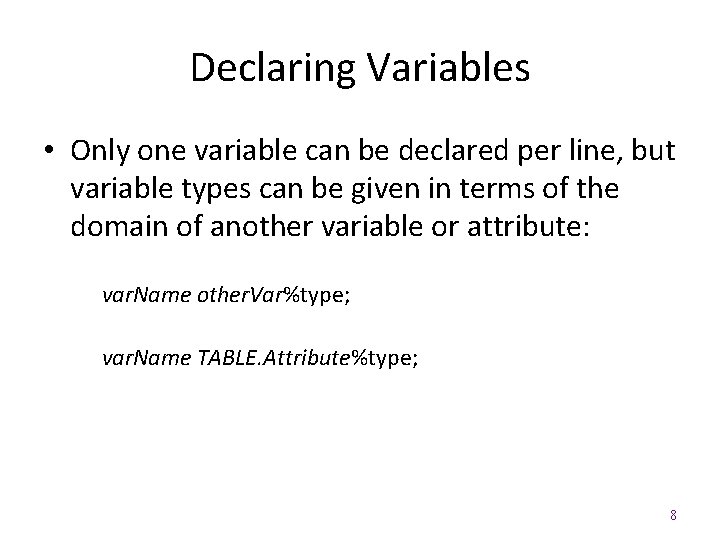

Declaring Variables • Only one variable can be declared per line, but variable types can be given in terms of the domain of another variable or attribute: var. Name other. Var%type; var. Name TABLE. Attribute%type; 8

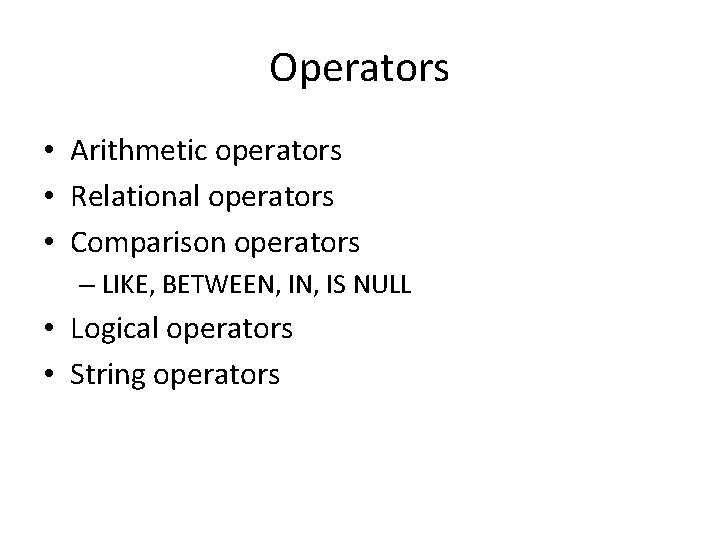

Operators • Arithmetic operators • Relational operators • Comparison operators – LIKE, BETWEEN, IS NULL • Logical operators • String operators

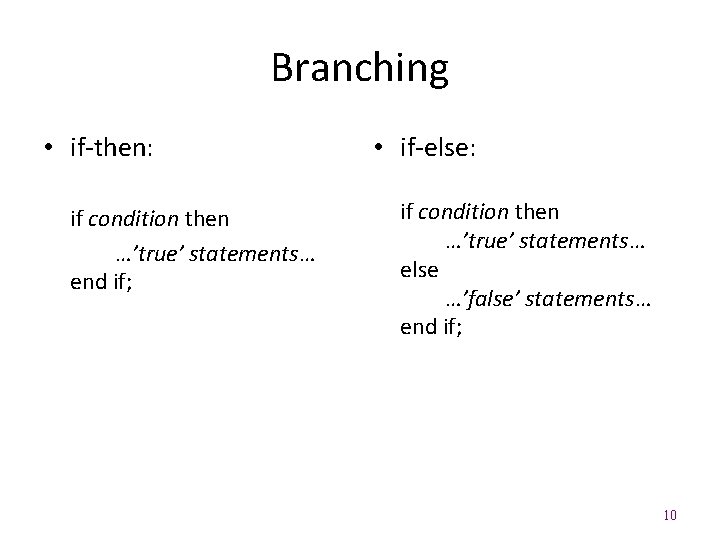

Branching • if-then: if condition then …’true’ statements… end if; • if-else: if condition then …’true’ statements… else …’false’ statements… end if; 10

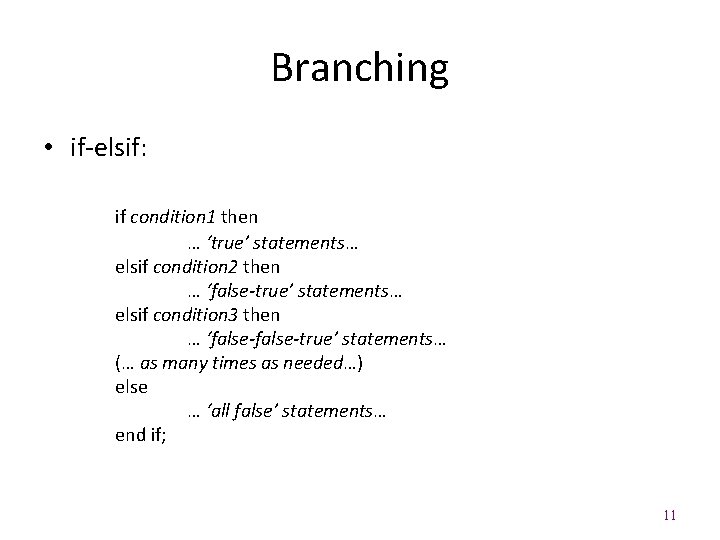

Branching • if-elsif: if condition 1 then … ‘true’ statements… elsif condition 2 then … ‘false-true’ statements… elsif condition 3 then … ‘false-true’ statements… (… as many times as needed…) else … ‘all false’ statements… end if; 11

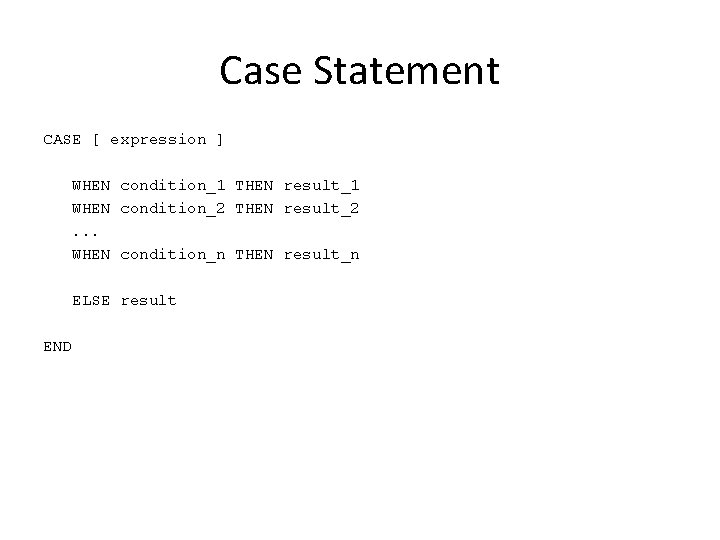

Case Statement CASE [ expression ] WHEN condition_1 THEN result_1 WHEN condition_2 THEN result_2. . . WHEN condition_n THEN result_n ELSE result END

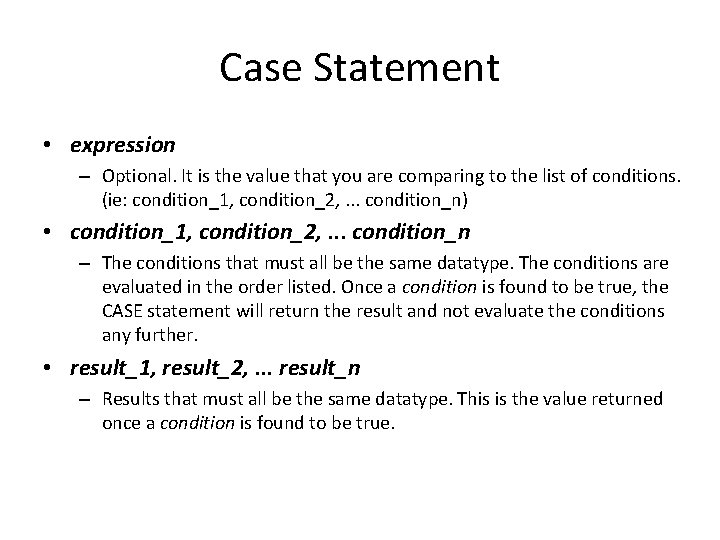

Case Statement • expression – Optional. It is the value that you are comparing to the list of conditions. (ie: condition_1, condition_2, . . . condition_n) • condition_1, condition_2, . . . condition_n – The conditions that must all be the same datatype. The conditions are evaluated in the order listed. Once a condition is found to be true, the CASE statement will return the result and not evaluate the conditions any further. • result_1, result_2, . . . result_n – Results that must all be the same datatype. This is the value returned once a condition is found to be true.

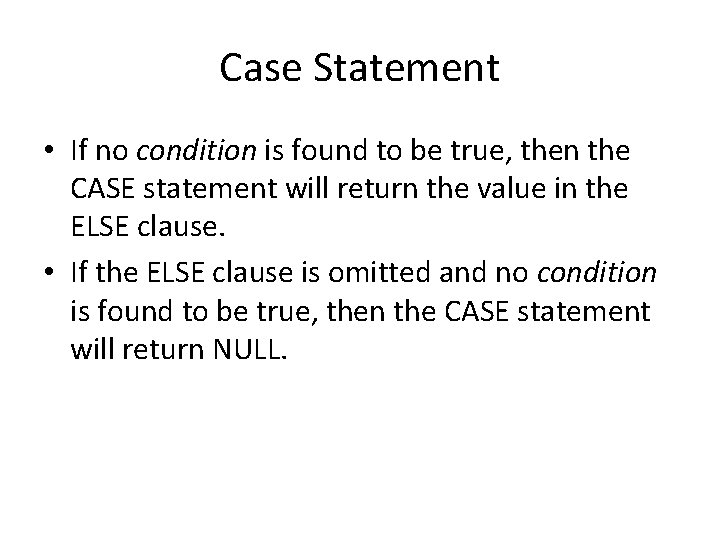

Case Statement • If no condition is found to be true, then the CASE statement will return the value in the ELSE clause. • If the ELSE clause is omitted and no condition is found to be true, then the CASE statement will return NULL.

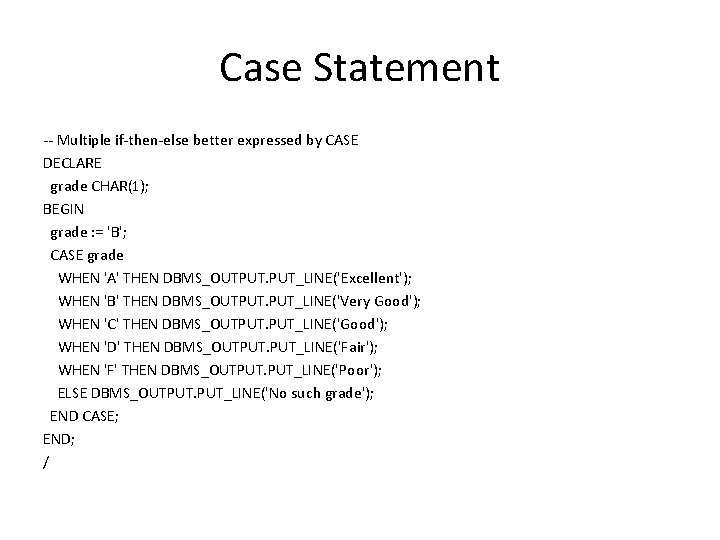

Case Statement -- Multiple if-then-else better expressed by CASE DECLARE grade CHAR(1); BEGIN grade : = 'B'; CASE grade WHEN 'A' THEN DBMS_OUTPUT. PUT_LINE('Excellent'); WHEN 'B' THEN DBMS_OUTPUT. PUT_LINE('Very Good'); WHEN 'C' THEN DBMS_OUTPUT. PUT_LINE('Good'); WHEN 'D' THEN DBMS_OUTPUT. PUT_LINE('Fair'); WHEN 'F' THEN DBMS_OUTPUT. PUT_LINE('Poor'); ELSE DBMS_OUTPUT. PUT_LINE('No such grade'); END CASE; END; /

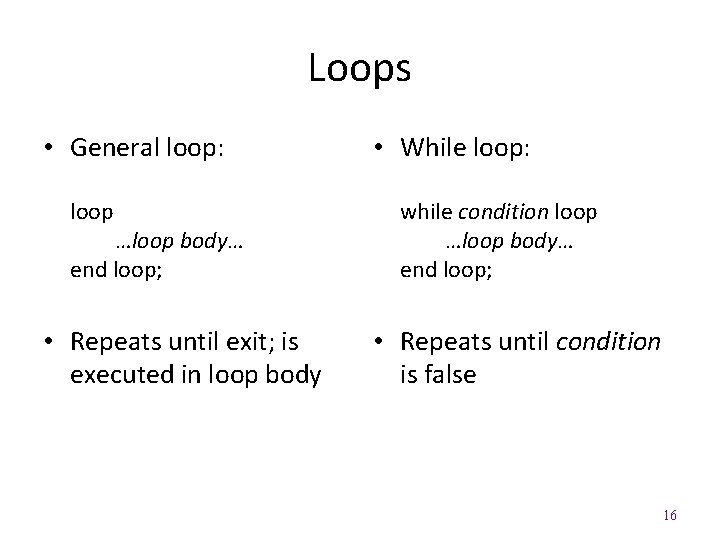

Loops • General loop: loop …loop body… end loop; • Repeats until exit; is executed in loop body • While loop: while condition loop …loop body… end loop; • Repeats until condition is false 16

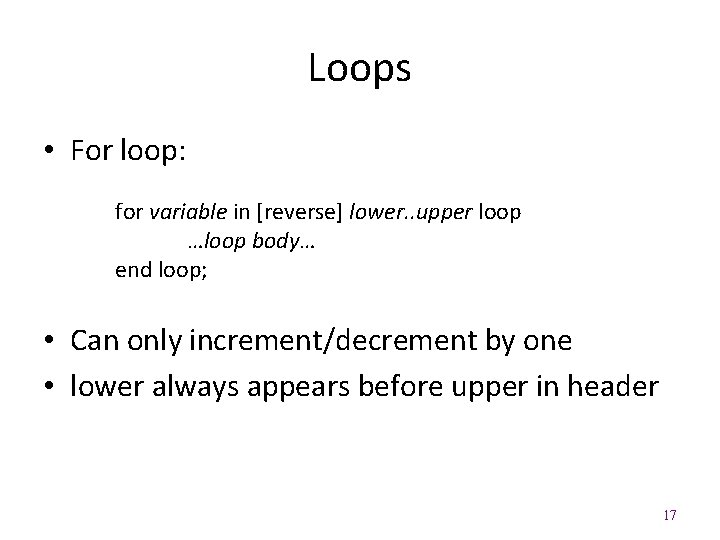

Loops • For loop: for variable in [reverse] lower. . upper loop …loop body… end loop; • Can only increment/decrement by one • lower always appears before upper in header 17

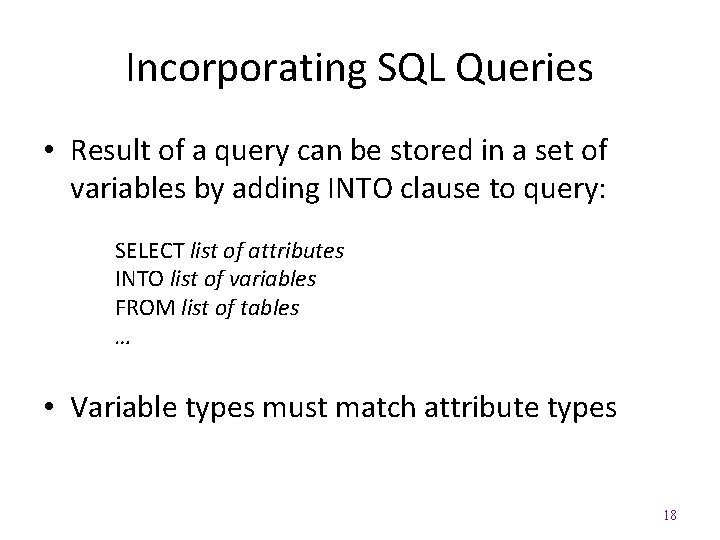

Incorporating SQL Queries • Result of a query can be stored in a set of variables by adding INTO clause to query: SELECT list of attributes INTO list of variables FROM list of tables … • Variable types must match attribute types 18

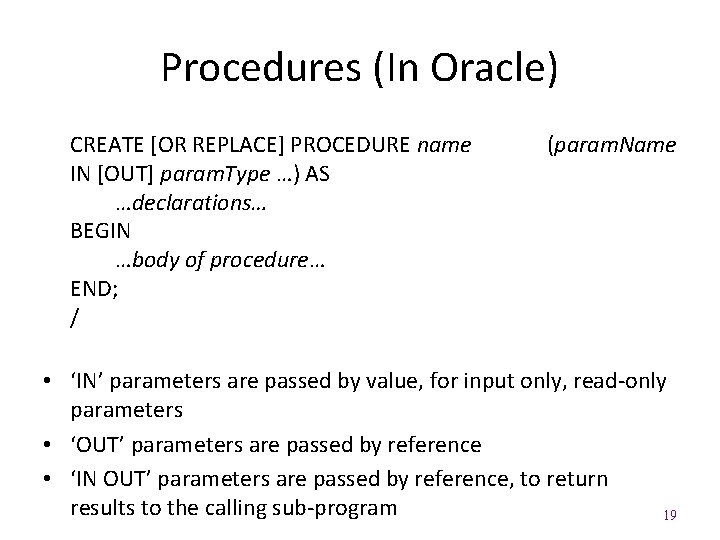

Procedures (In Oracle) CREATE [OR REPLACE] PROCEDURE name IN [OUT] param. Type …) AS …declarations… BEGIN …body of procedure… END; / (param. Name • ‘IN’ parameters are passed by value, for input only, read-only parameters • ‘OUT’ parameters are passed by reference • ‘IN OUT’ parameters are passed by reference, to return results to the calling sub-program 19

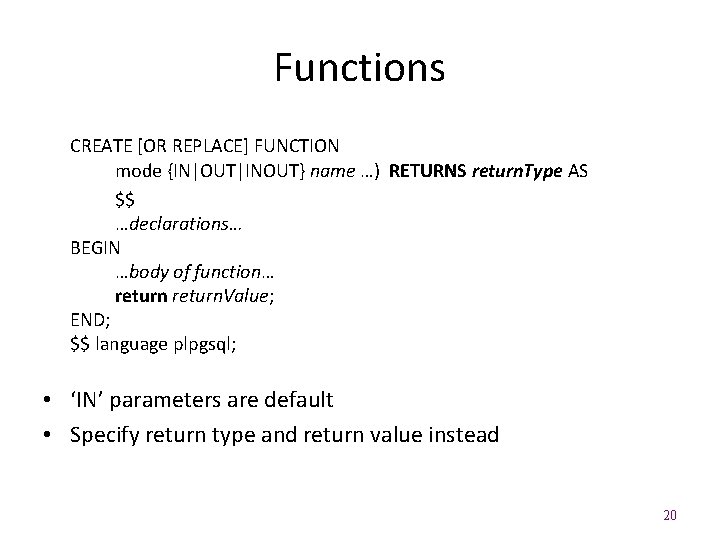

Functions CREATE [OR REPLACE] FUNCTION mode {IN|OUT|INOUT} name …) RETURNS return. Type AS $$ …declarations… BEGIN …body of function… return. Value; END; $$ language plpgsql; • ‘IN’ parameters are default • Specify return type and return value instead 20

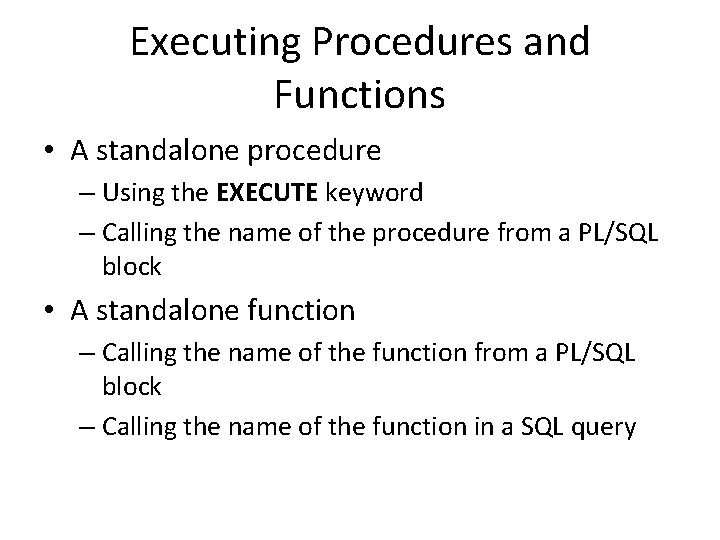

Executing Procedures and Functions • A standalone procedure – Using the EXECUTE keyword – Calling the name of the procedure from a PL/SQL block • A standalone function – Calling the name of the function from a PL/SQL block – Calling the name of the function in a SQL query

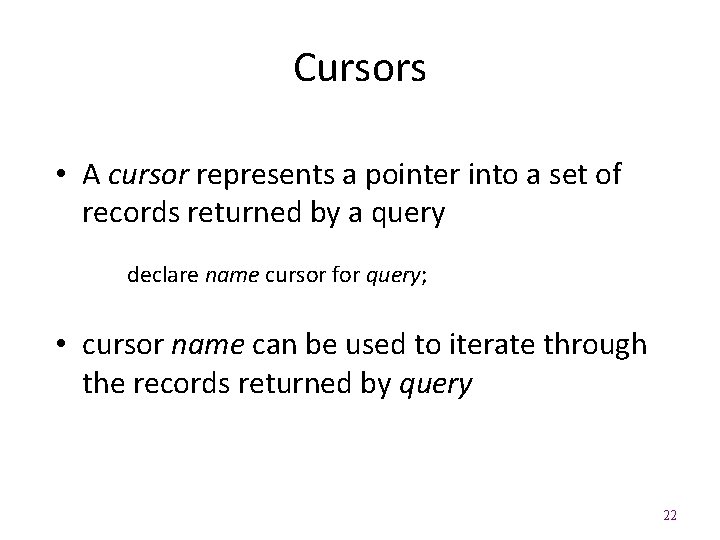

Cursors • A cursor represents a pointer into a set of records returned by a query declare name cursor for query; • cursor name can be used to iterate through the records returned by query 22

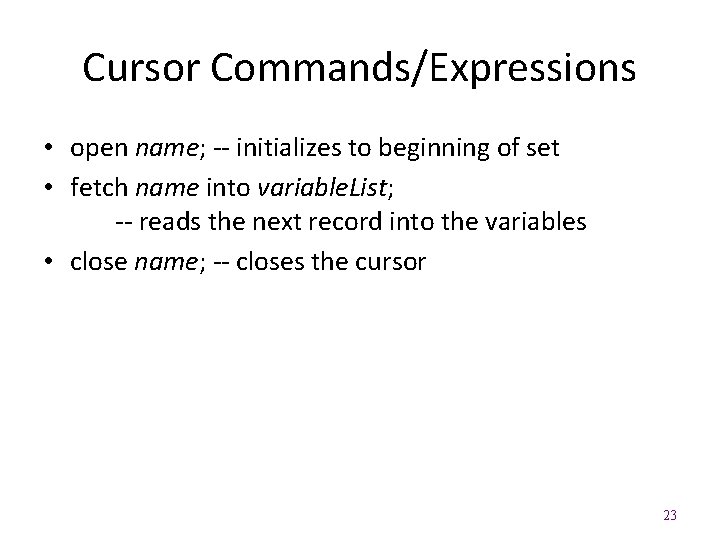

Cursor Commands/Expressions • open name; -- initializes to beginning of set • fetch name into variable. List; -- reads the next record into the variables • close name; -- closes the cursor 23

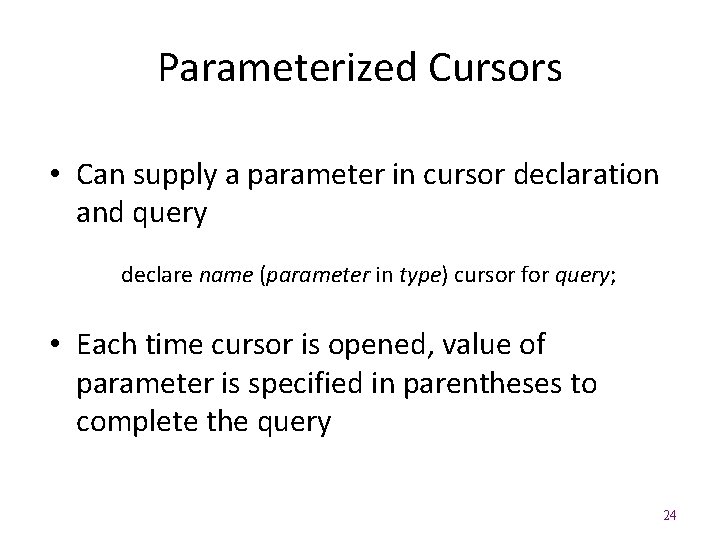

Parameterized Cursors • Can supply a parameter in cursor declaration and query declare name (parameter in type) cursor for query; • Each time cursor is opened, value of parameter is specified in parentheses to complete the query 24

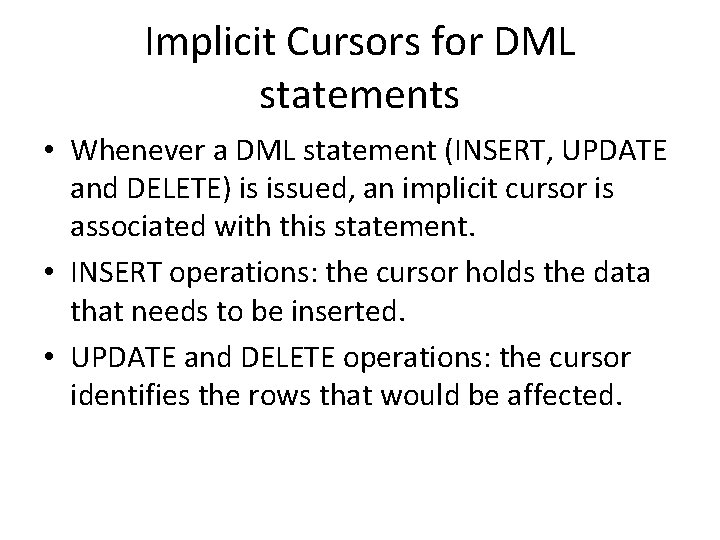

Implicit Cursors for DML statements • Whenever a DML statement (INSERT, UPDATE and DELETE) is issued, an implicit cursor is associated with this statement. • INSERT operations: the cursor holds the data that needs to be inserted. • UPDATE and DELETE operations: the cursor identifies the rows that would be affected.

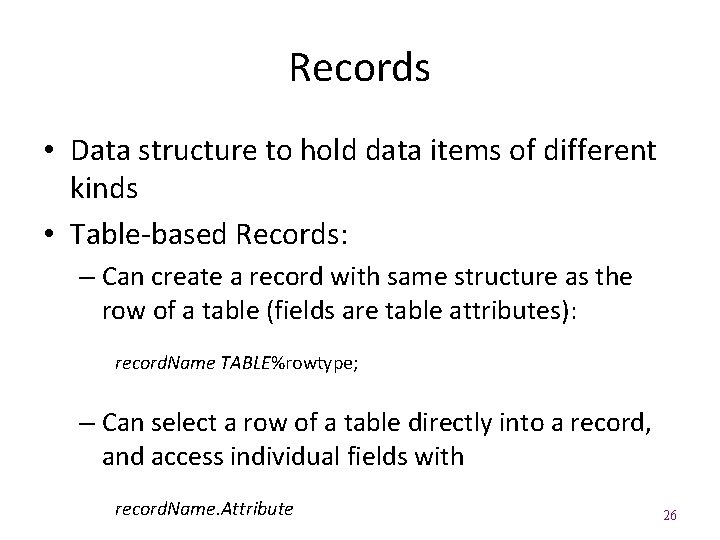

Records • Data structure to hold data items of different kinds • Table-based Records: – Can create a record with same structure as the row of a table (fields are table attributes): record. Name TABLE%rowtype; – Can select a row of a table directly into a record, and access individual fields with record. Name. Attribute 26

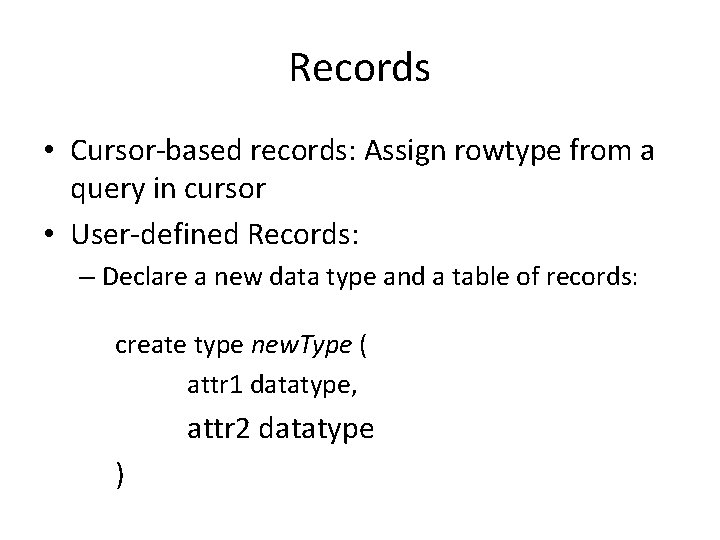

Records • Cursor-based records: Assign rowtype from a query in cursor • User-defined Records: – Declare a new data type and a table of records: create type new. Type ( attr 1 datatype, attr 2 datatype )

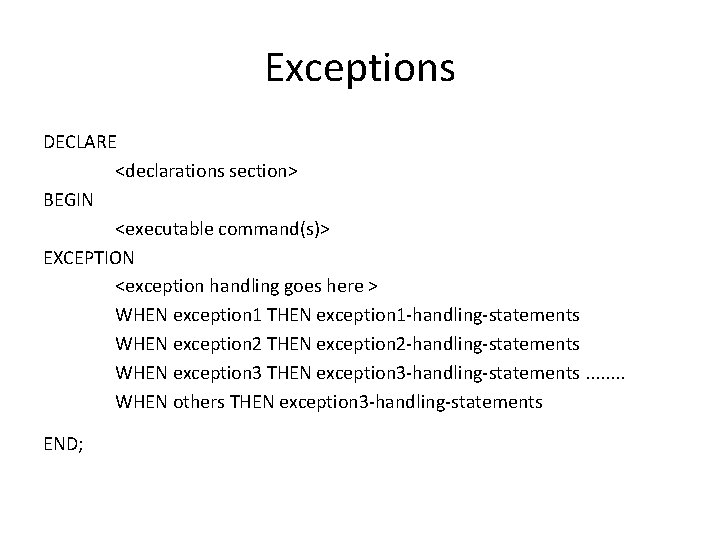

Exceptions DECLARE <declarations section> BEGIN <executable command(s)> EXCEPTION <exception handling goes here > WHEN exception 1 THEN exception 1 -handling-statements WHEN exception 2 THEN exception 2 -handling-statements WHEN exception 3 THEN exception 3 -handling-statements. . . . WHEN others THEN exception 3 -handling-statements END;

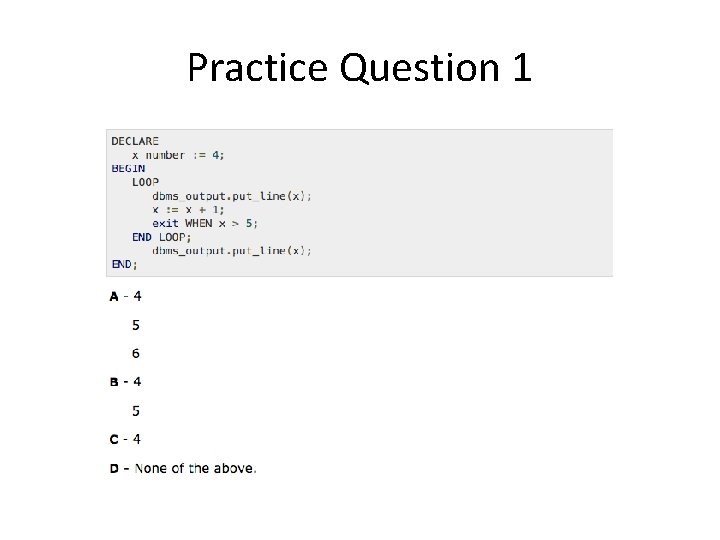

Practice Question 1

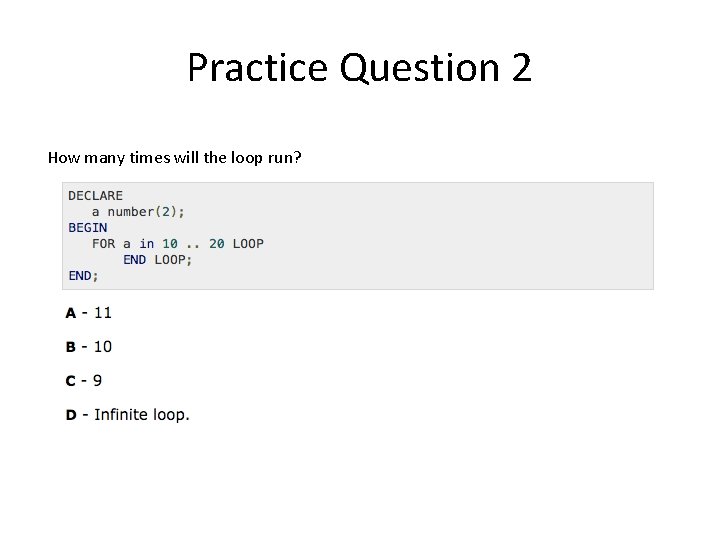

Practice Question 2 How many times will the loop run?

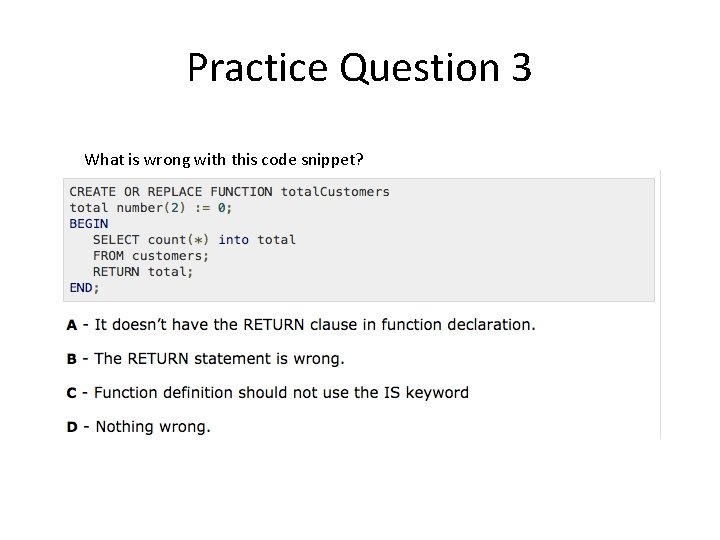

Practice Question 3 What is wrong with this code snippet?

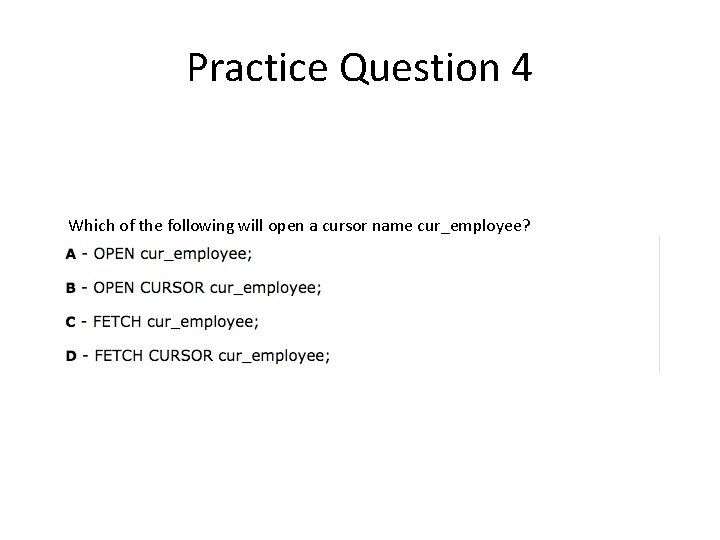

Practice Question 4 Which of the following will open a cursor name cur_employee?

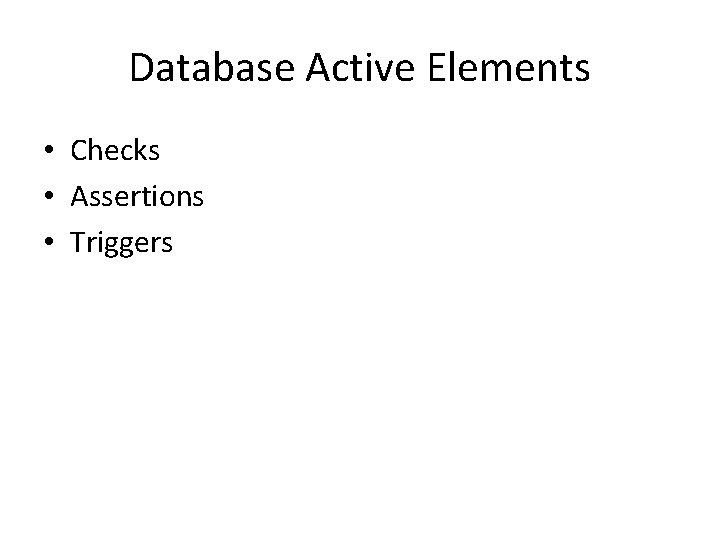

Database Active Elements • Checks • Assertions • Triggers

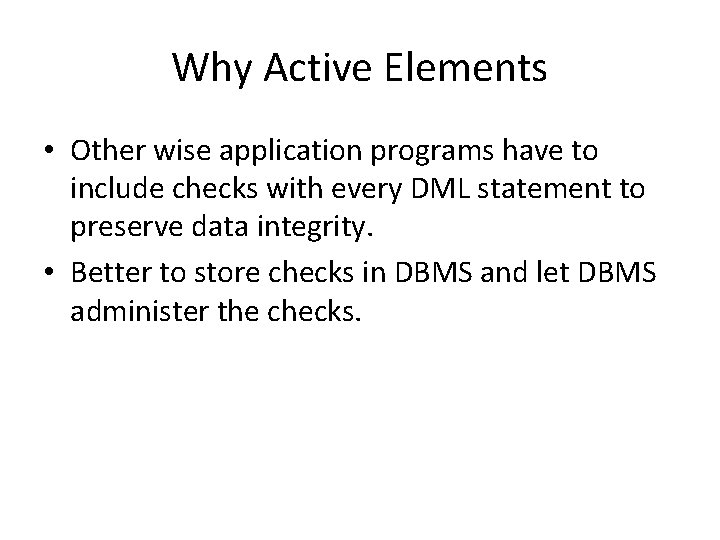

Why Active Elements • Other wise application programs have to include checks with every DML statement to preserve data integrity. • Better to store checks in DBMS and let DBMS administer the checks.

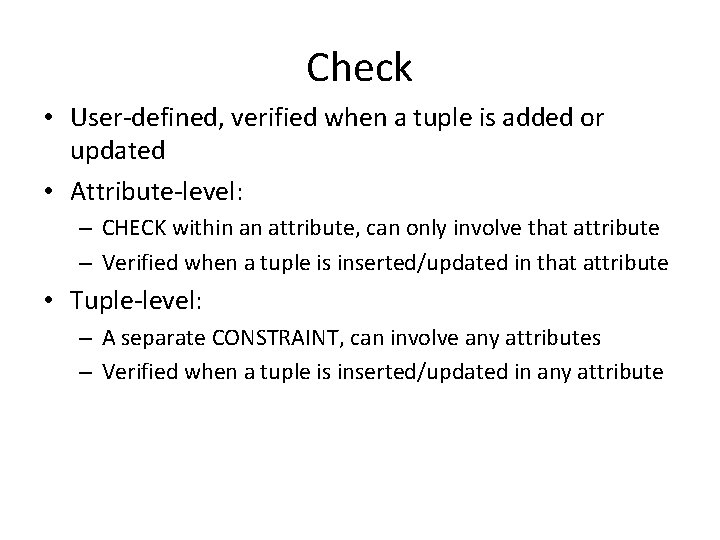

Check • User-defined, verified when a tuple is added or updated • Attribute-level: – CHECK within an attribute, can only involve that attribute – Verified when a tuple is inserted/updated in that attribute • Tuple-level: – A separate CONSTRAINT, can involve any attributes – Verified when a tuple is inserted/updated in any attribute

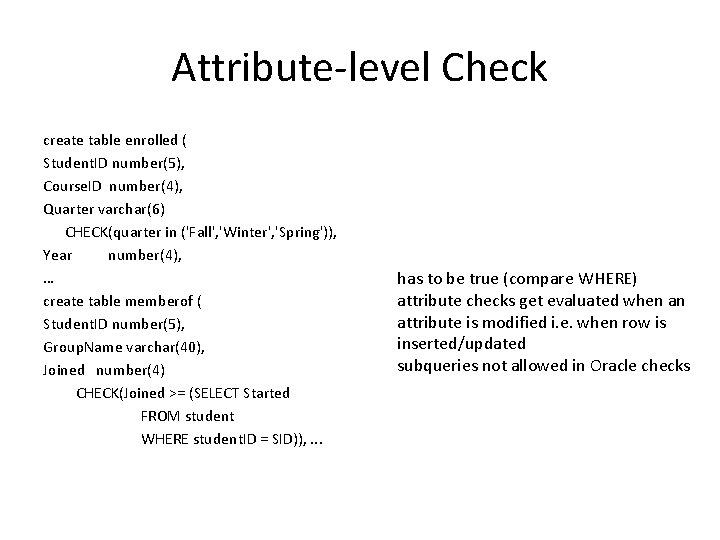

Attribute-level Check create table enrolled ( Student. ID number(5), Course. ID number(4), Quarter varchar(6) CHECK(quarter in ('Fall', 'Winter', 'Spring')), Year number(4), … create table memberof ( Student. ID number(5), Group. Name varchar(40), Joined number(4) CHECK(Joined >= (SELECT Started FROM student WHERE student. ID = SID)), . . . has to be true (compare WHERE) attribute checks get evaluated when an attribute is modified i. e. when row is inserted/updated subqueries not allowed in Oracle checks

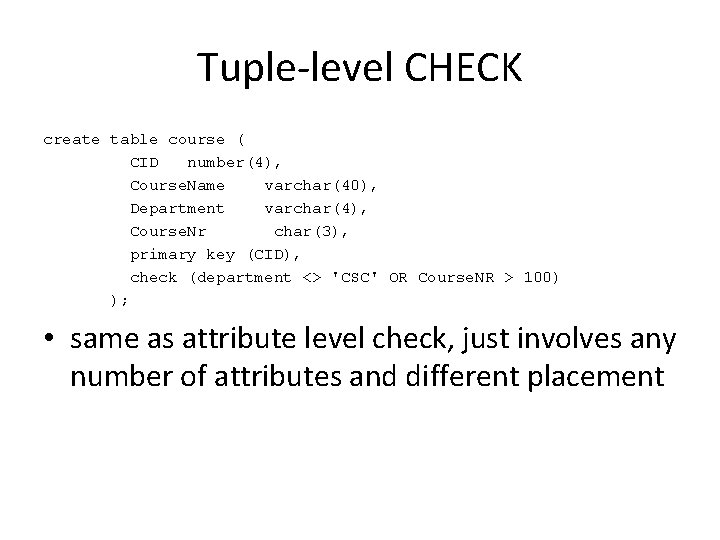

Tuple-level CHECK create table course ( CID number(4), Course. Name varchar(40), Department varchar(4), Course. Nr char(3), primary key (CID), check (department <> 'CSC' OR Course. NR > 100) ); • same as attribute level check, just involves any number of attributes and different placement

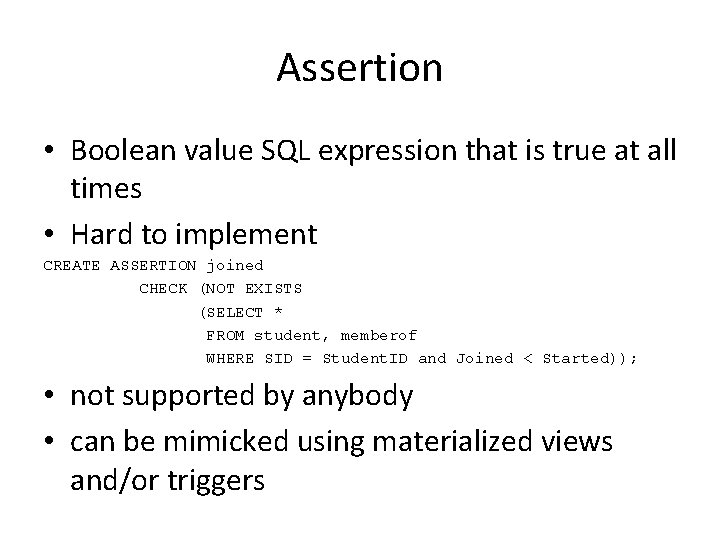

Assertion • Boolean value SQL expression that is true at all times • Hard to implement CREATE ASSERTION joined CHECK (NOT EXISTS (SELECT * FROM student, memberof WHERE SID = Student. ID and Joined < Started)); • not supported by anybody • can be mimicked using materialized views and/or triggers

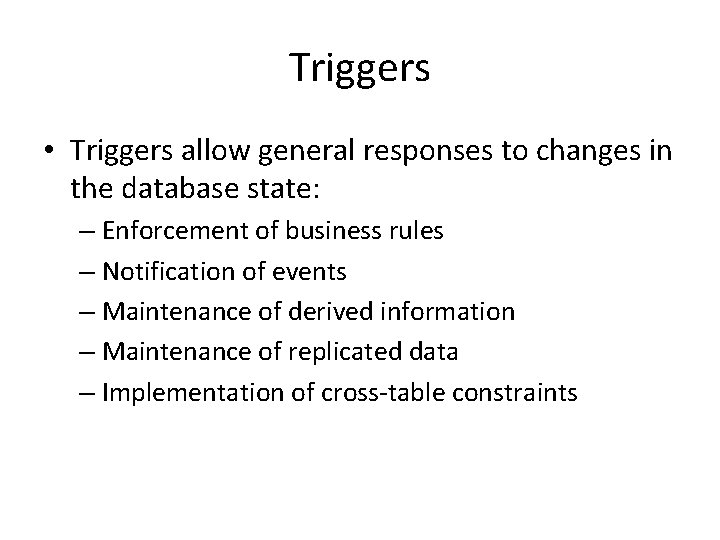

Triggers • Triggers allow general responses to changes in the database state: – Enforcement of business rules – Notification of events – Maintenance of derived information – Maintenance of replicated data – Implementation of cross-table constraints

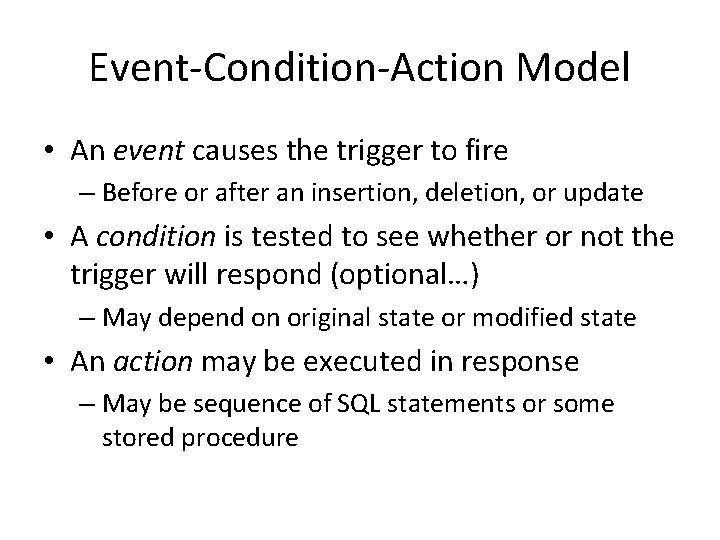

Event-Condition-Action Model • An event causes the trigger to fire – Before or after an insertion, deletion, or update • A condition is tested to see whether or not the trigger will respond (optional…) – May depend on original state or modified state • An action may be executed in response – May be sequence of SQL statements or some stored procedure

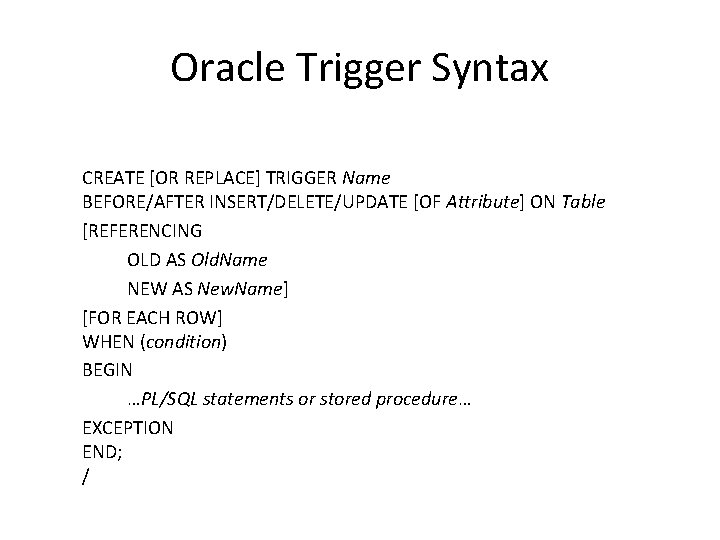

Oracle Trigger Syntax CREATE [OR REPLACE] TRIGGER Name BEFORE/AFTER INSERT/DELETE/UPDATE [OF Attribute] ON Table [REFERENCING OLD AS Old. Name NEW AS New. Name] [FOR EACH ROW] WHEN (condition) BEGIN …PL/SQL statements or stored procedure… EXCEPTION END; /

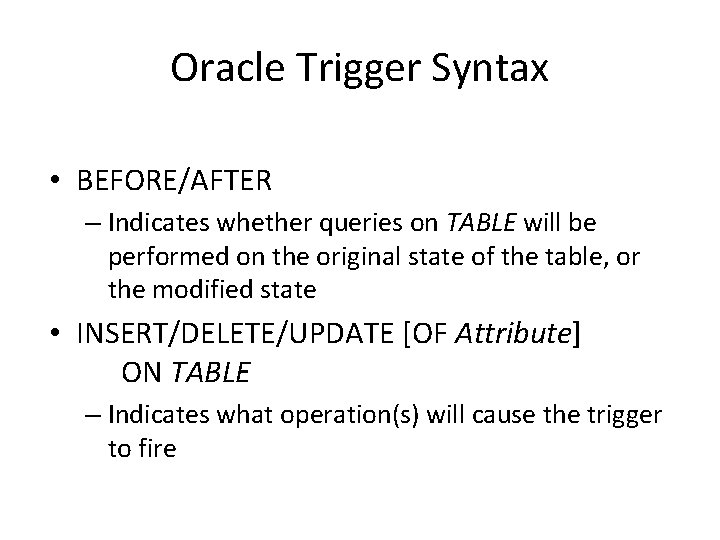

Oracle Trigger Syntax • BEFORE/AFTER – Indicates whether queries on TABLE will be performed on the original state of the table, or the modified state • INSERT/DELETE/UPDATE [OF Attribute] ON TABLE – Indicates what operation(s) will cause the trigger to fire

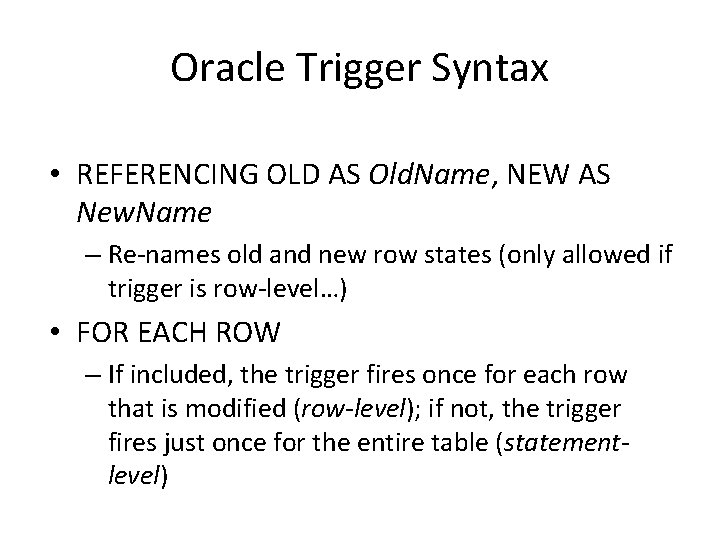

Oracle Trigger Syntax • REFERENCING OLD AS Old. Name, NEW AS New. Name – Re-names old and new row states (only allowed if trigger is row-level…) • FOR EACH ROW – If included, the trigger fires once for each row that is modified (row-level); if not, the trigger fires just once for the entire table (statementlevel)

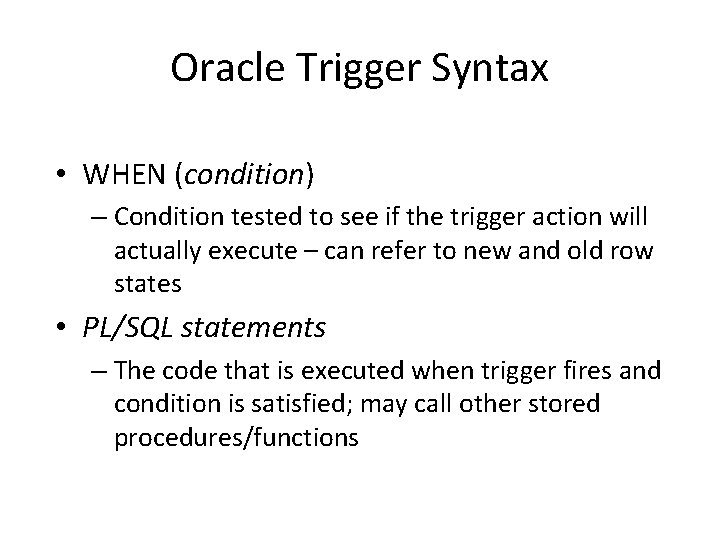

Oracle Trigger Syntax • WHEN (condition) – Condition tested to see if the trigger action will actually execute – can refer to new and old row states • PL/SQL statements – The code that is executed when trigger fires and condition is satisfied; may call other stored procedures/functions

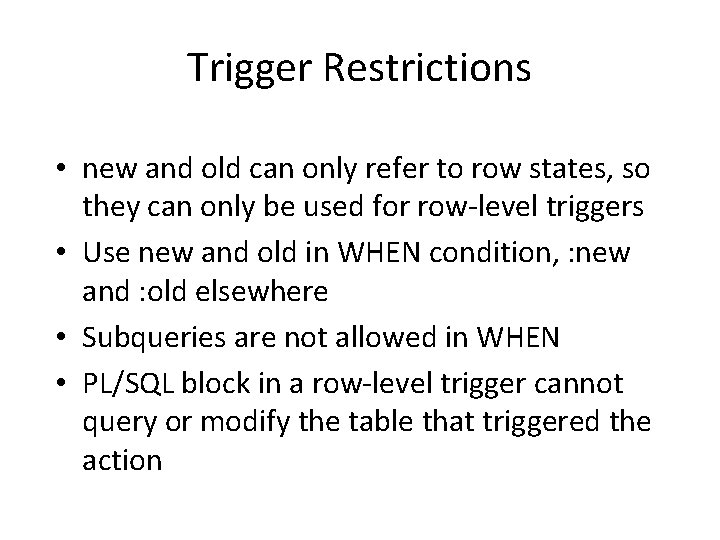

Trigger Restrictions • new and old can only refer to row states, so they can only be used for row-level triggers • Use new and old in WHEN condition, : new and : old elsewhere • Subqueries are not allowed in WHEN • PL/SQL block in a row-level trigger cannot query or modify the table that triggered the action

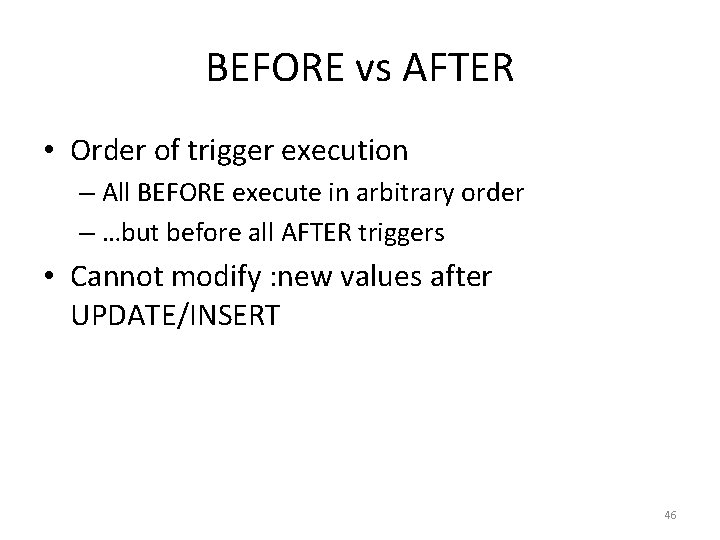

BEFORE vs AFTER • Order of trigger execution – All BEFORE execute in arbitrary order – …but before all AFTER triggers • Cannot modify : new values after UPDATE/INSERT 46

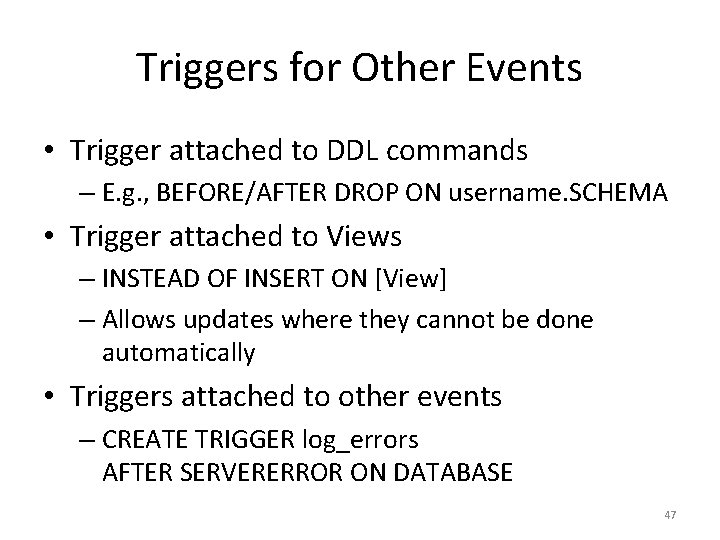

Triggers for Other Events • Trigger attached to DDL commands – E. g. , BEFORE/AFTER DROP ON username. SCHEMA • Trigger attached to Views – INSTEAD OF INSERT ON [View] – Allows updates where they cannot be done automatically • Triggers attached to other events – CREATE TRIGGER log_errors AFTER SERVERERROR ON DATABASE 47

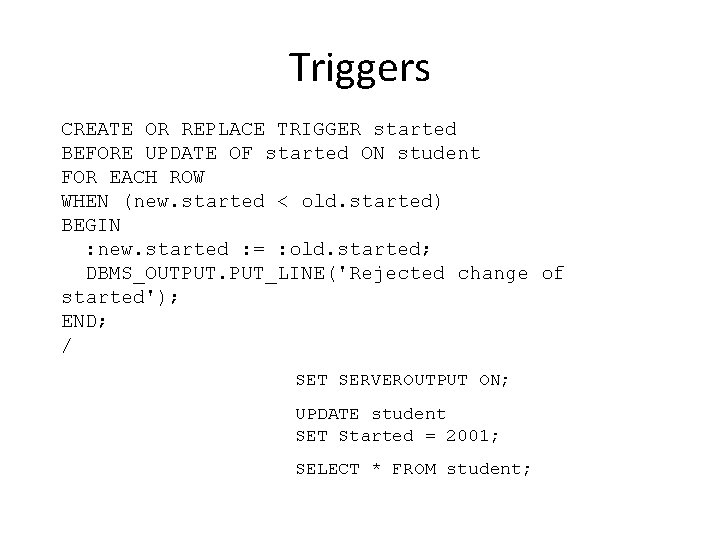

Triggers CREATE OR REPLACE TRIGGER started BEFORE UPDATE OF started ON student FOR EACH ROW WHEN (new. started < old. started) BEGIN : new. started : = : old. started; DBMS_OUTPUT. PUT_LINE('Rejected change of started'); END; / SET SERVEROUTPUT ON; UPDATE student SET Started = 2001; SELECT * FROM student;

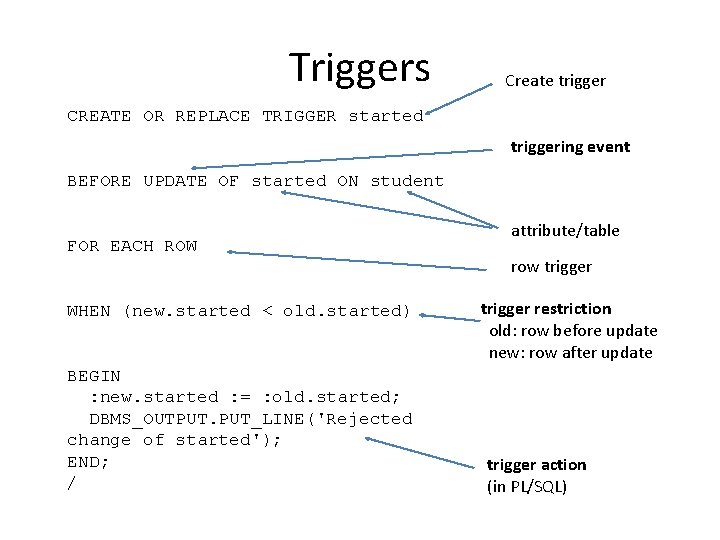

Triggers Create trigger CREATE OR REPLACE TRIGGER started triggering event BEFORE UPDATE OF started ON student FOR EACH ROW WHEN (new. started < old. started) BEGIN : new. started : = : old. started; DBMS_OUTPUT. PUT_LINE('Rejected change of started'); END; / attribute/table row trigger restriction old: row before update new: row after update trigger action (in PL/SQL)

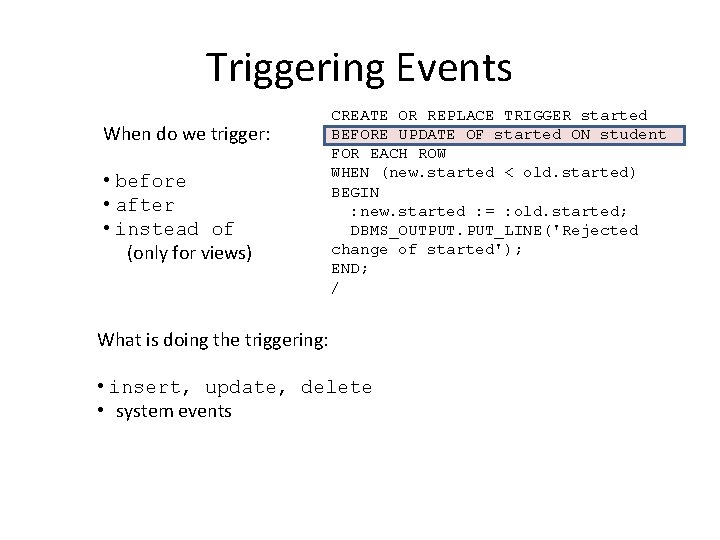

Triggering Events When do we trigger: • before • after • instead of (only for views) CREATE OR REPLACE TRIGGER started BEFORE UPDATE OF started ON student FOR EACH ROW WHEN (new. started < old. started) BEGIN : new. started : = : old. started; DBMS_OUTPUT. PUT_LINE('Rejected change of started'); END; / What is doing the triggering: • insert, update, delete • system events

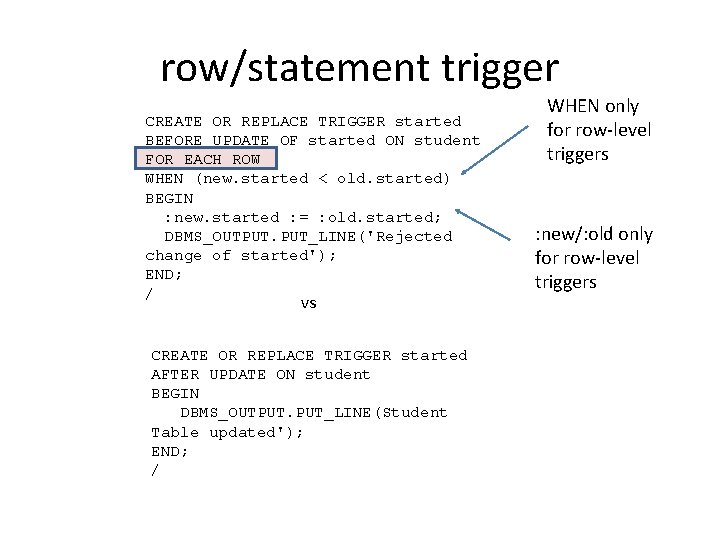

row/statement trigger CREATE OR REPLACE TRIGGER started BEFORE UPDATE OF started ON student FOR EACH ROW WHEN (new. started < old. started) BEGIN : new. started : = : old. started; DBMS_OUTPUT. PUT_LINE('Rejected change of started'); END; / vs CREATE OR REPLACE TRIGGER started AFTER UPDATE ON student BEGIN DBMS_OUTPUT. PUT_LINE(Student Table updated'); END; / WHEN only for row-level triggers : new/: old only for row-level triggers

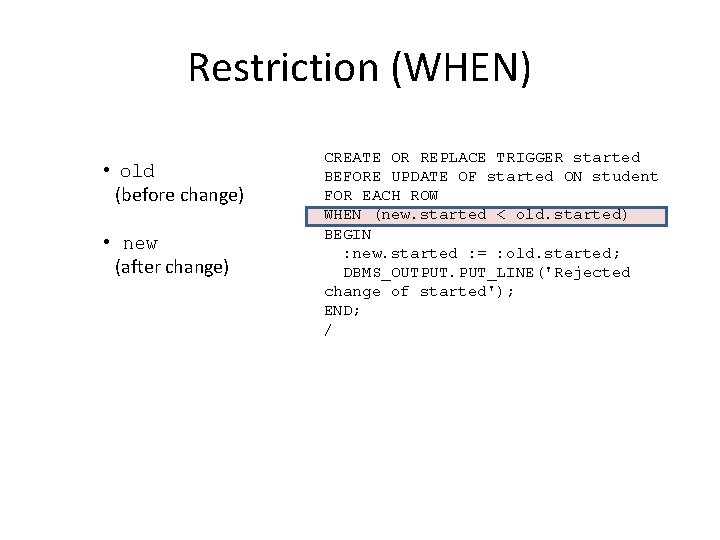

Restriction (WHEN) • old (before change) • new (after change) CREATE OR REPLACE TRIGGER started BEFORE UPDATE OF started ON student FOR EACH ROW WHEN (new. started < old. started) BEGIN : new. started : = : old. started; DBMS_OUTPUT. PUT_LINE('Rejected change of started'); END; /

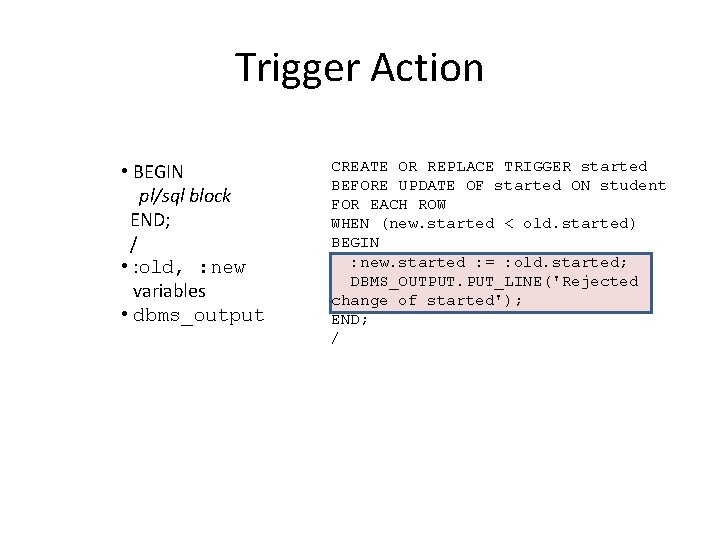

Trigger Action • BEGIN pl/sql block END; / • : old, : new variables • dbms_output CREATE OR REPLACE TRIGGER started BEFORE UPDATE OF started ON student FOR EACH ROW WHEN (new. started < old. started) BEGIN : new. started : = : old. started; DBMS_OUTPUT. PUT_LINE('Rejected change of started'); END; /

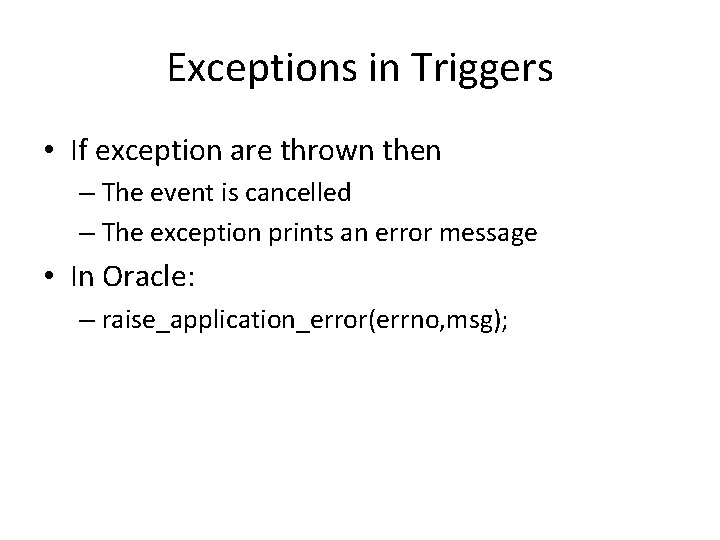

Exceptions in Triggers • If exception are thrown then – The event is cancelled – The exception prints an error message • In Oracle: – raise_application_error(errno, msg);

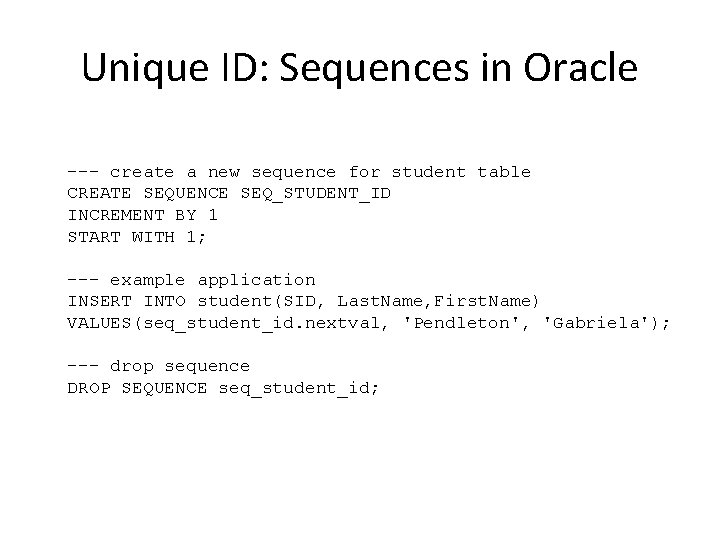

Unique ID: Sequences in Oracle --- create a new sequence for student table CREATE SEQUENCE SEQ_STUDENT_ID INCREMENT BY 1 START WITH 1; --- example application INSERT INTO student(SID, Last. Name, First. Name) VALUES(seq_student_id. nextval, 'Pendleton', 'Gabriela'); --- drop sequence DROP SEQUENCE seq_student_id;

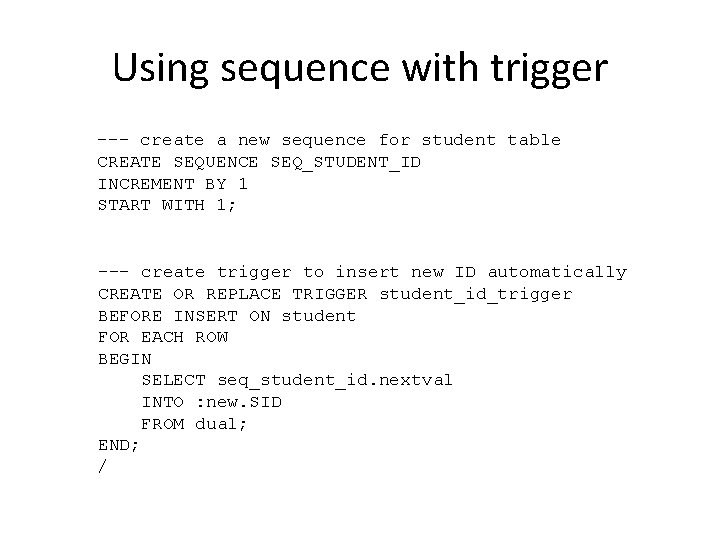

Using sequence with trigger --- create a new sequence for student table CREATE SEQUENCE SEQ_STUDENT_ID INCREMENT BY 1 START WITH 1; --- create trigger to insert new ID automatically CREATE OR REPLACE TRIGGER student_id_trigger BEFORE INSERT ON student FOR EACH ROW BEGIN SELECT seq_student_id. nextval INTO : new. SID FROM dual; END; /

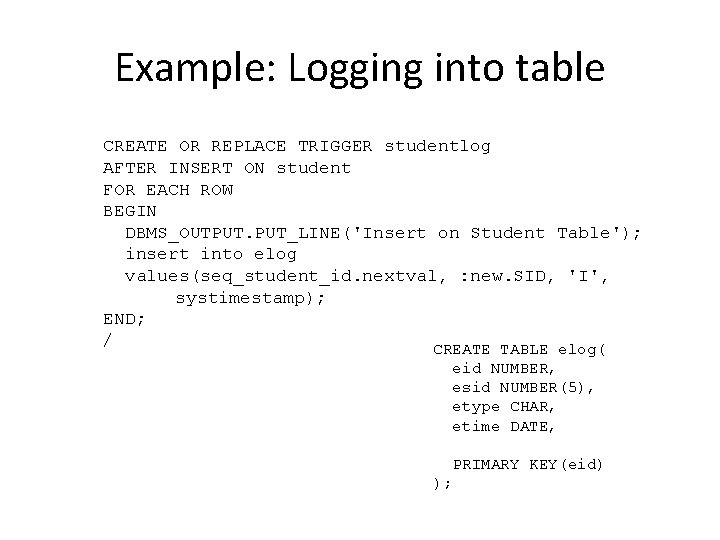

Example: Logging into table CREATE OR REPLACE TRIGGER studentlog AFTER INSERT ON student FOR EACH ROW BEGIN DBMS_OUTPUT. PUT_LINE('Insert on Student Table'); insert into elog values(seq_student_id. nextval, : new. SID, 'I', systimestamp); END; / CREATE TABLE elog( eid NUMBER, esid NUMBER(5), etype CHAR, etime DATE, PRIMARY KEY(eid) );

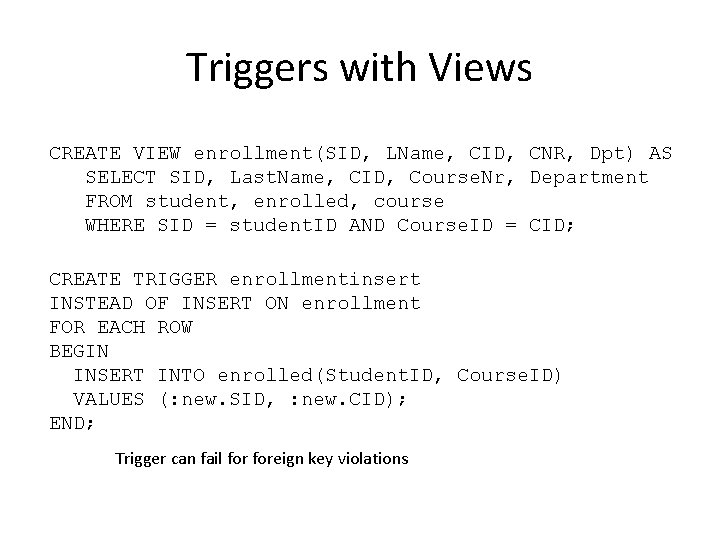

Triggers with Views CREATE VIEW enrollment(SID, LName, CID, CNR, Dpt) AS SELECT SID, Last. Name, CID, Course. Nr, Department FROM student, enrolled, course WHERE SID = student. ID AND Course. ID = CID; CREATE TRIGGER enrollmentinsert INSTEAD OF INSERT ON enrollment FOR EACH ROW BEGIN INSERT INTO enrolled(Student. ID, Course. ID) VALUES (: new. SID, : new. CID); END; Trigger can fail foreign key violations

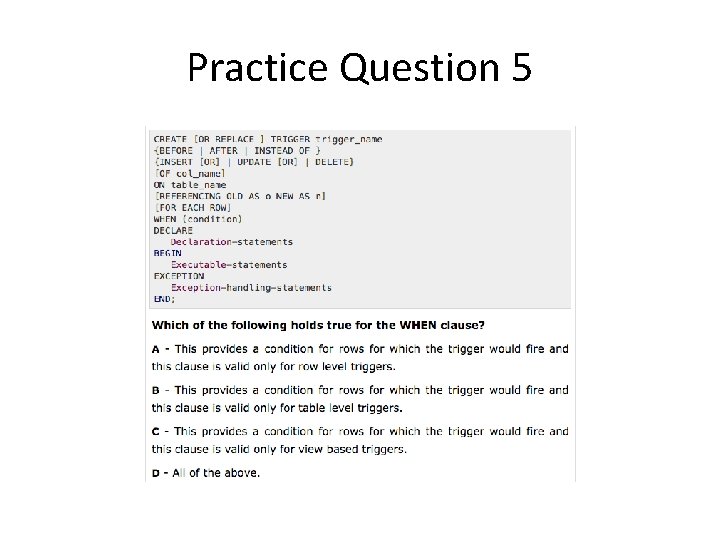

Practice Question 5

Trigger Restrictions • new and old can only refer to row states, so they can only be used for row-level triggers • Use new and old in WHEN condition, : new and : old elsewhere • Subqueries are not allowed in WHEN • PL/SQL block in a row-level trigger cannot query or modify the table that triggered the action

Database Programming • Two main approaches: 1. Create a library of database functions in an API (e. g. , JDBC) 2. Design a general programming language that includes database commands (e. g. , PL/SQL) • First approach can suffer from impedance mismatch 61

Impedance Mismatch • Data model in SQL differs from the models of other languages – Other languages: record, structures, arrays, pointers – SQL: sets, no arrays, pointers, loops, branches • A host and a SQL language is necessary for programming real applications

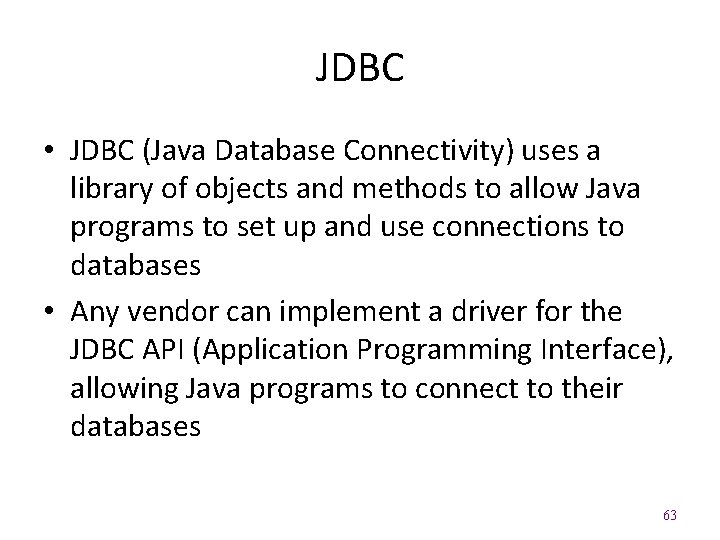

JDBC • JDBC (Java Database Connectivity) uses a library of objects and methods to allow Java programs to set up and use connections to databases • Any vendor can implement a driver for the JDBC API (Application Programming Interface), allowing Java programs to connect to their databases 63

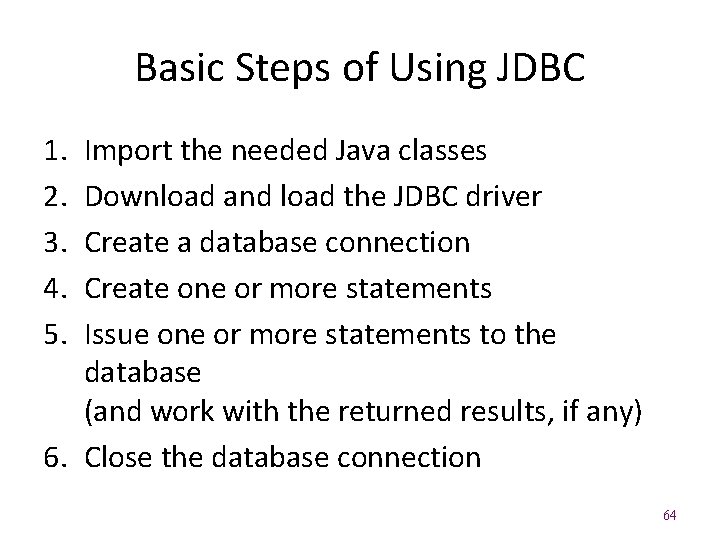

Basic Steps of Using JDBC 1. 2. 3. 4. 5. Import the needed Java classes Download and load the JDBC driver Create a database connection Create one or more statements Issue one or more statements to the database (and work with the returned results, if any) 6. Close the database connection 64

1. Importing Classes • To import the needed Java classes: import java. sql. *; • Includes Driver. Manager, Connection, Statement, Result. Set. Meta. Data, etc…. 65

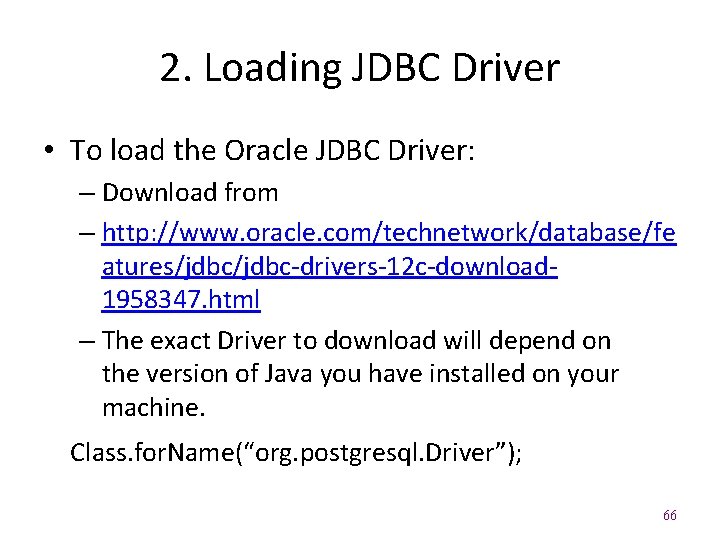

2. Loading JDBC Driver • To load the Oracle JDBC Driver: – Download from – http: //www. oracle. com/technetwork/database/fe atures/jdbc-drivers-12 c-download 1958347. html – The exact Driver to download will depend on the version of Java you have installed on your machine. Class. for. Name(“org. postgresql. Driver”); 66

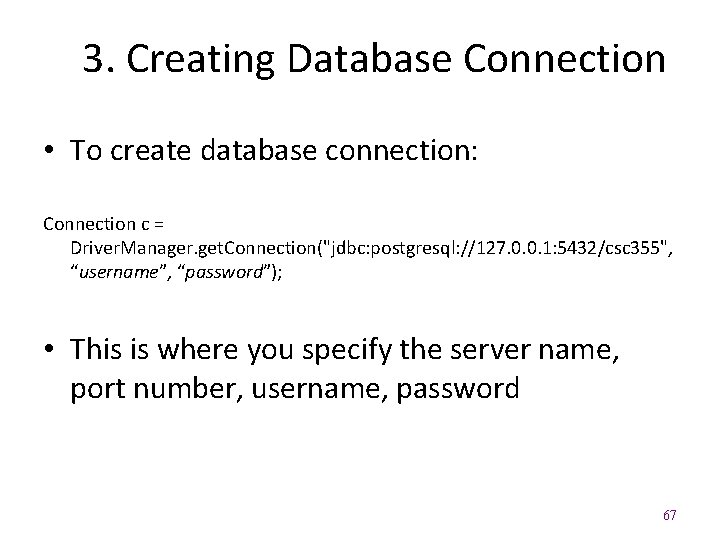

3. Creating Database Connection • To create database connection: Connection c = Driver. Manager. get. Connection("jdbc: postgresql: //127. 0. 0. 1: 5432/csc 355", “username”, “password”); • This is where you specify the server name, port number, username, password 67

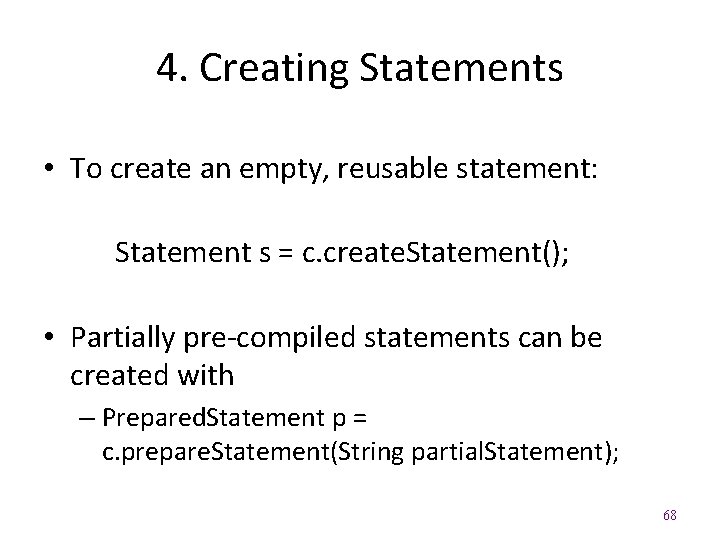

4. Creating Statements • To create an empty, reusable statement: Statement s = c. create. Statement(); • Partially pre-compiled statements can be created with – Prepared. Statement p = c. prepare. Statement(String partial. Statement); 68

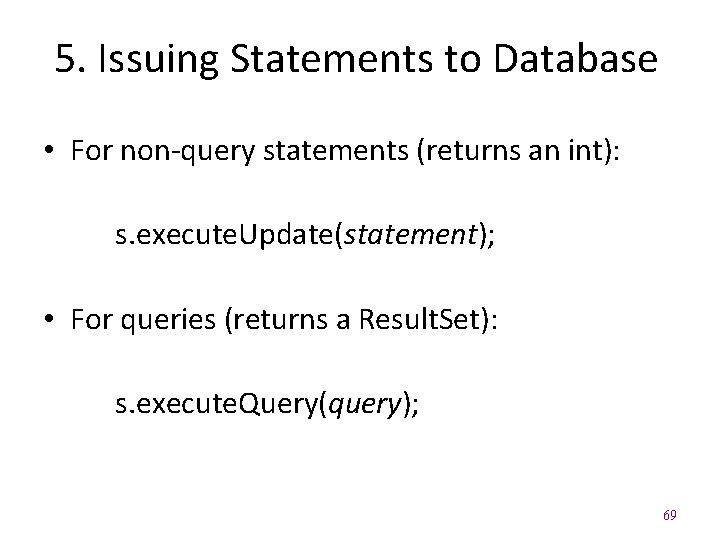

5. Issuing Statements to Database • For non-query statements (returns an int): s. execute. Update(statement); • For queries (returns a Result. Set): s. execute. Query(query); 69

6. Closing Database Connection • To close the connection and any associated statements and result sets: c. close(); 70

Issuing SQL Statements • For non-query SQL statements use method: int execute. Update(String statement) – Returns number of rows modified • For SQL queries use method: Result. Set execute. Query(String query) – Returned Result. Set contains result of query 71

Result. Set Methods • boolean next(): Moves to next record, returns true if successful • type get. Type(int i): Returns (String, int, or double) value in column i of current record – also versions that take column names as input • boolean was. Null(): Returns true if last call to get. Type resulted in a null value – No way to indicate NULL otherwise • void close() : Closes the Result. Set 72

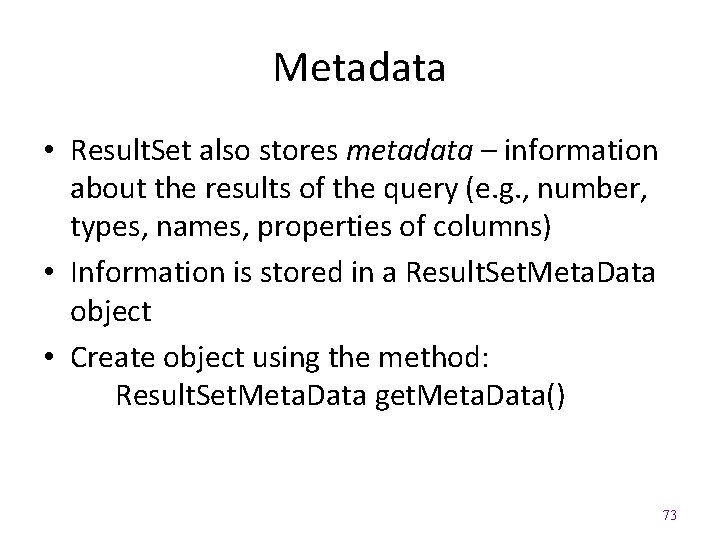

Metadata • Result. Set also stores metadata – information about the results of the query (e. g. , number, types, names, properties of columns) • Information is stored in a Result. Set. Meta. Data object • Create object using the method: Result. Set. Meta. Data get. Meta. Data() 73

Result. Set. Meta. Data Methods • int get. Column. Count(): Returns number of columns in query result • String get. Column. Name(int i): Returns name of ith column • String get. Column. Type. Name(int i): Returns name of type of ith column • int get. Precision(int i): Returns total digits in ith column • int get. Scale(int i): Returns decimal places in ith column 74

Prepared Statements • Prepared. Statement objects represent SQL statements that can be partially pre-compiled, even if some arguments are missing • Created by the prepare. Statement method of the Connection – a partial statement is given as method argument – missing arguments in the partial statement are indicated with ? ’s 75

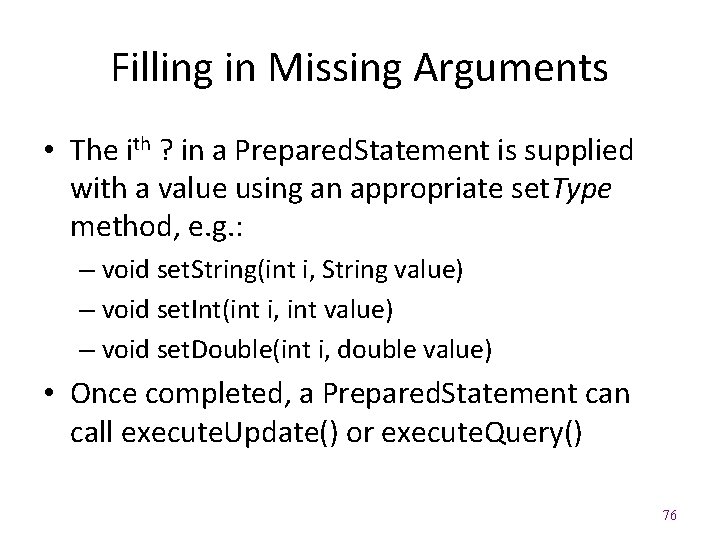

Filling in Missing Arguments • The ith ? in a Prepared. Statement is supplied with a value using an appropriate set. Type method, e. g. : – void set. String(int i, String value) – void set. Int(int i, int value) – void set. Double(int i, double value) • Once completed, a Prepared. Statement can call execute. Update() or execute. Query() 76

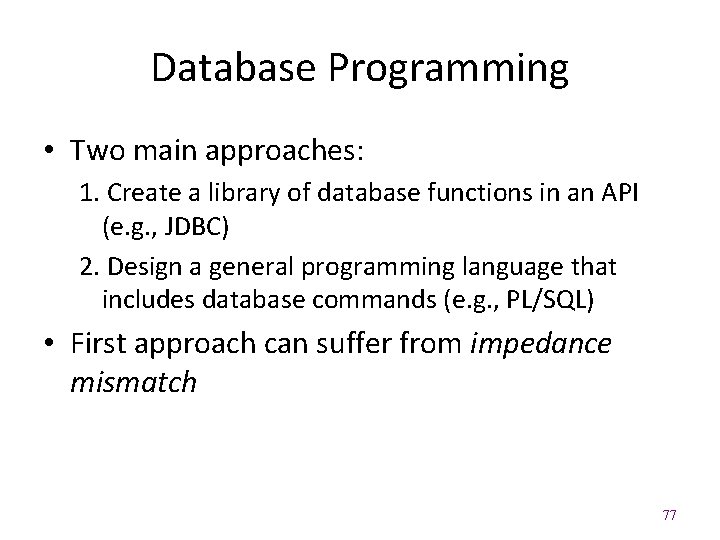

Database Programming • Two main approaches: 1. Create a library of database functions in an API (e. g. , JDBC) 2. Design a general programming language that includes database commands (e. g. , PL/SQL) • First approach can suffer from impedance mismatch 77

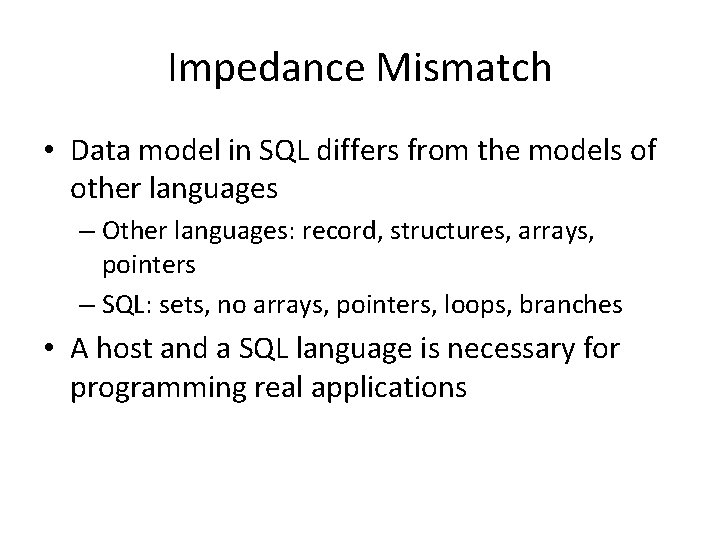

Impedance Mismatch • Data model in SQL differs from the models of other languages – Other languages: record, structures, arrays, pointers – SQL: sets, no arrays, pointers, loops, branches • A host and a SQL language is necessary for programming real applications

JDBC • JDBC (Java Database Connectivity) uses a library of objects and methods to allow Java programs to set up and use connections to databases • Any vendor can implement a driver for the JDBC API (Application Programming Interface), allowing Java programs to connect to their databases 79

Basic Steps of Using JDBC 1. 2. 3. 4. 5. Import the needed Java classes Download and load the JDBC driver Create a database connection Create one or more statements Issue one or more statements to the database (and work with the returned results, if any) 6. Close the database connection 80

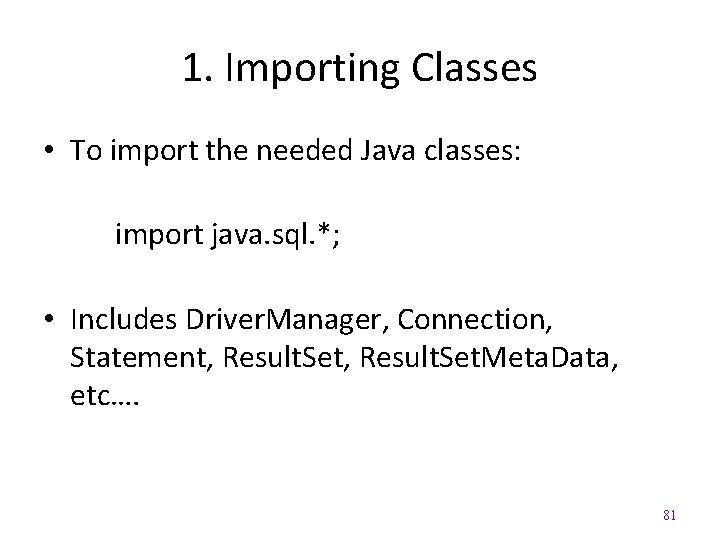

1. Importing Classes • To import the needed Java classes: import java. sql. *; • Includes Driver. Manager, Connection, Statement, Result. Set. Meta. Data, etc…. 81

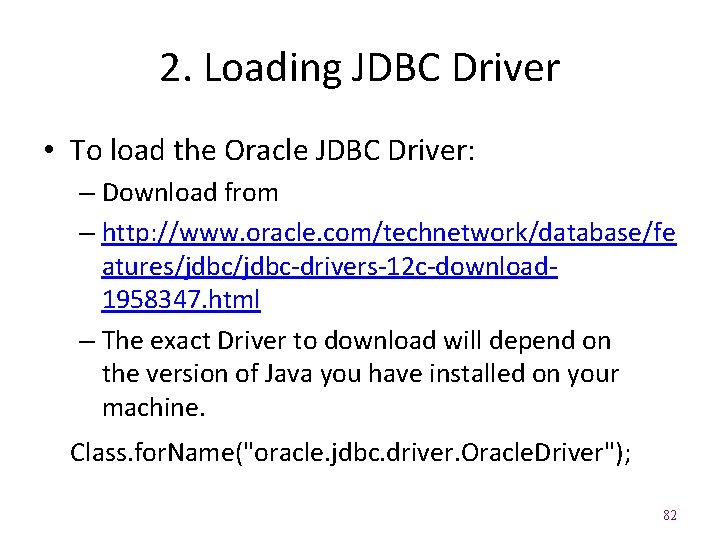

2. Loading JDBC Driver • To load the Oracle JDBC Driver: – Download from – http: //www. oracle. com/technetwork/database/fe atures/jdbc-drivers-12 c-download 1958347. html – The exact Driver to download will depend on the version of Java you have installed on your machine. Class. for. Name("oracle. jdbc. driver. Oracle. Driver"); 82

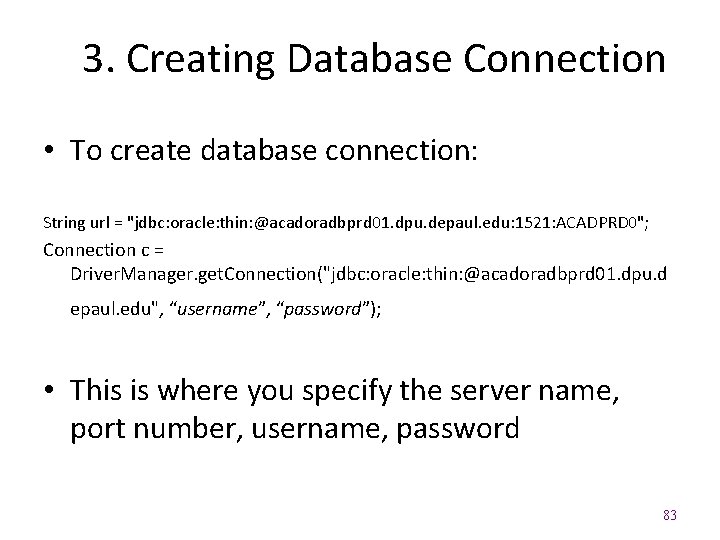

3. Creating Database Connection • To create database connection: String url = "jdbc: oracle: thin: @acadoradbprd 01. dpu. depaul. edu: 1521: ACADPRD 0"; Connection c = Driver. Manager. get. Connection("jdbc: oracle: thin: @acadoradbprd 01. dpu. d epaul. edu", “username”, “password”); • This is where you specify the server name, port number, username, password 83

4. Creating Statements • To create an empty, reusable statement: Statement s = c. create. Statement(); • Partially pre-compiled statements can be created with – Prepared. Statement p = c. prepare. Statement(String partial. Statement); 84

5. Issuing Statements to Database • For non-query statements (returns an int): s. execute. Update(statement); • For queries (returns a Result. Set): s. execute. Query(query); 85

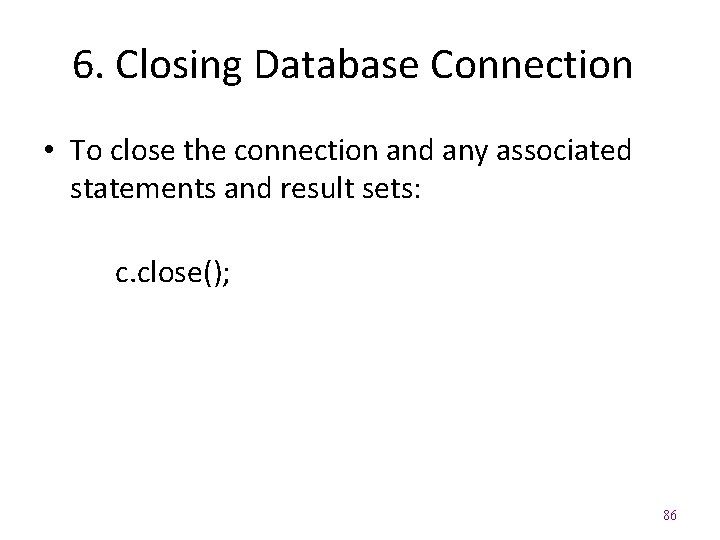

6. Closing Database Connection • To close the connection and any associated statements and result sets: c. close(); 86

Issuing SQL Statements • For non-query SQL statements use method: int execute. Update(String statement) – Returns number of rows modified • For SQL queries use method: Result. Set execute. Query(String query) – Returned Result. Set contains result of query 87

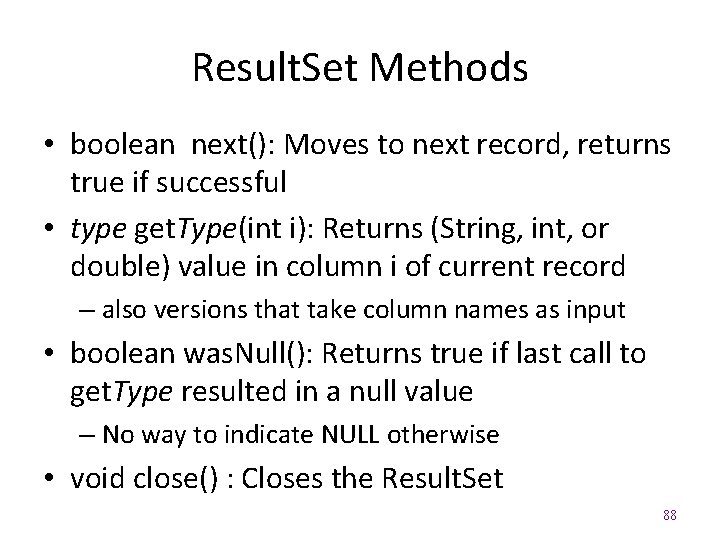

Result. Set Methods • boolean next(): Moves to next record, returns true if successful • type get. Type(int i): Returns (String, int, or double) value in column i of current record – also versions that take column names as input • boolean was. Null(): Returns true if last call to get. Type resulted in a null value – No way to indicate NULL otherwise • void close() : Closes the Result. Set 88

Metadata • Result. Set also stores metadata – information about the results of the query (e. g. , number, types, names, properties of columns) • Information is stored in a Result. Set. Meta. Data object • Create object using the method: Result. Set. Meta. Data get. Meta. Data() 89

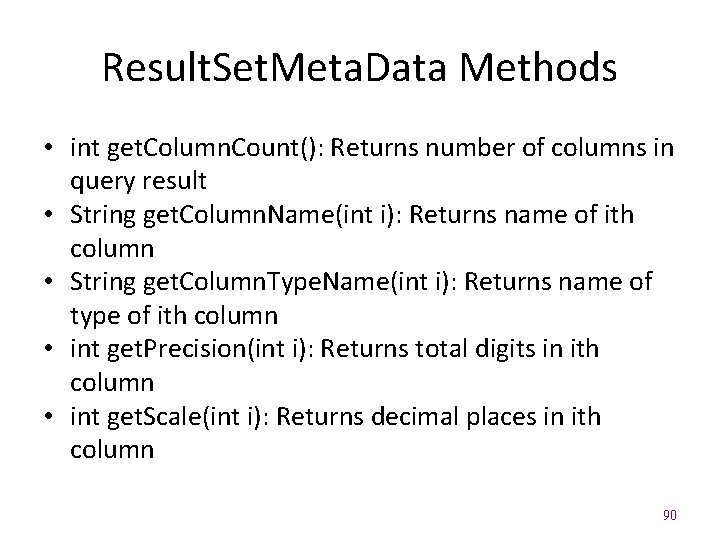

Result. Set. Meta. Data Methods • int get. Column. Count(): Returns number of columns in query result • String get. Column. Name(int i): Returns name of ith column • String get. Column. Type. Name(int i): Returns name of type of ith column • int get. Precision(int i): Returns total digits in ith column • int get. Scale(int i): Returns decimal places in ith column 90

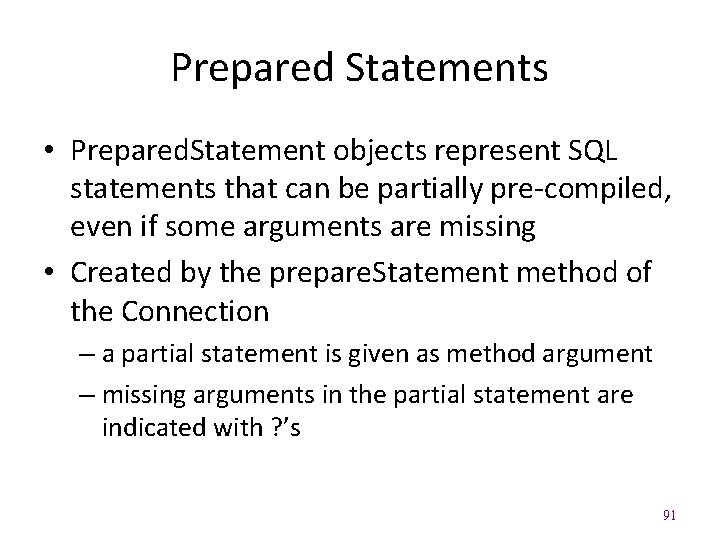

Prepared Statements • Prepared. Statement objects represent SQL statements that can be partially pre-compiled, even if some arguments are missing • Created by the prepare. Statement method of the Connection – a partial statement is given as method argument – missing arguments in the partial statement are indicated with ? ’s 91

Filling in Missing Arguments • The ith ? in a Prepared. Statement is supplied with a value using an appropriate set. Type method, e. g. : – void set. String(int i, String value) – void set. Int(int i, int value) – void set. Double(int i, double value) • Once completed, a Prepared. Statement can call execute. Update() or execute. Query() 92
