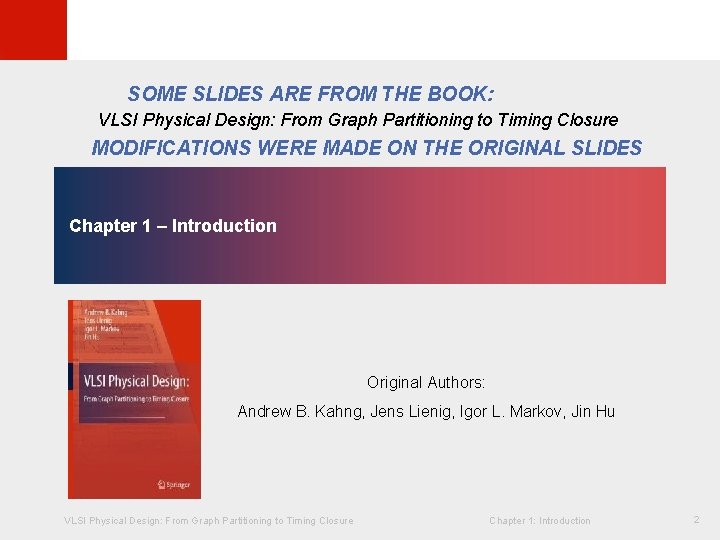

© KLMH SOME SLIDES ARE FROM THE BOOK: VLSI Physical Design: From Graph Partitioning to Timing Closure MODIFICATIONS WERE MADE ON THE ORIGINAL SLIDES Chapter 1 – Introduction Original Authors: VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 2 Lienig Andrew B. Kahng, Jens Lienig, Igor L. Markov, Jin Hu

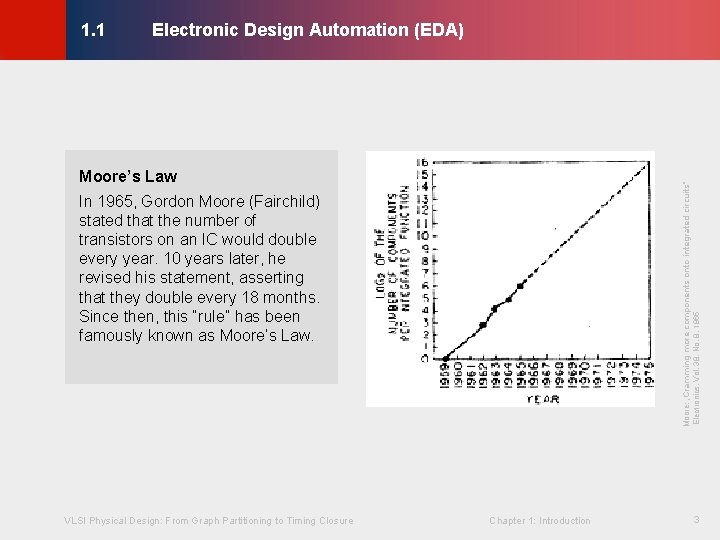

Electronic Design Automation (EDA) © KLMH 1. 1 In 1965, Gordon Moore (Fairchild) stated that the number of transistors on an IC would double every year. 10 years later, he revised his statement, asserting that they double every 18 months. Since then, this “rule” has been famously known as Moore’s Law. VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 3 Lienig Moore: „Cramming more components onto integrated circuits" Electronics, Vol. 38, No. 8, 1965 Moore’s Law

Electronic Design Automation (EDA) © KLMH 1. 1 VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 4 Lienig Without the design technology innovations between 1993 and 2007, the design cost of a chip would have been $1800 M

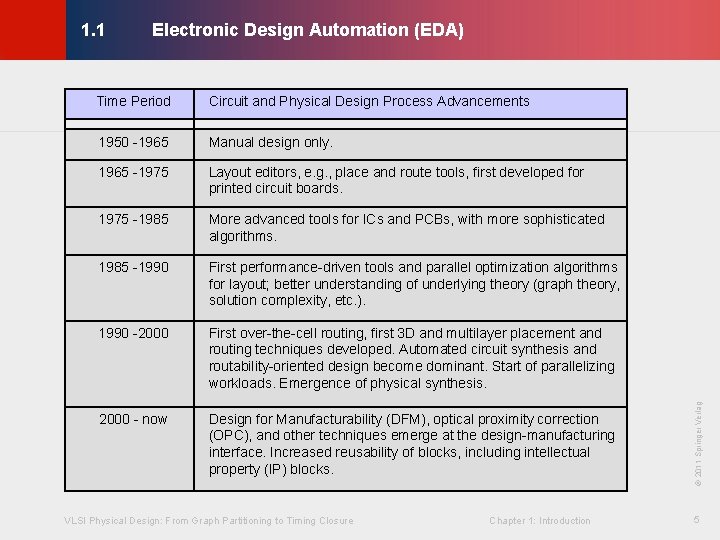

Electronic Design Automation (EDA) Circuit and Physical Design Process Advancements 1950 -1965 Manual design only. 1965 -1975 Layout editors, e. g. , place and route tools, first developed for printed circuit boards. 1975 -1985 More advanced tools for ICs and PCBs, with more sophisticated algorithms. 1985 -1990 First performance-driven tools and parallel optimization algorithms for layout; better understanding of underlying theory (graph theory, solution complexity, etc. ). 1990 -2000 First over-the-cell routing, first 3 D and multilayer placement and routing techniques developed. Automated circuit synthesis and routability-oriented design become dominant. Start of parallelizing workloads. Emergence of physical synthesis. 2000 - now Design for Manufacturability (DFM), optical proximity correction (OPC), and other techniques emerge at the design-manufacturing interface. Increased reusability of blocks, including intellectual property (IP) blocks. VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 5 Lienig Time Period © 2011 Springer Verlag © KLMH 1. 1

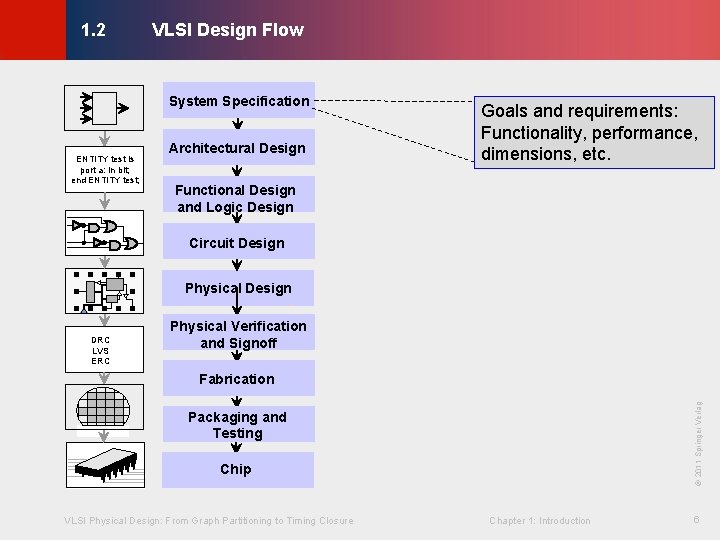

VLSI Design Flow © KLMH 1. 2 System Specification ENTITY test is port a: in bit; end ENTITY test; Architectural Design Goals and requirements: Functionality, performance, dimensions, etc. Functional Design and Logic Design Circuit Design Physical Design DRC LVS ERC Physical Verification and Signoff Packaging and Testing Chip VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 6 Lienig © 2011 Springer Verlag Fabrication

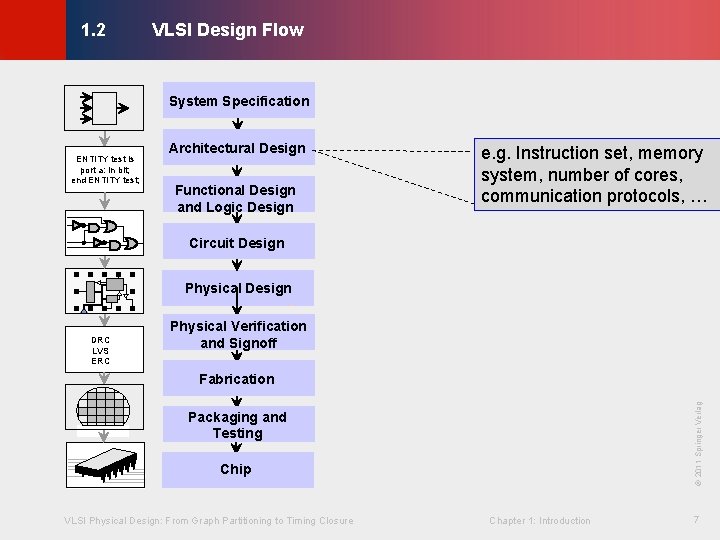

VLSI Design Flow © KLMH 1. 2 System Specification ENTITY test is port a: in bit; end ENTITY test; Architectural Design Functional Design and Logic Design e. g. Instruction set, memory system, number of cores, communication protocols, … Circuit Design Physical Design DRC LVS ERC Physical Verification and Signoff Packaging and Testing Chip VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 7 Lienig © 2011 Springer Verlag Fabrication

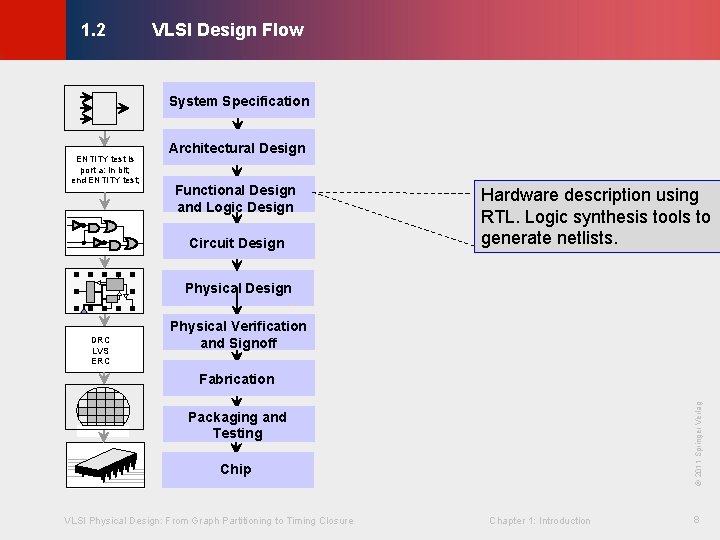

VLSI Design Flow © KLMH 1. 2 System Specification ENTITY test is port a: in bit; end ENTITY test; Architectural Design Functional Design and Logic Design Circuit Design Hardware description using RTL. Logic synthesis tools to generate netlists. Physical Design DRC LVS ERC Physical Verification and Signoff Packaging and Testing Chip VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 8 Lienig © 2011 Springer Verlag Fabrication

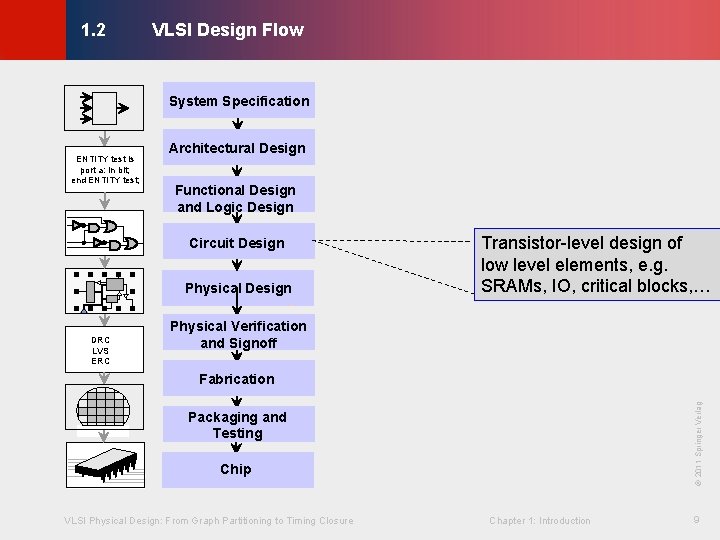

VLSI Design Flow © KLMH 1. 2 System Specification ENTITY test is port a: in bit; end ENTITY test; Architectural Design Functional Design and Logic Design Circuit Design Physical Design DRC LVS ERC Transistor-level design of low level elements, e. g. SRAMs, IO, critical blocks, … Physical Verification and Signoff Packaging and Testing Chip VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 9 Lienig © 2011 Springer Verlag Fabrication

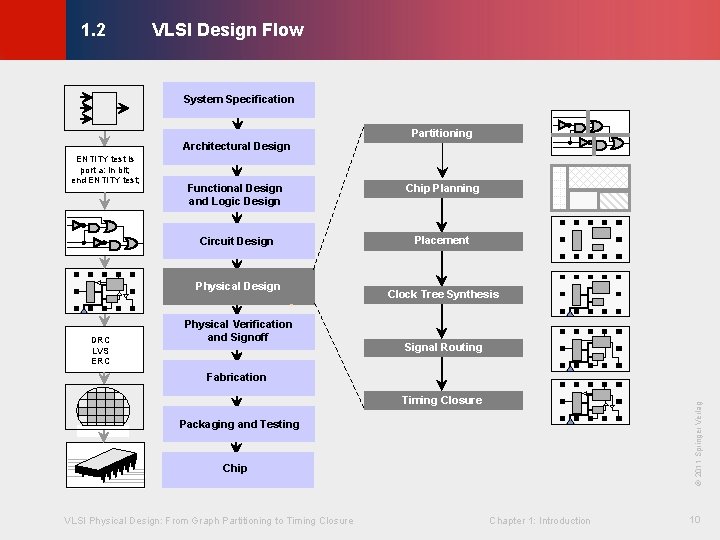

VLSI Design Flow © KLMH 1. 2 System Specification Partitioning Architectural Design ENTITY test is port a: in bit; end ENTITY test; Functional Design and Logic Design Chip Planning Circuit Design Placement Physical Design DRC LVS ERC Physical Verification and Signoff Clock Tree Synthesis Signal Routing Fabrication Packaging and Testing Chip VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 10 Lienig © 2011 Springer Verlag Timing Closure

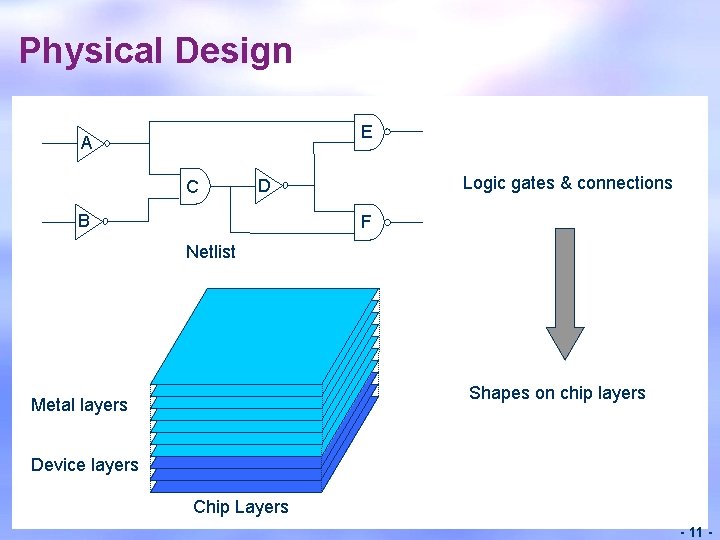

Physical Design E A C Logic gates & connections D B F Netlist Shapes on chip layers Metal layers Device layers Chip Layers - 11 -

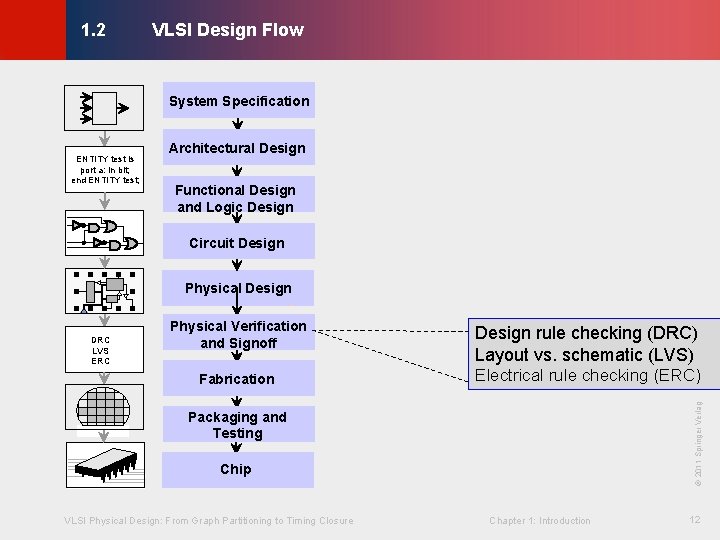

VLSI Design Flow © KLMH 1. 2 System Specification ENTITY test is port a: in bit; end ENTITY test; Architectural Design Functional Design and Logic Design Circuit Design Physical Design rule checking (DRC) Layout vs. schematic (LVS) Fabrication Electrical rule checking (ERC) © 2011 Springer Verlag Physical Verification and Signoff Packaging and Testing Chip VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 12 Lienig DRC LVS ERC

VLSI Design Flow © KLMH 1. 2 System Specification ENTITY test is port a: in bit; end ENTITY test; Architectural Design Functional Design and Logic Design Circuit Design Physical Verification and Signoff Packaging and Testing Layout sent to a fab (tapeout). Photomasks used to print the layout patterns onto layers. © 2011 Springer Verlag Fabrication Chip VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 13 Lienig DRC LVS ERC

VLSI Design Flow © KLMH 1. 2 System Specification ENTITY test is port a: in bit; end ENTITY test; Architectural Design Functional Design and Logic Design Circuit Design Physical Design DRC LVS ERC Physical Verification and Signoff Chip VLSI Physical Design: From Graph Partitioning to Timing Closure Die is positioned in a package. Pins connected to the package pins. Multiple chips can be integrated. Chapter 1: Introduction 14 Lienig Packaging and Testing © 2011 Springer Verlag Fabrication

VLSI Design Styles Full-custom design Direct transistor-level design Max flexibility, few constraints Potential to highly optimize, but high design cost Critical and high-volume parts that will be replicated Semi-custom design � Cell-based: � Standard and macro cells Many pre-designed elements in the libraries Array-based: Configure the pre-fabricated elements e. g. FPGA CS 612 – Lecture 2 Mustafa Ozdal Computer Engineering Department, Bilkent University 15

© KLMH Cell Based Design Common digital cells IN 1 IN 2 OR OUT IN 1 IN 2 INV NAND OUT IN 1 IN 2 NOR OUT IN 1 IN 2 OUT 0 0 0 0 1 1 0 0 1 0 1 1 0 0 0 1 1 1 0 0 1 1 1 1 1 0 VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 16 Lienig AND

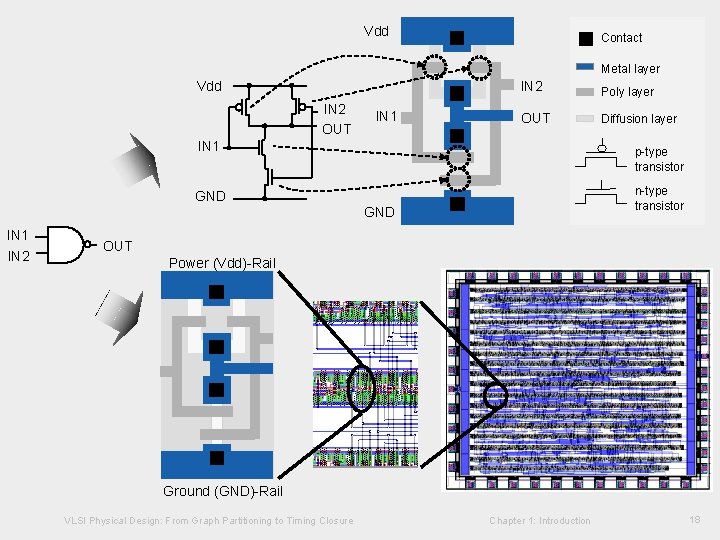

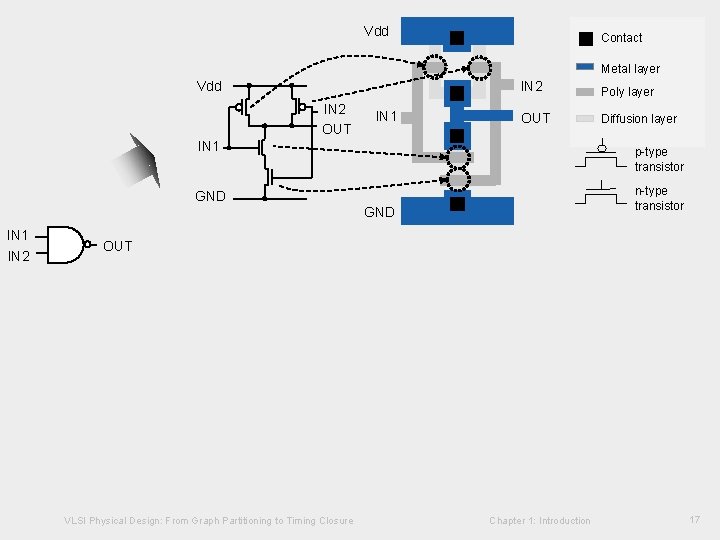

VLSI Design Styles Vdd Contact Metal layer Vdd IN 2 OUT IN 1 IN 2 Poly layer OUT Diffusion layer IN 1 GND IN 2 p-type transistor n-type transistor GND OUT VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 17 Lienig IN 1 © KLMH 1. 3

VLSI Design Styles Vdd Contact Metal layer Vdd IN 2 OUT IN 1 IN 2 Poly layer OUT Diffusion layer IN 1 GND IN 2 p-type transistor n-type transistor GND OUT Power (Vdd)-Rail Ground (GND)-Rail VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 18 Lienig IN 1 © KLMH 1. 3

Cell Placement E A C D B F Implementation on device layers available in cell library (e. g. AND, OR, NAND, NOR, INV, etc. ) Metal 1 Cells arranged in rows on metal 1 Device layers - 19 -

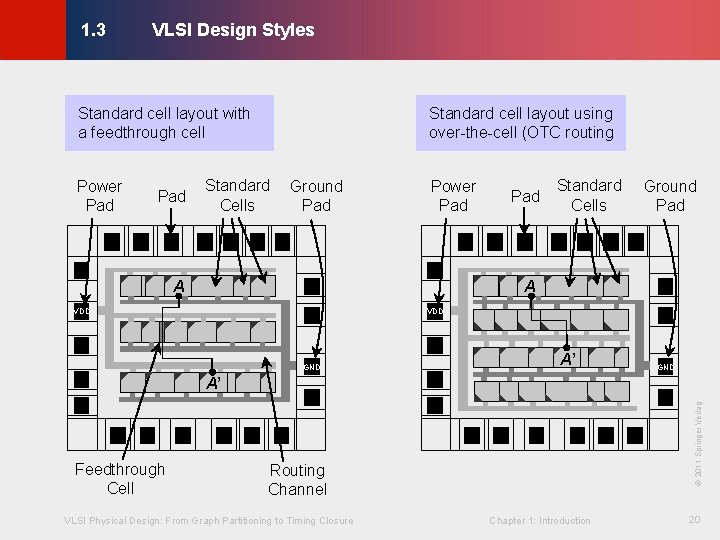

VLSI Design Styles © KLMH 1. 3 Standard cell layout with a feedthrough cell Power Pad Standard cell layout using over-the-cell (OTC routing Standard Cells Ground Pad Power Pad A Pad Standard Cells Ground Pad A VDD GND A’ GND Routing Channel VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 20 Lienig Feedthrough Cell © 2011 Springer Verlag A’

Over-the-cell routing a a A o C o o F o b a a. B E o b a D o a b Metal 5 Metal 4 Metal 3 Metal 2 Metal 1 All terminals on metal 1 Connect terminals using metal layers Each layer is either horizontal or vertical - 21 -

Routing Between Two Pins a Metal 3 C o a D o b Route from C/o to D/a Metal 2 Metal 3: vertical Metal 2: horizontal o Metal 1 a D o a C b Metal 1: escape-only Interlayer connection: “via” - 22 -

© KLMH Cell Based Design Layout with macro cells RAM PLA VDD RAM PLA © 2011 Springer Verlag Pad GND Routing Regions VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 23 Lienig Standard Cell Block

Why Cell Based Design? Easier to design, optimize and verify � Reuse of components � Performance of each cell pre-characterized � Transistor-level design constraints already handled � Complexities abstracted in the cell definition � Optimization easier Disadvantage: Less room for optimization � Cannot CS 612 – Lecture 2 have a cell for every single complex logic function Mustafa Ozdal Computer Engineering Department, Bilkent University 24

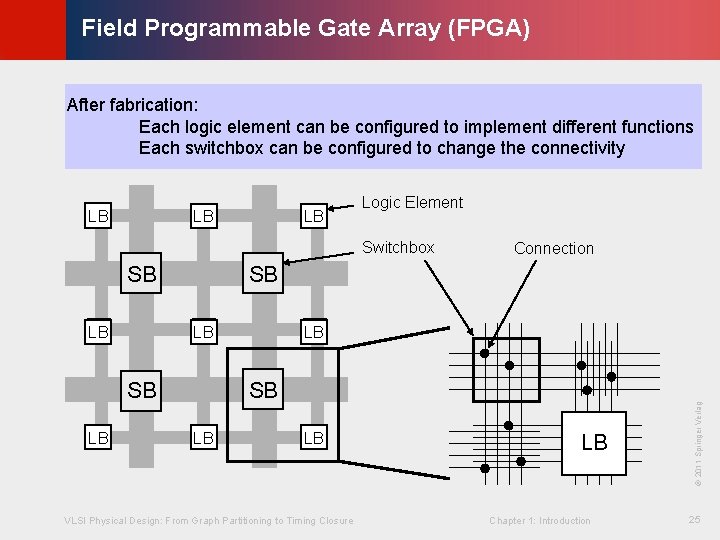

© KLMH Field Programmable Gate Array (FPGA) After fabrication: Each logic element can be configured to implement different functions Each switchbox can be configured to change the connectivity LB LB Switchbox LB SB LB LB VLSI Physical Design: From Graph Partitioning to Timing Closure LB Chapter 1: Introduction © 2011 Springer Verlag SB Connection 25 Lienig LB Logic Element

© KLMH 1. 4. Design Rules Categories of design rules · Size rules, such as minimum width: The dimensions of any component (shape), e. g. , length of a boundary edge or area of the shape, cannot be smaller than given minimum values. These values vary across different metal layers. · Separation rules, such as minimum separation: Two shapes, either on the same layer or on adjacent layers, must be a minimum (rectilinear or Euclidean diagonal) distance apart. · Overlap rules, such as minimum overlap: Two connected shapes on adjacent VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 26 Lienig layers must have a certain amount of overlap due to inaccuracy of mask alignment to previously-made patterns on the wafer.

© KLMH 1. 4. Design Rules Categories of design rules : smallest meaningful technologydependent unit of length a c Minimum Width: a Minimum Separation: b, c, d e Minimum Overlap: e d VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 27 Lienig © 2011 Springer Verlag b

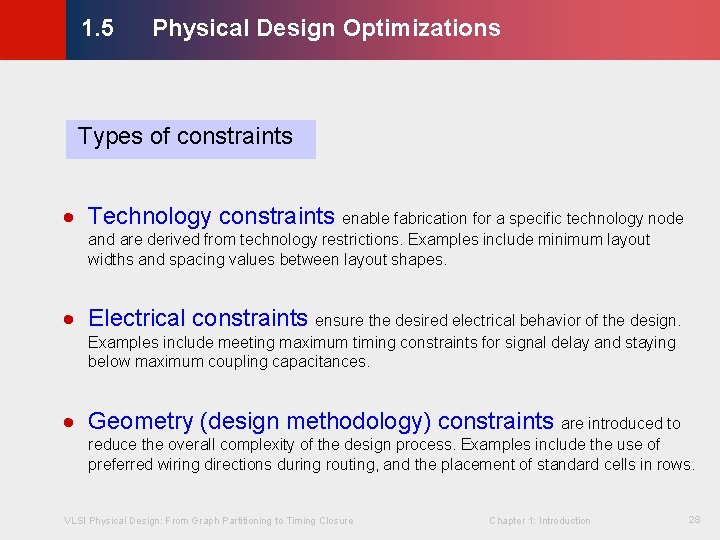

Physical Design Optimizations © KLMH 1. 5 Types of constraints · Technology constraints enable fabrication for a specific technology node and are derived from technology restrictions. Examples include minimum layout widths and spacing values between layout shapes. · Electrical constraints ensure the desired electrical behavior of the design. Examples include meeting maximum timing constraints for signal delay and staying below maximum coupling capacitances. · Geometry (design methodology) constraints are introduced to VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 28 Lienig reduce the overall complexity of the design process. Examples include the use of preferred wiring directions during routing, and the placement of standard cells in rows.

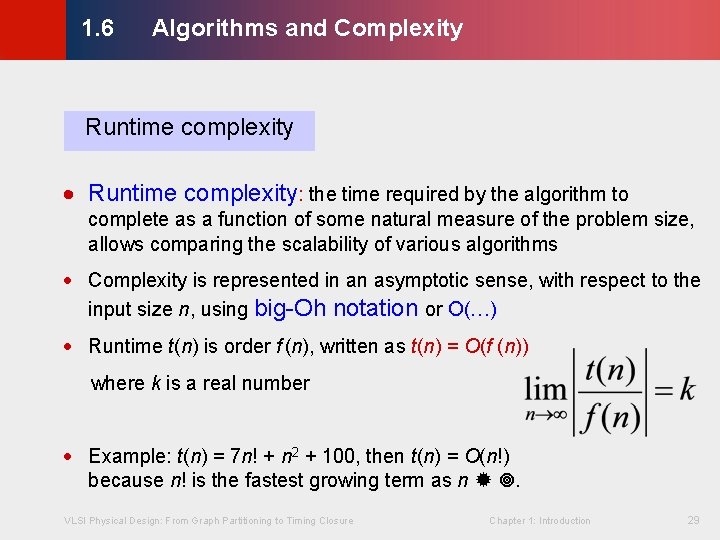

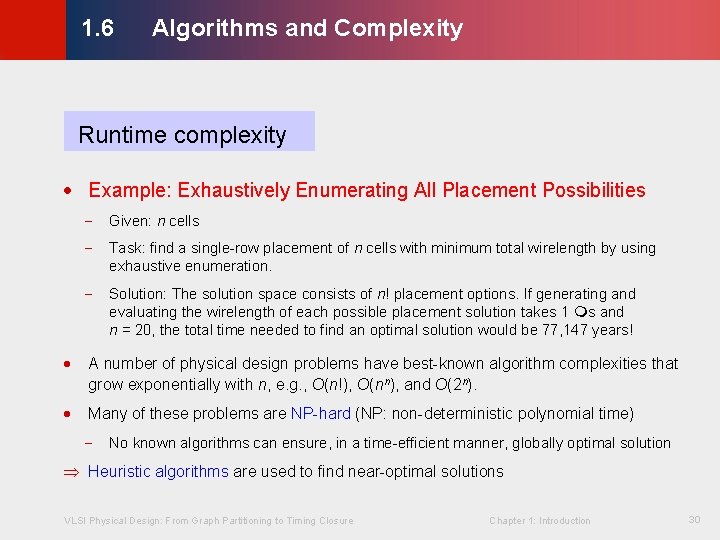

Algorithms and Complexity © KLMH 1. 6 Runtime complexity · Runtime complexity: the time required by the algorithm to complete as a function of some natural measure of the problem size, allows comparing the scalability of various algorithms · Complexity is represented in an asymptotic sense, with respect to the input size n, using big-Oh notation or O(…) · Runtime t(n) is order f (n), written as t(n) = O(f (n)) where k is a real number VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 29 Lienig · Example: t(n) = 7 n! + n 2 + 100, then t(n) = O(n!) because n! is the fastest growing term as n .

Algorithms and Complexity © KLMH 1. 6 Runtime complexity · Example: Exhaustively Enumerating All Placement Possibilities - Given: n cells - Task: find a single-row placement of n cells with minimum total wirelength by using exhaustive enumeration. - Solution: The solution space consists of n! placement options. If generating and evaluating the wirelength of each possible placement solution takes 1 s and n = 20, the total time needed to find an optimal solution would be 77, 147 years! · A number of physical design problems have best-known algorithm complexities that grow exponentially with n, e. g. , O(n!), O(nn), and O(2 n). · Many of these problems are NP-hard (NP: non-deterministic polynomial time) - No known algorithms can ensure, in a time-efficient manner, globally optimal solution VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 30 Lienig Þ Heuristic algorithms are used to find near-optimal solutions

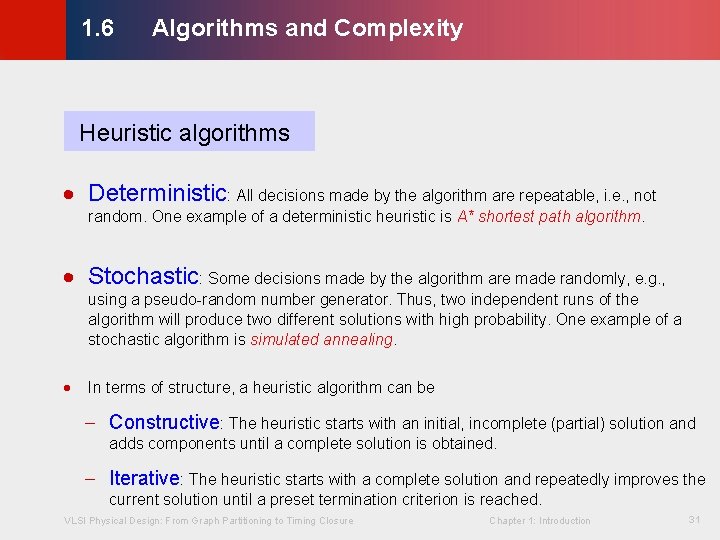

Algorithms and Complexity © KLMH 1. 6 Heuristic algorithms · Deterministic: All decisions made by the algorithm are repeatable, i. e. , not random. One example of a deterministic heuristic is A* shortest path algorithm. · Stochastic: Some decisions made by the algorithm are made randomly, e. g. , using a pseudo-random number generator. Thus, two independent runs of the algorithm will produce two different solutions with high probability. One example of a stochastic algorithm is simulated annealing. · In terms of structure, a heuristic algorithm can be - Constructive: The heuristic starts with an initial, incomplete (partial) solution and adds components until a complete solution is obtained. - Iterative: The heuristic starts with a complete solution and repeatedly improves the VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 31 Lienig current solution until a preset termination criterion is reached.

Algorithms and Complexity © KLMH 1. 6 Heuristic algorithms Problem Instance Constructive Algorithm Initial Solution Iterative Improvement Termination Criterion Met? no yes VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 32 Lienig Return Best-Seen Solution

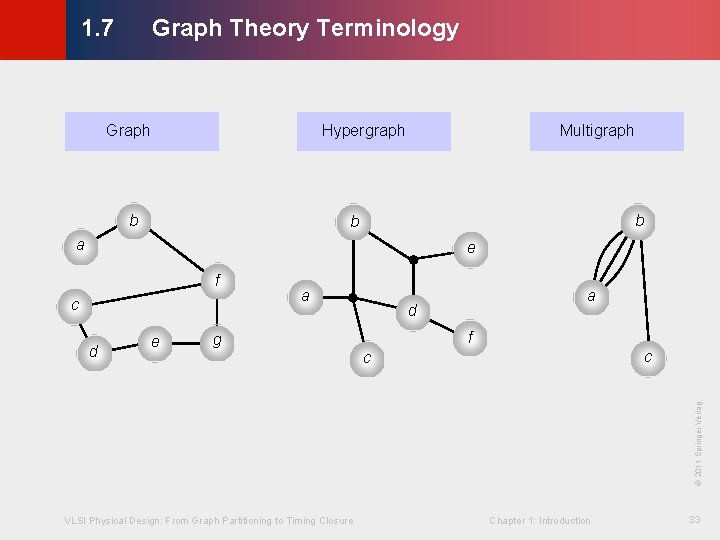

Graph Theory Terminology © KLMH 1. 7 Graph Hypergraph b Multigraph b b a e f c g a d f c c VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 33 Lienig © 2011 Springer Verlag d e a

Graph Theory Terminology © KLMH 1. 7 Directed graphs with cycles c c f a b Directed acyclic graph d g a a b d g e VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 34 Lienig © 2011 Springer Verlag e b f

Graph Theory Terminology © KLMH 1. 7 Undirected graph with maximum node degree 3 Directed tree a b a f c e g e f g d h i j k VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 35 Lienig © 2011 Springer Verlag d c b

Graph Theory Terminology © KLMH 1. 7 Rectilinear minimum spanning tree (RMST) b (2, 6) Rectilinear Steiner minimum tree (RSMT) b (2, 6) Steiner point VLSI Physical Design: From Graph Partitioning to Timing Closure a (2, 1) Chapter 1: Introduction © 2011 Springer Verlag a (2, 1) c (6, 4) 36 Lienig c (6, 4)

Common EDA Terminology © KLMH 1. 8 Netlist a N 1 b x N 3 N 2 N 4 y z N 5 c (a: N 1) (b: N 2) (c: N 5) (x: IN 1 N 1, IN 2 N 2, OUT N 3) (y: IN 1 N 1, IN 2 N 2, OUT N 4) (z: IN 1 N 3, IN 2 N 4, OUT N 5) Net-Oriented Netlist VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 37 Lienig © 2011 Springer Pin-Oriented Netlist (N 1: a, x. IN 1, y. IN 1) (N 2: b, x. IN 2, y. IN 2) (N 3: x. OUT, z. IN 1) (N 4: y. OUT, z. IN 2) (N 5: z. OUT, c)

Common EDA Terminology © KLMH 1. 8 Connectivity graph a N 1 N 3 N 2 N 4 z N 5 x c y z b c y VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 38 Lienig © 2011 Springer Verlag b a x

Common EDA Terminology © KLMH 1. 8 Connectivity matrix a N 1 N 3 N 2 N 4 z N 5 c y b x y z c a 0 0 1 1 0 0 b 0 0 1 1 0 0 x 1 1 0 2 1 0 y 1 1 2 0 1 0 z 0 0 1 1 0 1 c 0 0 1 0 VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 39 Lienig © 2011 Springer Verlag b x a

Common EDA Terminology © KLMH 1. 8 Distance metric between two points P 1 (x 1, y 1) and P 2 (x 2, y 2) with n = 2: Euclidean distance n = 1: Manhattan distance P 1 (2, 4) d. M = 7 d. E = 5 P 2 (6, 1) VLSI Physical Design: From Graph Partitioning to Timing Closure Chapter 1: Introduction 40 Lienig d. M = 7
