CS 598 SS Probabilistic Methods in Biological Sequence Analysis Saurabh Sinha

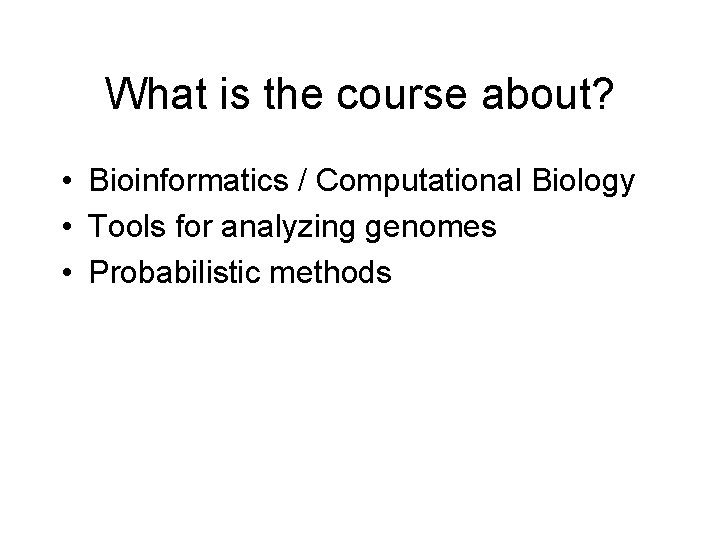

What is the course about? • Bioinformatics / Computational Biology • Tools for analyzing genomes • Probabilistic methods

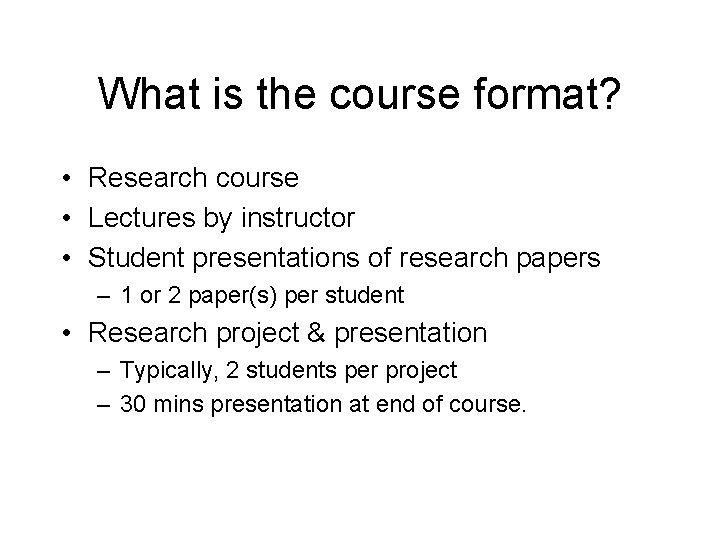

What is the course format? • Research course • Lectures by instructor • Student presentations of research papers – 1 or 2 paper(s) per student • Research project & presentation – Typically, 2 students per project – 30 mins presentation at end of course.

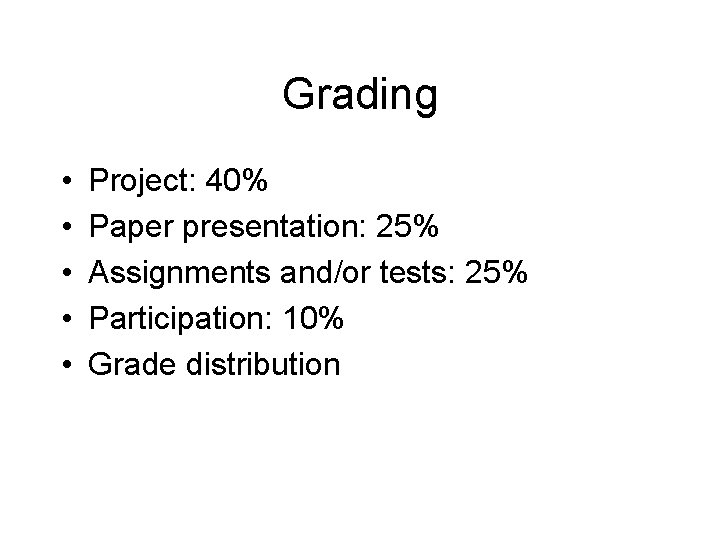

Grading • • • Project: 40% Paper presentation: 25% Assignments and/or tests: 25% Participation: 10% Grade distribution

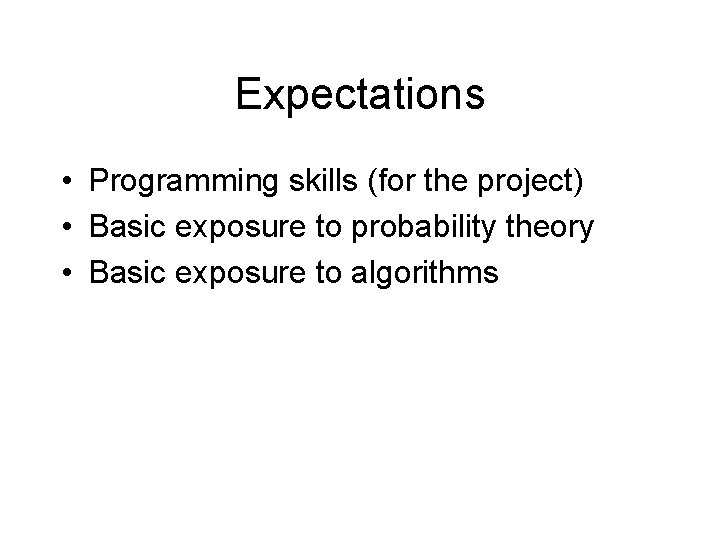

Expectations • Programming skills (for the project) • Basic exposure to probability theory • Basic exposure to algorithms

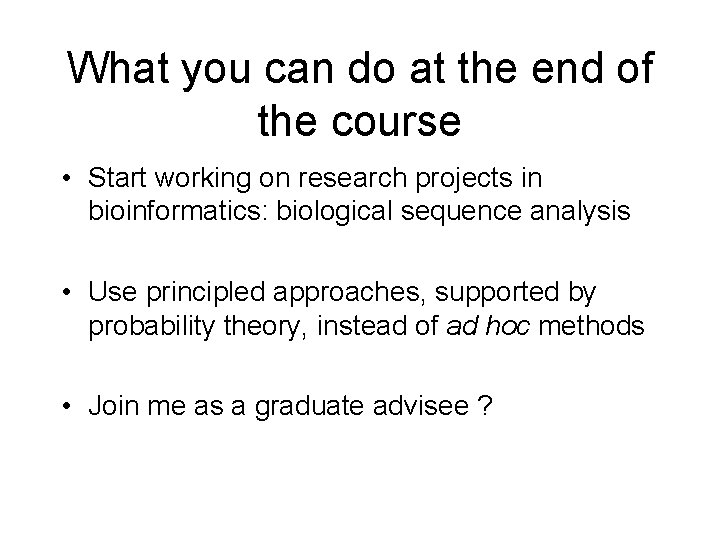

What you can do at the end of the course • Start working on research projects in bioinformatics: biological sequence analysis • Use principled approaches, supported by probability theory, instead of ad hoc methods • Join me as a graduate advisee ?

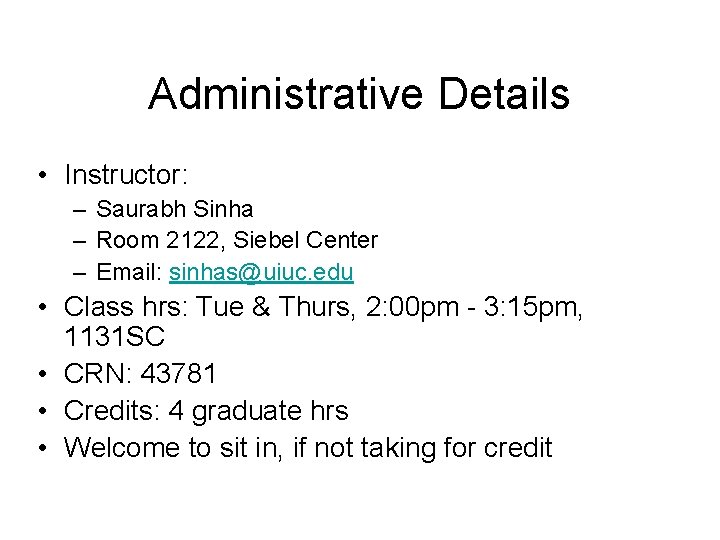

Administrative Details • Instructor: – Saurabh Sinha – Room 2122, Siebel Center – Email: sinhas@uiuc. edu • Class hrs: Tue & Thurs, 2: 00 pm - 3: 15 pm, 1131 SC • CRN: 43781 • Credits: 4 graduate hrs • Welcome to sit in, if not taking for credit

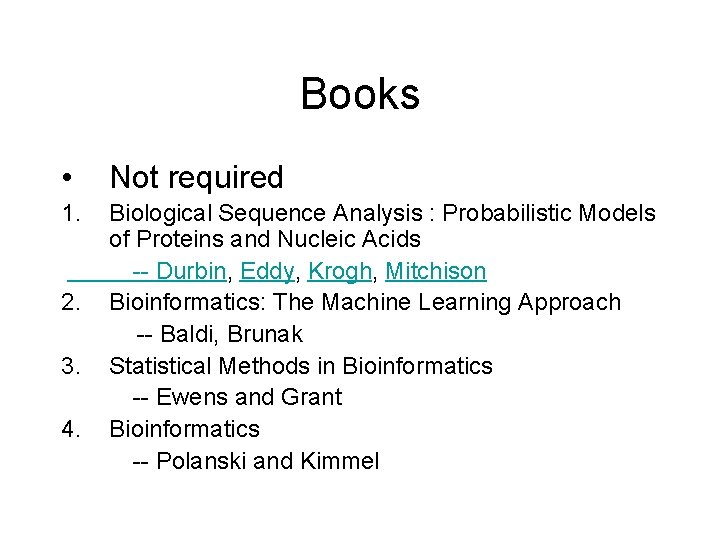

Books • Not required 1. Biological Sequence Analysis : Probabilistic Models of Proteins and Nucleic Acids -- Durbin, Eddy, Krogh, Mitchison Bioinformatics: The Machine Learning Approach -- Baldi, Brunak Statistical Methods in Bioinformatics -- Ewens and Grant Bioinformatics -- Polanski and Kimmel 2. 3. 4.

Why study bioinformatics? • Molecular biology is the new frontier of 21 st century science • Computer science is the crown prince of 20 th century engineering • Bioinformatics is the application and development of computer science with the goal of supporting molecular biology

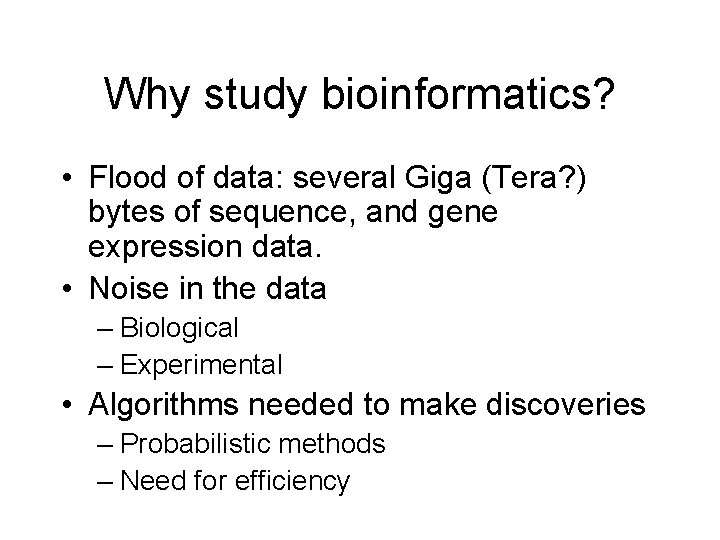

Why study bioinformatics? • Flood of data: several Giga (Tera? ) bytes of sequence, and gene expression data. • Noise in the data – Biological – Experimental • Algorithms needed to make discoveries – Probabilistic methods – Need for efficiency

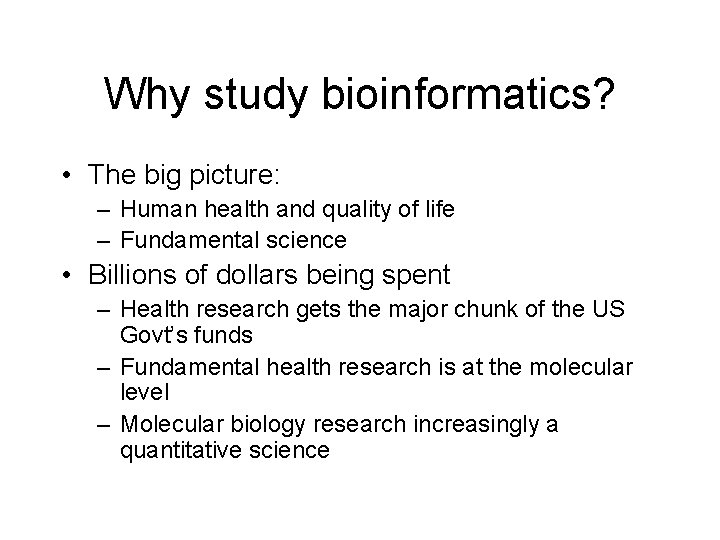

Why study bioinformatics? • The big picture: – Human health and quality of life – Fundamental science • Billions of dollars being spent – Health research gets the major chunk of the US Govt’s funds – Fundamental health research is at the molecular level – Molecular biology research increasingly a quantitative science

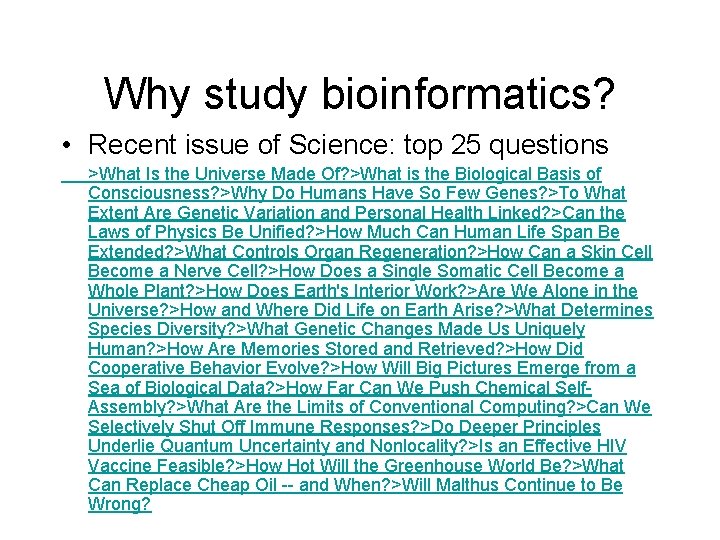

Why study bioinformatics? • Recent issue of Science: top 25 questions >What Is the Universe Made Of? >What is the Biological Basis of Consciousness? >Why Do Humans Have So Few Genes? >To What Extent Are Genetic Variation and Personal Health Linked? >Can the Laws of Physics Be Unified? >How Much Can Human Life Span Be Extended? >What Controls Organ Regeneration? >How Can a Skin Cell Become a Nerve Cell? >How Does a Single Somatic Cell Become a Whole Plant? >How Does Earth's Interior Work? >Are We Alone in the Universe? >How and Where Did Life on Earth Arise? >What Determines Species Diversity? >What Genetic Changes Made Us Uniquely Human? >How Are Memories Stored and Retrieved? >How Did Cooperative Behavior Evolve? >How Will Big Pictures Emerge from a Sea of Biological Data? >How Far Can We Push Chemical Self. Assembly? >What Are the Limits of Conventional Computing? >Can We Selectively Shut Off Immune Responses? >Do Deeper Principles Underlie Quantum Uncertainty and Nonlocality? >Is an Effective HIV Vaccine Feasible? >How Hot Will the Greenhouse World Be? >What Can Replace Cheap Oil -- and When? >Will Malthus Continue to Be Wrong?

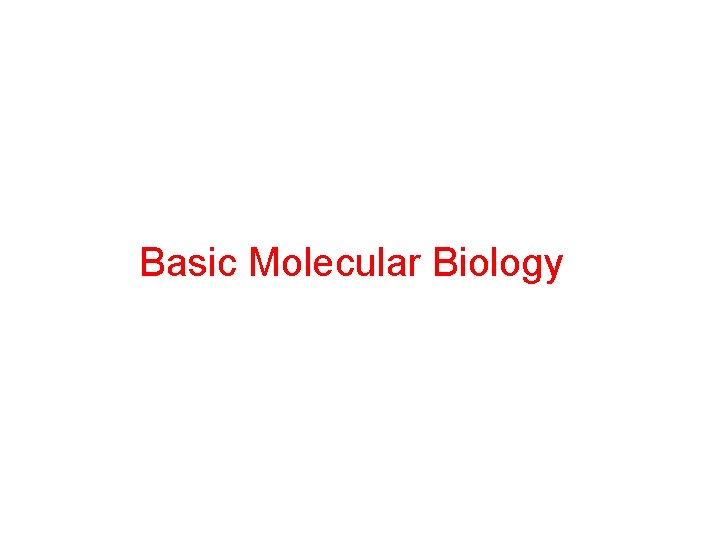

Basic Molecular Biology

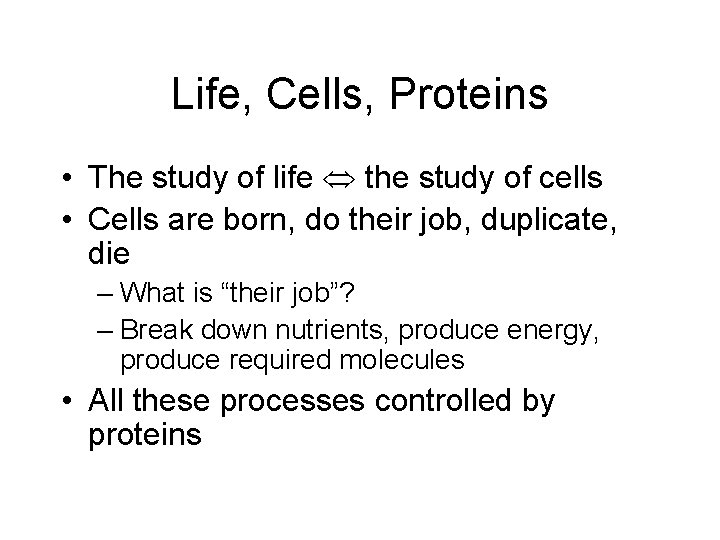

Life, Cells, Proteins • The study of life the study of cells • Cells are born, do their job, duplicate, die – What is “their job”? – Break down nutrients, produce energy, produce required molecules • All these processes controlled by proteins

Protein functions • “Enzymes” (catalysts) – Control chemical reactions in cell • Transfer of signals/molecules between and inside cells – E. g. , sensing of environment • Regulate production of other proteins

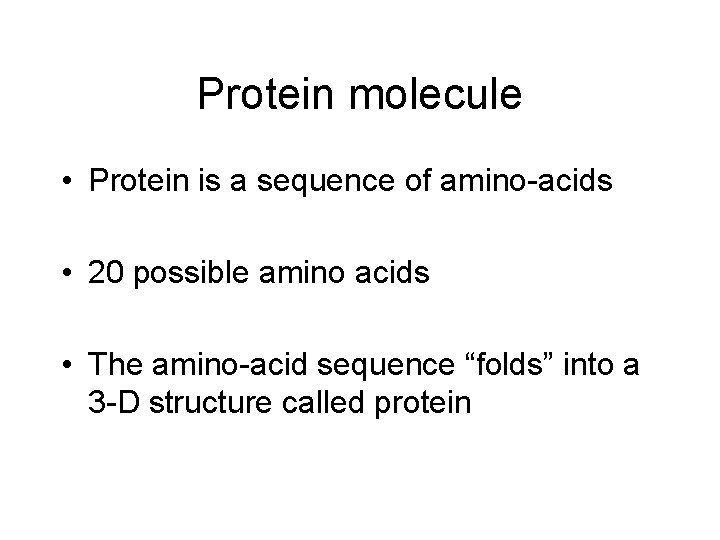

Protein molecule • Protein is a sequence of amino-acids • 20 possible amino acids • The amino-acid sequence “folds” into a 3 -D structure called protein

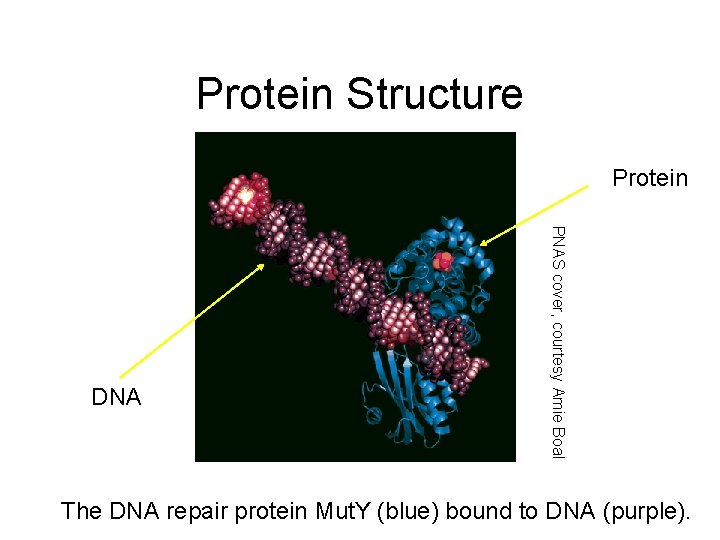

Protein Structure Protein PNAS cover, courtesy Amie Boal DNA The DNA repair protein Mut. Y (blue) bound to DNA (purple).

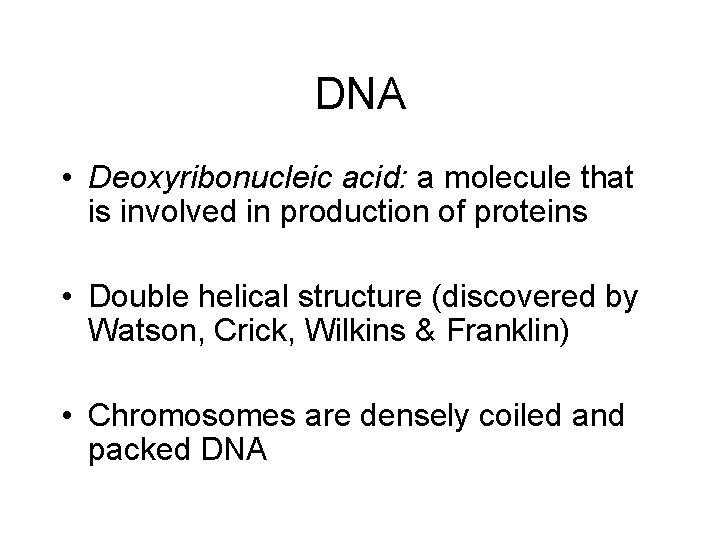

DNA • Deoxyribonucleic acid: a molecule that is involved in production of proteins • Double helical structure (discovered by Watson, Crick, Wilkins & Franklin) • Chromosomes are densely coiled and packed DNA

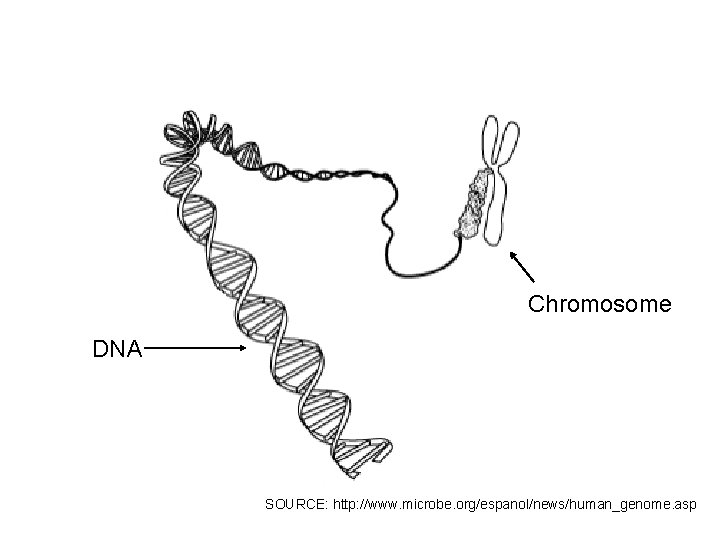

Chromosome DNA SOURCE: http: //www. microbe. org/espanol/news/human_genome. asp

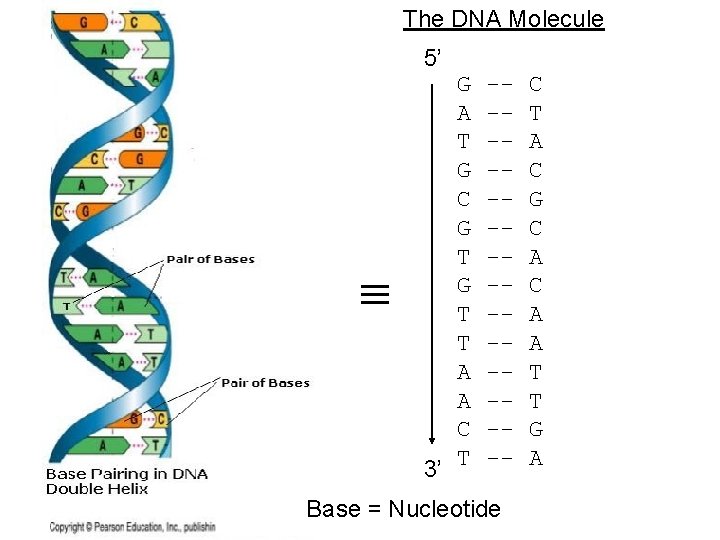

The DNA Molecule 5’ G A T G C G T T A A C 3’ T -------- Base = Nucleotide C T A C G C A A T T G A

From DNA to Amino-acid sequence Cell SRC: http: //www. biologycorner. com/resources/DNA-RNA. gif

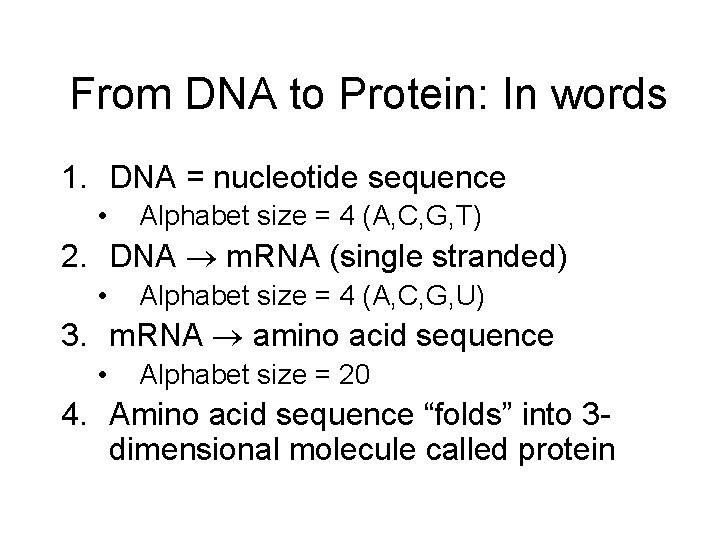

From DNA to Protein: In words 1. DNA = nucleotide sequence • Alphabet size = 4 (A, C, G, T) 2. DNA m. RNA (single stranded) • Alphabet size = 4 (A, C, G, U) 3. m. RNA amino acid sequence • Alphabet size = 20 4. Amino acid sequence “folds” into 3 dimensional molecule called protein

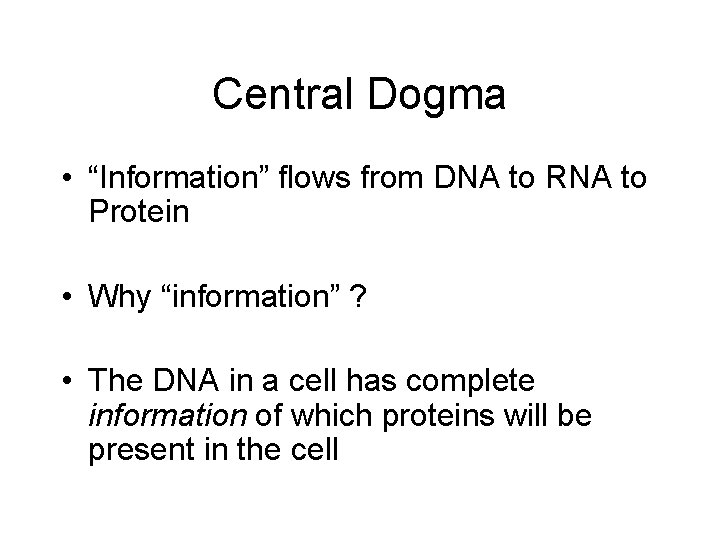

Central Dogma • “Information” flows from DNA to RNA to Protein • Why “information” ? • The DNA in a cell has complete information of which proteins will be present in the cell

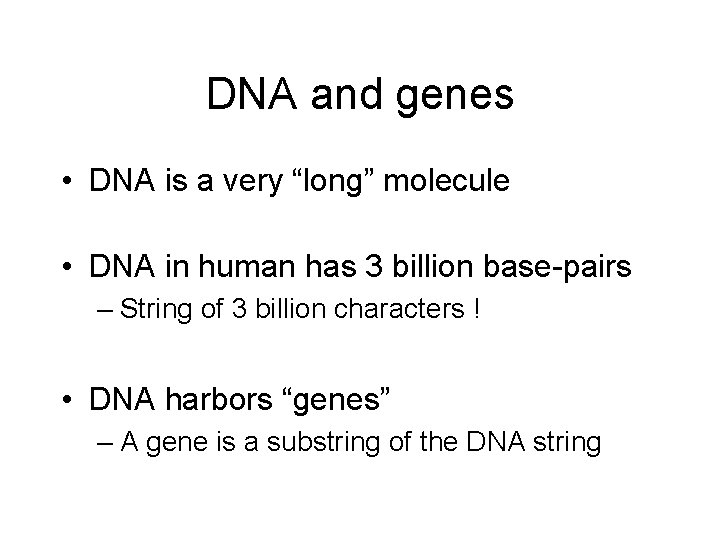

DNA and genes • DNA is a very “long” molecule • DNA in human has 3 billion base-pairs – String of 3 billion characters ! • DNA harbors “genes” – A gene is a substring of the DNA string

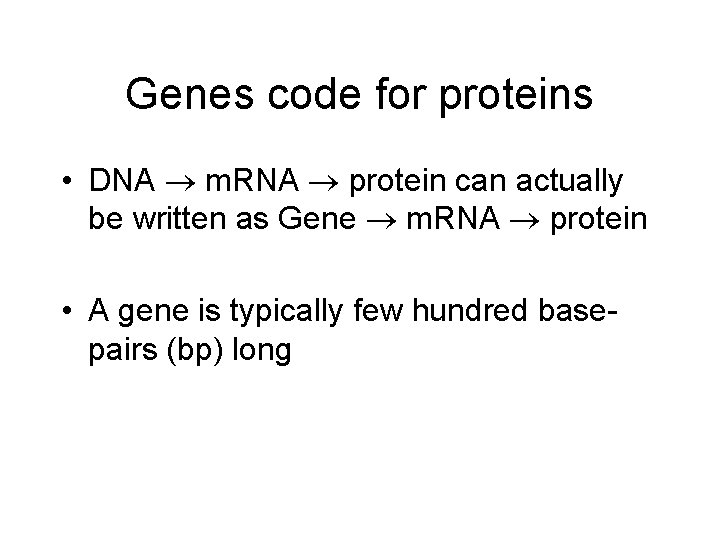

Genes code for proteins • DNA m. RNA protein can actually be written as Gene m. RNA protein • A gene is typically few hundred basepairs (bp) long

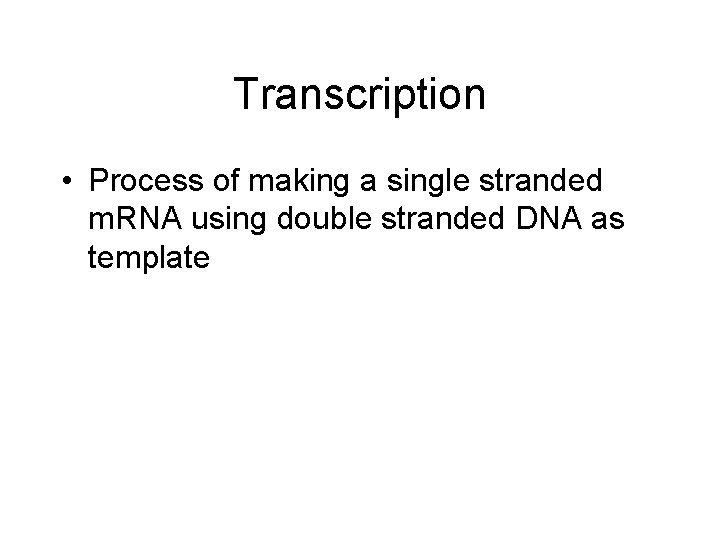

Transcription • Process of making a single stranded m. RNA using double stranded DNA as template

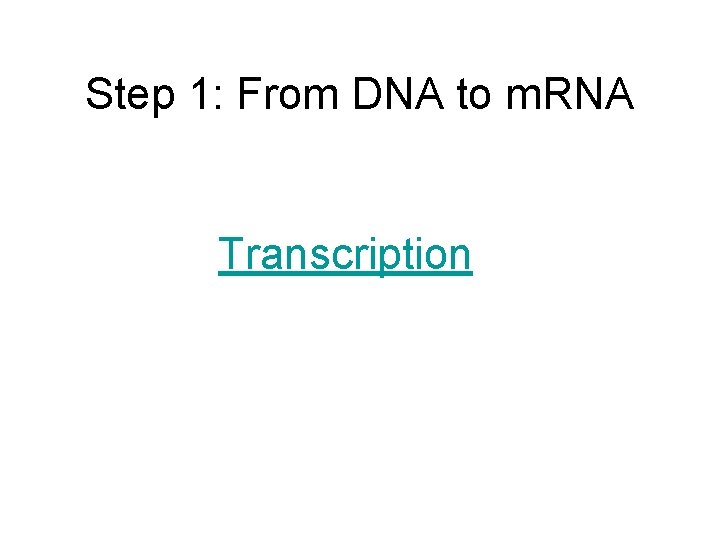

Step 1: From DNA to m. RNA Transcription

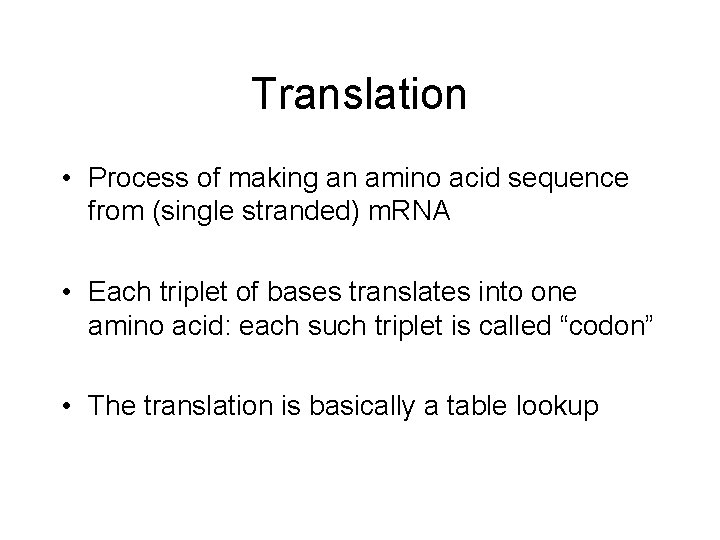

Translation • Process of making an amino acid sequence from (single stranded) m. RNA • Each triplet of bases translates into one amino acid: each such triplet is called “codon” • The translation is basically a table lookup

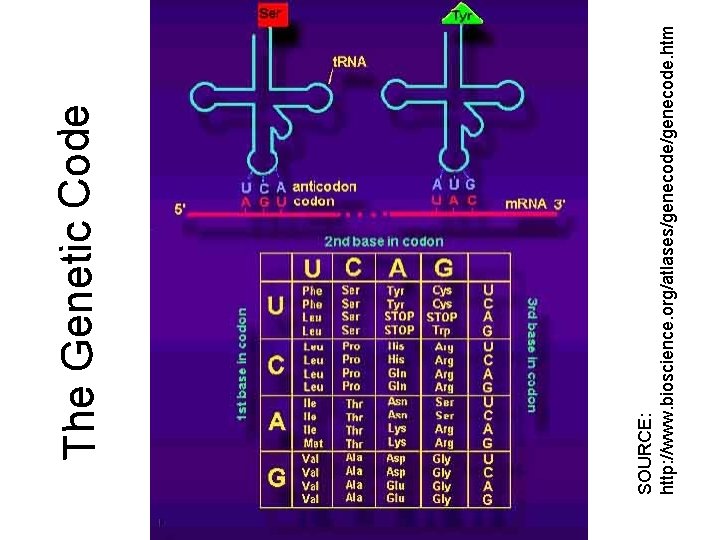

SOURCE: http: //www. bioscience. org/atlases/genecode. htm The Genetic Code

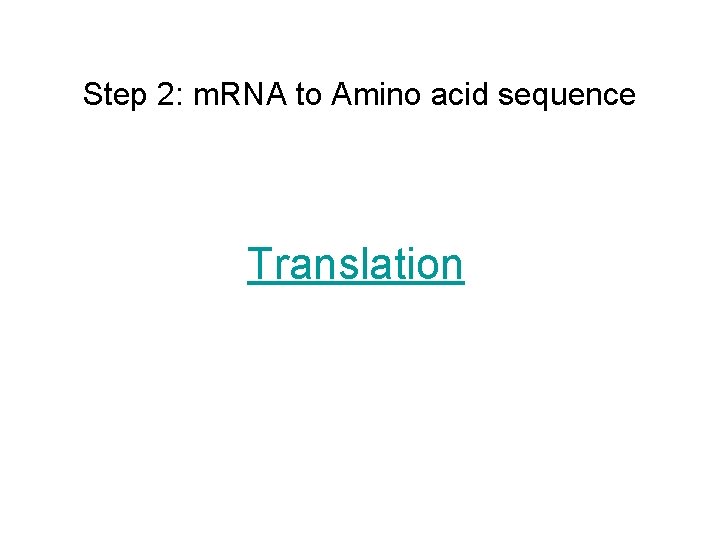

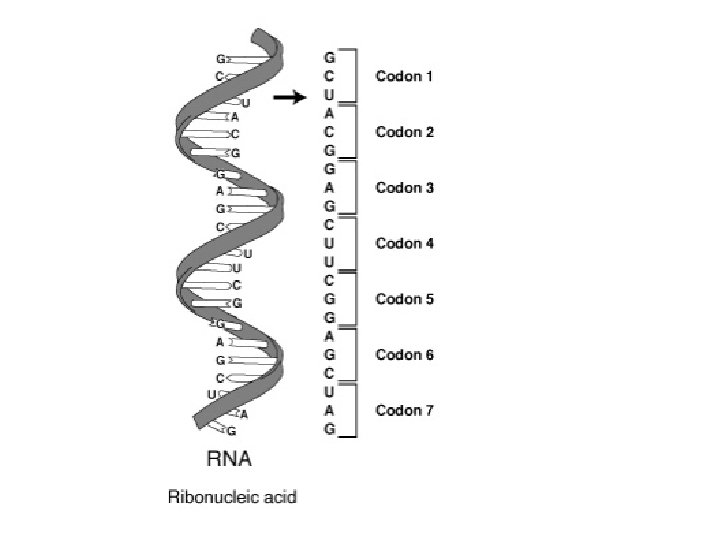

Step 2: m. RNA to Amino acid sequence Translation

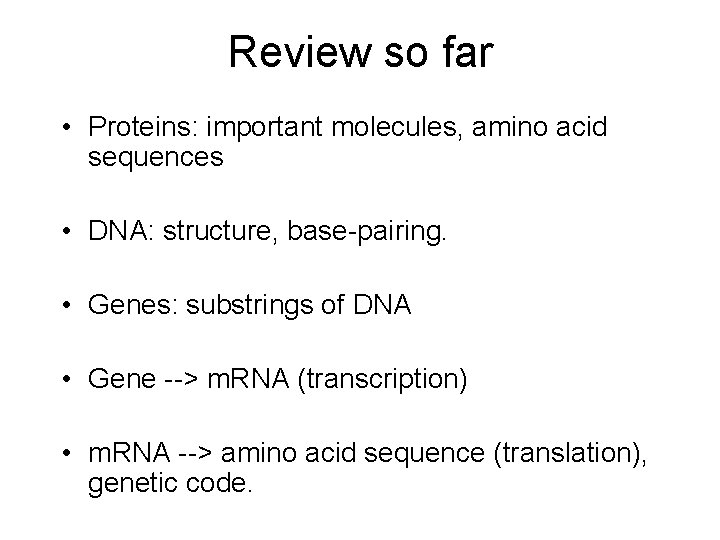

Review so far • Proteins: important molecules, amino acid sequences • DNA: structure, base-pairing. • Genes: substrings of DNA • Gene --> m. RNA (transcription) • m. RNA --> amino acid sequence (translation), genetic code.

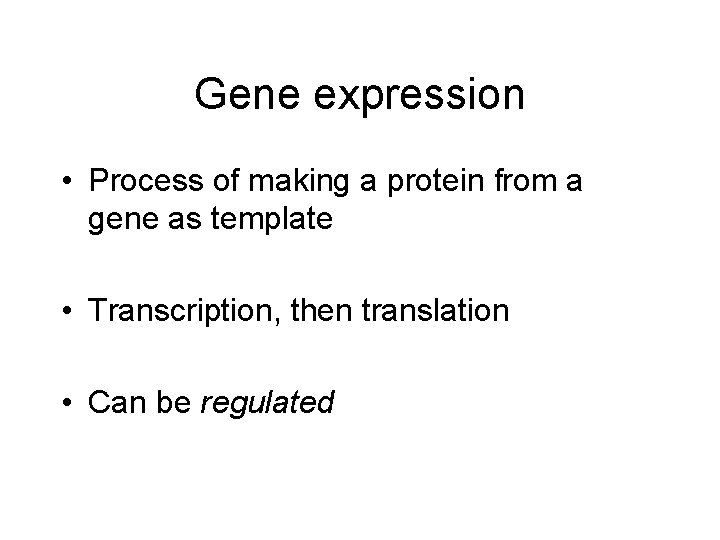

Gene expression • Process of making a protein from a gene as template • Transcription, then translation • Can be regulated

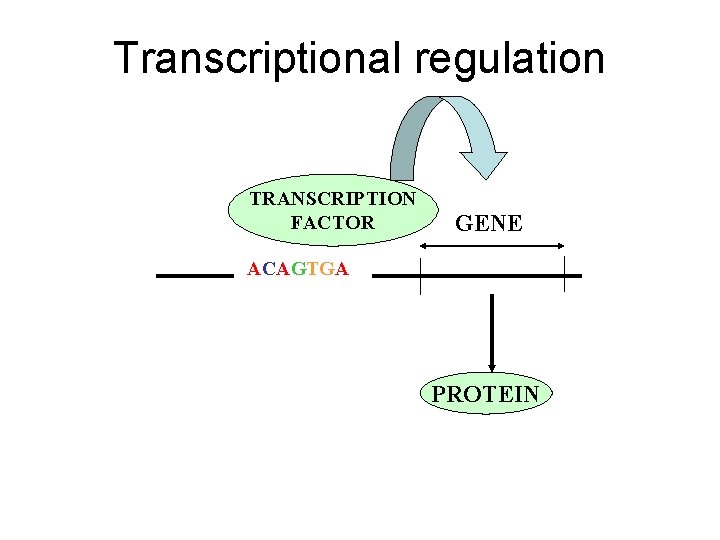

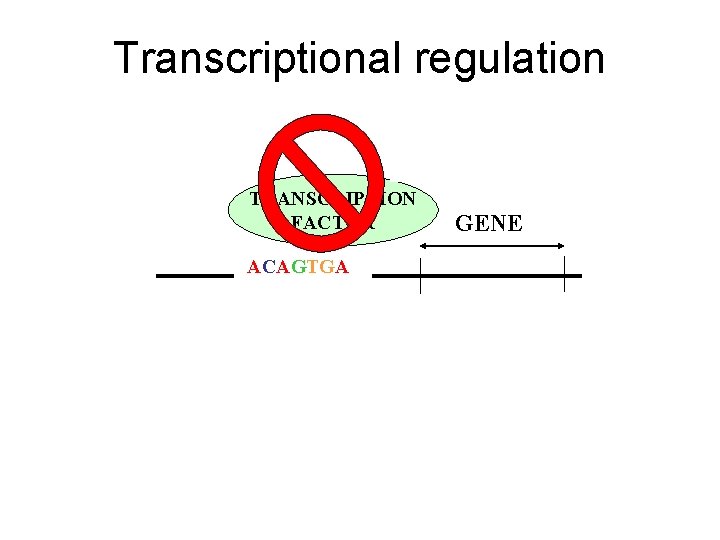

Transcriptional regulation TRANSCRIPTION FACTOR GENE ACAGTGA PROTEIN

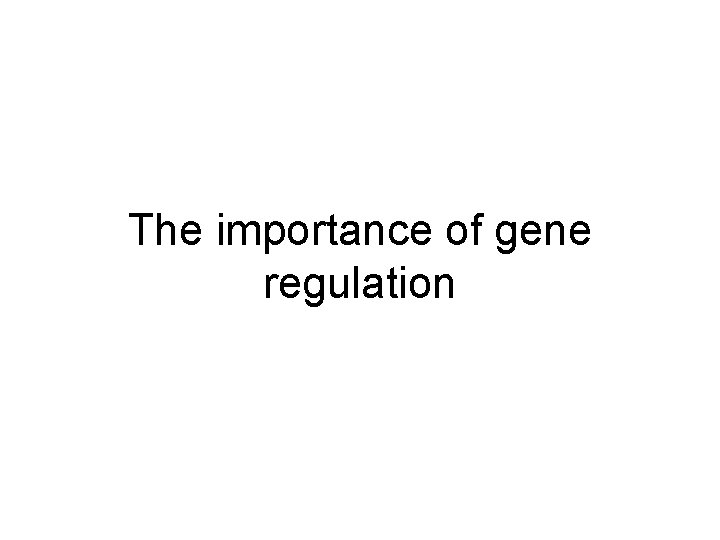

The importance of gene regulation

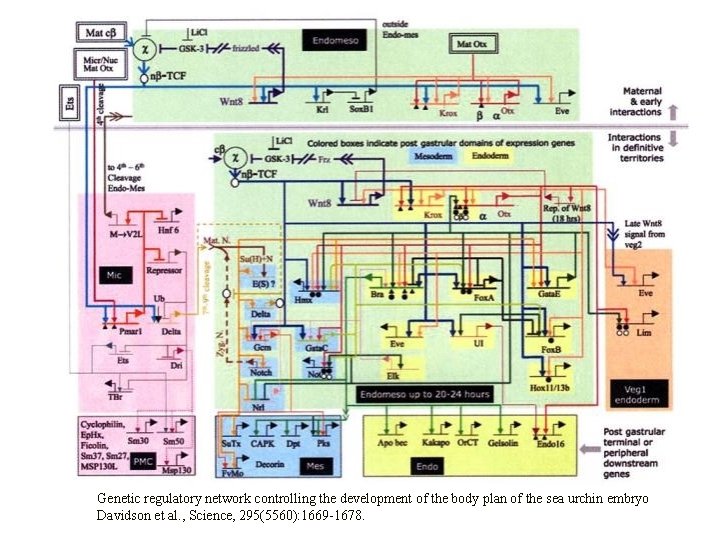

Genetic regulatory network controlling the development of the body plan of the sea urchin embryo Davidson et al. , Science, 295(5560): 1669 -1678.

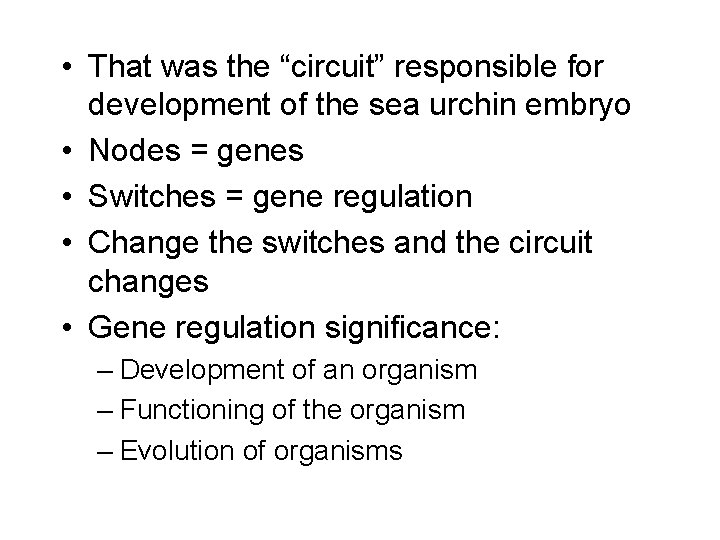

• That was the “circuit” responsible for development of the sea urchin embryo • Nodes = genes • Switches = gene regulation • Change the switches and the circuit changes • Gene regulation significance: – Development of an organism – Functioning of the organism – Evolution of organisms

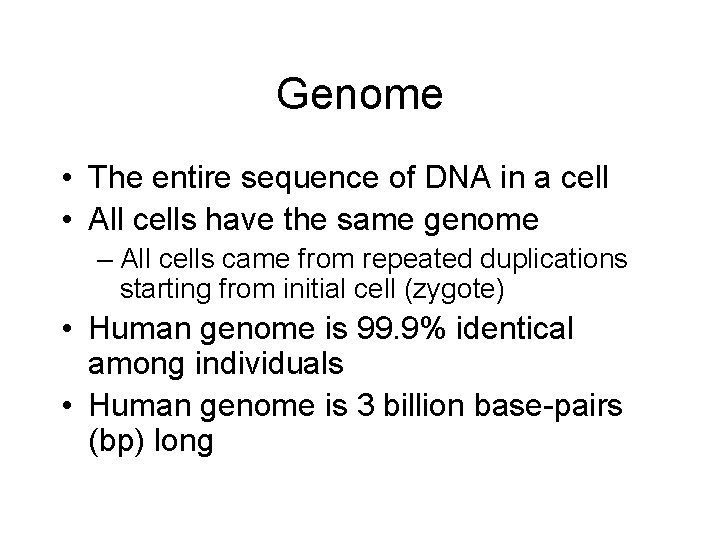

Genome • The entire sequence of DNA in a cell • All cells have the same genome – All cells came from repeated duplications starting from initial cell (zygote) • Human genome is 99. 9% identical among individuals • Human genome is 3 billion base-pairs (bp) long

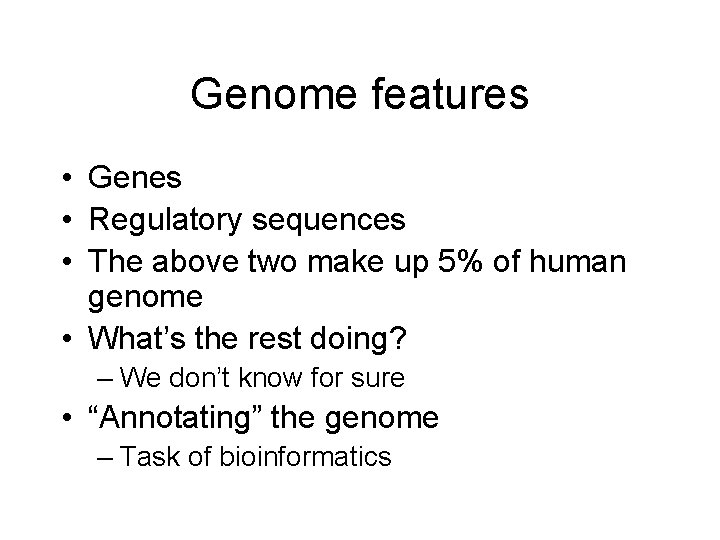

Genome features • Genes • Regulatory sequences • The above two make up 5% of human genome • What’s the rest doing? – We don’t know for sure • “Annotating” the genome – Task of bioinformatics
