CS 584 Discrete Optimization Problems A discrete optimization

CS 584

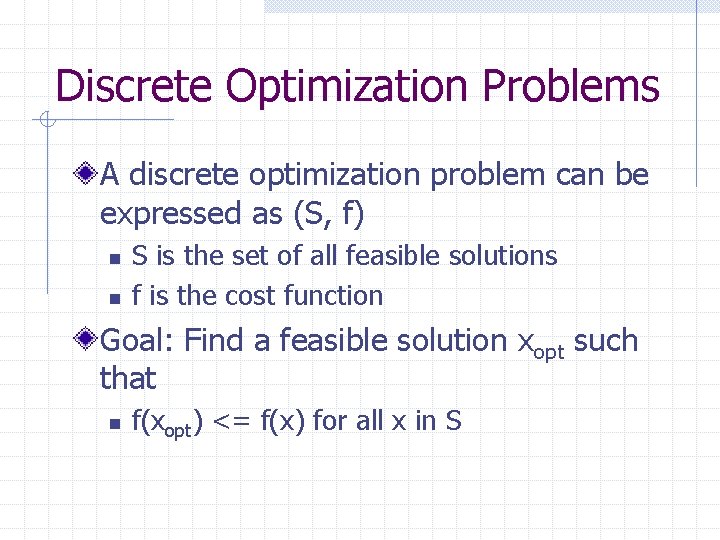

Discrete Optimization Problems A discrete optimization problem can be expressed as (S, f) n n S is the set of all feasible solutions f is the cost function Goal: Find a feasible solution xopt such that n f(xopt) <= f(x) for all x in S

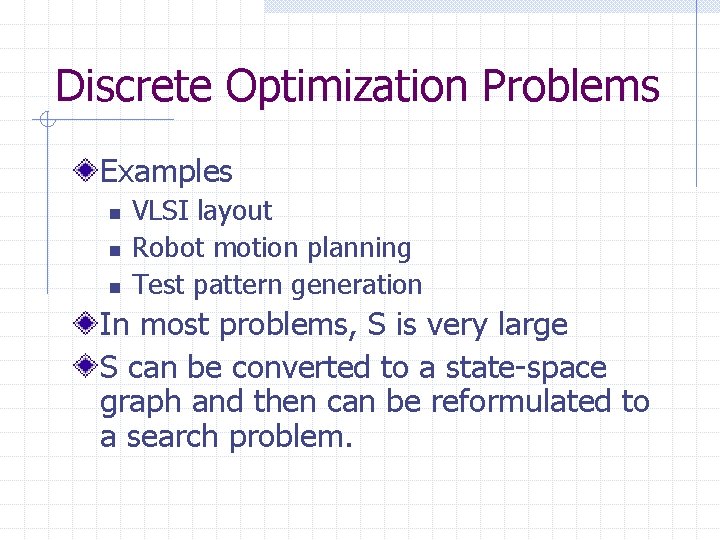

Discrete Optimization Problems Examples n n n VLSI layout Robot motion planning Test pattern generation In most problems, S is very large S can be converted to a state-space graph and then can be reformulated to a search problem.

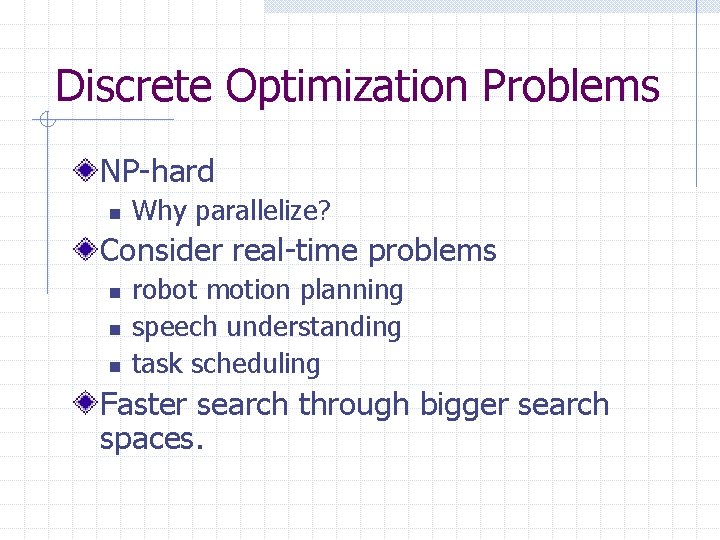

Discrete Optimization Problems NP-hard n Why parallelize? Consider real-time problems n n n robot motion planning speech understanding task scheduling Faster search through bigger search spaces.

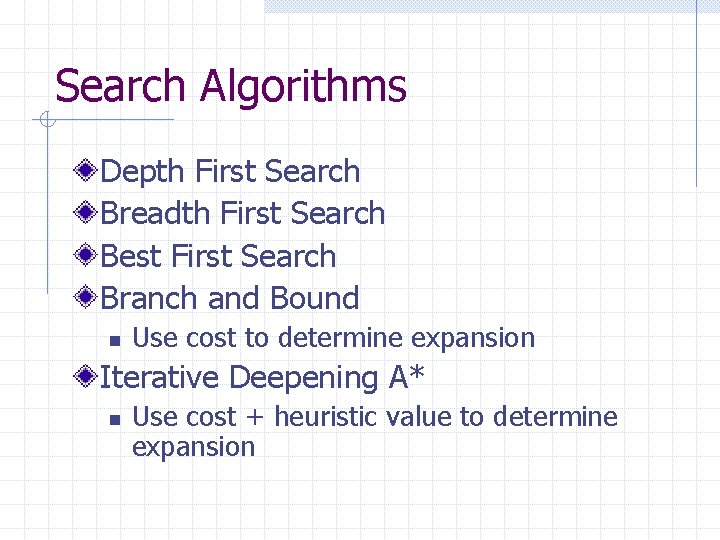

Search Algorithms Depth First Search Breadth First Search Best First Search Branch and Bound n Use cost to determine expansion Iterative Deepening A* n Use cost + heuristic value to determine expansion

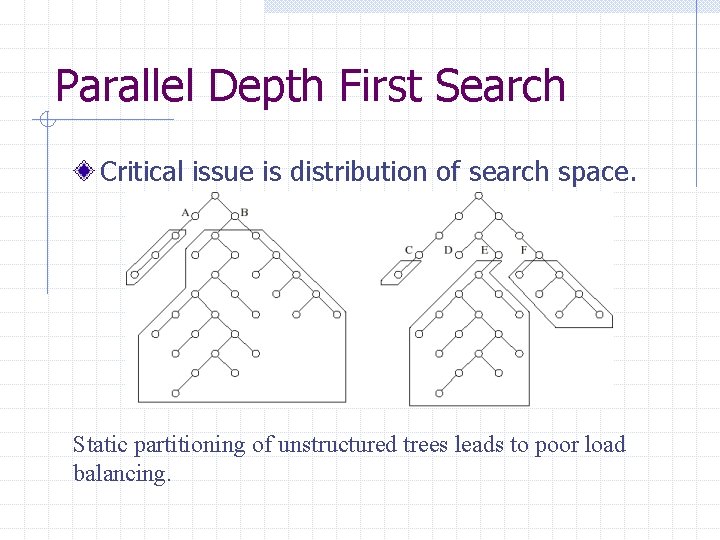

Parallel Depth First Search Critical issue is distribution of search space. Static partitioning of unstructured trees leads to poor load balancing.

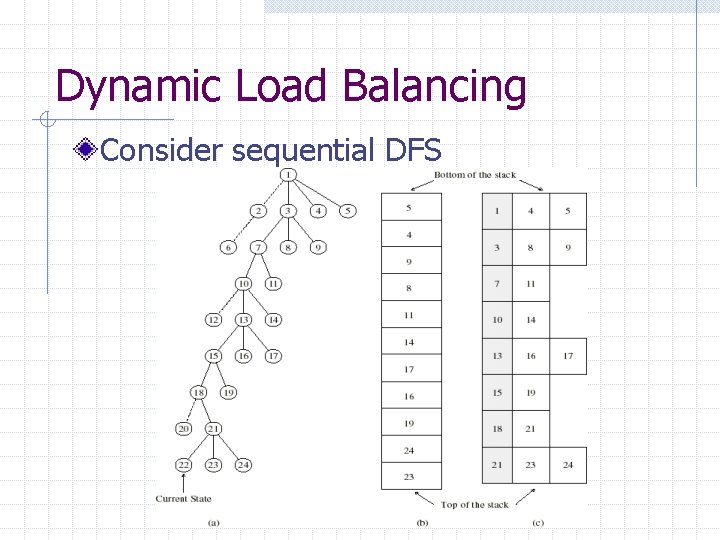

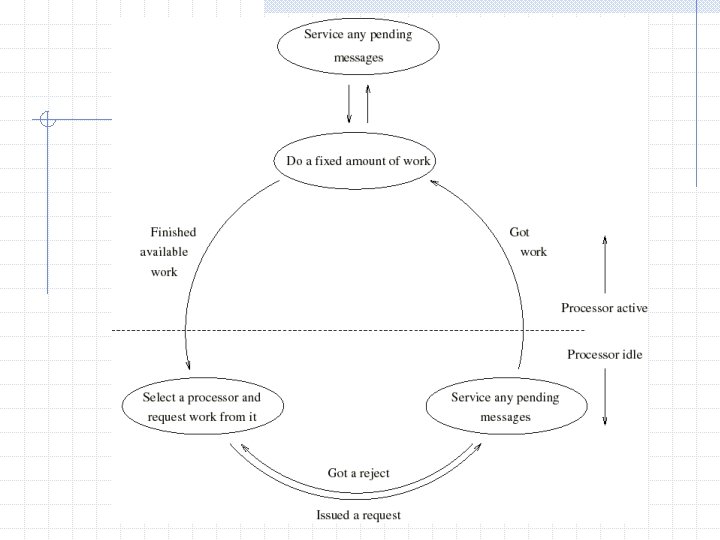

Dynamic Load Balancing Consider sequential DFS

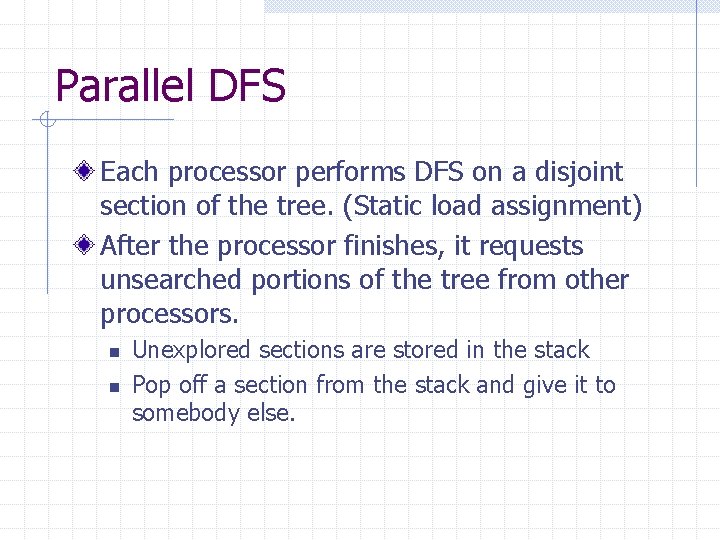

Parallel DFS Each processor performs DFS on a disjoint section of the tree. (Static load assignment) After the processor finishes, it requests unsearched portions of the tree from other processors. n n Unexplored sections are stored in the stack Pop off a section from the stack and give it to somebody else.

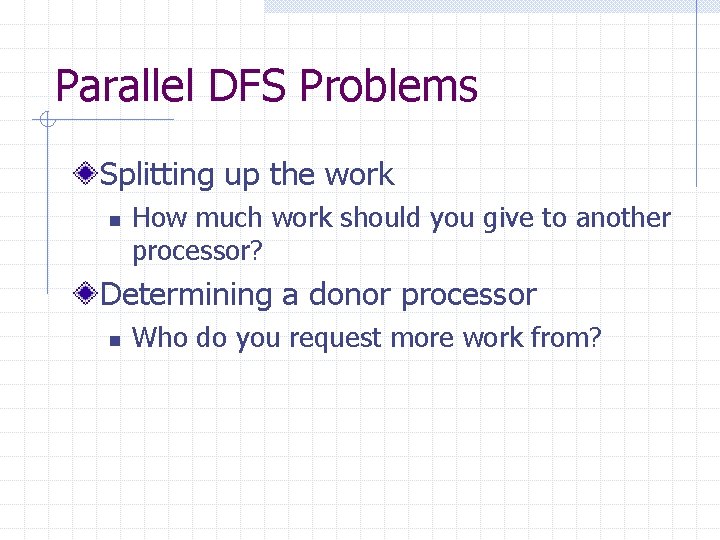

Parallel DFS Problems Splitting up the work n How much work should you give to another processor? Determining a donor processor n Who do you request more work from?

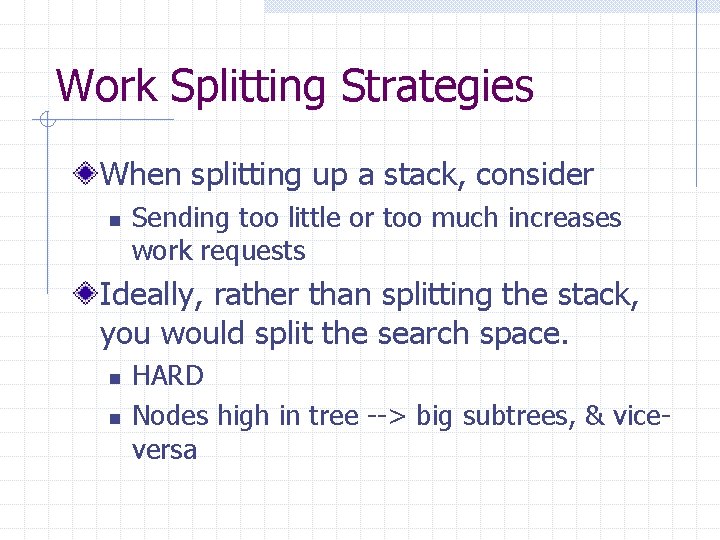

Work Splitting Strategies When splitting up a stack, consider n Sending too little or too much increases work requests Ideally, rather than splitting the stack, you would split the search space. n n HARD Nodes high in tree --> big subtrees, & viceversa

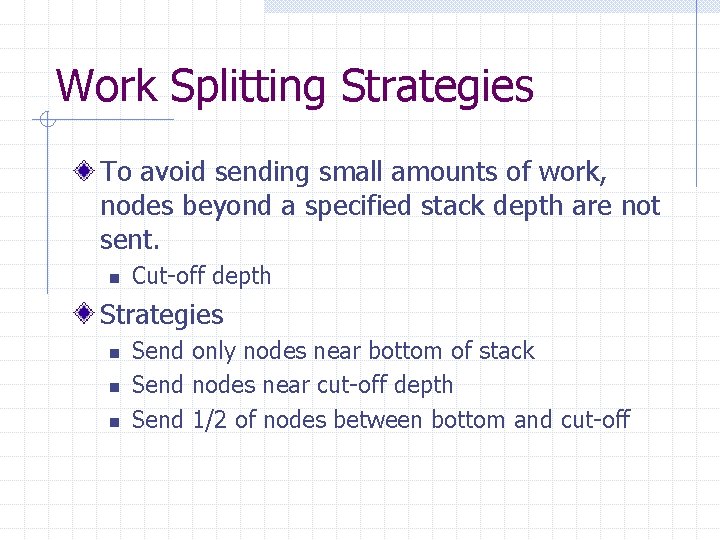

Work Splitting Strategies To avoid sending small amounts of work, nodes beyond a specified stack depth are not sent. n Cut-off depth Strategies n n n Send only nodes near bottom of stack Send nodes near cut-off depth Send 1/2 of nodes between bottom and cut-off

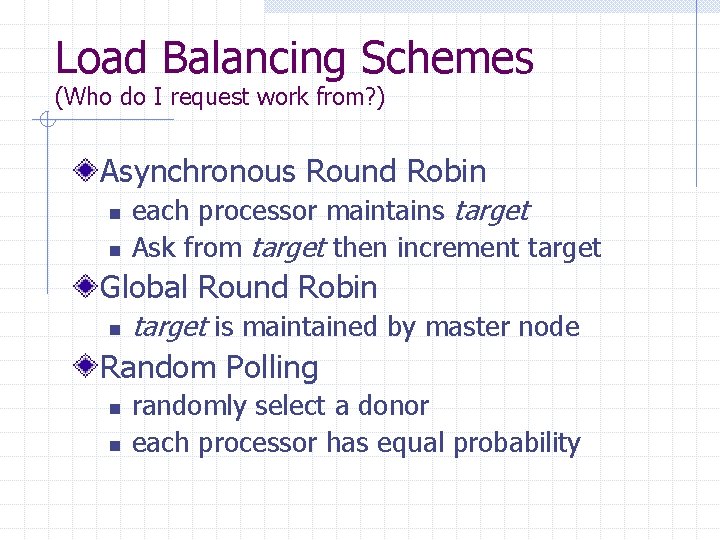

Load Balancing Schemes (Who do I request work from? ) Asynchronous Round Robin n n each processor maintains target Ask from target then increment target Global Round Robin n target is maintained by master node Random Polling n n randomly select a donor each processor has equal probability

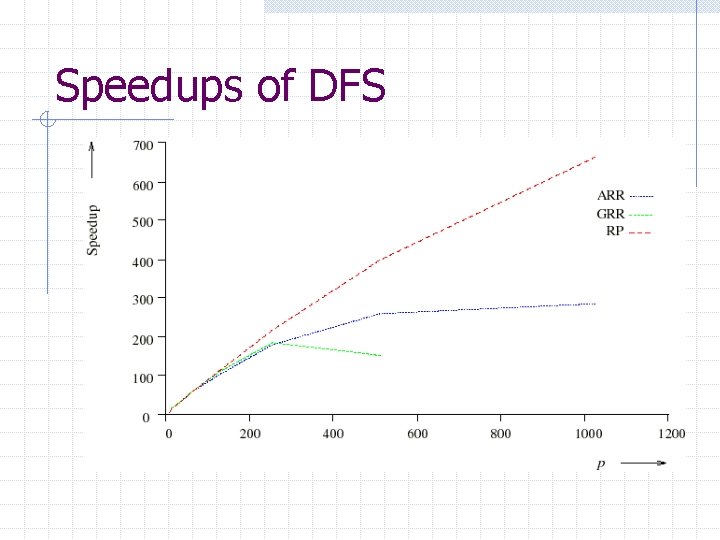

Speedups of DFS

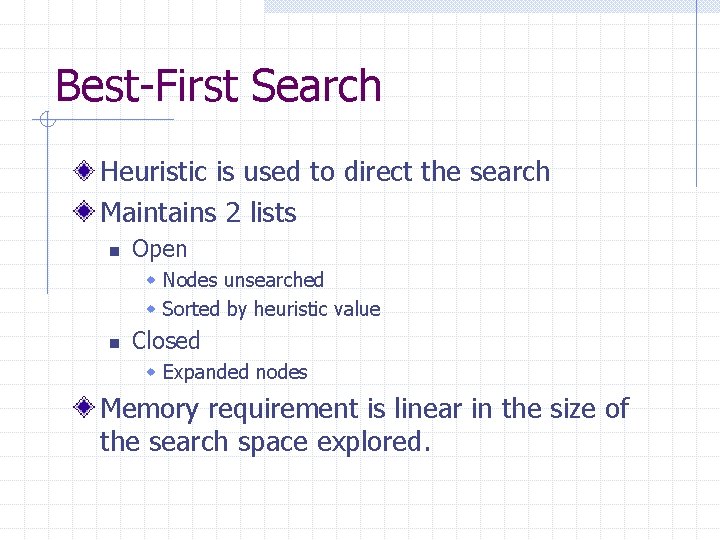

Best-First Search Heuristic is used to direct the search Maintains 2 lists n Open w Nodes unsearched w Sorted by heuristic value n Closed w Expanded nodes Memory requirement is linear in the size of the search space explored.

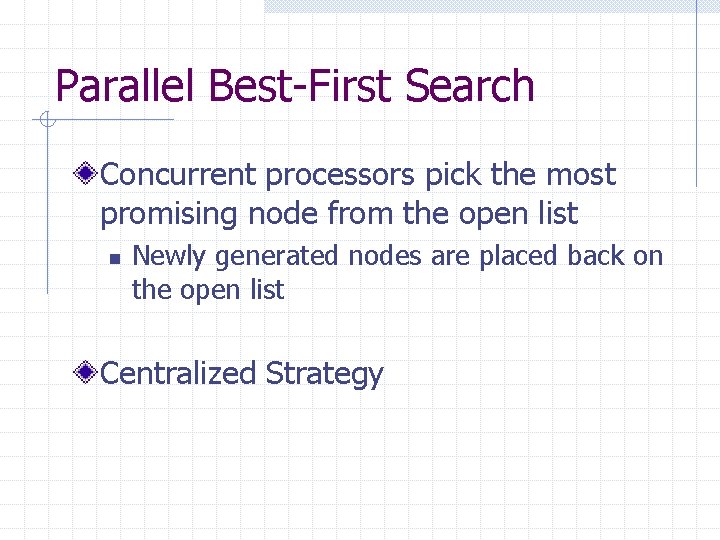

Parallel Best-First Search Concurrent processors pick the most promising node from the open list n Newly generated nodes are placed back on the open list Centralized Strategy

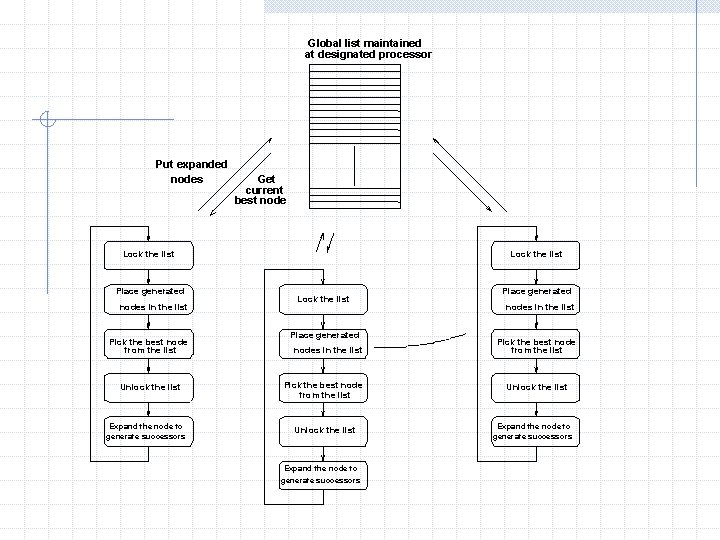

Global list maintained at designated processor Put expanded nodes Get current best node Lock the list Place generated nodes in the list Pick the best node from the list Unlock the list Expand the node to generate successors

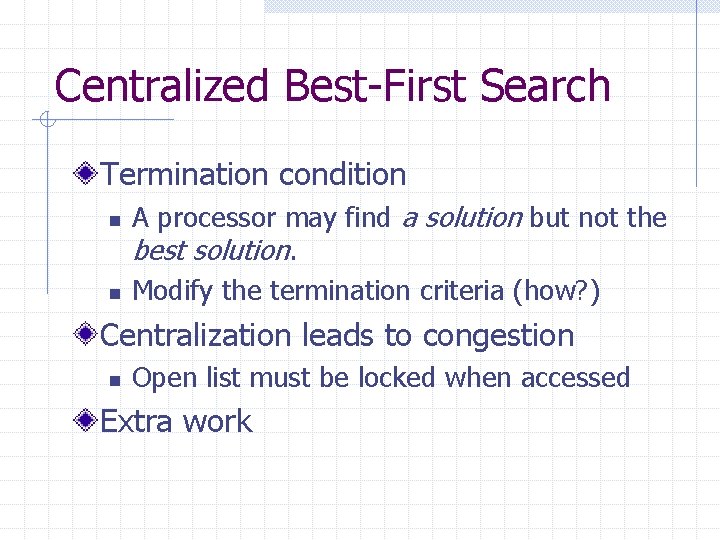

Centralized Best-First Search Termination condition n n A processor may find a solution but not the best solution. Modify the termination criteria (how? ) Centralization leads to congestion n Open list must be locked when accessed Extra work

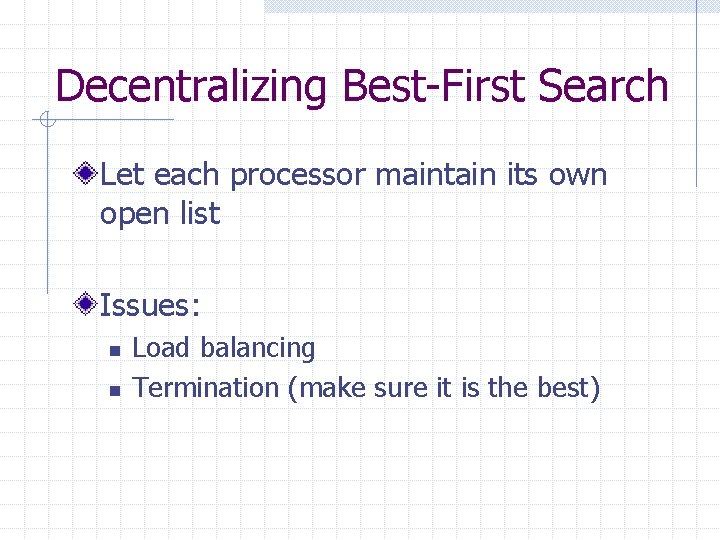

Decentralizing Best-First Search Let each processor maintain its own open list Issues: n n Load balancing Termination (make sure it is the best)

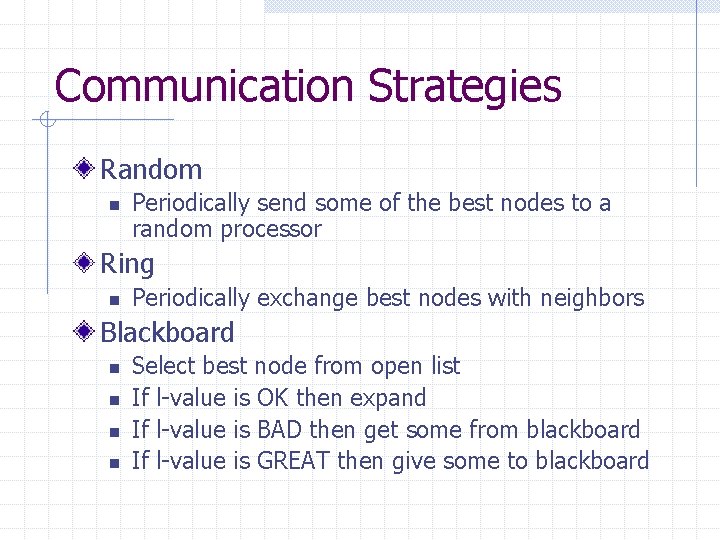

Communication Strategies Random n Periodically send some of the best nodes to a random processor Ring n Periodically exchange best nodes with neighbors Blackboard n n Select best node from open list If l-value is OK then expand If l-value is BAD then get some from blackboard If l-value is GREAT then give some to blackboard

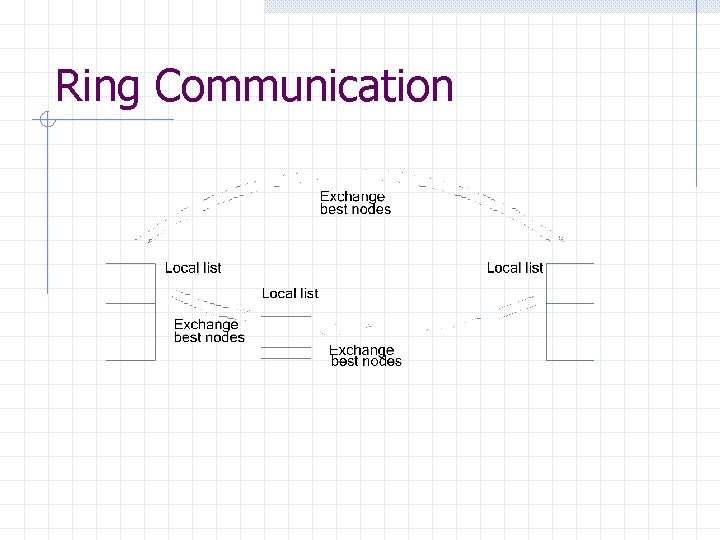

Ring Communication

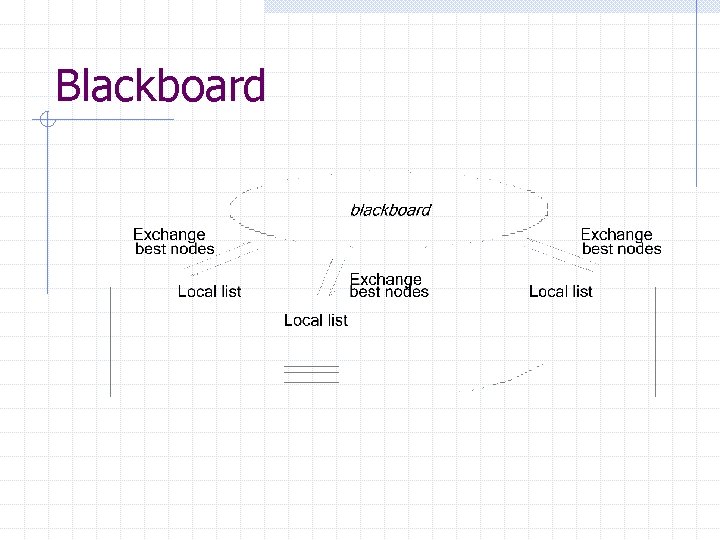

Blackboard

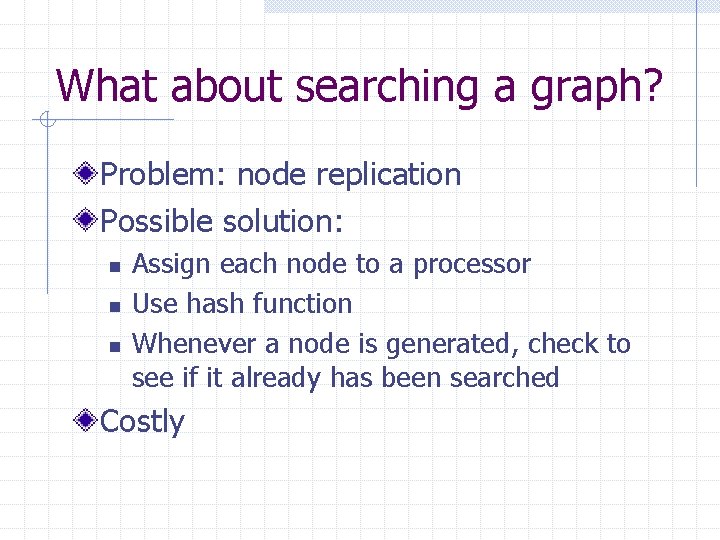

What about searching a graph? Problem: node replication Possible solution: n n n Assign each node to a processor Use hash function Whenever a node is generated, check to see if it already has been searched Costly

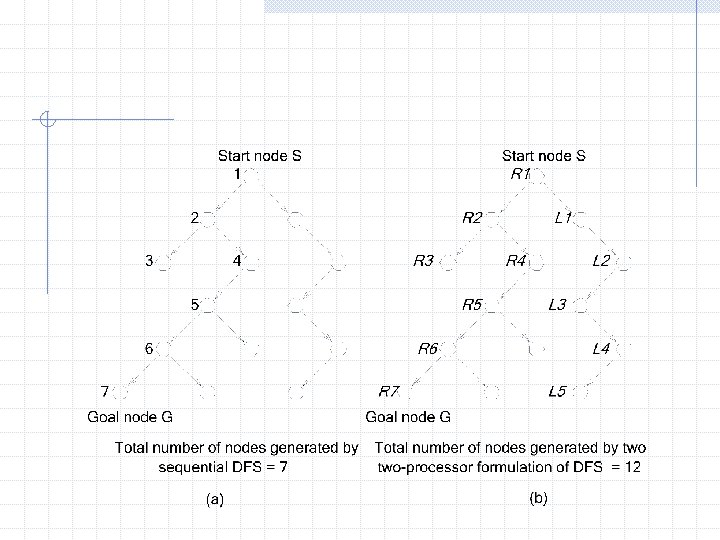

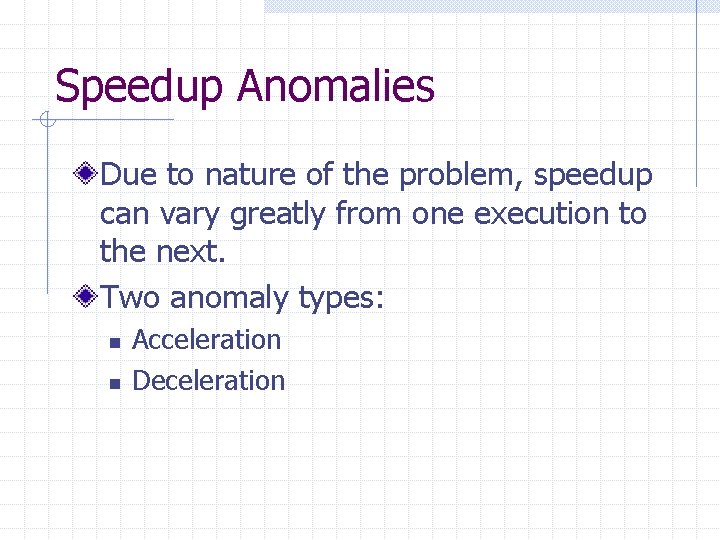

Speedup Anomalies Due to nature of the problem, speedup can vary greatly from one execution to the next. Two anomaly types: n n Acceleration Deceleration

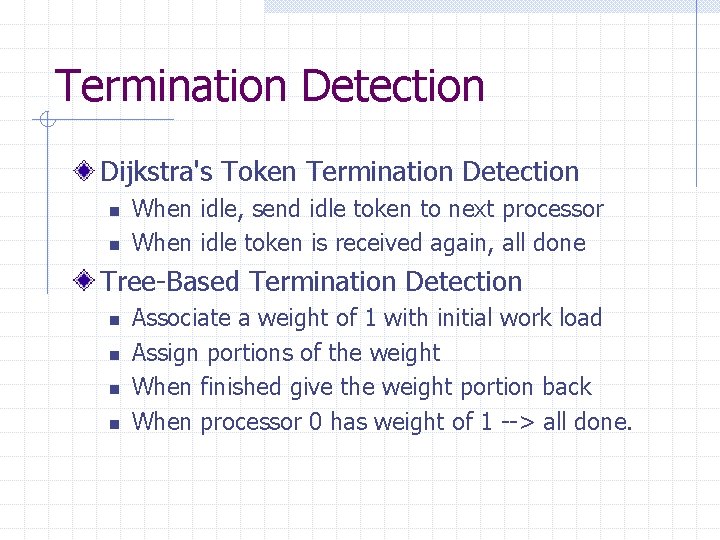

Termination Detection Dijkstra's Token Termination Detection n n When idle, send idle token to next processor When idle token is received again, all done Tree-Based Termination Detection n n Associate a weight of 1 with initial work load Assign portions of the weight When finished give the weight portion back When processor 0 has weight of 1 --> all done.
