CS 5263 Bioinformatics Lecture 12 14 Markov Chain

CS 5263 Bioinformatics Lecture 12 -14: Markov Chain and Hidden Markov Models

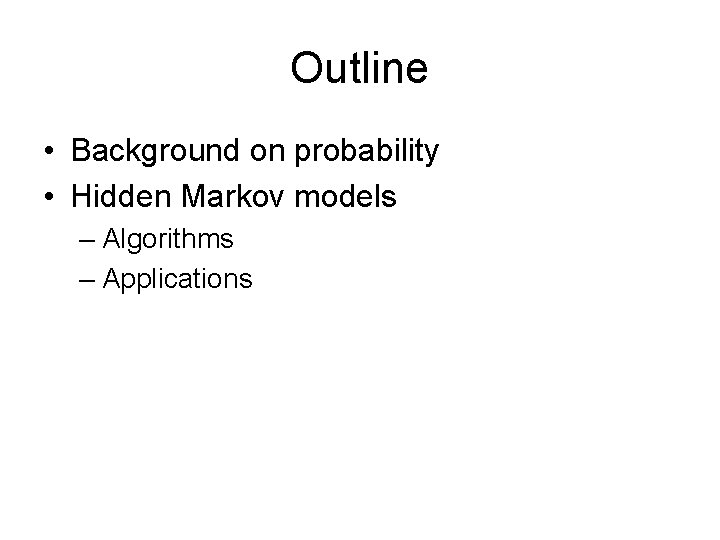

Outline • Background on probability • Hidden Markov models – Algorithms – Applications

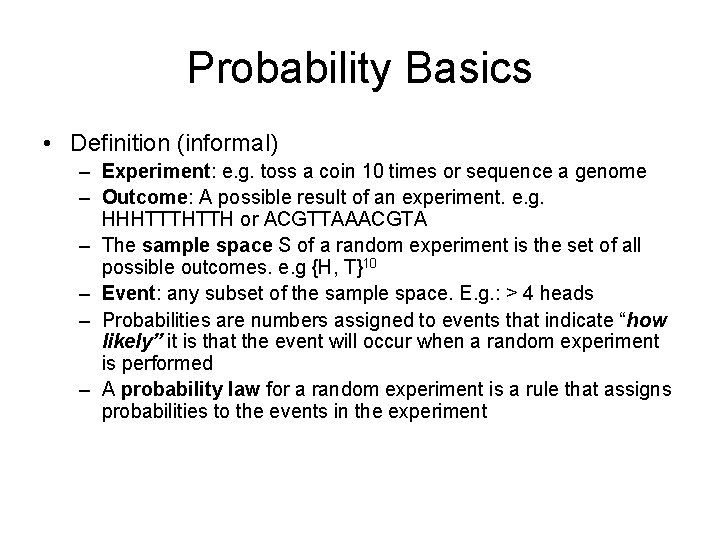

Probability Basics • Definition (informal) – Experiment: e. g. toss a coin 10 times or sequence a genome – Outcome: A possible result of an experiment. e. g. HHHTTTHTTH or ACGTTAAACGTA – The sample space S of a random experiment is the set of all possible outcomes. e. g {H, T}10 – Event: any subset of the sample space. E. g. : > 4 heads – Probabilities are numbers assigned to events that indicate “how likely” it is that the event will occur when a random experiment is performed – A probability law for a random experiment is a rule that assigns probabilities to the events in the experiment

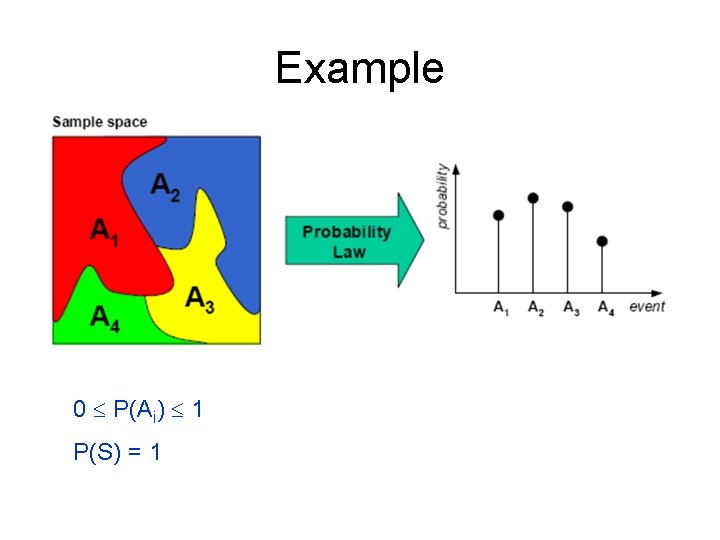

Example 0 P(Ai) 1 P(S) = 1

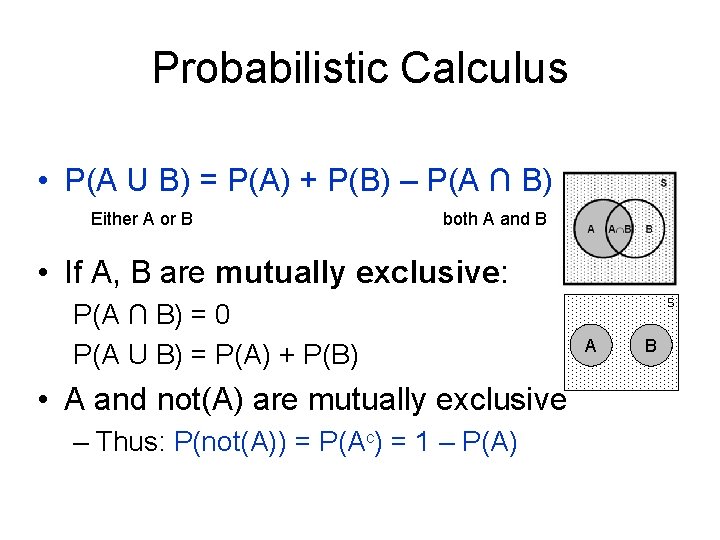

Probabilistic Calculus • P(A U B) = P(A) + P(B) – P(A ∩ B) Either A or B both A and B • If A, B are mutually exclusive: P(A ∩ B) = 0 P(A U B) = P(A) + P(B) • A and not(A) are mutually exclusive – Thus: P(not(A)) = P(Ac) = 1 – P(A) s A B

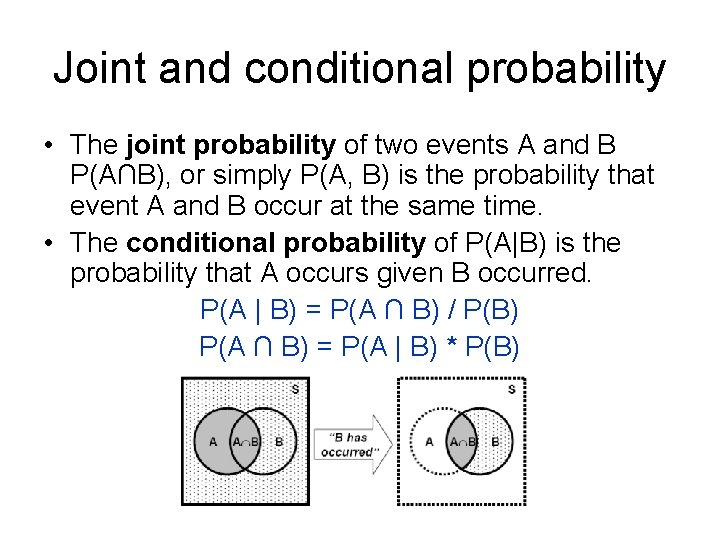

Joint and conditional probability • The joint probability of two events A and B P(A∩B), or simply P(A, B) is the probability that event A and B occur at the same time. • The conditional probability of P(A|B) is the probability that A occurs given B occurred. P(A | B) = P(A ∩ B) / P(B) P(A ∩ B) = P(A | B) * P(B)

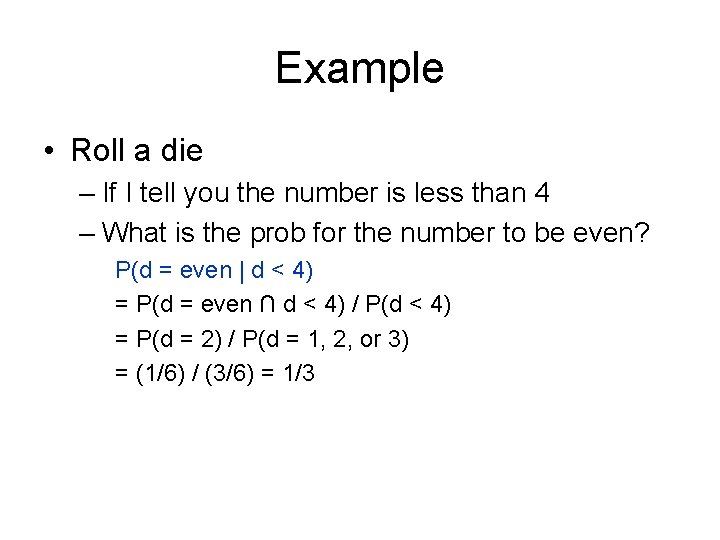

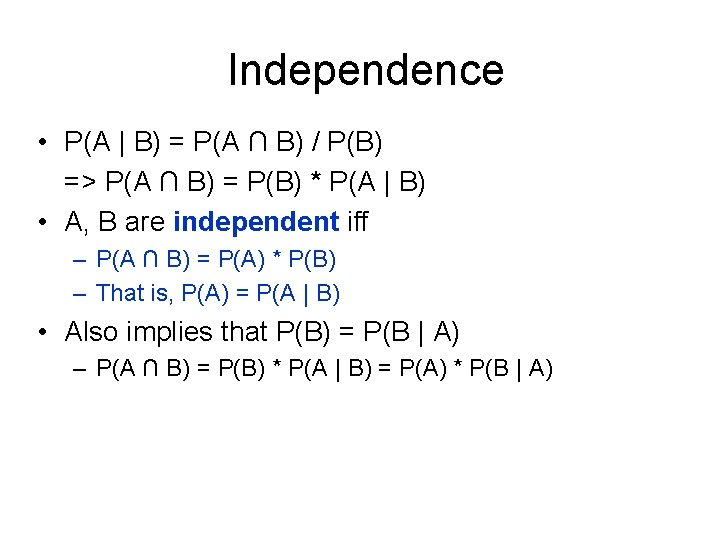

Example • Roll a die – If I tell you the number is less than 4 – What is the prob for the number to be even? P(d = even | d < 4) = P(d = even ∩ d < 4) / P(d < 4) = P(d = 2) / P(d = 1, 2, or 3) = (1/6) / (3/6) = 1/3

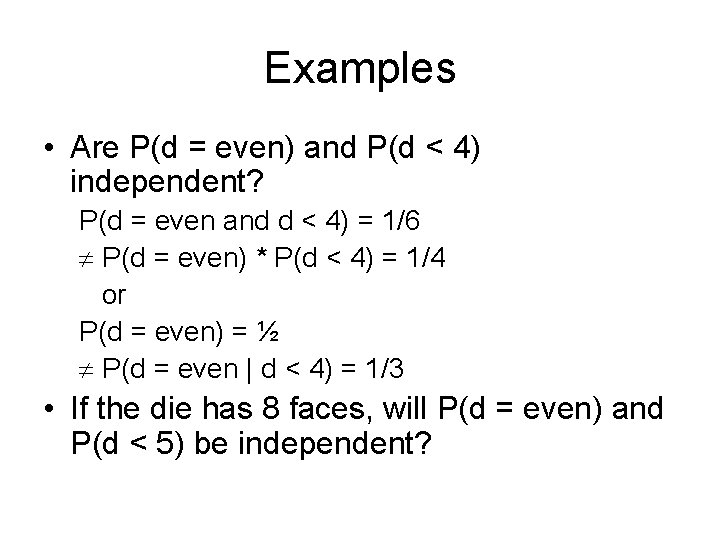

Examples • Are P(d = even) and P(d < 4) independent? P(d = even and d < 4) = 1/6 P(d = even) * P(d < 4) = 1/4 or P(d = even) = ½ P(d = even | d < 4) = 1/3 • If the die has 8 faces, will P(d = even) and P(d < 5) be independent?

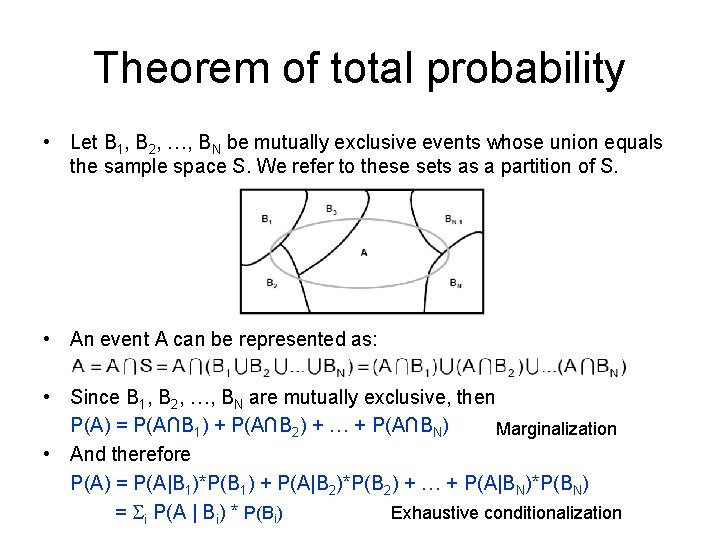

Theorem of total probability • Let B 1, B 2, …, BN be mutually exclusive events whose union equals the sample space S. We refer to these sets as a partition of S. • An event A can be represented as: • Since B 1, B 2, …, BN are mutually exclusive, then P(A) = P(A∩B 1) + P(A∩B 2) + … + P(A∩BN) Marginalization • And therefore P(A) = P(A|B 1)*P(B 1) + P(A|B 2)*P(B 2) + … + P(A|BN)*P(BN) = i P(A | Bi) * P(Bi) Exhaustive conditionalization

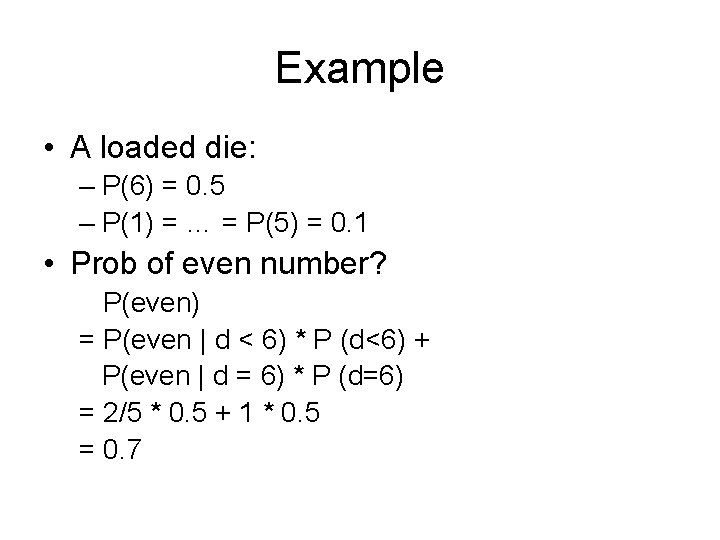

Example • A loaded die: – P(6) = 0. 5 – P(1) = … = P(5) = 0. 1 • Prob of even number? P(even) = P(even | d < 6) * P (d<6) + P(even | d = 6) * P (d=6) = 2/5 * 0. 5 + 1 * 0. 5 = 0. 7

Another example • A box of dice: – 99% fair – 1% loaded • P(6) = 0. 5. • P(1) = … = P(5) = 0. 1 – Randomly pick a die and roll, P(6)? • P(6) = P(6 | F) * P(F) + P(6 | L) * P(L) – 1/6 * 0. 99 + 0. 5 * 0. 01 = 0. 17

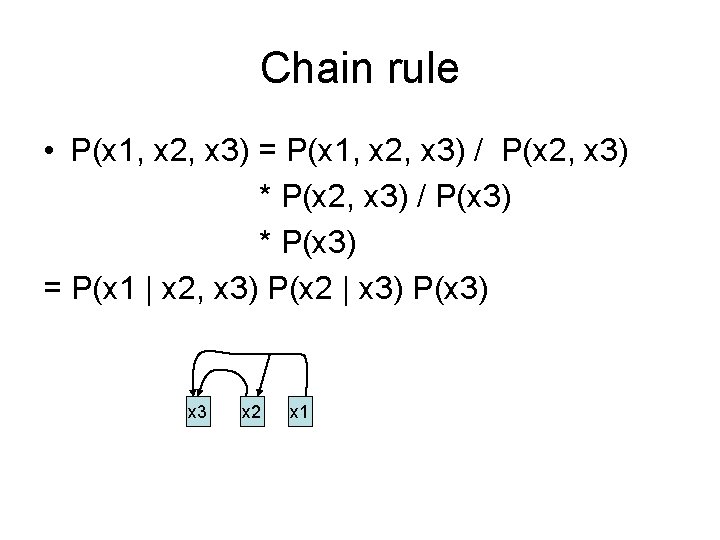

Chain rule • P(x 1, x 2, x 3) = P(x 1, x 2, x 3) / P(x 2, x 3) * P(x 2, x 3) / P(x 3) * P(x 3) = P(x 1 | x 2, x 3) P(x 2 | x 3) P(x 3) x 3 x 2 x 1

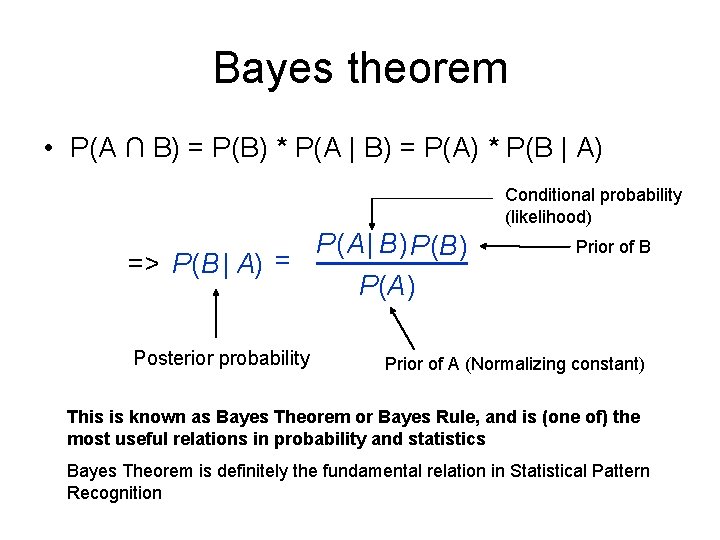

Bayes theorem • P(A ∩ B) = P(B) * P(A | B) = P(A) * P(B | A) Conditional probability (likelihood) P ( A | B ) P (B ) => P(B | A) = P(A ) Posterior probability Prior of B Prior of A (Normalizing constant) This is known as Bayes Theorem or Bayes Rule, and is (one of) the most useful relations in probability and statistics Bayes Theorem is definitely the fundamental relation in Statistical Pattern Recognition

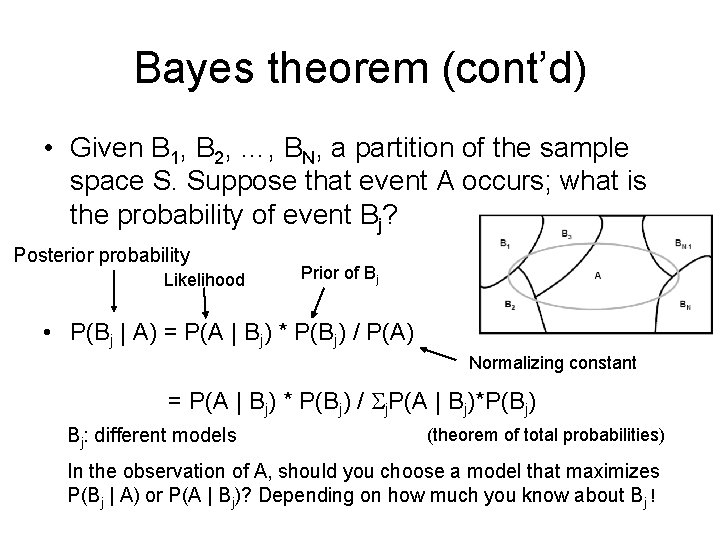

Bayes theorem (cont’d) • Given B 1, B 2, …, BN, a partition of the sample space S. Suppose that event A occurs; what is the probability of event Bj? Posterior probability Likelihood Prior of Bj • P(Bj | A) = P(A | Bj) * P(Bj) / P(A) Normalizing constant = P(A | Bj) * P(Bj) / j. P(A | Bj)*P(Bj) Bj: different models (theorem of total probabilities) In the observation of A, should you choose a model that maximizes P(Bj | A) or P(A | Bj)? Depending on how much you know about Bj !

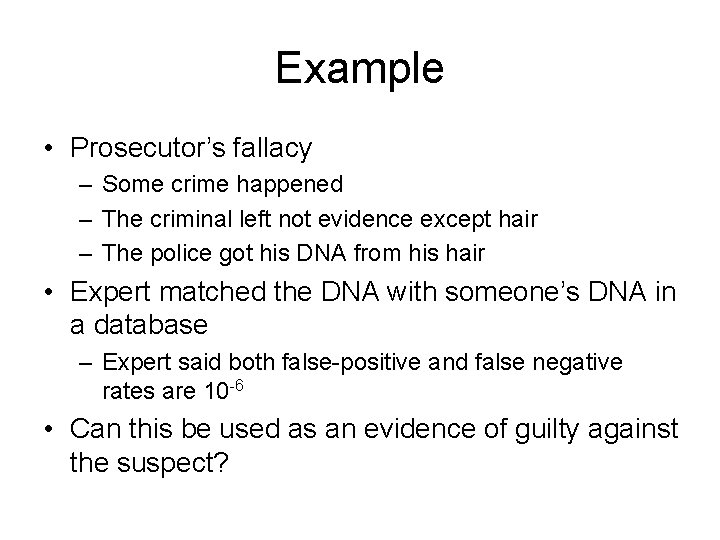

Example • Prosecutor’s fallacy – Some crime happened – The criminal left not evidence except hair – The police got his DNA from his hair • Expert matched the DNA with someone’s DNA in a database – Expert said both false-positive and false negative rates are 10 -6 • Can this be used as an evidence of guilty against the suspect?

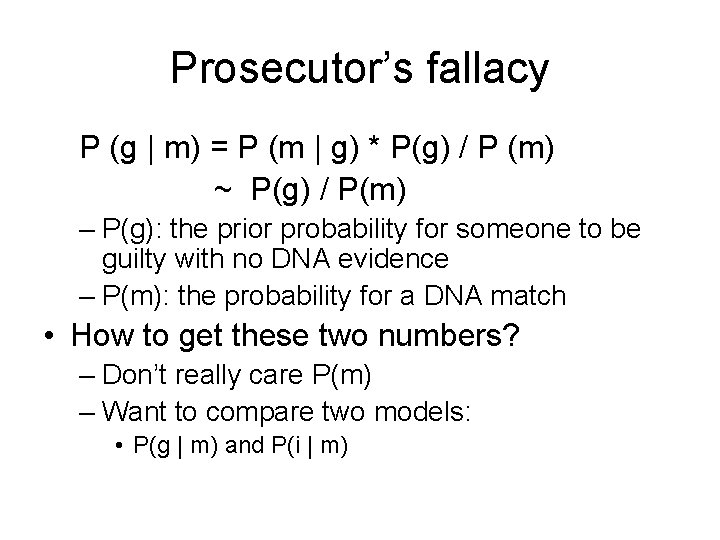

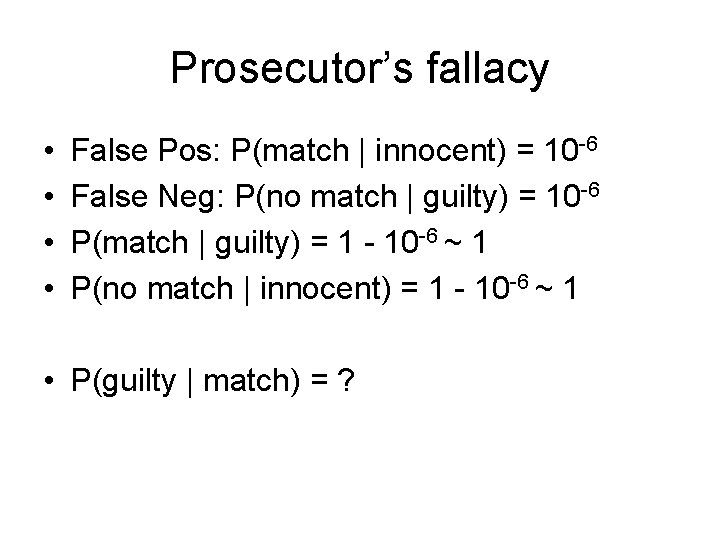

Prosecutor’s fallacy P (g | m) = P (m | g) * P(g) / P (m) ~ P(g) / P(m) – P(g): the prior probability for someone to be guilty with no DNA evidence – P(m): the probability for a DNA match • How to get these two numbers? – Don’t really care P(m) – Want to compare two models: • P(g | m) and P(i | m)

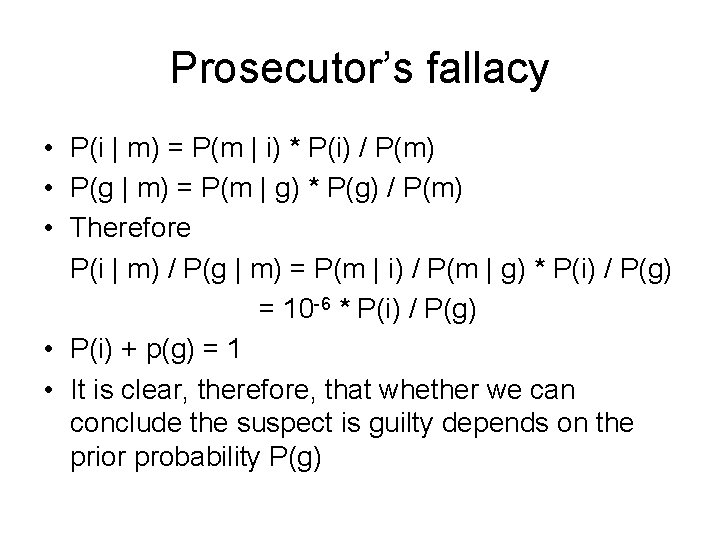

Prosecutor’s fallacy • P(i | m) = P(m | i) * P(i) / P(m) • P(g | m) = P(m | g) * P(g) / P(m) • Therefore P(i | m) / P(g | m) = P(m | i) / P(m | g) * P(i) / P(g) = 10 -6 * P(i) / P(g) • P(i) + p(g) = 1 • It is clear, therefore, that whether we can conclude the suspect is guilty depends on the prior probability P(g)

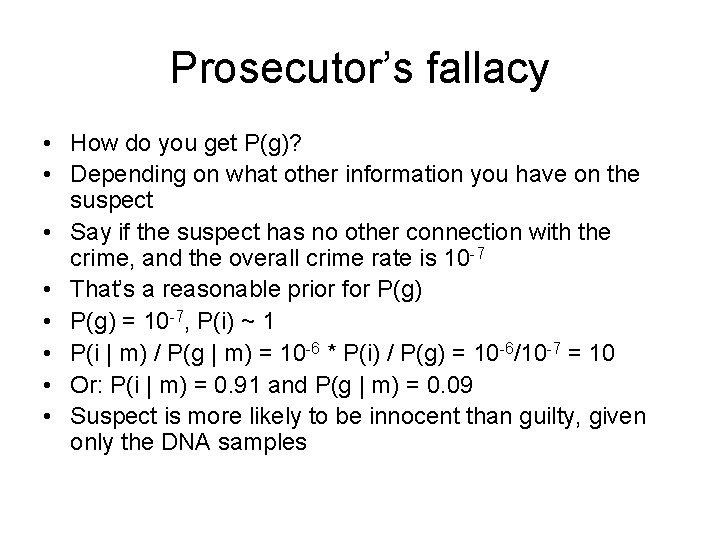

Prosecutor’s fallacy • How do you get P(g)? • Depending on what other information you have on the suspect • Say if the suspect has no other connection with the crime, and the overall crime rate is 10 -7 • That’s a reasonable prior for P(g) • P(g) = 10 -7, P(i) ~ 1 • P(i | m) / P(g | m) = 10 -6 * P(i) / P(g) = 10 -6/10 -7 = 10 • Or: P(i | m) = 0. 91 and P(g | m) = 0. 09 • Suspect is more likely to be innocent than guilty, given only the DNA samples

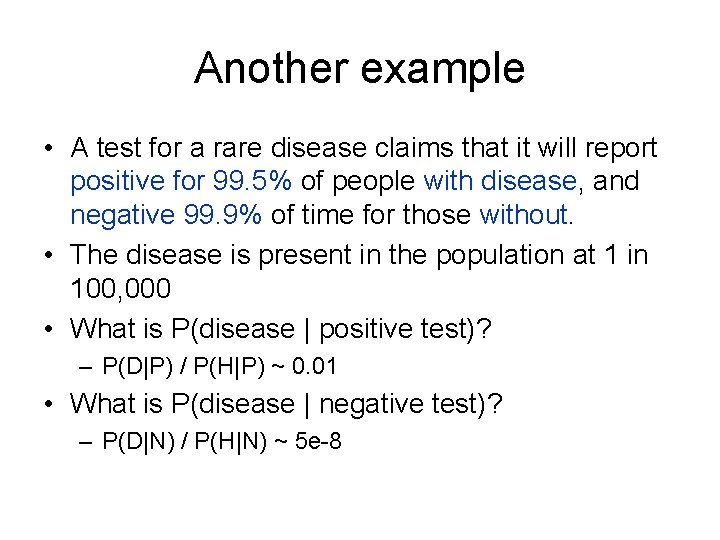

Another example • A test for a rare disease claims that it will report positive for 99. 5% of people with disease, and negative 99. 9% of time for those without. • The disease is present in the population at 1 in 100, 000 • What is P(disease | positive test)? – P(D|P) / P(H|P) ~ 0. 01 • What is P(disease | negative test)? – P(D|N) / P(H|N) ~ 5 e-8

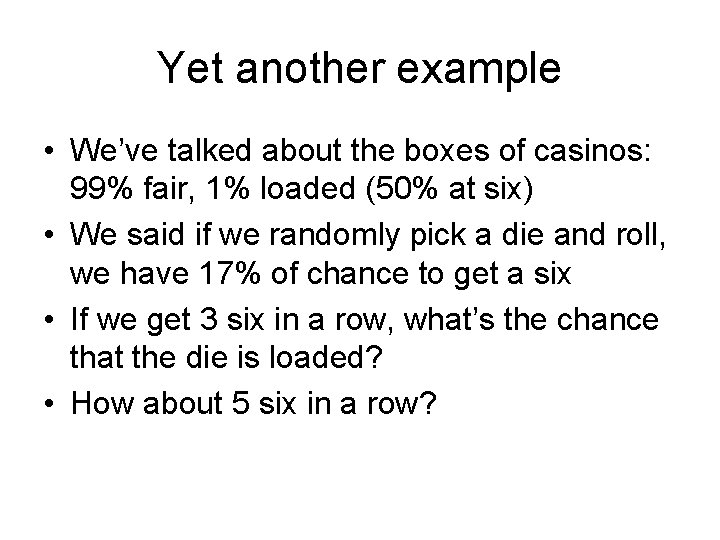

Yet another example • We’ve talked about the boxes of casinos: 99% fair, 1% loaded (50% at six) • We said if we randomly pick a die and roll, we have 17% of chance to get a six • If we get 3 six in a row, what’s the chance that the die is loaded? • How about 5 six in a row?

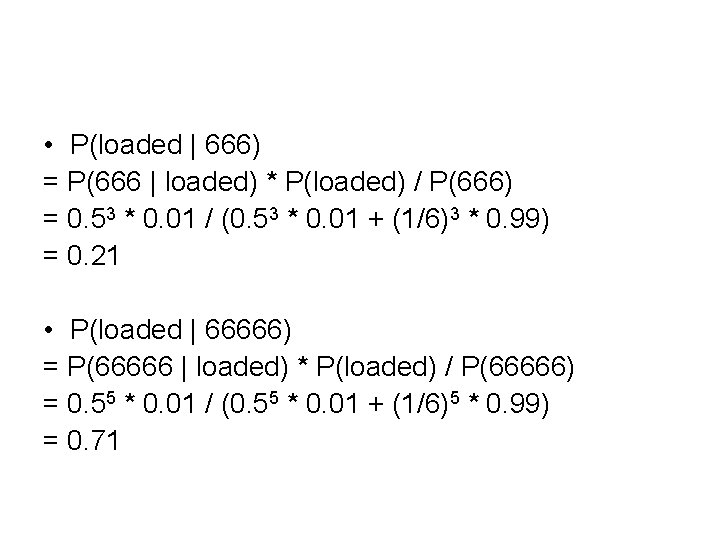

• P(loaded | 666) = P(666 | loaded) * P(loaded) / P(666) = 0. 53 * 0. 01 / (0. 53 * 0. 01 + (1/6)3 * 0. 99) = 0. 21 • P(loaded | 66666) = P(66666 | loaded) * P(loaded) / P(66666) = 0. 55 * 0. 01 / (0. 55 * 0. 01 + (1/6)5 * 0. 99) = 0. 71

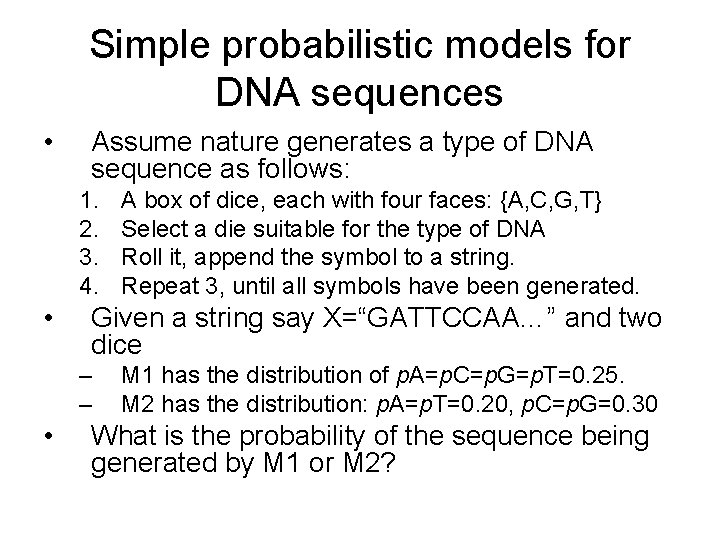

Simple probabilistic models for DNA sequences • Assume nature generates a type of DNA sequence as follows: 1. 2. 3. 4. • Given a string say X=“GATTCCAA…” and two dice – – • A box of dice, each with four faces: {A, C, G, T} Select a die suitable for the type of DNA Roll it, append the symbol to a string. Repeat 3, until all symbols have been generated. M 1 has the distribution of p. A=p. C=p. G=p. T=0. 25. M 2 has the distribution: p. A=p. T=0. 20, p. C=p. G=0. 30 What is the probability of the sequence being generated by M 1 or M 2?

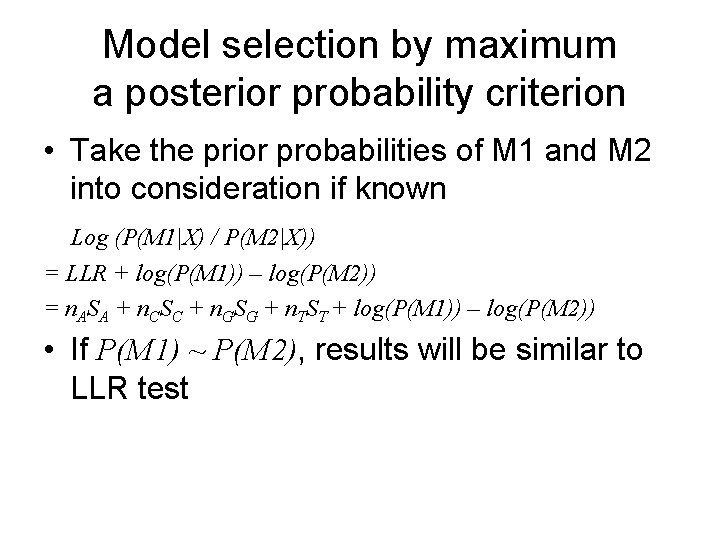

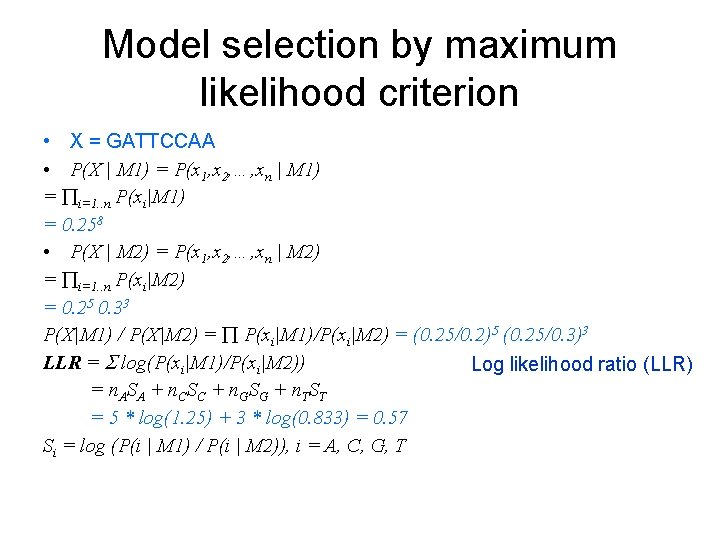

Model selection by maximum a posterior probability criterion • Take the prior probabilities of M 1 and M 2 into consideration if known Log (P(M 1|X) / P(M 2|X)) = LLR + log(P(M 1)) – log(P(M 2)) = n. ASA + n. CSC + n. GSG + n. TST + log(P(M 1)) – log(P(M 2)) • If P(M 1) ~ P(M 2), results will be similar to LLR test

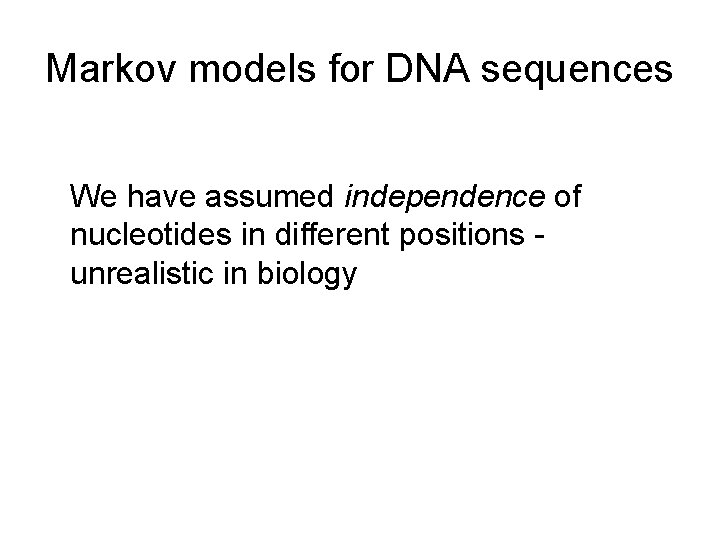

Markov models for DNA sequences We have assumed independence of nucleotides in different positions unrealistic in biology

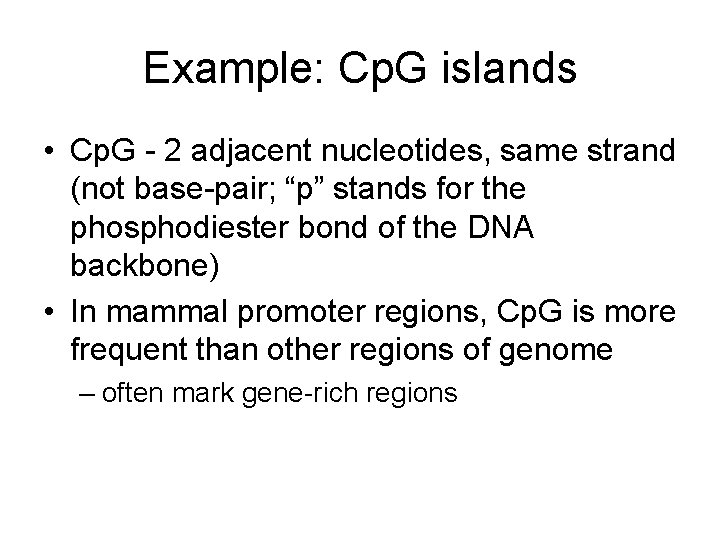

Example: Cp. G islands • Cp. G - 2 adjacent nucleotides, same strand (not base-pair; “p” stands for the phosphodiester bond of the DNA backbone) • In mammal promoter regions, Cp. G is more frequent than other regions of genome – often mark gene-rich regions

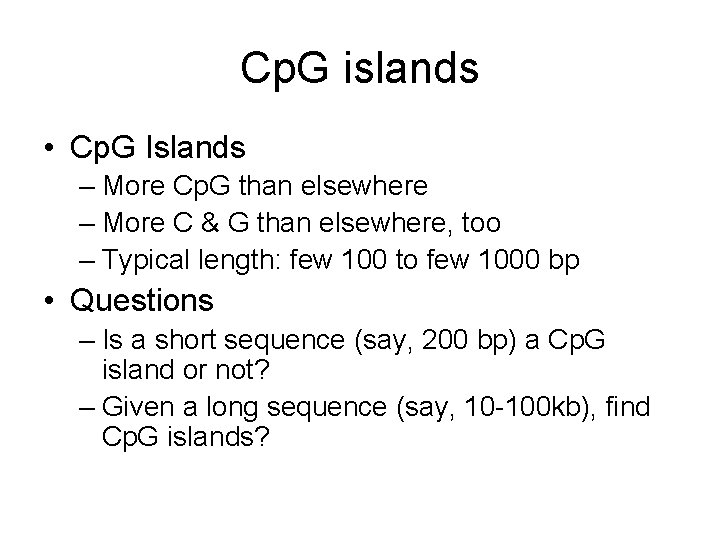

Cp. G islands • Cp. G Islands – More Cp. G than elsewhere – More C & G than elsewhere, too – Typical length: few 100 to few 1000 bp • Questions – Is a short sequence (say, 200 bp) a Cp. G island or not? – Given a long sequence (say, 10 -100 kb), find Cp. G islands?

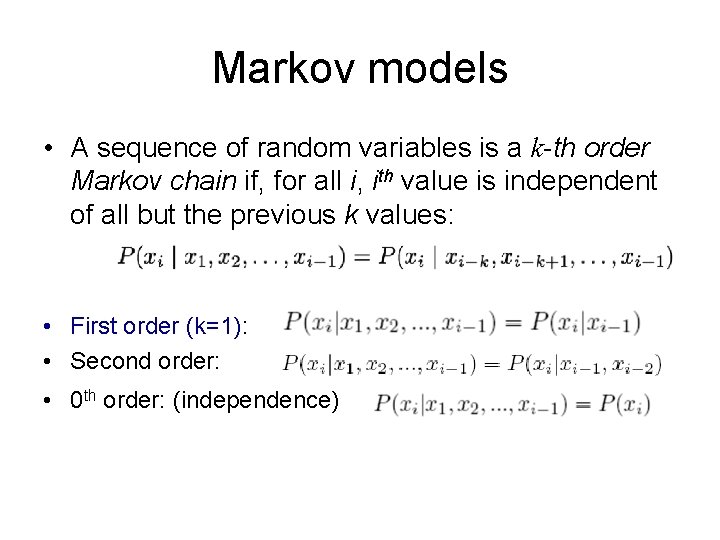

Markov models • A sequence of random variables is a k-th order Markov chain if, for all i, ith value is independent of all but the previous k values: • First order (k=1): • Second order: • 0 th order: (independence)

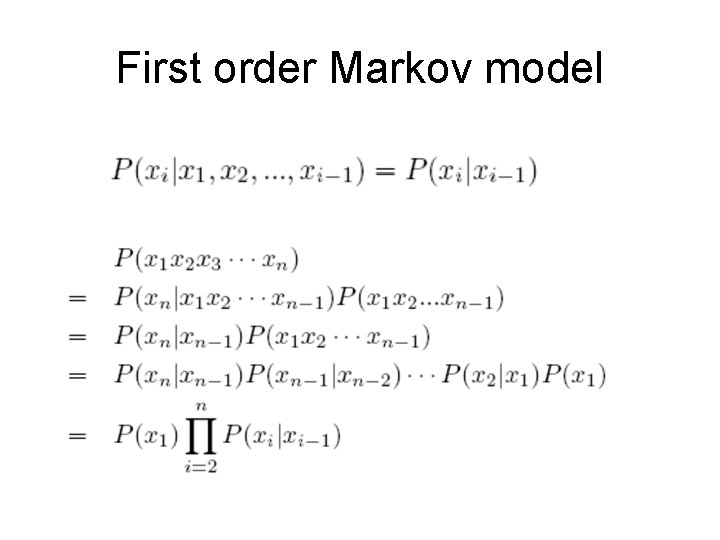

First order Markov model

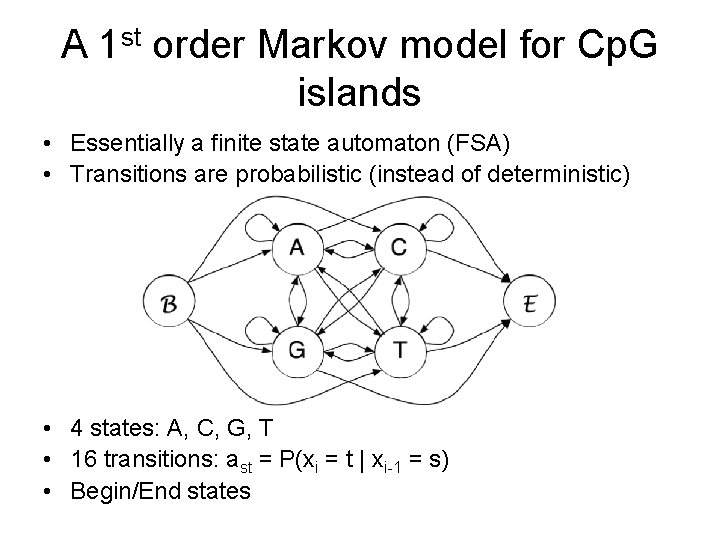

A 1 st order Markov model for Cp. G islands • Essentially a finite state automaton (FSA) • Transitions are probabilistic (instead of deterministic) • 4 states: A, C, G, T • 16 transitions: ast = P(xi = t | xi-1 = s) • Begin/End states

Probability of emitting sequence x

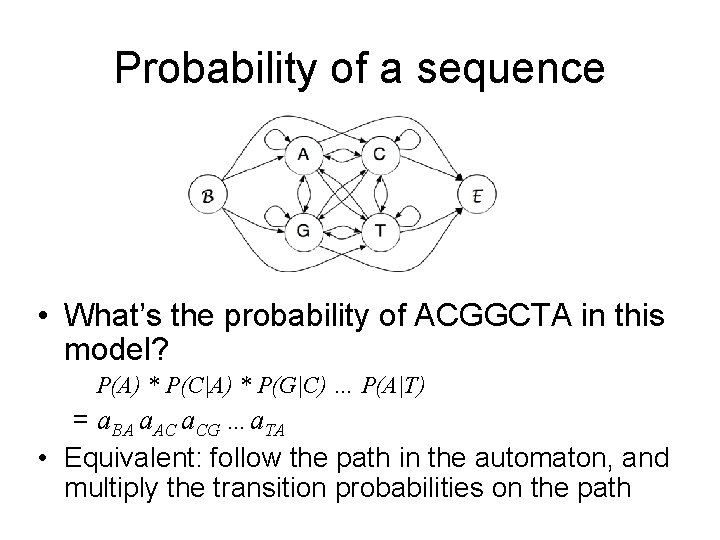

Probability of a sequence • What’s the probability of ACGGCTA in this model? P(A) * P(C|A) * P(G|C) … P(A|T) = a. BA a. AC a. CG …a. TA • Equivalent: follow the path in the automaton, and multiply the transition probabilities on the path

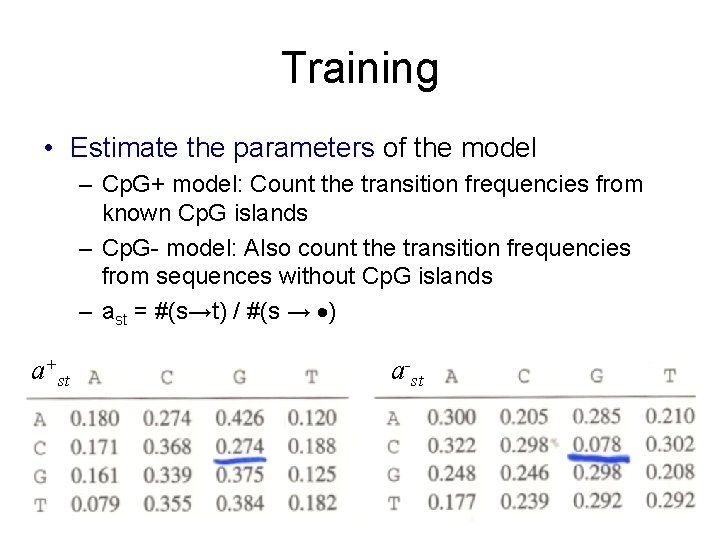

Training • Estimate the parameters of the model – Cp. G+ model: Count the transition frequencies from known Cp. G islands – Cp. G- model: Also count the transition frequencies from sequences without Cp. G islands – ast = #(s→t) / #(s → ) a+st a-st

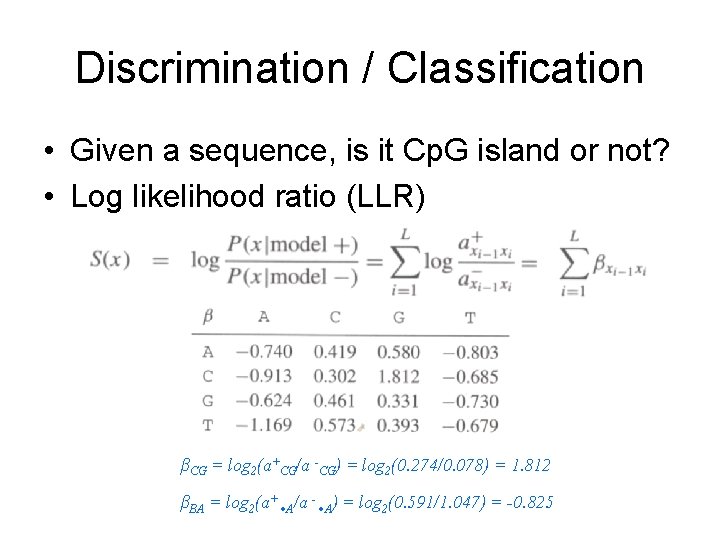

Discrimination / Classification • Given a sequence, is it Cp. G island or not? • Log likelihood ratio (LLR) βCG = log 2(a+CG/a -CG) = log 2(0. 274/0. 078) = 1. 812 βBA = log 2(a+ A/a - A) = log 2(0. 591/1. 047) = -0. 825

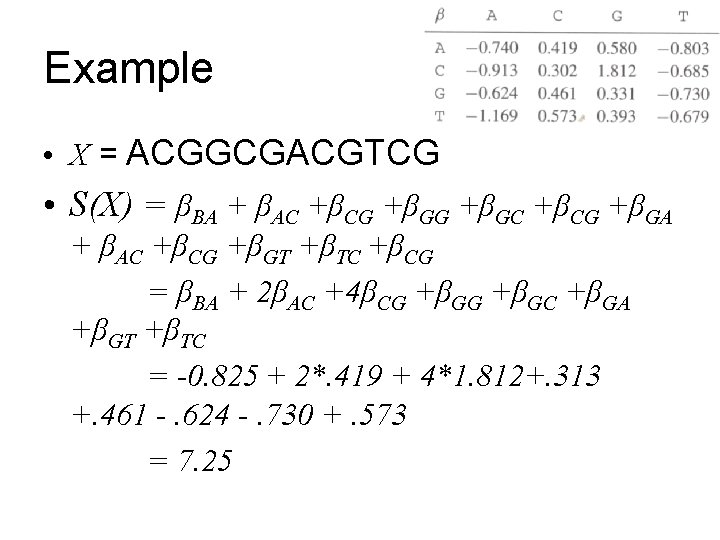

Example • X = ACGGCGACGTCG • S(X) = βBA + βAC +βCG +βGC +βCG +βGA + βAC +βCG +βGT +βTC +βCG = βBA + 2βAC +4βCG +βGC +βGA +βGT +βTC = -0. 825 + 2*. 419 + 4*1. 812+. 313 +. 461 -. 624 -. 730 +. 573 = 7. 25

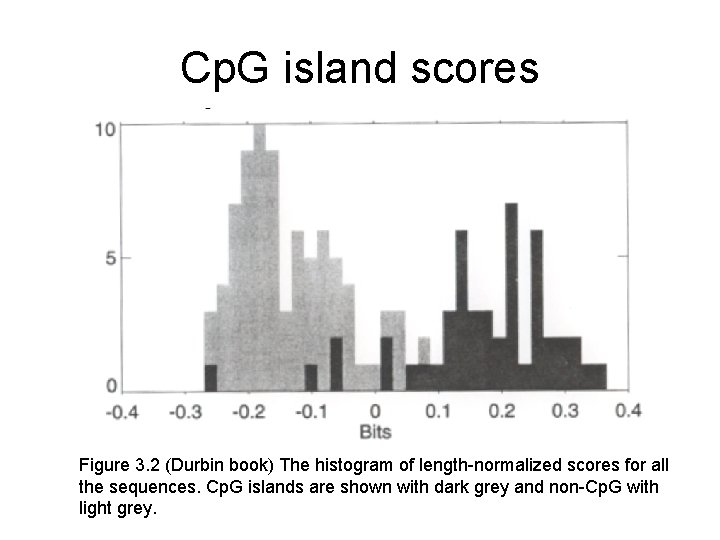

Cp. G island scores Figure 3. 2 (Durbin book) The histogram of length-normalized scores for all the sequences. Cp. G islands are shown with dark grey and non-Cp. G with light grey.

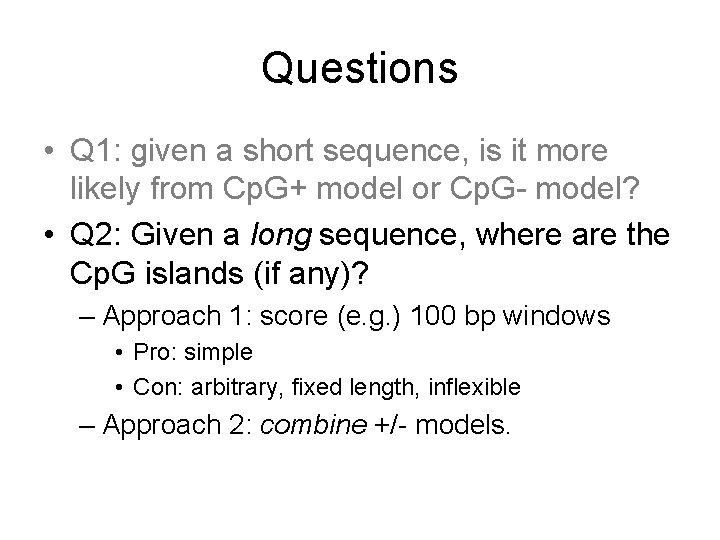

Questions • Q 1: given a short sequence, is it more likely from Cp. G+ model or Cp. G- model? • Q 2: Given a long sequence, where are the Cp. G islands (if any)? – Approach 1: score (e. g. ) 100 bp windows • Pro: simple • Con: arbitrary, fixed length, inflexible – Approach 2: combine +/- models.

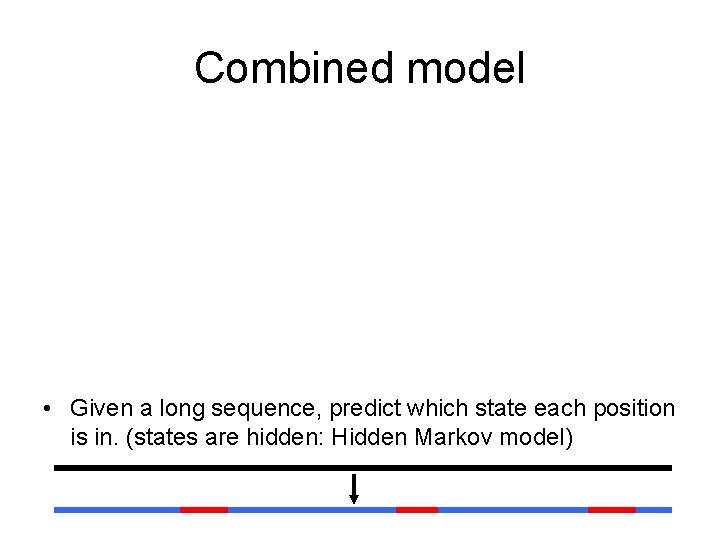

Combined model • Given a long sequence, predict which state each position is in. (states are hidden: Hidden Markov model)

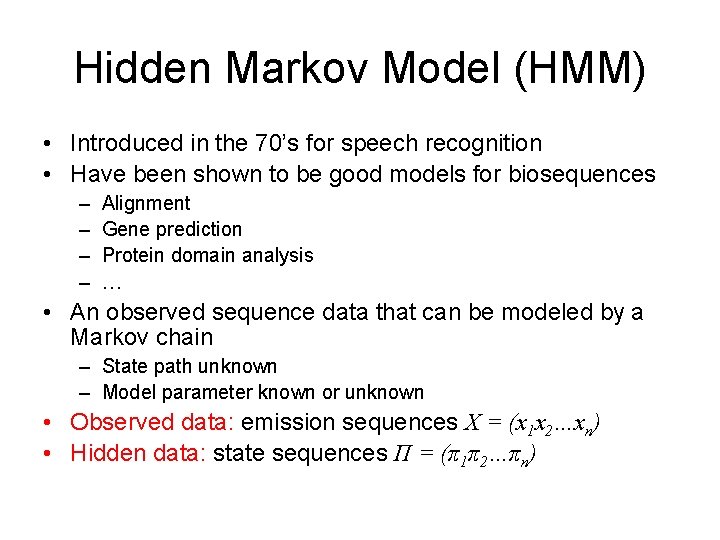

Hidden Markov Model (HMM) • Introduced in the 70’s for speech recognition • Have been shown to be good models for biosequences – – Alignment Gene prediction Protein domain analysis … • An observed sequence data that can be modeled by a Markov chain – State path unknown – Model parameter known or unknown • Observed data: emission sequences X = (x 1 x 2…xn) • Hidden data: state sequences Π = (π1π2…πn)

Hidden Markov model (HMM) Definition: A hidden Markov model (HMM) is a five-tuple • Alphabet = { b 1, b 2, …, b. M } • Set of states Q = { 1, . . . , K } • Transition probabilities between any two states 1 aij = transition prob from state i to state j ai 1 + … + ai. K = 1, for all states i = 1…K • Start probabilities a 0 i a 01 + … + a 0 K = 1 • Emission probabilities within each state ek(b) = P( xi = b | i = k) ek(b 1) + … + ek(b. M) = 1, for all states k = 1…K K 2 …

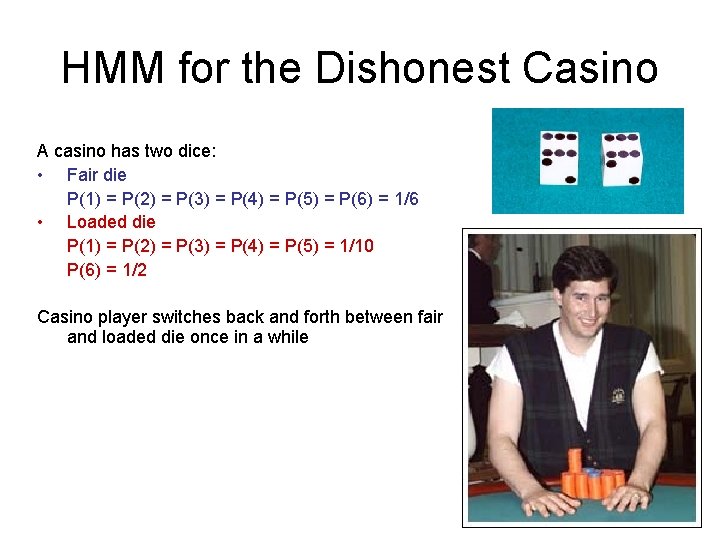

HMM for the Dishonest Casino A casino has two dice: • Fair die P(1) = P(2) = P(3) = P(4) = P(5) = P(6) = 1/6 • Loaded die P(1) = P(2) = P(3) = P(4) = P(5) = 1/10 P(6) = 1/2 Casino player switches back and forth between fair and loaded die once in a while

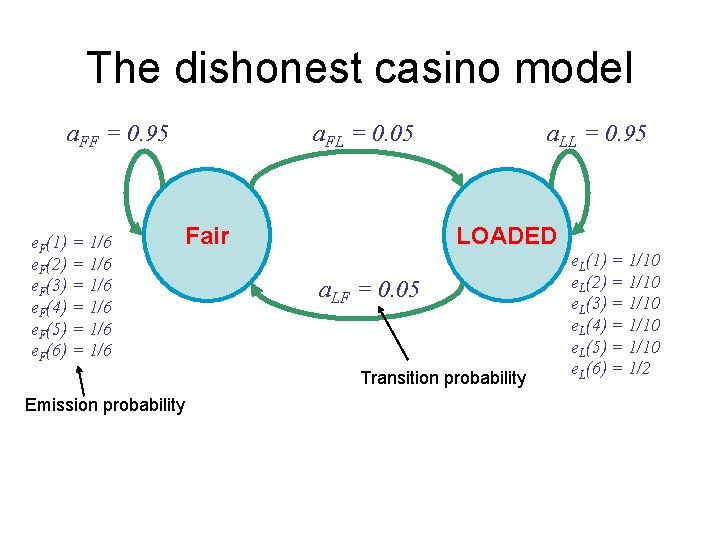

The dishonest casino model a. FF = 0. 95 e. F(1) = 1/6 e. F(2) = 1/6 e. F(3) = 1/6 e. F(4) = 1/6 e. F(5) = 1/6 e. F(6) = 1/6 a. FL = 0. 05 Fair a. LL = 0. 95 LOADED a. LF = 0. 05 Transition probability Emission probability e. L(1) = 1/10 e. L(2) = 1/10 e. L(3) = 1/10 e. L(4) = 1/10 e. L(5) = 1/10 e. L(6) = 1/2

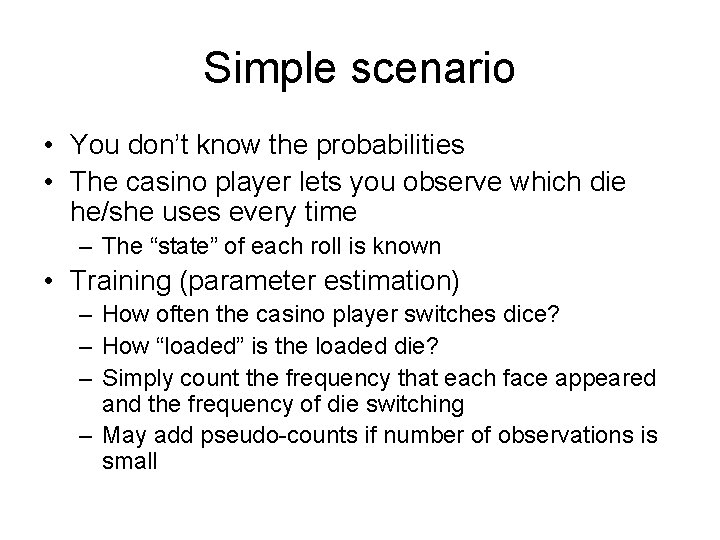

Simple scenario • You don’t know the probabilities • The casino player lets you observe which die he/she uses every time – The “state” of each roll is known • Training (parameter estimation) – How often the casino player switches dice? – How “loaded” is the loaded die? – Simply count the frequency that each face appeared and the frequency of die switching – May add pseudo-counts if number of observations is small

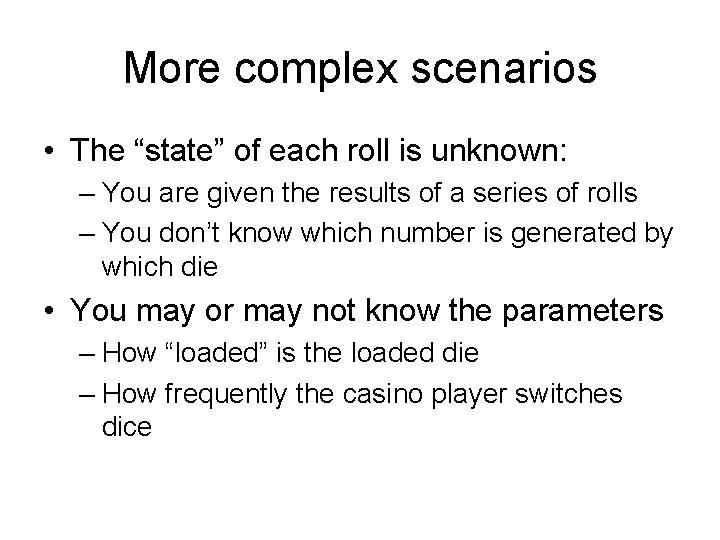

More complex scenarios • The “state” of each roll is unknown: – You are given the results of a series of rolls – You don’t know which number is generated by which die • You may or may not know the parameters – How “loaded” is the loaded die – How frequently the casino player switches dice

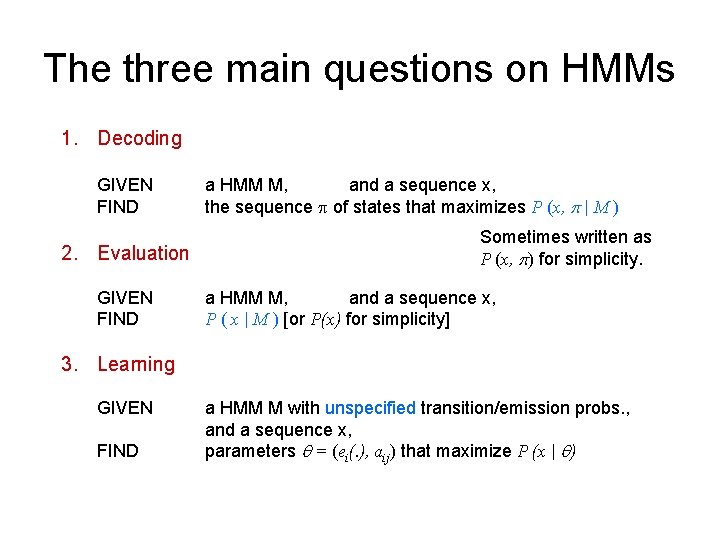

The three main questions on HMMs 1. Decoding GIVEN FIND 2. Evaluation GIVEN FIND a HMM M, and a sequence x, the sequence of states that maximizes P (x, | M ) Sometimes written as P (x, ) for simplicity. a HMM M, and a sequence x, P ( x | M ) [or P(x) for simplicity] 3. Learning GIVEN FIND a HMM M with unspecified transition/emission probs. , and a sequence x, parameters = (ei(. ), aij) that maximize P (x | )

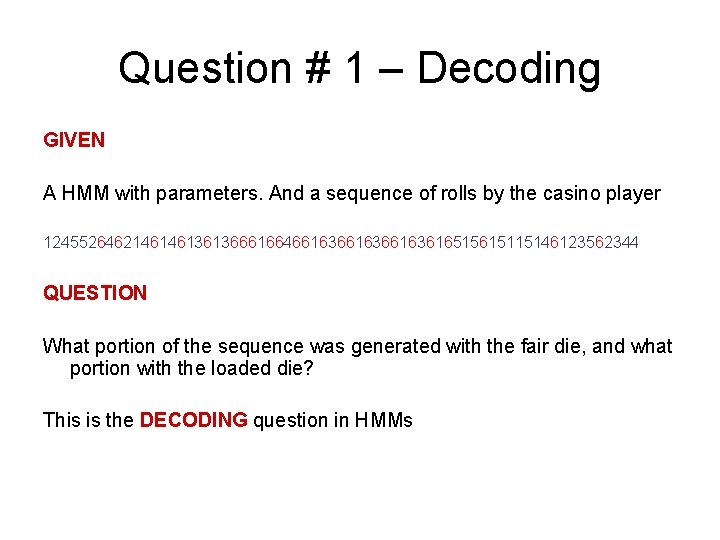

Question # 1 – Decoding GIVEN A HMM with parameters. And a sequence of rolls by the casino player 12455264621461461361366616646616366163616515615115146123562344 QUESTION What portion of the sequence was generated with the fair die, and what portion with the loaded die? This is the DECODING question in HMMs

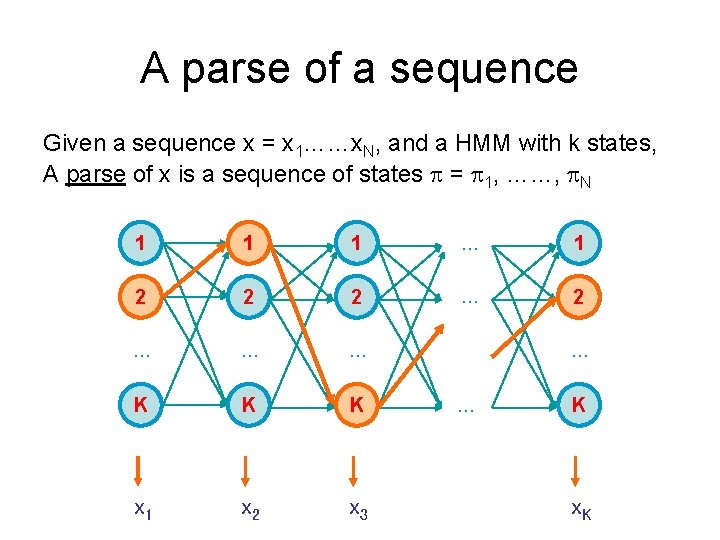

A parse of a sequence Given a sequence x = x 1……x. N, and a HMM with k states, A parse of x is a sequence of states = 1, ……, N 1 1 1 … 1 2 2 2 … … … K K K x 1 x 2 x 3 … … K x. K

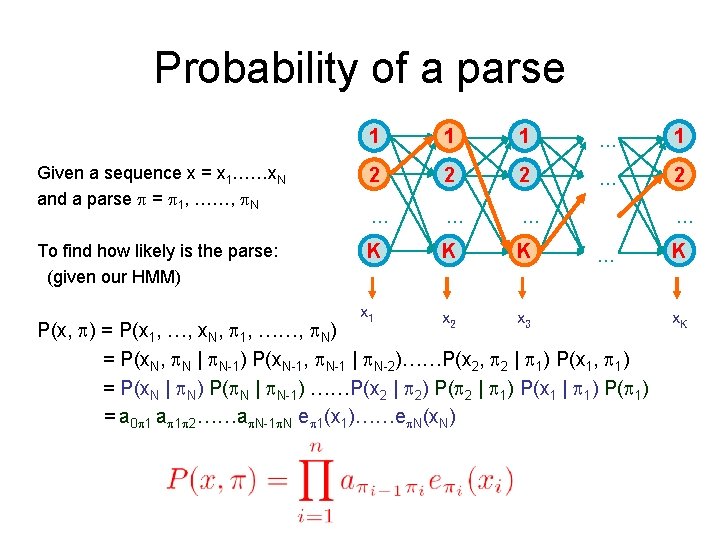

Probability of a parse 1 1 1 … 1 Given a sequence x = x 1……x. N and a parse = 1, ……, N 2 2 2 … … … To find how likely is the parse: (given our HMM) K K K x 2 x 3 x 1 … … P(x, ) = P(x 1, …, x. N, 1, ……, N) = P(x. N, N | N-1) P(x. N-1, N-1 | N-2)……P(x 2, 2 | 1) P(x 1, 1) = P(x. N | N) P( N | N-1) ……P(x 2 | 2) P( 2 | 1) P(x 1 | 1) P( 1) = a 0 1 a 1 2……a N-1 N e 1(x 1)……e N(x. N) K x. K

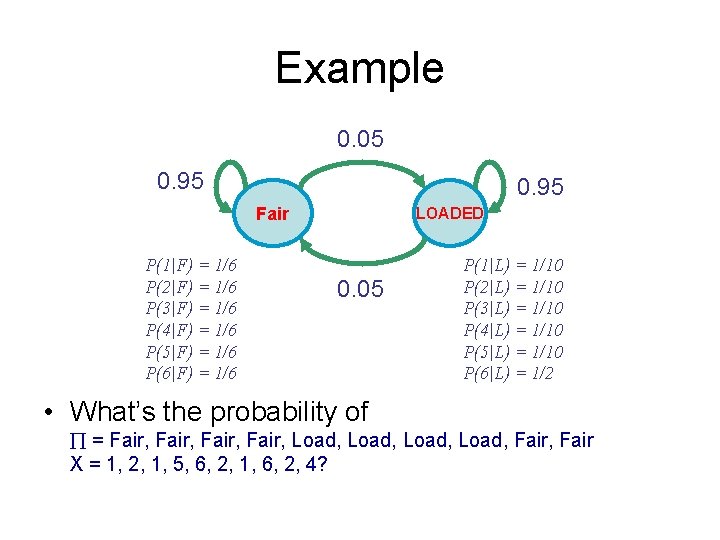

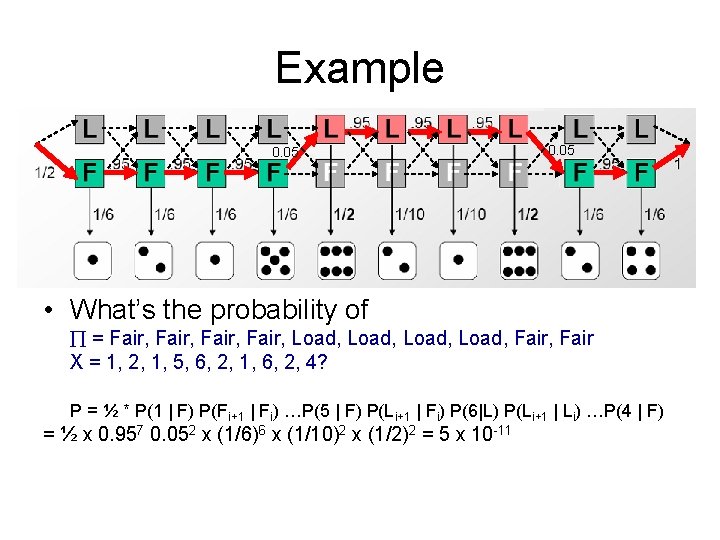

Example 0. 05 0. 95 Fair P(1|F) = 1/6 P(2|F) = 1/6 P(3|F) = 1/6 P(4|F) = 1/6 P(5|F) = 1/6 P(6|F) = 1/6 LOADED 0. 05 • What’s the probability of P(1|L) = 1/10 P(2|L) = 1/10 P(3|L) = 1/10 P(4|L) = 1/10 P(5|L) = 1/10 P(6|L) = 1/2 = Fair, Load, Fair, Fair X = 1, 2, 1, 5, 6, 2, 1, 6, 2, 4?

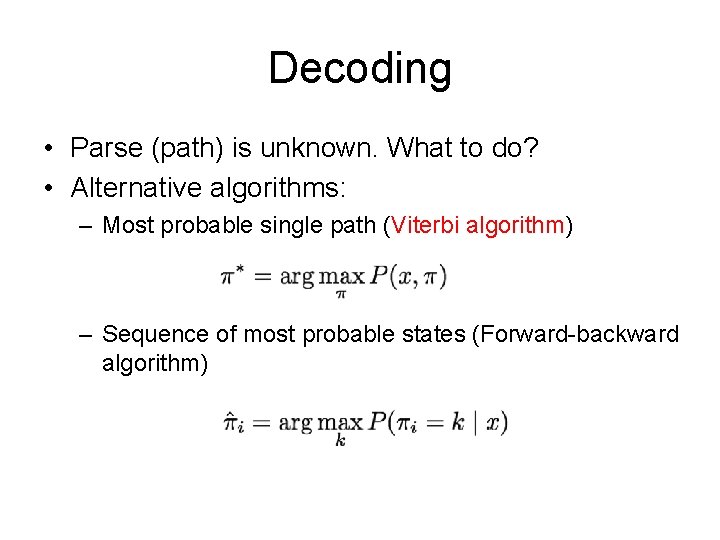

Decoding • Parse (path) is unknown. What to do? • Alternative algorithms: – Most probable single path (Viterbi algorithm) – Sequence of most probable states (Forward-backward algorithm)

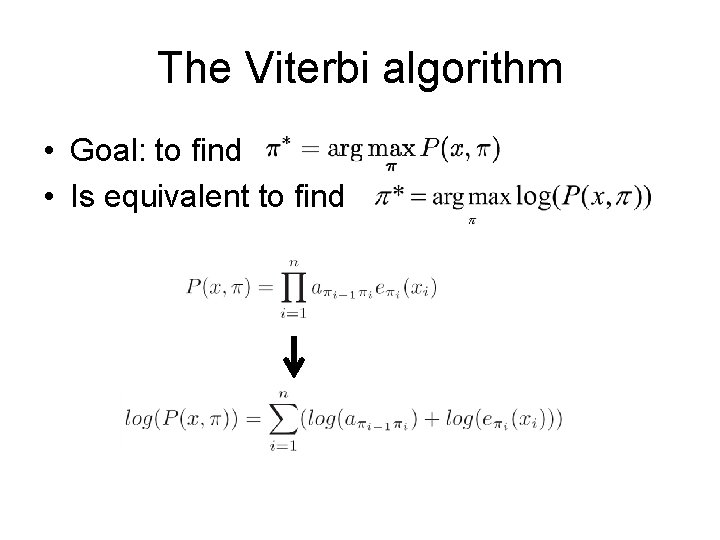

The Viterbi algorithm • Goal: to find • Is equivalent to find

The Viterbi algorithm L L L L L F F F F F B P(s|L) = 1/10, for s in [1. . 5] P(6|L) = 1/2 P(s|F) = 1/6, for s in [1. . 6] • Find a path with the following objective: – Maximize the product of transition and emission probabilities Maximize the sum of log probabilities Edge weight (symbol independent) Node weight (depend on symbols in seq)

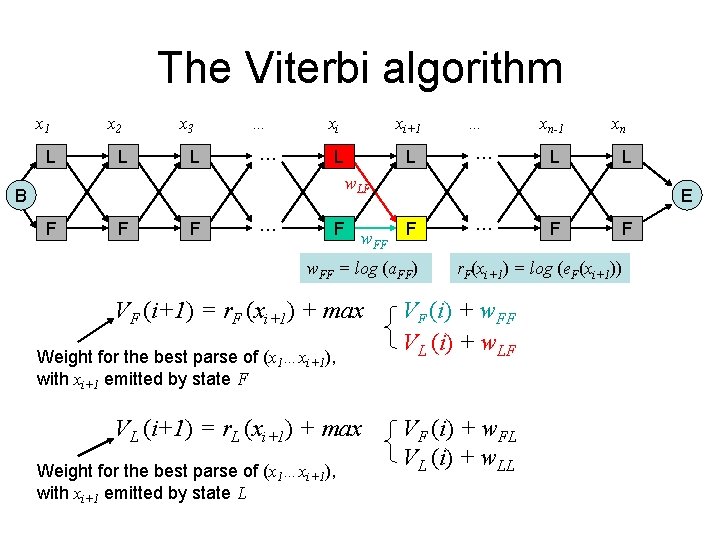

The Viterbi algorithm x 1 L x 2 L x 3 L … … xi xi+1 L L … … xn-1 xn L L w. LF B F F F … F w. FF E F w. FF = log (a. FF) VF (i+1) = r. F (xi+1) + max Weight for the best parse of (x 1…xi+1), with xi+1 emitted by state F VL (i+1) = r. L (xi+1) + max Weight for the best parse of (x 1…xi+1), with xi+1 emitted by state L … F F r. F(xi+1) = log (e. F(xi+1)) VF (i) + w. FF VL (i) + w. LF VF (i) + w. FL VL (i) + w. LL

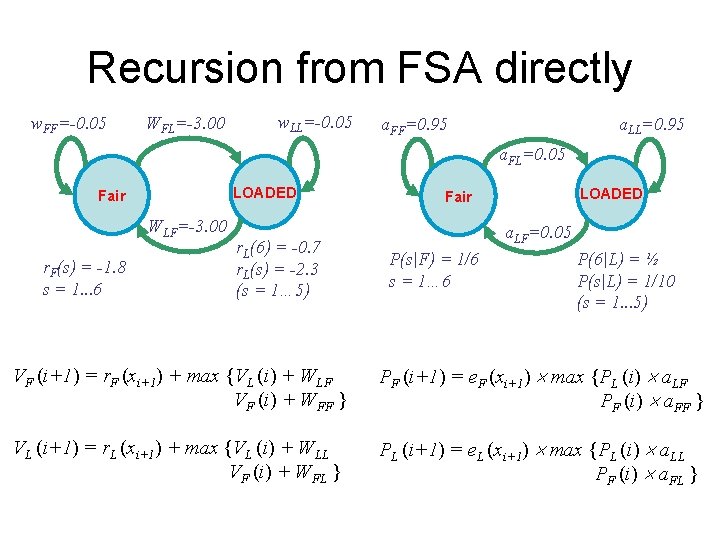

Recursion from FSA directly w. FF=-0. 05 WFL=-3. 00 w. LL=-0. 05 a. LL=0. 95 a. FF=0. 95 a. FL=0. 05 LOADED Fair WLF=-3. 00 r. F(s) = -1. 8 s = 1. . . 6 r. L(6) = -0. 7 r. L(s) = -2. 3 (s = 1… 5) LOADED Fair a. LF=0. 05 P(s|F) = 1/6 s = 1… 6 P(6|L) = ½ P(s|L) = 1/10 (s = 1. . . 5) VF (i+1) = r. F (xi+1) + max {VL (i) + WLF VF (i) + WFF } PF (i+1) = e. F (xi+1) max {PL (i) a. LF PF (i) a. FF } VL (i+1) = r. L (xi+1) + max {VL (i) + WLL VF (i) + WFL } PL (i+1) = e. L (xi+1) max {PL (i) a. LL PF (i) a. FL }

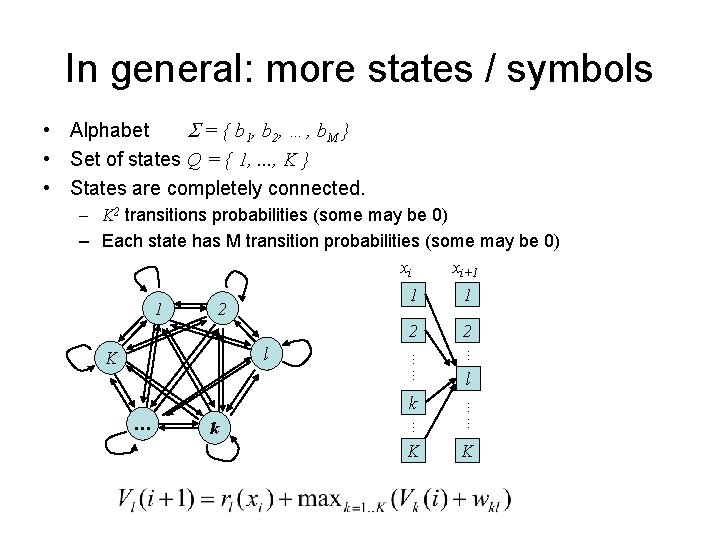

In general: more states / symbols • Alphabet = { b 1, b 2, …, b. M } • Set of states Q = { 1, . . . , K } • States are completely connected. … …… – K 2 transitions probabilities (some may be 0) – Each state has M transition probabilities (some may be 0) xi xi+1 1 2 2 2 l K l k … k K K

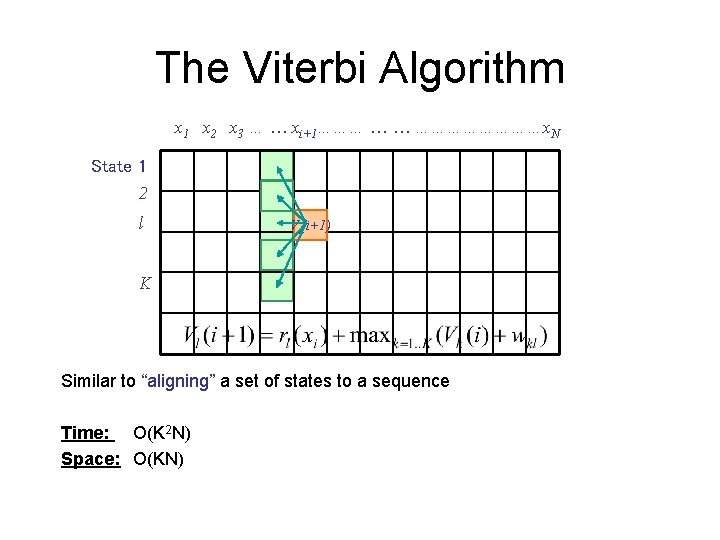

The Viterbi Algorithm x 1 x 2 x 3 … … xi+1……… … … …………x. N State 1 2 l Vl(i+1) K Similar to “aligning” a set of states to a sequence Time: O(K 2 N) Space: O(KN)

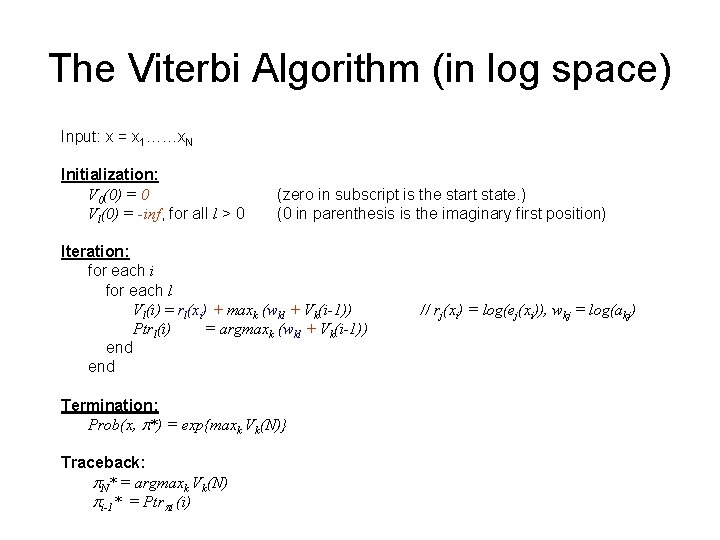

The Viterbi Algorithm (in log space) Input: x = x 1……x. N Initialization: V 0(0) = 0 Vl(0) = -inf, for all l > 0 (zero in subscript is the start state. ) (0 in parenthesis is the imaginary first position) Iteration: for each i for each l Vl(i) = rl(xi) + maxk (wkl + Vk(i-1)) Ptrl(i) = argmaxk (wkl + Vk(i-1)) end Termination: Prob(x, *) = exp{maxk Vk(N)} Traceback: N* = argmaxk Vk(N) i-1* = Ptr i (i) // rj(xi) = log(ej(xi)), wkj = log(akj)

The Viterbi Algorithm (in prob space) Input: x = x 1……x. N Initialization: P 0(0) = 1 Pl(0) = 0, for all l > 0 (zero in subscript is the start state. ) (0 in parenthesis is the imaginary first position) Iteration: for each i for each l Pl(i) = el(xi) maxk (akl Pk(i-1)) Ptrl(i) = argmaxk (akl Pk(i-1)) end Termination: Prob(x, *) = maxk Pk(N) Traceback: N* = argmaxk Pk(N) i-1* = Ptr i (i)

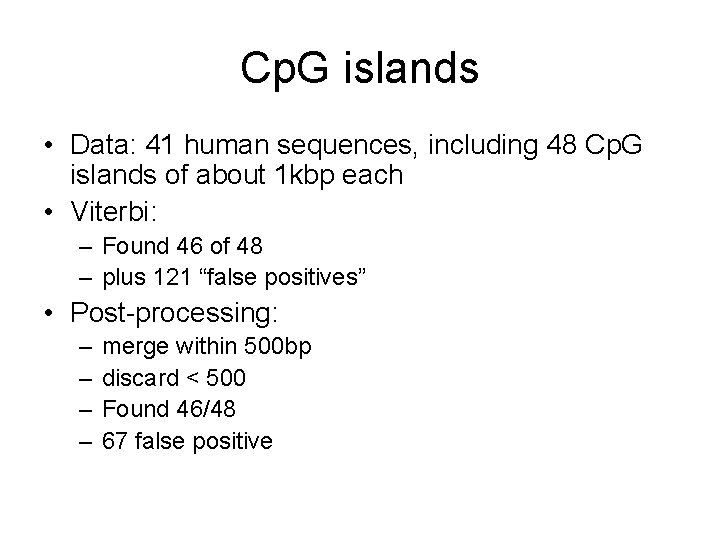

Cp. G islands • Data: 41 human sequences, including 48 Cp. G islands of about 1 kbp each • Viterbi: – Found 46 of 48 – plus 121 “false positives” • Post-processing: – – merge within 500 bp discard < 500 Found 46/48 67 false positive

Problems with Viterbi decoding • Most probable path not necessarily the only interesting one – Single optimal vs multiple sub-optimal • What if there are many sub-optimal paths with slightly lower probabilities? – Global optimal vs local optimal • What’s best globally may not be the best for each individual

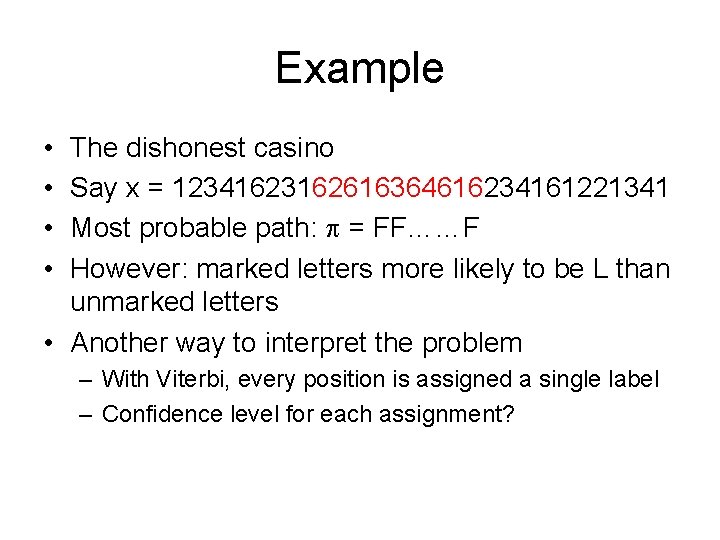

Example • • The dishonest casino Say x = 12341623162616364616234161221341 Most probable path: = FF……F However: marked letters more likely to be L than unmarked letters • Another way to interpret the problem – With Viterbi, every position is assigned a single label – Confidence level for each assignment?

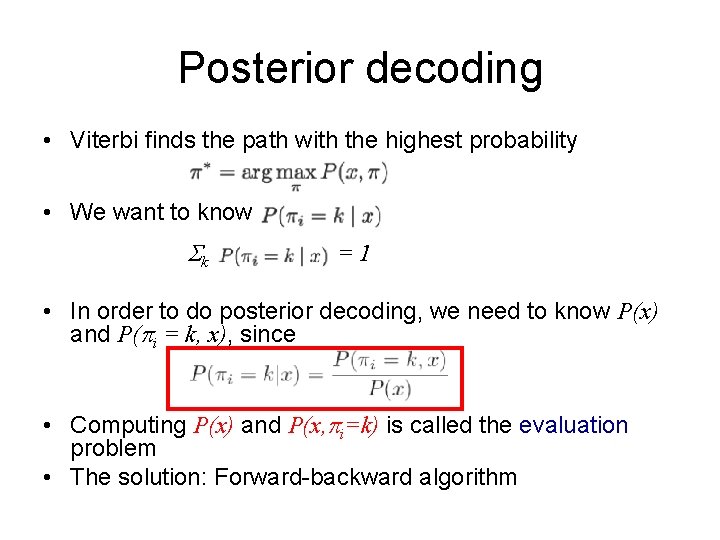

Posterior decoding • Viterbi finds the path with the highest probability • We want to know k =1 • In order to do posterior decoding, we need to know P(x) and P( i = k, x), since • Computing P(x) and P(x, i=k) is called the evaluation problem • The solution: Forward-backward algorithm

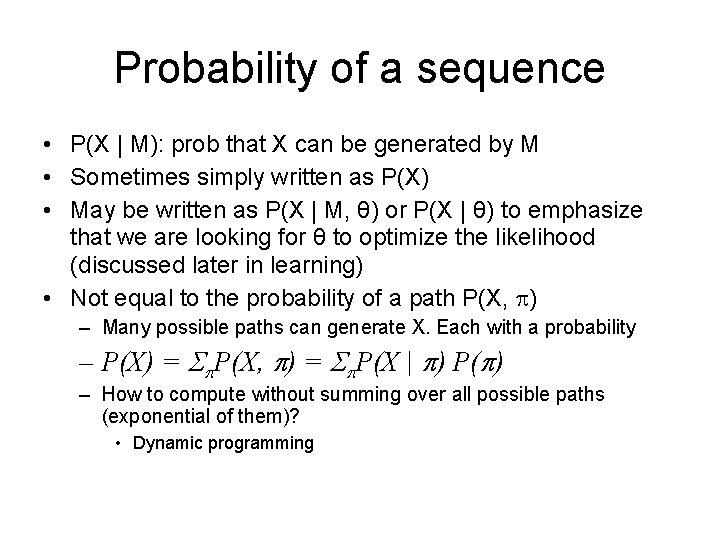

Probability of a sequence • P(X | M): prob that X can be generated by M • Sometimes simply written as P(X) • May be written as P(X | M, θ) or P(X | θ) to emphasize that we are looking for θ to optimize the likelihood (discussed later in learning) • Not equal to the probability of a path P(X, ) – Many possible paths can generate X. Each with a probability – P(X) = P(X, ) = P(X | ) P( ) – How to compute without summing over all possible paths (exponential of them)? • Dynamic programming

The forward algorithm • Define fk(i) = P(x 1…xi, i=k) – Implicitly: sum over all possible paths for x 1…xi-1 xi k

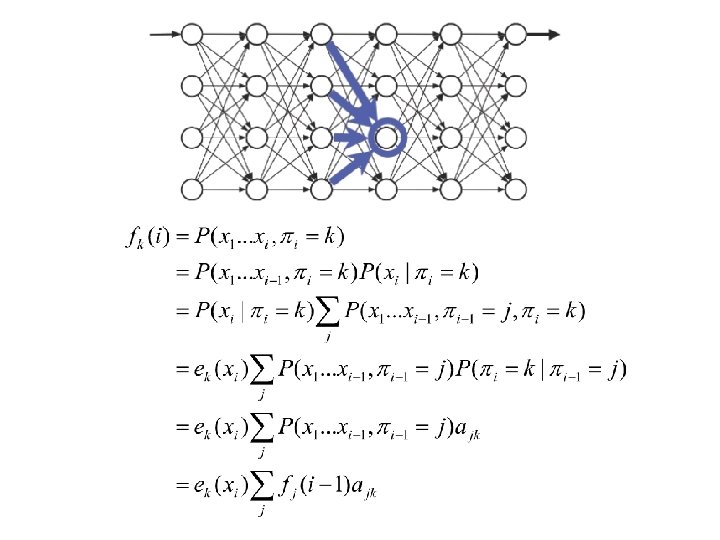

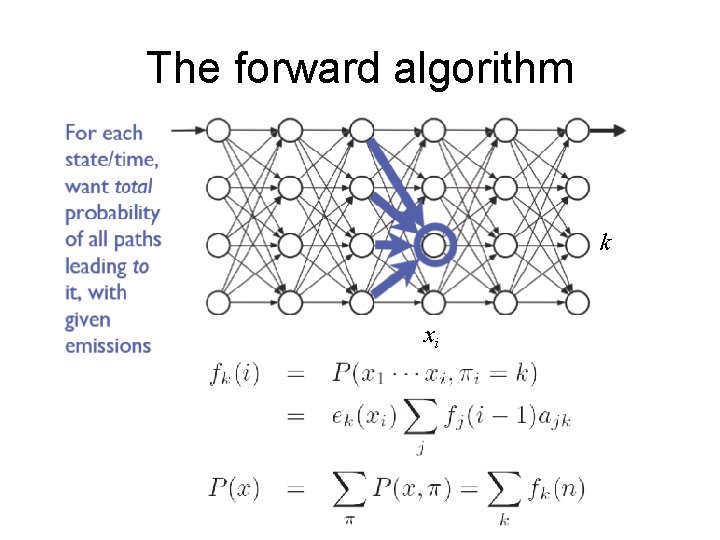

The forward algorithm k xi

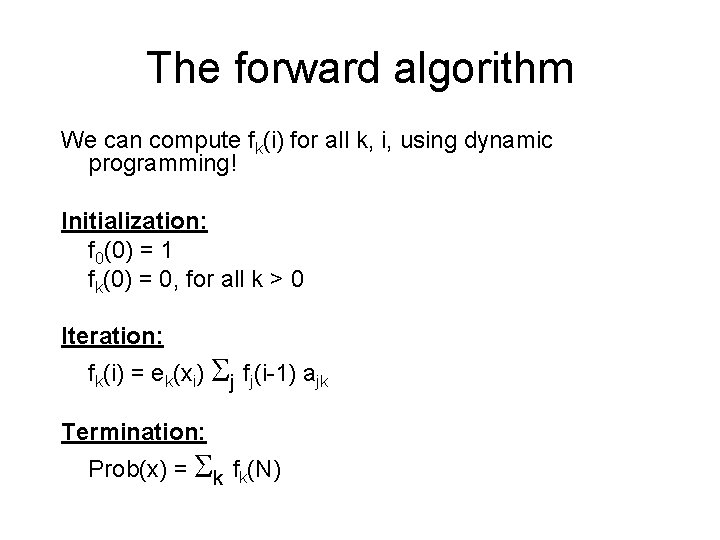

The forward algorithm We can compute fk(i) for all k, i, using dynamic programming! Initialization: f 0(0) = 1 fk(0) = 0, for all k > 0 Iteration: fk(i) = ek(xi) j fj(i-1) ajk Termination: Prob(x) = k fk(N)

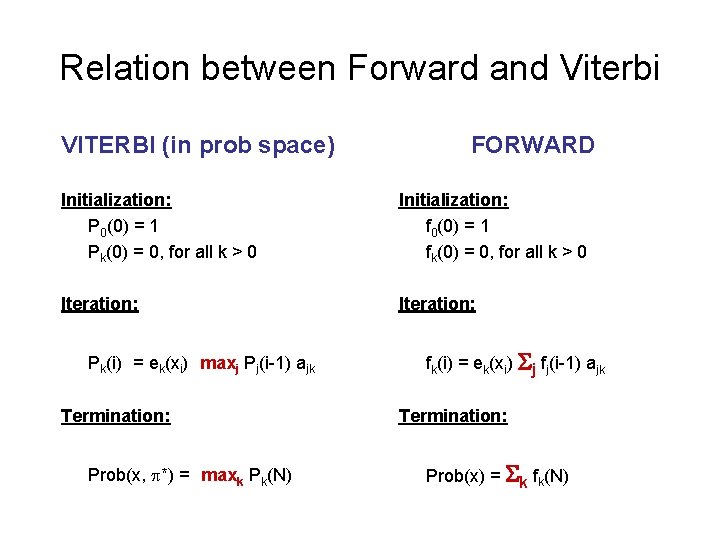

Relation between Forward and Viterbi VITERBI (in prob space) FORWARD Initialization: P 0(0) = 1 Pk(0) = 0, for all k > 0 Initialization: f 0(0) = 1 fk(0) = 0, for all k > 0 Iteration: Pk(i) = ek(xi) maxj Pj(i-1) ajk Termination: Prob(x, *) = maxk Pk(N) fk(i) = ek(xi) j fj(i-1) ajk Termination: Prob(x) = k fk(N)

Posterior decoding • Viterbi finds the path with the highest probability • We want to know k =1 • In order to do posterior decoding, we need to know P(x) and P( i = k, x), since Need to know how to compute this Have just shown how to compute this

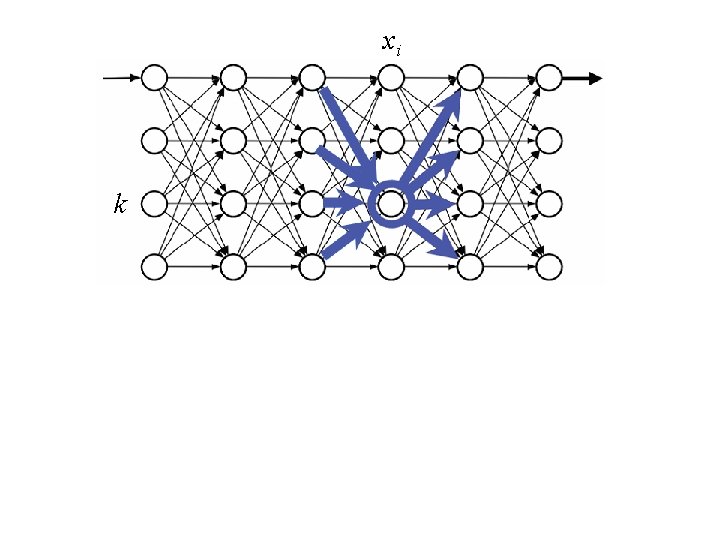

xi k

The backward algorithm • Define bk(i) = P(xi+1…xn | i=k) – Implicitly: sum over all possible paths for xi…xn xi k

k xi 1 This does not include the emission probability of xi

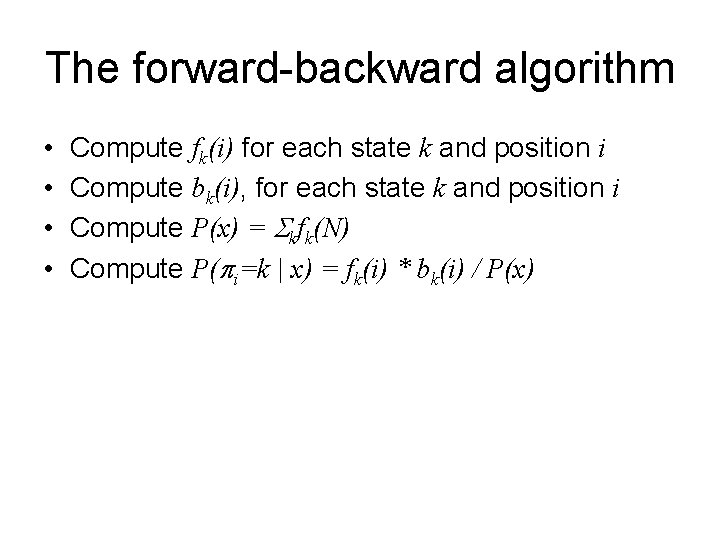

The forward-backward algorithm • • Compute fk(i) for each state k and position i Compute bk(i), for each state k and position i Compute P(x) = kfk(N) Compute P( i=k | x) = fk(i) * bk(i) / P(x)

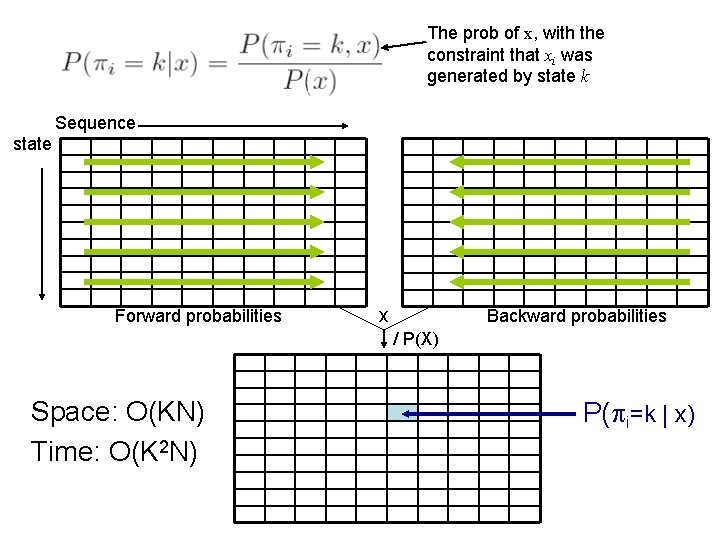

The prob of x, with the constraint that xi was generated by state k Sequence state Forward probabilities x Backward probabilities / P(X) Space: O(KN) Time: O(K 2 N) P( i=k | x)

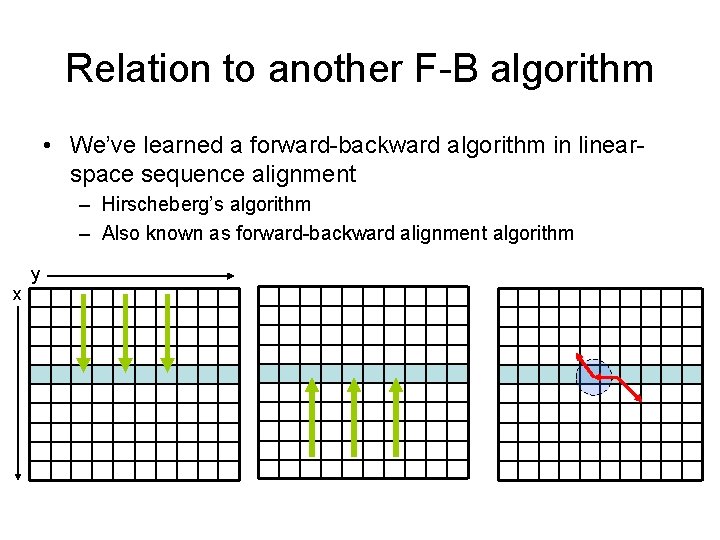

Relation to another F-B algorithm • We’ve learned a forward-backward algorithm in linearspace sequence alignment – Hirscheberg’s algorithm – Also known as forward-backward alignment algorithm x y

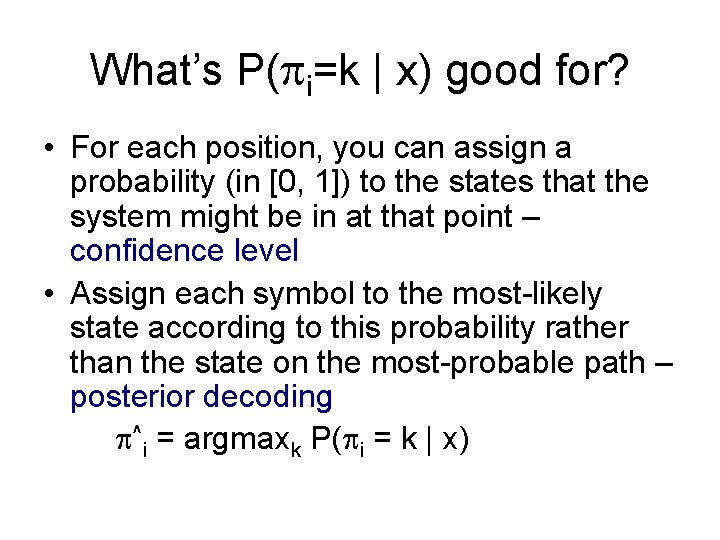

What’s P( i=k | x) good for? • For each position, you can assign a probability (in [0, 1]) to the states that the system might be in at that point – confidence level • Assign each symbol to the most-likely state according to this probability rather than the state on the most-probable path – posterior decoding ^i = argmaxk P( i = k | x)

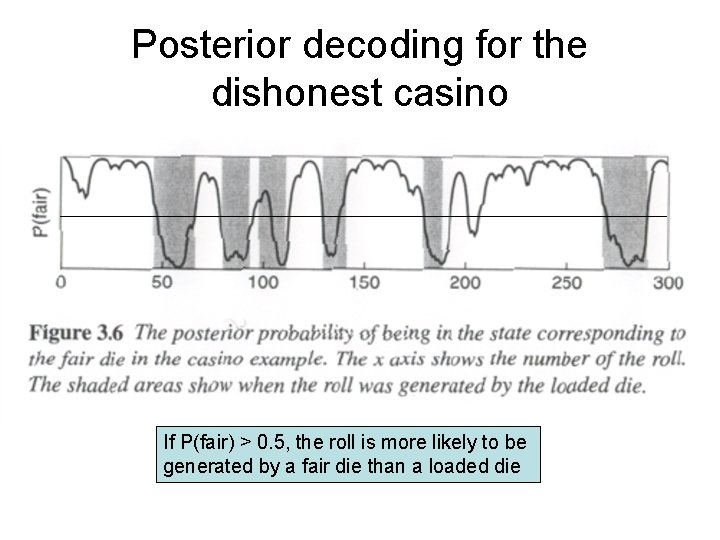

Posterior decoding for the dishonest casino If P(fair) > 0. 5, the roll is more likely to be generated by a fair die than a loaded die

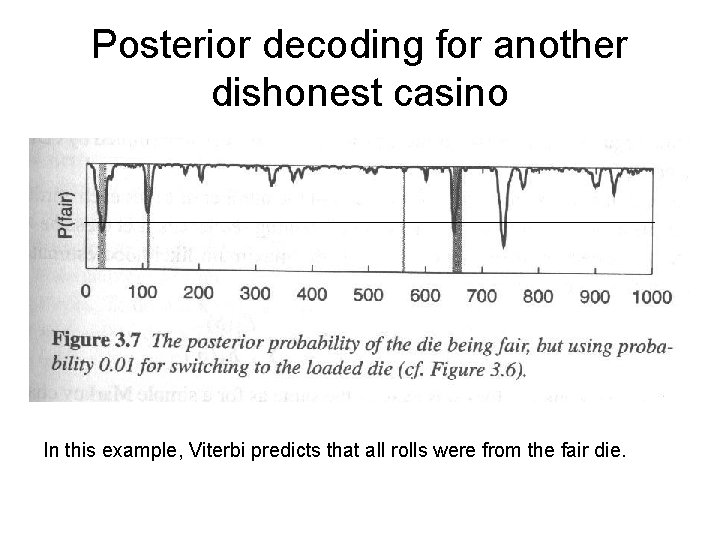

Posterior decoding for another dishonest casino In this example, Viterbi predicts that all rolls were from the fair die.

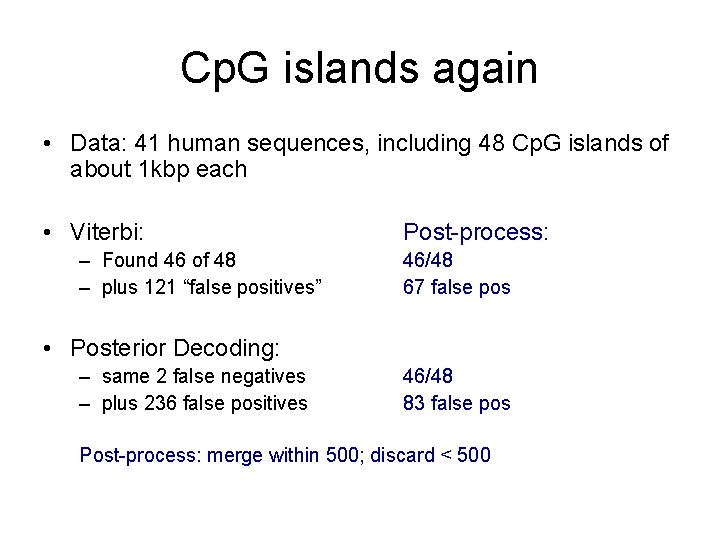

Cp. G islands again • Data: 41 human sequences, including 48 Cp. G islands of about 1 kbp each • Viterbi: – Found 46 of 48 – plus 121 “false positives” Post-process: 46/48 67 false pos • Posterior Decoding: – same 2 false negatives – plus 236 false positives 46/48 83 false pos Post-process: merge within 500; discard < 500

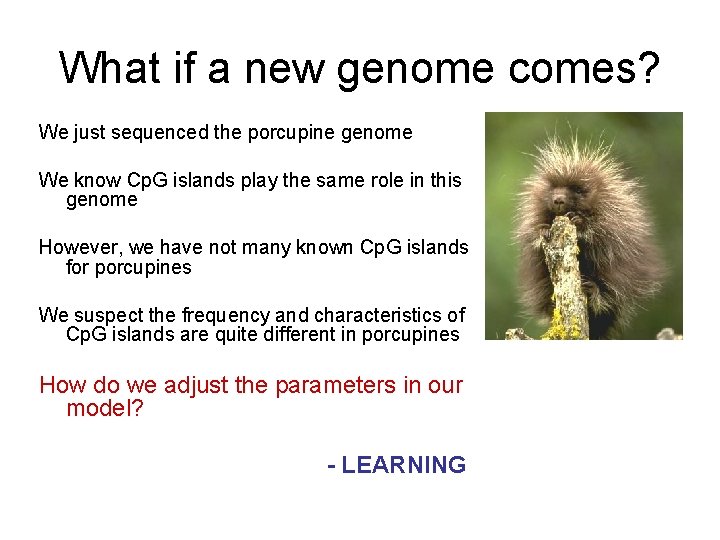

What if a new genome comes? We just sequenced the porcupine genome We know Cp. G islands play the same role in this genome However, we have not many known Cp. G islands for porcupines We suspect the frequency and characteristics of Cp. G islands are quite different in porcupines How do we adjust the parameters in our model? - LEARNING

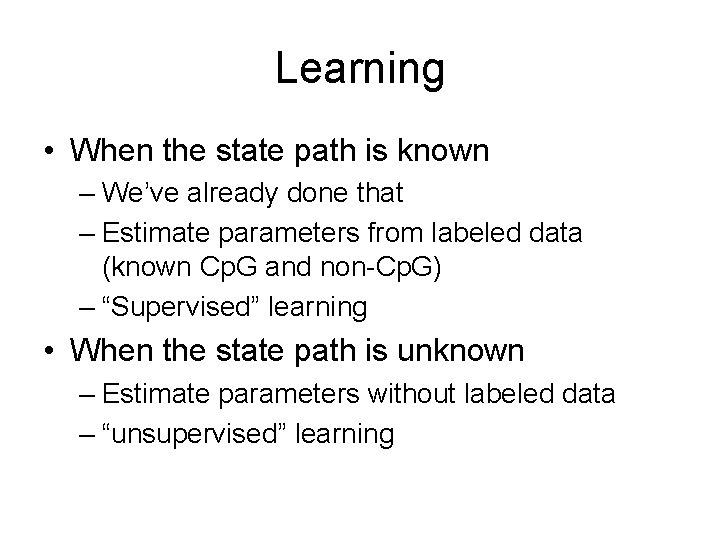

Learning • When the state path is known – We’ve already done that – Estimate parameters from labeled data (known Cp. G and non-Cp. G) – “Supervised” learning • When the state path is unknown – Estimate parameters without labeled data – “unsupervised” learning

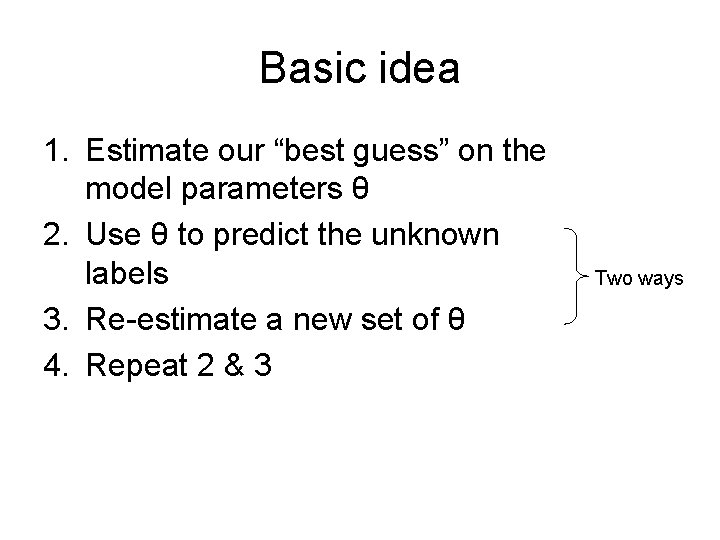

Basic idea 1. Estimate our “best guess” on the model parameters θ 2. Use θ to predict the unknown labels 3. Re-estimate a new set of θ 4. Repeat 2 & 3 Two ways

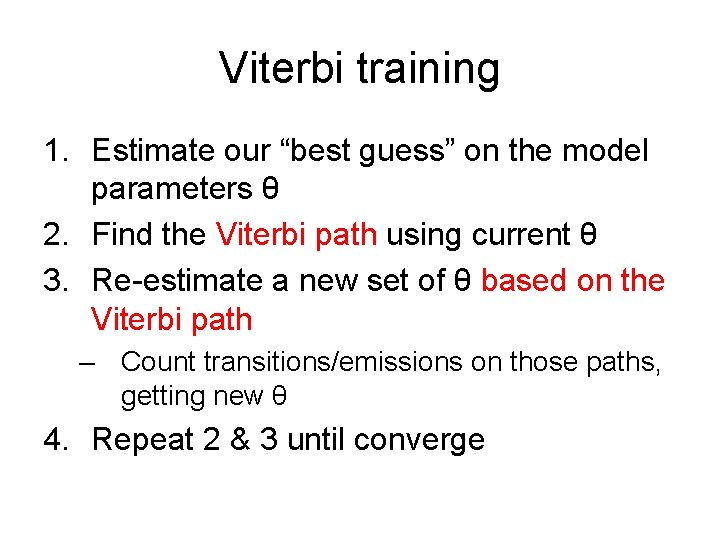

Viterbi training 1. Estimate our “best guess” on the model parameters θ 2. Find the Viterbi path using current θ 3. Re-estimate a new set of θ based on the Viterbi path – Count transitions/emissions on those paths, getting new θ 4. Repeat 2 & 3 until converge

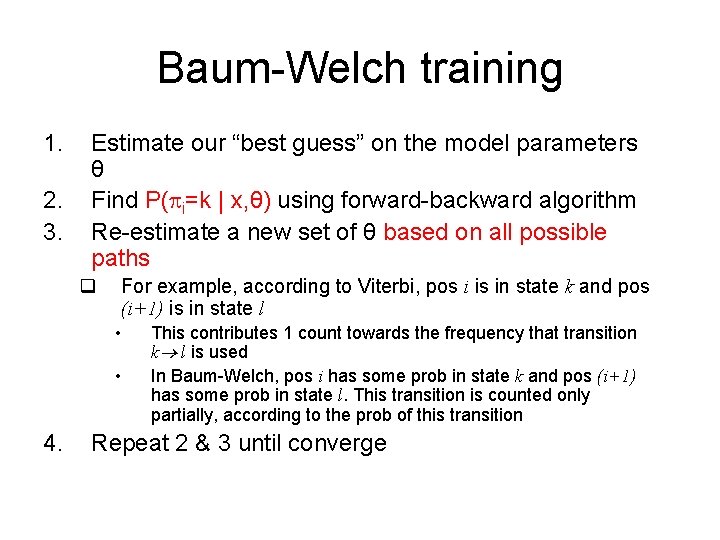

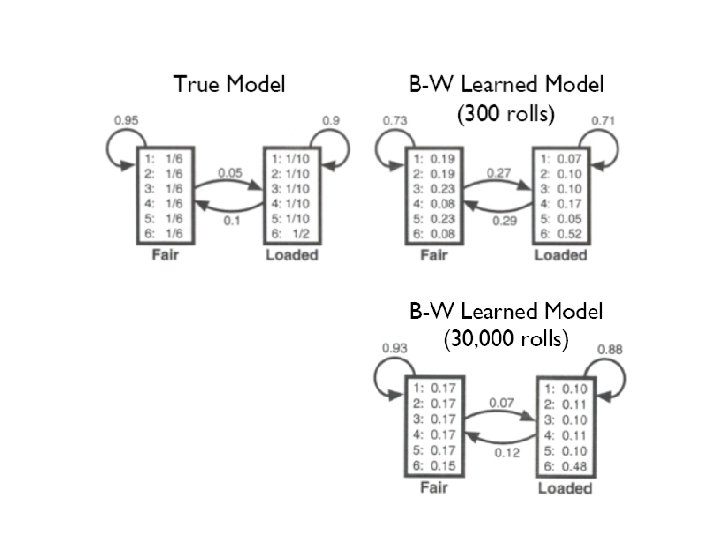

Baum-Welch training 1. 2. 3. Estimate our “best guess” on the model parameters θ Find P( i=k | x, θ) using forward-backward algorithm Re-estimate a new set of θ based on all possible paths q For example, according to Viterbi, pos i is in state k and pos (i+1) is in state l • • 4. This contributes 1 count towards the frequency that transition k l is used In Baum-Welch, pos i has some prob in state k and pos (i+1) has some prob in state l. This transition is counted only partially, according to the prob of this transition Repeat 2 & 3 until converge

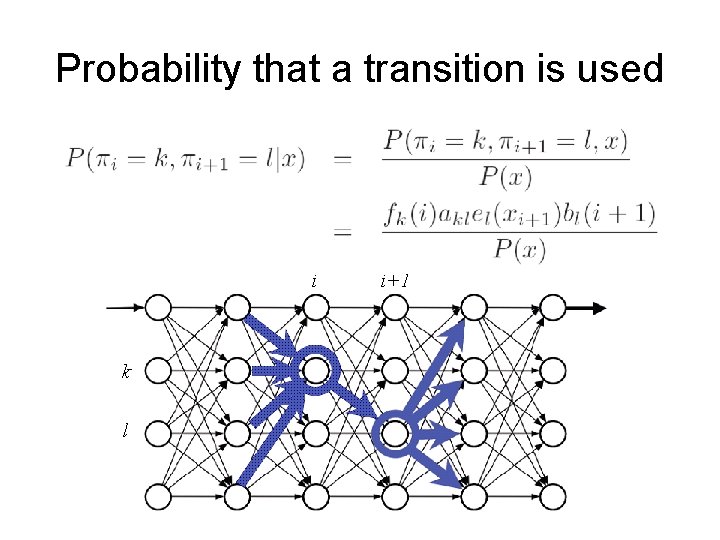

Probability that a transition is used i k l i+1

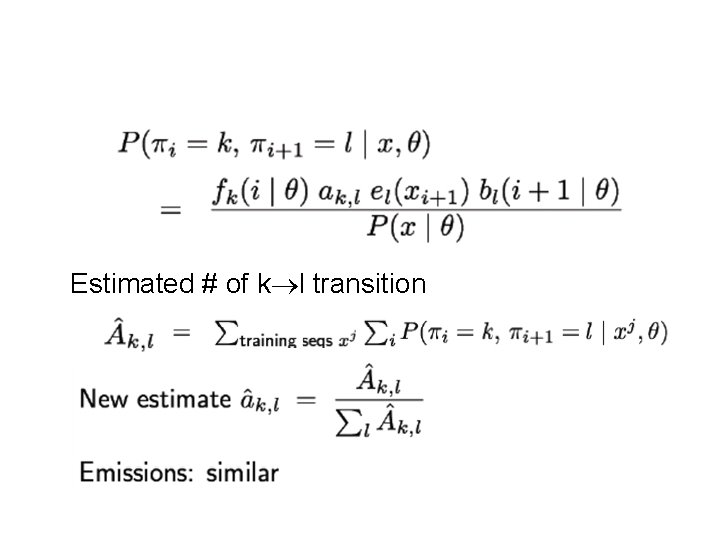

Estimated # of k l transition

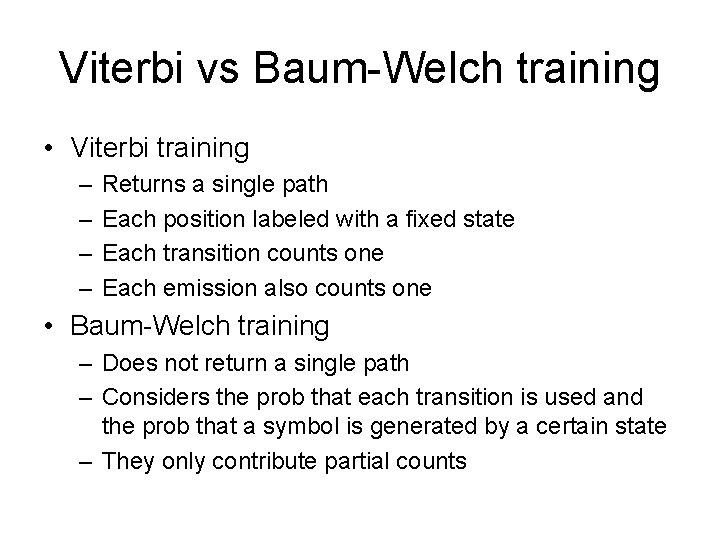

Viterbi vs Baum-Welch training • Viterbi training – – Returns a single path Each position labeled with a fixed state Each transition counts one Each emission also counts one • Baum-Welch training – Does not return a single path – Considers the prob that each transition is used and the prob that a symbol is generated by a certain state – They only contribute partial counts

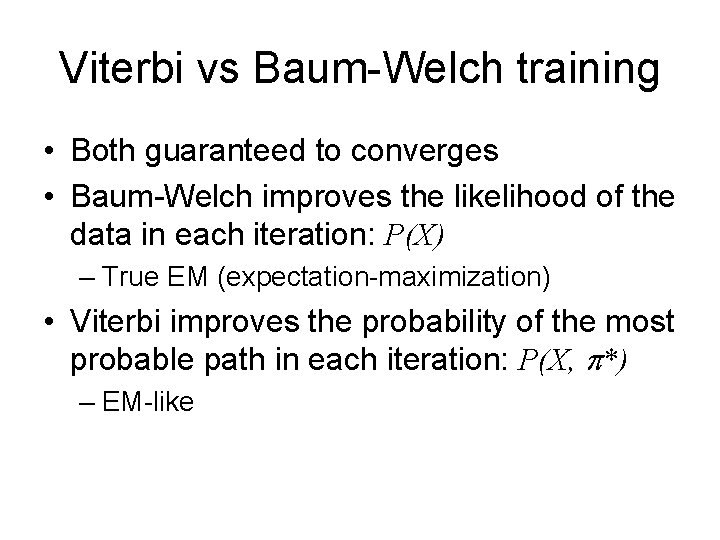

Viterbi vs Baum-Welch training • Both guaranteed to converges • Baum-Welch improves the likelihood of the data in each iteration: P(X) – True EM (expectation-maximization) • Viterbi improves the probability of the most probable path in each iteration: P(X, *) – EM-like

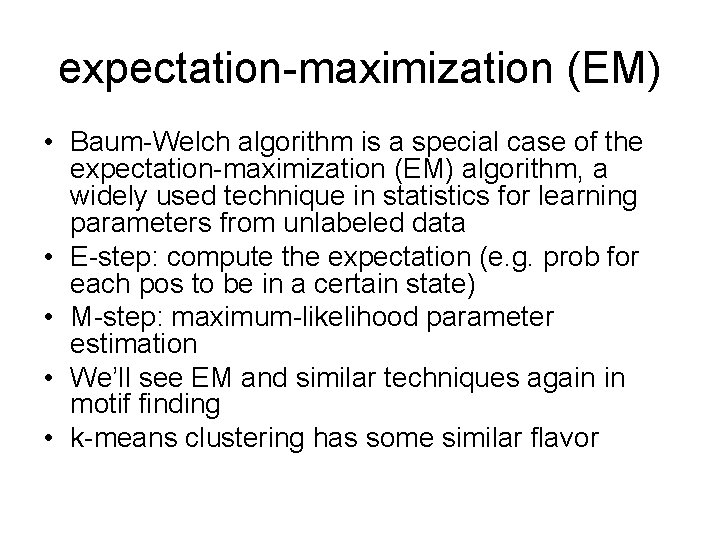

expectation-maximization (EM) • Baum-Welch algorithm is a special case of the expectation-maximization (EM) algorithm, a widely used technique in statistics for learning parameters from unlabeled data • E-step: compute the expectation (e. g. prob for each pos to be in a certain state) • M-step: maximum-likelihood parameter estimation • We’ll see EM and similar techniques again in motif finding • k-means clustering has some similar flavor

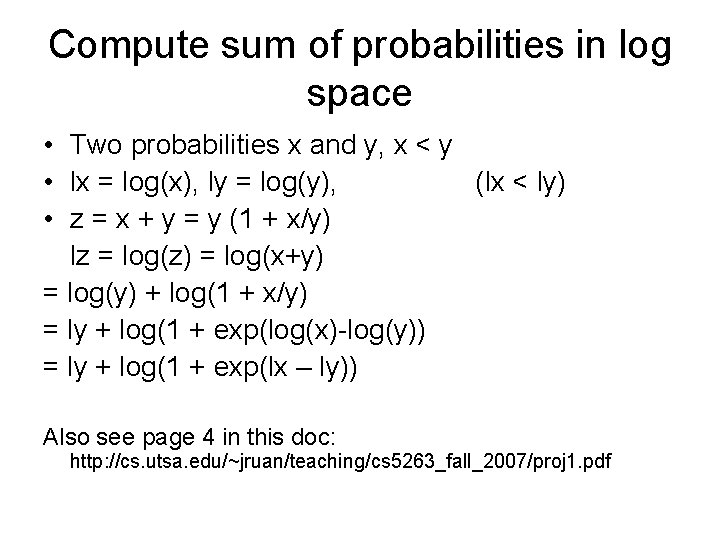

Compute sum of probabilities in log space • Two probabilities x and y, x < y • lx = log(x), ly = log(y), (lx < ly) • z = x + y = y (1 + x/y) lz = log(z) = log(x+y) = log(y) + log(1 + x/y) = ly + log(1 + exp(log(x)-log(y)) = ly + log(1 + exp(lx – ly)) Also see page 4 in this doc: http: //cs. utsa. edu/~jruan/teaching/cs 5263_fall_2007/proj 1. pdf

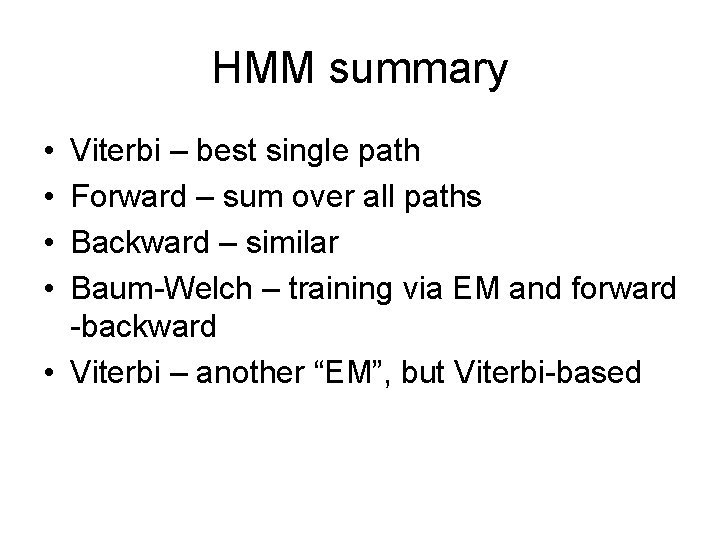

HMM summary • • Viterbi – best single path Forward – sum over all paths Backward – similar Baum-Welch – training via EM and forward -backward • Viterbi – another “EM”, but Viterbi-based

Silent states • Silent states are states that do not emit symbols (e. g. , the state 0 in our previous examples) • Silent states can be introduced in HMMs to reduce the number of transitions

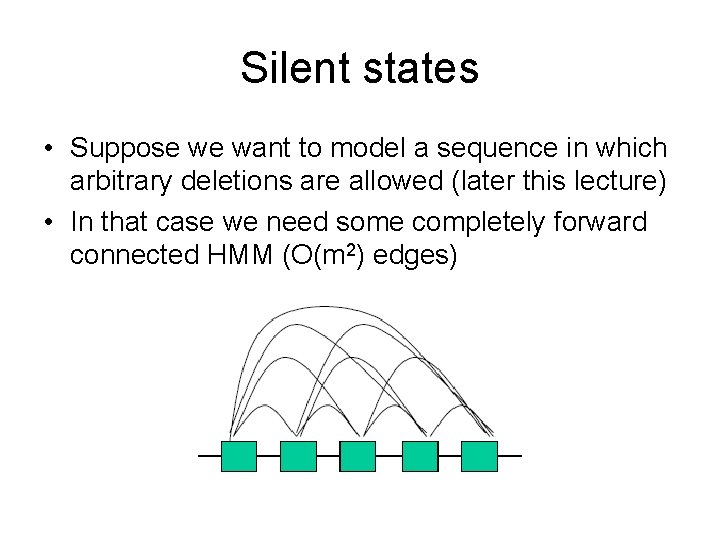

Silent states • Suppose we want to model a sequence in which arbitrary deletions are allowed (later this lecture) • In that case we need some completely forward connected HMM (O(m 2) edges)

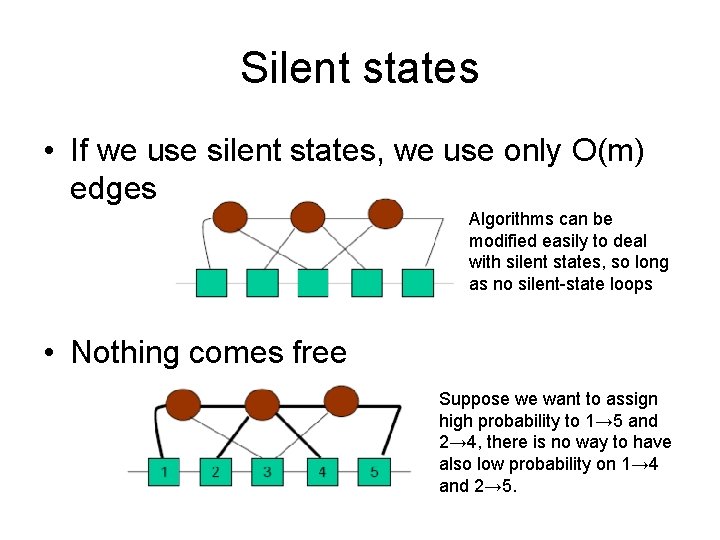

Silent states • If we use silent states, we use only O(m) edges Algorithms can be modified easily to deal with silent states, so long as no silent-state loops • Nothing comes free Suppose we want to assign high probability to 1→ 5 and 2→ 4, there is no way to have also low probability on 1→ 4 and 2→ 5.

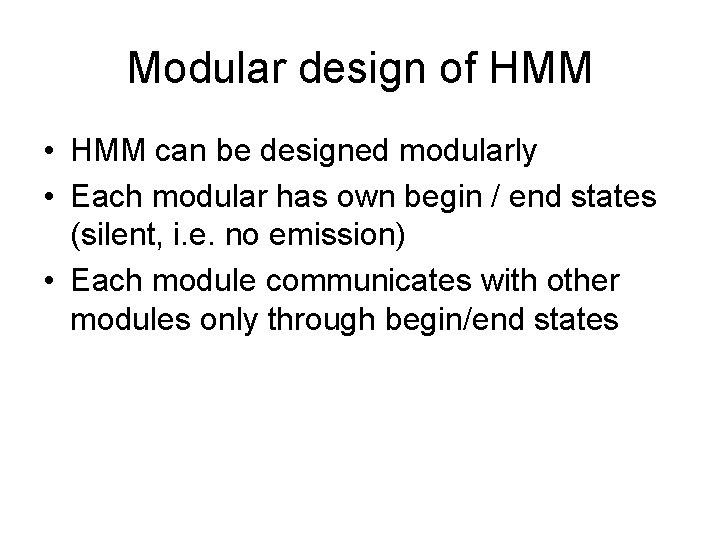

Modular design of HMM • HMM can be designed modularly • Each modular has own begin / end states (silent, i. e. no emission) • Each module communicates with other modules only through begin/end states

C+ B+ E- G+ A+ T+ A- TC- G- E+ B- HMM modules and non-HMM modules can be mixed

HMM applications • • Pair-wise sequence alignment Multiple sequence alignment Gene finding Speech recognition: a good tutorial on course website • Machine translation • Many others

FSA for global alignment e Xi aligned to a gap d Xi and Yj aligned d Yj aligned to a gap e

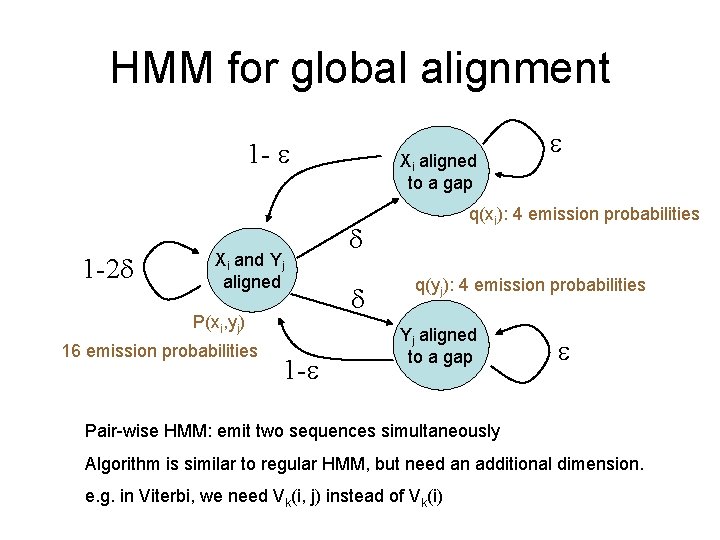

HMM for global alignment 1 - 1 -2 Xi and Yj aligned P(xi, yj) 16 emission probabilities 1 - Xi aligned to a gap q(xi): 4 emission probabilities q(yj): 4 emission probabilities Yj aligned to a gap Pair-wise HMM: emit two sequences simultaneously Algorithm is similar to regular HMM, but need an additional dimension. e. g. in Viterbi, we need Vk(i, j) instead of Vk(i)

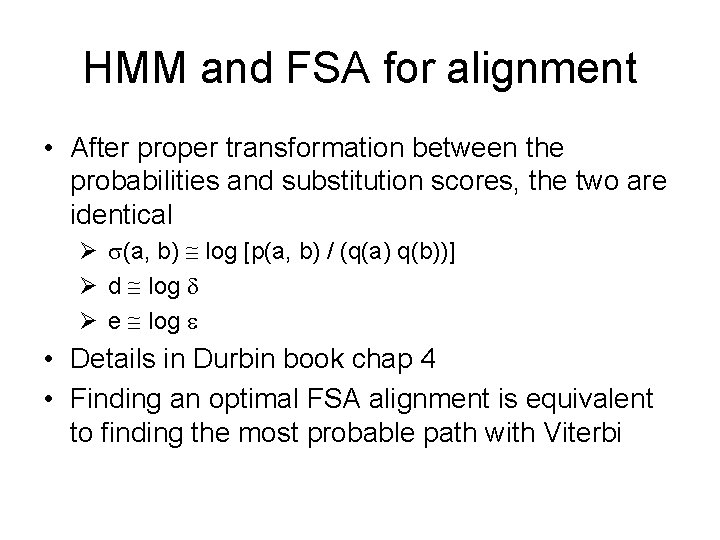

HMM and FSA for alignment • After proper transformation between the probabilities and substitution scores, the two are identical Ø (a, b) log [p(a, b) / (q(a) q(b))] Ø d log Ø e log • Details in Durbin book chap 4 • Finding an optimal FSA alignment is equivalent to finding the most probable path with Viterbi

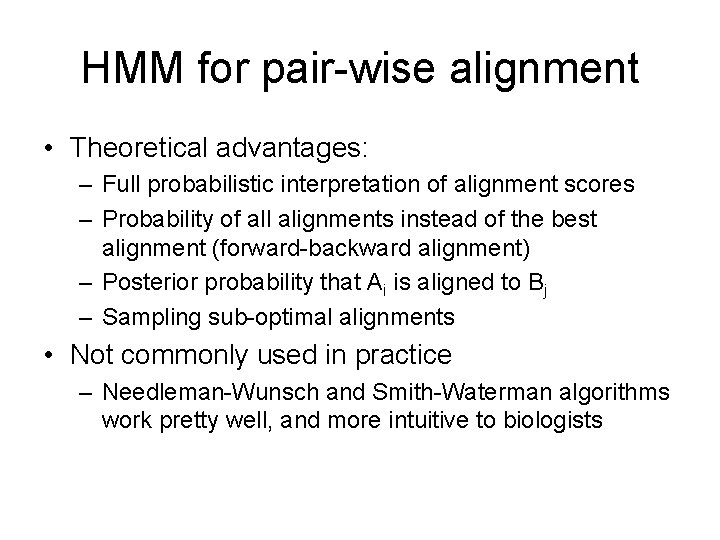

HMM for pair-wise alignment • Theoretical advantages: – Full probabilistic interpretation of alignment scores – Probability of all alignments instead of the best alignment (forward-backward alignment) – Posterior probability that Ai is aligned to Bj – Sampling sub-optimal alignments • Not commonly used in practice – Needleman-Wunsch and Smith-Waterman algorithms work pretty well, and more intuitive to biologists

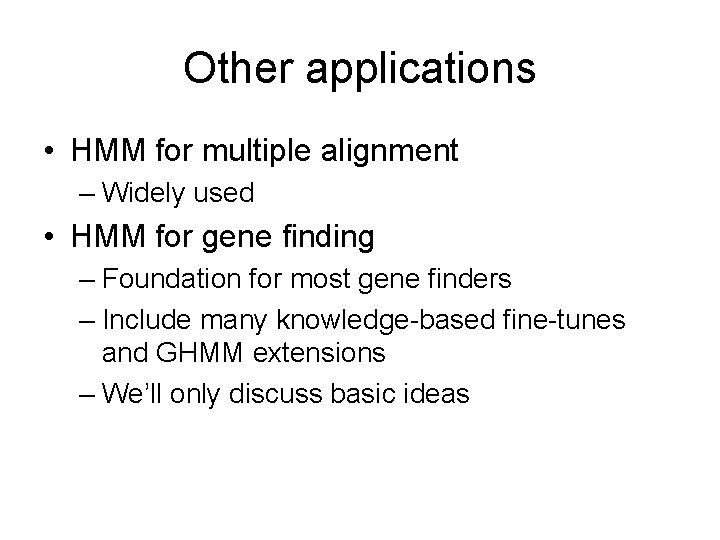

Other applications • HMM for multiple alignment – Widely used • HMM for gene finding – Foundation for most gene finders – Include many knowledge-based fine-tunes and GHMM extensions – We’ll only discuss basic ideas

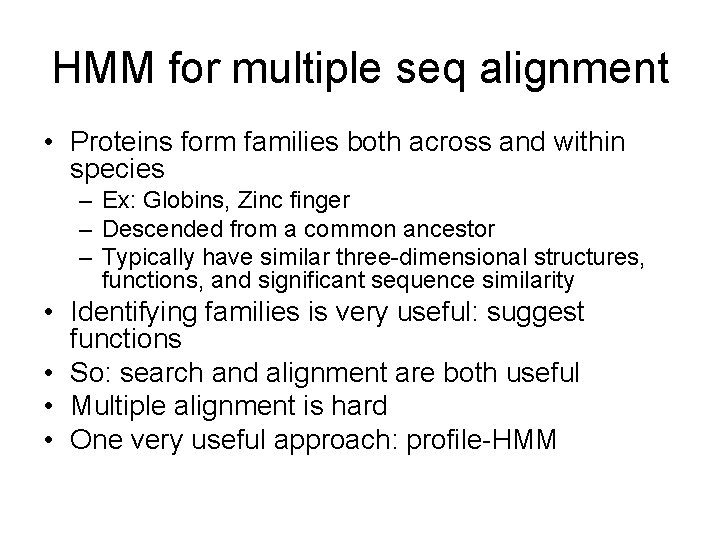

HMM for multiple seq alignment • Proteins form families both across and within species – Ex: Globins, Zinc finger – Descended from a common ancestor – Typically have similar three-dimensional structures, functions, and significant sequence similarity • Identifying families is very useful: suggest functions • So: search and alignment are both useful • Multiple alignment is hard • One very useful approach: profile-HMM

Say we already have a database of reliable multiple alignment of protein families When a new protein comes, how do we align it to the existing alignments and find the family that the protein may belong to?

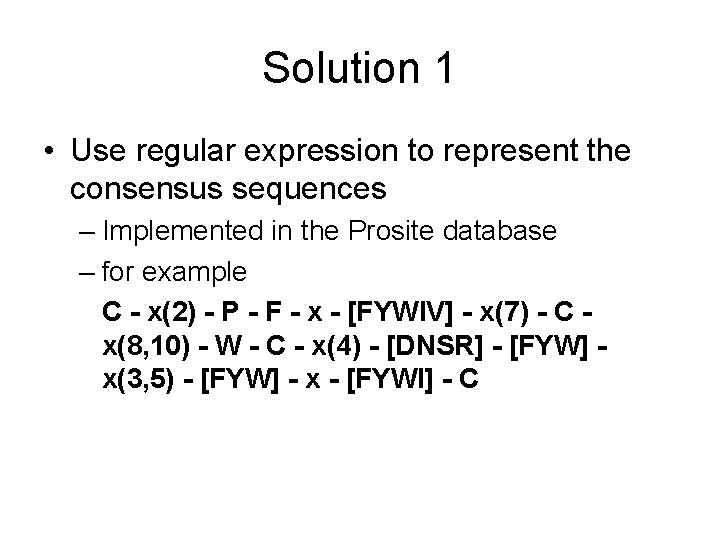

Solution 1 • Use regular expression to represent the consensus sequences – Implemented in the Prosite database – for example C - x(2) - P - F - x - [FYWIV] - x(7) - C x(8, 10) - W - C - x(4) - [DNSR] - [FYW] x(3, 5) - [FYW] - x - [FYWI] - C

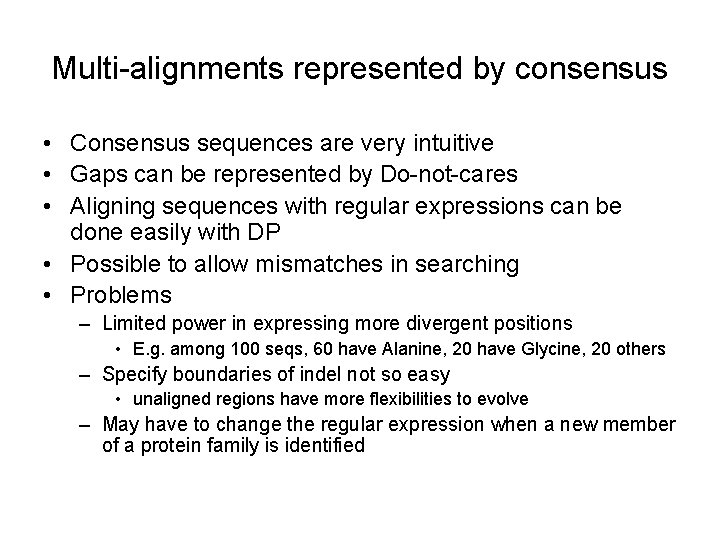

Multi-alignments represented by consensus • Consensus sequences are very intuitive • Gaps can be represented by Do-not-cares • Aligning sequences with regular expressions can be done easily with DP • Possible to allow mismatches in searching • Problems – Limited power in expressing more divergent positions • E. g. among 100 seqs, 60 have Alanine, 20 have Glycine, 20 others – Specify boundaries of indel not so easy • unaligned regions have more flexibilities to evolve – May have to change the regular expression when a new member of a protein family is identified

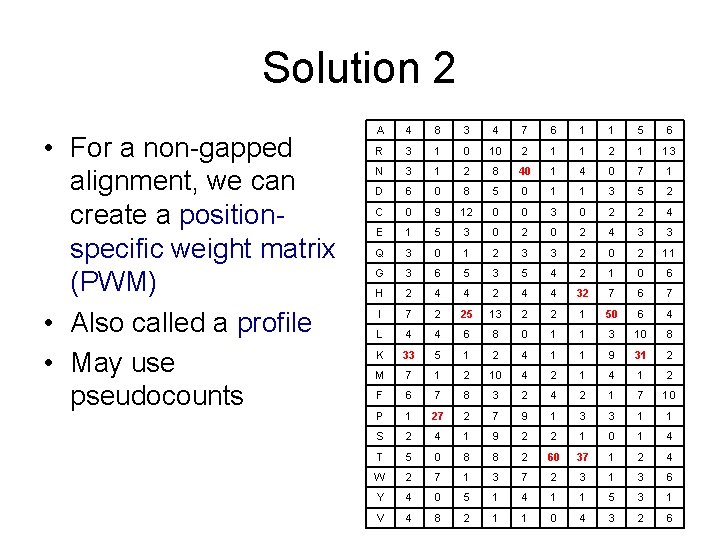

Solution 2 • For a non-gapped alignment, we can create a positionspecific weight matrix (PWM) • Also called a profile • May use pseudocounts A 4 8 3 4 7 6 1 1 5 6 R 3 1 0 10 2 1 13 N 3 1 2 8 40 1 4 0 7 1 D 6 0 8 5 0 1 1 3 5 2 C 0 9 12 0 0 3 0 2 2 4 E 1 5 3 0 2 4 3 3 Q 3 0 1 2 3 3 2 0 2 11 G 3 6 5 3 5 4 2 1 0 6 H 2 4 4 32 7 6 7 I 7 2 25 13 2 2 1 50 6 4 L 4 4 6 8 0 1 1 3 10 8 K 33 5 1 2 4 1 1 9 31 2 M 7 1 2 10 4 2 1 4 1 2 F 6 7 8 3 2 4 2 1 7 10 P 1 27 2 7 9 1 3 3 1 1 S 2 4 1 9 2 2 1 0 1 4 T 5 0 8 8 2 60 37 1 2 4 W 2 7 1 3 7 2 3 1 3 6 Y 4 0 5 1 4 1 1 5 3 1 V 4 8 2 1 1 0 4 3 2 6

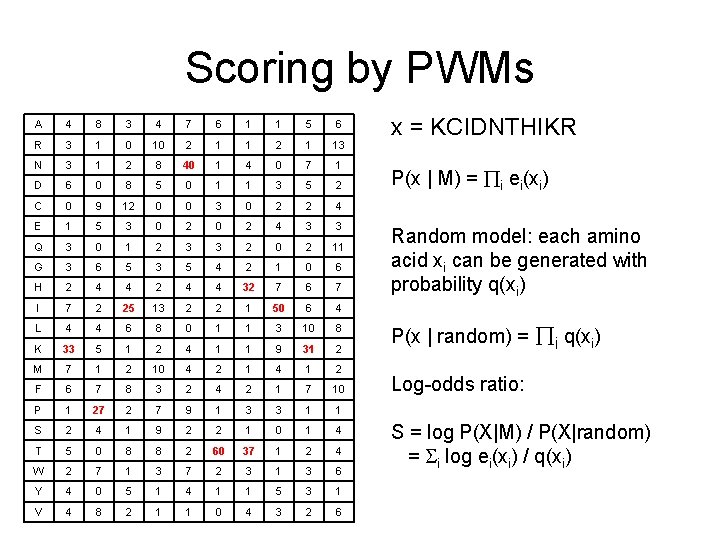

Scoring by PWMs A 4 8 3 4 7 6 1 1 5 6 R 3 1 0 10 2 1 13 N 3 1 2 8 40 1 4 0 7 1 D 6 0 8 5 0 1 1 3 5 2 C 0 9 12 0 0 3 0 2 2 4 E 1 5 3 0 2 4 3 3 Q 3 0 1 2 3 3 2 0 2 11 G 3 6 5 3 5 4 2 1 0 6 H 2 4 4 32 7 6 7 I 7 2 25 13 2 2 1 50 6 4 L 4 4 6 8 0 1 1 3 10 8 K 33 5 1 2 4 1 1 9 31 2 M 7 1 2 10 4 2 1 4 1 2 F 6 7 8 3 2 4 2 1 7 10 P 1 27 2 7 9 1 3 3 1 1 S 2 4 1 9 2 2 1 0 1 4 T 5 0 8 8 2 60 37 1 2 4 W 2 7 1 3 7 2 3 1 3 6 Y 4 0 5 1 4 1 1 5 3 1 V 4 8 2 1 1 0 4 3 2 6 x = KCIDNTHIKR P(x | M) = i ei(xi) Random model: each amino acid xi can be generated with probability q(xi) P(x | random) = i q(xi) Log-odds ratio: S = log P(X|M) / P(X|random) = i log ei(xi) / q(xi)

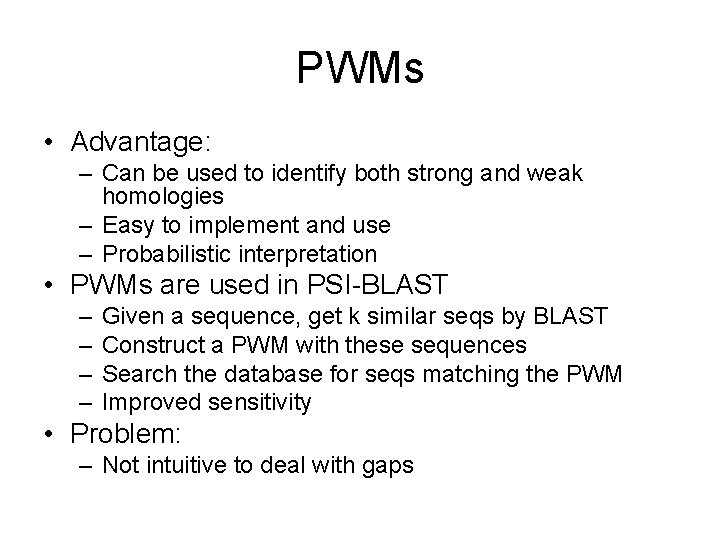

PWMs • Advantage: – Can be used to identify both strong and weak homologies – Easy to implement and use – Probabilistic interpretation • PWMs are used in PSI-BLAST – – Given a sequence, get k similar seqs by BLAST Construct a PWM with these sequences Search the database for seqs matching the PWM Improved sensitivity • Problem: – Not intuitive to deal with gaps

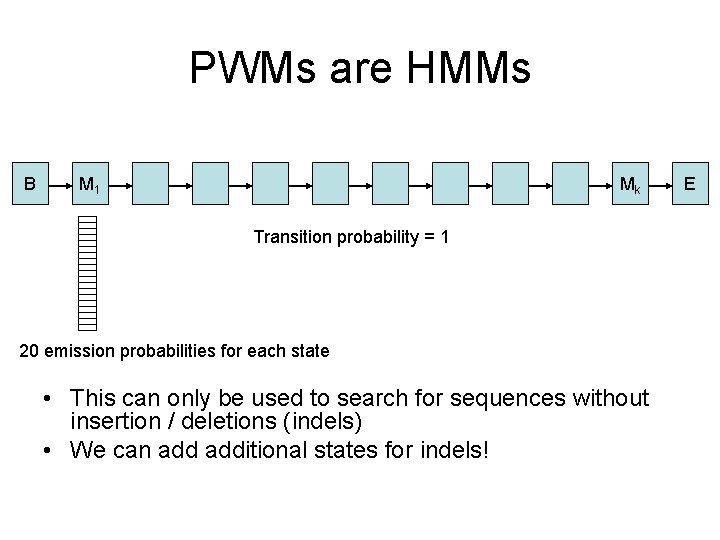

PWMs are HMMs B M 1 Mk Transition probability = 1 20 emission probabilities for each state • This can only be used to search for sequences without insertion / deletions (indels) • We can additional states for indels! E

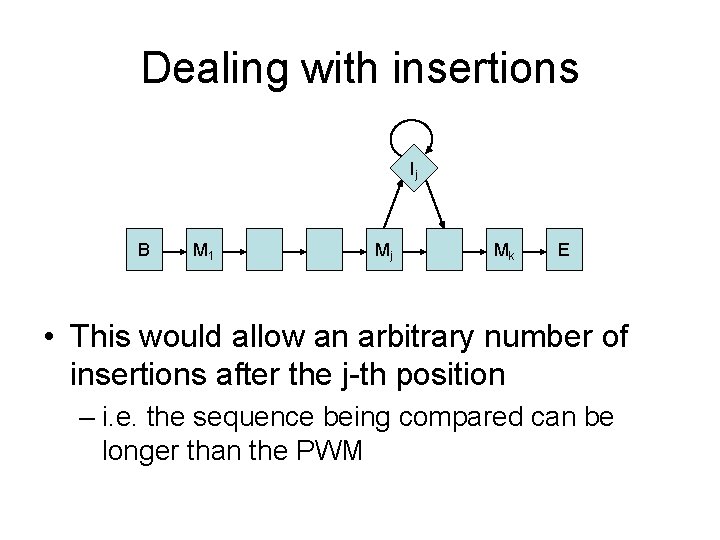

Dealing with insertions Ij B M 1 Mj Mk E • This would allow an arbitrary number of insertions after the j-th position – i. e. the sequence being compared can be longer than the PWM

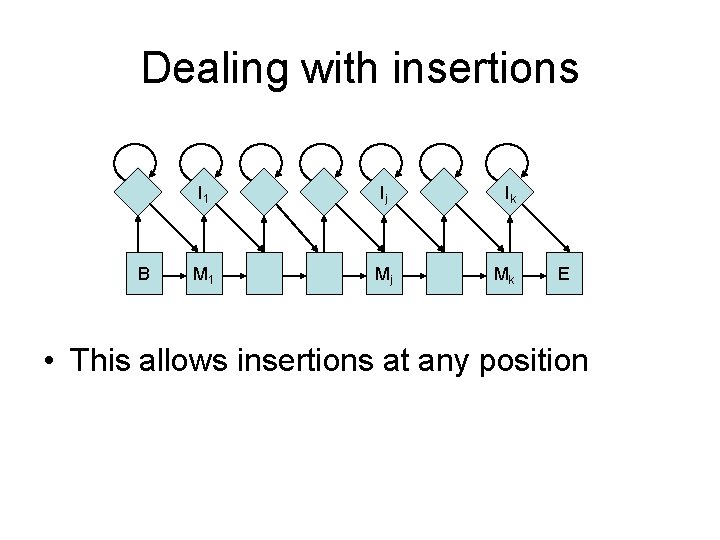

Dealing with insertions B I 1 Ij Ik M 1 Mj Mk E • This allows insertions at any position

Dealing with deletions B Mi Mj E • This would allow a subsequence [i, j] being deleted – i. e. the sequence being compared can be shorter than the PWM

Dealing with deletions B E • This would allow an arbitrary length of deletion – Completely forward connected – Too many transitions

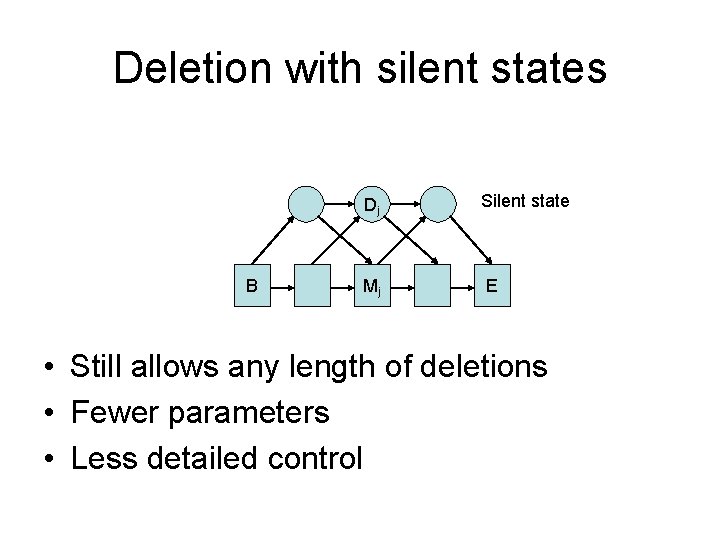

Deletion with silent states B Dj Silent state Mj E • Still allows any length of deletions • Fewer parameters • Less detailed control

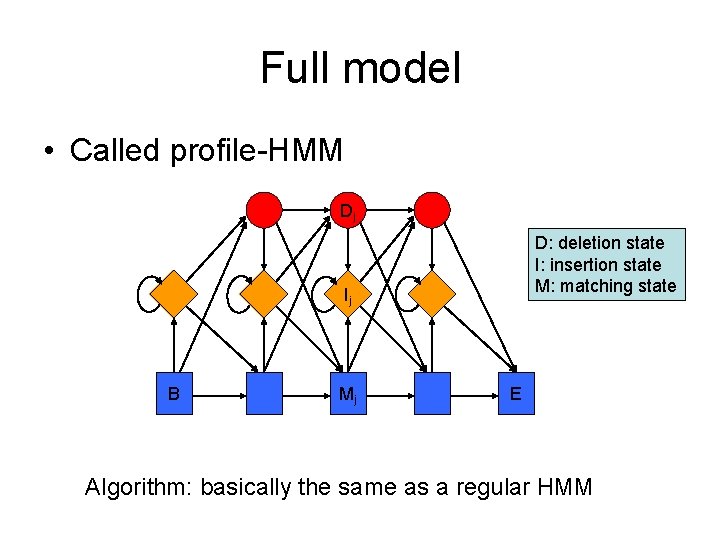

Full model • Called profile-HMM Dj D: deletion state I: insertion state M: matching state Ij B Mj E Algorithm: basically the same as a regular HMM

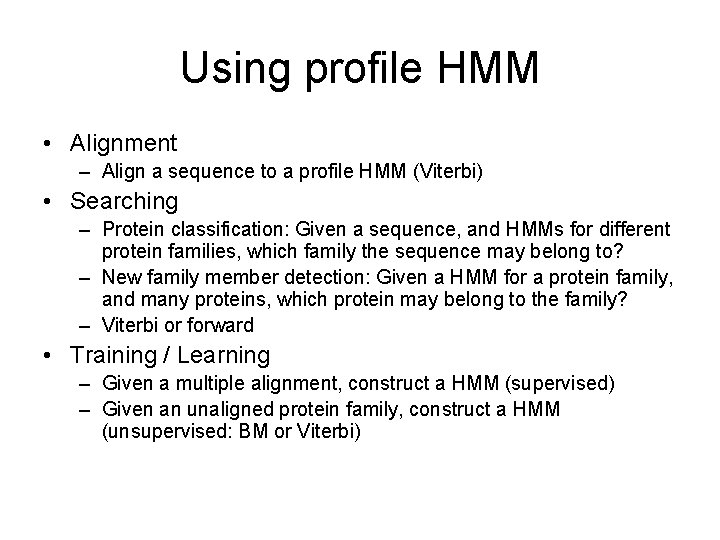

Using profile HMM • Alignment – Align a sequence to a profile HMM (Viterbi) • Searching – Protein classification: Given a sequence, and HMMs for different protein families, which family the sequence may belong to? – New family member detection: Given a HMM for a protein family, and many proteins, which protein may belong to the family? – Viterbi or forward • Training / Learning – Given a multiple alignment, construct a HMM (supervised) – Given an unaligned protein family, construct a HMM (unsupervised: BM or Viterbi)

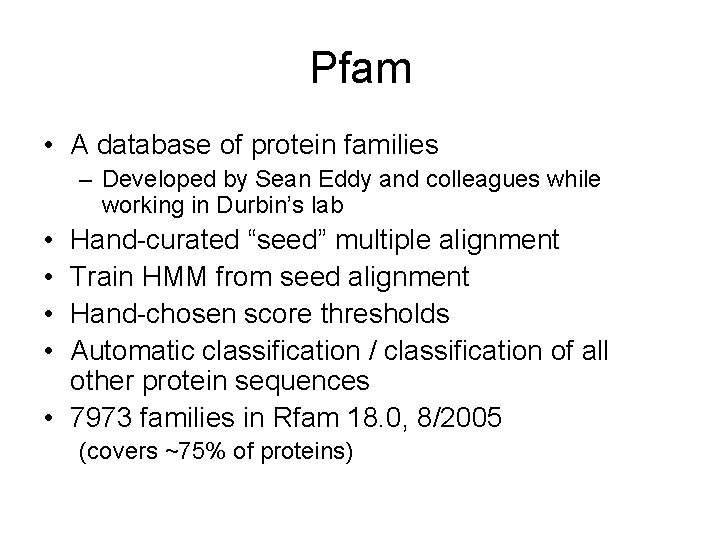

Pfam • A database of protein families – Developed by Sean Eddy and colleagues while working in Durbin’s lab • • Hand-curated “seed” multiple alignment Train HMM from seed alignment Hand-chosen score thresholds Automatic classification / classification of all other protein sequences • 7973 families in Rfam 18. 0, 8/2005 (covers ~75% of proteins)

Build models from aligned sequences • Matching state for columns with no gaps • When gaps exist, how to decide whether they are insertions or matching? – Heuristic rule: >50% gaps, insertion, otherwise, matching • How to add pseudocount? – Simply add one – According to background distribution – Use a mixture of priors (Dirchlet mixtures) • Sequence weighting – Very similar sequences should each get less weight

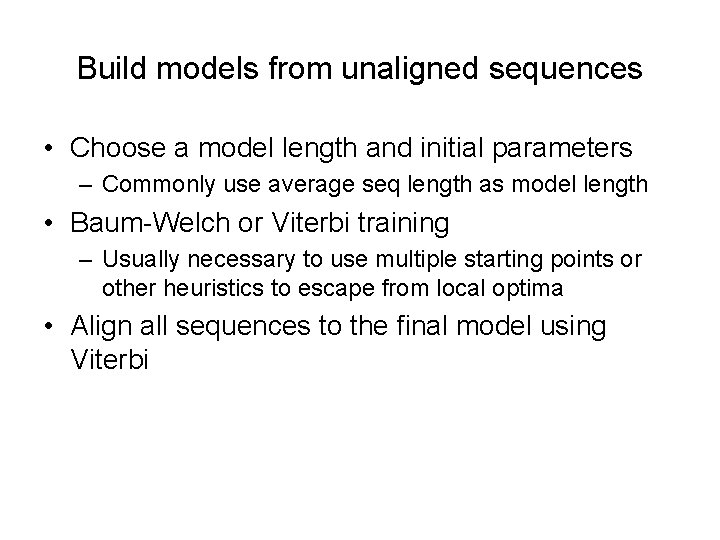

Build models from unaligned sequences • Choose a model length and initial parameters – Commonly use average seq length as model length • Baum-Welch or Viterbi training – Usually necessary to use multiple starting points or other heuristics to escape from local optima • Align all sequences to the final model using Viterbi

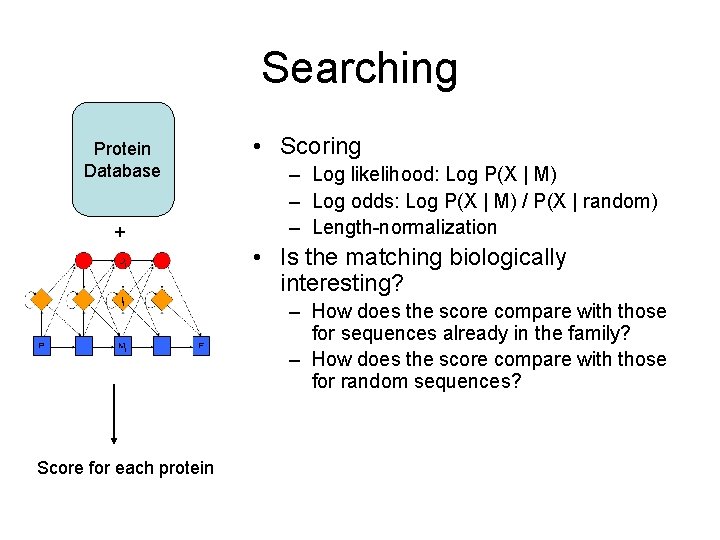

Searching Protein Database + • Scoring – Log likelihood: Log P(X | M) – Log odds: Log P(X | M) / P(X | random) – Length-normalization • Is the matching biologically interesting? – How does the score compare with those for sequences already in the family? – How does the score compare with those for random sequences? Score for each protein

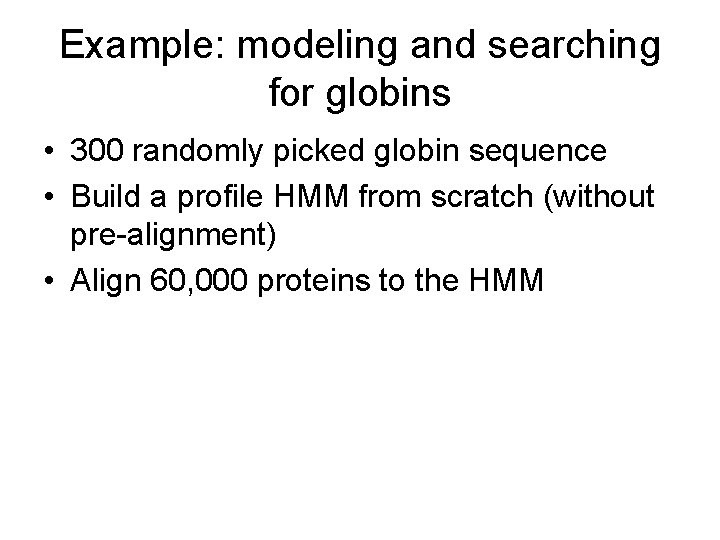

Example: modeling and searching for globins • 300 randomly picked globin sequence • Build a profile HMM from scratch (without pre-alignment) • Align 60, 000 proteins to the HMM

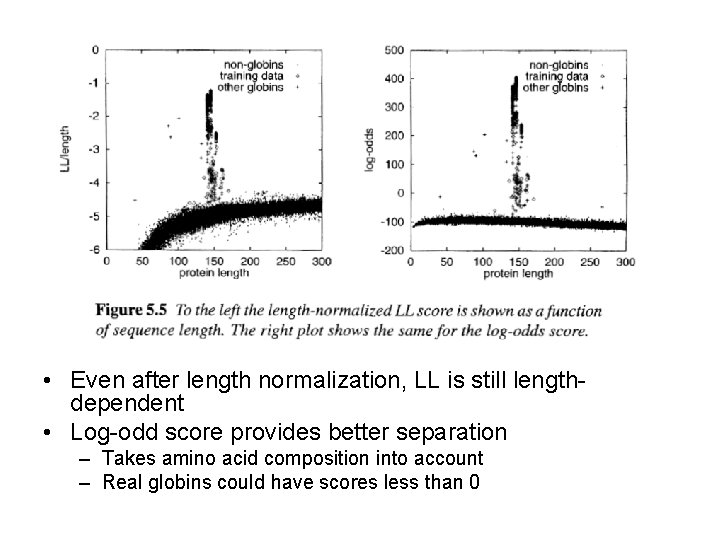

• Even after length normalization, LL is still lengthdependent • Log-odd score provides better separation – Takes amino acid composition into account – Real globins could have scores less than 0

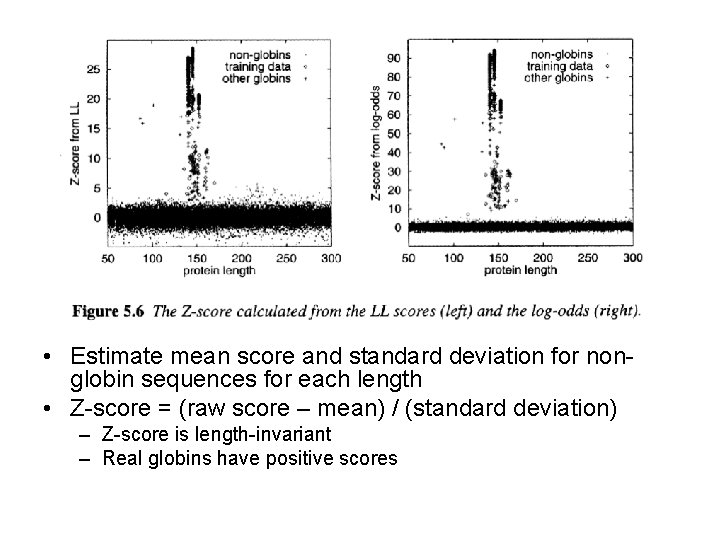

• Estimate mean score and standard deviation for nonglobin sequences for each length • Z-score = (raw score – mean) / (standard deviation) – Z-score is length-invariant – Real globins have positive scores

Gene prediction

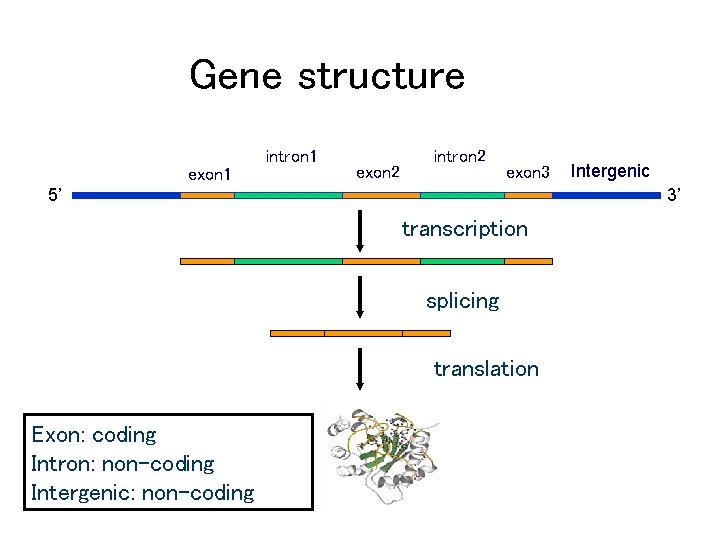

Gene structure intron 1 exon 2 intron 2 exon 3 5’ 3’ transcription splicing translation Exon: coding Intron: non-coding Intergenic

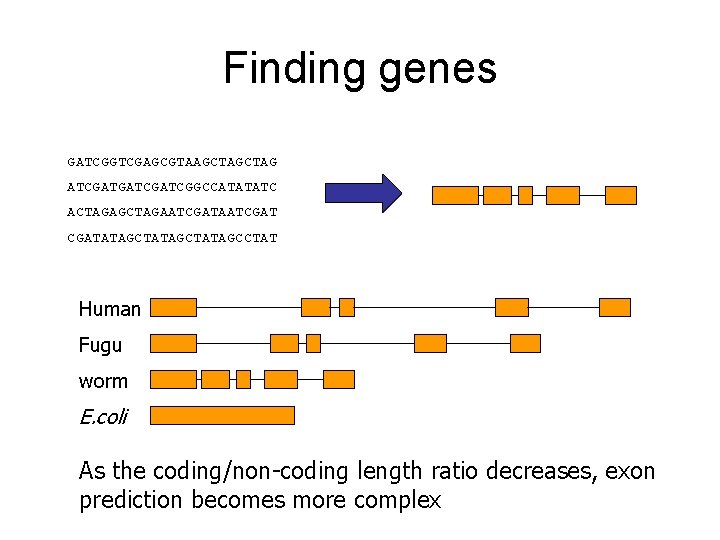

Finding genes GATCGGTCGAGCGTAAGCTAG ATCGATGATCGGCCATATATC ACTAGAGCTAGAATCGATATAGCTATAGCCTAT Human Fugu worm E. coli As the coding/non-coding length ratio decreases, exon prediction becomes more complex

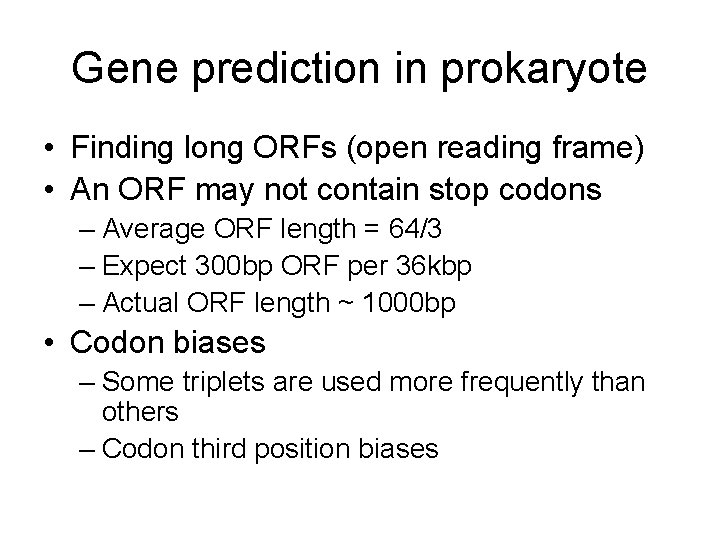

Gene prediction in prokaryote • Finding long ORFs (open reading frame) • An ORF may not contain stop codons – Average ORF length = 64/3 – Expect 300 bp ORF per 36 kbp – Actual ORF length ~ 1000 bp • Codon biases – Some triplets are used more frequently than others – Codon third position biases

HMM for eukaryote gene finding • Basic idea is the same: the distributions of nucleotides is different in exon and other regions – Alone won’t work very well • More signals are needed exon 1 intron 1 exon 2 intron 2 exon 3 Intergenic 5’ 3’ Promoter ATG 5’-UTR Splicing acceptor: AG Splicing donor: GT STOP Poly-A 3’-UTR • How to combine all the signal together?

Simplest model Intergenic 4 emission probability exon 64 triplets emission probabilities intron 4 emission probability Actually more accurate at the di-aminoacid level, i. e. 2 codons. Many methods use 5 th-order Markov model for all regions • Exon length may not be exact multiple of 3 • Basically have to triple the number of states to remember the excess number of bases in the previous state

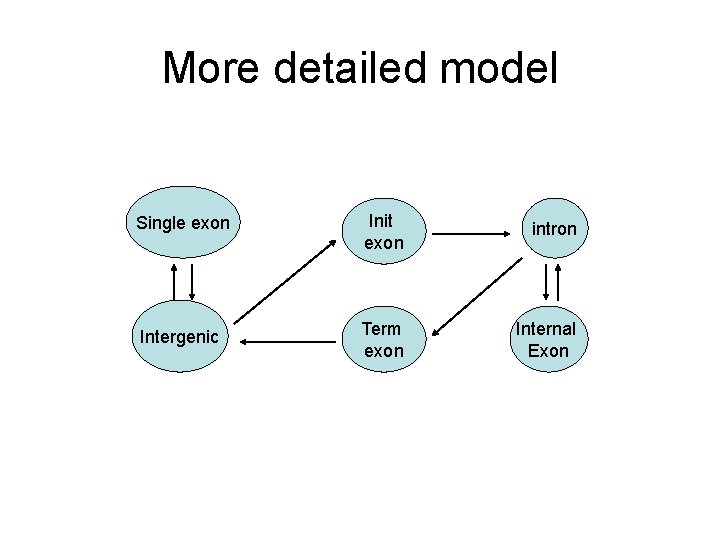

More detailed model Single exon Init exon intron Intergenic Term exon Internal Exon

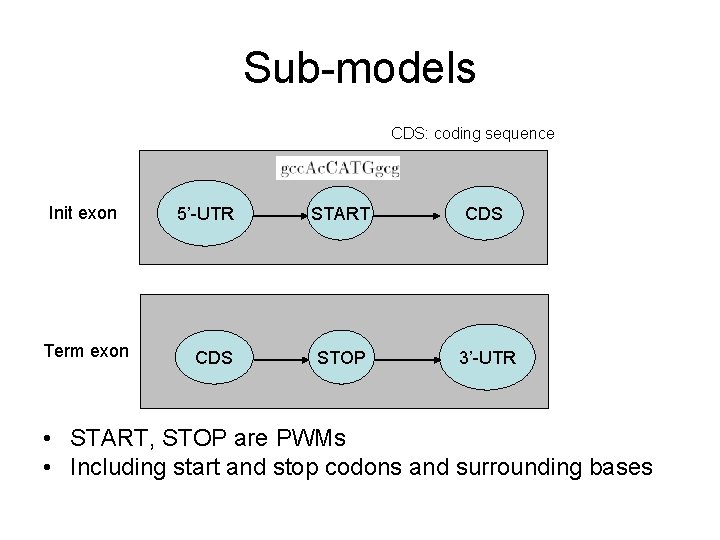

Sub-models CDS: coding sequence Init exon Term exon 5’-UTR START CDS STOP 3’-UTR • START, STOP are PWMs • Including start and stop codons and surrounding bases

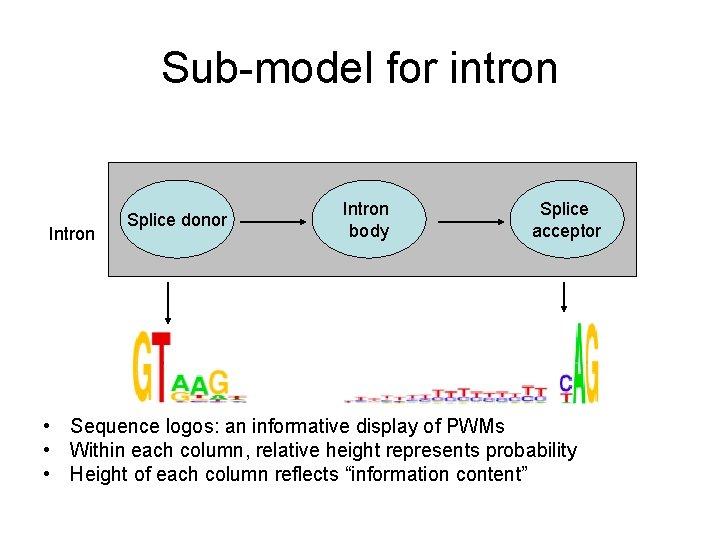

Sub-model for intron Intron Splice donor Intron body Splice acceptor • Sequence logos: an informative display of PWMs • Within each column, relative height represents probability • Height of each column reflects “information content”

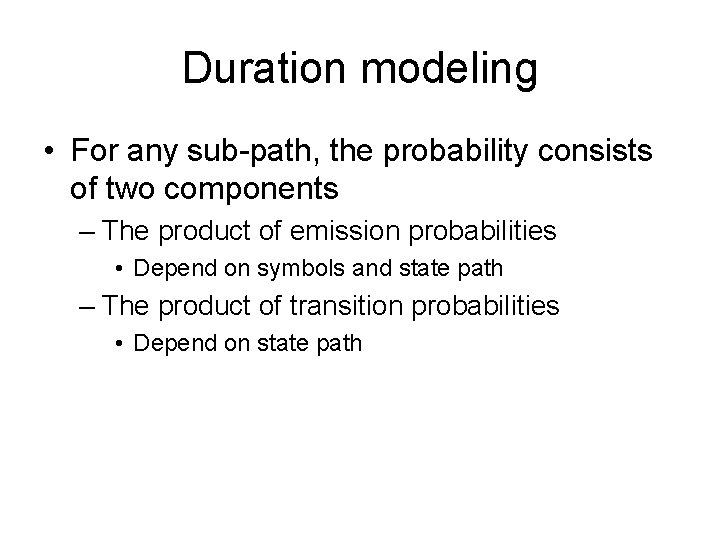

Duration modeling • For any sub-path, the probability consists of two components – The product of emission probabilities • Depend on symbols and state path – The product of transition probabilities • Depend on state path

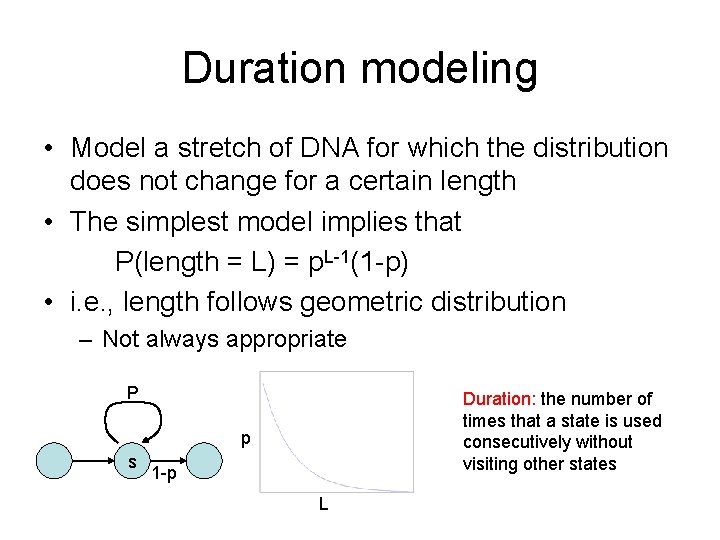

Duration modeling • Model a stretch of DNA for which the distribution does not change for a certain length • The simplest model implies that P(length = L) = p. L-1(1 -p) • i. e. , length follows geometric distribution – Not always appropriate P Duration: the number of times that a state is used consecutively without visiting other states p s 1 -p L

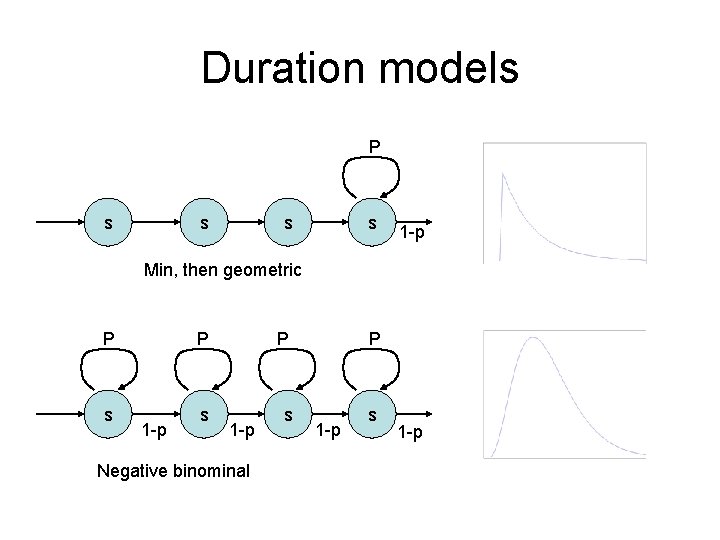

Duration models P s s 1 -p Min, then geometric P P s s 1 -p Negative binominal 1 -p

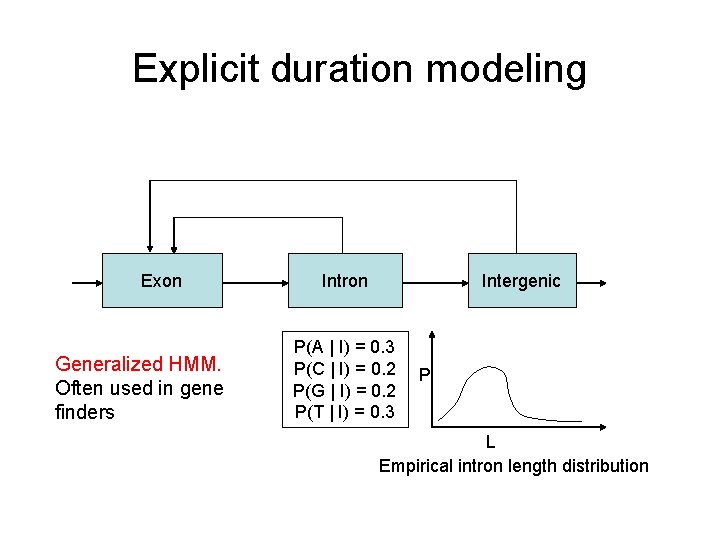

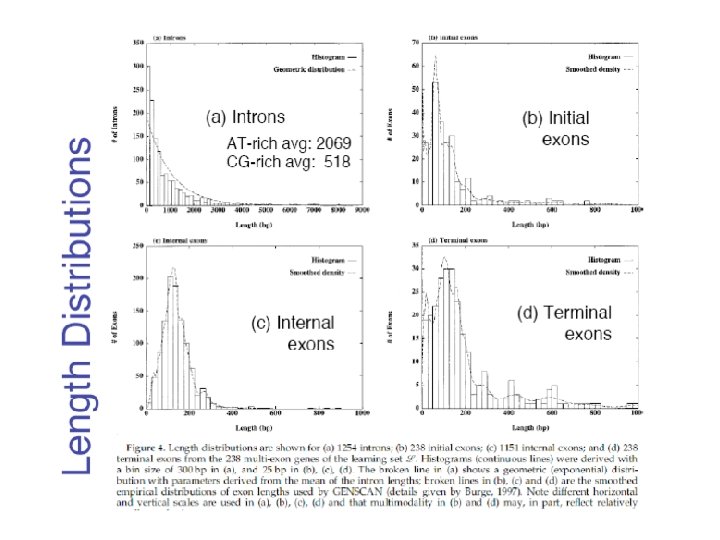

Explicit duration modeling Exon Generalized HMM. Often used in gene finders Intron Intergenic P(A | I) = 0. 3 P(C | I) = 0. 2 P(G | I) = 0. 2 P(T | I) = 0. 3 P L Empirical intron length distribution

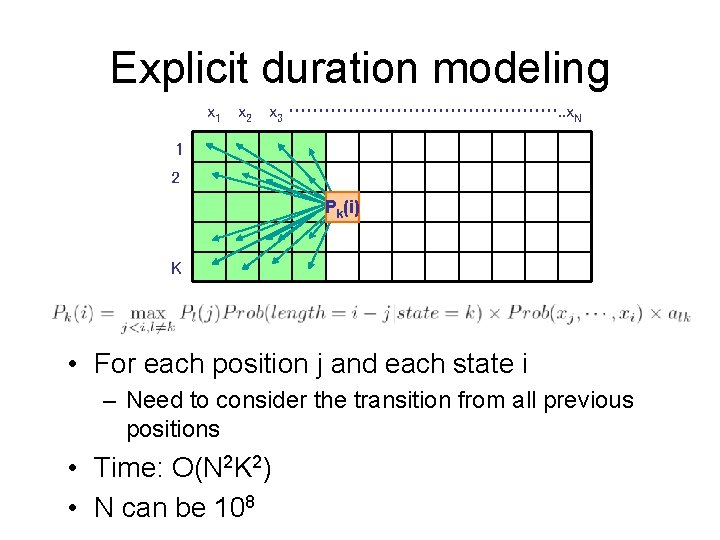

Explicit duration modeling x 1 x 2 x 3 ……………………. . x. N 1 2 Pk(i) K • For each position j and each state i – Need to consider the transition from all previous positions • Time: O(N 2 K 2) • N can be 108

Speedup GHMM • Restrict maximum duration length to be L – O(LNK 2) • However, intergenic and intron can be quite long – L can be 105 • Compromise: explicit duration for exons only, geometric for all other states • Pre-compute all possible starting points of ORFs – For init exon: ATG – For internal/terminal exon: splice donor signal (GT)

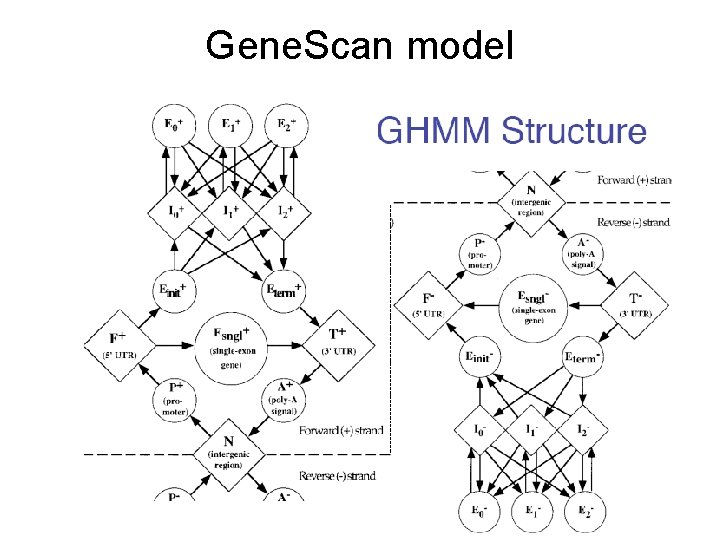

Gene. Scan model

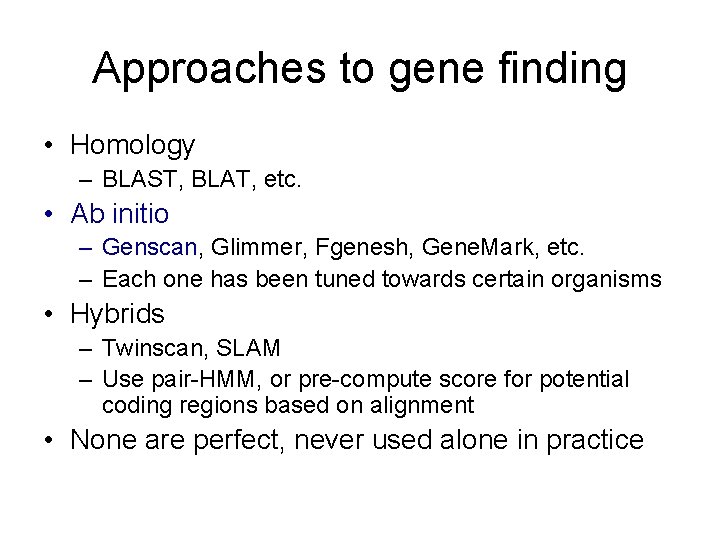

Approaches to gene finding • Homology – BLAST, BLAT, etc. • Ab initio – Genscan, Glimmer, Fgenesh, Gene. Mark, etc. – Each one has been tuned towards certain organisms • Hybrids – Twinscan, SLAM – Use pair-HMM, or pre-compute score for potential coding regions based on alignment • None are perfect, never used alone in practice

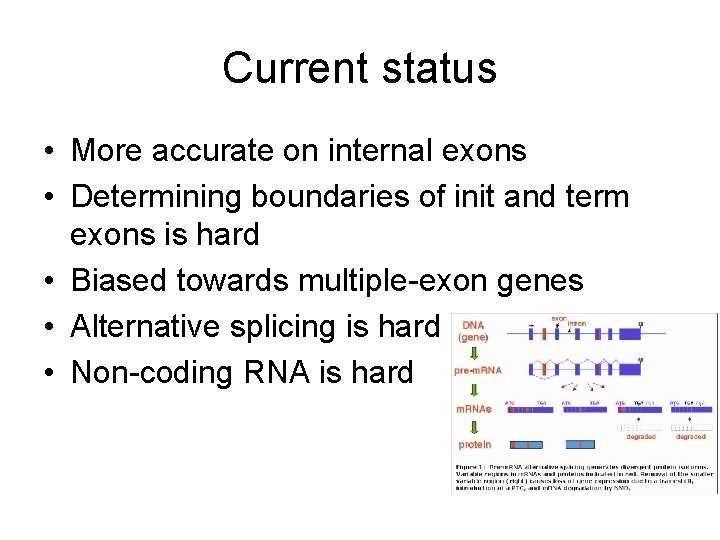

Current status • More accurate on internal exons • Determining boundaries of init and term exons is hard • Biased towards multiple-exon genes • Alternative splicing is hard • Non-coding RNA is hard

• State of the Art: – predictions ~ 60% similar to real proteins – ~80% if database similarity used – lab verification still needed, still expensive

HMM wrap up • We’ve talked about – – – Probability, mainly Bayes Theorem Markov models Hidden Markov models HMM parameter estimation given state path Decoding given HMM and parameters • Viterbi • F-B – Learning • Baum-Welch (Expectation-Maximization) • Viterbi

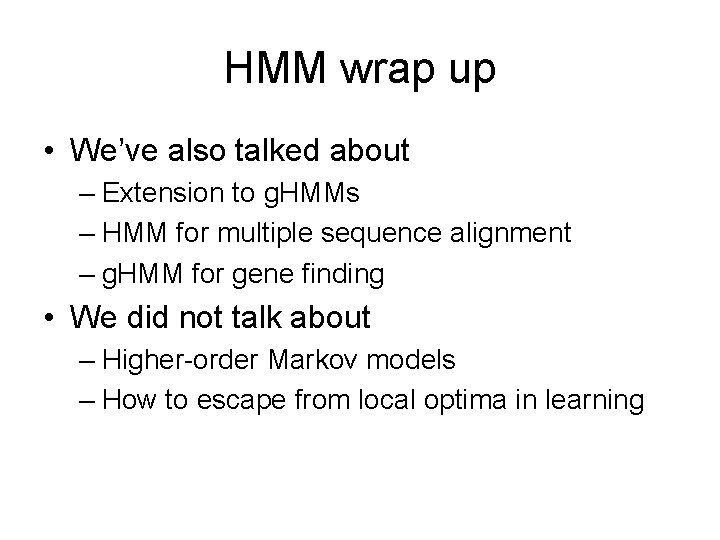

HMM wrap up • We’ve also talked about – Extension to g. HMMs – HMM for multiple sequence alignment – g. HMM for gene finding • We did not talk about – Higher-order Markov models – How to escape from local optima in learning
