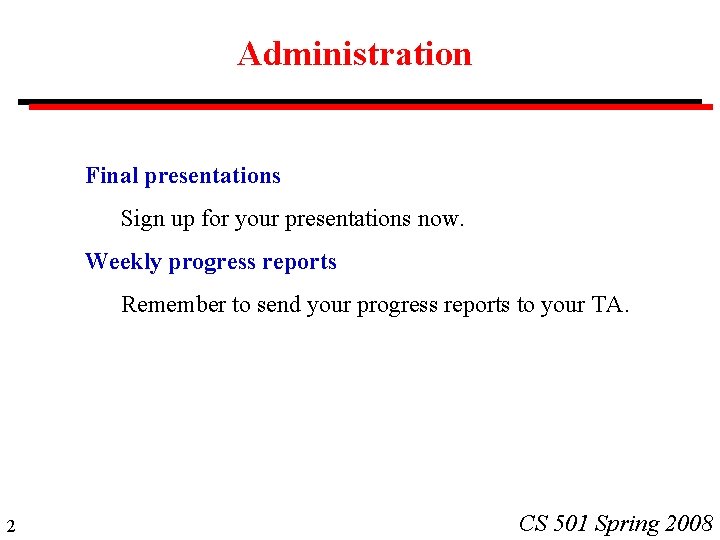

Administration Final presentations Sign up for your presentations now. Weekly progress reports Remember to send your progress reports to your TA. 2 CS 501 Spring 2008

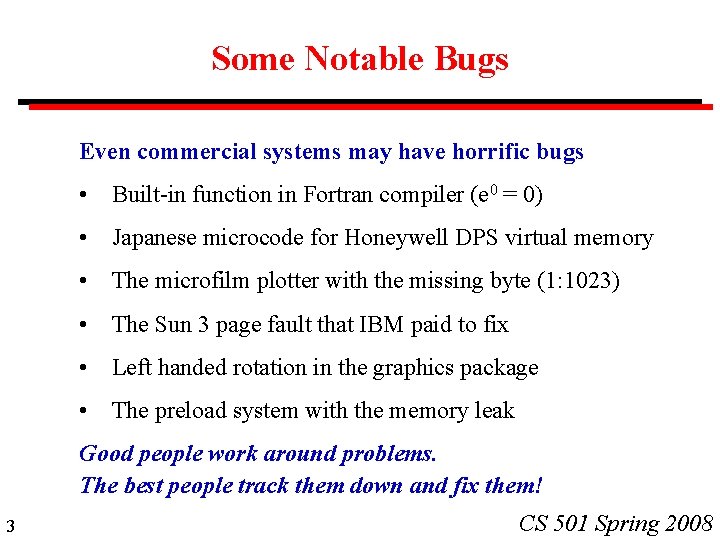

Some Notable Bugs Even commercial systems may have horrific bugs • Built-in function in Fortran compiler (e 0 = 0) • Japanese microcode for Honeywell DPS virtual memory • The microfilm plotter with the missing byte (1: 1023) • The Sun 3 page fault that IBM paid to fix • Left handed rotation in the graphics package • The preload system with the memory leak Good people work around problems. The best people track them down and fix them! 3 CS 501 Spring 2008

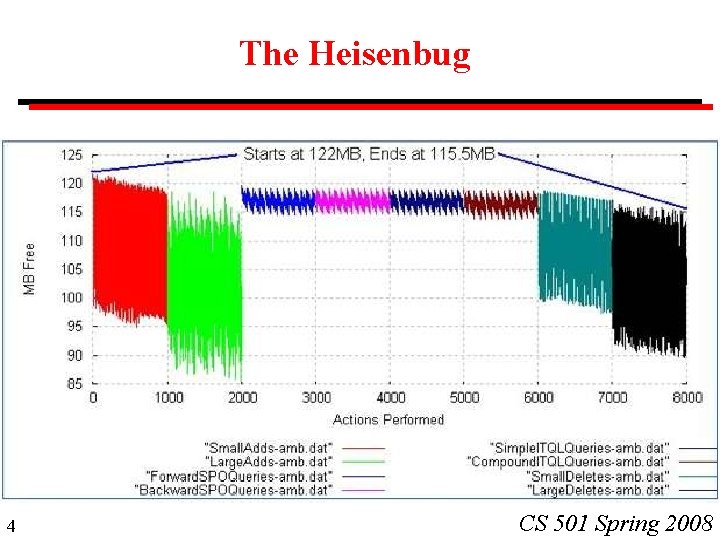

The Heisenbug 4 CS 501 Spring 2008

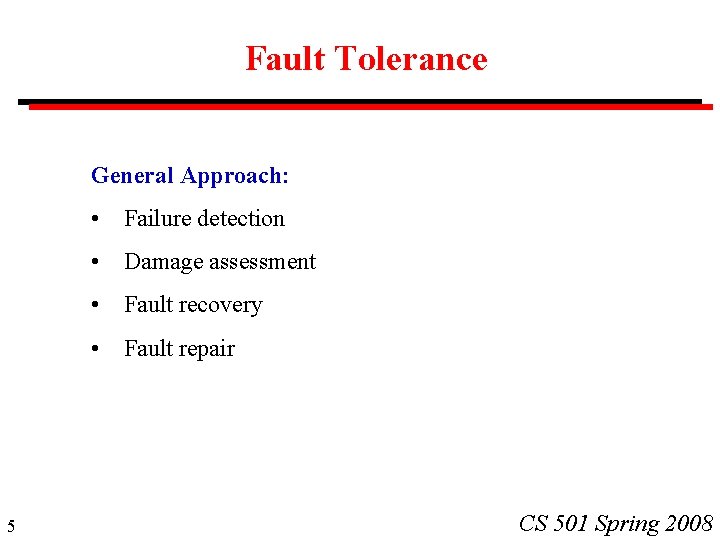

Fault Tolerance General Approach: 5 • Failure detection • Damage assessment • Fault recovery • Fault repair CS 501 Spring 2008

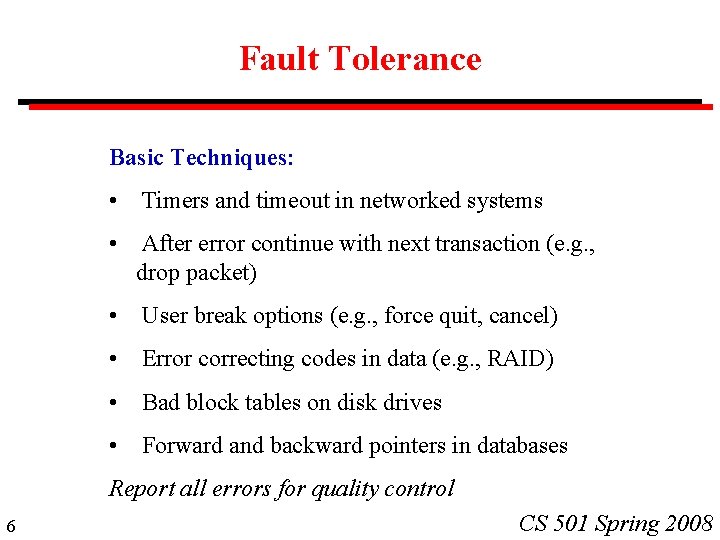

Fault Tolerance Basic Techniques: • Timers and timeout in networked systems • After error continue with next transaction (e. g. , drop packet) • User break options (e. g. , force quit, cancel) • Error correcting codes in data (e. g. , RAID) • Bad block tables on disk drives • Forward and backward pointers in databases Report all errors for quality control 6 CS 501 Spring 2008

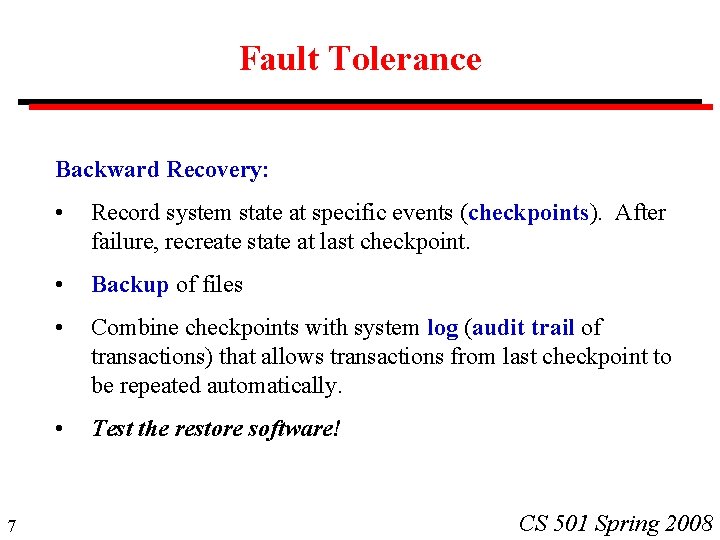

Fault Tolerance Backward Recovery: 7 • Record system state at specific events (checkpoints). After failure, recreate state at last checkpoint. • Backup of files • Combine checkpoints with system log (audit trail of transactions) that allows transactions from last checkpoint to be repeated automatically. • Test the restore software! CS 501 Spring 2008

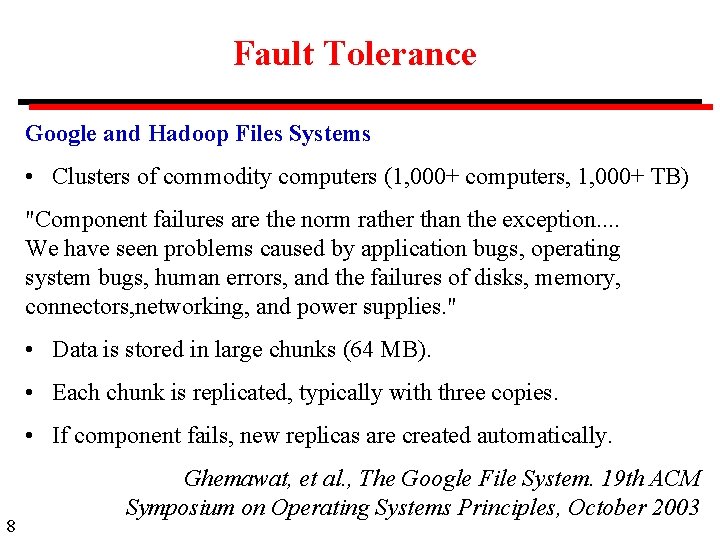

Fault Tolerance Google and Hadoop Files Systems • Clusters of commodity computers (1, 000+ computers, 1, 000+ TB) "Component failures are the norm rather than the exception. . We have seen problems caused by application bugs, operating system bugs, human errors, and the failures of disks, memory, connectors, networking, and power supplies. " • Data is stored in large chunks (64 MB). • Each chunk is replicated, typically with three copies. • If component fails, new replicas are created automatically. 8 Ghemawat, et al. , The Google File System. 19 th ACM Symposium on Operating Systems Principles, October 2003 CS 501 Spring 2008

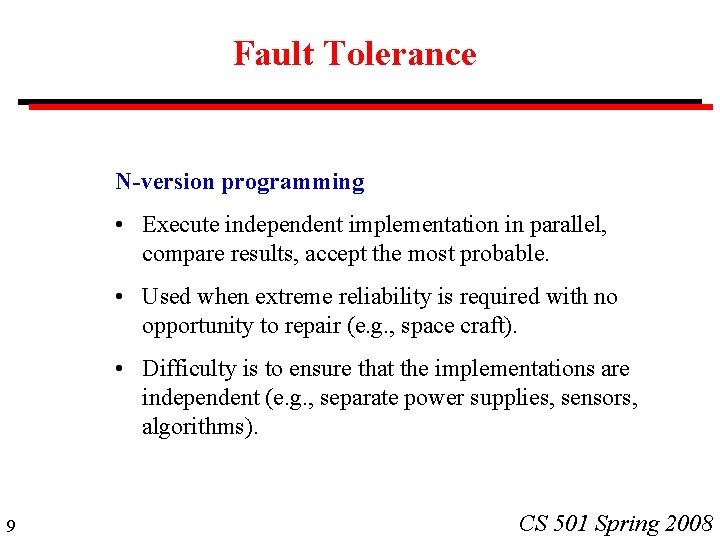

Fault Tolerance N-version programming • Execute independent implementation in parallel, compare results, accept the most probable. • Used when extreme reliability is required with no opportunity to repair (e. g. , space craft). • Difficulty is to ensure that the implementations are independent (e. g. , separate power supplies, sensors, algorithms). 9 CS 501 Spring 2008

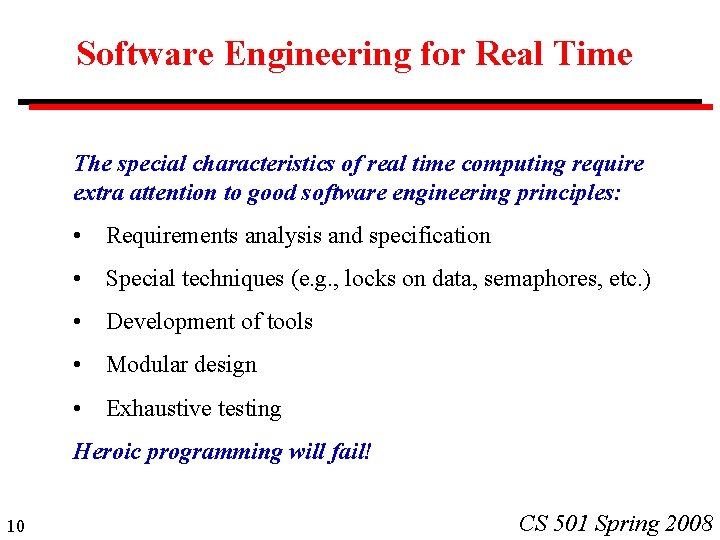

Software Engineering for Real Time The special characteristics of real time computing require extra attention to good software engineering principles: • Requirements analysis and specification • Special techniques (e. g. , locks on data, semaphores, etc. ) • Development of tools • Modular design • Exhaustive testing Heroic programming will fail! 10 CS 501 Spring 2008

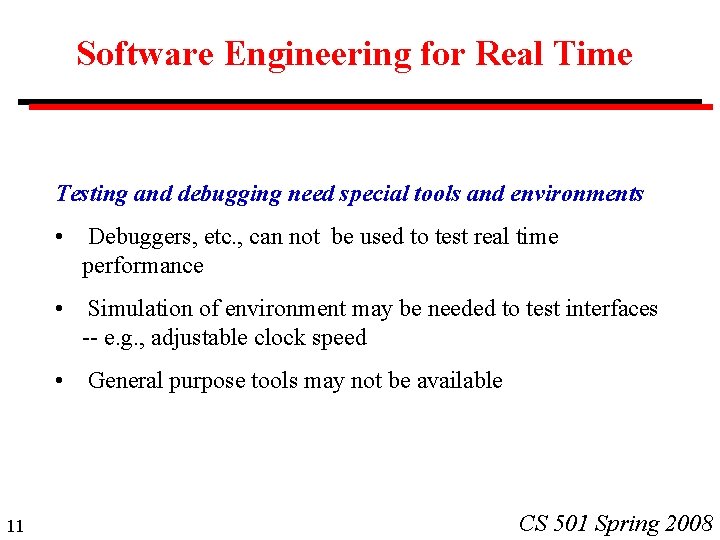

Software Engineering for Real Time Testing and debugging need special tools and environments 11 • Debuggers, etc. , can not be used to test real time performance • Simulation of environment may be needed to test interfaces -- e. g. , adjustable clock speed • General purpose tools may not be available CS 501 Spring 2008

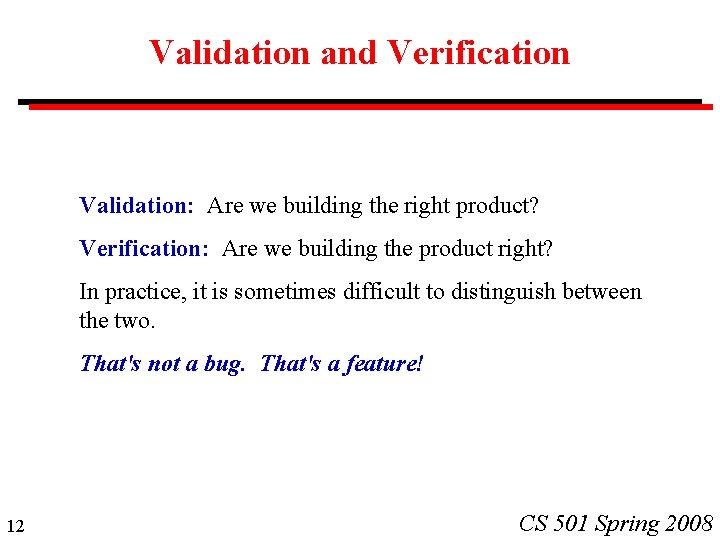

Validation and Verification Validation: Are we building the right product? Verification: Are we building the product right? In practice, it is sometimes difficult to distinguish between the two. That's not a bug. That's a feature! 12 CS 501 Spring 2008

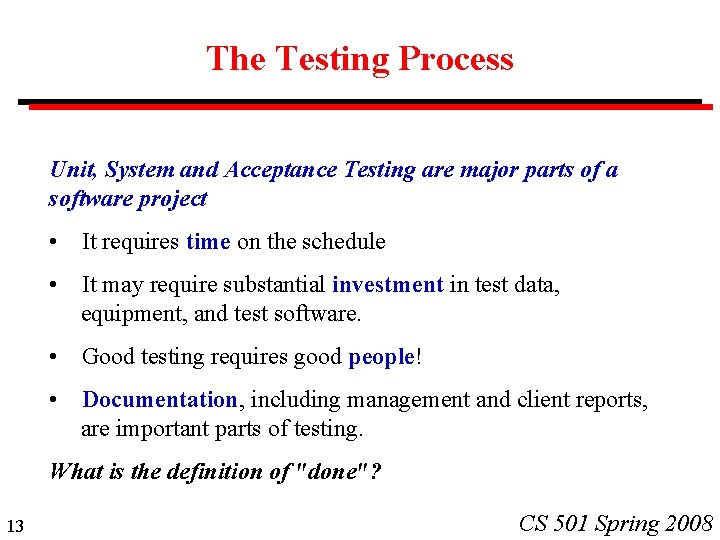

The Testing Process Unit, System and Acceptance Testing are major parts of a software project • It requires time on the schedule • It may require substantial investment in test data, equipment, and test software. • Good testing requires good people! • Documentation, including management and client reports, are important parts of testing. What is the definition of "done"? 13 CS 501 Spring 2008

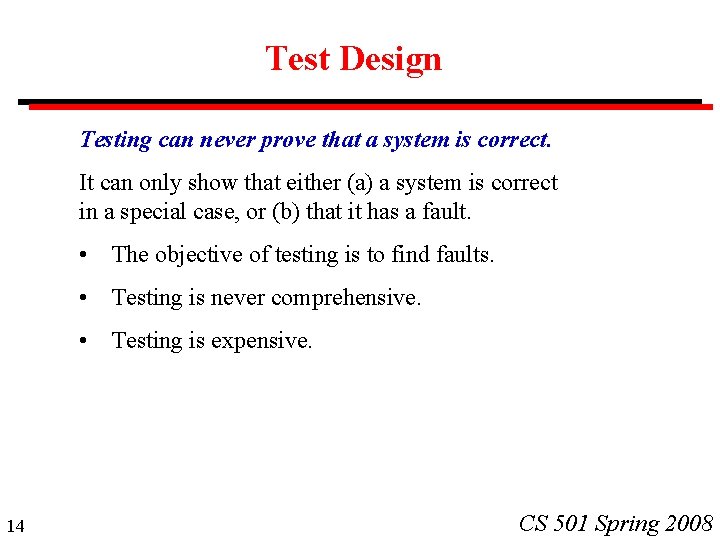

Test Design Testing can never prove that a system is correct. It can only show that either (a) a system is correct in a special case, or (b) that it has a fault. 14 • The objective of testing is to find faults. • Testing is never comprehensive. • Testing is expensive. CS 501 Spring 2008

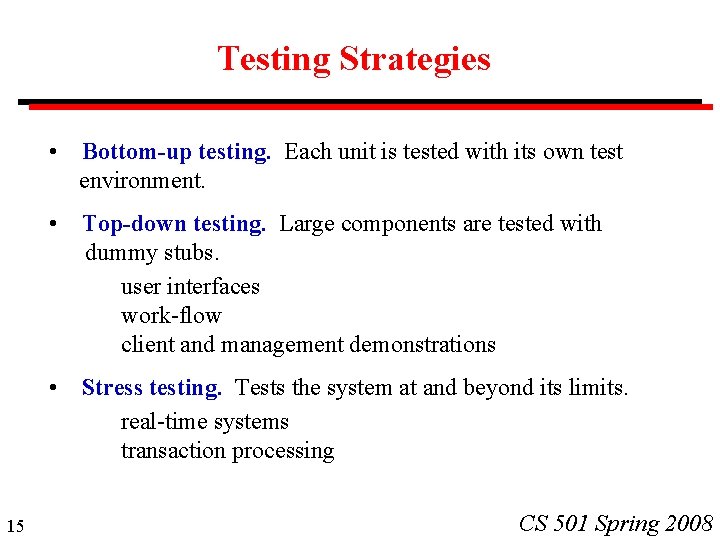

Testing Strategies 15 • Bottom-up testing. Each unit is tested with its own test environment. • Top-down testing. Large components are tested with dummy stubs. user interfaces work-flow client and management demonstrations • Stress testing. Tests the system at and beyond its limits. real-time systems transaction processing CS 501 Spring 2008

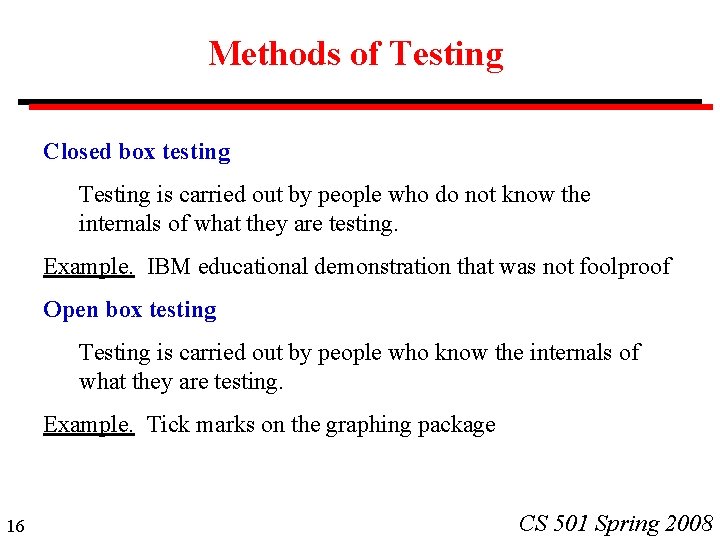

Methods of Testing Closed box testing Testing is carried out by people who do not know the internals of what they are testing. Example. IBM educational demonstration that was not foolproof Open box testing Testing is carried out by people who know the internals of what they are testing. Example. Tick marks on the graphing package 16 CS 501 Spring 2008

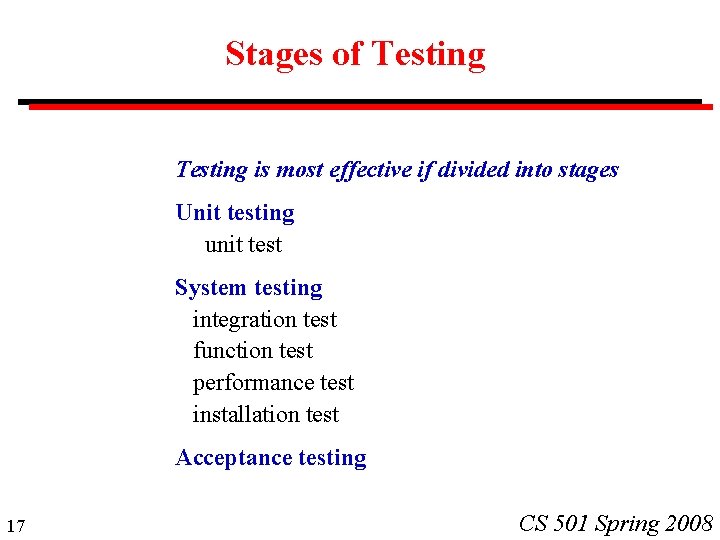

Stages of Testing is most effective if divided into stages Unit testing unit test System testing integration test function test performance test installation test Acceptance testing 17 CS 501 Spring 2008

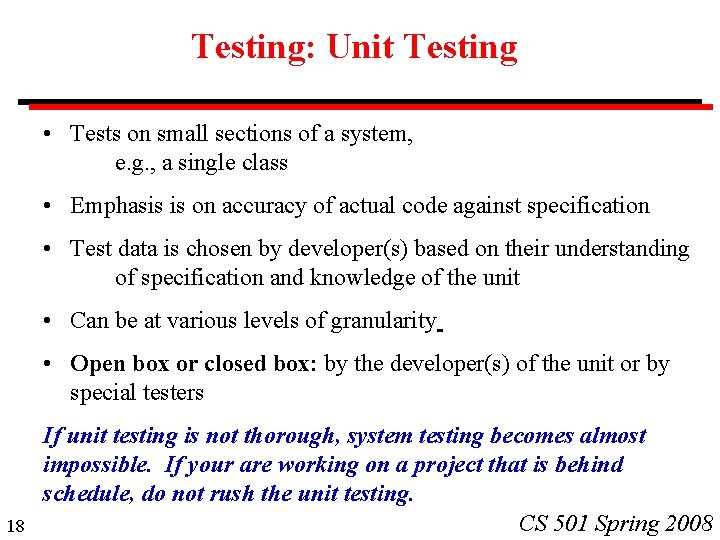

Testing: Unit Testing • Tests on small sections of a system, e. g. , a single class • Emphasis is on accuracy of actual code against specification • Test data is chosen by developer(s) based on their understanding of specification and knowledge of the unit • Can be at various levels of granularity • Open box or closed box: by the developer(s) of the unit or by special testers 18 If unit testing is not thorough, system testing becomes almost impossible. If your are working on a project that is behind schedule, do not rush the unit testing. CS 501 Spring 2008

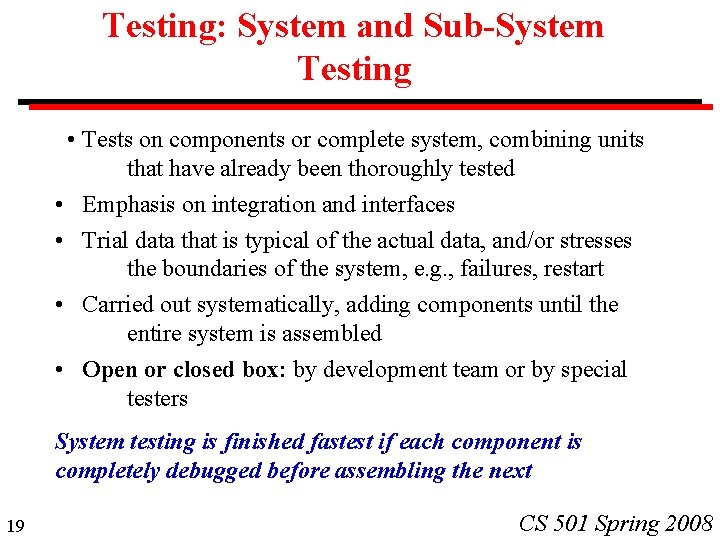

Testing: System and Sub-System Testing • Tests on components or complete system, combining units that have already been thoroughly tested • Emphasis on integration and interfaces • Trial data that is typical of the actual data, and/or stresses the boundaries of the system, e. g. , failures, restart • Carried out systematically, adding components until the entire system is assembled • Open or closed box: by development team or by special testers System testing is finished fastest if each component is completely debugged before assembling the next 19 CS 501 Spring 2008

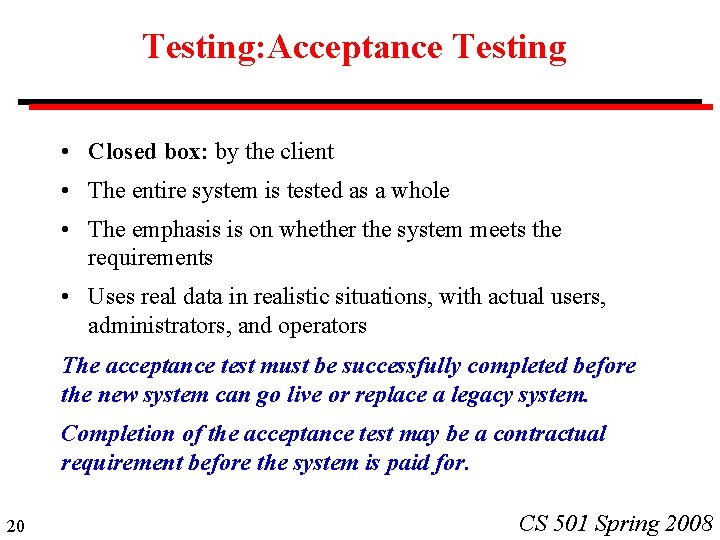

Testing: Acceptance Testing • Closed box: by the client • The entire system is tested as a whole • The emphasis is on whether the system meets the requirements • Uses real data in realistic situations, with actual users, administrators, and operators The acceptance test must be successfully completed before the new system can go live or replace a legacy system. Completion of the acceptance test may be a contractual requirement before the system is paid for. 20 CS 501 Spring 2008

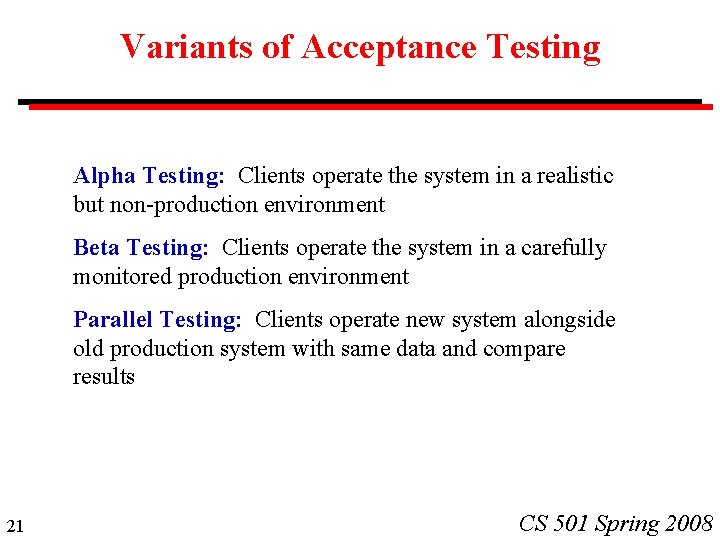

Variants of Acceptance Testing Alpha Testing: Clients operate the system in a realistic but non-production environment Beta Testing: Clients operate the system in a carefully monitored production environment Parallel Testing: Clients operate new system alongside old production system with same data and compare results 21 CS 501 Spring 2008

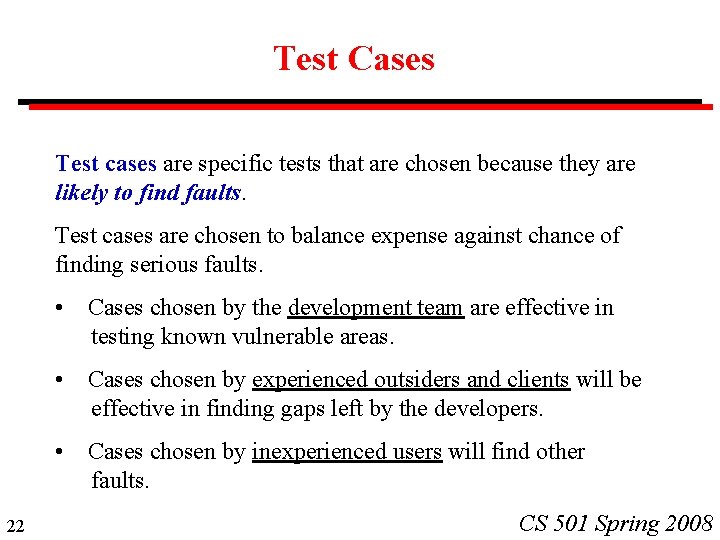

Test Cases Test cases are specific tests that are chosen because they are likely to find faults. Test cases are chosen to balance expense against chance of finding serious faults. 22 • Cases chosen by the development team are effective in testing known vulnerable areas. • Cases chosen by experienced outsiders and clients will be effective in finding gaps left by the developers. • Cases chosen by inexperienced users will find other faults. CS 501 Spring 2008

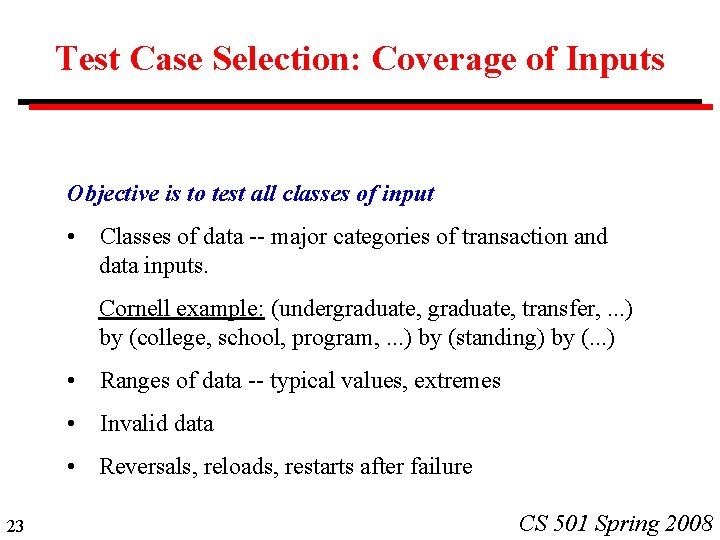

Test Case Selection: Coverage of Inputs Objective is to test all classes of input • Classes of data -- major categories of transaction and data inputs. Cornell example: (undergraduate, transfer, . . . ) by (college, school, program, . . . ) by (standing) by (. . . ) • Ranges of data -- typical values, extremes • Invalid data • Reversals, reloads, restarts after failure 23 CS 501 Spring 2008

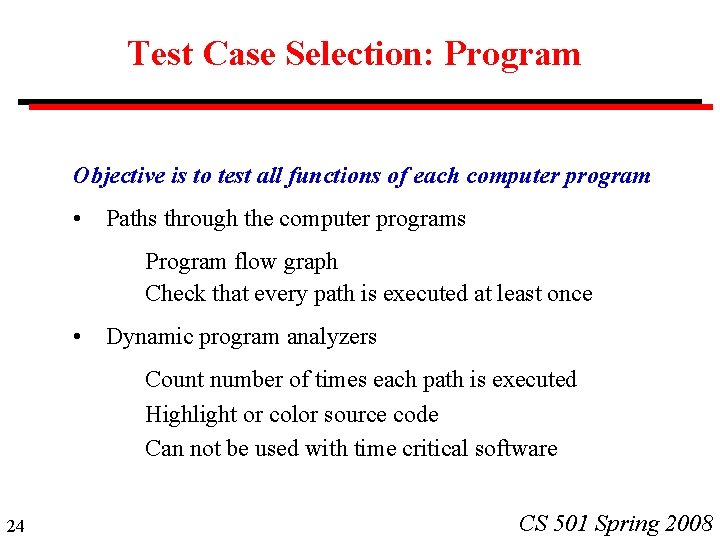

Test Case Selection: Program Objective is to test all functions of each computer program • Paths through the computer programs Program flow graph Check that every path is executed at least once • Dynamic program analyzers Count number of times each path is executed Highlight or color source code Can not be used with time critical software 24 CS 501 Spring 2008

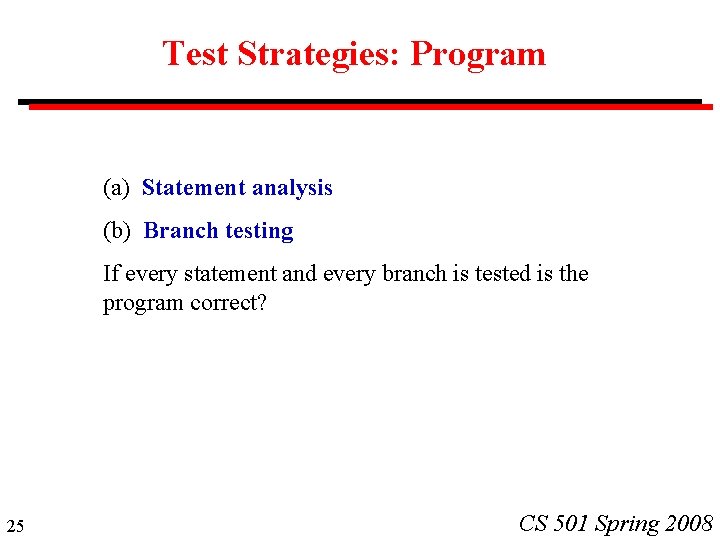

Test Strategies: Program (a) Statement analysis (b) Branch testing If every statement and every branch is tested is the program correct? 25 CS 501 Spring 2008

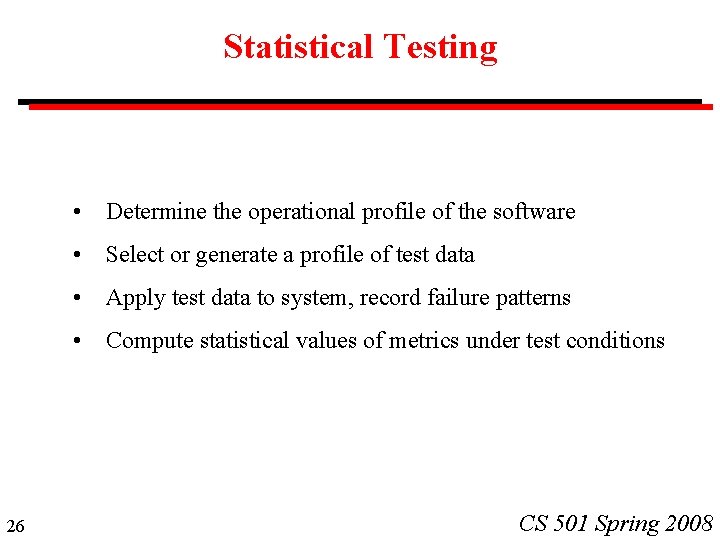

Statistical Testing 26 • Determine the operational profile of the software • Select or generate a profile of test data • Apply test data to system, record failure patterns • Compute statistical values of metrics under test conditions CS 501 Spring 2008

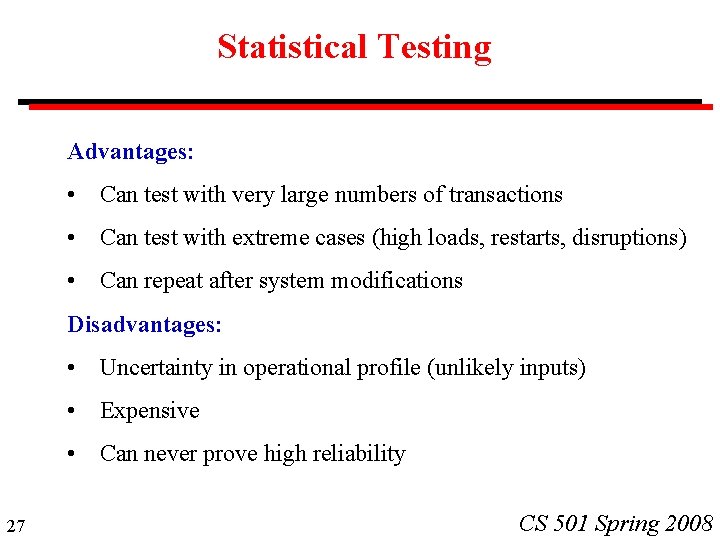

Statistical Testing Advantages: • Can test with very large numbers of transactions • Can test with extreme cases (high loads, restarts, disruptions) • Can repeat after system modifications Disadvantages: 27 • Uncertainty in operational profile (unlikely inputs) • Expensive • Can never prove high reliability CS 501 Spring 2008

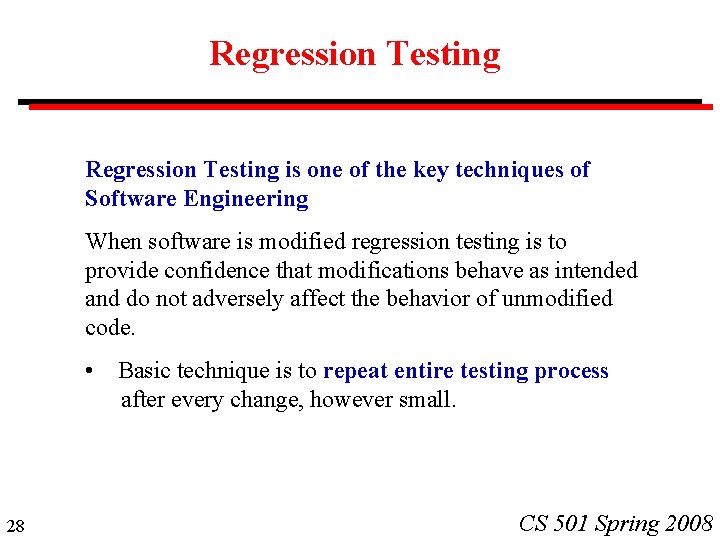

Regression Testing is one of the key techniques of Software Engineering When software is modified regression testing is to provide confidence that modifications behave as intended and do not adversely affect the behavior of unmodified code. • Basic technique is to repeat entire testing process after every change, however small. 28 CS 501 Spring 2008

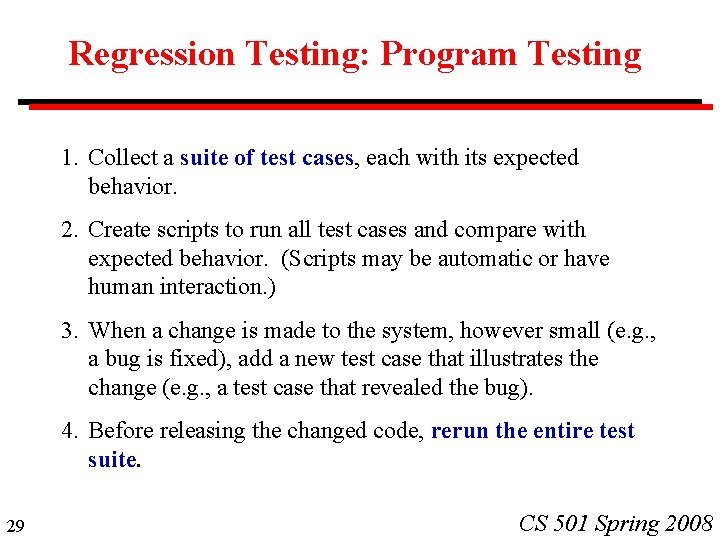

Regression Testing: Program Testing 1. Collect a suite of test cases, each with its expected behavior. 2. Create scripts to run all test cases and compare with expected behavior. (Scripts may be automatic or have human interaction. ) 3. When a change is made to the system, however small (e. g. , a bug is fixed), add a new test case that illustrates the change (e. g. , a test case that revealed the bug). 4. Before releasing the changed code, rerun the entire test suite. 29 CS 501 Spring 2008

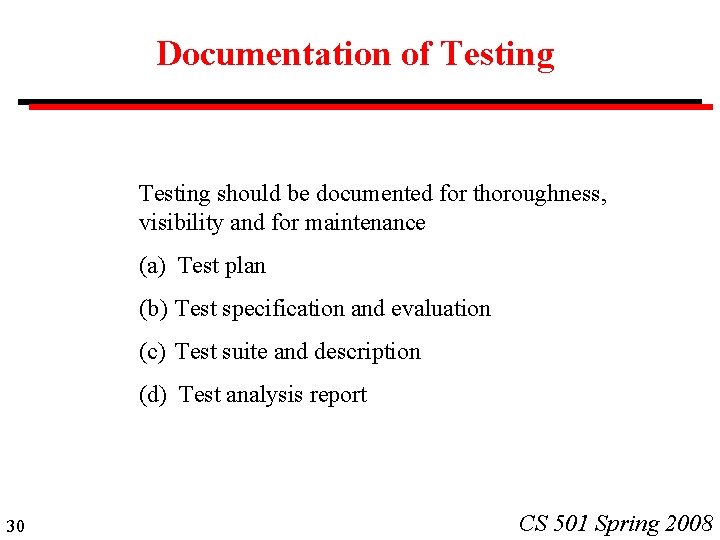

Documentation of Testing should be documented for thoroughness, visibility and for maintenance (a) Test plan (b) Test specification and evaluation (c) Test suite and description (d) Test analysis report 30 CS 501 Spring 2008

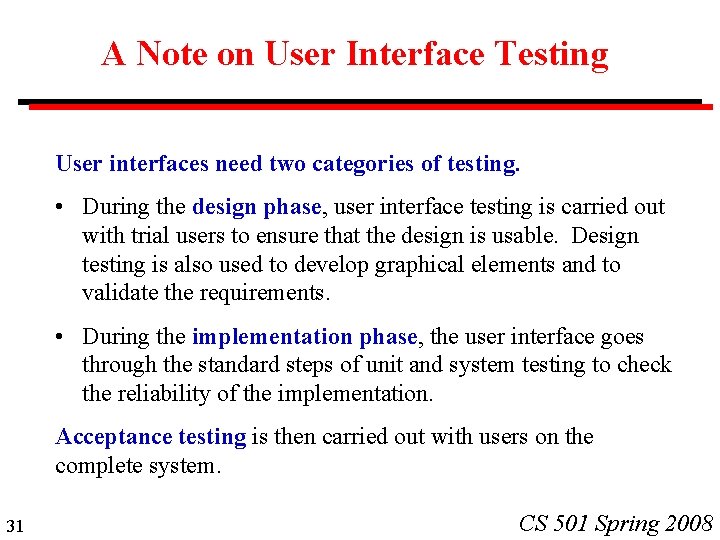

A Note on User Interface Testing User interfaces need two categories of testing. • During the design phase, user interface testing is carried out with trial users to ensure that the design is usable. Design testing is also used to develop graphical elements and to validate the requirements. • During the implementation phase, the user interface goes through the standard steps of unit and system testing to check the reliability of the implementation. Acceptance testing is then carried out with users on the complete system. 31 CS 501 Spring 2008

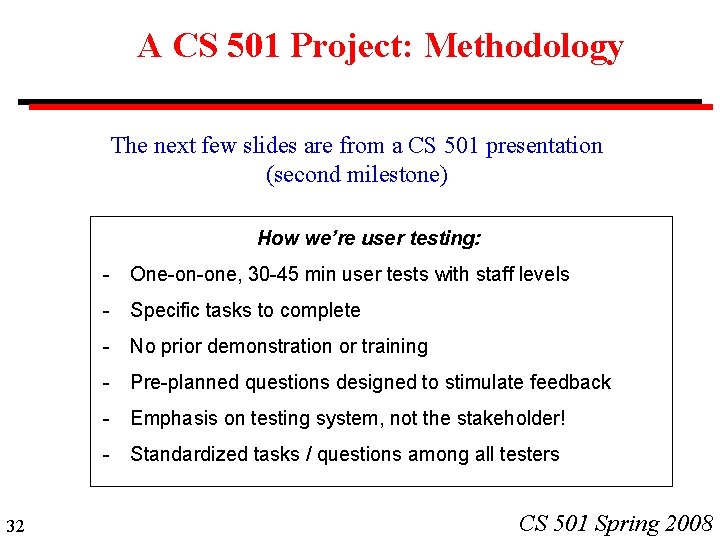

A CS 501 Project: Methodology The next few slides are from a CS 501 presentation (second milestone) How we’re user testing: - One-on-one, 30 -45 min user tests with staff levels - Specific tasks to complete - No prior demonstration or training - Pre-planned questions designed to stimulate feedback - Emphasis on testing system, not the stakeholder! - Standardized tasks / questions among all testers 32 CS 501 Spring 2008

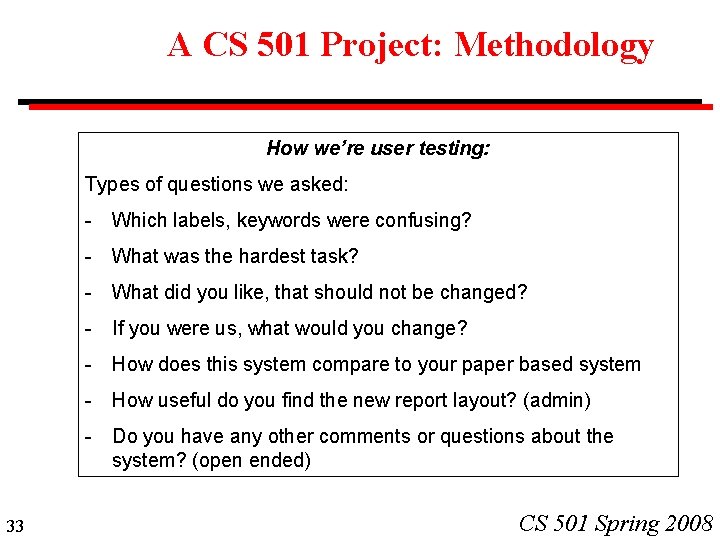

A CS 501 Project: Methodology How we’re user testing: Types of questions we asked: - Which labels, keywords were confusing? - What was the hardest task? - What did you like, that should not be changed? - If you were us, what would you change? - How does this system compare to your paper based system - How useful do you find the new report layout? (admin) - Do you have any other comments or questions about the system? (open ended) 33 CS 501 Spring 2008

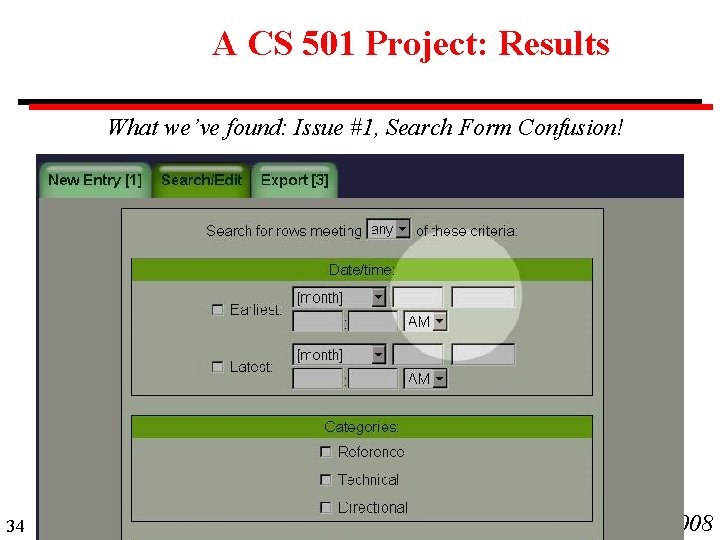

A CS 501 Project: Results What we’ve found: Issue #1, Search Form Confusion! 34 CS 501 Spring 2008

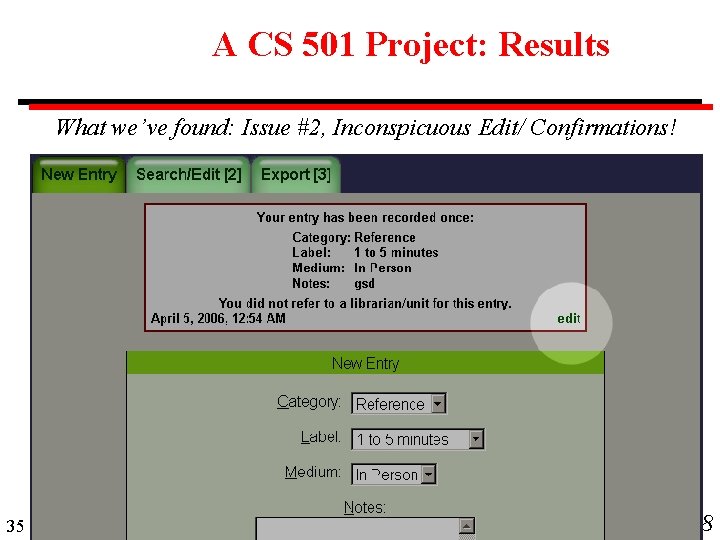

A CS 501 Project: Results What we’ve found: Issue #2, Inconspicuous Edit/ Confirmations! 35 CS 501 Spring 2008

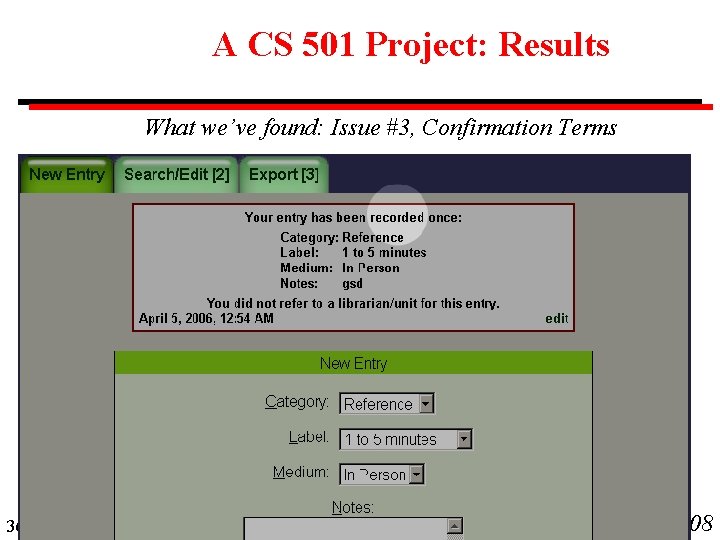

A CS 501 Project: Results What we’ve found: Issue #3, Confirmation Terms 36 CS 501 Spring 2008

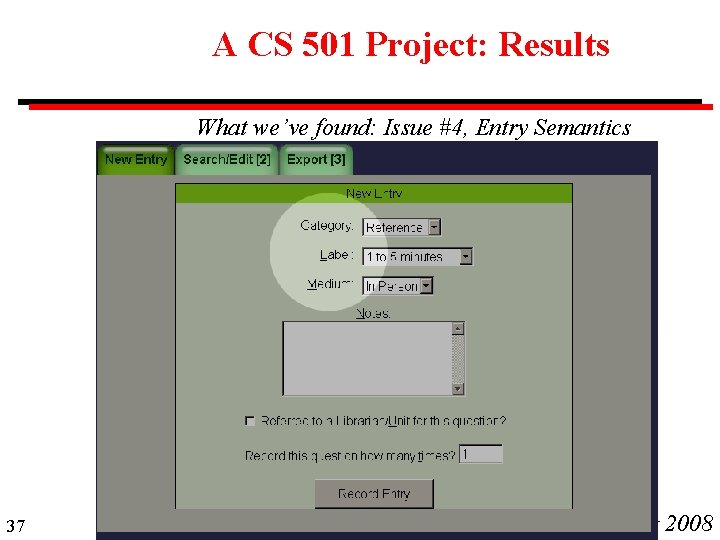

A CS 501 Project: Results What we’ve found: Issue #4, Entry Semantics 37 CS 501 Spring 2008

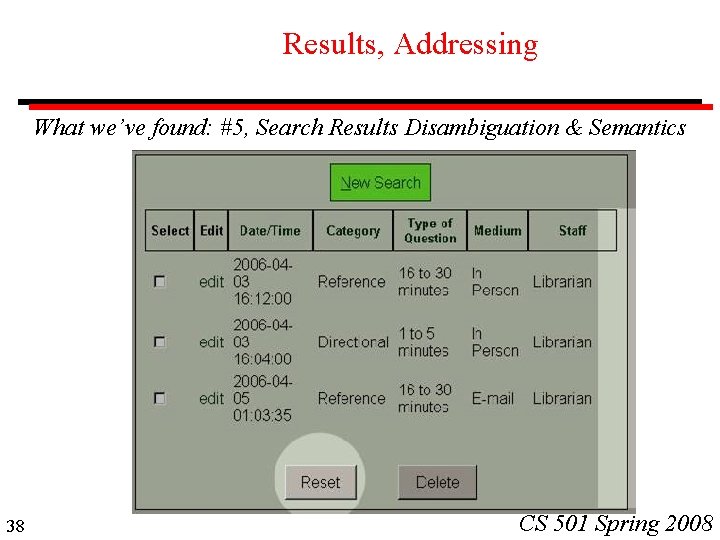

Results, Addressing What we’ve found: #5, Search Results Disambiguation & Semantics 38 CS 501 Spring 2008

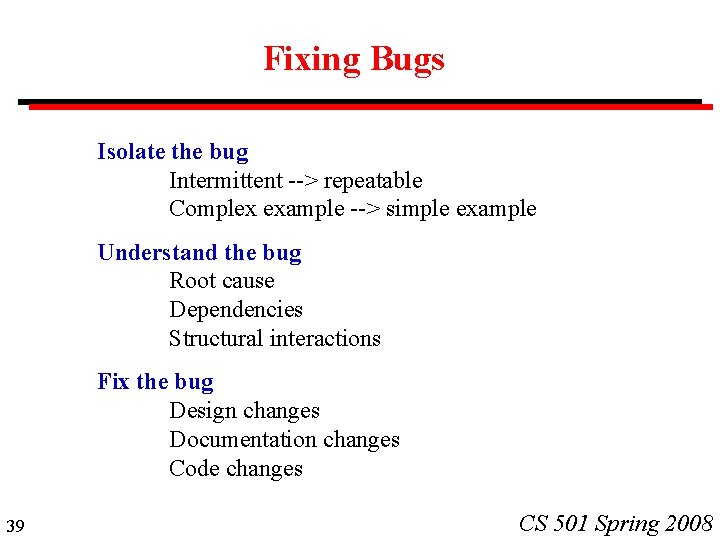

Fixing Bugs Isolate the bug Intermittent --> repeatable Complex example --> simple example Understand the bug Root cause Dependencies Structural interactions Fix the bug Design changes Documentation changes Code changes 39 CS 501 Spring 2008

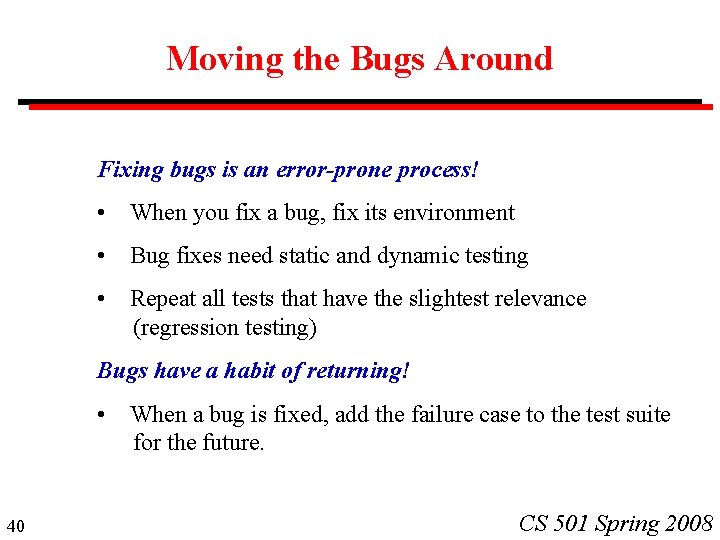

Moving the Bugs Around Fixing bugs is an error-prone process! • When you fix a bug, fix its environment • Bug fixes need static and dynamic testing • Repeat all tests that have the slightest relevance (regression testing) Bugs have a habit of returning! • 40 When a bug is fixed, add the failure case to the test suite for the future. CS 501 Spring 2008

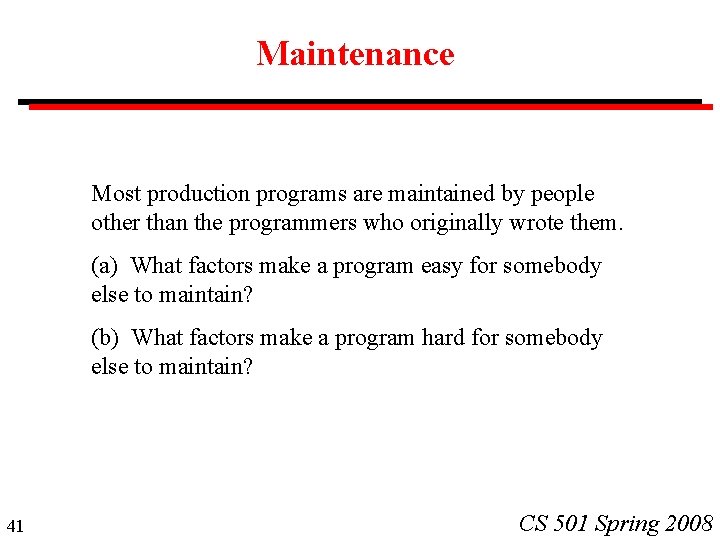

Maintenance Most production programs are maintained by people other than the programmers who originally wrote them. (a) What factors make a program easy for somebody else to maintain? (b) What factors make a program hard for somebody else to maintain? 41 CS 501 Spring 2008
