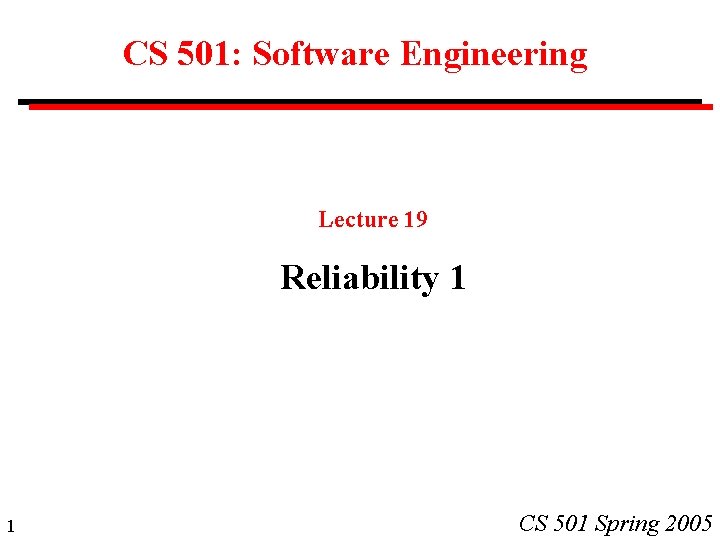

CS 501: Software Engineering Lecture 19 Reliability 1 1 CS 501 Spring 2005

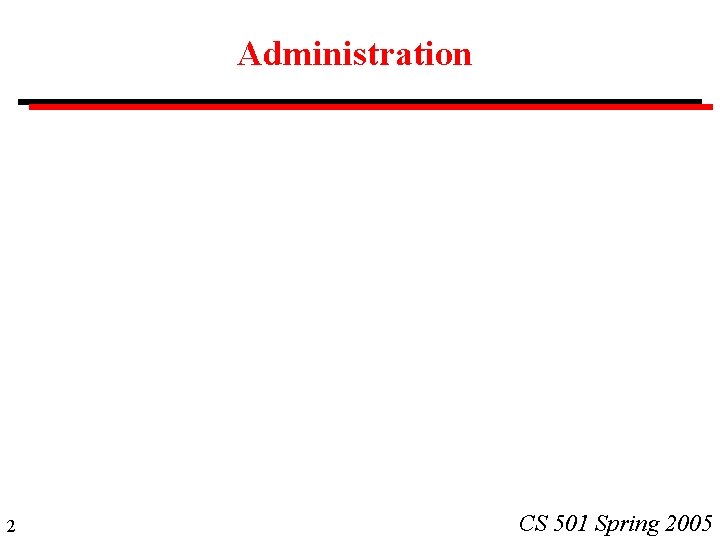

Administration 2 CS 501 Spring 2005

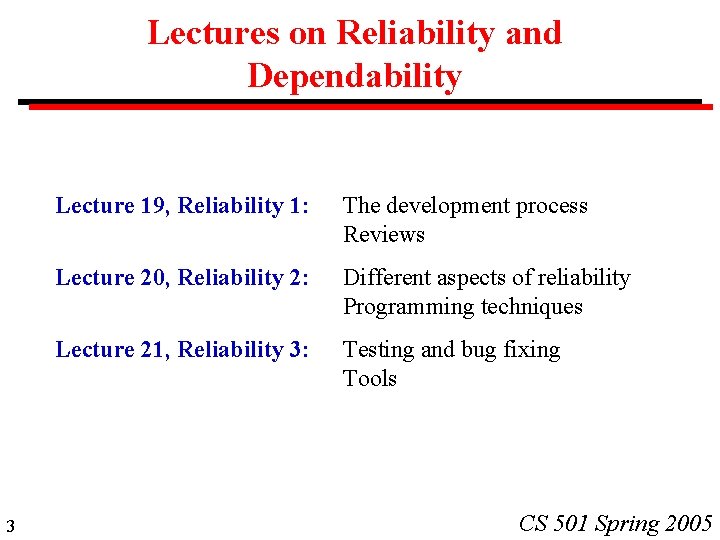

Lectures on Reliability and Dependability 3 Lecture 19, Reliability 1: The development process Reviews Lecture 20, Reliability 2: Different aspects of reliability Programming techniques Lecture 21, Reliability 3: Testing and bug fixing Tools CS 501 Spring 2005

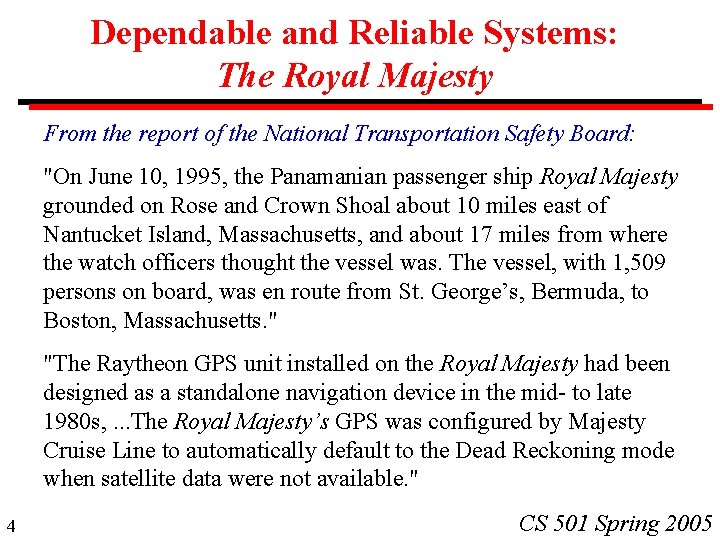

Dependable and Reliable Systems: The Royal Majesty From the report of the National Transportation Safety Board: "On June 10, 1995, the Panamanian passenger ship Royal Majesty grounded on Rose and Crown Shoal about 10 miles east of Nantucket Island, Massachusetts, and about 17 miles from where the watch officers thought the vessel was. The vessel, with 1, 509 persons on board, was en route from St. George’s, Bermuda, to Boston, Massachusetts. " "The Raytheon GPS unit installed on the Royal Majesty had been designed as a standalone navigation device in the mid- to late 1980 s, . . . The Royal Majesty’s GPS was configured by Majesty Cruise Line to automatically default to the Dead Reckoning mode when satellite data were not available. " 4 CS 501 Spring 2005

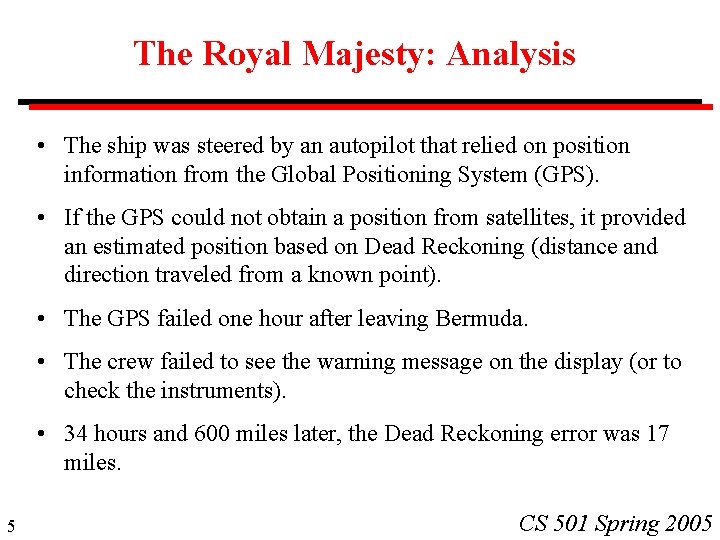

The Royal Majesty: Analysis • The ship was steered by an autopilot that relied on position information from the Global Positioning System (GPS). • If the GPS could not obtain a position from satellites, it provided an estimated position based on Dead Reckoning (distance and direction traveled from a known point). • The GPS failed one hour after leaving Bermuda. • The crew failed to see the warning message on the display (or to check the instruments). • 34 hours and 600 miles later, the Dead Reckoning error was 17 miles. 5 CS 501 Spring 2005

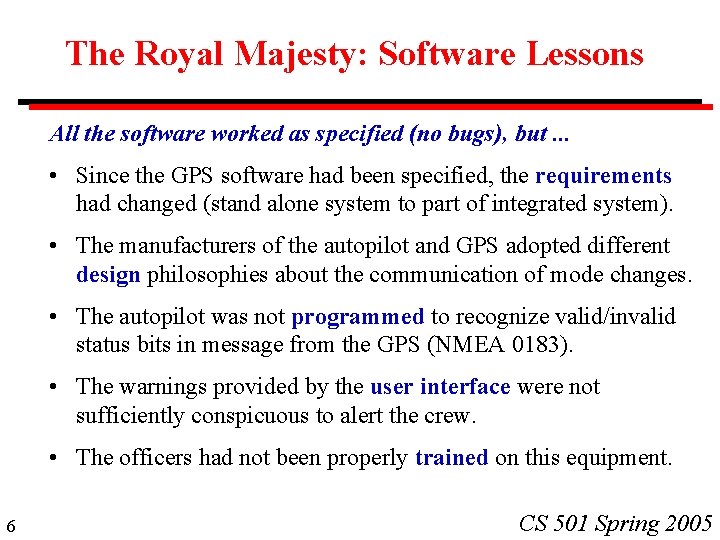

The Royal Majesty: Software Lessons All the software worked as specified (no bugs), but. . . • Since the GPS software had been specified, the requirements had changed (stand alone system to part of integrated system). • The manufacturers of the autopilot and GPS adopted different design philosophies about the communication of mode changes. • The autopilot was not programmed to recognize valid/invalid status bits in message from the GPS (NMEA 0183). • The warnings provided by the user interface were not sufficiently conspicuous to alert the crew. • The officers had not been properly trained on this equipment. 6 CS 501 Spring 2005

Reliability: Probability of a failure occurring in operational use. Perceived reliability: Depends upon: user behavior set of inputs pain of failure 7 CS 501 Spring 2005

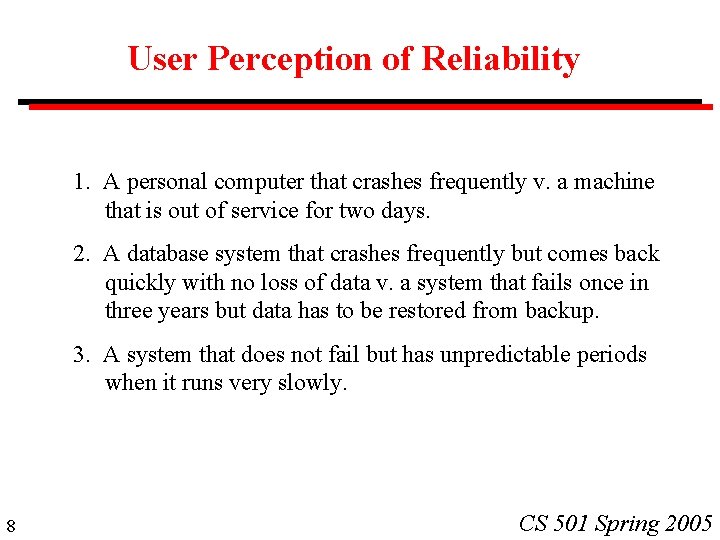

User Perception of Reliability 1. A personal computer that crashes frequently v. a machine that is out of service for two days. 2. A database system that crashes frequently but comes back quickly with no loss of data v. a system that fails once in three years but data has to be restored from backup. 3. A system that does not fail but has unpredictable periods when it runs very slowly. 8 CS 501 Spring 2005

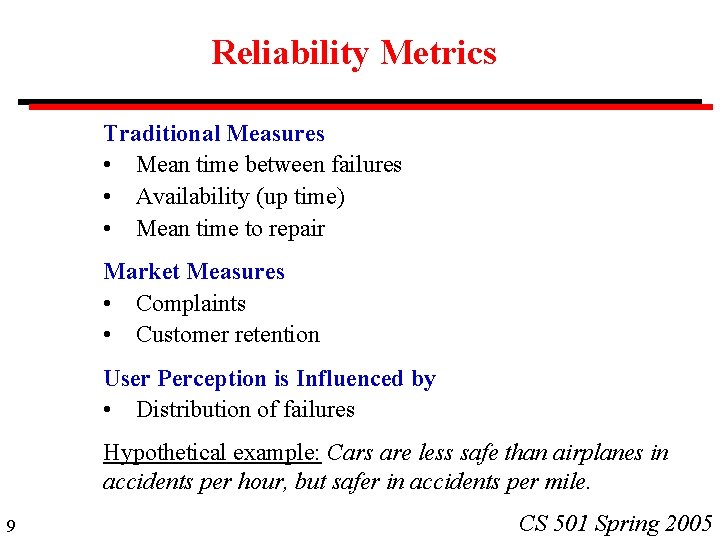

Reliability Metrics Traditional Measures • Mean time between failures • Availability (up time) • Mean time to repair Market Measures • Complaints • Customer retention User Perception is Influenced by • Distribution of failures Hypothetical example: Cars are less safe than airplanes in accidents per hour, but safer in accidents per mile. 9 CS 501 Spring 2005

Reliability Metrics for Distributed Systems Traditional metrics are hard to apply in multi-component systems: 10 • In a big network, at any given moment something will be giving trouble, but very few users will see it. • A system that has excellent average reliability may give terrible service to certain users. • There are so many components that system administrators rely on automatic reporting systems to identify problem areas. CS 501 Spring 2005

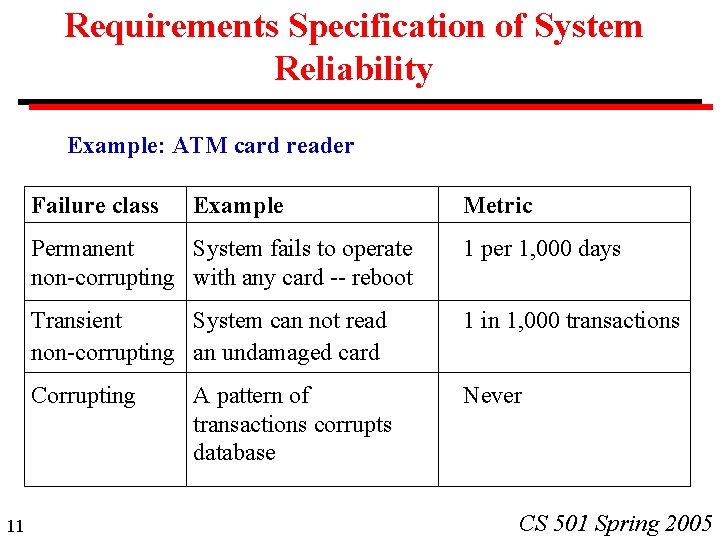

Requirements Specification of System Reliability Example: ATM card reader Failure class 11 Example Metric Permanent System fails to operate non-corrupting with any card -- reboot 1 per 1, 000 days Transient System can not read non-corrupting an undamaged card 1 in 1, 000 transactions Corrupting Never A pattern of transactions corrupts database CS 501 Spring 2005

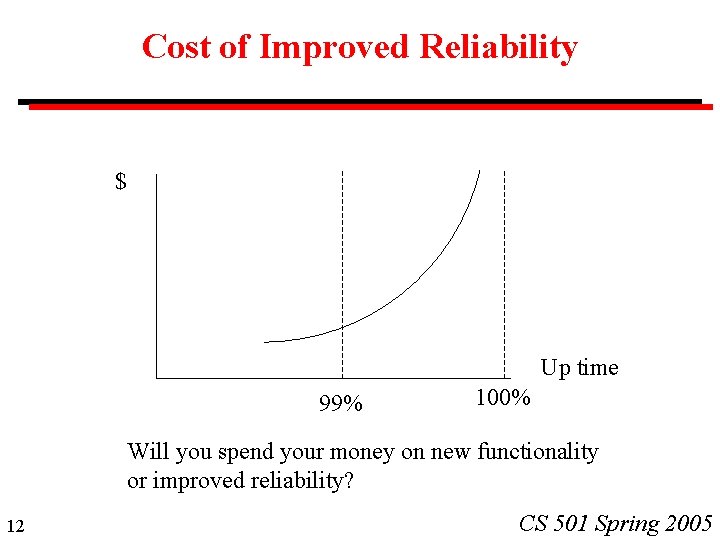

Cost of Improved Reliability $ Up time 99% 100% Will you spend your money on new functionality or improved reliability? 12 CS 501 Spring 2005

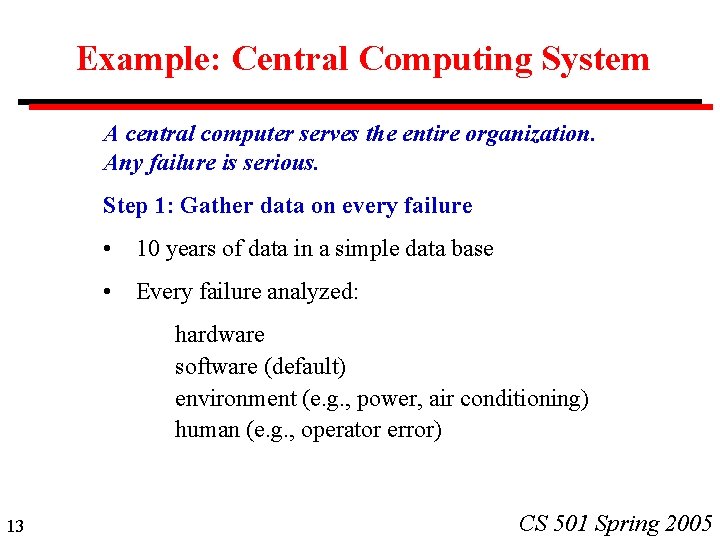

Example: Central Computing System A central computer serves the entire organization. Any failure is serious. Step 1: Gather data on every failure • 10 years of data in a simple data base • Every failure analyzed: hardware software (default) environment (e. g. , power, air conditioning) human (e. g. , operator error) 13 CS 501 Spring 2005

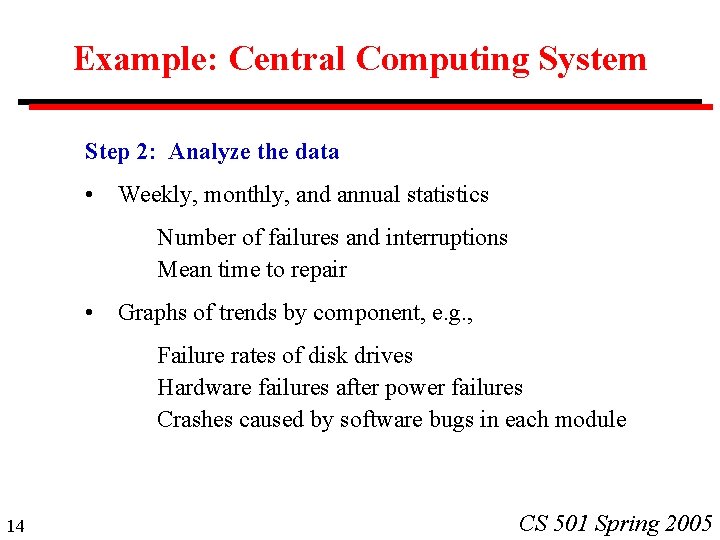

Example: Central Computing System Step 2: Analyze the data • Weekly, monthly, and annual statistics Number of failures and interruptions Mean time to repair • Graphs of trends by component, e. g. , Failure rates of disk drives Hardware failures after power failures Crashes caused by software bugs in each module 14 CS 501 Spring 2005

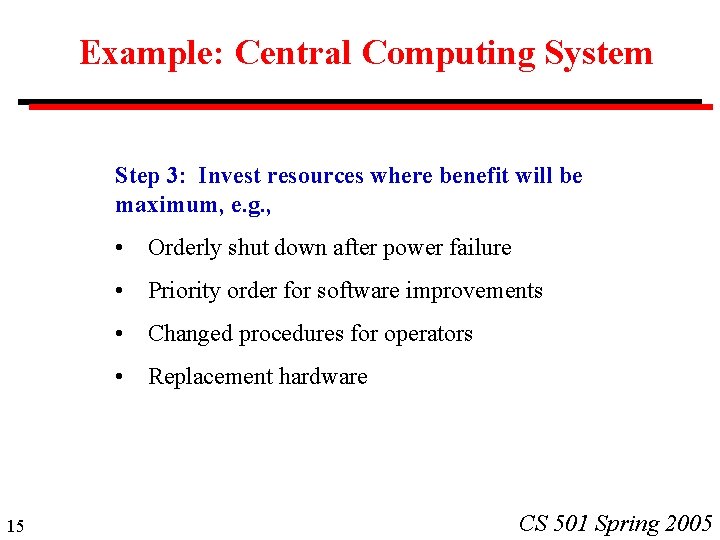

Example: Central Computing System Step 3: Invest resources where benefit will be maximum, e. g. , 15 • Orderly shut down after power failure • Priority order for software improvements • Changed procedures for operators • Replacement hardware CS 501 Spring 2005

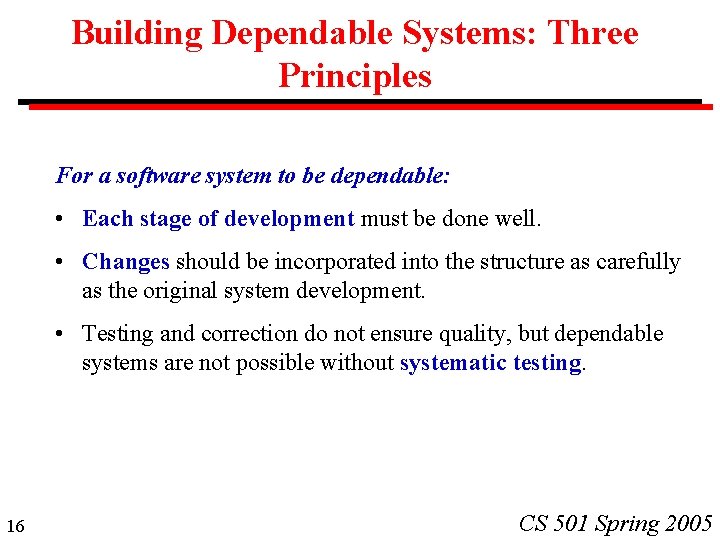

Building Dependable Systems: Three Principles For a software system to be dependable: • Each stage of development must be done well. • Changes should be incorporated into the structure as carefully as the original system development. • Testing and correction do not ensure quality, but dependable systems are not possible without systematic testing. 16 CS 501 Spring 2005

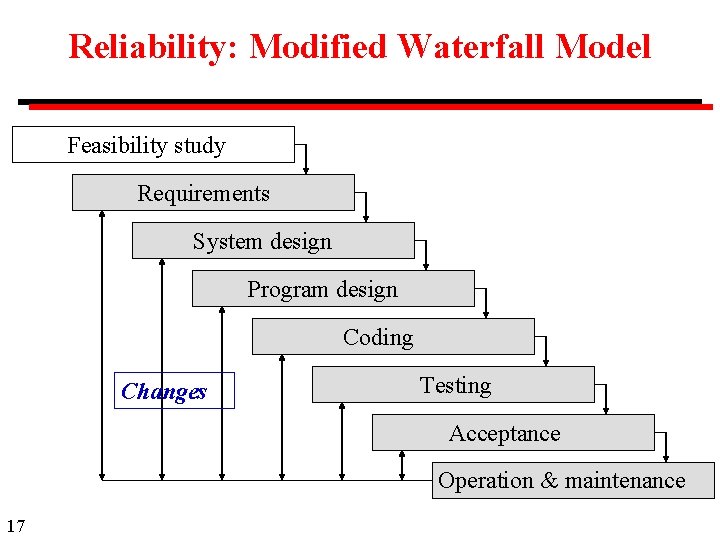

Reliability: Modified Waterfall Model Feasibility study Requirements System design Program design Coding Changes Testing Acceptance Operation & maintenance 17 CS 501 Spring 2005

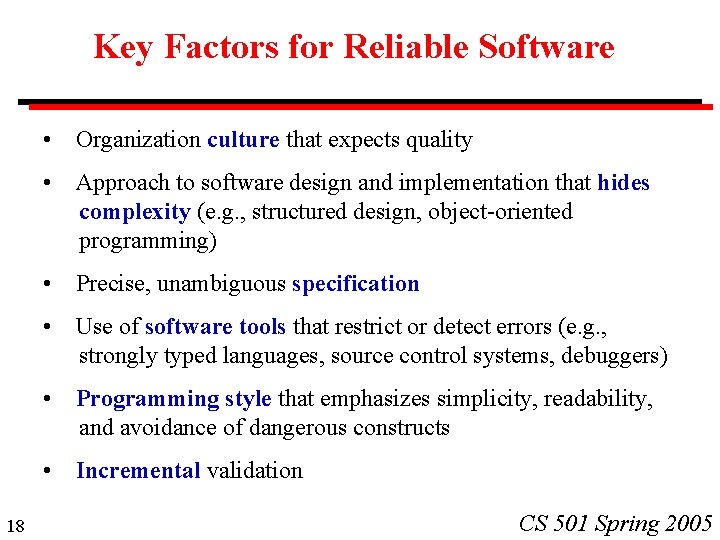

Key Factors for Reliable Software 18 • Organization culture that expects quality • Approach to software design and implementation that hides complexity (e. g. , structured design, object-oriented programming) • Precise, unambiguous specification • Use of software tools that restrict or detect errors (e. g. , strongly typed languages, source control systems, debuggers) • Programming style that emphasizes simplicity, readability, and avoidance of dangerous constructs • Incremental validation CS 501 Spring 2005

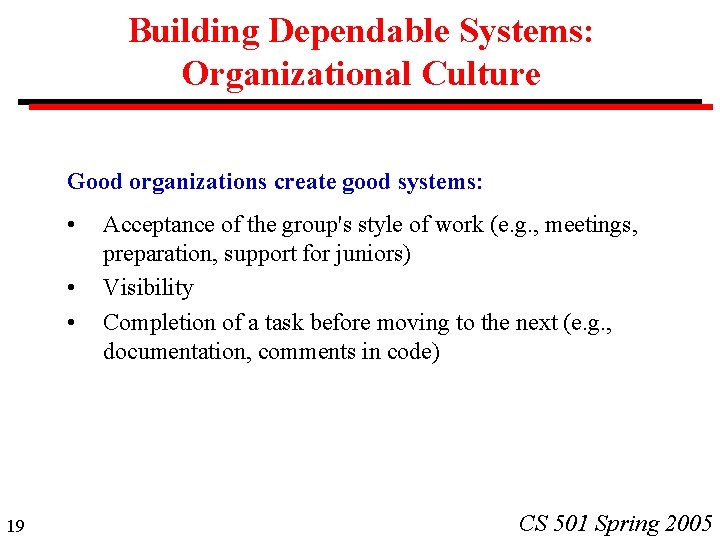

Building Dependable Systems: Organizational Culture Good organizations create good systems: • • • 19 Acceptance of the group's style of work (e. g. , meetings, preparation, support for juniors) Visibility Completion of a task before moving to the next (e. g. , documentation, comments in code) CS 501 Spring 2005

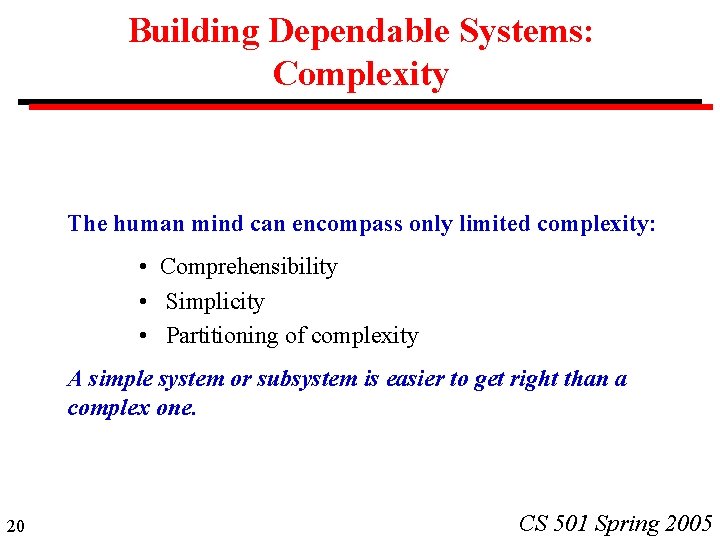

Building Dependable Systems: Complexity The human mind can encompass only limited complexity: • Comprehensibility • Simplicity • Partitioning of complexity A simple system or subsystem is easier to get right than a complex one. 20 CS 501 Spring 2005

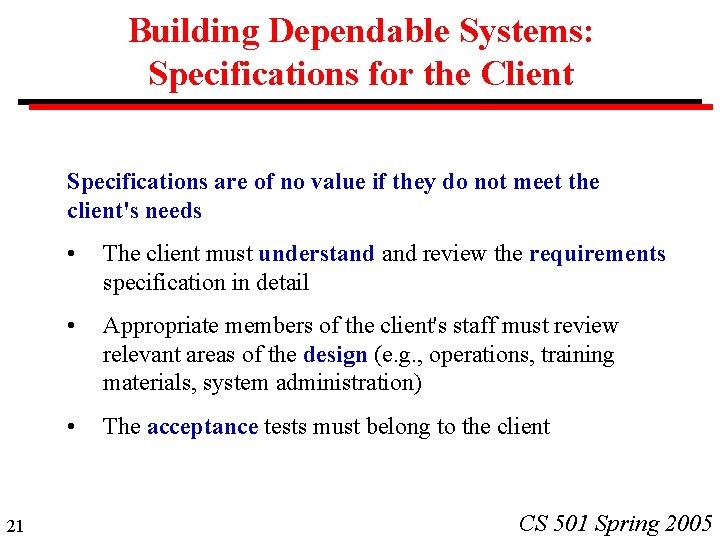

Building Dependable Systems: Specifications for the Client Specifications are of no value if they do not meet the client's needs 21 • The client must understand review the requirements specification in detail • Appropriate members of the client's staff must review relevant areas of the design (e. g. , operations, training materials, system administration) • The acceptance tests must belong to the client CS 501 Spring 2005

Building Dependable Systems: Quality Management Processes Assumption: Good processes lead to good software The importance of routine: Standard terminology (requirements, specification, design, etc. ) Software standards (naming conventions, etc. ) Internal and external documentation Reporting procedures 22 CS 501 Spring 2005

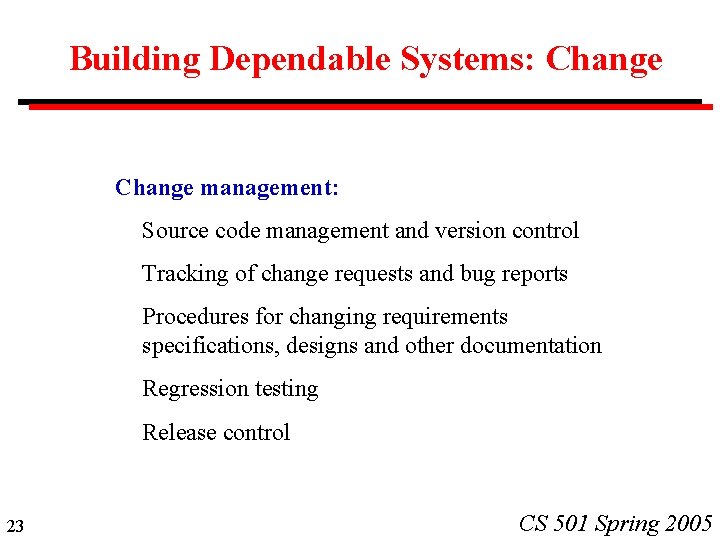

Building Dependable Systems: Change management: Source code management and version control Tracking of change requests and bug reports Procedures for changing requirements specifications, designs and other documentation Regression testing Release control 23 CS 501 Spring 2005

Reviews: Process (Plan) Objectives: • To review progress against plan (formal or informal). • To adjust plan (schedule, team assignments, functionality, etc. ). Impact on quality: Good quality systems usually result from plans that are demanding but realistic. Good people like to be stretched and to work hard, but must not be pressed beyond their capabilities. 24 CS 501 Spring 2005

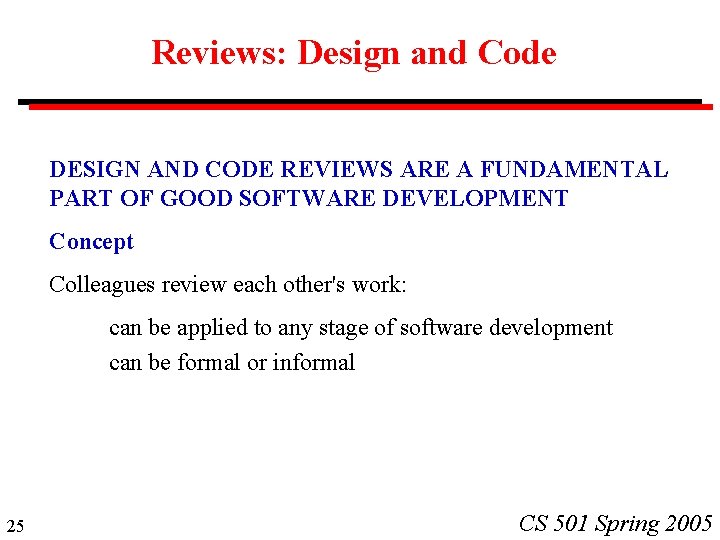

Reviews: Design and Code DESIGN AND CODE REVIEWS ARE A FUNDAMENTAL PART OF GOOD SOFTWARE DEVELOPMENT Concept Colleagues review each other's work: can be applied to any stage of software development can be formal or informal 25 CS 501 Spring 2005

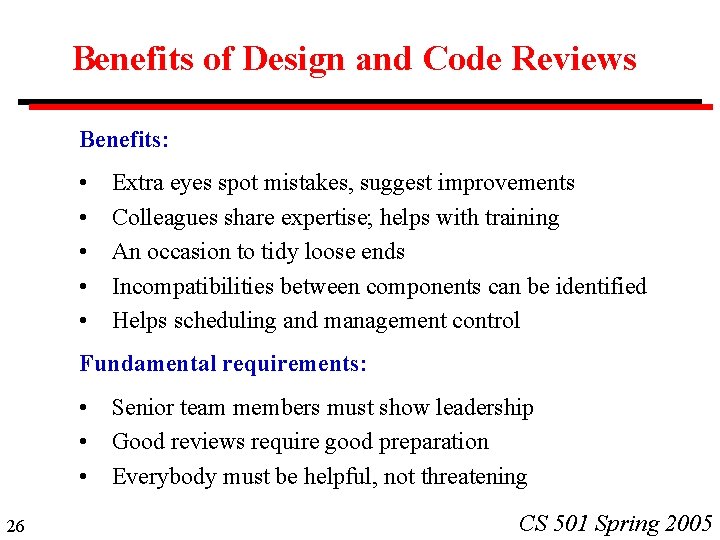

Benefits of Design and Code Reviews Benefits: • • • Extra eyes spot mistakes, suggest improvements Colleagues share expertise; helps with training An occasion to tidy loose ends Incompatibilities between components can be identified Helps scheduling and management control Fundamental requirements: • Senior team members must show leadership • Good reviews require good preparation • Everybody must be helpful, not threatening 26 CS 501 Spring 2005

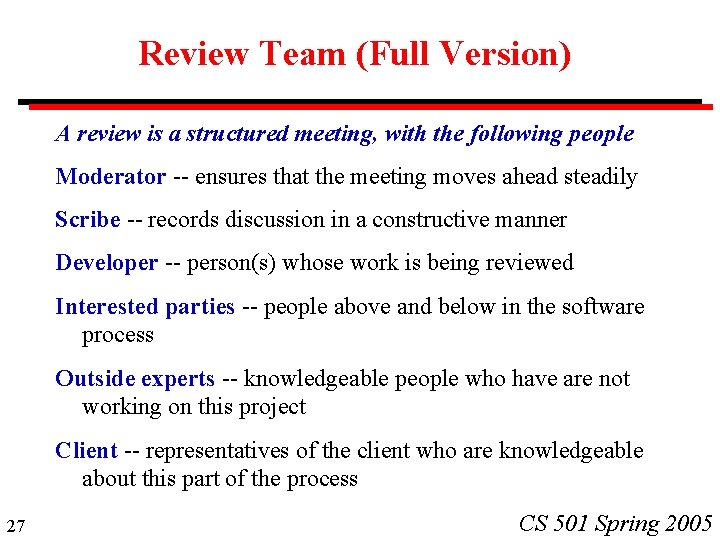

Review Team (Full Version) A review is a structured meeting, with the following people Moderator -- ensures that the meeting moves ahead steadily Scribe -- records discussion in a constructive manner Developer -- person(s) whose work is being reviewed Interested parties -- people above and below in the software process Outside experts -- knowledgeable people who have are not working on this project Client -- representatives of the client who are knowledgeable about this part of the process 27 CS 501 Spring 2005

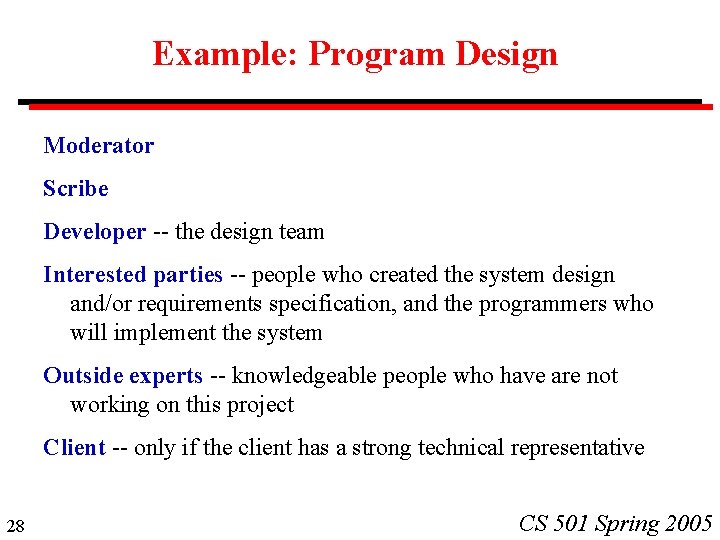

Example: Program Design Moderator Scribe Developer -- the design team Interested parties -- people who created the system design and/or requirements specification, and the programmers who will implement the system Outside experts -- knowledgeable people who have are not working on this project Client -- only if the client has a strong technical representative 28 CS 501 Spring 2005

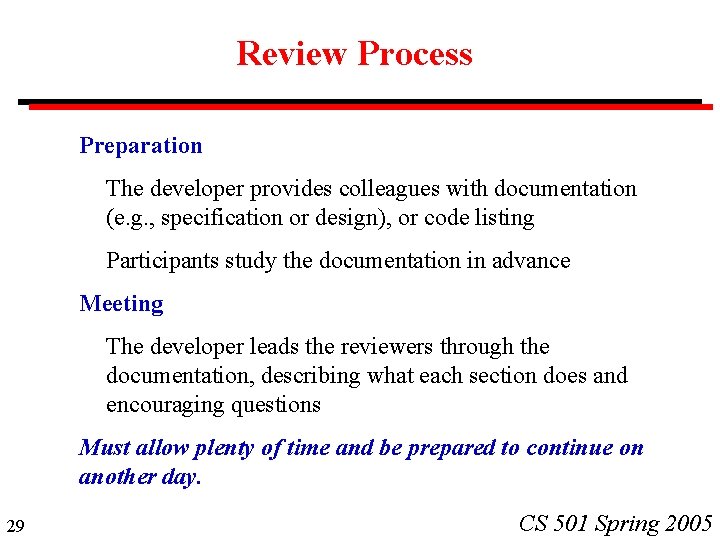

Review Process Preparation The developer provides colleagues with documentation (e. g. , specification or design), or code listing Participants study the documentation in advance Meeting The developer leads the reviewers through the documentation, describing what each section does and encouraging questions Must allow plenty of time and be prepared to continue on another day. 29 CS 501 Spring 2005

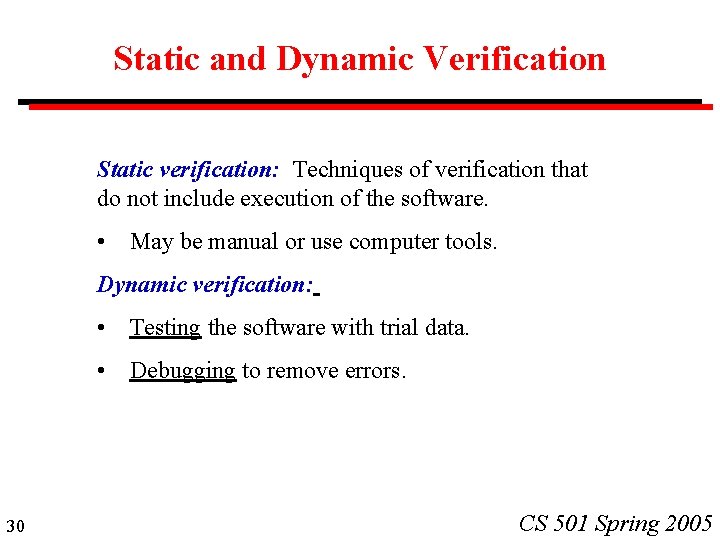

Static and Dynamic Verification Static verification: Techniques of verification that do not include execution of the software. • May be manual or use computer tools. Dynamic verification: 30 • Testing the software with trial data. • Debugging to remove errors. CS 501 Spring 2005

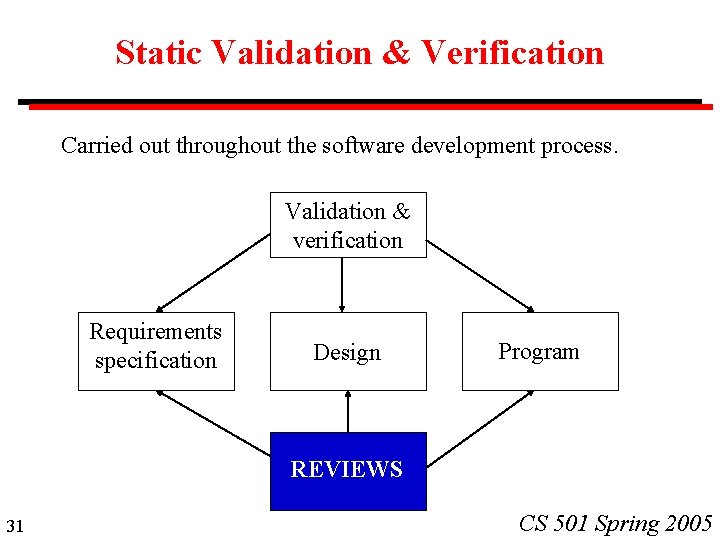

Static Validation & Verification Carried out throughout the software development process. Validation & verification Requirements specification Design Program REVIEWS 31 CS 501 Spring 2005

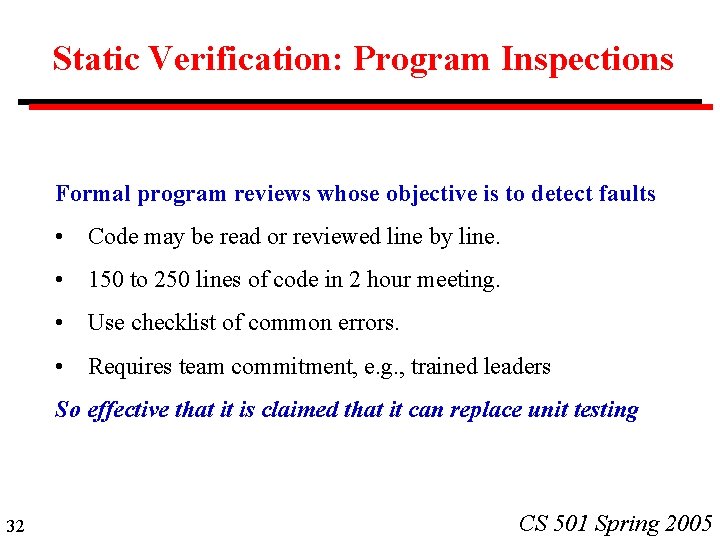

Static Verification: Program Inspections Formal program reviews whose objective is to detect faults • Code may be read or reviewed line by line. • 150 to 250 lines of code in 2 hour meeting. • Use checklist of common errors. • Requires team commitment, e. g. , trained leaders So effective that it is claimed that it can replace unit testing 32 CS 501 Spring 2005

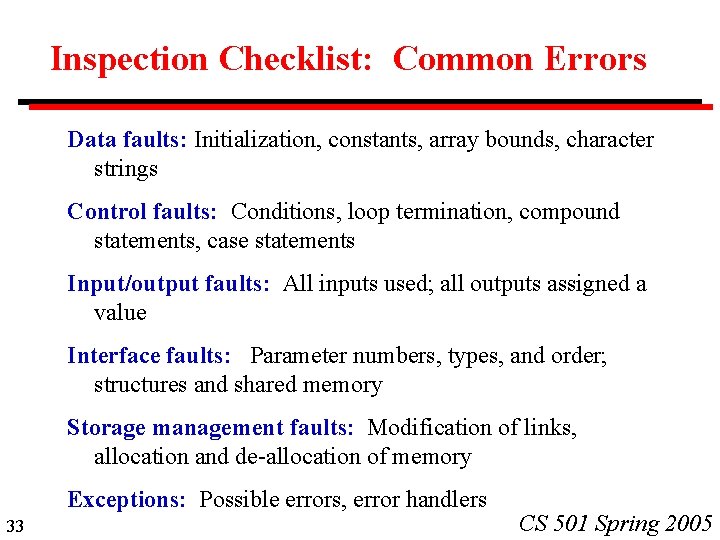

Inspection Checklist: Common Errors Data faults: Initialization, constants, array bounds, character strings Control faults: Conditions, loop termination, compound statements, case statements Input/output faults: All inputs used; all outputs assigned a value Interface faults: Parameter numbers, types, and order; structures and shared memory Storage management faults: Modification of links, allocation and de-allocation of memory Exceptions: Possible errors, error handlers 33 CS 501 Spring 2005

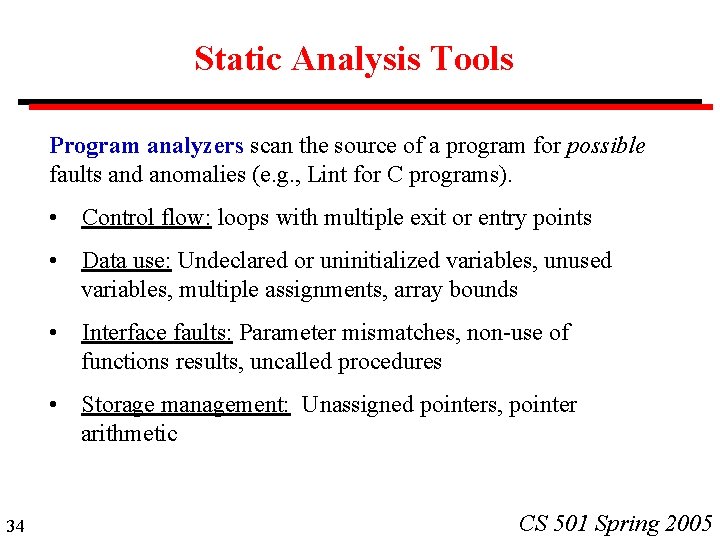

Static Analysis Tools Program analyzers scan the source of a program for possible faults and anomalies (e. g. , Lint for C programs). 34 • Control flow: loops with multiple exit or entry points • Data use: Undeclared or uninitialized variables, unused variables, multiple assignments, array bounds • Interface faults: Parameter mismatches, non-use of functions results, uncalled procedures • Storage management: Unassigned pointers, pointer arithmetic CS 501 Spring 2005

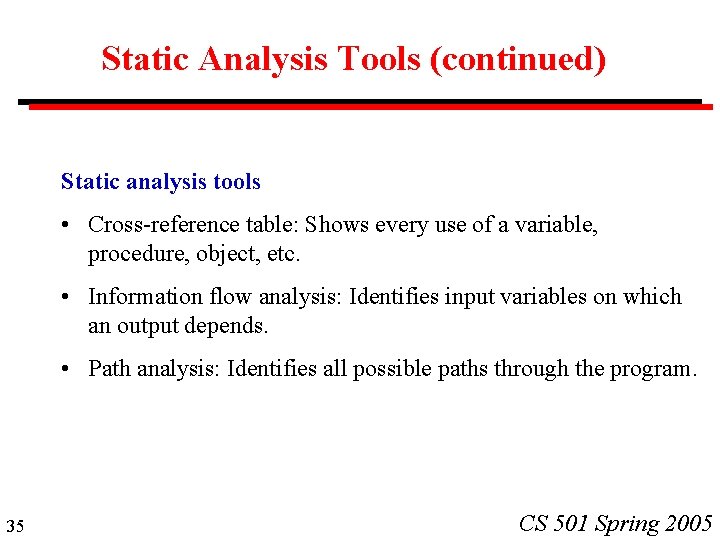

Static Analysis Tools (continued) Static analysis tools • Cross-reference table: Shows every use of a variable, procedure, object, etc. • Information flow analysis: Identifies input variables on which an output depends. • Path analysis: Identifies all possible paths through the program. 35 CS 501 Spring 2005
