CS 471 Lecture 6 Distributed System Structures Ch

CS 471 - Lecture 6 Distributed System Structures Ch. 3. 4. 2, 3. 6, 16 George Mason University Fall 2009

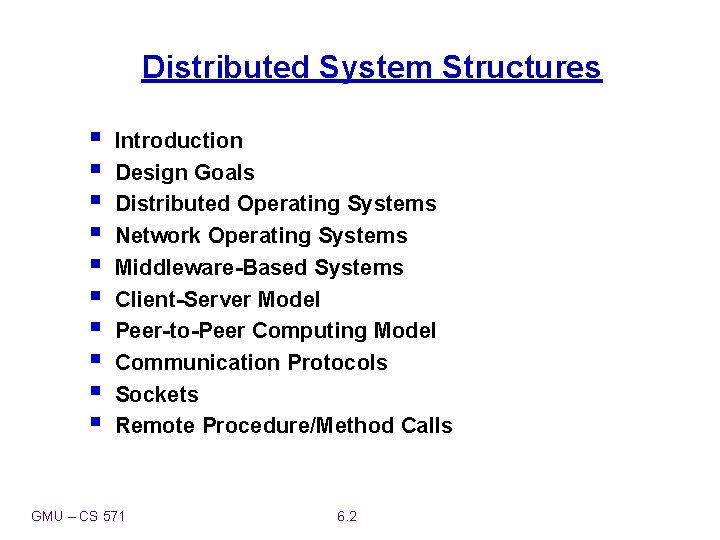

Distributed System Structures § § § § § Introduction Design Goals Distributed Operating Systems Network Operating Systems Middleware-Based Systems Client-Server Model Peer-to-Peer Computing Model Communication Protocols Sockets Remote Procedure/Method Calls GMU – CS 571 6. 2

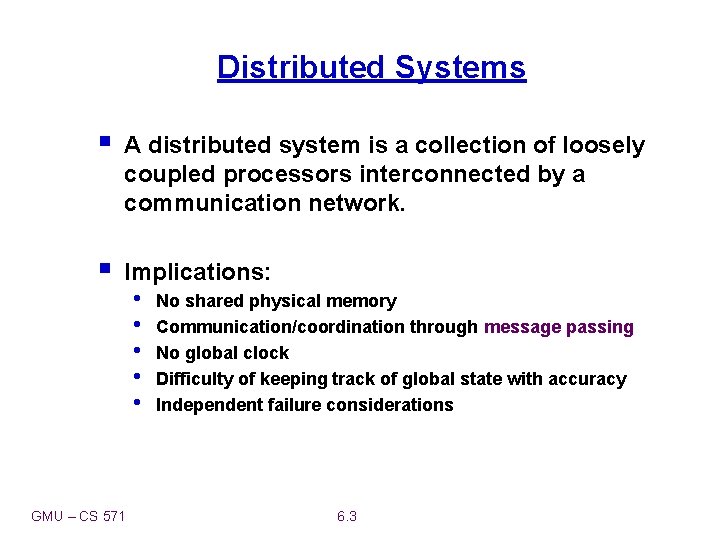

Distributed Systems § A distributed system is a collection of loosely coupled processors interconnected by a communication network. § Implications: • No shared physical memory • Communication/coordination through message passing • No global clock • Difficulty of keeping track of global state with accuracy • Independent failure considerations GMU – CS 571 6. 3

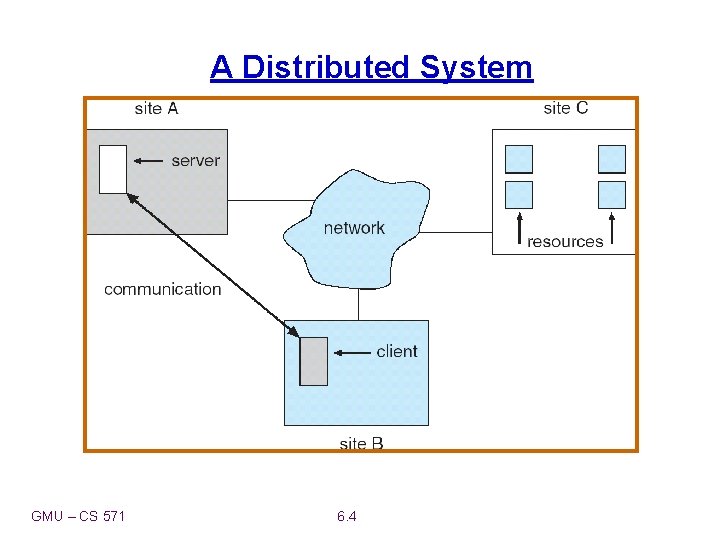

A Distributed System GMU – CS 571 6. 4

Example Distributed System: Internet intranet % ISP % % % backbone satellite link desktop computer: server: network link: GMU – CS 571 6. 5

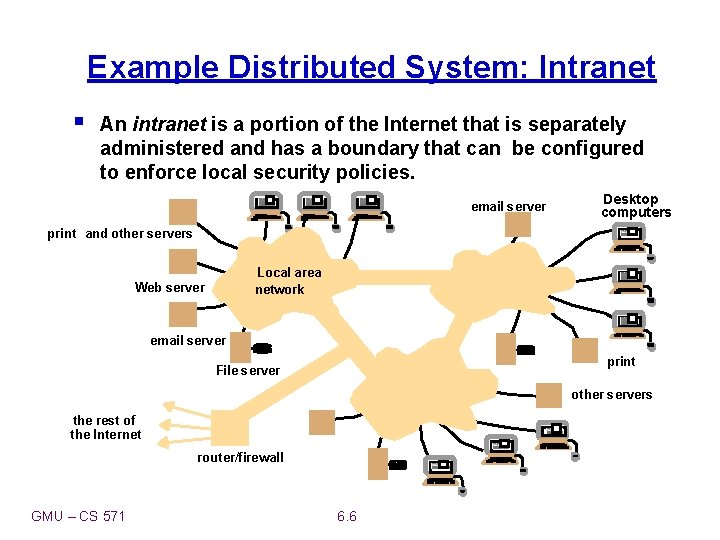

Example Distributed System: Intranet § An intranet is a portion of the Internet that is separately administered and has a boundary that can be configured to enforce local security policies. email server Desktop computers print and other servers Local area network Web server email server print File server other servers the rest of the Internet router/firewall GMU – CS 571 6. 6

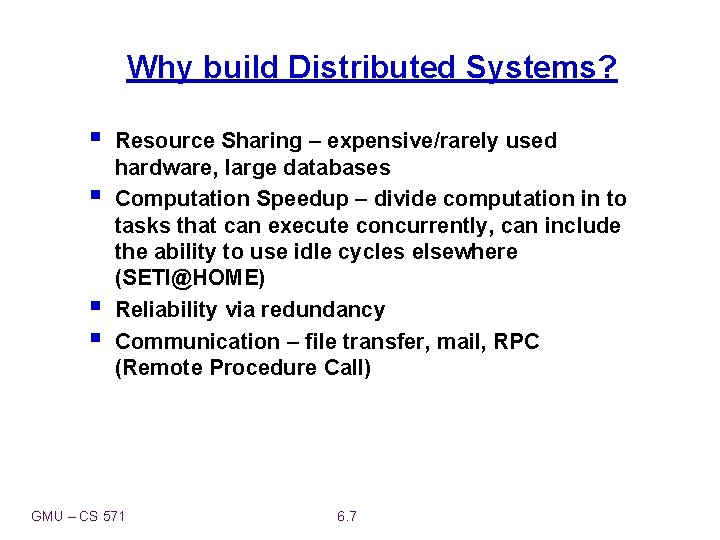

Why build Distributed Systems? § § Resource Sharing – expensive/rarely used hardware, large databases Computation Speedup – divide computation in to tasks that can execute concurrently, can include the ability to use idle cycles elsewhere (SETI@HOME) Reliability via redundancy Communication – file transfer, mail, RPC (Remote Procedure Call) GMU – CS 571 6. 7

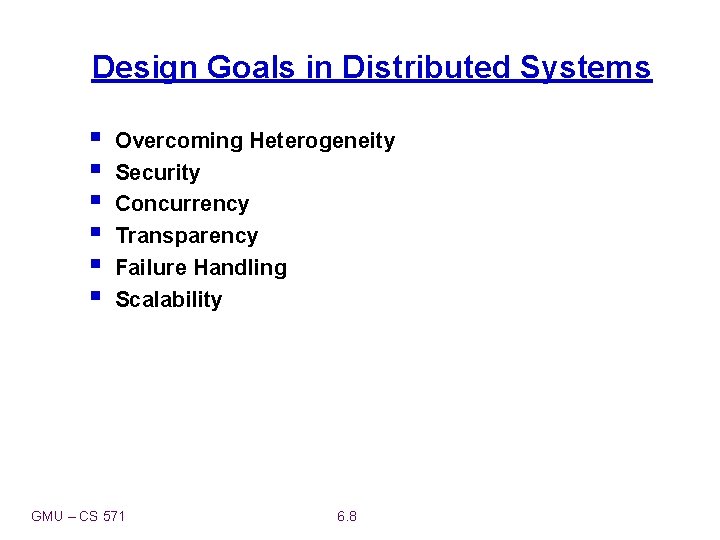

Design Goals in Distributed Systems § § § Overcoming Heterogeneity Security Concurrency Transparency Failure Handling Scalability GMU – CS 571 6. 8

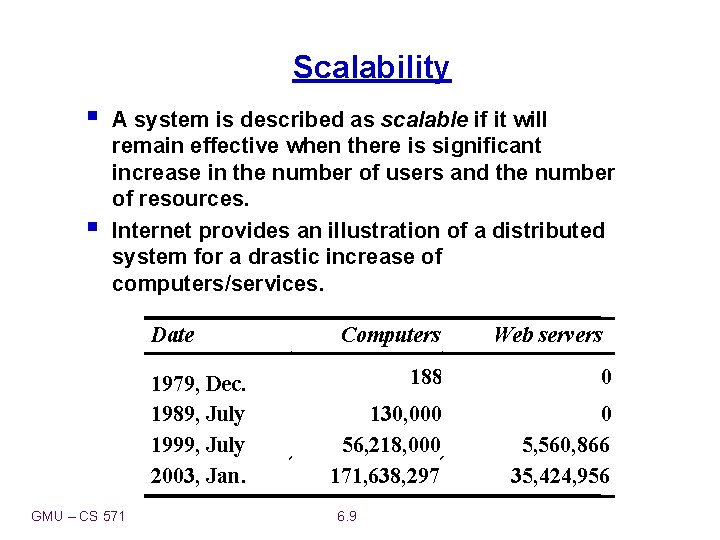

Scalability § § A system is described as scalable if it will remain effective when there is significant increase in the number of users and the number of resources. Internet provides an illustration of a distributed system for a drastic increase of computers/services. Date 1979, Dec. 1989, July 1999, July 2003, Jan. GMU – CS 571 Computers Web servers 188 0 130, 000 56, 218, 000 171, 638, 297 0 5, 560, 866 35, 424, 956 6. 9

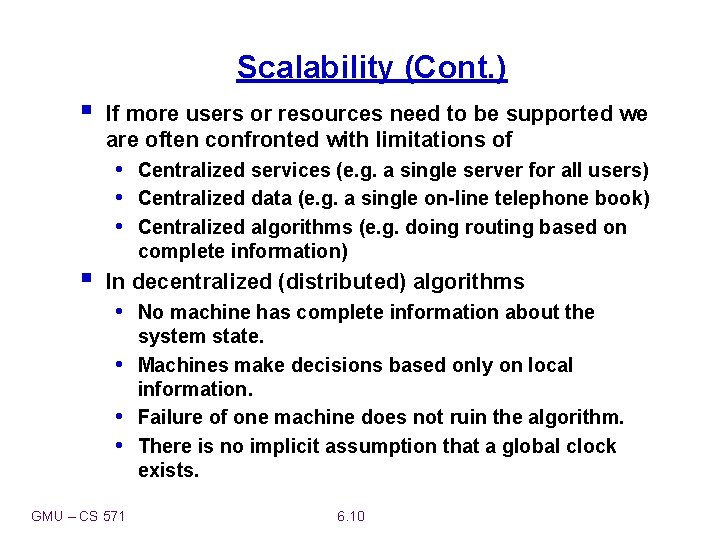

Scalability (Cont. ) § If more users or resources need to be supported we are often confronted with limitations of • Centralized services (e. g. a single server for all users) • Centralized data (e. g. a single on-line telephone book) • Centralized algorithms (e. g. doing routing based on § complete information) In decentralized (distributed) algorithms • No machine has complete information about the • • • GMU – CS 571 system state. Machines make decisions based only on local information. Failure of one machine does not ruin the algorithm. There is no implicit assumption that a global clock exists. 6. 10

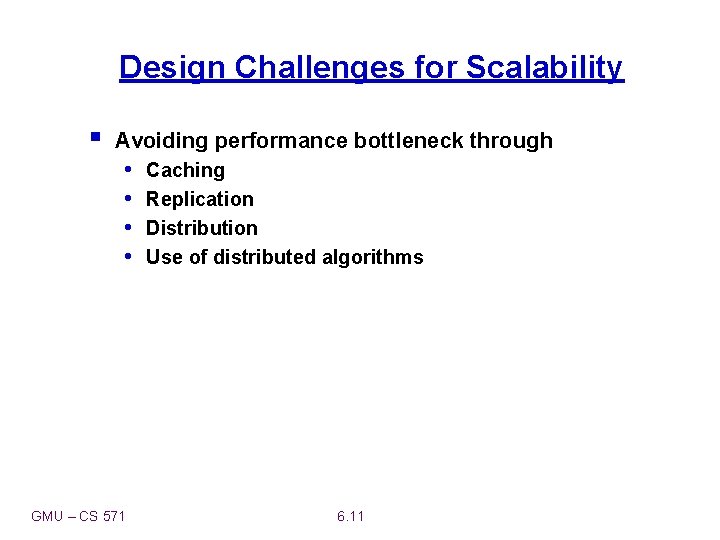

Design Challenges for Scalability § Avoiding performance bottleneck through • • GMU – CS 571 Caching Replication Distribution Use of distributed algorithms 6. 11

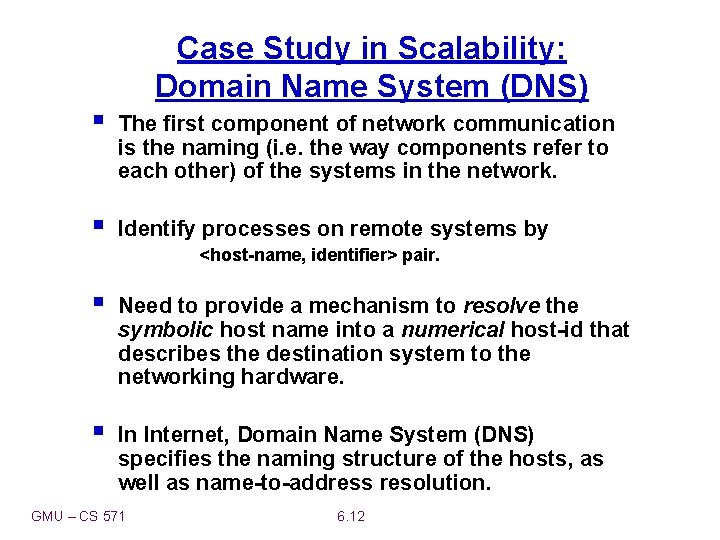

Case Study in Scalability: Domain Name System (DNS) § The first component of network communication is the naming (i. e. the way components refer to each other) of the systems in the network. § Identify processes on remote systems by <host-name, identifier> pair. § Need to provide a mechanism to resolve the symbolic host name into a numerical host-id that describes the destination system to the networking hardware. § In Internet, Domain Name System (DNS) specifies the naming structure of the hosts, as well as name-to-address resolution. GMU – CS 571 6. 12

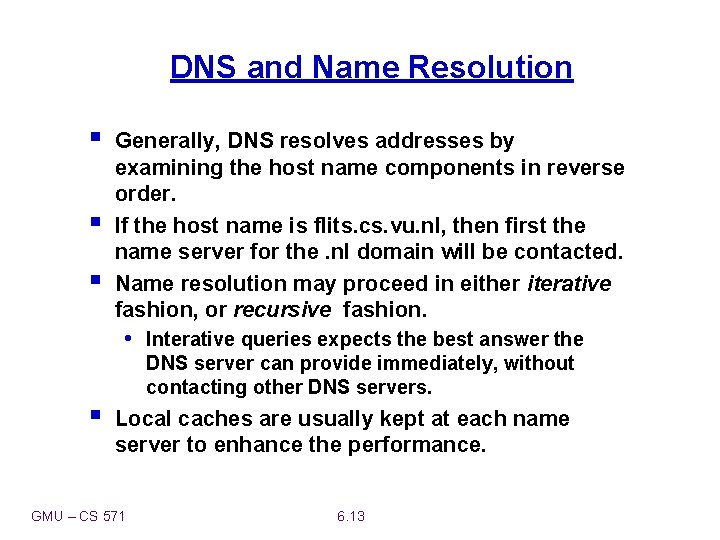

DNS and Name Resolution § § § Generally, DNS resolves addresses by examining the host name components in reverse order. If the host name is flits. cs. vu. nl, then first the name server for the. nl domain will be contacted. Name resolution may proceed in either iterative fashion, or recursive fashion. • Interative queries expects the best answer the § DNS server can provide immediately, without contacting other DNS servers. Local caches are usually kept at each name server to enhance the performance. GMU – CS 571 6. 13

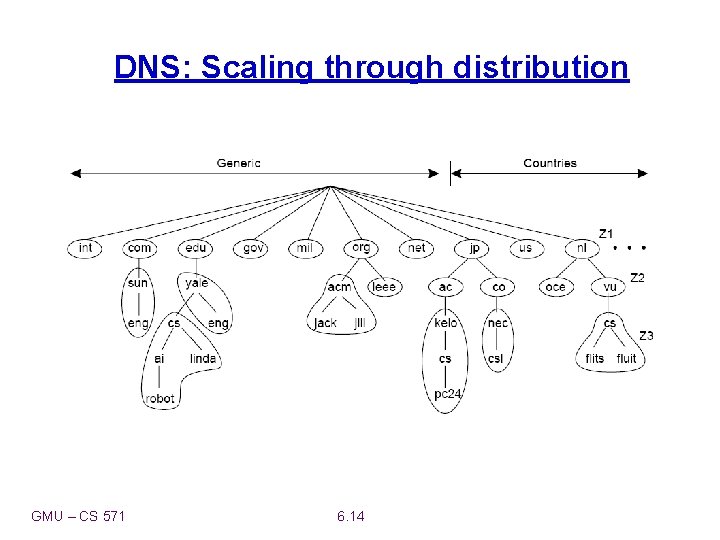

DNS: Scaling through distribution GMU – CS 571 6. 14

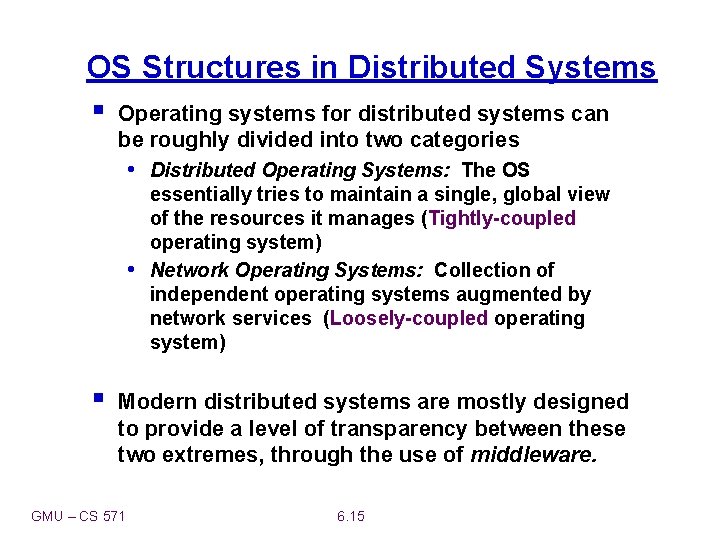

OS Structures in Distributed Systems § Operating systems for distributed systems can be roughly divided into two categories • Distributed Operating Systems: The OS • § essentially tries to maintain a single, global view of the resources it manages (Tightly-coupled operating system) Network Operating Systems: Collection of independent operating systems augmented by network services (Loosely-coupled operating system) Modern distributed systems are mostly designed to provide a level of transparency between these two extremes, through the use of middleware. GMU – CS 571 6. 15

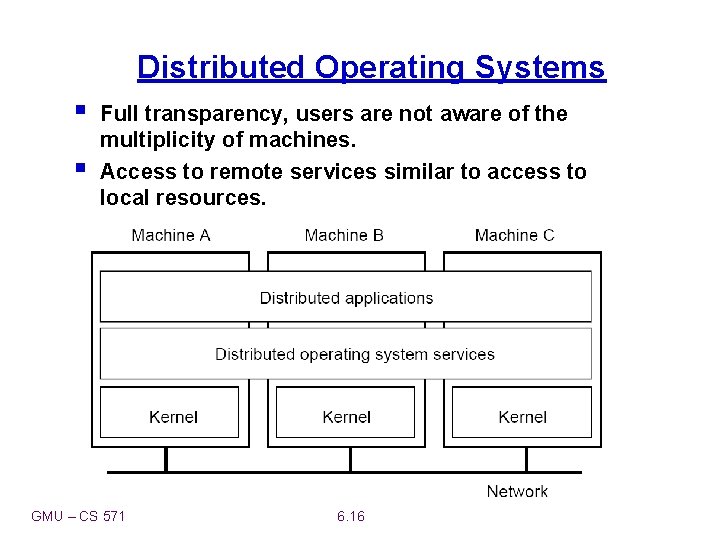

Distributed Operating Systems § § Full transparency, users are not aware of the multiplicity of machines. Access to remote services similar to access to local resources. GMU – CS 571 6. 16

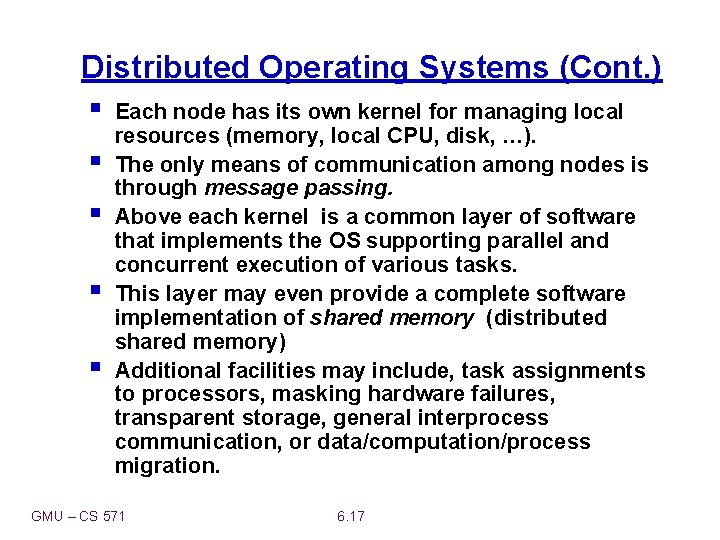

Distributed Operating Systems (Cont. ) § Each node has its own kernel for managing local § § resources (memory, local CPU, disk, …). The only means of communication among nodes is through message passing. Above each kernel is a common layer of software that implements the OS supporting parallel and concurrent execution of various tasks. This layer may even provide a complete software implementation of shared memory (distributed shared memory) Additional facilities may include, task assignments to processors, masking hardware failures, transparent storage, general interprocess communication, or data/computation/process migration. GMU – CS 571 6. 17

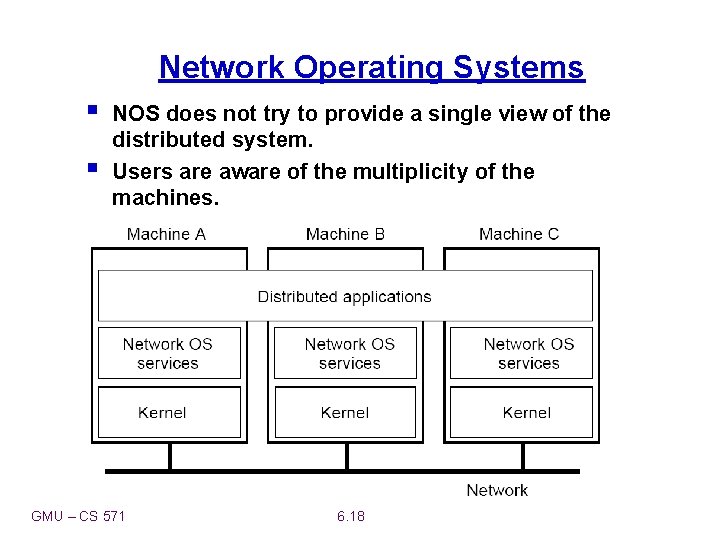

Network Operating Systems § § NOS does not try to provide a single view of the distributed system. Users are aware of the multiplicity of the machines. GMU – CS 571 6. 18

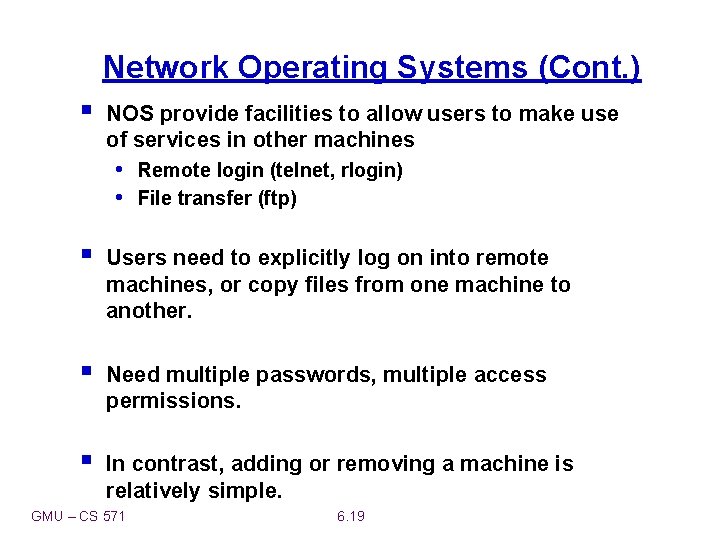

Network Operating Systems (Cont. ) § NOS provide facilities to allow users to make use of services in other machines • Remote login (telnet, rlogin) • File transfer (ftp) § Users need to explicitly log on into remote machines, or copy files from one machine to another. § Need multiple passwords, multiple access permissions. § In contrast, adding or removing a machine is relatively simple. GMU – CS 571 6. 19

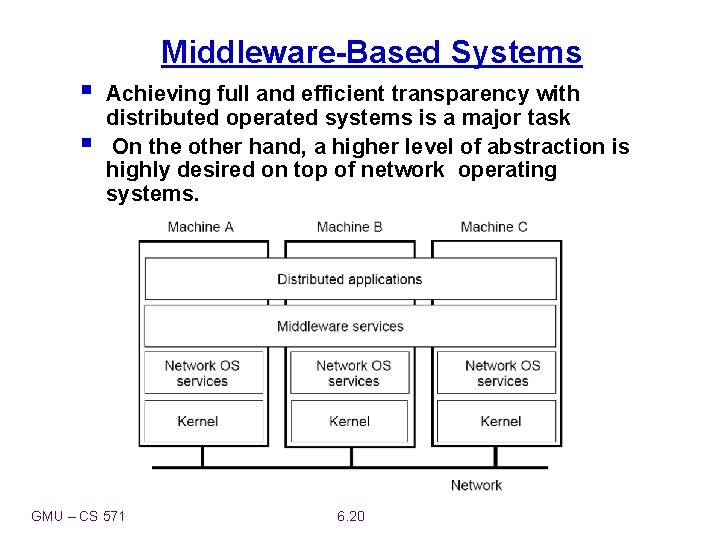

Middleware-Based Systems § § Achieving full and efficient transparency with distributed operated systems is a major task On the other hand, a higher level of abstraction is highly desired on top of network operating systems. GMU – CS 571 6. 20

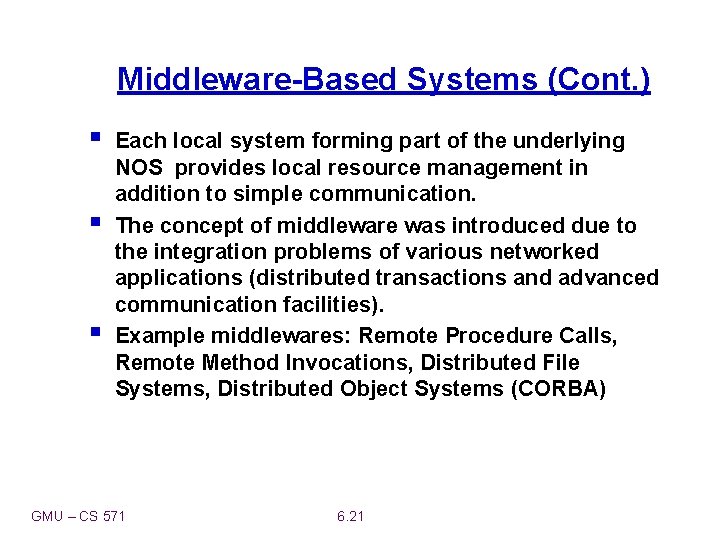

Middleware-Based Systems (Cont. ) § § § Each local system forming part of the underlying NOS provides local resource management in addition to simple communication. The concept of middleware was introduced due to the integration problems of various networked applications (distributed transactions and advanced communication facilities). Example middlewares: Remote Procedure Calls, Remote Method Invocations, Distributed File Systems, Distributed Object Systems (CORBA) GMU – CS 571 6. 21

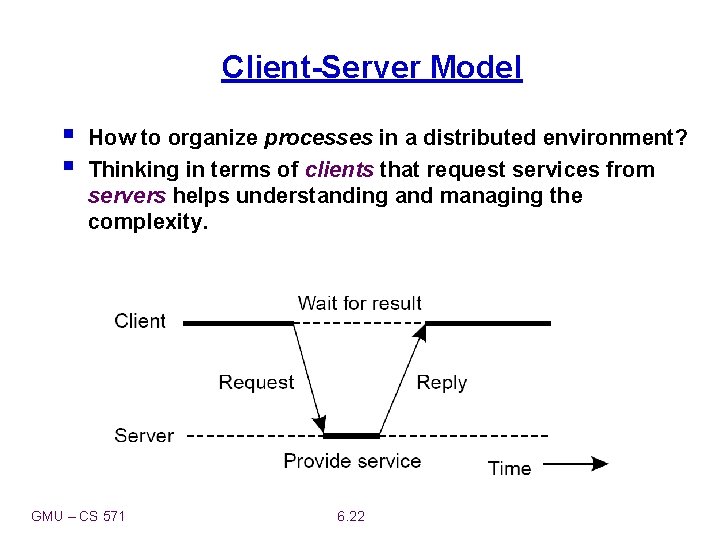

Client-Server Model § § How to organize processes in a distributed environment? Thinking in terms of clients that request services from servers helps understanding and managing the complexity. GMU – CS 571 6. 22

Client-Server Model (Cont. ) § Servers may in turn be clients of other servers: vertical distribution (example: web crawlers at a search engine) § Services may be also implemented as several server processes in separate host computers interacting as necessary to provide a service to client processes: horizontal distribution • The servers may partition the set of objects on • GMU – CS 571 which the service is based and distribute them between themselves. Replication may be used to increase performance, availability and to improve fault tolerance. 6. 23

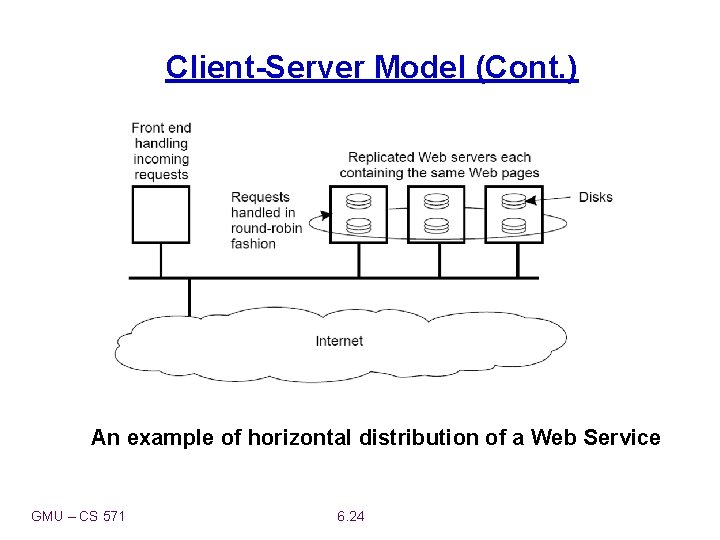

Client-Server Model (Cont. ) An example of horizontal distribution of a Web Service GMU – CS 571 6. 24

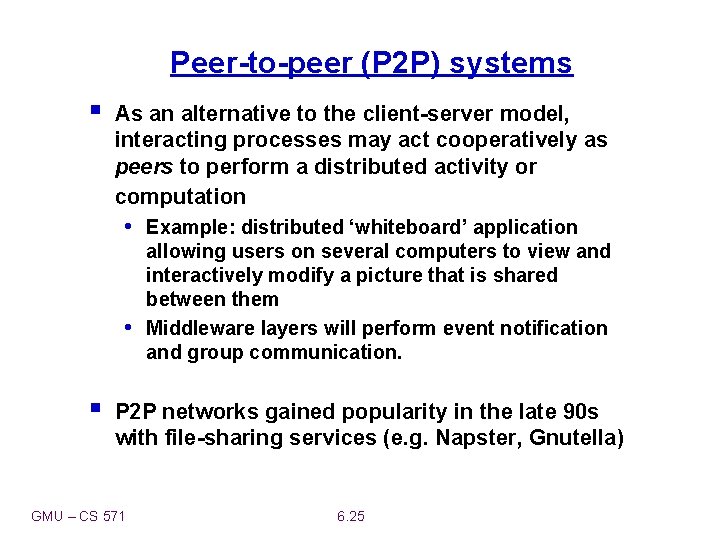

Peer-to-peer (P 2 P) systems § As an alternative to the client-server model, interacting processes may act cooperatively as peers to perform a distributed activity or computation • Example: distributed ‘whiteboard’ application • § allowing users on several computers to view and interactively modify a picture that is shared between them Middleware layers will perform event notification and group communication. P 2 P networks gained popularity in the late 90 s with file-sharing services (e. g. Napster, Gnutella) GMU – CS 571 6. 25

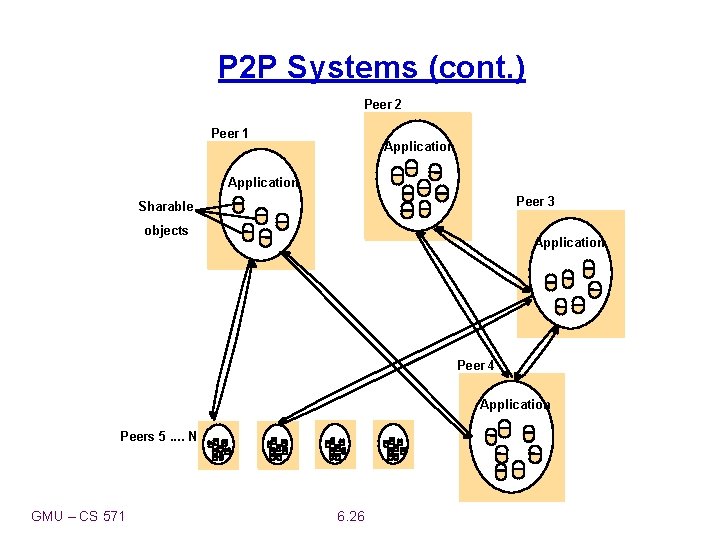

P 2 P Systems (cont. ) Peer 2 Peer 1 Application Peer 3 Sharable objects Application Peer 4 Application Peers 5. . N GMU – CS 571 6. 26

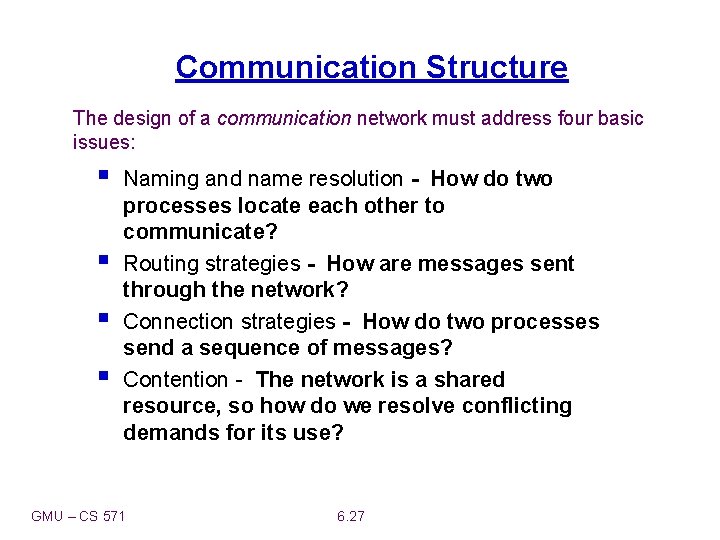

Communication Structure The design of a communication network must address four basic issues: § § Naming and name resolution - How do two processes locate each other to communicate? Routing strategies - How are messages sent through the network? Connection strategies - How do two processes send a sequence of messages? Contention - The network is a shared resource, so how do we resolve conflicting demands for its use? GMU – CS 571 6. 27

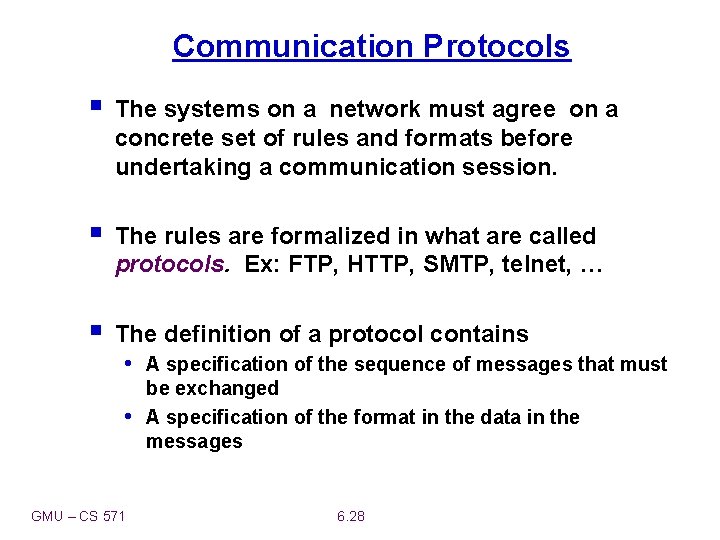

Communication Protocols § The systems on a network must agree on a concrete set of rules and formats before undertaking a communication session. § The rules are formalized in what are called protocols. Ex: FTP, HTTP, SMTP, telnet, … § The definition of a protocol contains • A specification of the sequence of messages that must • GMU – CS 571 be exchanged A specification of the format in the data in the messages 6. 28

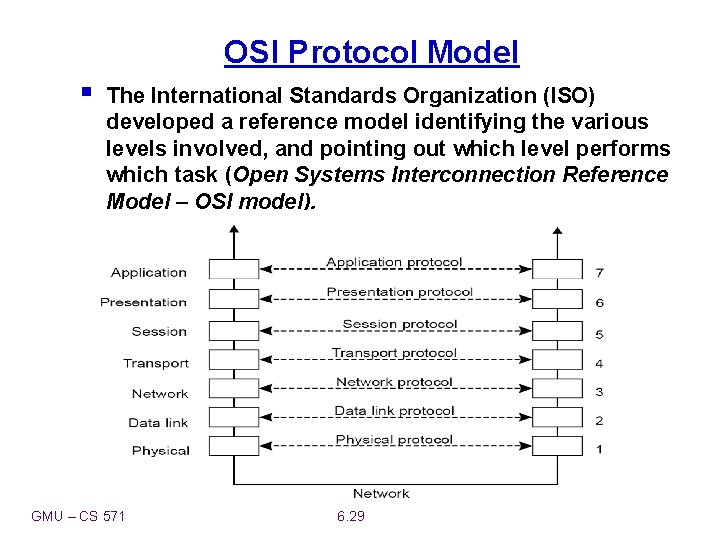

OSI Protocol Model § The International Standards Organization (ISO) developed a reference model identifying the various levels involved, and pointing out which level performs which task (Open Systems Interconnection Reference Model – OSI model). GMU – CS 571 6. 29

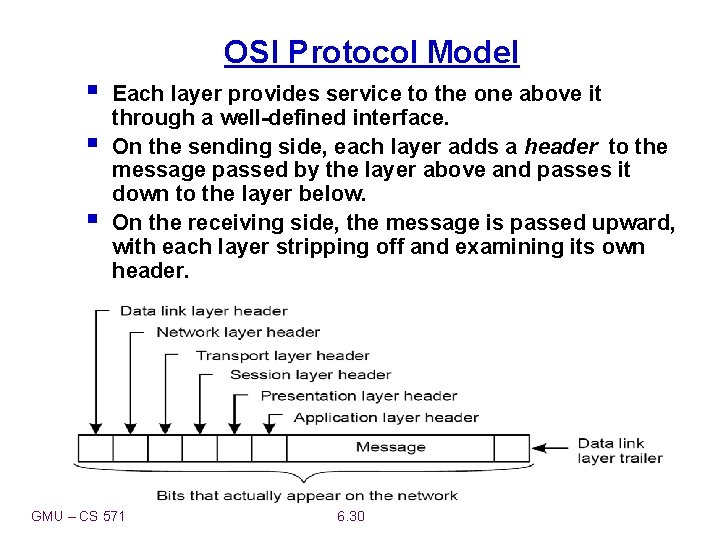

OSI Protocol Model § § § Each layer provides service to the one above it through a well-defined interface. On the sending side, each layer adds a header to the message passed by the layer above and passes it down to the layer below. On the receiving side, the message is passed upward, with each layer stripping off and examining its own header. GMU – CS 571 6. 30

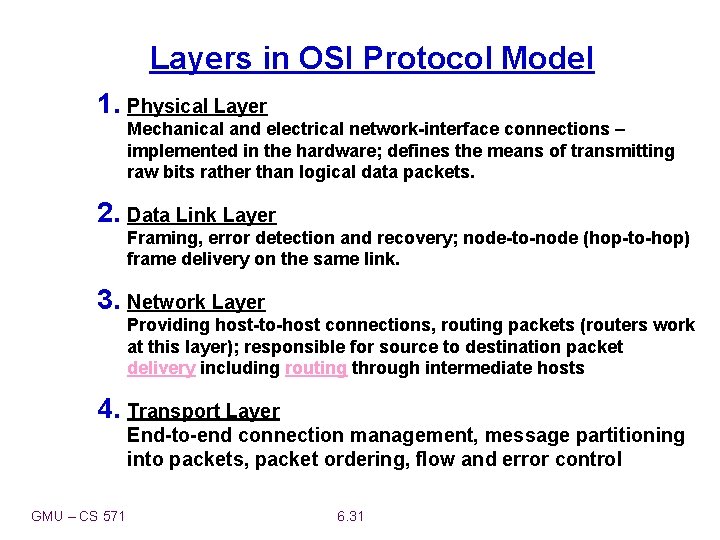

Layers in OSI Protocol Model 1. Physical Layer Mechanical and electrical network-interface connections – implemented in the hardware; defines the means of transmitting raw bits rather than logical data packets. 2. Data Link Layer Framing, error detection and recovery; node-to-node (hop-to-hop) frame delivery on the same link. 3. Network Layer Providing host-to-host connections, routing packets (routers work at this layer); responsible for source to destination packet delivery including routing through intermediate hosts 4. Transport Layer End-to-end connection management, message partitioning into packets, packet ordering, flow and error control GMU – CS 571 6. 31

Layers in OSI Protocol Model (Cont. ) 5. Session Layer 6. Presentation Layer 7. Application Layer Dialog and synchronization control for application entities (remote login, ftp, …); opening, closing, and managing a session between end-user application processes; a session is a dialogue or meeting between two or more communicating devices, or between a computer and user (see Login session) Data representation transformations to accommodate heterogeneity, encryption/decryption; responsible for the delivery and formatting of information to the application layer; It relieves the application layer of concern regarding syntactical differences in data representation within the end-user systems. Protocols designed for specific requirements of different applications, often defining interfaces to services GMU – CS 571 6. 32

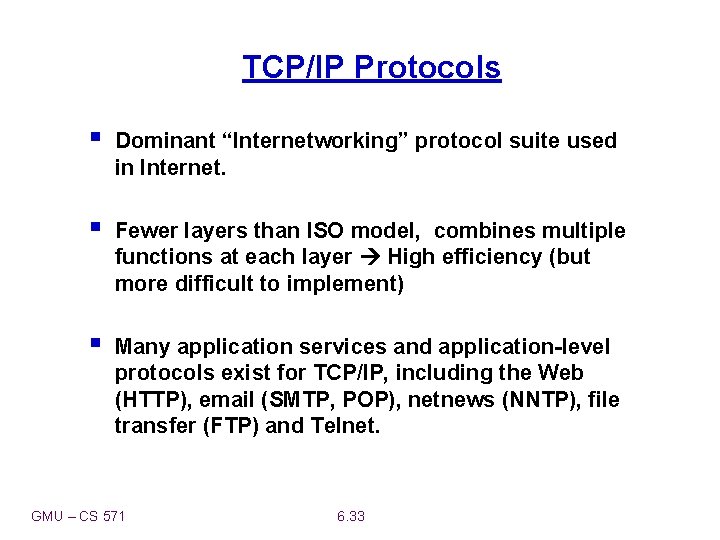

TCP/IP Protocols § Dominant “Internetworking” protocol suite used in Internet. § Fewer layers than ISO model, combines multiple functions at each layer High efficiency (but more difficult to implement) § Many application services and application-level protocols exist for TCP/IP, including the Web (HTTP), email (SMTP, POP), netnews (NNTP), file transfer (FTP) and Telnet. GMU – CS 571 6. 33

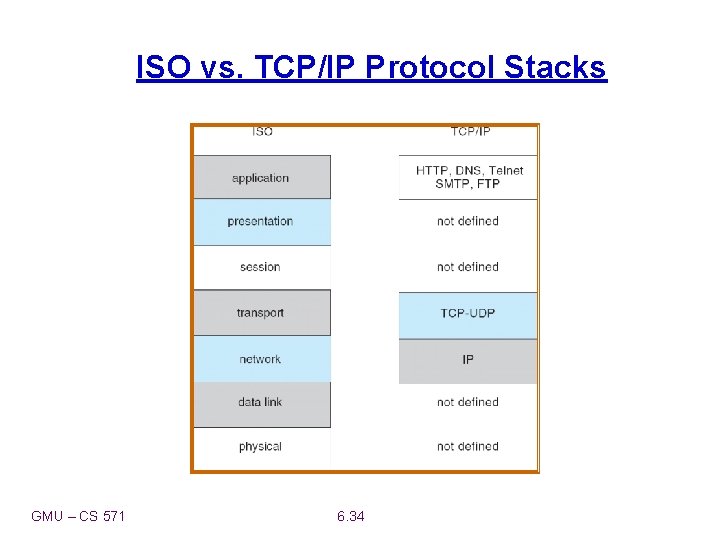

ISO vs. TCP/IP Protocol Stacks GMU – CS 571 6. 34

IP Layer § § Performs the routing function Provides datagram packet delivery service • No set-up is required • Packets belonging to the same message may • § follow different paths Packets can be lost, duplicated, delayed or delivered out of order The IP layer • puts IP datagrams into network packets suitable • § for transmission in the underlying networks may need to break the datagram into smaller packets Every IP packet contains the full network address of the source and destination hosts. GMU – CS 571 6. 35

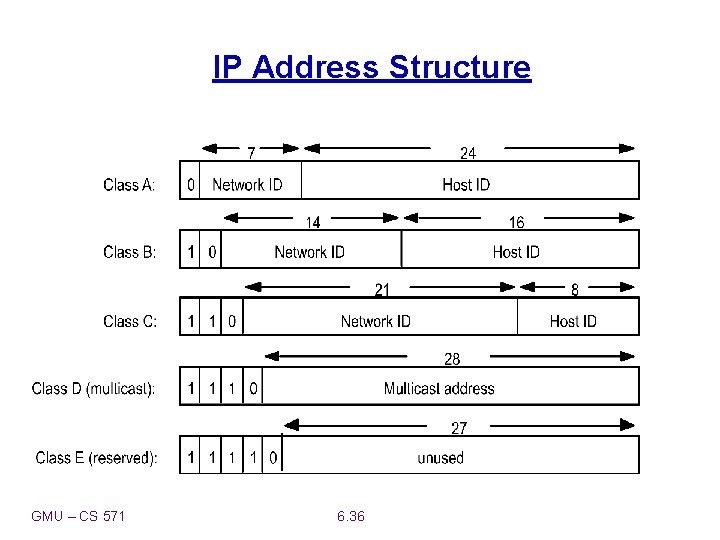

IP Address Structure GMU – CS 571 6. 36

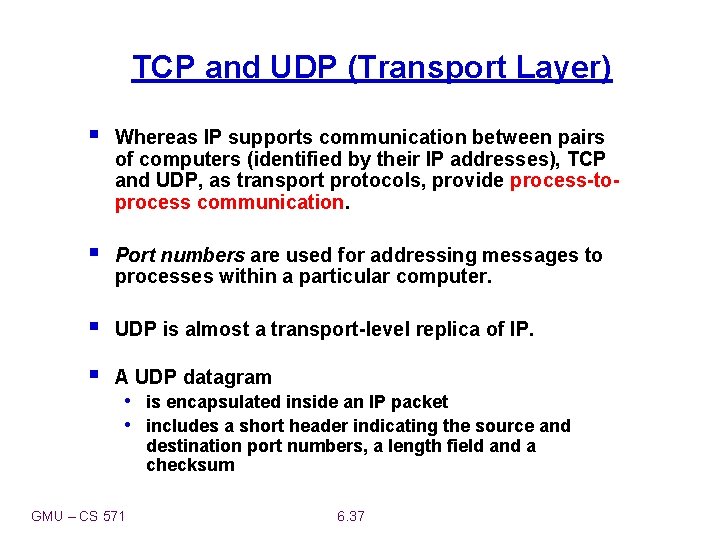

TCP and UDP (Transport Layer) § Whereas IP supports communication between pairs of computers (identified by their IP addresses), TCP and UDP, as transport protocols, provide process-toprocess communication. § Port numbers are used for addressing messages to processes within a particular computer. § UDP is almost a transport-level replica of IP. § A UDP datagram • is encapsulated inside an IP packet • includes a short header indicating the source and destination port numbers, a length field and a checksum GMU – CS 571 6. 37

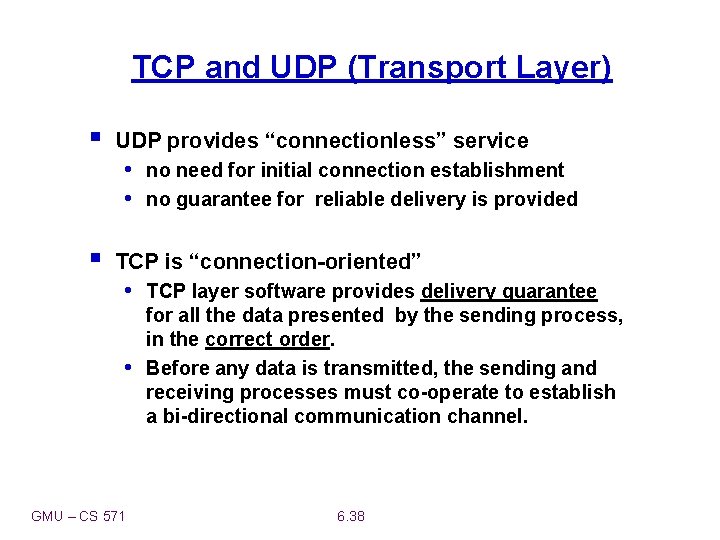

TCP and UDP (Transport Layer) § UDP provides “connectionless” service • no need for initial connection establishment • no guarantee for reliable delivery is provided § TCP is “connection-oriented” • TCP layer software provides delivery guarantee • GMU – CS 571 for all the data presented by the sending process, in the correct order. Before any data is transmitted, the sending and receiving processes must co-operate to establish a bi-directional communication channel. 6. 38

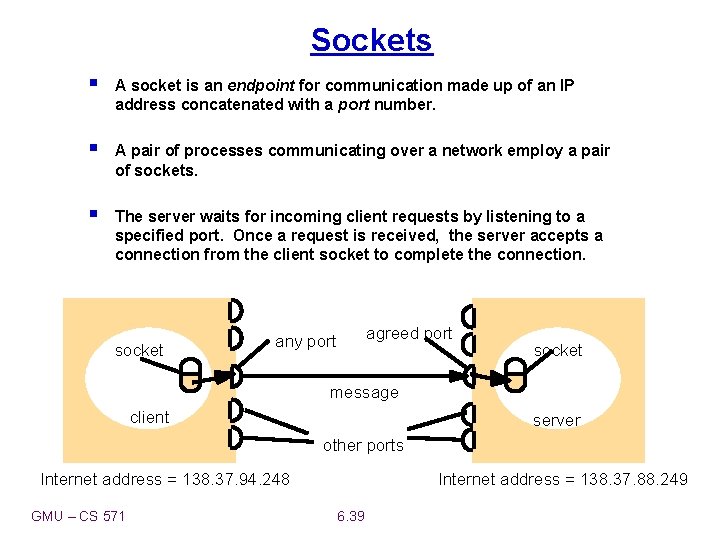

Sockets § A socket is an endpoint for communication made up of an IP address concatenated with a port number. § A pair of processes communicating over a network employ a pair of sockets. § The server waits for incoming client requests by listening to a specified port. Once a request is received, the server accepts a connection from the client socket to complete the connection. socket agreed port any port socket message client server other ports Internet address = 138. 37. 94. 248 GMU – CS 571 Internet address = 138. 37. 88. 249 6. 39

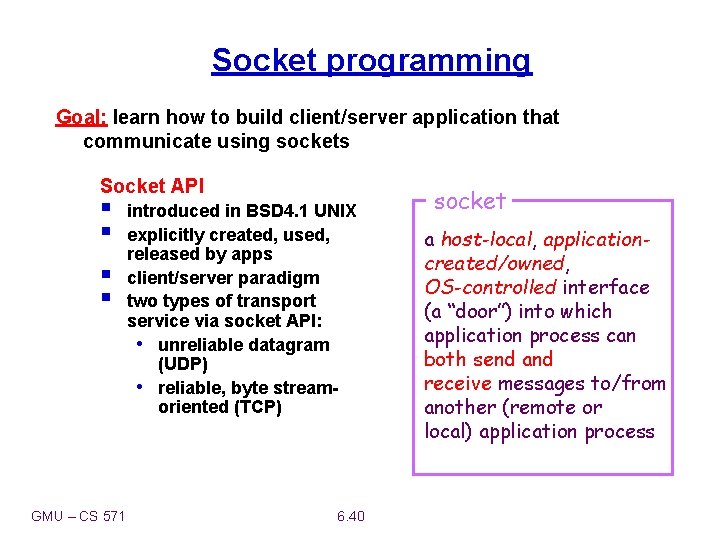

Socket programming Goal: learn how to build client/server application that communicate using sockets Socket API § § GMU – CS 571 introduced in BSD 4. 1 UNIX explicitly created, used, released by apps client/server paradigm two types of transport service via socket API: • unreliable datagram (UDP) • reliable, byte streamoriented (TCP) 6. 40 socket a host-local, applicationcreated/owned, OS-controlled interface (a “door”) into which application process can both send and receive messages to/from another (remote or local) application process

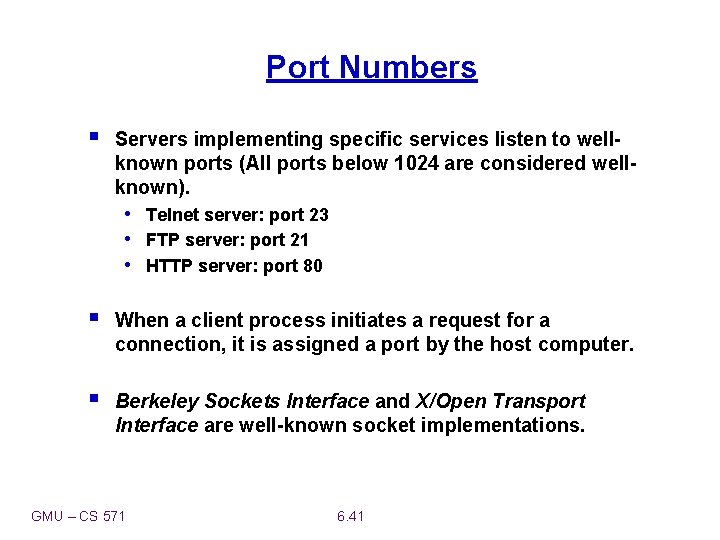

Port Numbers § Servers implementing specific services listen to wellknown ports (All ports below 1024 are considered wellknown). • Telnet server: port 23 • FTP server: port 21 • HTTP server: port 80 § When a client process initiates a request for a connection, it is assigned a port by the host computer. § Berkeley Sockets Interface and X/Open Transport Interface are well-known socket implementations. GMU – CS 571 6. 41

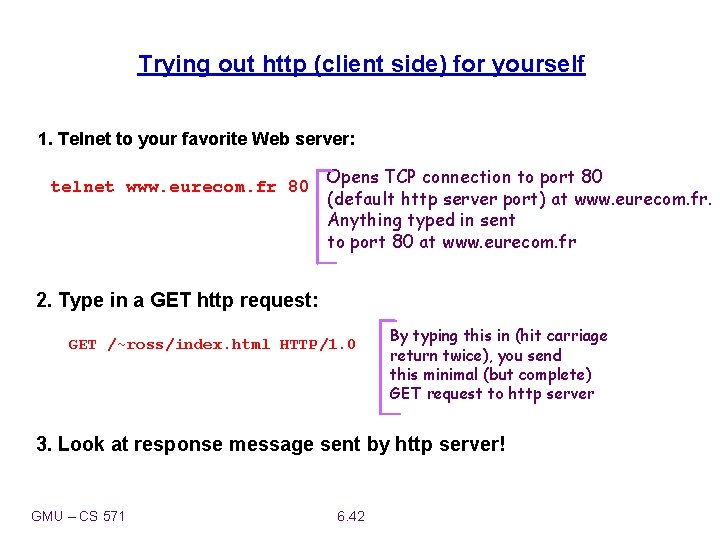

Trying out http (client side) for yourself 1. Telnet to your favorite Web server: telnet www. eurecom. fr 80 Opens TCP connection to port 80 (default http server port) at www. eurecom. fr. Anything typed in sent to port 80 at www. eurecom. fr 2. Type in a GET http request: GET /~ross/index. html HTTP/1. 0 By typing this in (hit carriage return twice), you send this minimal (but complete) GET request to http server 3. Look at response message sent by http server! GMU – CS 571 6. 42

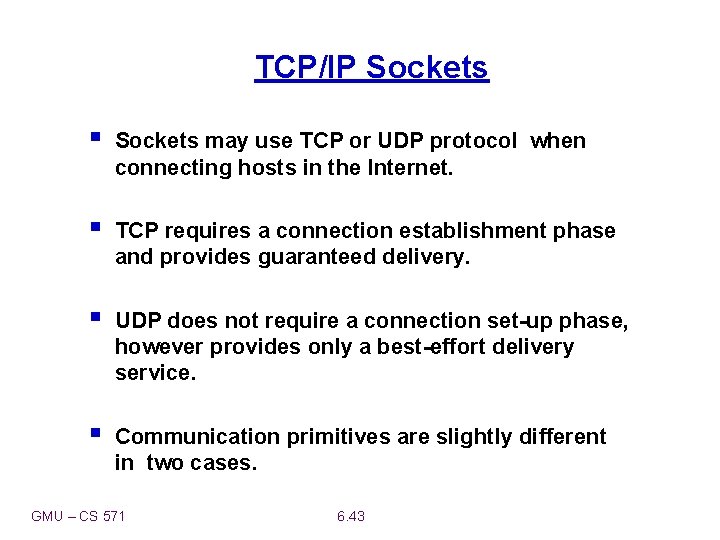

TCP/IP Sockets § Sockets may use TCP or UDP protocol when connecting hosts in the Internet. § TCP requires a connection establishment phase and provides guaranteed delivery. § UDP does not require a connection set-up phase, however provides only a best-effort delivery service. § Communication primitives are slightly different in two cases. GMU – CS 571 6. 43

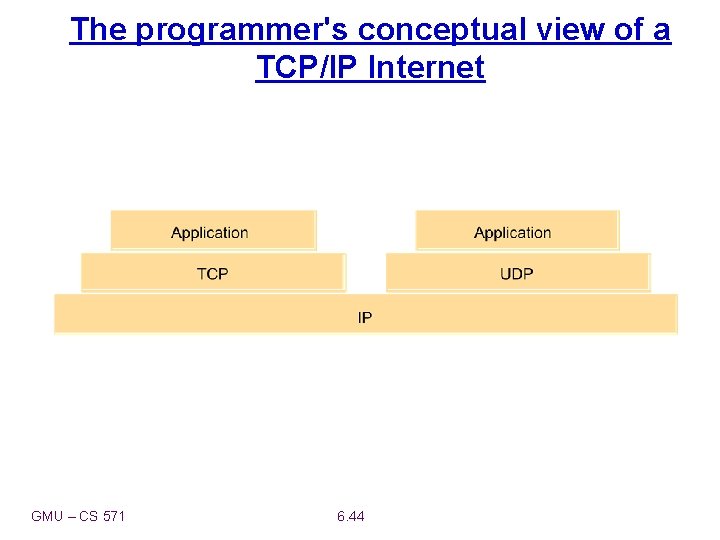

The programmer's conceptual view of a TCP/IP Internet GMU – CS 571 6. 44

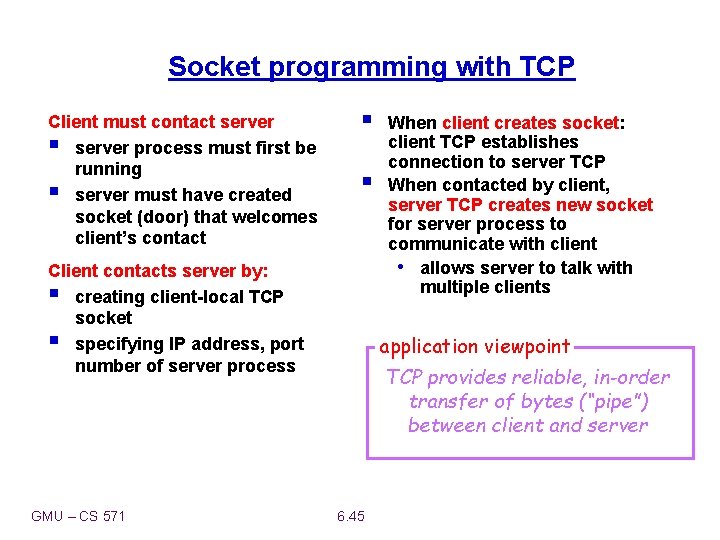

Socket programming with TCP Client must contact server § server process must first be running § server must have created socket (door) that welcomes client’s contact § § Client contacts server by: § creating client-local TCP socket § specifying IP address, port number of server process GMU – CS 571 When client creates socket: client TCP establishes connection to server TCP When contacted by client, server TCP creates new socket for server process to communicate with client • allows server to talk with multiple clients application viewpoint TCP provides reliable, in-order transfer of bytes (“pipe”) between client and server 6. 45

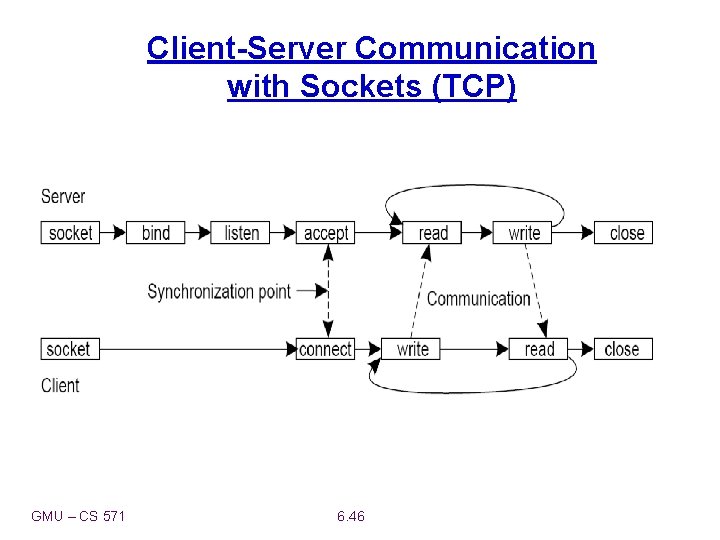

Client-Server Communication with Sockets (TCP) GMU – CS 571 6. 46

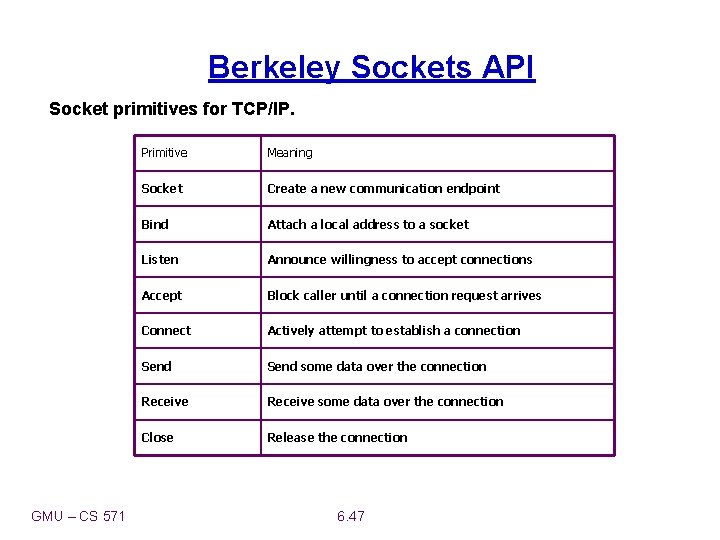

Berkeley Sockets API Socket primitives for TCP/IP. GMU – CS 571 Primitive Meaning Socket Create a new communication endpoint Bind Attach a local address to a socket Listen Announce willingness to accept connections Accept Block caller until a connection request arrives Connect Actively attempt to establish a connection Send some data over the connection Receive some data over the connection Close Release the connection 6. 47

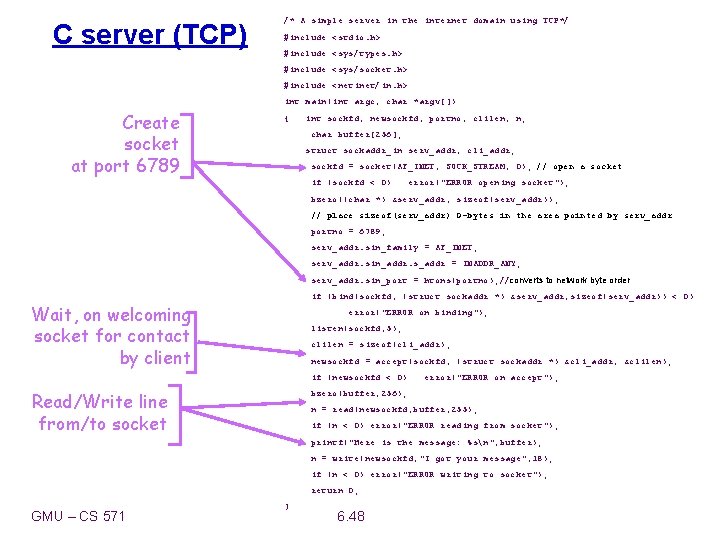

C server (TCP) /* A simple server in the internet domain using TCP*/ #include <stdio. h> #include <sys/types. h> #include <sys/socket. h> #include <netinet/in. h> int main(int argc, char *argv[]) Create socket at port 6789 { int sockfd, newsockfd, portno, clilen, n; char buffer[256]; struct sockaddr_in serv_addr, cli_addr; sockfd = socket(AF_INET, SOCK_STREAM, 0); // open a socket if (sockfd < 0) error("ERROR opening socket"); bzero((char *) &serv_addr, sizeof(serv_addr)); // place sizeof(serv_addr) 0 -bytes in the area pointed by serv_addr portno = 6789; serv_addr. sin_family = AF_INET; serv_addr. sin_addr. s_addr = INADDR_ANY; serv_addr. sin_port = htons(portno); //converts to network byte order if (bind(sockfd, (struct sockaddr *) &serv_addr, sizeof(serv_addr)) < 0) Wait, on welcoming socket for contact by client error("ERROR on binding"); listen(sockfd, 5); clilen = sizeof(cli_addr); newsockfd = accept(sockfd, (struct sockaddr *) &cli_addr, &clilen); if (newsockfd < 0) Read/Write line from/to socket error("ERROR on accept"); bzero(buffer, 256); n = read(newsockfd, buffer, 255); if (n < 0) error("ERROR reading from socket"); printf("Here is the message: %sn", buffer); n = write(newsockfd, "I got your message", 18); if (n < 0) error("ERROR writing to socket"); return 0; GMU – CS 571 } 6. 48

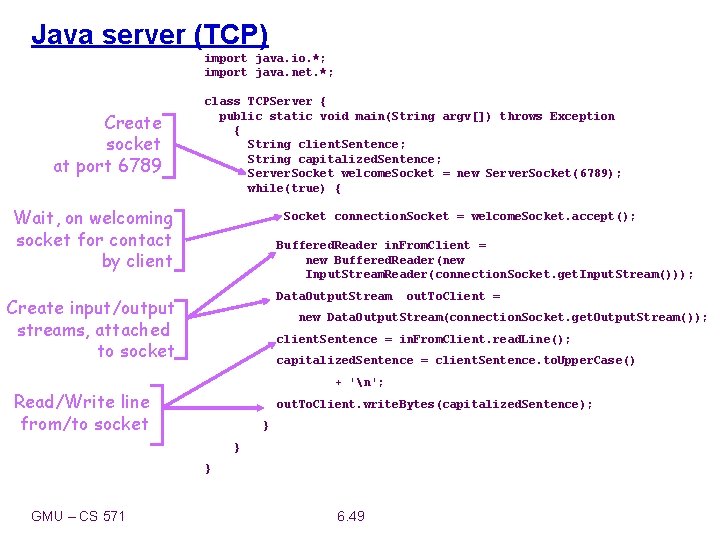

Java server (TCP) import java. io. *; import java. net. *; Create socket at port 6789 class TCPServer { public static void main(String argv[]) throws Exception { String client. Sentence; String capitalized. Sentence; Server. Socket welcome. Socket = new Server. Socket(6789); while(true) { Wait, on welcoming socket for contact by client Socket connection. Socket = welcome. Socket. accept(); Buffered. Reader in. From. Client = new Buffered. Reader(new Input. Stream. Reader(connection. Socket. get. Input. Stream())); Data. Output. Stream Create input/output streams, attached to socket new Data. Output. Stream(connection. Socket. get. Output. Stream()); client. Sentence = in. From. Client. read. Line(); capitalized. Sentence = client. Sentence. to. Upper. Case() + 'n'; Read/Write line from/to socket out. To. Client. write. Bytes(capitalized. Sentence); } } } GMU – CS 571 out. To. Client = 6. 49

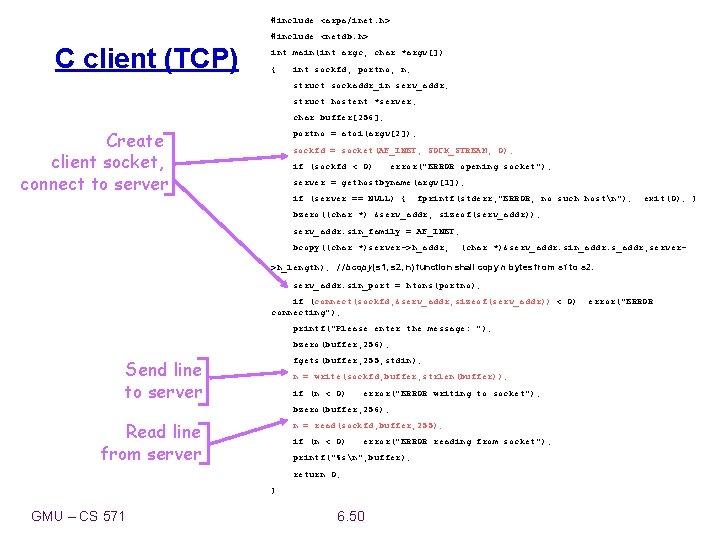

#include <arpa/inet. h> #include <netdb. h> C client (TCP) int main(int argc, char *argv[]) { int sockfd, portno, n; struct sockaddr_in serv_addr; struct hostent *server; char buffer[256]; Create client socket, connect to server portno = atoi(argv[2]); sockfd = socket(AF_INET, SOCK_STREAM, 0); if (sockfd < 0) error("ERROR opening socket"); server = gethostbyname(argv[1]); if (server == NULL) { fprintf(stderr, "ERROR, no such hostn"); exit(0); } bzero((char *) &serv_addr, sizeof(serv_addr)); serv_addr. sin_family = AF_INET; bcopy((char *)server->h_addr, (char *)&serv_addr. sin_addr. s_addr, server- >h_length); //bcopy(s 1, s 2, n) function shall copy n bytes from s 1 to s 2. serv_addr. sin_port = htons(portno); if (connect(sockfd, &serv_addr, sizeof(serv_addr)) < 0) connecting"); printf("Please enter the message: "); bzero(buffer, 256); fgets(buffer, 255, stdin); Send line to server n = write(sockfd, buffer, strlen(buffer)); if (n < 0) error("ERROR writing to socket"); bzero(buffer, 256); Read line from server n = read(sockfd, buffer, 255); if (n < 0) error("ERROR reading from socket"); printf("%sn", buffer); return 0; } GMU – CS 571 6. 50 error("ERROR

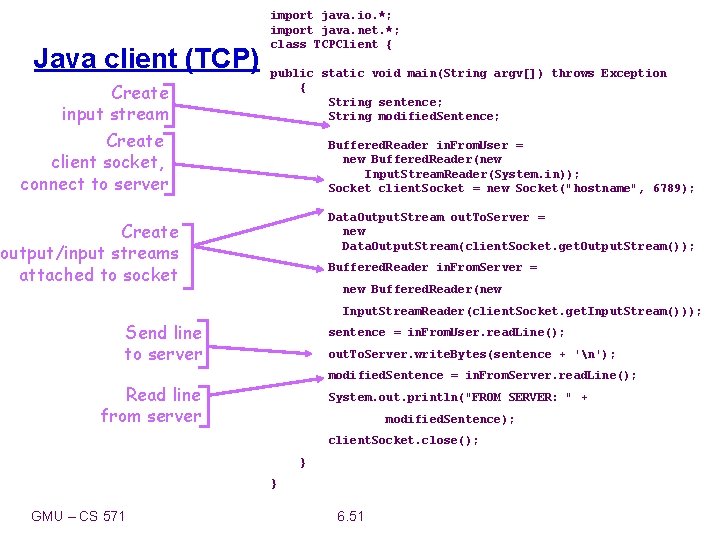

Java client (TCP) Create input stream Create client socket, connect to server import java. io. *; import java. net. *; class TCPClient { public static void main(String argv[]) throws Exception { String sentence; String modified. Sentence; Buffered. Reader in. From. User = new Buffered. Reader(new Input. Stream. Reader(System. in)); Socket client. Socket = new Socket("hostname", 6789); Data. Output. Stream out. To. Server = new Data. Output. Stream(client. Socket. get. Output. Stream()); Create output/input streams attached to socket Buffered. Reader in. From. Server = new Buffered. Reader(new Input. Stream. Reader(client. Socket. get. Input. Stream())); Send line to server sentence = in. From. User. read. Line(); out. To. Server. write. Bytes(sentence + 'n'); modified. Sentence = in. From. Server. read. Line(); Read line from server System. out. println("FROM SERVER: " + modified. Sentence); client. Socket. close(); } } GMU – CS 571 6. 51

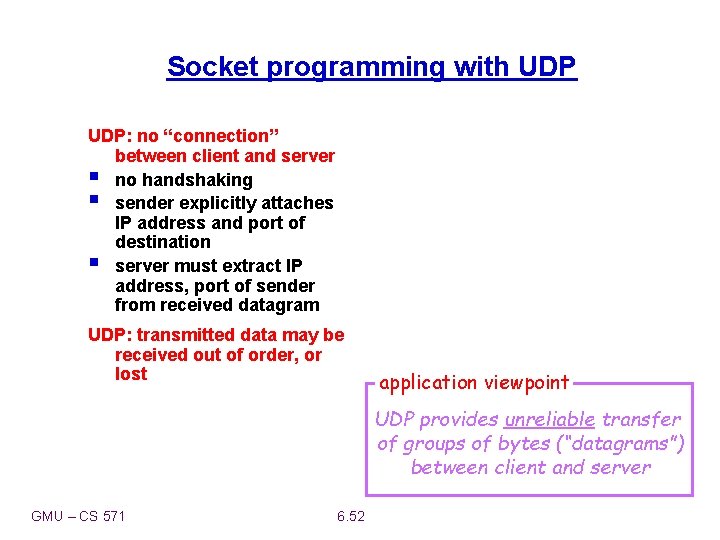

Socket programming with UDP: no “connection” between client and server § no handshaking § sender explicitly attaches IP address and port of destination § server must extract IP address, port of sender from received datagram UDP: transmitted data may be received out of order, or lost application viewpoint UDP provides unreliable transfer of groups of bytes (“datagrams”) between client and server GMU – CS 571 6. 52

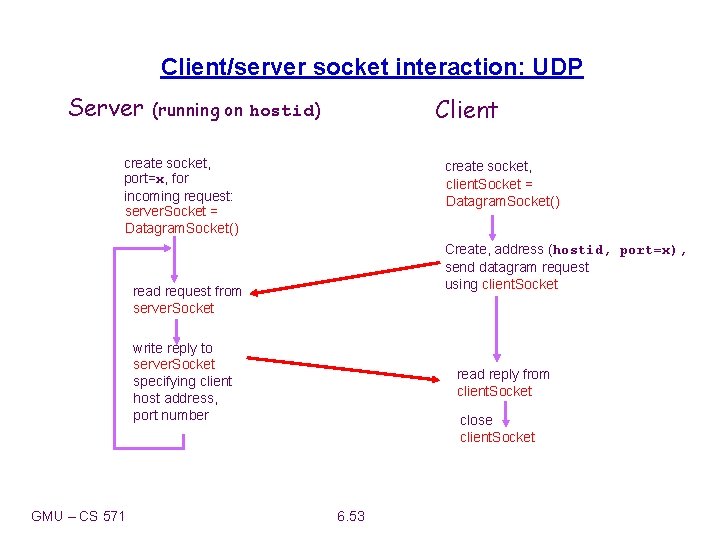

Client/server socket interaction: UDP Server Client (running on hostid) create socket, port=x, for incoming request: server. Socket = Datagram. Socket() create socket, client. Socket = Datagram. Socket() Create, address (hostid, port=x), send datagram request using client. Socket read request from server. Socket write reply to server. Socket specifying client host address, port number GMU – CS 571 read reply from client. Socket close client. Socket 6. 53

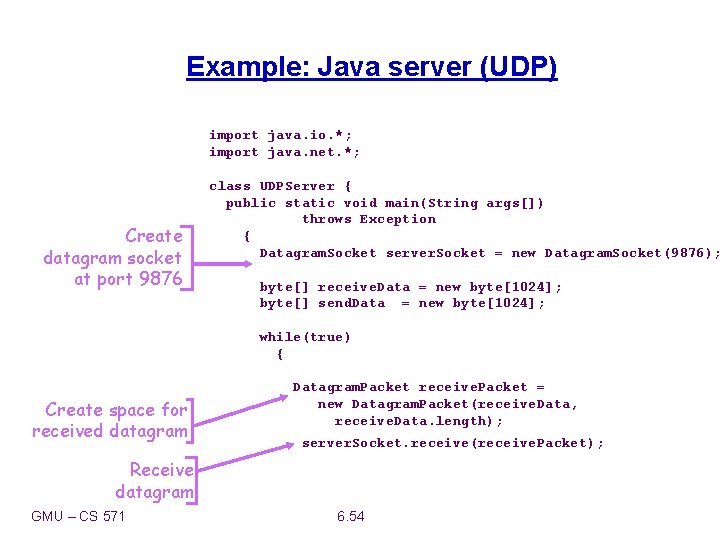

Example: Java server (UDP) import java. io. *; import java. net. *; Create datagram socket at port 9876 class UDPServer { public static void main(String args[]) throws Exception { Datagram. Socket server. Socket = new Datagram. Socket(9876); byte[] receive. Data = new byte[1024]; byte[] send. Data = new byte[1024]; while(true) { Create space for received datagram Datagram. Packet receive. Packet = new Datagram. Packet(receive. Data, receive. Data. length); server. Socket. receive(receive. Packet); Receive datagram GMU – CS 571 6. 54

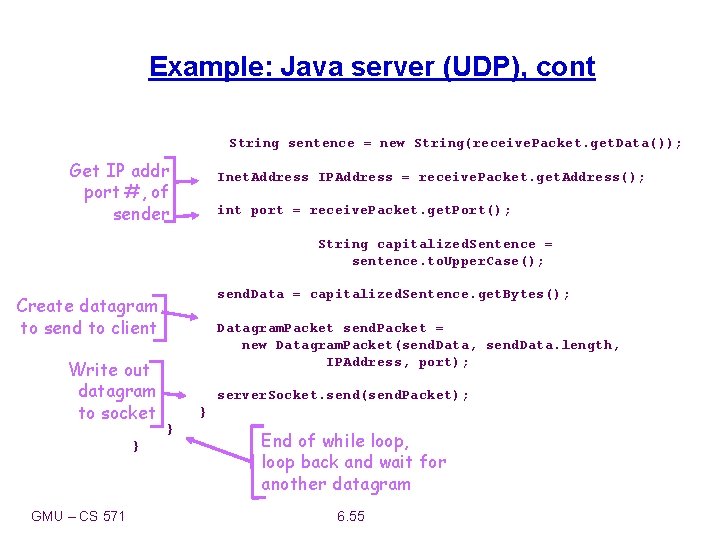

Example: Java server (UDP), cont String sentence = new String(receive. Packet. get. Data()); Get IP addr port #, of sender Inet. Address IPAddress = receive. Packet. get. Address(); int port = receive. Packet. get. Port(); String capitalized. Sentence = sentence. to. Upper. Case(); send. Data = capitalized. Sentence. get. Bytes(); Create datagram to send to client Write out datagram to socket } GMU – CS 571 Datagram. Packet send. Packet = new Datagram. Packet(send. Data, send. Data. length, IPAddress, port); server. Socket. send(send. Packet); } } End of while loop, loop back and wait for another datagram 6. 55

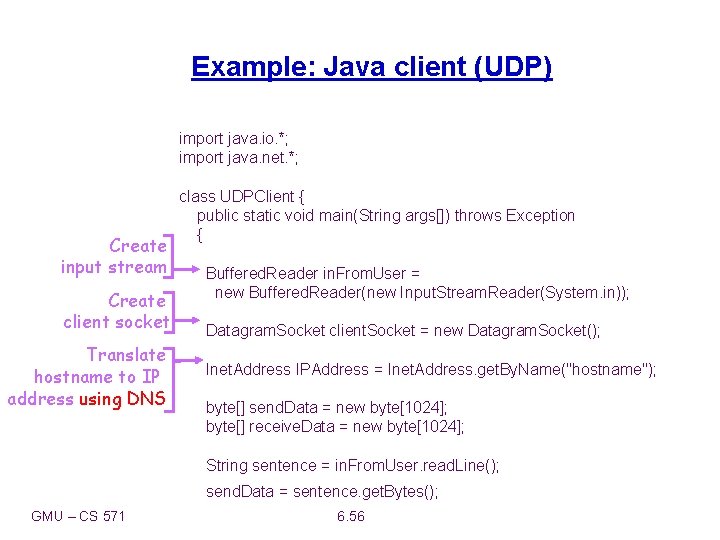

Example: Java client (UDP) import java. io. *; import java. net. *; Create input stream Create client socket Translate hostname to IP address using DNS class UDPClient { public static void main(String args[]) throws Exception { Buffered. Reader in. From. User = new Buffered. Reader(new Input. Stream. Reader(System. in)); Datagram. Socket client. Socket = new Datagram. Socket(); Inet. Address IPAddress = Inet. Address. get. By. Name("hostname"); byte[] send. Data = new byte[1024]; byte[] receive. Data = new byte[1024]; String sentence = in. From. User. read. Line(); send. Data = sentence. get. Bytes(); GMU – CS 571 6. 56

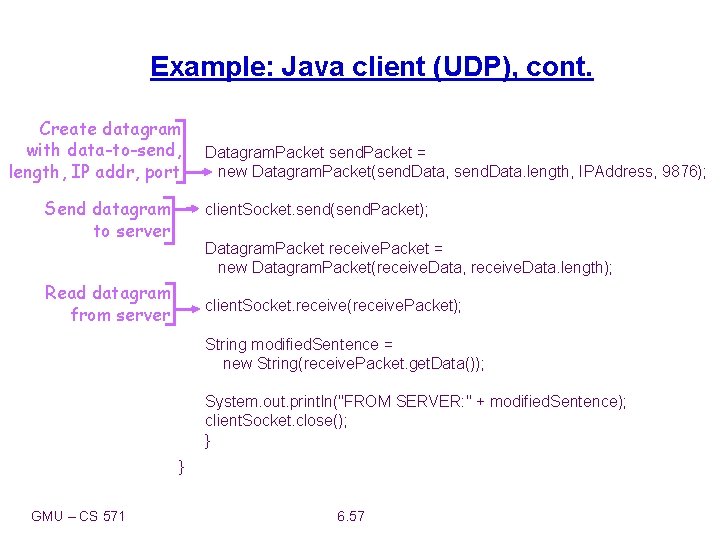

Example: Java client (UDP), cont. Create datagram with data-to-send, length, IP addr, port Send datagram to server Datagram. Packet send. Packet = new Datagram. Packet(send. Data, send. Data. length, IPAddress, 9876); client. Socket. send(send. Packet); Datagram. Packet receive. Packet = new Datagram. Packet(receive. Data, receive. Data. length); Read datagram from server client. Socket. receive(receive. Packet); String modified. Sentence = new String(receive. Packet. get. Data()); System. out. println("FROM SERVER: " + modified. Sentence); client. Socket. close(); } } GMU – CS 571 6. 57

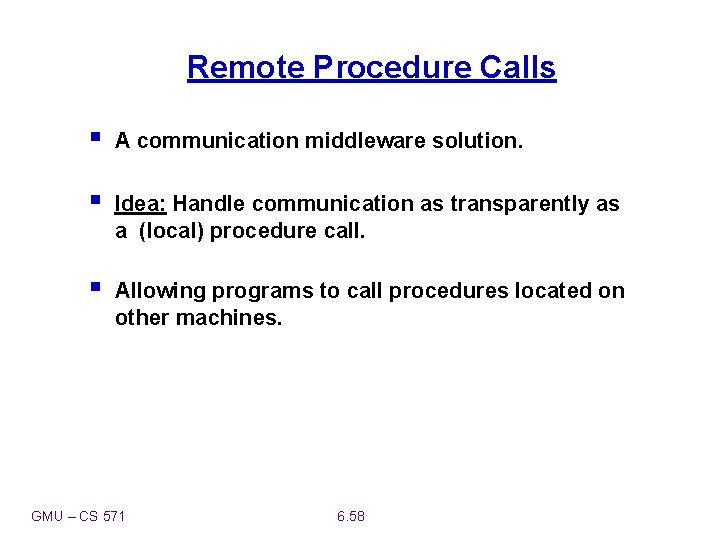

Remote Procedure Calls § A communication middleware solution. § Idea: Handle communication as transparently as a (local) procedure call. § Allowing programs to call procedures located on other machines. GMU – CS 571 6. 58

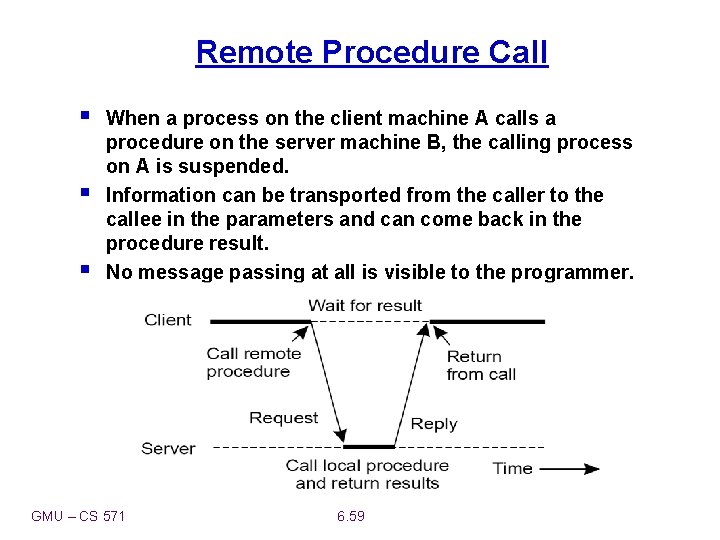

Remote Procedure Call § § § When a process on the client machine A calls a procedure on the server machine B, the calling process on A is suspended. Information can be transported from the caller to the callee in the parameters and can come back in the procedure result. No message passing at all is visible to the programmer. GMU – CS 571 6. 59

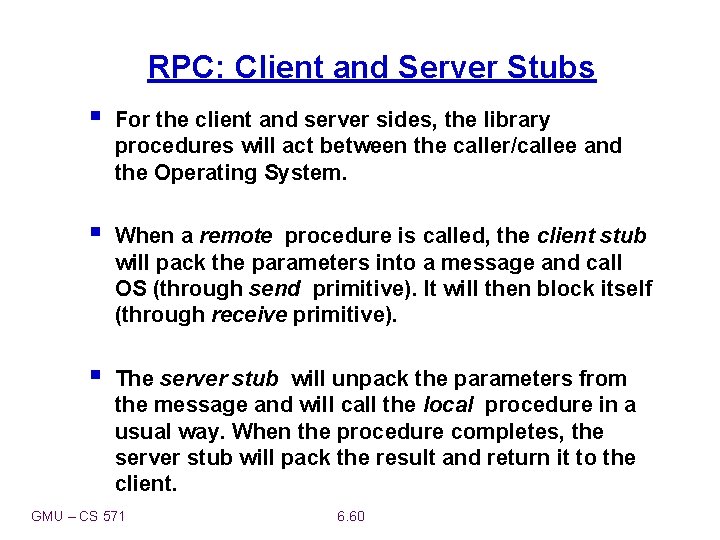

RPC: Client and Server Stubs § For the client and server sides, the library procedures will act between the caller/callee and the Operating System. § When a remote procedure is called, the client stub will pack the parameters into a message and call OS (through send primitive). It will then block itself (through receive primitive). § The server stub will unpack the parameters from the message and will call the local procedure in a usual way. When the procedure completes, the server stub will pack the result and return it to the client. GMU – CS 571 6. 60

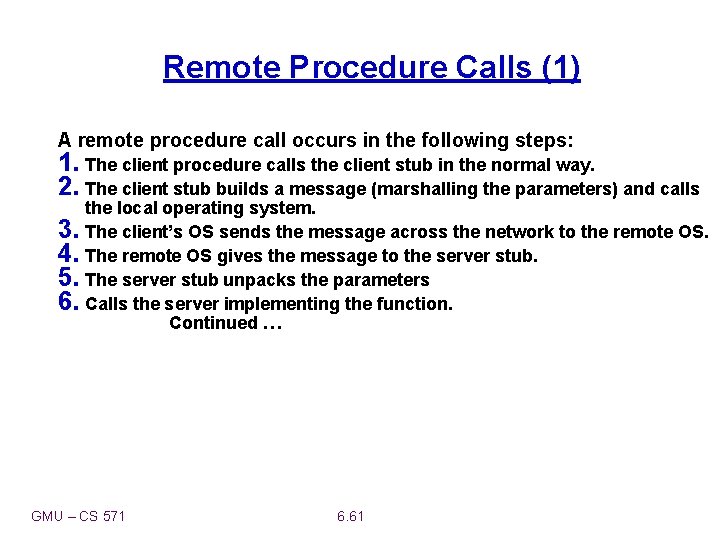

Remote Procedure Calls (1) A remote procedure call occurs in the following steps: 1. The client procedure calls the client stub in the normal way. 2. The client stub builds a message (marshalling the parameters) and calls 3. 4. 5. 6. the local operating system. The client’s OS sends the message across the network to the remote OS. The remote OS gives the message to the server stub. The server stub unpacks the parameters Calls the server implementing the function. Continued … GMU – CS 571 6. 61

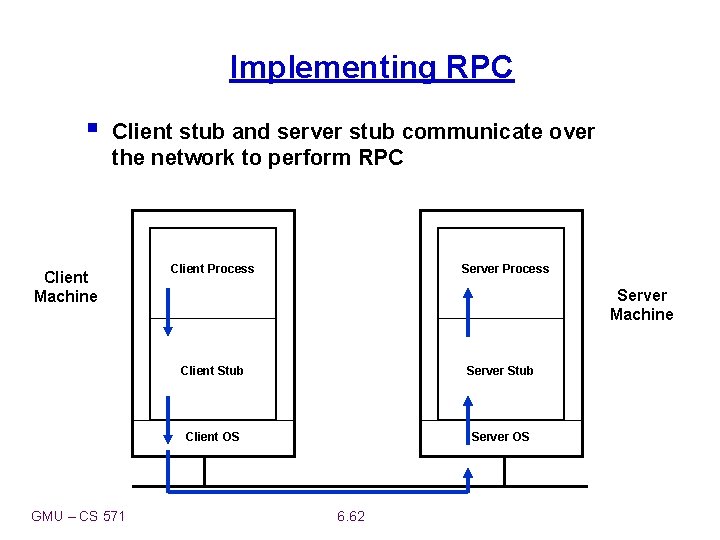

Implementing RPC § Client stub and server stub communicate over the network to perform RPC Client Machine GMU – CS 571 Client Process Server Machine Client Stub Server Stub Client OS Server OS 6. 62

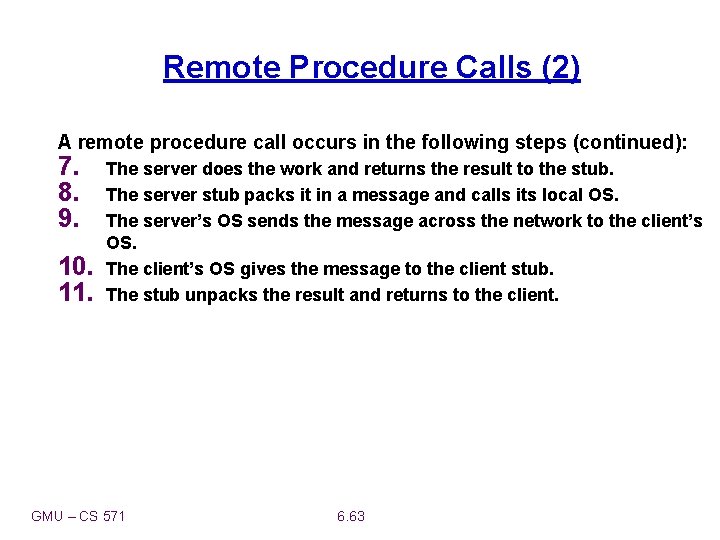

Remote Procedure Calls (2) A remote procedure call occurs in the following steps (continued): 7. 8. 9. 10. 11. The server does the work and returns the result to the stub. The server stub packs it in a message and calls its local OS. The server’s OS sends the message across the network to the client’s OS. The client’s OS gives the message to the client stub. The stub unpacks the result and returns to the client. GMU – CS 571 6. 63

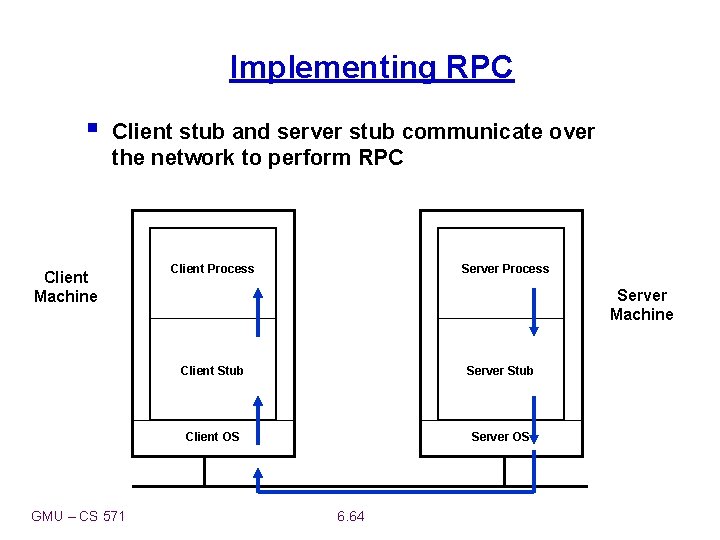

Implementing RPC § Client stub and server stub communicate over the network to perform RPC Client Machine GMU – CS 571 Client Process Server Machine Client Stub Server Stub Client OS Server OS 6. 64

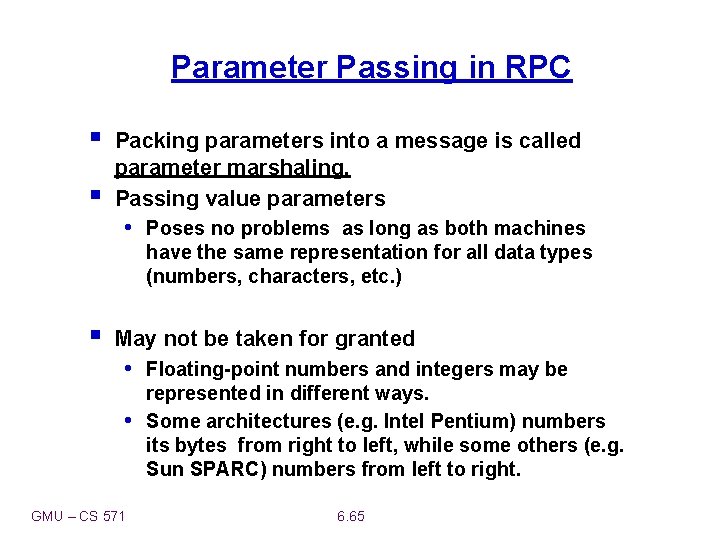

Parameter Passing in RPC § § Packing parameters into a message is called parameter marshaling. Passing value parameters • Poses no problems as long as both machines have the same representation for all data types (numbers, characters, etc. ) § May not be taken for granted • Floating-point numbers and integers may be • GMU – CS 571 represented in different ways. Some architectures (e. g. Intel Pentium) numbers its bytes from right to left, while some others (e. g. Sun SPARC) numbers from left to right. 6. 65

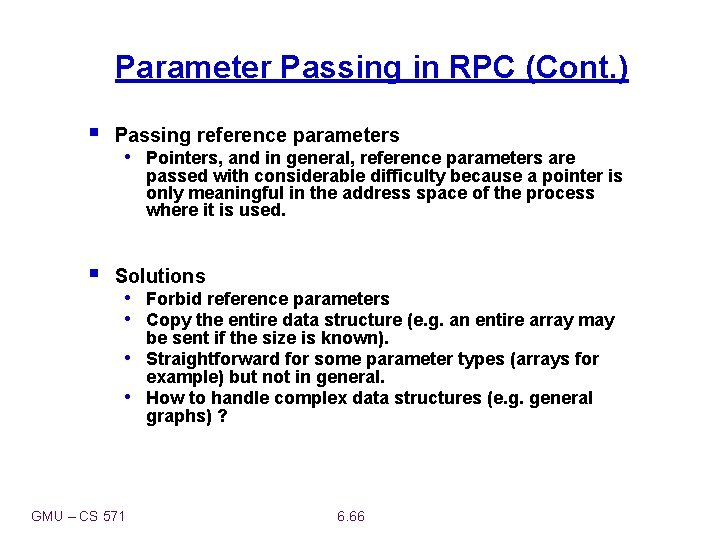

Parameter Passing in RPC (Cont. ) § Passing reference parameters • Pointers, and in general, reference parameters are passed with considerable difficulty because a pointer is only meaningful in the address space of the process where it is used. § Solutions • Forbid reference parameters • Copy the entire data structure (e. g. an entire array may • • GMU – CS 571 be sent if the size is known). Straightforward for some parameter types (arrays for example) but not in general. How to handle complex data structures (e. g. general graphs) ? 6. 66

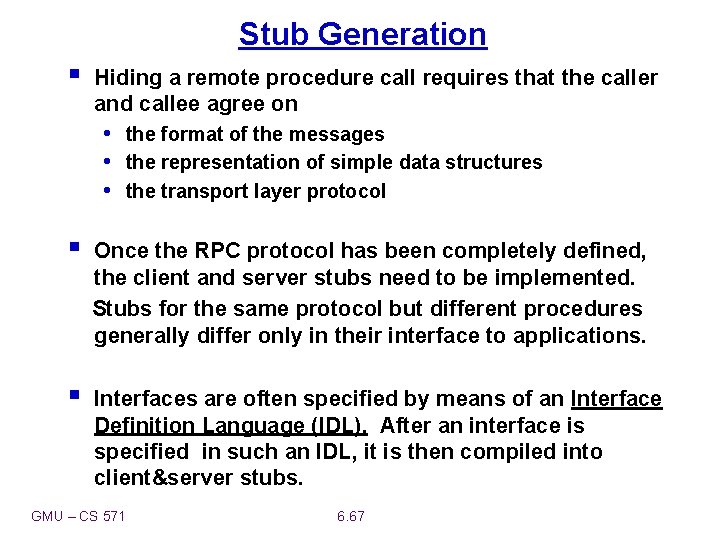

Stub Generation § Hiding a remote procedure call requires that the caller and callee agree on • the format of the messages • the representation of simple data structures • the transport layer protocol § Once the RPC protocol has been completely defined, the client and server stubs need to be implemented. Stubs for the same protocol but different procedures generally differ only in their interface to applications. § Interfaces are often specified by means of an Interface Definition Language (IDL). After an interface is specified in such an IDL, it is then compiled into client&server stubs. GMU – CS 571 6. 67

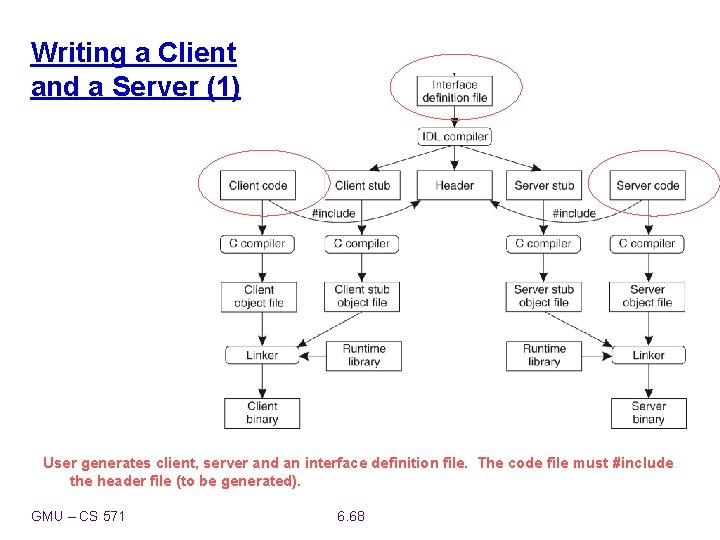

Writing a Client and a Server (1) User generates client, server and an interface definition file. The code file must #include the header file (to be generated). GMU – CS 571 6. 68

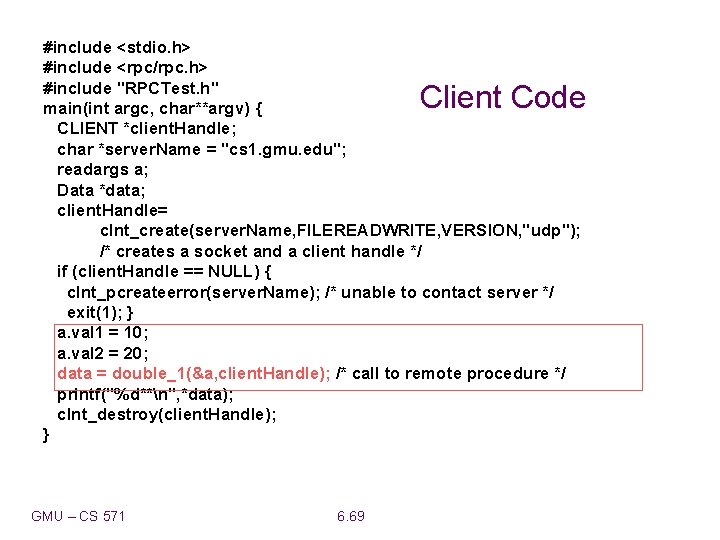

#include <stdio. h> #include <rpc/rpc. h> #include "RPCTest. h" main(int argc, char**argv) { CLIENT *client. Handle; char *server. Name = "cs 1. gmu. edu"; readargs a; Data *data; client. Handle= clnt_create(server. Name, FILEREADWRITE, VERSION, "udp"); /* creates a socket and a client handle */ if (client. Handle == NULL) { clnt_pcreateerror(server. Name); /* unable to contact server */ exit(1); } a. val 1 = 10; a. val 2 = 20; data = double_1(&a, client. Handle); /* call to remote procedure */ printf("%d**n", *data); clnt_destroy(client. Handle); } Client Code GMU – CS 571 6. 69

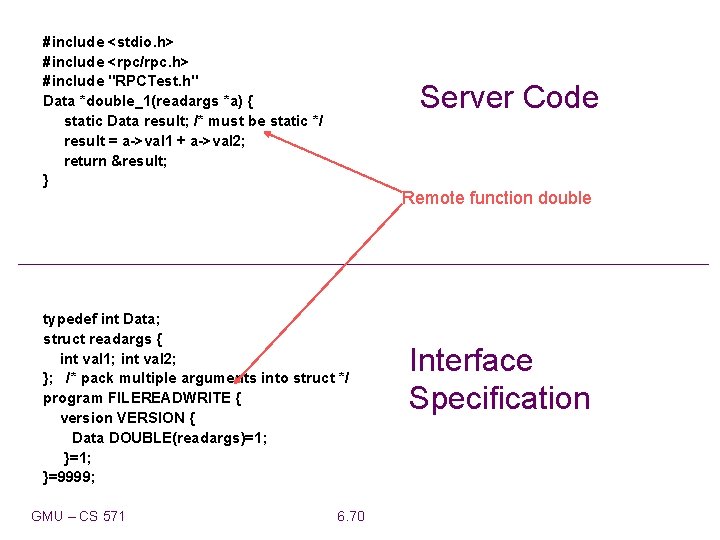

#include <stdio. h> #include <rpc/rpc. h> #include "RPCTest. h" Data *double_1(readargs *a) { static Data result; /* must be static */ result = a->val 1 + a->val 2; return &result; } Server Code Remote function double typedef int Data; struct readargs { int val 1; int val 2; }; /* pack multiple arguments into struct */ program FILEREADWRITE { version VERSION { Data DOUBLE(readargs)=1; }=9999; GMU – CS 571 6. 70 Interface Specification

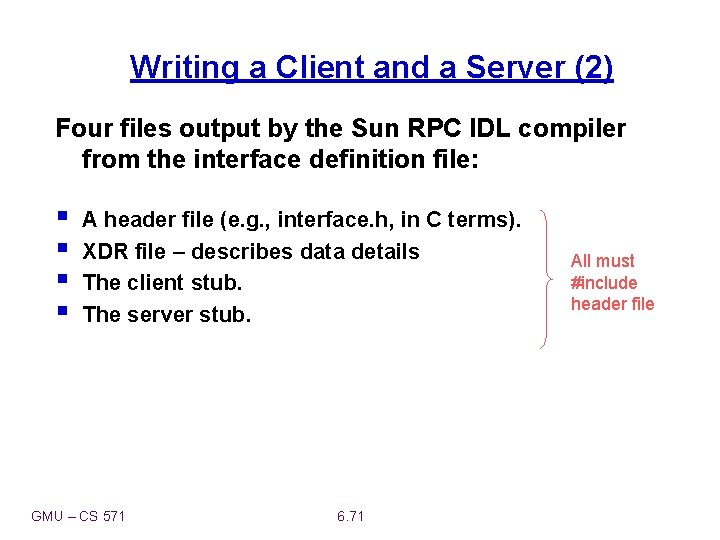

Writing a Client and a Server (2) Four files output by the Sun RPC IDL compiler from the interface definition file: § § A header file (e. g. , interface. h, in C terms). XDR file – describes data details The client stub. The server stub. GMU – CS 571 6. 71 All must #include header file

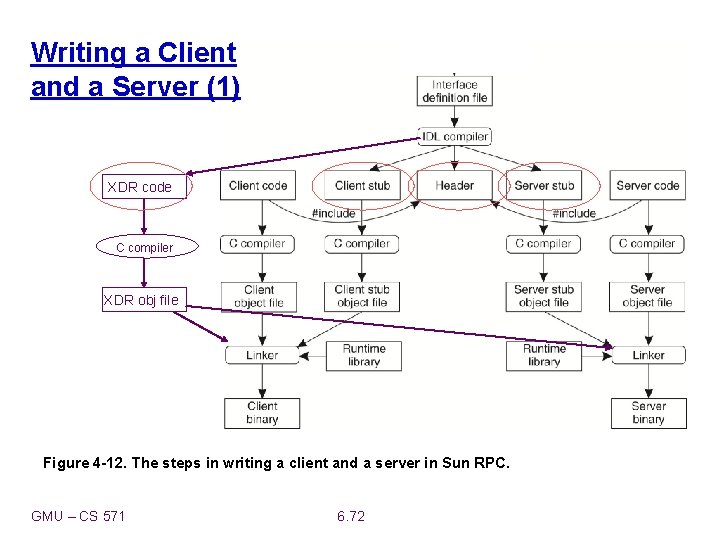

Writing a Client and a Server (1) XDR code C compiler XDR obj file Figure 4 -12. The steps in writing a client and a server in Sun RPC. GMU – CS 571 6. 72

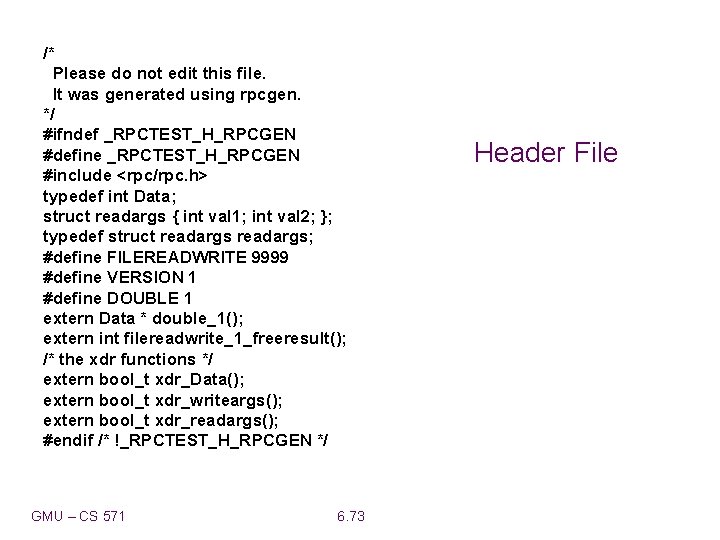

/* Please do not edit this file. It was generated using rpcgen. */ #ifndef _RPCTEST_H_RPCGEN #define _RPCTEST_H_RPCGEN #include <rpc/rpc. h> typedef int Data; struct readargs { int val 1; int val 2; }; typedef struct readargs; #define FILEREADWRITE 9999 #define VERSION 1 #define DOUBLE 1 extern Data * double_1(); extern int filereadwrite_1_freeresult(); /* the xdr functions */ extern bool_t xdr_Data(); extern bool_t xdr_writeargs(); extern bool_t xdr_readargs(); #endif /* !_RPCTEST_H_RPCGEN */ GMU – CS 571 6. 73 Header File

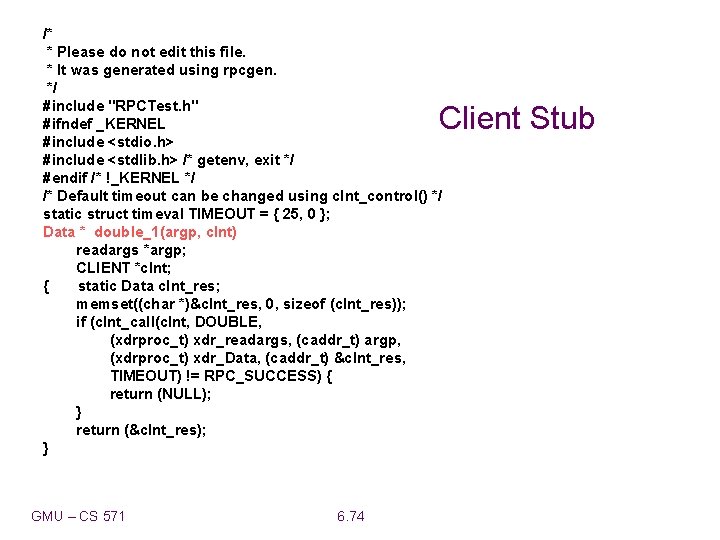

/* * Please do not edit this file. * It was generated using rpcgen. */ #include "RPCTest. h" #ifndef _KERNEL #include <stdio. h> #include <stdlib. h> /* getenv, exit */ #endif /* !_KERNEL */ /* Default timeout can be changed using clnt_control() */ static struct timeval TIMEOUT = { 25, 0 }; Data * double_1(argp, clnt) readargs *argp; CLIENT *clnt; { static Data clnt_res; memset((char *)&clnt_res, 0, sizeof (clnt_res)); if (clnt_call(clnt, DOUBLE, (xdrproc_t) xdr_readargs, (caddr_t) argp, (xdrproc_t) xdr_Data, (caddr_t) &clnt_res, TIMEOUT) != RPC_SUCCESS) { return (NULL); } return (&clnt_res); } Client Stub GMU – CS 571 6. 74

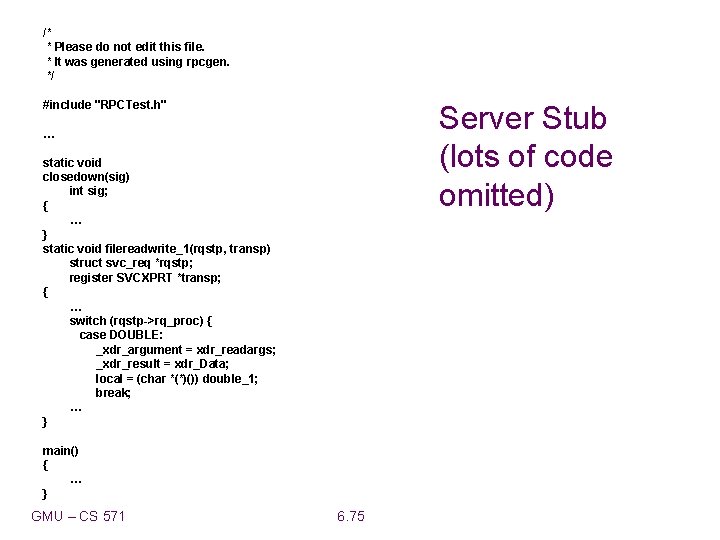

/* * Please do not edit this file. * It was generated using rpcgen. */ #include "RPCTest. h" Server Stub (lots of code omitted) … static void closedown(sig) int sig; { … } static void filereadwrite_1(rqstp, transp) struct svc_req *rqstp; register SVCXPRT *transp; { … switch (rqstp->rq_proc) { case DOUBLE: _xdr_argument = xdr_readargs; _xdr_result = xdr_Data; local = (char *(*)()) double_1; break; … } main() { … } GMU – CS 571 6. 75

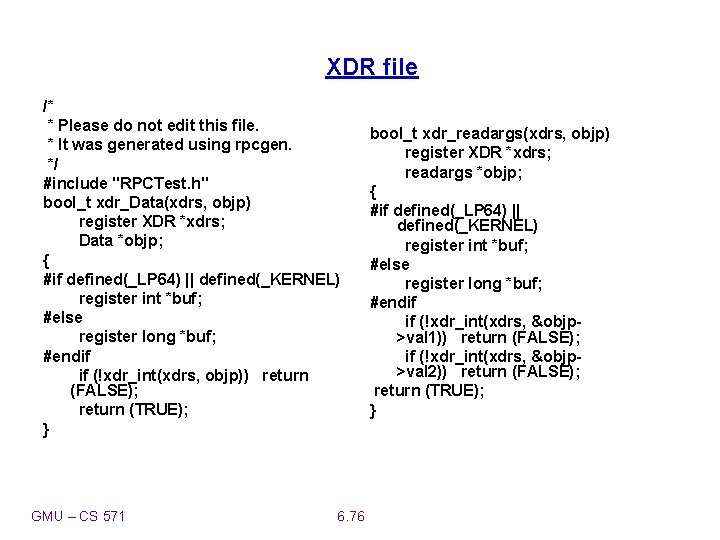

XDR file /* * Please do not edit this file. * It was generated using rpcgen. */ #include "RPCTest. h" bool_t xdr_Data(xdrs, objp) register XDR *xdrs; Data *objp; { #if defined(_LP 64) || defined(_KERNEL) register int *buf; #else register long *buf; #endif if (!xdr_int(xdrs, objp)) return (FALSE); return (TRUE); } GMU – CS 571 6. 76 bool_t xdr_readargs(xdrs, objp) register XDR *xdrs; readargs *objp; { #if defined(_LP 64) || defined(_KERNEL) register int *buf; #else register long *buf; #endif if (!xdr_int(xdrs, &objp>val 1)) return (FALSE); if (!xdr_int(xdrs, &objp>val 2)) return (FALSE); return (TRUE); }

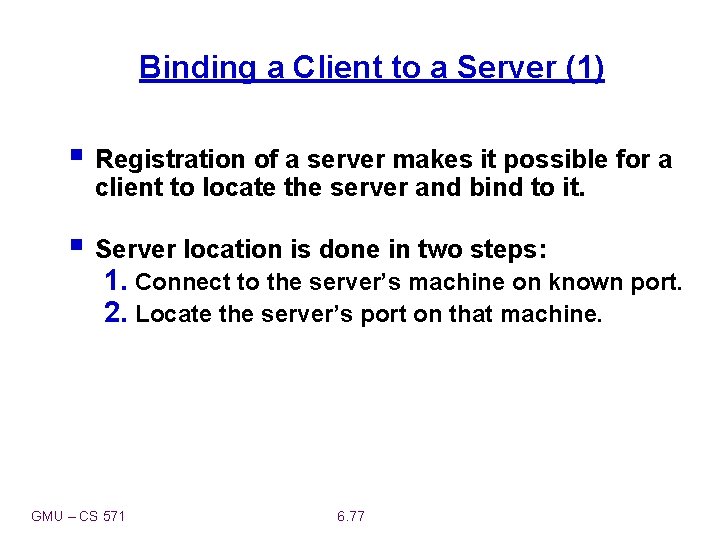

Binding a Client to a Server (1) § Registration of a server makes it possible for a client to locate the server and bind to it. § Server location is done in two steps: 1. Connect to the server’s machine on known port. 2. Locate the server’s port on that machine. GMU – CS 571 6. 77

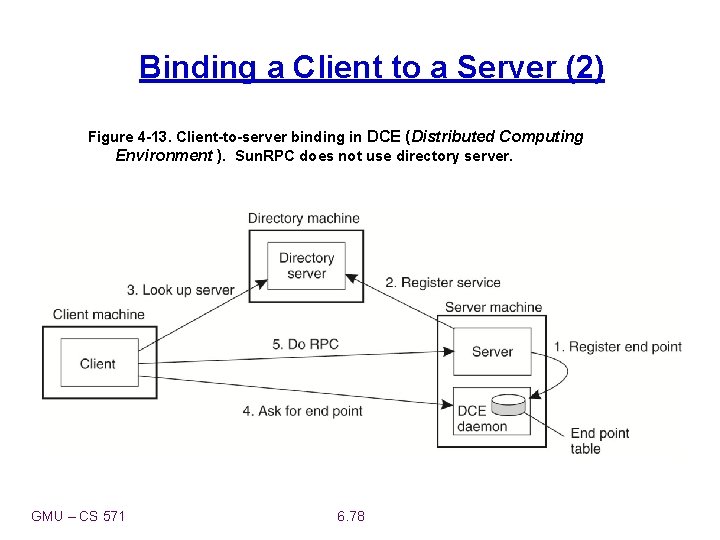

Binding a Client to a Server (2) Figure 4 -13. Client-to-server binding in DCE (Distributed Computing Environment ). Sun. RPC does not use directory server. GMU – CS 571 6. 78

Asynchronous RPC (1) The interaction between client and server in a traditional RPC. GMU – CS 571 6. 79

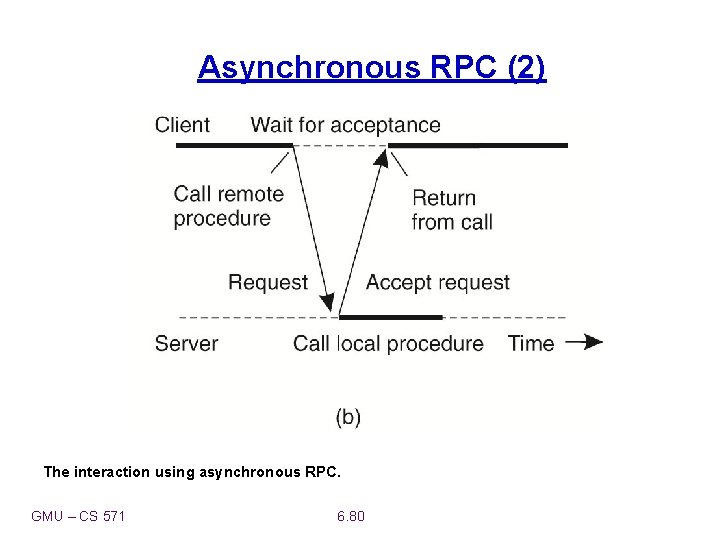

Asynchronous RPC (2) The interaction using asynchronous RPC. GMU – CS 571 6. 80

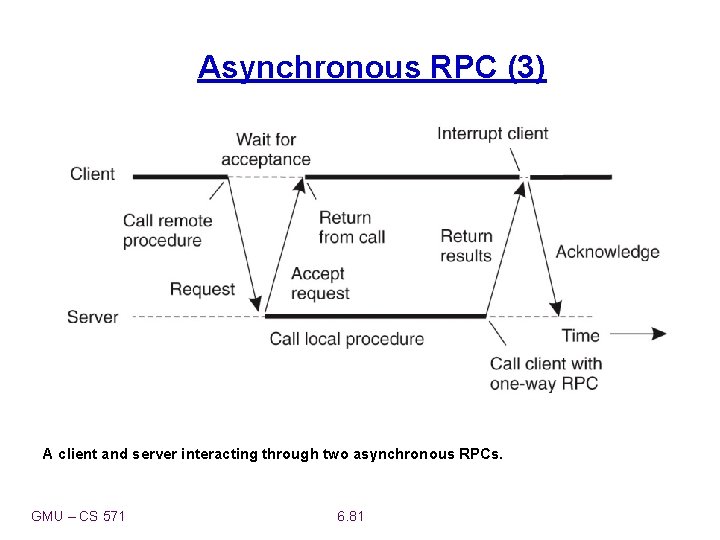

Asynchronous RPC (3) A client and server interacting through two asynchronous RPCs. GMU – CS 571 6. 81

Remote Method Invocation (RMI) § RMI is a Java feature similar to RPC: it allows a thread to invoke a method on a remote object. § The main differences with RPC • RPC supports procedural programming whereby • GMU – CS 571 only remote procedures or functions may be called. With RMI, it is possible to invoke methods on remote objects. In RMI, it is possible to pass objects as parameters to remote methods. 6. 82

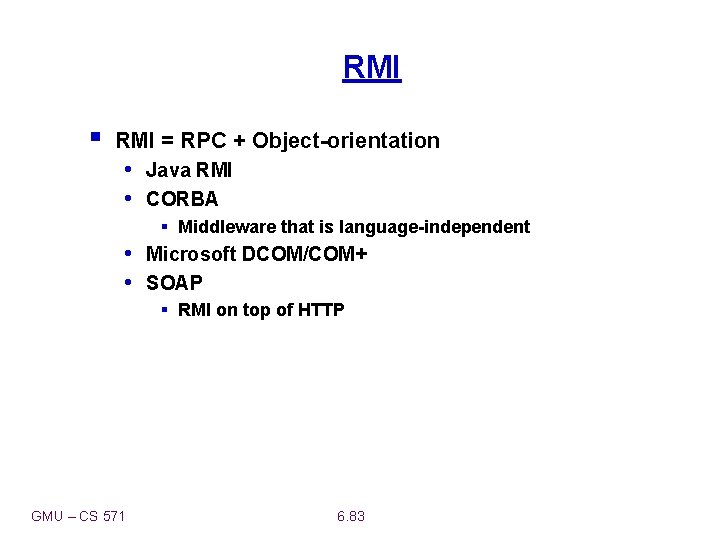

RMI § RMI = RPC + Object-orientation • Java RMI • CORBA § Middleware that is language-independent • Microsoft DCOM/COM+ • SOAP § RMI on top of HTTP GMU – CS 571 6. 83

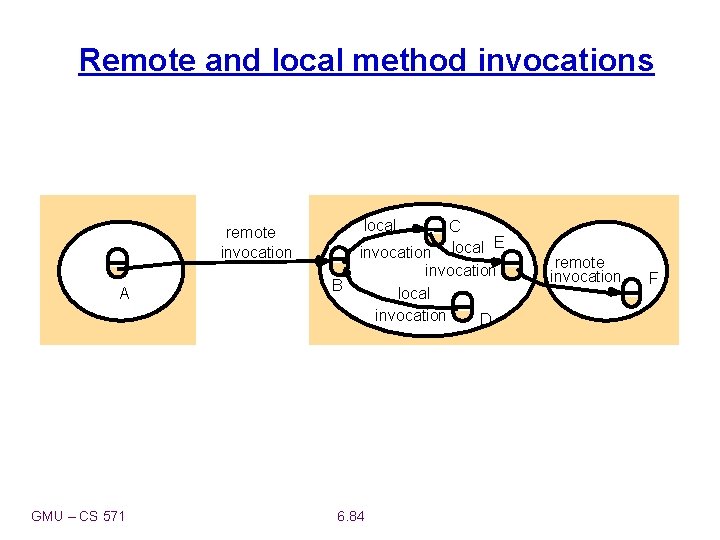

Remote and local method invocations local remote invocation A GMU – CS 571 B C E invocation local invocation D 6. 84 remote invocation F

Distributed Objects 2 -16 Common organization of a remote object with client-side proxy (loaded when the client binds to a remote object). GMU – CS 571 6. 85

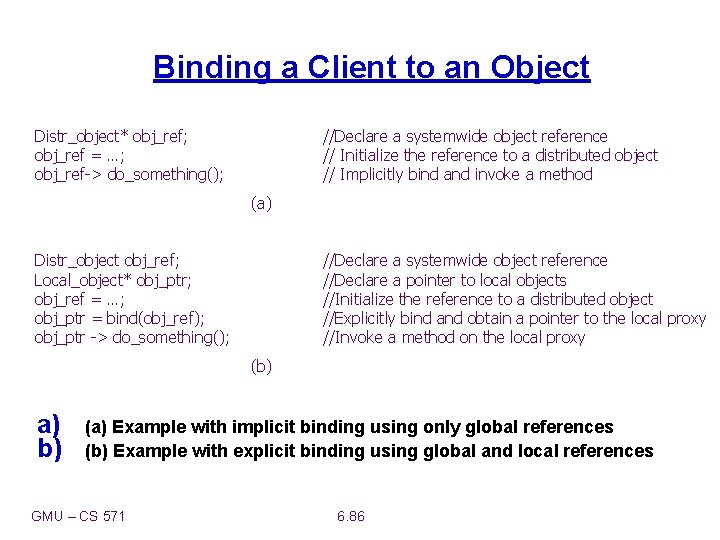

Binding a Client to an Object Distr_object* obj_ref; obj_ref = …; obj_ref-> do_something(); //Declare a systemwide object reference // Initialize the reference to a distributed object // Implicitly bind and invoke a method (a) Distr_object obj_ref; Local_object* obj_ptr; obj_ref = …; obj_ptr = bind(obj_ref); obj_ptr -> do_something(); //Declare a systemwide object reference //Declare a pointer to local objects //Initialize the reference to a distributed object //Explicitly bind and obtain a pointer to the local proxy //Invoke a method on the local proxy (b) a) b) (a) Example with implicit binding using only global references (b) Example with explicit binding using global and local references GMU – CS 571 6. 86

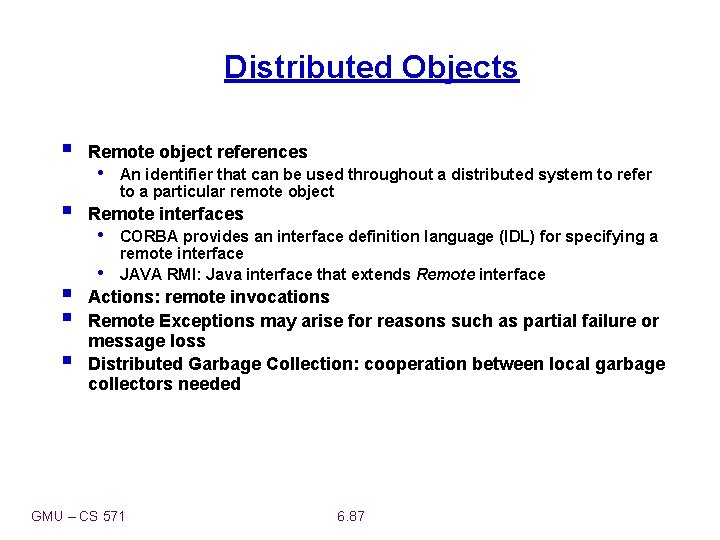

Distributed Objects § § § Remote object references • An identifier that can be used throughout a distributed system to refer to a particular remote object Remote interfaces • CORBA provides an interface definition language (IDL) for specifying a • remote interface JAVA RMI: Java interface that extends Remote interface Actions: remote invocations Remote Exceptions may arise for reasons such as partial failure or message loss Distributed Garbage Collection: cooperation between local garbage collectors needed GMU – CS 571 6. 87

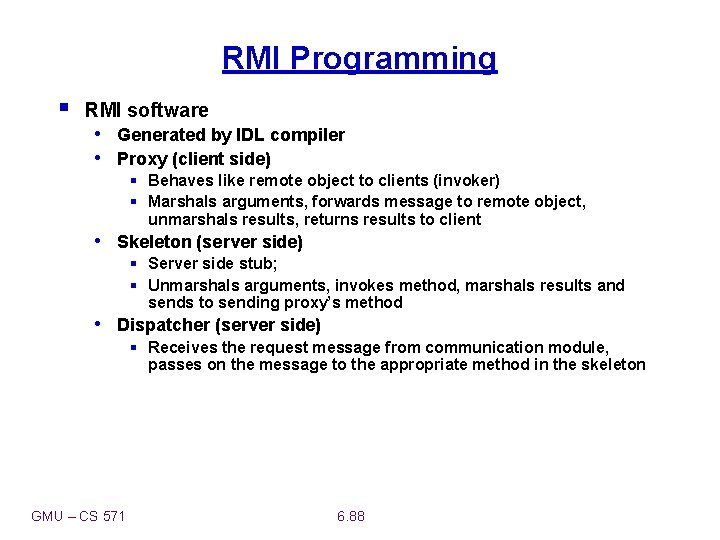

RMI Programming § RMI software • Generated by IDL compiler • Proxy (client side) § Behaves like remote object to clients (invoker) § Marshals arguments, forwards message to remote object, unmarshals results, returns results to client • Skeleton (server side) § Server side stub; § Unmarshals arguments, invokes method, marshals results and sends to sending proxy’s method • Dispatcher (server side) § Receives the request message from communication module, passes on the message to the appropriate method in the skeleton GMU – CS 571 6. 88

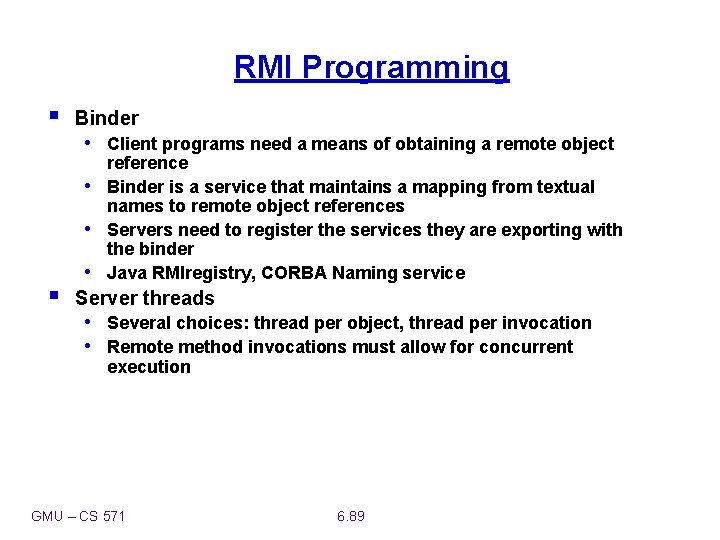

RMI Programming § Binder • Client programs need a means of obtaining a remote object • • § • reference Binder is a service that maintains a mapping from textual names to remote object references Servers need to register the services they are exporting with the binder Java RMIregistry, CORBA Naming service Server threads • Several choices: thread per object, thread per invocation • Remote method invocations must allow for concurrent execution GMU – CS 571 6. 89

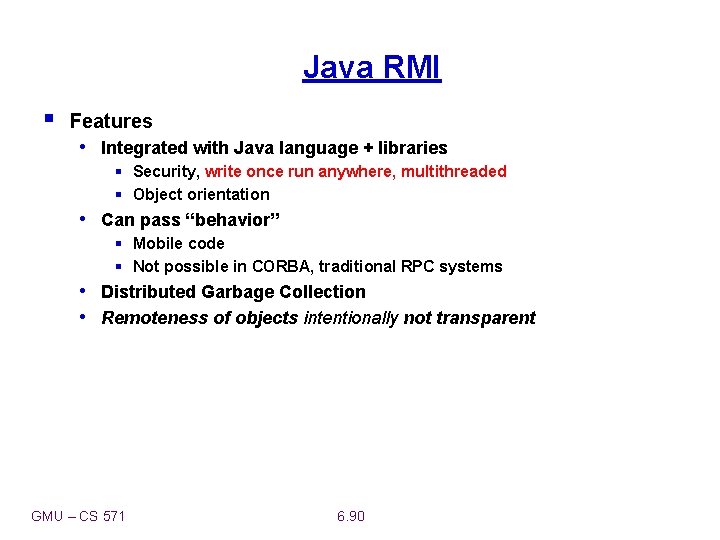

Java RMI § Features • Integrated with Java language + libraries § Security, write once run anywhere, multithreaded § Object orientation • Can pass “behavior” § Mobile code § Not possible in CORBA, traditional RPC systems • Distributed Garbage Collection • Remoteness of objects intentionally not transparent GMU – CS 571 6. 90

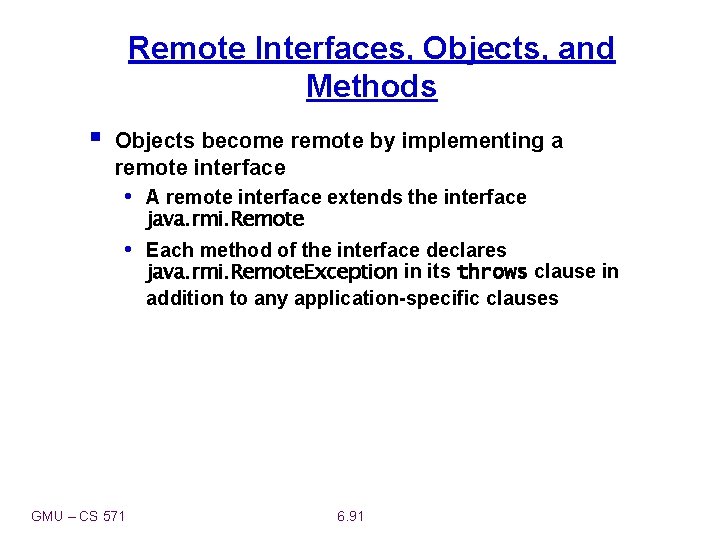

Remote Interfaces, Objects, and Methods § Objects become remote by implementing a remote interface • A remote interface extends the interface java. rmi. Remote • Each method of the interface declares java. rmi. Remote. Exception in its throws clause in addition to any application-specific clauses GMU – CS 571 6. 91

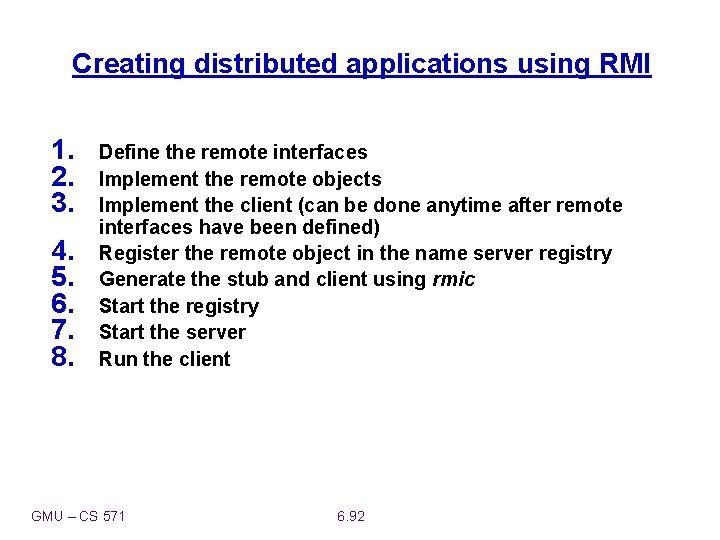

Creating distributed applications using RMI 1. 2. 3. 4. 5. 6. 7. 8. Define the remote interfaces Implement the remote objects Implement the client (can be done anytime after remote interfaces have been defined) Register the remote object in the name server registry Generate the stub and client using rmic Start the registry Start the server Run the client GMU – CS 571 6. 92

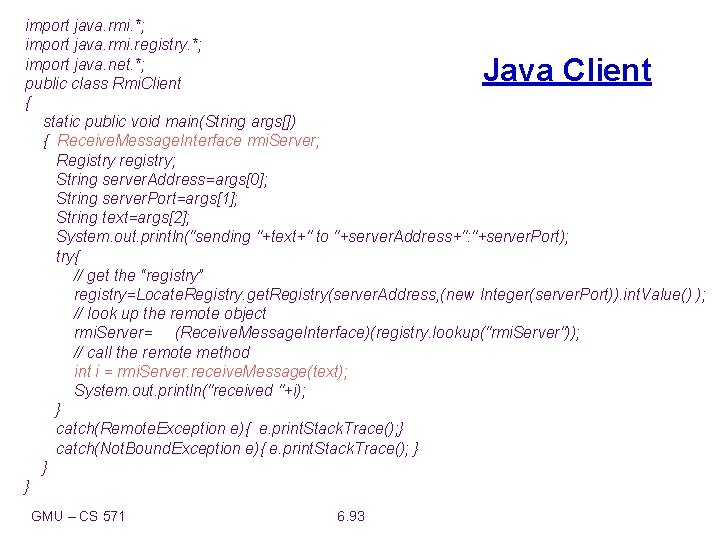

import java. rmi. *; import java. rmi. registry. *; import java. net. *; public class Rmi. Client { static public void main(String args[]) { Receive. Message. Interface rmi. Server; Registry registry; String server. Address=args[0]; String server. Port=args[1]; String text=args[2]; System. out. println("sending "+text+" to "+server. Address+": "+server. Port); try{ // get the “registry” registry=Locate. Registry. get. Registry(server. Address, (new Integer(server. Port)). int. Value() ); // look up the remote object rmi. Server= (Receive. Message. Interface)(registry. lookup("rmi. Server")); // call the remote method int i = rmi. Server. receive. Message(text); System. out. println("received "+i); } catch(Remote. Exception e){ e. print. Stack. Trace(); } catch(Not. Bound. Exception e){ e. print. Stack. Trace(); } } } Java Client GMU – CS 571 6. 93

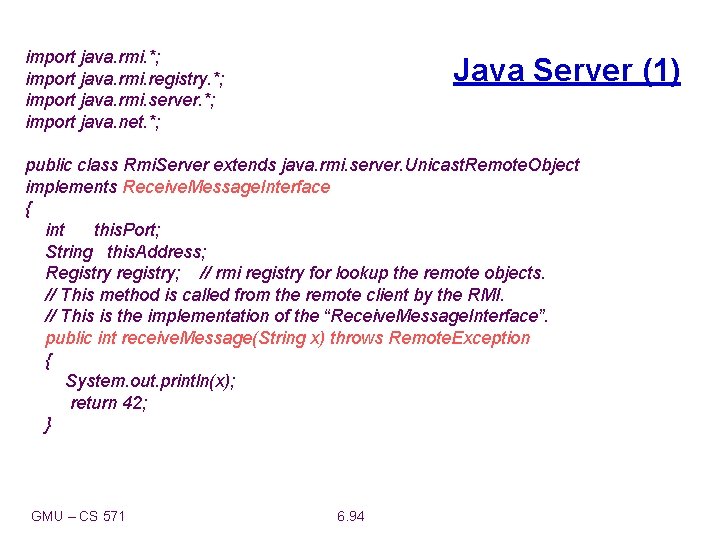

import java. rmi. *; import java. rmi. registry. *; import java. rmi. server. *; import java. net. *; Java Server (1) public class Rmi. Server extends java. rmi. server. Unicast. Remote. Object implements Receive. Message. Interface { int this. Port; String this. Address; Registry registry; // rmi registry for lookup the remote objects. // This method is called from the remote client by the RMI. // This is the implementation of the “Receive. Message. Interface”. public int receive. Message(String x) throws Remote. Exception { System. out. println(x); return 42; } GMU – CS 571 6. 94

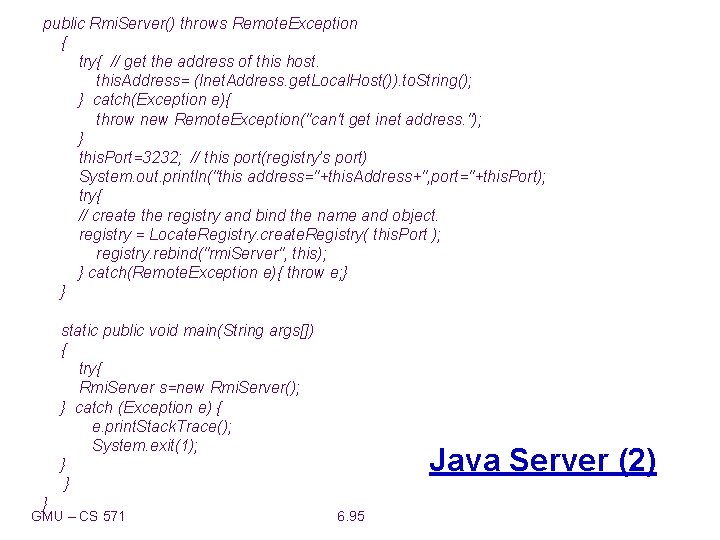

public Rmi. Server() throws Remote. Exception { try{ // get the address of this host. this. Address= (Inet. Address. get. Local. Host()). to. String(); } catch(Exception e){ throw new Remote. Exception("can't get inet address. "); } this. Port=3232; // this port(registry’s port) System. out. println("this address="+this. Address+", port="+this. Port); try{ // create the registry and bind the name and object. registry = Locate. Registry. create. Registry( this. Port ); registry. rebind("rmi. Server", this); } catch(Remote. Exception e){ throw e; } } static public void main(String args[]) { try{ Rmi. Server s=new Rmi. Server(); } catch (Exception e) { e. print. Stack. Trace(); System. exit(1); } } } GMU – CS 571 Java Server (2) 6. 95

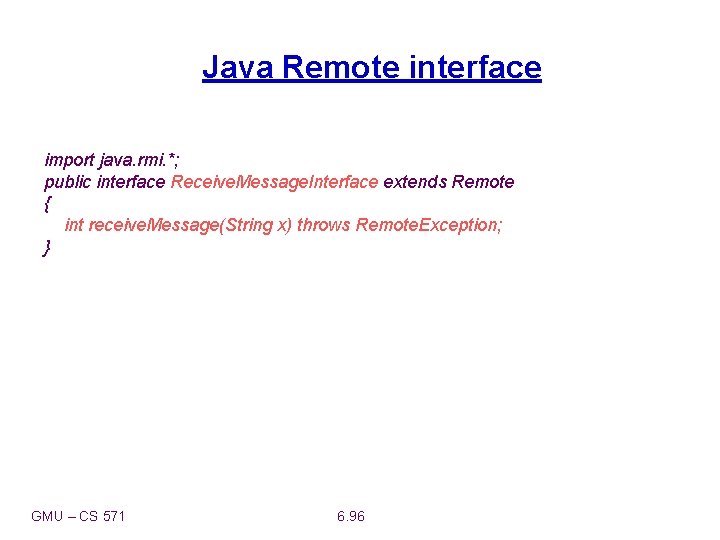

Java Remote interface import java. rmi. *; public interface Receive. Message. Interface extends Remote { int receive. Message(String x) throws Remote. Exception; } GMU – CS 571 6. 96

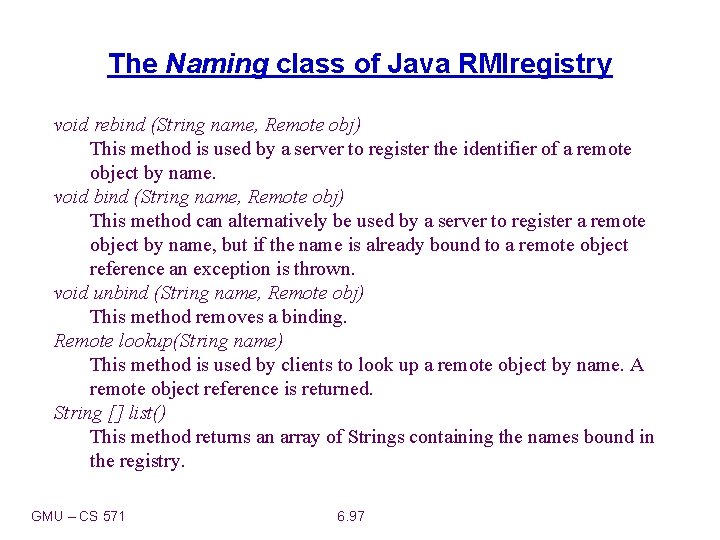

The Naming class of Java RMIregistry void rebind (String name, Remote obj) This method is used by a server to register the identifier of a remote object by name. void bind (String name, Remote obj) This method can alternatively be used by a server to register a remote object by name, but if the name is already bound to a remote object reference an exception is thrown. void unbind (String name, Remote obj) This method removes a binding. Remote lookup(String name) This method is used by clients to look up a remote object by name. A remote object reference is returned. String [] list() This method returns an array of Strings containing the names bound in the registry. GMU – CS 571 6. 97

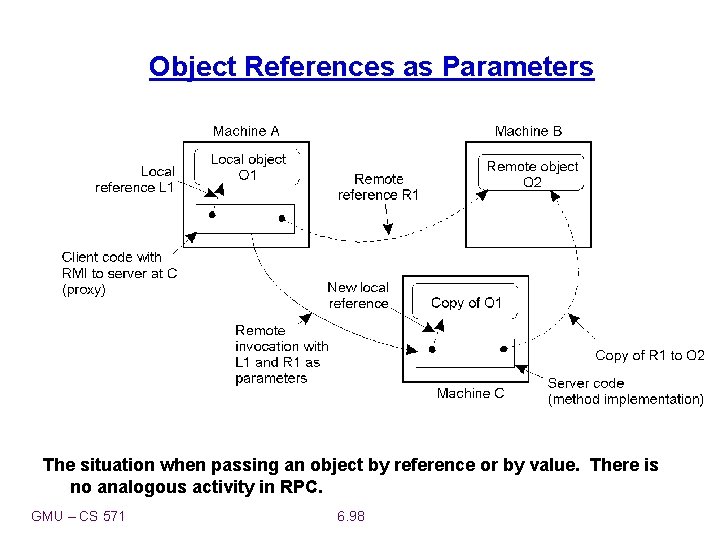

Object References as Parameters 2 -18 The situation when passing an object by reference or by value. There is no analogous activity in RPC. GMU – CS 571 6. 98

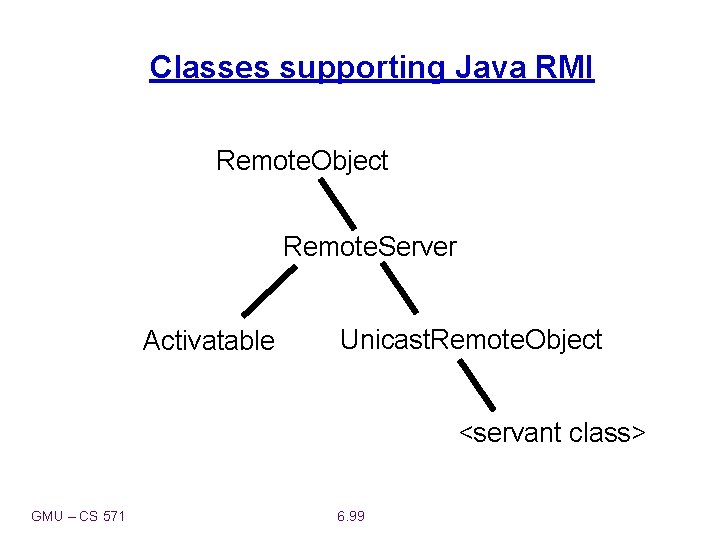

Classes supporting Java RMI Remote. Object Remote. Server Activatable Unicast. Remote. Object <servant class> GMU – CS 571 6. 99
