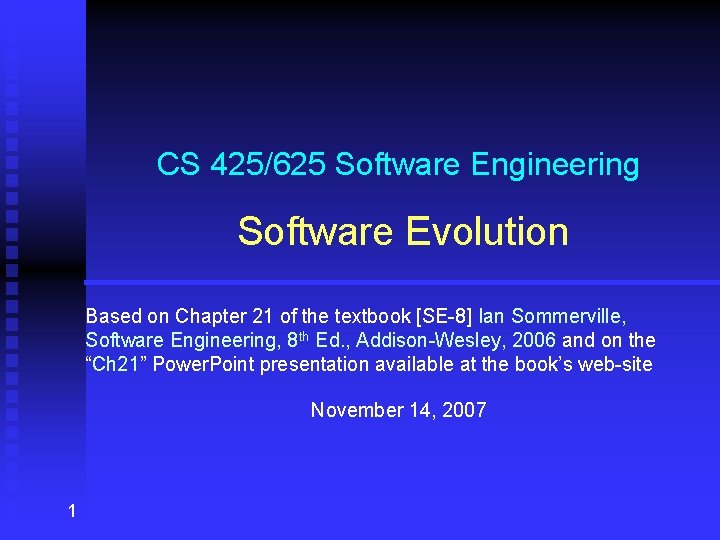

CS 425/625 Software Engineering Software Evolution Based on Chapter 21 of the textbook [SE-8] Ian Sommerville, Software Engineering, 8 th Ed. , Addison-Wesley, 2006 and on the “Ch 21” Power. Point presentation available at the book’s web-site November 14, 2007 1

Outline n n n Introduction Program Evolution Dynamics Software Maintenance u Overview u Prediction n n 2 Evolution Processes Legacy Systems

Introduction . n Software evolves continuously due to demands for changes: u New requirements surface u Existing requirements need be modified u Errors found need be fixed n n 3 In some cases 90% of software costs are evolution costs When the transition from development to evolution is not smooth, changing software after delivery is called software maintenance

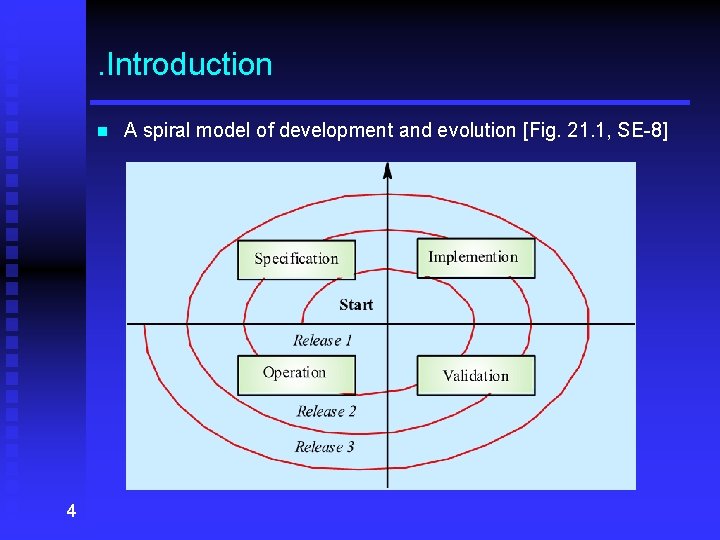

. Introduction n 4 A spiral model of development and evolution [Fig. 21. 1, SE-8]

Program evolution dynamics n 5

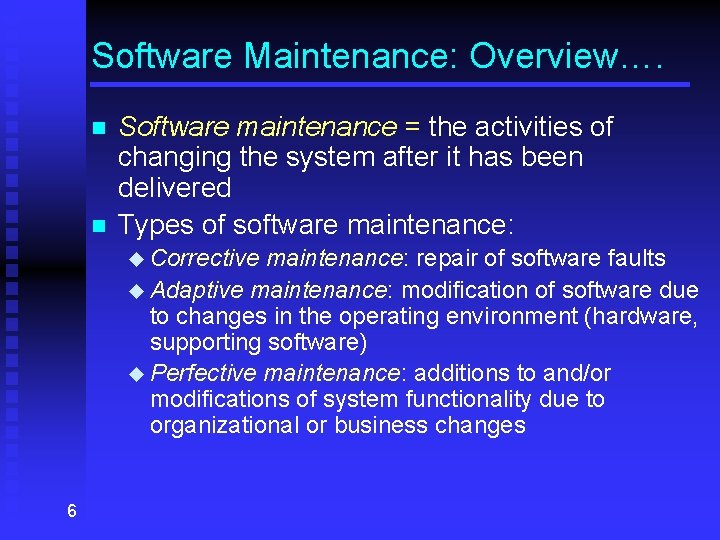

Software Maintenance: Overview…. n n Software maintenance = the activities of changing the system after it has been delivered Types of software maintenance: u Corrective maintenance: repair of software faults u Adaptive maintenance: modification of software due to changes in the operating environment (hardware, supporting software) u Perfective maintenance: additions to and/or modifications of system functionality due to organizational or business changes 6

Software Maintenance: . Overview. . . n 7 Distribution of maintenance effort [Fig. 21. 3, SE-8]

Software Maintenance: . . Overview. . n n n 8 Software maintenance is a natural continuation of the development process (specification, design, implementation, testing). Hence the term evolution (applied especially when the transition from development is seamless) Development and maintenance costs vary from application to application Investing in development leads to reduction of both maintenance costs and overall project costs [slide 9]

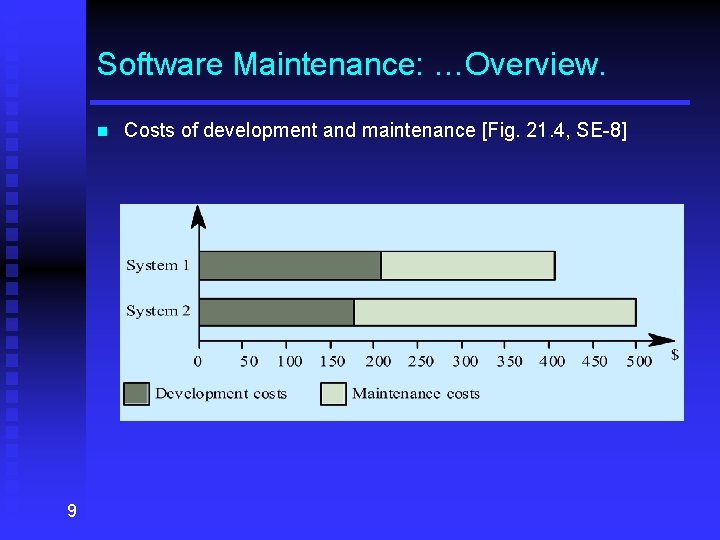

Software Maintenance: …Overview. n 9 Costs of development and maintenance [Fig. 21. 4, SE-8]

Software Maintenance: …. Overview n Why maintenance costs are higher than development costs? Factors: u Team stability: development teams break up after delivery u Contractual responsibility: different teams or organizations have the responsibility for maintenance u Staff skills: more experienced software engineers tend to avoid maintenance u Program age and structure: not structured in the first place, the program copes poorly with changes and its structure degrades 10

Software Maintenance: Prediction. n 11 Maintenance prediction [Fig. 21. 5, SE-7]

Software Maintenance: . Prediction n n Generally, more complex the software, more expensive its maintenance The relationship between a system and its environment is also important. This relationship is characterized by: u u u n Factors used to assess maintainability: u u 12 Number and complexity of interfaces Number of inherently volatile requirements The business process in which the system is used Number of requests for corrective maintenance Average time required for impact analysis Average time taken to implement a change Number of outstanding change requests

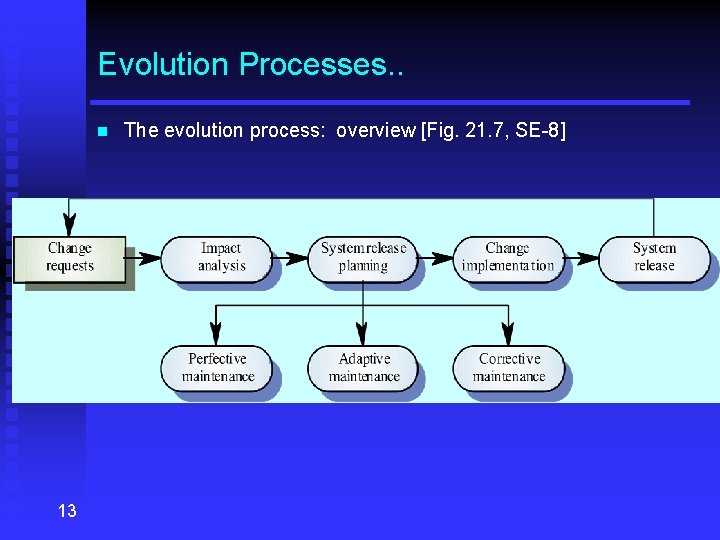

Evolution Processes. . n 13 The evolution process: overview [Fig. 21. 7, SE-8]

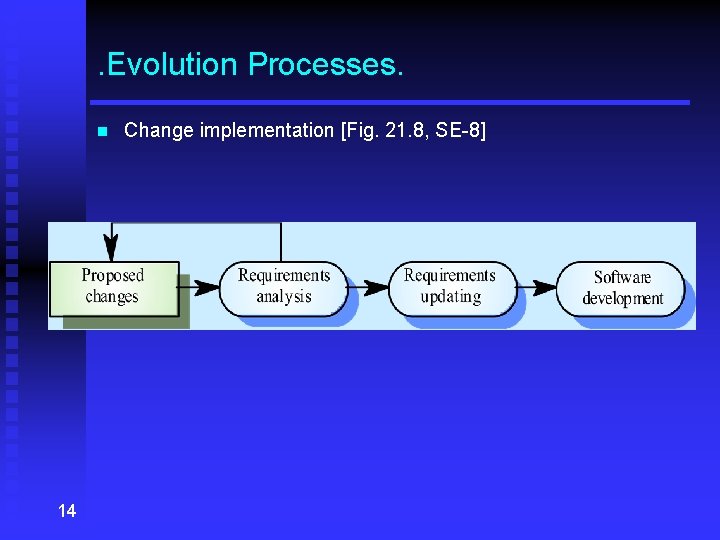

. Evolution Processes. n 14 Change implementation [Fig. 21. 8, SE-8]

. . Evolution Processes n Emergency repair [Fig. 21. 9, SE-8]. Prompted by: System faults u Business changes u Environmental changes all requiring urgent treatment. u n The dangers of emergency repair: u u u 15 Software becomes inconsistent Changes are not reflected in documentation Software ageing is accelerated by workaround solutions

Legacy Systems: Introduction. . n Legacy systems: old computer-based systems still in use by organizations u Many of them still business critical u Incorporate many changes made over the years u Many people have been involved in these changes u Replacing legacy systems with new systems is risky, yet keeping them means new changes become more and more expensive 16

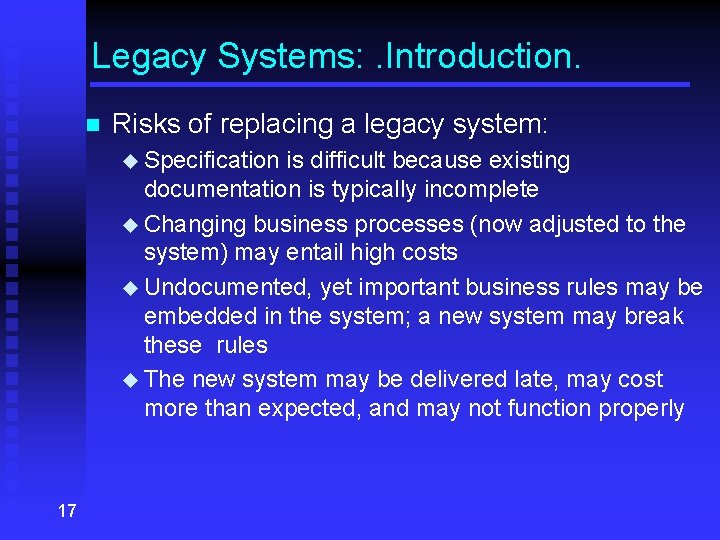

Legacy Systems: . Introduction. n Risks of replacing a legacy system: u Specification is difficult because existing documentation is typically incomplete u Changing business processes (now adjusted to the system) may entail high costs u Undocumented, yet important business rules may be embedded in the system; a new system may break these rules u The new system may be delivered late, may cost more than expected, and may not function properly 17

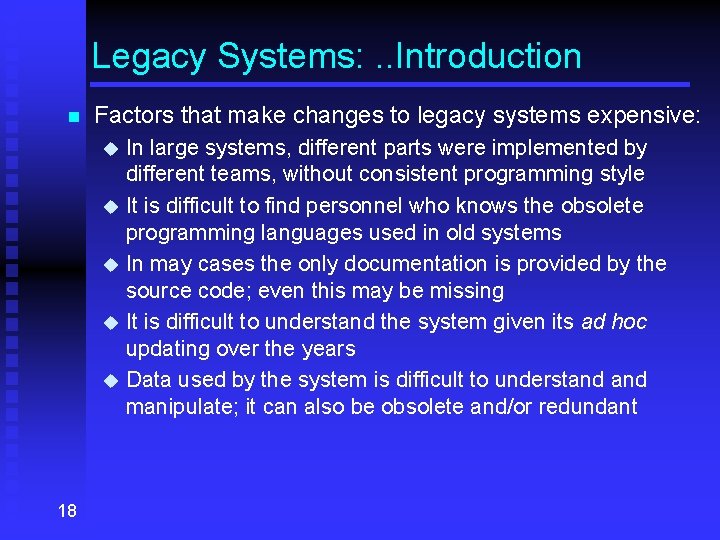

Legacy Systems: . . Introduction n Factors that make changes to legacy systems expensive: In large systems, different parts were implemented by different teams, without consistent programming style u It is difficult to find personnel who knows the obsolete programming languages used in old systems u In may cases the only documentation is provided by the source code; even this may be missing u It is difficult to understand the system given its ad hoc updating over the years u Data used by the system is difficult to understand manipulate; it can also be obsolete and/or redundant u 18

Legacy system assessment…. . n Strategic approaches for dealing with legacy systems: u Scrap the system completely Ø u Continue to maintain the system Ø u When system quality was affected negatively by changes, yet changes are still required Replace the system with a new one Ø 19 The system works well, is fairly stable, and users do not request many changes Transform the system to improve maintainability Ø u When business practices have changed and no longer depend significantly on the system (they may be supported by new COTS) When obsolete hardware precludes further operation or the new system can be built at reasonable cost

. Legacy system assessment…. n 20 Assessing legacy systems example [Fig. 21. 13 SE-8]

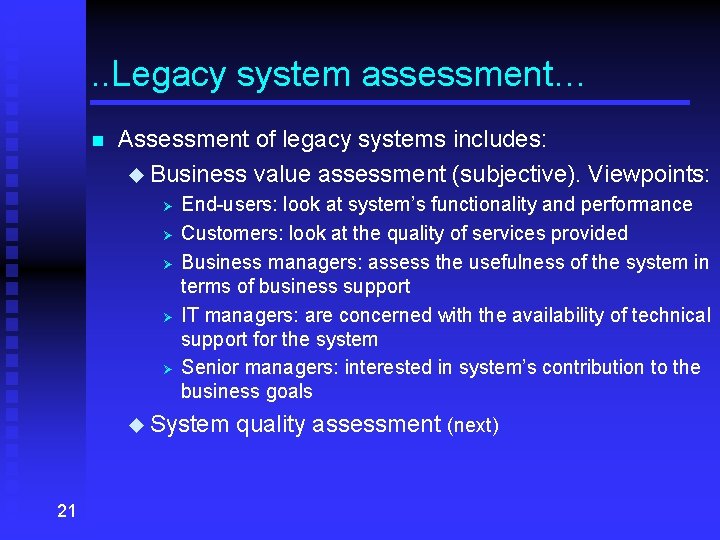

. . Legacy system assessment… n Assessment of legacy systems includes: u Business value assessment (subjective). Viewpoints: Ø Ø Ø End-users: look at system’s functionality and performance Customers: look at the quality of services provided Business managers: assess the usefulness of the system in terms of business support IT managers: are concerned with the availability of technical support for the system Senior managers: interested in system’s contribution to the business goals u System 21 quality assessment (next)

…Legacy system assessment. . n System quality assessment. Look at all components of the system. Hence: u Business process assessment. Possible questions: Ø Ø Ø u u Environment assessment: support software & hardware platform (maintenance costs, faults, etc. – slide 23) Application software assessment. Factors considered as in slide 24 and quantitative data such as: Ø Ø Ø 22 Are defined process models and procedures in place? Are processes applied consistently across the company? What adaptations have been made? Are relationships with other business processes necessary? Are processes suitably supported by application software? Number of system change requests Number of different user interfaces Volume of data used by the system

…. Legacy system assessment. n 23 Factors in environment assessment [Fig. 21. 14 SE-8]

…. . Legacy system assessment n 24 Factors in application software assessment [Fig. 21. 15 SE-8]
