CS 4233 5263 Bioinformatics Lectures 3 6 Pairwise

CS 4233& 5263 Bioinformatics Lectures 3 -6: Pair-wise Sequence Alignment

Outline • What’s the biological problem • Algorithm issues – – Intro to dynamic programming Global sequence alignment Local sequence alignment More efficient algorithms • Interpretation issues – Model gaps more accurately – Alignment statistics • Practical tools: BLAST

Evolution at the DNA level C …ACGGTGCAGTCACCA… …ACGTTGC-GTCCACCA… DNA evolutionary events (sequence edits): Mutation, deletion, insertion

Sequence conservation implies function next generation OK OK OK X X Still OK?

Why sequence alignment? • Conserved regions are more likely to be functional – Can be used for finding genes, regulatory elements, etc. • Similar sequences often have similar origin and function – Can be used to predict functions for new genes / proteins • Sequence alignment is one of the most widely used computational tools in biology

Global Sequence Alignment S T S’ T’ AGGCTATCACCTGACCTCCAGGCCGATGCCC TAGCTATCACGACCGCGGTCGATTTGCCCGAC -AGGCTATCACCTGACCTCCAGGCCGA--TGCCC--TAG-CTATCAC--GACCGC--GGTCGATTTGCCCGAC Definition An alignment of two strings S, T is a pair of strings S’, T’ (with spaces) s. t. (1) |S’| = |T’|, and (|S| = “length of S”) (2) removing all spaces in S’, T’ leaves S, T

What is a good alignment? Alignment: The “best” way to match the letters of one sequence with those of the other How do we define “best”?

S’: -AGGCTATCACCTGACCTCCAGGCCGA--TGCCC--T’: TAG-CTATCAC--GACCGC--GGTCGATTTGCCCGAC • The score of aligning (characters or spaces) x & y is σ (x, y). • Score of an alignment: • An optimal alignment: one with max score

Scoring Function • Sequence edits: – Mutations – Insertions – Deletions Scoring Function: Match: +m Mismatch: -s Gap (indel): -d AGGCCTC AGGACTC AGGGCCTC AGG-CTC ~~~AAC~~~ ~~~A-A~~~

• Match = 2, mismatch = -1, gap = -1 • Score = 3 x 2 – 2 x 1 – 1 x 1 = 3

More complex scoring function • Substitution matrix – Similarity score of matching two letters a, b should reflect the probability of a, b derived from the same ancestor – It is usually defined by log likelihood ratio – Active research area. Especially for proteins. – Commonly used: PAM, BLOSUM

An example substitution matrix A C G T 3 -2 -1 -2 3 -2 -1 3 -2 3

How to find an optimal alignment? • A naïve algorithm: for all subseqs A of S, B of T s. t. |A| = |B| do align A[i] with B[i], 1 ≤i ≤|A| align all other chars to spaces compute its value S = abcd A = cd T = wxyz B = xz retain the max -abc-d a-bc-d end w--xyz -w-xyz output the retained alignment

Analysis • Assume |S| = |T| = n • Cost of evaluating one alignment: ≥n • How many alignments are there: – pick n chars of S, T together – say k of them are in S – match these k to the k unpicked chars of T • Total time: • E. g. , for n = 20, time is > 240 >1012 operations

Intro to Dynamic Programming

Dynamic programming • What is dynamic programming? – A method for solving problems exhibiting the properties of overlapping subproblems and optimal substructure – Key idea: tabulating sub-problem solutions rather than re-computing them repeatedly • Two simple examples: – Computing Fibonacci numbers – Find the special shortest path in a grid

Example 1: Fibonacci numbers • 1, 1, 2, 3, 5, 8, 13, 21, 34, 55, 89, … F(0) = 1; F(1) = 1; F(n) = F(n-1) + F(n-2) • How to compute F(n)?

A recursive algorithm function fib(n) if (n == 0 or n == 1) return 1; else return fib(n-1) + fib(n-2); F(9) F(8) F(7) F(6) F(5) F(4) F(3)

n/2 n • Time complexity: – Between 2 n/2 and 2 n – O(1. 62 n), i. e. exponential • Why recursive Fib algorithm is inefficient? – Overlapping subproblems

An iterative algorithm function fib(n) F[0] = 1; F[1] = 1; for i = 2 to n F[i] = F[i-1] + F[i-2]; Return F[n]; Time complexity: Time: O(n), space: O(n)

Example 2: shortest path in a grid S m n G Each edge has a length (cost). We need to get to G from S. Can only move right or down. Aim: find a path with the minimum total length

Optimal substructures • Naïve algorithm: enumerate all possible paths and compare costs – Exponential number of paths • Key observation: – If a path P(S, G) is the shortest from S to G, any of its sub-path P(S, x), where x is on P(S, G), is the shortest from S to x

Proof • Proof by contradiction – If the path between P(S, x) is not the shortest, i. e. , P’(S, x) < P(S, x) – Construct a new path P’(S, G) = P’(S, x) + P(x, G) – P’(S, G) < P(S, G) => P(S, G) is not the shortest – Contradiction – Therefore, P(S, x) is the shortest S x G

Recursive solution (0, 0) • Index each intersection by two indices, (i, j) • Let F(i, j) be the total length of the shortest path from (0, 0) to (i, j). Therefore, F(m, n) is the shortest path we wanted. • To compute F(m, n), we need to compute both F(m -1, n) and F(m, n-1) m n (m, n) F(m-1, n) + length((m-1, n), (m, n)) F(m, n) = min F(m, n-1) + length((m, n-1), (m, n))

Recursive solution F(i-1, j) + length((i-1, j), (i, j)) F(i, j) = min F(i, j-1) + length((i, j-1), (i, j)) (0, 0) (i-1, j) m (i, j-1) (i, j) n • But: if we use recursive call, many subpaths will be recomputed for many times • Strategy: pre-compute F values starting from the upper-left corner. Fill in row by row (what other order will also do? ) (m, n)

Dynamic programming illustration S 0 5 5 3 3 2 3 3 6 9 2 3 7 2 6 13 4 17 1 3 8 1 5 3 9 4 2 3 12 11 6 17 11 2 14 3 17 3 13 2 2 9 2 3 6 13 13 3 17 1 18 3 15 3 3 7 3 15 16 4 3 2 20 3 20 G F(i-1, j) + length(i-1, j, i, j) F(i, j) = min F(i, j-1) + length(i, j-1, i, j)

Trackback 0 5 5 3 3 2 3 3 6 9 2 3 7 2 6 13 4 17 1 3 8 1 5 3 9 4 2 3 12 11 6 17 11 2 14 3 17 3 13 2 2 9 2 3 6 13 13 3 17 1 18 3 15 3 3 7 3 15 16 4 3 2 20 3 20

Elements of dynamic programming • Optimal sub-structures – Optimal solutions to the original problem contains optimal solutions to sub-problems • Overlapping sub-problems – Some sub-problems appear in many solutions • Memorization and reuse – Carefully choose the order that sub-problems are solved

Dynamic Programming for sequence alignment Suppose we wish to align x 1……x. M y 1……y. N Let F(i, j) = optimal score of aligning x 1……xi y 1……yj Scoring Function: Match: +m Mismatch: -s Gap (indel): -d

Optimal substructure 1 2 i M . . . x: 1 y: 2 j N . . . • If x[i] is aligned to y[j] in the optimal alignment between x[1. . M] and y[1. . N], then • The alignment between x[1. . i] and y[1. . j] is also optimal • Easy to prove by contradiction

Recursive solution Notice three possible cases: 1. x. M aligns to y. N ~~~~~~~ x. M ~~~~~~~ y. N 2. F(M, N) = F(M-1, N-1) + -s, if not x. M aligns to a gap ~~~~~~~ x. M ~~~~~~~ 3. m, if x. M = y. N max F(M, N) = F(M-1, N) - d y. N aligns to a gap ~~~~~~~ y. N F(M, N) = F(M, N-1) - d

Recursive solution • Generalize: F(i, j) = max F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d (Xi, Yj) = m if Xi = Yj, and –s otherwise • Boundary conditions: – F(0, 0) = 0. -jd: y[1. . j] aligned to gaps. – F(0, j) = ? – F(i, 0) = ? -id: x[1. . i] aligned to gaps.

What order to fill? F(0, 0) F(i-1, j-1)1 F(i-1, j) 1 i F(i, j-1) 3 2 F(i, j) j F(M, N )

What order to fill? F(0, 0) F(M, N )

Example x = AGTA y = ATA F(i, j) = max i = j=0 1 A 2 T 3 A 0 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 A G 3 T 4 A m= 1 s =1 d =1

Example x = AGTA y = ATA F(i, j) = max i = 0 0 j=0 1 A -1 2 T -2 3 A -3 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 3 4 A G T A -1 -2 -3 -4 m= 1 s =1 d =1

Example x = AGTA y = ATA F(i, j) = max i = j=0 0 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 A G 3 T 4 A 0 -1 -2 -3 -4 1 1 A -1 2 T -2 3 A -3 0 -1 -2 m= 1 s =1 d =1

Example x = AGTA y = ATA F(i, j) = max i = j=0 0 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 A G 3 T 4 A 0 -1 -2 -3 -4 1 A -1 1 0 -1 -2 2 T -2 0 0 1 3 A -3 0 m= 1 s =1 d =1

Example x = AGTA y = ATA F(i, j) = max i = j=0 0 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 3 A G T A 0 -1 -2 -3 -4 m= 1 s =1 d =1 4 1 A -1 1 0 -1 -2 2 T -2 0 0 1 0 3 A -3 -1 -1 0 2 Optimal Alignment: F(4, 3) = 2

Example x = AGTA y = ATA F(i, j) = max i = j=0 1 A 0 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 3 A G T A 0 -1 -2 -3 -4 -1 1 0 -1 -2 m= 1 s =1 d =1 4 2 T -2 0 0 1 0 3 A -3 -1 -1 0 2 Optimal Alignment: F(4, 3) = 2 This only tells us the best score

Trace-back x = AGTA y = ATA F(i, j) = max i = j=0 0 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 3 A G T A 0 -1 -2 -3 -4 m= 1 s =1 d =1 4 1 A -1 1 0 -1 -2 A 2 T -2 0 0 1 0 A 3 A -3 -1 -1 0 2

Trace-back x = AGTA y = ATA F(i, j) = max i = j=0 0 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 3 A G T A 0 -1 -2 -3 -4 m= 1 s =1 d =1 4 1 A -1 1 0 -1 -2 T A 2 T -2 0 0 1 0 T A 3 A -3 -1 -1 0 2

Trace-back x = AGTA y = ATA F(i, j) = max i = j=0 0 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 3 A G T A 0 -1 -2 -3 -4 m= 1 s =1 d =1 4 1 A -1 1 0 -1 -2 G T A 2 T -2 0 0 1 0 - 3 A -3 -1 -1 0 2 T A

Trace-back x = AGTA y = ATA F(i, j) = max i = j=0 0 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 3 A G T A 0 -1 -2 -3 -4 m= 1 s =1 d =1 4 1 A -1 1 0 -1 -2 A G T A 2 T -2 0 0 1 0 A - 3 A -3 -1 -1 0 2 T A

Trace-back x = AGTA y = ATA F(i, j) = max i = j=0 1 A 0 F(i-1, j-1) + (Xi, Yj) F(i-1, j) – d F(i, j-1) – d 1 2 3 A G T A 0 -1 -2 -3 -4 -1 1 0 -1 -2 m= 1 s =1 d =1 4 2 T -2 0 0 1 0 3 A -3 -1 -1 0 2 Optimal Alignment: F(4, 3) = 2 AGTA A TA

Using trace-back pointers x = AGTA y = ATA F(i, j) m= 1 s =1 d =1 i = 0 0 j=0 1 A -1 2 T -2 3 A -3 1 2 3 4 A G T A -1 -2 -3 -4

Using trace-back pointers x = AGTA y = ATA F(i, j) m= 1 s =1 d =1 i = j=0 0 1 2 A G T A 0 -1 -2 -3 -4 1 0 -1 -2 1 A -1 2 T -2 3 A -3 3 4

Using trace-back pointers x = AGTA y = ATA F(i, j) m= 1 s =1 d =1 i = j=0 0 1 2 3 4 A G T A 0 -1 -2 -3 -4 1 A -1 1 0 -1 -2 2 T -2 0 0 1 0 3 A -3

Using trace-back pointers x = AGTA y = ATA F(i, j) m= 1 s =1 d =1 i = j=0 0 1 2 3 4 A G T A 0 -1 -2 -3 -4 1 A -1 1 0 -1 -2 2 T -2 0 0 1 0 3 A -3 -1 -1 0 2

Using trace-back pointers x = AGTA y = ATA F(i, j) m= 1 s =1 d =1 i = j=0 1 A 0 1 2 3 4 A G T A 0 -1 -2 -3 -4 -1 1 0 -1 -2 2 T -2 0 0 1 0 3 A -3 -1 -1 0 2 Optimal Alignment: F(4, 3) = 2 AGTA A TA

The Needleman-Wunsch Algorithm 1. Initialization. a. b. c. 2. F(0, 0) F(0, j) F(i, 0) = 0 =-j d =-i d Main Iteration. Filling in scores a. For each i = 1……M For each j = 1……N F(i, j) Ptr(i, j) 3. = max = F(i-1, j) – d F(i, j-1) – d F(i-1, j-1) + σ(xi, yj) UP, LEFT DIAG [case 1] [case 2] [case 3] if [case 1] if [case 2] if [case 3] Termination. F(M, N) is the optimal score, and from Ptr(M, N) can trace back optimal alignment

Complexity • Time: O(NM) • Space: O(NM) • Linear-space algorithms do exist (with the same time complexity)

Equivalent graph problem S 1 = A G T A (0, 0) S 2 = A : a gap in the 1 st sequence 1 T A 1 1 : a gap in the 2 nd sequence 1 : match / mismatch 1 Value on vertical/horizontal line: -d Value on diagonal: m or -s (3, 4) • Number of steps: length of the alignment • Path length: alignment score • Optimal alignment: find the longest path from (0, 0) to (3, 4) • General longest path problem cannot be found with DP. Longest path on this graph can be found by DP since no cycle is possible.

Question • If we change the scoring scheme, will the optimal alignment be changed? – Old: Match = 1, mismatch = gap = -1 – New: match = 2, mismatch = gap = 0 – New: Match = 2, mismatch = gap = -2?

Question • What kind of alignment is represented by these paths? A A A B B B C C C A- A-- --A -A- -A BC -BC BC- B-C BC Alternating gaps are impossible if –s > -2 d

A variant of the basic algorithm Scoring scheme: m = s = d: 1 Seq 1: CAGCA-CTTGGATTCTCGG || |: ||| Seq 2: ---CAGCGTGG-------Seq 1: CAGCACTTGGATTCTCGG |||| | | || Seq 2: CAGC-----G-T----GG Score = -7 Score = -2 The first alignment may be biologically more realistic in some cases (e. g. if we know s 2 is a subsequence of s 1)

A variant of the basic algorithm • Maybe it is OK to have an unlimited # of gaps in the beginning and end: -----CTATCACCTGACCTCCAGGCCGATGCCCCTTCCGGC GCGAGTTCATCTATCAC--GACCGC--GGTCG------- • Then, we don’t want to penalize gaps in the ends

The Overlap Detection variant y. N ……………… y 1 x 1 ……………… x. M Changes: 1. Initialization For all i, j, F(i, 0) = 0 F(0, j) = 0 2. Termination maxi F(i, N) FOPT = maxj F(M, j)

Different types of overlaps x x y y

The local alignment problem Given two strings X = x 1……x. M, Y = y 1……y. N Find substrings x’, y’ whose similarity (optimal global alignment value) is maximum e. g. X = abcxdex Y = xxxcde x y X’ = cxde Y’ = c-de

Why local alignment • Conserved regions may be a small part of the whole – Global alignment might miss them if flanking “junk” outweighs similar regions • Genes are shuffled between genomes A B C B D D A C

Naïve algorithm for all substrings X’ of X and Y’ of Y Align X’ & Y’ via dynamic programming Retain pair with max value end ; Output the retained pair • Time: O(n 2) choices for A, O(m 2) for B, O(nm) for DP, so O(n 3 m 3 ) total.

Reminder • The overlap detection algorithm – We do not give penalty to gaps at either end Free gap

The local alignment idea • Do not penalize the unaligned regions (gaps or mismatches) • The alignment can start anywhere and ends anywhere • Strategy: whenever we get to some low similarity region (negative score), we restart a new alignment – By resetting alignment score to zero

The Smith-Waterman algorithm Initialization: F(0, j) = F(i, 0) = 0 0 F(i – 1, j) – d Iteration: F(i, j) = max F(i, j – 1) – d F(i – 1, j – 1) + (xi, yj)

The Smith-Waterman algorithm Termination: 1. If we want the best local alignment… FOPT = maxi, j F(i, j) 2. If we want all local alignments scoring > t For all i, j find F(i, j) > t, and trace back

Match: 2 Mismatch: -1 Gap: -1 a b c x d e x 0 0 0 0 x 0 x 0 c 0 d 0 e 0

Match: 2 Mismatch: -1 Gap: -1 a b c x d e x 0 0 0 0 x 0 0 0 c 0 0 0 d 0 0 0 e 0 0 0

Match: 2 Mismatch: -1 Gap: -1 a b c x d e x 0 0 0 0 x 0 0 c 0 0 0 2 d 0 0 0 1 e 0 0

Match: 2 Mismatch: -1 Gap: -1 a b c x d e x 0 0 0 0 2 x 0 0 2 c 0 0 0 2 1 d 0 0 0 1 0 e 0 0 0

Match: 2 Mismatch: -1 Gap: -1 a b c x d e x 0 0 0 0 2 1 x 0 0 2 1 c 0 0 0 2 1 1 d 0 0 0 1 0 3 e 0 0 0 2

Match: 2 Mismatch: -1 Gap: -1 a b c x d e x 0 0 0 0 2 1 0 x 0 0 2 1 0 c 0 0 0 2 1 1 0 d 0 0 0 1 0 3 2 e 0 0 0 2 5

Match: 2 Mismatch: -1 Gap: -1 a b c x d e x 0 0 0 0 2 1 0 2 x 0 0 2 1 0 2 c 0 0 0 2 1 1 0 1 d 0 0 0 1 1 3 2 1 e 0 0 0 2 5 4

Trace back Match: 2 Mismatch: -1 Gap: -1 a b c x d e x 0 0 0 0 2 1 0 2 x 0 0 2 1 0 2 c 0 0 0 2 1 1 0 1 d 0 0 0 1 1 3 2 1 e 0 0 0 2 5 4

Trace back Match: 2 Mismatch: -1 Gap: -1 cxde | || c-de x-de | || xcde a b c x d e x 0 0 0 0 2 1 0 2 x 0 0 2 1 0 2 c 0 0 0 2 1 1 0 1 d 0 0 0 1 1 3 2 1 e 0 0 0 2 5 4

• No negative values in local alignment DP array • Optimal local alignment will never have a gap on either end • Local alignment: “Smith-Waterman” • Global alignment: “Needleman-Wunsch”

Analysis • Time: – O(MN) for finding the best alignment – Time to report all alignments depends on the number of sub-opt alignments • Memory: – O(MN) – O(M+N) possible

More efficient alignment algorithms

• Given two sequences of length M, N • Time: O(MN) – Ok, but still slow for long sequences • Space: O(MN) – bad – 1 Mb seq x 1 Mb seq = 1 TB memory • Can we do better?

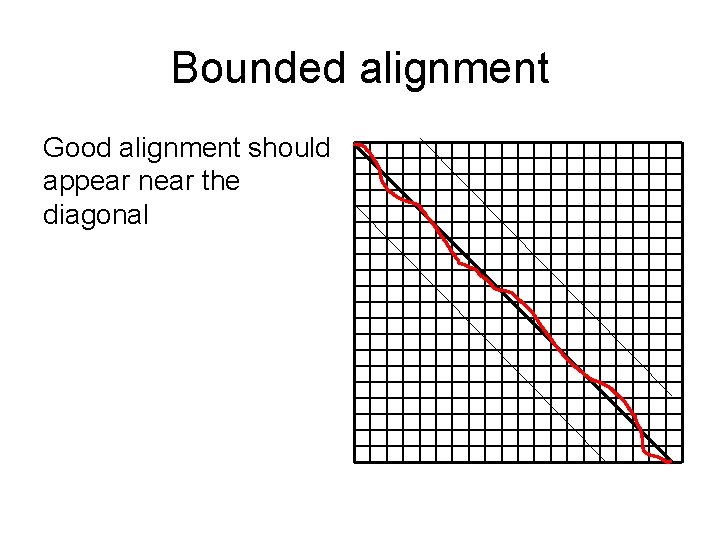

Bounded alignment Good alignment should appear near the diagonal

Bounded Dynamic Programming If we know that x and y are very similar Assumption: Then, xi | yj # gaps(x, y) < k implies |i–j|<k

Bounded Dynamic Programming y. N …………… y 1 x 1 …………… x. M Initialization: F(i, 0), F(0, j) undefined for i, j > k Iteration: For i = 1…M For j = max(1, i – k)…min(N, i+k) F(i – 1, j – 1)+ (xi, yj) F(i, j) = max F(i, j – 1) – d, if j > i – k F(i – 1, j) – d, if j < i + k k Termination: same

Analysis • Time: O(k. M) << O(MN) • Space: O(k. M) with some tricks => M 2 k

• Given two sequences of length M, N • Time: O(MN) – ok • Space: O(MN) – bad – 1 mb seq x 1 mb seq = 1 TB memory • Can we do better?

Linear space algorithm • If all we need is the alignment score but not the alignment, easy! We only need to keep two rows (You only need one row, with a little trick) But how do we get the alignment?

Linear space algorithm • When we finish, we know how we have aligned the ends of the sequences XM YN Naïve idea: Repeat on the smaller subproblem F(M-1, N-1) Time complexity: O((M+N)(MN))

(0, 0) M/2 (M, N) Key observation: optimal alignment (longest path) must use an intermediate point on the M/2 -th row. Call it (M/2, k), where k is unknown.

(0, 0) (3, 2) (3, 4) (3, 6) (6, 6) • Longest path from (0, 0) to (6, 6) is max_k (LP(0, 0, 3, k) + LP(6, 6, 3, k))

Hirschberg’s idea • Divide and conquer! Y X Forward algorithm Align x 1 x 2…x. M/2 with Y M/2 F(M/2, k) represents the best alignment between x 1 x 2…x. M/2 and y 1 y 2…yk

Backward Algorithm Y X M/2 Backward algorithm Align reverse(x. M/2+1…x. M) with reverse(Y) B(M/2, k) represents the best alignment between reverse(x. M/2+1…x. M) and reverse(ykyk+1…y. N )

Linear-space alignment Using 2 (4) rows of space, we can compute for k = 1…N, F(M/2, k), B(M/2, k) M/2

Linear-space alignment Now, we can find k* maximizing F(M/2, k) + B(M/2, k) Also, we can trace the path exiting column M/2 from k* Conclusion: In O(NM) time, O(N) space, we found optimal alignment path at row M/2

Linear-space alignment k* M/2 • Iterate this procedure to the two sub-problems! N-k*

Analysis • Memory: O(N) for computation, O(N+M) to store the optimal alignment • Time: – MN for first iteration – k M/2 + (N-k) M/2 = MN/2 for second –… k M/2 N-k

MN MN/2 MN/4 MN + MN/2 + MN/4 + MN/8 + … = MN (1 + ½ + ¼ + 1/8 + 1/16 + …) = 2 MN = O(MN) MN/8

Outline • Part I: Algorithms – – – Biological problem Intro to dynamic programming Global sequence alignment Local sequence alignment More efficient algorithms • Part II: Biological issues – Model gaps more accurately – Alignment statistics • Part III: BLAST

How to model gaps more accurately

What’s a better alignment? GACGCCGAACG ||||| GACGC---ACG GACGCCGAACG |||| | | || GACG-C-A-CG Score = 8 x m – 3 x d However, gaps usually occur in bunches. - During evolution, chunks of DNA may be lost entirely - Aligning genomic sequences vs. c. DNAs (reverse complimentary to m. RNAs)

Model gaps more accurately • Current model: – Gap of length n incurs penalty n d n • General: – Convex function – E. g. (n) = c * sqrt (n) n

General gap dynamic programming Initialization: same Iteration: F(i-1, j-1) + s(xi, yj) F(i, j) = maxk=0…i-1 F(k, j) – (i-k) maxk=0…j-1 F(i, k) – (j-k) Termination: same Running Time: O((M+N)MN) (cubic) Space: O(NM) (linear-space algorithm not applicable)

Compromise: affine gaps (n) = d + (n – 1) e | | gap open extension Match: 2 Gap open: -5 Gap extension: -1 (n) e d GACGCCGAACG ||||| GACGC---ACG GACGCCGAACG |||| | | || GACG-C-A-CG 8 x 2 -5 -2 = 9 8 x 2 -3 x 5 = 1 We want to find the optimal alignment with affine gap penalty in • O(MN) time • O(MN) or better O(M+N) memory

Allowing affine gap penalties • Still three cases – xi aligned with yj – xi aligned to a gap • Are we continuing a gap in x? (if no, start is more expensive) – yj aligned to a gap • Are we continuing a gap in y? (if no, start is more expensive) • We can use a finite state machine to represent the three cases as three states – The machine has two heads, reading the chars on the two strings separately – At every step, each head reads 0 or 1 char from each sequence – Depending on what it reads, goes to a different state, and produces different scores

Finite State Machine Input Output ? /? Ix ? /? F State ? /? Iy ? /? F: have just read 1 char from each seq (xi aligned to yj ) Ix: have read 0 char from x. (yj aligned to a gap) Iy: have read 0 char from y (xi aligned to a gap)

Input Output (xi, yj) / Ix (-, yj) / d F Start state (-, yj) / e (xi, -) / d Iy (xi, -) / e (xi, yj) / Current state Input Output Next state F (xi, yj) (-, yj) (xi, -) d d F (-, yj) … e … Ix F F Ix … Ix Iy …

(xi, yj) / start state (-, yj) / e Ix (-, yj) / d F (xi, -) / d (xi, yj) / F-F-F-F Iy (xi, -) / e F-Iy-F-F-Ix AAC AAC- ACT ||| || ACT -ACT F-F-Iy-F-Ix AAC| | A-CT Given a pair of sequences, an alignment (not necessarily optimal) corresponds to a state path in the FSM. Optimal alignment: find a state path to read the two sequences such that the total output score is the highest

Dynamic programming • We encode this information in three different matrices • For each element (i, j) we use three variables – F(i, j): best alignment (score) of x 1. . xi & y 1. . yj if xi aligns to yj – Ix(i, j): best alignment of x 1. . xi & y 1. . yj if yj aligns to gap – Iy(i, j): best alignment of x 1. . xi & y 1. . yj if xi aligns to gap xi xi yj F(i, j) xi yj Ix(i, j) yj Iy(i, j)

(xi, yj) / Ix (-, yj)/e (-, yj) /d F (xi, -) /d Iy (xi, yj) / xi yj (xi, -)/e F(i-1, j-1) + (xi, yj) F(i, j) = max Ix(i-1, j-1) + (xi, yj) Iy(i-1, j-1) + (xi, yj)

(xi, yj) / Ix (-, yj) /d F (xi, -) /d Iy (xi, yj) / (xi, -)/e F(i, j-1) + d xi yj Ix(i, j) (-, yj)/e Ix(i, j) = max Ix(i, j-1) + e

(xi, yj) / Ix (-, yj) /d F (xi, -) /d Iy (xi, yj) / yj (xi, -)/e F(i-1, j) + d xi Iy(i, j) (-, yj)/e Iy(i, j) = max Iy(i-1, j) + e

F(i – 1, j – 1) F(i, j) = (xi, yj) + max Ix(i – 1, j – 1) Iy(i – 1, j – 1) Ix(i, j) = max Iy(i, j) = max Continuing alignment Closing gaps in x Closing gaps in y F(i, j – 1) + d Opening a gap in x Ix(i, j – 1) + e Gap extension in x F(i – 1, j) + d Opening a gap in y Iy(i – 1, j) + e Gap extension in y

Data dependency F i Ix Iy j i-1 j-1

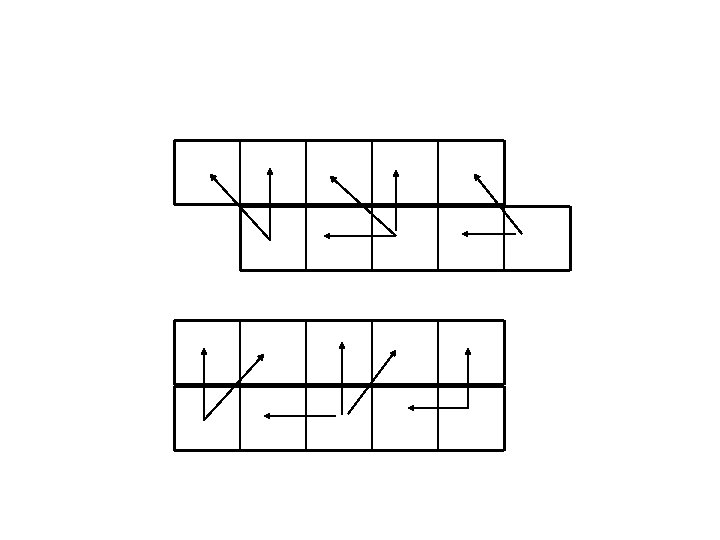

Data dependency F i Ix Iy j i i j j

Data dependency • If we stack all three matrices – No cyclic dependency – Therefore, we can fill in all three matrices in order

Algorithm • for i = 1: m – for j = 1: n • Fill in F(i, j), Ix(i, j), Iy(i, j) – end • F(M, N) = max (F(M, N), Ix(M, N), Iy(M, N)) • Time: O(MN) • Space: O(MN) or O(N) when combined with the linear-space algorithm

Exercise • • • x = GCAC y = GCC m=2 s = -2 d = -5 e = -1

y= G x= 0 - C - x= y= G C C - - - G -5 C -6 A -7 C -8 F: aligned on both y= G x = - -5 C -6 A C m=2 s = -2 d = -5 e = -1 Iy: Insertion on y C -7 F(i-1, j-1) - - Iy(i-1, j-1) (xi, yj) G - C - d Ix(i, j-1) e F(i, j) Iy(i, j) d - Ix: Insertion on x F(i-1, j) Ix(i-1, j-1) F(i, j-1) Iy(i-1, j) e Ix(i, j)

y= G x= 0 - G - C - 2 x= y= G C C - - G -5 C -6 A -7 C -8 F y= G x = - -5 C A C Iy C -6 C -7 F(i-1, j-1) G - m=2 s = -2 d = -5 e = -1 Iy(i-1, j-1) (xi, yj) = 2 - Ix(i-1, j-1) - F(i, j) - Ix

y= G x= 0 G - C - - 2 -7 C - x= y= G C C - - G -5 C -6 A -7 C -8 F y= G x = - -5 C A C Iy C -6 C -7 F(i-1, j-1) G - m=2 s = -2 d = -5 e = -1 Iy(i-1, j-1) (xi, yj) = -2 - Ix(i-1, j-1) - F(i, j) - Ix

y= G x= 0 G - C C - - - 2 -7 -8 x= y= G C C - - G -5 C -6 A -7 C -8 F y= G x = - -5 C A C Iy C -6 C -7 F(i-1, j-1) G - m=2 s = -2 d = -5 e = -1 Iy(i-1, j-1) (xi, yj) = -2 - Ix(i-1, j-1) - F(i, j) - Ix

y= G x= 0 G - C C - - - 2 -7 -8 y= G C C - - - x= G -5 C -6 A -7 C -8 F y= G x= G - Iy C -5 -6 - -3 C -7 F(i, j-1) C - A - Ix(i, j-1) C - Ix d = -5 e = -1 Ix(i, j) m=2 s = -2 d = -5 e = -1

y= G x= 0 G - C C - - - 2 -7 -8 y= G C C - - - x= G -5 C -6 A -7 C -8 F y= G x= G - Iy C C -5 -6 -7 - -3 -4 F(i, j-1) C - A - Ix(i, j-1) C - Ix d = -5 e = -1 Ix(i, j) m=2 s = -2 d = -5 e = -1

y= G x= 0 G - C C - - - 2 -7 -8 y= G C C - - - x= G -5 C -6 A -7 C -8 F y= G x= G - -5 - C - Iy C -6 -3 C -7 -4 Iy(i-1, j) F(i-1, j) d=-5 e=-1 A - Iy(i, j) C - Ix m=2 s = -2 d = -5 e = -1

y= G x= 0 C C - - - G - 2 -7 -8 C - -7 y= G C C - - - x= G -5 C -6 A -7 C -8 F y= G x= G - -5 - m=2 s = -2 d = -5 e = -1 Iy C -6 -3 C -7 -4 F(i-1, j-1) Iy(i-1, j-1) (xi, yj) = -2 C - Ix(i-1, j-1) A - F(i, j) C - Ix

y= G x= 0 C C - - - G - 2 -7 -8 C - -7 4 y= G C C - - - x= G -5 C -6 A -7 C -8 F y= G x= G - -5 - m=2 s = -2 d = -5 e = -1 Iy C -6 -3 C -7 -4 F(i-1, j-1) Iy(i-1, j-1) (xi, yj) = 2 C - Ix(i-1, j-1) A - F(i, j) C - Ix

y= G x= 0 C C y= G C C - - - G - 2 -7 -8 G -5 C - -7 4 -1 C -6 x= A -7 C -8 F y= G x= G - -5 Iy C -6 - m=2 s = -2 d = -5 e = -1 -3 C -7 -4 F(i-1, j-1) Iy(i-1, j-1) (xi, yj) = 2 C - Ix(i-1, j-1) A - F(i, j) C - Ix

y= G x= 0 C C y= G C C - - - G - 2 -7 -8 G -5 C - -7 4 -1 C -6 x= A -7 C -8 F y= G x= Iy C C -5 -6 -7 G - - -3 -4 C - - -12 -1 A - F(i, j-1) Ix(i, j-1) C - Ix d = -5 e = -1 Ix(i, j) m=2 s = -2 d = -5 e = -1

y= G x= 0 C C y= G C C - - G - 2 -7 -8 G -5 - C - -7 4 -1 C -6 -3 x= A -7 C -8 F y= G x= -5 Iy C -6 C -7 G - - -3 C - - -12 -1 -4 Iy(i-1, j) F(i-1, j) d=-5 e=-1 A - Iy(i, j) C - Ix m=2 s = -2 d = -5 e = -1

y= G x= 0 C C y= G C C - - G - 2 -7 -8 G -5 - - C - -7 4 -1 C -6 -3 -12 -13 x= A -7 C -8 F y= G x= G - Iy C C -5 -6 -7 - -3 -4 F(i-1, j-1) Iy(i-1, j-1) (xi, yj) - C - Ix d -12 -1 F(i, j-1) A - Ix(i, j-1) Iy(i-1, j) F(i-1, j) Ix(i-1, j-1) C - m=2 s = -2 d = -5 e = -1 e F(i, j) Iy(i, j) d e Ix(i, j)

y= G x= 0 C C y= G C C - - G - 2 -7 -8 G -5 - - C - -7 4 -5 C -6 -3 -12 -13 A - -8 -5 2 A -7 C - x= C -8 F y= G x= G - m=2 s = -2 d = -5 e = -1 Iy C C -5 -6 -7 - -3 -4 F(i-1, j-1) Iy(i-1, j-1) (xi, yj) F(i-1, j) Ix(i-1, j-1) C - - -12 -1 A - - -13 -10 C - Ix F(i, j-1) Ix(i, j-1) Iy(i-1, j) d e F(i, j) Iy(i, j) d e Ix(i, j)

y= G x= 0 C C y= G C C - - G - 2 -7 -8 G -5 - - C - -7 4 -1 C -6 -3 -12 -13 A - -8 -5 2 A -7 -8 -1 C - x= C -8 F y= G x= -5 Iy C -6 C -7 G - - -3 C - - -12 -1 A - - -13 -10 -4 Iy(i-1, j) F(i-1, j) d=-5 e=-1 Iy(i, j) C - Ix m=2 s = -2 d = -5 e = -1

y= G x= 0 C C y= G C C - - G - 2 -7 -8 G -5 - - C - -7 4 -1 C -6 -3 -12 -13 A - -8 -5 2 A -7 -8 -1 C - x= C -8 F y= G x= -6 -5 Iy C -6 C -7 G - - -3 C - - -12 -1 A - - -13 -10 -4 Iy(i-1, j) F(i-1, j) d=-5 e=-1 Iy(i, j) C - Ix m=2 s = -2 d = -5 e = -1

y= G x= 0 C C y= G C C - - G - 2 -7 -8 G -5 - - C - -7 4 -1 C -6 -3 -12 -13 A - -8 -5 2 A -7 -8 -1 -6 C - -9 -6 1 C -8 -13 -2 -3 x= F y= G x= G - Iy C C -5 -6 -7 - -3 -4 F(i-1, j-1) Iy(i-1, j-1) (xi, yj) C - - -12 -1 A - - -13 -10 C - - -14 -11 F(i, j-1) Ix(i, j-1) Iy(i-1, j) F(i-1, j) Ix(i-1, j-1) Ix m=2 s = -2 d = -5 e = -1 d e F(i, j) Iy(i, j) d e Ix(i, j)

y= G x= 0 C C y= G C C - - G - 2 -7 -8 G -5 - - C - -7 4 -1 C -6 -3 -12 -13 A - -8 -5 2 x GCAC A -7 -8 -1 -6 C - -9 -6 1 || | C -8 -13 -2 -3 y GC-C F y= G x= x= C Iy C y= G -5 -6 -7 G - - -3 -4 G C - - -12 -1 C A - - -13 -10 C - - -14 -11 Ix m=2 s = -2 d = -5 e = -1 x= A C C C

Statistics of alignment Where does (xi, yj) come from? Are two aligned sequences actually related?

Probabilistic model of alignments • We’ll first focus on protein alignments without gaps • Given an alignment, we can consider two possible models – R: the sequences are related by evolution – U: the sequences are unrelated • How can we distinguish these two models? • How is this view related to amino-acid substitution matrix?

Model for unrelated sequences • Assume each position of the alignment is independently sampled from some distribution of amino acids • ps: probability of amino acid s in the sequences • Probability of seeing an amino acid s aligned to an amino acid t by chance is – Pr(s, t | U) = ps * pt • Probability of seeing an ungapped alignment between x = x 1…xn and y = y 1…yn randomly is i

Model for related sequences • Assume each pair of aligned amino acids evolved from a common ancestor • Let qst be the probability that amino acid s in one sequence is related to t in another sequence • The probability of an alignment of x and y is give by

Probabilistic model of Alignments • How can we decide which model (U or R) is more likely? • One principled way is to consider the relative likelihood of the two models (the odds ratio) – A higher ratio means that R is more likely than U

Log odds ratio • Taking logarithm, we get • Recall that the score of an alignment is given by

• Therefore, if we define • We are actually defining the alignment score as the log odds ratio between the two models R and U

How to get the probabilities? • ps can be counted from the available protein sequences • But how do we get qst? (the probability that s and t have a common ancestor) • Counted from trusted alignments of related sequences

Protein Substitution Matrices • Two popular sets of matrices for protein sequences – PAM matrices [Dayhoff et al, 1978] • Better for aligning closely related sequences – BLOSUM matrices [Henikoff & Henikoff, 1992] • For both closely or remotely related sequences

BLOSUM-N matrices • Constructed from a database called BLOCKS • Contain many closely related sequences – Conserved amino acids may be over-counted • N = 62: the probabilities qst were computed using trusted alignments with no more than 62% identity – identity: % of matched columns • Using this matrix, the Smith-Waterman algorithm is most effective in detecting real alignments with a similar identity level (i. e. ~62%)

: Scaling factor to convert score to integer. Important: when you are told that a scoring matrix is in half-bits => = ½ ln 2 Positive for chemically similar substitution Common amino acids get low weights Rare amino acids get high weights

BLOSUM-N matrices • If you want to detect homologous genes with high identity, you may want a BLOSUM matrix with higher N. say BLOSUM 75 • On the other hand, if you want to detect remote homology, you may want to use lower N, say BLOSUM 50 • BLOSUM-62: good for most purposes 45 Weak homology 62 90 Strong homology

For DNAs • No database of trusted alignments to start with • Specify the percentage identity you would like to detect • You can then get the substitution matrix by some calculation

For example • Suppose p. A = p. C = p. T = p. G = 0. 25 • We want 88% identity • q. AA = q. CC = q. TT = q. GG = 0. 22, the rest = 0. 12/12 = 0. 01 • (A, A) = (C, C) = (G, G) = (T, T) = log (0. 22 / (0. 25*0. 25)) = 1. 26 • (s, t) = log (0. 01 / (0. 25*0. 25)) = -1. 83 for s ≠ t.

Substitution matrix A C G T A 1. 26 -1. 83 C -1. 83 1. 26 -1. 83 G -1. 83 1. 26 -1. 83 T -1. 83 1. 26

A C G T A 5 -7 -7 -7 C -7 5 -7 -7 G -7 -7 5 -7 T -7 -7 -7 5 • Scale won’t change the alignment • Multiply by 4 and then round off to get integers

Arbitrary substitution matrix • Say you have a substitution matrix provided by someone • It’s important to know what you are actually looking for when you use the matrix

NCBI-BLAST G WU-BLAST A C A 1 -2 -2 -2 C -2 1 G -2 -2 T G T A 5 -4 -4 -4 -2 -2 C -4 5 1 -2 G -4 -4 5 -4 -2 -2 -2 1 T -4 -4 -4 5 -4 -4 • What’s the difference? • Which one should I use for my sequences?

• We had • Scale it, so that • Reorganize:

• Since all probabilities must sum to 1, • We have • Suppose again ps = 0. 25 for any s • We know (s, t) from the substitution matrix • We can solve the equation for λ • Plug λ into to get qst

NCBI-BLAST G WU-BLAST A C A 1 -2 -2 -2 C -2 1 G -2 -2 T G T A 5 -4 -4 -4 -2 -2 C -4 5 1 -2 G -4 -4 5 -4 -2 -2 -2 1 T -4 -4 -4 5 -4 -4 = 1. 33 = 0. 19 qst = 0. 24 for s = t, and 0. 004 for s ≠ t qst = 0. 16 for s = t, and 0. 03 for s ≠ t Translate: 95% identity Translate: 65% identity

Details for solving A C G T A 1 -2 -2 -2 C -2 1 -2 -2 G -2 -2 1 -2 T -2 -2 -2 1 Known: (s, t) = 1 for s=t, and (s, t) = -2 for s t. Since and s, t qst = 1, we have 12 * ¼ * e-2 + 4 * ¼ * e = 1 Let e = x, we have ¾ x-2 + ¼ x = 1. Hence, x 3 – 4 x 2 + 3 = 0; • X has three solutions: 3. 8, 1, -0. 8 • Only the first solution leads to a positive • = ln (3. 8) = 1. 33

Statistics of alignment Where does (xi, yj) come from? Are two aligned sequences actually related?

Statistics of Alignment Scores • Q: How do we assess whether an alignment provides good evidence for homology (i. e. , the two sequences are evolutionarily related)? – Is a score 82 good? What about 180? • A: determine how likely it is that such an alignment score would result from chance

P-value of alignment • p-value – The probability that the alignment score can be obtained from aligning random sequences – Small p-value means the score is unlikely to happen by chance – The most common thresholds are 0. 01 and 0. 05, • also depend on purpose of comparison and cost of misclaim • Model-based vs simulation-based

Statistics of global seq alignment • Theory only applies to local alignment • For global alignment, your best bet is to do Monte-Carlo simulation – What’s the chance you can get a score as high as the real alignment by aligning two random sequences? • Procedure – Given sequence X, Y – Compute a global alignment (score = S) – Randomly shuffle sequence X (or Y) N times, obtain X 1, X 2, …, XN – Align each Xi with Y, (score = Ri) – P-value: the fraction of Ri >= S

Human HEXA Fly HEXO 1 Score = -74

-74 Distribution of the alignment scores between fly HEXO 1 and 200 randomly shuffled human HEXA sequences There are 88 random sequences with alignment score >= -74. So: p-value = 88 / 200 = 0. 44 => alignment is not significant

Mouse HEXA Human HEXA Score = 732 …………………………

Distribution of the alignment scores between mouse HEXA and 200 randomly shuffled human HEXA sequences 732 • No random sequences with alignment score >= 732 – So: the P-value is less than 1 / 200 = 0. 05 • To get smaller p-value, have to align more random sequences – Very slow • Unless we can fit a distribution (e. g. normal distribution) – Such distribution may not be generalizable – No theory exists for global alignment score distribution

Statistics for local alignment • Elegant theory exists • Score for ungapped local alignment follows extreme value distribution (Gumbel distribution) Normal distribution Extreme value distribution An example extreme value distribution: • Randomly sample 100 numbers from a normal distribution, and compute max • Repeat 100 times. • The max values will follow extreme value distribution

Statistics for local alignment • Given two unrelated sequences of lengths M, N • Expected number of ungapped local alignments with score at least S can be calculated by – – E(S) = KMN exp[- S] Known as E-value : scaling factor as computed in last lecture K: empirical parameter ~ 0. 1 • Depend on sequence composition and substitution matrix

P-value for local alignment score • P-value for a local alignment with score S when P is small.

Example • You are aligning two sequences, each has 1000 bases • m = 1, s = -1, d = -inf (ungapped alignment) • You obtain a score 20 • Is this score significant?

• • • = ln 3 = 1. 1 (computed as discussed on slide #41) E(S) = K MN exp{- S} E(20) = 0. 1 * 1000 * 3 -20 = 3 x 10 -5 P-value = 3 x 10 -5 << 0. 05 The alignment is significant Distribution of 1000 random sequence pairs 20

Multiple-testing problem • Searching a 1000 -base sequence against a database of 106 sequences (each of length 1000) • How significant is a score 20 now? • You are essentially comparing 1000 bases with 1000 x 106 = 109 bases (ignore edge effect) • E(20) = 0. 1 * 1000 * 109 * 3 -20 = 30 • By chance we would expect to see 30 matches – The P-value (probability of seeing at least one match with score >= 30) is 1 – e-30 = 0. 99999 – The alignment is not significant – Caution: it does NOT mean that the two sequences are unrelated. Rather, it simply means that you have NO confidence to say whether the two sequences are related.

Score threshold to determine significance • You want a p-value that is very small (even after taking into consideration multiple-testing) • What S will guarantee you a significant p-value? E(S) P(S) << 1 => KMN exp[- S] << 1 => log(KMN) - S < 0 => S > T + log(MN) / (T = log(K) / , usually small)

Score threshold to determine significance • In the previous example – m = 1, s = -1, d = -inf => = 1. 1 • Aligning 1000 bp vs 1000 bp S > log(106) / 1. 1 = 13. So 20 is significant. • Searching 1000 bp against 106 x 1000 bp S > log(1012) / 1. 1 = 25. so 20 is not significant.

Statistics for gapped local alignment • Theory not well developed • Extreme value distribution works well empirically • Need to estimate K and empirically – Given the database and substitution matrix, generate some random sequence pairs – Do local alignment – Fit an extreme value distribution to obtain K and

Alignment statistics summary • How to obtain a substitution matrix? – Obtain qst and ps from established alignments (for DNA: from your knowledge) – Computing score: • How to understand arbitrary substitution matrix? – Solve function to obtain and target qst – Which tells you what percent identity you are expecting • How to understand alignment score? – probability that a score can be expected from chance. – Global alignment: Monte-Carlo simulation – Local alignment: Extreme Value Distribution • Estimate p-value from a score • Determine a score threshold without computing a p-value

Part III: Heuristic Local Sequence Alignment: BLAST

State of biological databases Sequenced Genomes: Human Mouse Neurospora Tetraodon Drosophila Rice sea squirts 3 109 2. 7 109 4 107 3 108 1. 2 108 1. 0 109 1. 6 108 Yeast Rat Fugu fish 3. 3 108 Mosquito 2. 8 108 Worm Arabidopsis Current rate of sequencing (before new-generation sequencing): 4 big labs 3 109 bp /year/lab 10 s small labs Private sectors With new-generation sequencing: Easily generating billions of reads daily 1. 2 107 2. 6 109 1. 0 108 1. 2 108

Some useful applications of alignments Given a newly discovered gene, - Does it occur in other species? Assume we try Smith-Waterman: Our new gene 104 The entire genomic database 1010 - 1011 May take several weeks!

Some useful applications of alignments Given a newly sequenced organism, - Which subregions align with other organisms? - Potential genes - Other functional units Assume we try Smith-Waterman: Our newly sequenced mammal 3 109 The entire genomic database 1010 - 1011 > 1000 years ? ? ?

BLAST • Basic Local Alignment Search Tool – Altschul, Gish, Miller, Myers, Lipman, J Mol Biol 1990 – The most widely used bioinformatics tool • Which is better: long mediocre match or a few nearby, short, strong matches with the same total score? – Score-wise, exactly equivalent – Biologically, later may be more interesting, & is common – At least, if must miss some, rather miss the former • BLAST is a heuristic algorithm emphasizing the later – speed/sensitivity tradeoff: BLAST may miss former, but gains greatly in speed

BLAST • Available at NCBI (National Center for Biotechnology Information) for download and online use. http: //blast. ncbi. nlm. nih. gov/ • Along with many sequence databases query Main idea: 1. Construct a dictionary of all the words in the query 2. Initiate a local alignment for each word match between query and DB Running Time: O(MN) However, orders of magnitude faster than Smith-Waterman DB

BLAST Original Version …… Dictionary: All words of length k (~11 for DNA, 3 for proteins) Alignment initiated between words of alignment score T (typically T = k) query …… Alignment: Ungapped extensions until score below statistical threshold Output: All local alignments with score > statistical threshold scan DB query

BLAST Original Version k = 4, T = 4 The matching word GGTC initiates an alignment Extension to the left and right with no gaps until alignment falls < 50% Output: GTAAGGTCC GTTAGGTCC C T T C C T G G A T T G C G A Example: A C G A A G T A A G G T C C A G T

Gapped BLAST • • Pairs of words can initiate alignment Extensions with gaps in a band around anchor Output: GTAAGGTCCAGT GTTAGGTC-AGT C T G A T C C T G G A T T G C G A Added features: A C G A A G T A A G G T C C A G T

Example Query: gattacaccccgattaca (29 letters) [2 mins] Database: All Gen. Bank+EMBL+DDBJ+PDB sequences (but no EST, STS, GSS, or phase 0, 1 or 2 HTGS sequences) 1, 726, 556 sequences; 8, 074, 398, 388 total letters >gi|28570323|gb|AC 108906. 9| Oryza sativa chromosome 3 BAC OSJNBa 0087 C 10 genomic sequence, complete sequence Length = 144487 Score = 34. 2 bits (17), Expect = 4. 5 Identities = 20/21 (95%) Strand = Plus / Plus Query: Sbjct: 4 tacaccccgattacaccccga 24 ||||||||||||| 125138 tacacccagattacaccccga 125158 Score = 34. 2 bits (17), Expect = 4. 5 Identities = 20/21 (95%) Strand = Plus / Plus Query: Sbjct: 4 tacaccccgattacaccccga 24 ||||||||||||| 125104 tacacccagattacaccccga 125124 >gi|28173089|gb|AC 104321. 7| Oryza sativa chromosome 3 BAC OSJNBa 0052 F 07 genomic sequence, complete sequence Length = 139823 Score = 34. 2 bits (17), Expect = 4. 5 Identities = 20/21 (95%) Strand = Plus / Plus Query: Sbjct: 4 tacaccccgattacaccccga 24 ||||||||||||| 3891 tacacccagattacaccccga 3911

Example Query: Human atoh enhancer, 179 letters [1. 5 min] Result: 57 blast hits 1. gi|7677270|gb|AF 218259. 1|AF 218259 Homo sapiens ATOH 1 enhanc. . . gi|22779500|gb|AC 091158. 11| Mus musculus Strain C 57 BL 6/J ch. . . gi|7677269|gb|AF 218258. 1|AF 218258 Mus musculus Atoh 1 enhanc. . . gi|28875397|gb|AF 467292. 1| Gallus gallus CATH 1 (CATH 1) gene. . . gi|27550980|emb|AL 807792. 6| Zebrafish DNA sequence from clo. . . gi|22002129|gb|AC 092389. 4| Oryza sativa chromosome 10 BAC O. . . gi|22094122|ref|NM_013676. 1| Mus musculus suppressor of Ty. . . gi|13938031|gb|BC 007132. 1| Mus musculus, Similar to suppres. . . 2. 3. 4. 5. 6. 7. 8. 355 1 e-95 264 4 e-68 256 9 e-66 78 5 e-12 54 7 e-05 44 0. 068 42 0. 27 gi|7677269|gb|AF 218258. 1|AF 218258 Mus musculus Atoh 1 enhancer sequence Length = 1517 Score = 256 bits (129), Expect = 9 e-66 Identities = 167/177 (94%), Gaps = 2/177 (1%) Strand = Plus / Plus Query: 3 tgacaatagagggtctggcagaggctcctggccgcggtgcggagcgtctggagca 62 ||||||||||||||||||| Sbjct: 1144 tgacaatagaggggctggcagaggctcctggccccggtgcggagcgtctggagca 1203 Query: 63 cgcgctgtcagctggtgagcgcactctcctttcaggcagctccccggggagctgtgcggc 122 |||||||||||||||| Sbjct: 1204 cgcgctgtcagctggtgagcgcactc-gctttcaggccgctccccggggagctgagcggc 1262 Query: 123 cacatttaacaccatcatcacccctccccggcctcctcaacctcggcctcctcctcg 179 ||||||| || ||||||||||| Sbjct: 1263 cacatttaacaccgtcgtca-ccctccccggcctcctcaacatcggcctcctcctcg 1318

BLAST Score: bit score vs raw score • Bit score is converted from raw score by taking into account K and : ØS’ = ( S – log K) / log 2 • To compute E-value from bit score: ØE = KM’N’ e- S = M’N’ 2 -S’ • Critical score is now: ØS* = log 2(M’N’) ØIf S’ >> S*: significant ØIf S’ << S*: not significant (M’ ~ M, N’ ~ N)

Different types of BLAST • blastn: search nucleic acid databases • blastp: search protein databases • blastx: you give a nucleic acid sequence, search protein databases • tblastn: you give a protein sequence, search nucleic acid databases • tblastx: you give a nucleic sequence, search nucleic acid database, implicitly translate both into protein sequences

BLAST cons and pros • Advantages – Fast!!!! – A few minutes to search a database of 1011 bases • Disadvantages – Sensitivity may be low – Often misses weak homologies • New improvement – Make it even faster • Mainly for aligning very similar sequences or really long sequences – E. g. whole genome vs whole genome – Make it more sensitive • PSI-BLAST: iteratively add more homologous sequences • Pattern. Hunter: discontinuous seeds

Variants of BLAST NCBI-BLAST: most widely used version WU-BLAST: (Washington University BLAST): another popular version Optimized, added features MEGABLAST: Optimized to align very similar sequences. Linear gap penalty BLAT: Blast-Like Alignment Tool Blast. Z: Optimized for aligning two genomes PSI-BLAST: BLAST produces many hits Those are aligned, and a pattern is extracted Pattern is used for next search; above steps iterated Sensitive for weak homologies Slower

Summary • Part I: Algorithms – Global sequence alignment: Needleman-Wunsch – Local sequence alignment: Smith-Waterman – Improvement on space and time • Part II: Biological issues – Model gaps more accurately: affine gap penalty – Alignment statistics • Part III: Heuristic algorithms – BLAST family
