CS 405 G Introduction to Database Systems SQL

CS 405 G: Introduction to Database Systems SQL II Instructor: Jinze Liu

Review: SQL DML • DML includes 4 main statements: SELECT (query), INSERT, UPDATE and DELETE PROJECT • e. g: SELECT S. name, E. cid FROM Students S, Enrolled E WHERE S. sid = E. sid AND JOIN S. age=19 SELECT

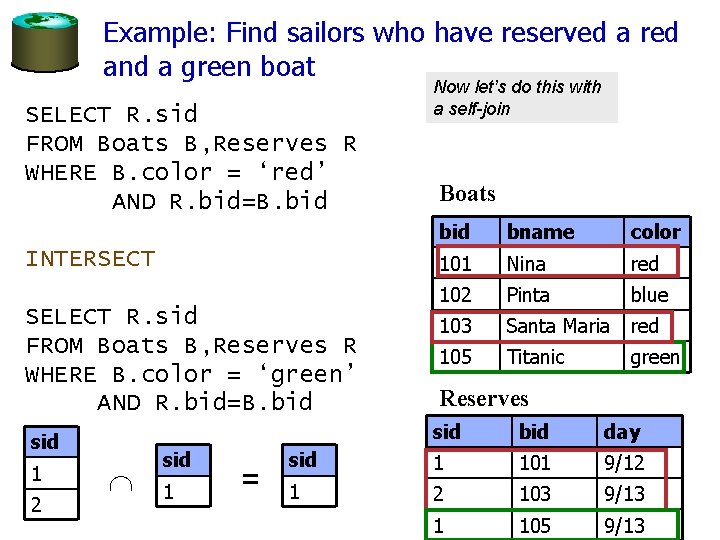

Example: Find sailors who have reserved a red and a green boat SELECT R. sid FROM Boats B, Reserves R WHERE B. color = ‘red’ AND R. bid=B. bid INTERSECT SELECT R. sid FROM Boats B, Reserves R WHERE B. color = ‘green’ AND R. bid=B. bid sid 1 2 sid 1 = Now let’s do this with a self-join Boats bid bname color 101 Nina red 102 Pinta blue 103 Santa Maria red 105 Titanic green Reserves sid bid day sid 1 101 9/12 1 2 103 9/13 1 105 9/13

Find sids of sailors who’ve reserved a red and a green boat SELECT R 1. sid FROM Boats B 1, Reserves R 1, Boats B 2, Reserves R 2 WHERE B 1. color = ‘red’ AND B 1. bid=R 1. bid Find reserved boats Find green reserved boats AND B 2. color = ‘green’ AND B 2. bid=R 2. bid Find matching green and reserved boats AND R 1. sid=R 2. sid bname color 101 Nina red 102 Pinta blue 103 Santa Maria red 105 Titanic green sid bid day 1 101 9/12 2 103 9/13 1 105 9/13 sid 1 2 sid 1 = sid 1

Nested Queries • The WHERE clause can itself contain an SQL query! (Actually, so can FROM and HAVING clauses can too) e. g. Find the names of sailors who’ve reserved boat #103: Reserves SELECT S. sname FROM Sailors S WHERE S. sid IN (SELECT R. sid FROM Reserves R sname WHERE R. bid=103) Sailors sid Bilbo sname rating age S 1 Frodo 7 22 S 2 Bilbo 2 39 S 3 Sam 8 27 sid bid day 1 101 9/12 2 103 9/13 1 105 9/13 First compute the set of all sailors that have reserved boat 103… …and then check each the sid of each tuple in Sailors to see if it is in S 1 sid 2

Nested Queries • This nested query was uncorrelated because the subquery does not refer to anything in the enclosing query SELECT S. sname FROM Sailors S WHERE S. sid IN (SELECT R. sid FROM Reserves R WHERE R. bid=103) ØIt can be evaluated once and then checked for each tuple in enclosing query

Nested Queries with correlation • Nested queries can also be correlated; the subquery refers to the enclosing query SELECT S. sname FROM Sailors S WHERE EXISTS (SELECT * FROM Reserves R WHERE R. bid=103 AND R. sid=S. sid) ØThe subquery must be re-evaluated for each tuple in enclosing query Ø EXISTS is a set operator that is true if result of set expression has at least one tuple

Nested Queries e. g. Find the names of sailors who’ve reserved boat #103: Notice that this query computes the same answer as the previous query! SELECT S. sname FROM Sailors S WHERE EXISTS (SELECT * FROM Reserves R WHERE R. bid=103 AND R. sid=S. sid) 1 2 3 Sailors sid Reserves sname rating age S 1 Frodo 7 22 S 2 Bilbo 2 39 S 3 Sam 8 27 sid bid day sid 1 101 9/12 2 2 103 9/13 1 105 9/13 bid day 103 9/13

Set-Comparison Operators • <tuple expression> IN <set expression> • • – True if <tuple> is a member of <set> – Also, NOT IN EXISTS <set expression> – True if <set expression> evaluates to a set with at least one member – Also, NOT EXISTS UNIQUE <set expression> – True if <set expression> evaluates to a set with no duplicates; each row can appear exactly once – Also, NOT UNIQUE • <tuple expression> comparison op ANY <set expression> – True if <set expression> contains at least one member that makes the comparison true – Also, op ALL

Use NOT Exists for Division Recall: X/Y means only give me X tuples that have a match in Y. Find sailors who’ve reserved all boats. X = set of sailors and Y = set of all boats with reservations. SELECT S. sname Find Sailors S such that. . . FROM Sailors S WHERE NOT EXISTS there is no boat B. . . (SELECT B. bid FROM Boats B WHERE NOT EXISTS (SELECT R. bid without a FROM Reserves R Sailor S WHERE R. bid=B. bid AND R. sid=S. sid)) reservation by

Division SELECT S. sname FROM Sailors S WHERE NOT EXISTS (SELECT B. bid FROM Boats B WHERE NOT EXISTS (SELECT R. bid FROM Reserves R 101 103 WHERE R. bid=B. bid 1 3 AND R. sid=S. sid)) 2 Reserves Sailors sid Boats sname rating age S 1 Frodo 7 22 S 2 Bilbo 2 39 S 3 Sam 8 27 bid bname color B 101 Nina red B 103 Pinta blue R R R sid bid day 1 103 9/12 2 103 9/13 3 103 9/14 3 101 9/12 1 103 9/13

UNIQUE Find the names of sailors who’ve reserved boat #103 exactly once SELECT S. sname FROM Sailors S WHERE UNIQUE (SELECT sid, bid FROM Reserves R WHERE R. bid=103 AND S. sid=R. sid) 1 2 3 Sailors sid Reserves sname rating age S 1 Frodo 7 22 S 2 Bilbo 2 39 S 3 Sam 8 27 sid bid day sid 1 103 9/12 2 2 103 9/13 1 103 9/13 bid day 103 9/13

ANY Find sailors whose rating is greater than that of some sailor called Bilbo: Correlated or uncorrelated? SELECT * FROM Sailors S WHERE S. rating > ANY(SELECT S 2. rating FROM Sailors S 2 WHERE S 2. sname=‘Bilbo’) S 1 Uncorrelated! S 2 sid sname rating age 1 Frodo 7 22 2 1 Bilbo Frodo 2 7 39 22 2 Bilbo 2 39 3 Sam 8 27

Aggregate Operators • Very powerful; enables computations over sets of tuples • COUNT: returns a count of tuples in the set • AVG: returns average of column values in the set • SUM: returns sum of column values in the set • MIN, MAX: returns min (max) value of column values in a set. • DISTINCT can be added to COUNT, AVG, SUM to perform computation only over distinct values. SELECT COUNT (*) FROM Sailors S SELECT AVG (S. age) FROM Sailors S WHERE S. rating=10 SELECT AVG(DISTINCT S. age) FROM Sailors S WHERE S. rating=10

Aggregate Operators Find name and age of the oldest sailor(s) X SELECT S. sname, MAX FROM Sailors S (S. age) What will the result be? sname age Frodo 39 Bilbo 39 Sam 39 Sailors sid sname rating age 1 Frodo 7 22 2 Bilbo 2 39 3 Sam 8 27 Not legal syntax; no other columns allowed in SELECT clause without a GROUP BY clause (we’ll learn about those next)

Aggregate Operators Find name and age of the oldest sailor(s) Instead: SELECT S. sname, S. age And then find the FROM Sailors S sailors(s) of that age… WHERE S. age = Find the maximum age… (SELECT MAX (S 2. age) FROM Sailors S 2)

GROUP BY and HAVING • So far, we’ve seen aggregate operators applied to all tuples. – What if we want to apply ops to each of several groups of tuples? • Consider: Find the age of the youngest sailor for each rating level. – In general, we don’t know how many rating levels exist, and what the rating values for these levels are! – Suppose we know that rating values go from 1 to 10; we can write 10 queries that look like this (!): For i = 1, 2, . . . , 10: SELECT MIN (S. age) FROM Sailors S WHERE S. rating = i

Queries With GROUP BY • To generate values for a column based on groups of rows, use aggregate functions in SELECT statements with the GROUP BY clause Returning 1 row per group SELECT [DISTINCT] target-list FROM relation-list [WHERE qualification] GROUP BY grouping-list And finally compute aggregate function over each group… First select these rows… Then group them by the values in these columns… target-list contains: • list of column names from grouping–list • terms with aggregate operations (e. g. , MIN (S. age)).

Group By Example For each rating, find the age of the youngest sailor with age 18 Sailors SELECT S. rating, MIN FROM Sailors S WHERE S. age >= 18 GROUP BY S. rating 7 22 2 21 8 27 (S. age) Group 1 Group 2 Group 3 sid sname rating age 1 Frodo 7 22 2 Bilbo 2 39 3 Sam 8 27 4 Pippin 2 21 5 Merry 8 17 1 Frodo 7 22 2 Bilbo 2 39 4 Pippin 2 21 3 Sam 8 27

Find the number of reservations for each red boat. SELECT B. bid, COUNT(*)AS tot_res FROM Boats B, Reserves R Boats WHERE R. bid=B. bid AND bid bname B. color=‘red’ 101 Nina GROUP BY B. bid Pinta blue Santa Maria red 1 103 101 2 Reserves 103 9/13 3 101 9/14 4 101 9/14 red 102 103 2 color sid bid day 1 102 9/12 2 103 9/13 3 101 9/14 4 101 9/14

Queries With GROUP BY and HAVING SELECT [DISTINCT] target-list FROM relation-list WHERE qualification GROUP BY grouping-list HAVING group-qualification • Use the HAVING clause with the GROUP BY clause to restrict which group-rows are returned in the result set

Find the age of the youngest sailor with age 18, for each rating with at least 2 such sailors SELECT S. rating, MIN (S. age) FROM Sailors S WHERE S. age >= 18 GROUP BY S. rating HAVING COUNT (*) > 1 2 3 Answer

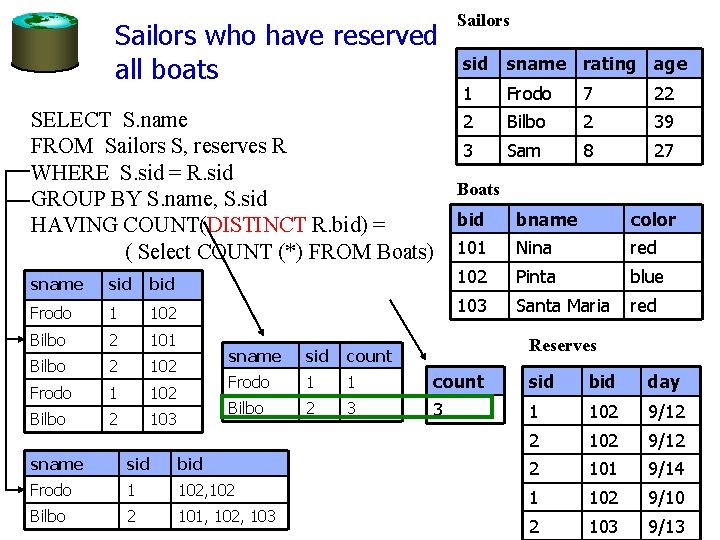

Sailors who have reserved all boats SELECT S. name FROM Sailors S, reserves R WHERE S. sid = R. sid GROUP BY S. name, S. sid HAVING COUNT(DISTINCT R. bid) = ( Select COUNT (*) FROM Boats) Sailors sid sname rating age 1 Frodo 7 22 2 Bilbo 2 39 3 Sam 8 27 Boats bid bname color 101 Nina red sname sid bid 102 Pinta blue Frodo 1 102 103 Santa Maria red Bilbo 2 101 Bilbo 2 102 Frodo 1 102 Bilbo 2 103 Reserves sname sid count Frodo 1 1 count sid bid day Bilbo 2 3 3 1 102 9/12 2 102 9/12 sname sid bid 2 101 9/14 Frodo 1 102, 102 Bilbo 2 101, 102, 103 1 102 9/10 2 103 9/13

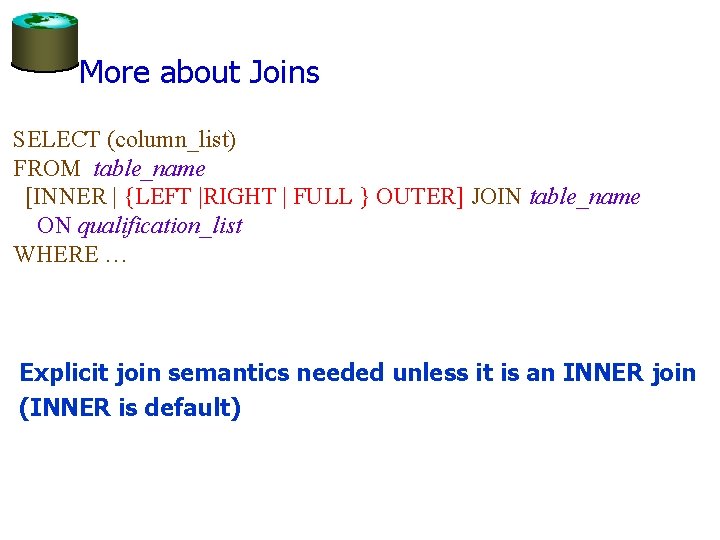

More about Joins SELECT (column_list) FROM table_name [INNER | {LEFT |RIGHT | FULL } OUTER] JOIN table_name ON qualification_list WHERE … Explicit join semantics needed unless it is an INNER join (INNER is default)

Default semantics: Inner Join Only rows that match search conditions are returned. SELECT s. sid, s. name, r. bid FROM Sailors s INNER JOIN Reserves r ON s. sid = r. sid Returns only those sailors who have reserved boats SQL-92 also allows: SELECT s. sid, s. name, r. bid FROM Sailors s NATURAL JOIN Reserves r “NATURAL” means equi-join for each pair of attributes with the same name

SELECT s. sid, s. name, r. bid FROM Sailors s INNER JOIN Reserves r ON s. sid = r. sid

Left Outer Join returns all matched rows, plus all unmatched rows from the table on the left of the join clause (use nulls in fields of non-matching tuples) SELECT s. sid, s. name, r. bid FROM Sailors s LEFT OUTER JOIN Reserves r ON s. sid = r. sid Returns all sailors & information on whether they have reserved boats

SELECT s. sid, s. name, r. bid FROM Sailors s LEFT OUTER JOIN Reserves r ON s. sid = r. sid

Right Outer Join returns all matched rows, plus all unmatched rows from the table on the right of the join clause SELECT r. sid, b. bid, b. name FROM Reserves r RIGHT OUTER JOIN Boats b ON r. bid = b. bid Returns all boats & information on which ones are reserved.

SELECT r. sid, b. bid, b. name FROM Reserves r RIGHT OUTER JOIN Boats b ON r. bid = b. bid

Full Outer Join returns all (matched or unmatched) rows from the tables on both sides of the join clause SELECT r. sid, b. bid, b. name FROM Reserves r FULL OUTER JOIN Boats b ON r. bid = b. bid Returns all boats & all information on reservations

SELECT r. sid, b. bid, b. name FROM Reserves r FULL OUTER JOIN Boats b ON r. bid = b. bid Note: in this case it is the same as the ROJ because bid is a foreign key in reserves, so all reservations must have a corresponding tuple in boats.

INSERT [INTO] table_name [(column_list)] VALUES ( value_list) INSERT [INTO] table_name [(column_list)] <select statement> INSERT INTO Boats VALUES ( 105, ‘Clipper’, ‘purple’) INSERT INTO Boats (bid, color) VALUES (99, ‘yellow’) “bulk insert” from one table to another (must be type compatible): INSERT INTO TEMP(bid) SELECT r. bid FROM Reserves R WHERE r. sid = 22; “bulk insert” from files (in Postgres) Copy

DELETE & UPDATE DELETE [FROM] table_name [WHERE qualification] DELETE FROM Boats WHERE color = ‘red’ DELETE FROM Boats b WHERE b. bid = (SELECT r. bid FROM Reserves R WHERE r. sid = 22) Can also modify tuples using UPDATE statement. UPDATE Boats SET Color = “green” WHERE bid = 103;

Null Values • Values are sometimes – unknown (e. g. , a rating has not been assigned or – inapplicable (e. g. , no spouse’s name). – SQL provides a special value null for such situations. • The presence of null complicates many issues. E. g. : – Special operators needed to check if value is/is not null. – “rating>8” - true or false when rating is null? What about AND, OR and NOT connectives? – Need a 3 -valued logic (true, false and unknown). – Meaning of constructs must be defined carefully. (e. g. , WHERE clause eliminates rows that don’t evaluate to true. ) – New operators (in particular, outer joins) possible/needed.

Null Values – 3 Valued Logic (null > 0) is null (null + 1) is null (null = 0) is null AND true is null AND T F Null OR T F Null T T T T F F F T F Null NULL Null F Null NULL T Null
