CS 3343 Analysis of Algorithms Lecture 9 Review
- Slides: 67
CS 3343: Analysis of Algorithms Lecture 9: Review for midterm 1 Analysis of quick sort 12/15/2021 1
Exam (midterm 1) • Closed book exam • One cheat sheet allowed (limit to a single page of letter-size paper, double-sided) • Tuesday, Oct 4, class time + 5 minutes • Basic calculator (no graphing) is allowed – Do NOT use phones / tablets as calculators 12/15/2021 2
Materials covered • Up to Lecture 8 (Sept 15) • Comparing functions • O, Θ, Ω – Definition, limit method, L’Hopital’s rule, sterling’s formula • Analyzing iterative algorithms – Know how to count the number of basic operations, and express the running time as a sum of a series – Know how to compute the sum of a series (geometric, arithmetic, or other frequently seen series) • Analyzing recursive algorithms – – 12/15/2021 Define recurrence Solve recurrence using recursion tree / iteration method Solve recurrence using master method Prove using substitution method 3
Asymptotic notations • • • O: <= o: < Ω: >= ω: > Θ: = (in terms of growth rate) 12/15/2021 4
Mathematical definitions • O(g(n)) = {f(n): positive constants c and n 0 such that 0 ≤ f(n) ≤ cg(n) n>n 0} • Ω(g(n)) = {f(n): positive constants c and n 0 such that 0 ≤ cg(n) ≤ f(n) n>n 0} • Θ(g(n)) = {f(n): positive constants c 1, c 2, and n 0 such that 0 c 1 g(n) f(n) c 2 g(n) n n 0} 12/15/2021 5
Big-Oh • Claim: f(n) = 3 n 2 + 10 n + 5 O(n 2) • Proof by definition: f(n) = 3 n 2 + 10 n + 5 3 n 2 + 10 n 2 + 5 , n > 1 3 n 2 + 10 n 2 + 5 n 2, n > 1 18 n 2, n > 1 If we let c = 18 and n 0 = 1, we have f(n) c n 2, n > n 0. Therefore by definition, f(n) = O(n 2). 12/15/2021 6
Use limits to compare orders of growth f(n) o(g(n)) • lim f(n) / g(n) = n→∞ 0 c >0 ∞ f(n) O(g(n)) f(n) Θ (g(n)) f(n) Ω(g(n)) f(n) ω (g(n)) L’ Hopital’s rule lim f(n) / g(n) = lim f(n)’ / g(n)’ n→∞ Condition: If both lim f(n) and lim g(n) = ∞ or 0 Stirling’s formula (constant) 12/15/2021 7
Useful rules for logarithms For all a > 0, b > 0, c > 0, the following rules hold • logba = logca / logcb = lg a / lg b – So: log 10 n = log 2 n / log 2 10 • logban = n logba – So: log 3 n = n log 3 = (n) • b logba = a – So: 2 log 2 n = n • log (ab) = log a + log b – So: log (3 n) = log 3 + log n = (log n) • log (a/b) = log (a) – log(b) – So: log (n/2) = log n – log 2 = (log n) • logba = 1 / logab • logb 1 = 0 12/15/2021 8
Useful rules for exponentials • • • For all a > 0, b > 0, c > 0, the following rules hold a 0 = 1 (00 = ? ) Answer: does not exist a 1 = a a-1 = 1/a (am)n = amn (am)n = (an)m – So: (3 n)2 = 32 n = (32)n =9 n • aman = am+n – So: n 2 n 3 = n 5 – 2 n 22 = 2 n+2 = 4 * 2 n = (2 n) 12/15/2021 9
More advanced dominance ranking 12/15/2021 10
Sum of arithmetic series If a 1, a 2, …, an is an arithmetic series, then 12/15/2021 11
Sum of geometric series if r < 1 if r > 1 if r = 1 12/15/2021 12
Sum manipulation rules Example: 12/15/2021 13
Analyzing non-recursive algorithms • Decide parameter (input size) • Identify most executed line (basic operation) • worst-case = average-case? • T(n) = i ti • T(n) = Θ (f(n)) 12/15/2021 14
Analysis of insertion Sort Statement Insertion. Sort(A, n) { for j = 2 to n { key = A[j] i = j - 1; while (i > 0) and (A[i] > key) { A[i+1] = A[i] i = i - 1 } A[i+1] = key } } 12/15/2021 cost time__ c 1 c 2 c 3 c 4 c 5 c 6 0 c 7 0 n (n-1) S (S-(n-1)) (n-1) 15
Best case Inner loop stops when A[i] <= key, or i = 0 i j 1 sorted • • Key Array already sorted S = j=1. . n tj tj = 1 for all j S = n. T(n) = Θ (n) 12/15/2021 16
Worst case Inner loop stops when A[i] <= key i j 1 sorted • • Key Array originally in reverse order sorted S = j=1. . n tj tj = j S = j=1. . n j = 1 + 2 + 3 + … + n = n (n+1) / 2 = Θ (n 2) 12/15/2021 17
Average case Inner loop stops when A[i] <= key i j 1 sorted • • Key Array in random order S = j=1. . n tj tj = j / 2 in average S = j=1. . n j/2 = ½ j=1. . n j = n (n+1) / 4 = Θ (n 2) 12/15/2021 18
Analyzing recursive algorithms • Defining recurrence relation • Solving recurrence relation – Recursion tree (iteration) method – Substitution method – Master method 12/15/2021 19
Analyzing merge sort T(n) MERGE-SORT A[1. . n] Θ(1) 1. If n = 1, done. 2 T(n/2) 2. Recursively sort A[ 1. . n/2 ] and A[ n/2 +1. . n ]. f(n) 3. “Merge” the 2 sorted lists T(n) = 2 T(n/2) + Θ(n) 12/15/2021 20
Recursive Insertion Sort Recursive. Insertion. Sort(A[1. . n]) 1. if (n == 1) do nothing; 2. Recursive. Insertion. Sort(A[1. . n-1]); 3. Find index i in A such that A[i] <= A[n] < A[i+1]; 4. Insert A[n] after A[i]; 12/15/2021 21
Binary Search Binary. Search (A[1. . N], value) { if (N == 0) return -1; // not found mid = (1+N)/2; if (A[mid] == value) return mid; // found else if (A[mid] > value) return Binary. Search (A[1. . mid-1], value); else return Binary. Search (A[mid+1, N], value) } 12/15/2021 22
Recursion tree Solve T(n) = 2 T(n/2) + n. n n n/2 n/4 (1) n/4 n … … h = log n n/4 n #leaves = n (n) Total (n log n) 12/15/2021 23
Substitution method • Recurrence: T(n) = 2 T(n/2) + n. • Guess: T(n) = O(n log n). (eg. by recursion tree method) • To prove, have to show T(n) ≤ c n log n for some c > 0 and for all n > n 0 • Proof by induction: assume it is true for T(n/2), prove that it is also true for T(n). This means: • Fact: T(n) = 2 T(n/2) + n • Assumption: T(n/2)≤ cn/2 log (n/2) • Need to Prove: T(n)≤ c n log (n) 12/15/2021 24
Proof • To prove T(n) = O(n log n), we need to show that T(n) cn logn for some positive c and all sufficiently large n. • Let’s assume this inequality is true for T(n/2), which means T(n/2) cn/2 log(n/2) • Substitute T(n/2) in the recurrence by the r. h. s. of the above inequality, we have T(n) = 2 T(n/2) + n 2 * cn/2 log (n/2) + n cn (log n – 1) + n cn log n – (cn – n) cn log n for c ≥ 1 and all n ≥ 0. Therefore, by definition, T(n) = O(n log n). 12/15/2021 25
Master theorem T(n) = a T(n/b) + f (n) Key: compare f(n) with nlogba CASE 1: f (n) = O(nlogba – e) T(n) = (nlogba). CASE 2: f (n) = (nlogba) T(n) = (nlogba log n). CASE 3: f (n) = (nlogba + e) and a f (n/b) c f (n) T(n) = ( f (n)). Optional: extended case 2 12/15/2021 Regularity Condition 26
Analysis of Quick Sort 12/15/2021 27
Quick sort • Another divide and conquer sorting algorithm – like merge sort • Anyone remember the basic idea? • The worst-case and average-case running time? • Learn some new algorithm analysis tricks 12/15/2021 28
Quick sort Quicksort an n-element array: 1. Divide: Partition the array into two subarrays around a pivot x such that elements in lower subarray x elements in upper subarray. x x ≥x 2. Conquer: Recursively sort the two subarrays. 3. Combine: Trivial. Key: Linear-time partitioning subroutine. 12/15/2021 29
Partition • All the action takes place in the partition() function – Rearranges the subarray in place – End result: two subarrays • All values in first subarray all values in second – Returns the index of the “pivot” element separating the two subarrays p x 12/15/2021 r q x ≥x 30
Pseudocode for quicksort QUICKSORT(A, p, r) if p < r then q PARTITION(A, p, r) QUICKSORT(A, p, q– 1) QUICKSORT(A, q+1, r) Initial call: QUICKSORT(A, 1, n) 12/15/2021 31
Idea of partition • If we are allowed to use a second array, it would be easy 12/15/2021 6 10 5 8 13 3 2 11 6 5 3 2 11 13 8 10 2 5 3 6 11 13 8 10 32
Another idea • Keep two iterators: one from head, one from tail 12/15/2021 6 10 5 8 13 3 2 11 6 2 5 3 13 8 10 11 3 2 5 6 13 8 10 11 33
In-place Partition 36 12/15/2021 10 2 5 638 13 83 2 11 10 34
Partition In Words • Partition(A, p, r): – Select an element to act as the “pivot” (which? ) – Grow two regions, A[p. . i] and A[j. . r] • All elements in A[p. . i] <= pivot • All elements in A[j. . r] >= pivot – – – 12/15/2021 Increment i until A[i] > pivot Decrement j until A[j] < pivot Swap A[i] and A[j] Note: different from book’s Repeat until i >= j partition(), which uses two Swap A[j] and A[p] iterators that both move forward. Return j 35
Partition Code Partition(A, p, r) x = A[p]; // pivot is the first element i = p; j = r + 1; while (TRUE) { repeat i++; until A[i] > x or i >= j; repeat What is the running time of j--; until A[j] < x or j < i; partition()? if (i < j) Swap (A[i], A[j]); else break; partition() runs in (n) time } swap (A[p], A[j]); return j; 12/15/2021 36
p x=6 6 r 10 5 8 13 3 2 11 i 6 j 10 5 8 13 3 i 6 2 5 8 13 3 2 5 5 p 12/15/2021 3 2 10 11 swap 5 3 10 11 scan 10 11 swap 10 11 scan j 3 13 i 6 scan j i 6 11 j i Partition example 2 8 j 3 13 j i q 6 13 8 r 8 10 11 final swap 37
6 10 5 8 11 3 2 13 Quick sort example 3 12/15/2021 2 5 6 11 8 10 13 2 3 5 6 10 8 11 13 2 3 5 6 8 10 11 13 38
Analysis of quicksort • Assume all input elements are distinct. • In practice, there are better partitioning algorithms for when duplicate input elements may exist. • Let T(n) = worst-case running time on an array of n elements. 12/15/2021 39
Worst-case of quicksort • Input sorted or reverse sorted. • Partition around min or max element. • One side of partition always has no elements. (arithmetic series) 12/15/2021 40
Worst-case recursion tree T(n) = T(0) + T(n– 1) + n 12/15/2021 41
Worst-case recursion tree T(n) = T(0) + T(n– 1) + n T(n) 12/15/2021 42
Worst-case recursion tree T(n) = T(0) + T(n– 1) + n n T(0) T(n– 1) 12/15/2021 43
Worst-case recursion tree T(n) = T(0) + T(n– 1) + n n T(0) (n– 1) T(0) T(n– 2) 12/15/2021 44
Worst-case recursion tree T(n) = T(0) + T(n– 1) + n n T(0) (n– 1) T(0) (n– 2) T(0) 12/15/2021 45

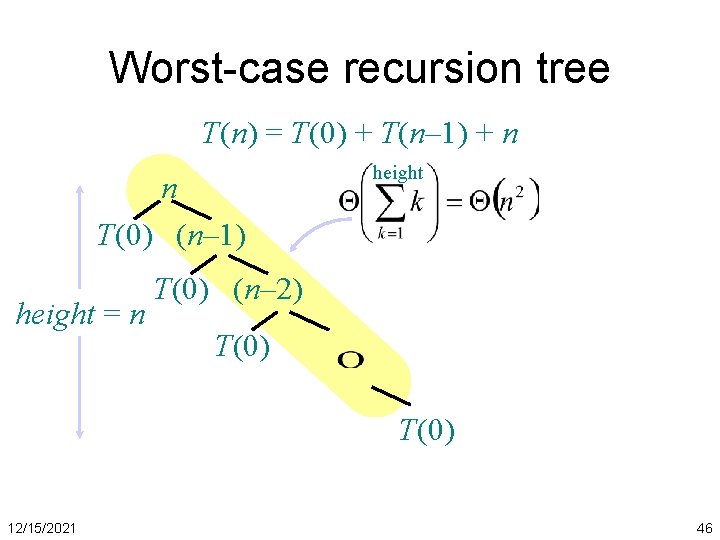

Worst-case recursion tree T(n) = T(0) + T(n– 1) + n n T(0) (n– 1) height = n height T(0) (n– 2) T(0) 12/15/2021 46
Worst-case recursion tree T(n) = T(0) + T(n– 1) + n n T(0) (n– 1) height = n n T(0) (n– 2) T(0) 12/15/2021 47
Worst-case recursion tree T(n) = T(0) + T(n– 1) + n n (1) (n– 2) height = n (1) n T(n) = (n) + (n 2) = (n 2) (1) 12/15/2021 48
Best-case analysis (For intuition only!) If we’re lucky, PARTITION splits the array evenly: T(n) = 2 T(n/2) + (n) = (n log n) (same as merge sort) What if the split is always ? What is the solution to this recurrence? 12/15/2021 49
Analysis of “almost-best” case 12/15/2021 50
Analysis of “almost-best” case n 12/15/2021 51
Analysis of “almost-best” case n 12/15/2021 52
Analysis of “almost-best” case n O(n) leaves … (1) … … log 10/9 n (1) 12/15/2021 53
Analysis of “almost-best” case log 10 n (n log n) 12/15/2021 O(n) leaves … (1) … … log 10/9 n (1) n log 10 n T(n) n log 10/9 n + O(n) 54
Quicksort Runtimes • Best-case runtime Tbest(n) (n log n) • Worst-case runtime Tworst(n) (n 2) • Worse than mergesort? Why is it called quicksort then? • Its average runtime Tavg(n) (n log n ) • Better even, the expected runtime of randomized quicksort is (n log n) 12/15/2021 55
Randomized quicksort • Randomly choose an element as pivot – Every time need to do a partition, throw a die to decide which element to use as the pivot – Each element has 1/n probability to be selected Rand-Partition(A, p, r) d = random(); // a random number between 0 and 1 index = p + floor((r-p+1) * d); // p<=index<=r swap(A[p], A[index]); Partition(A, p, r); // now do partition using A[p] as pivot 12/15/2021 56
Running time of randomized quicksort T(n) = T(0) + T(n– 1) + dn T(1) + T(n– 2) + dn M T(n– 1) + T(0) + dn if 0 : n– 1 split, if 1 : n– 2 split, if n– 1 : 0 split, • The expected running time is an average of all cases Expectation 12/15/2021 57
12/15/2021 58
Solving recurrence 1. Recursion tree (iteration) method - Good for guessing an answer 2. Substitution method - Generic method, rigid, but may be hard 3. Master method - Easy to learn, useful in limited cases only - Some tricks may help in other cases 12/15/2021 59
Substitution method The most general method to solve a recurrence (prove O and separately): 1. Guess the form of the solution: (e. g. using recursion trees, or expansion) 2. Verify by induction (inductive step). 12/15/2021 60
Expected running time of Quicksort • Guess • We need to show that for some c and sufficiently large n • Use T(n) instead of for convenience 12/15/2021 61
• Fact: • Need to show: T(n) ≤ c n log (n) • Assume: T(k) ≤ ck log (k) for 0 ≤ k ≤ n-1 • Proof: using the fact that if c ≥ 4. Therefore, by defintion, T(n) = (nlogn) 12/15/2021 62
Tightly Bounding The Key Summation Split the summation for a What we doing here? tighterare bound The lg are k inwe thedoing second term What here? is bounded by lg n Whatthe arelgwen doing here? Move outside the summation 12/15/2021 63
Tightly Bounding The Key Summation The summation bound so far The lg k in the first term is What are we doing here? bounded by lg n/2 = lg n we - 1 doing here? What are Move (lg n - 1) outside the What are we doing here? summation 12/15/2021 64
Tightly Bounding The Key Summation The summation bound so far Distribute the (lg nhere? - 1) What are we doing The summations overlap in What are we doing here? range; combine them The. What Guassian are weseries doing here? 12/15/2021 65
Tightly Bounding The Key Summation The summation bound so far Rearrange first term, place What are we doing here? upper bound on second Guassian series What are we doing? Multiply it What are we doing? all out 12/15/2021 66
Tightly Bounding The Key Summation 12/15/2021 67
