CS 2 in C++ Peer Instruction Materials by Cynthia Bailey Lee is licensed under a Creative Commons Attribution-Non. Commercial. Share. Alike 4. 0 International License. Permissions beyond the scope of this license may be available at http: //peerinstruction 4 cs. org. CS 106 X – Programming Abstractions in C++ Cynthia Bailey Lee

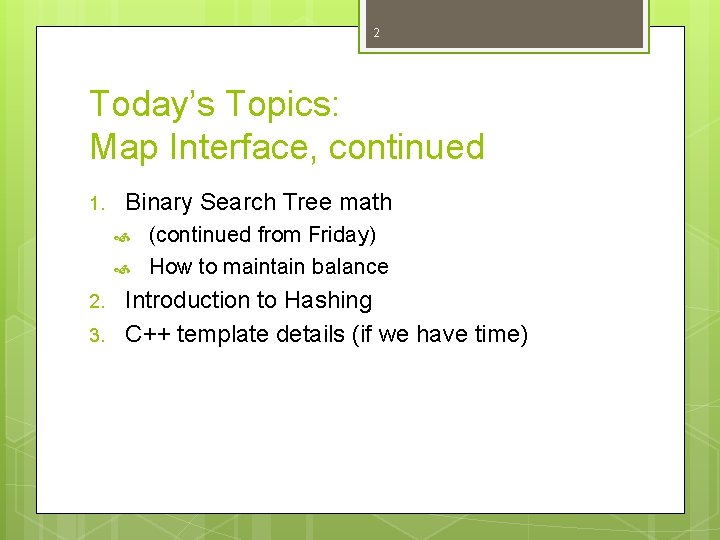

2 Today’s Topics: Map Interface, continued 1. Binary Search Tree math 2. 3. (continued from Friday) How to maintain balance Introduction to Hashing C++ template details (if we have time)

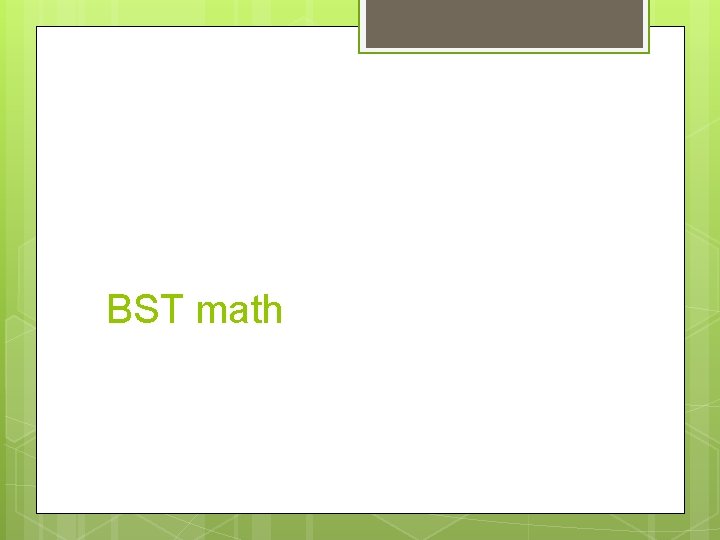

BST math

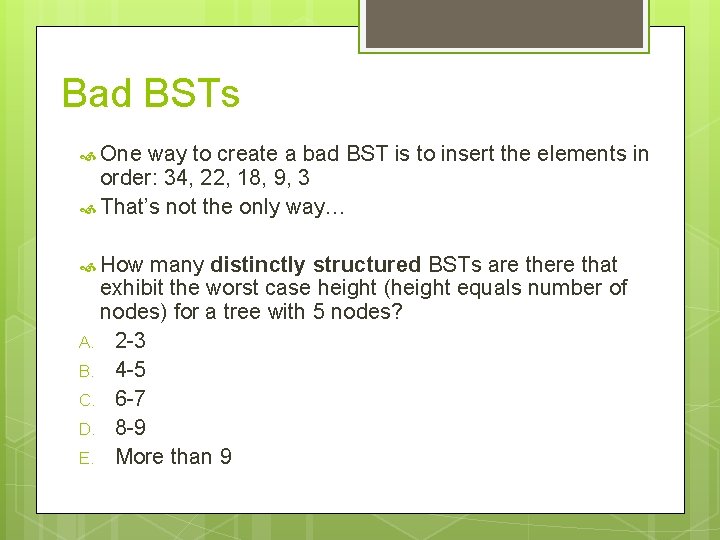

Bad BSTs One way to create a bad BST is to insert the elements in order: 34, 22, 18, 9, 3 That’s not the only way… How many distinctly structured BSTs are there that exhibit the worst case height (height equals number of nodes) for a tree with 5 nodes? A. 2 -3 B. 4 -5 C. 6 -7 D. 8 -9 E. More than 9

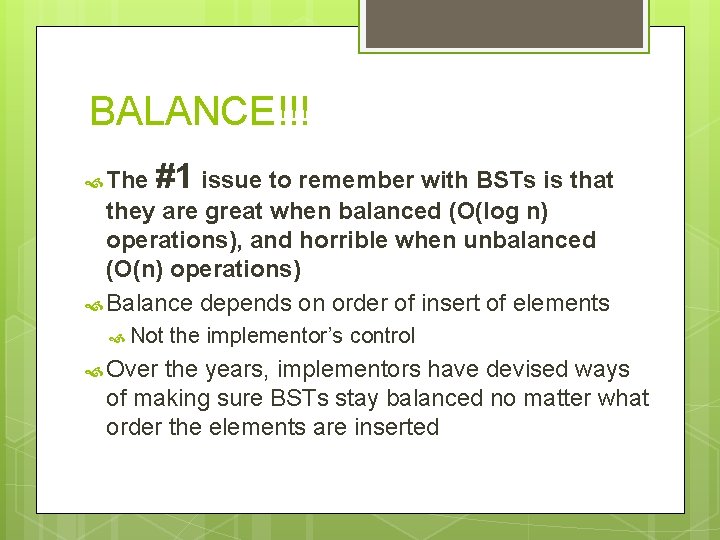

BALANCE!!! The #1 issue to remember with BSTs is that they are great when balanced (O(log n) operations), and horrible when unbalanced (O(n) operations) Balance depends on order of insert of elements Not Over the implementor’s control the years, implementors have devised ways of making sure BSTs stay balanced no matter what order the elements are inserted

BST Balance Strategies

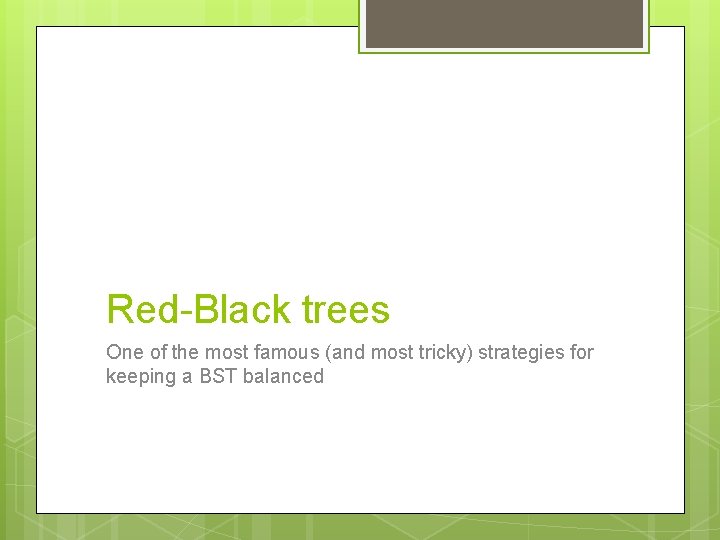

Red-Black trees One of the most famous (and most tricky) strategies for keeping a BST balanced

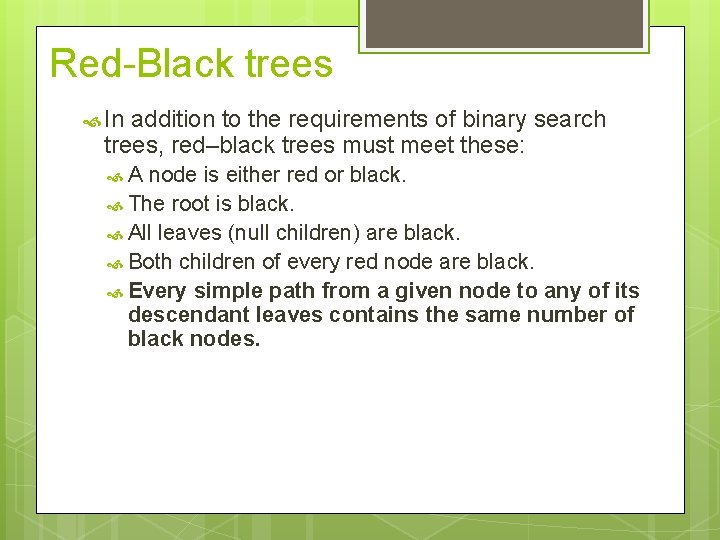

Red-Black trees In addition to the requirements of binary search trees, red–black trees must meet these: A node is either red or black. The root is black. All leaves (null children) are black. Both children of every red node are black. Every simple path from a given node to any of its descendant leaves contains the same number of black nodes.

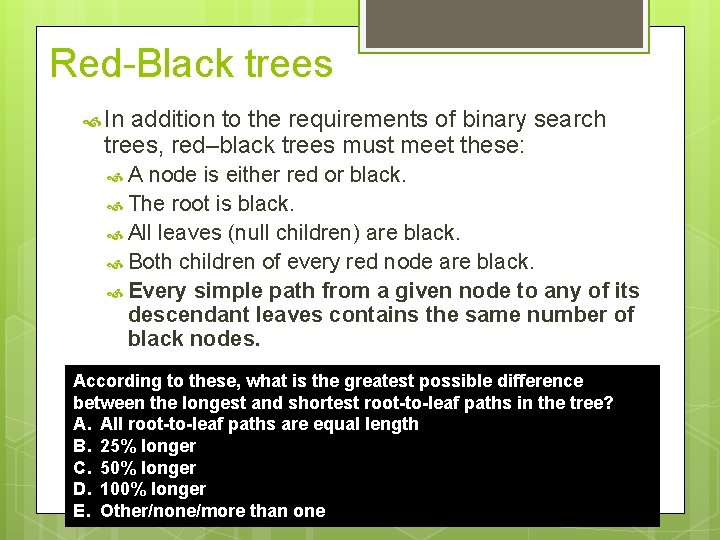

Red-Black trees In addition to the requirements of binary search trees, red–black trees must meet these: A node is either red or black. The root is black. All leaves (null children) are black. Both children of every red node are black. Every simple path from a given node to any of its descendant leaves contains the same number of black nodes. According to these, what is the greatest possible difference between the longest and shortest root-to-leaf paths in the tree? A. All root-to-leaf paths are equal length B. 25% longer C. 50% longer D. 100% longer E. Other/none/more than one

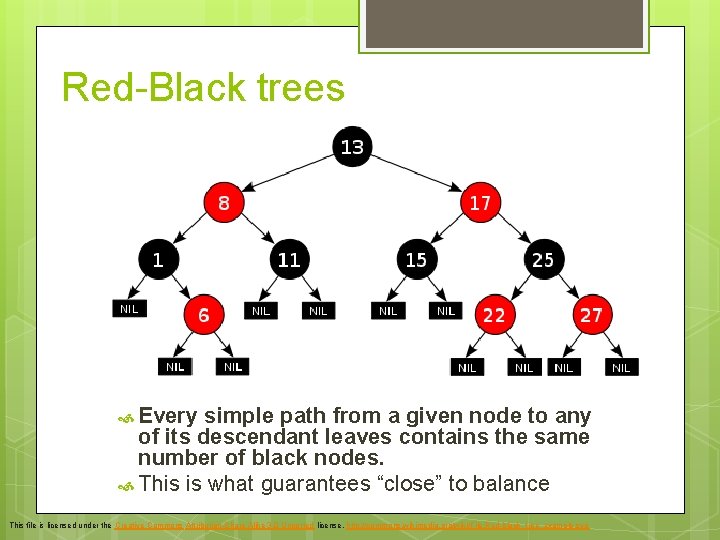

Red-Black trees Every simple path from a given node to any of its descendant leaves contains the same number of black nodes. This is what guarantees “close” to balance This file is licensed under the Creative Commons Attribution-Share Alike 3. 0 Unported license. http: //commons. wikimedia. org/wiki/File: Red-black_tree_example. svg

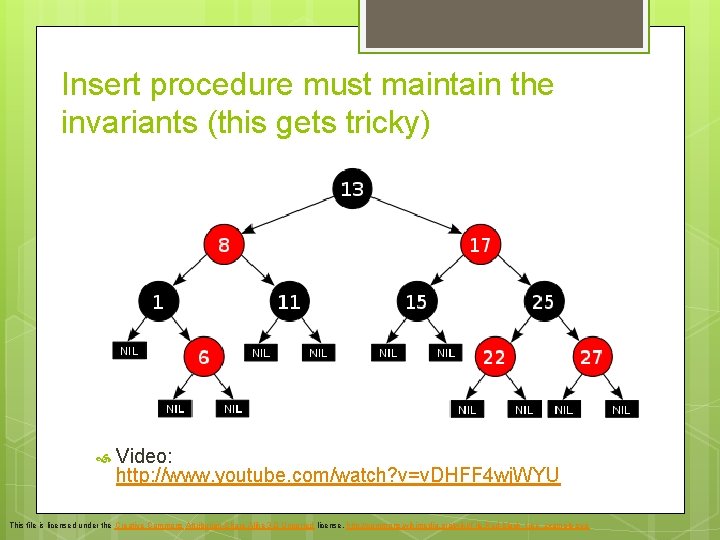

Insert procedure must maintain the invariants (this gets tricky) Video: http: //www. youtube. com/watch? v=v. DHFF 4 wj. WYU This file is licensed under the Creative Commons Attribution-Share Alike 3. 0 Unported license. http: //commons. wikimedia. org/wiki/File: Red-black_tree_example. svg

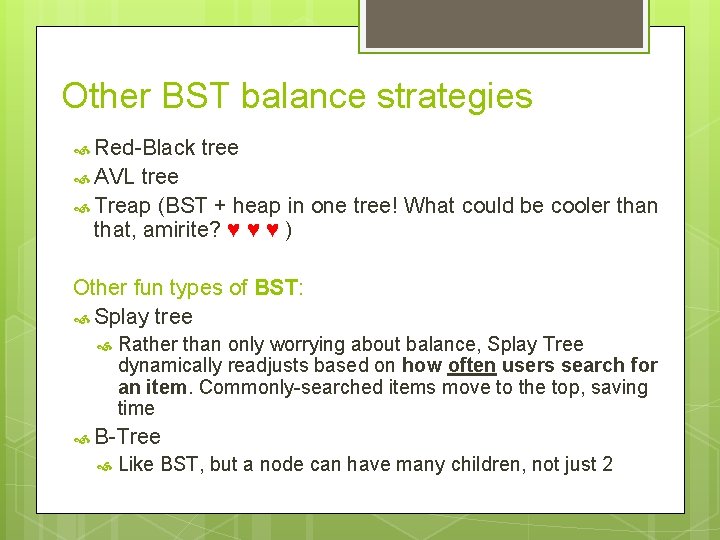

Other BST balance strategies Red-Black tree AVL tree Treap (BST + heap in one tree! What could be cooler than that, amirite? ♥ ♥ ♥ ) Other fun types of BST: Splay tree Rather than only worrying about balance, Splay Tree dynamically readjusts based on how often users search for an item. Commonly-searched items move to the top, saving time B-Tree Like BST, but a node can have many children, not just 2

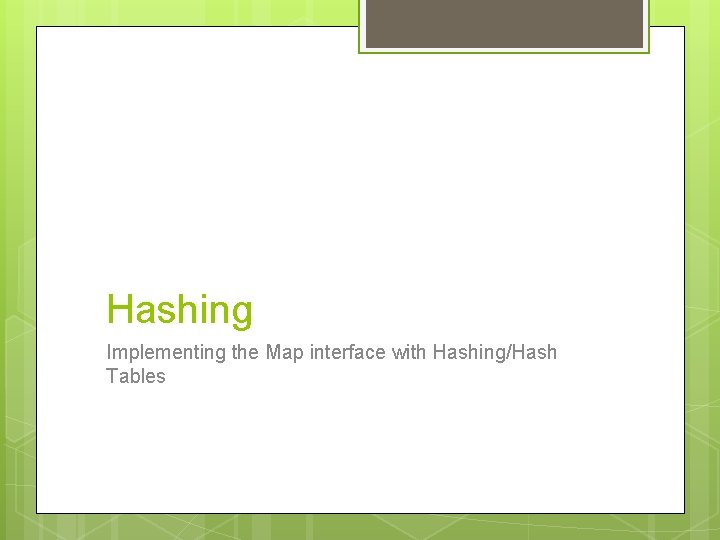

Hashing Implementing the Map interface with Hashing/Hash Tables

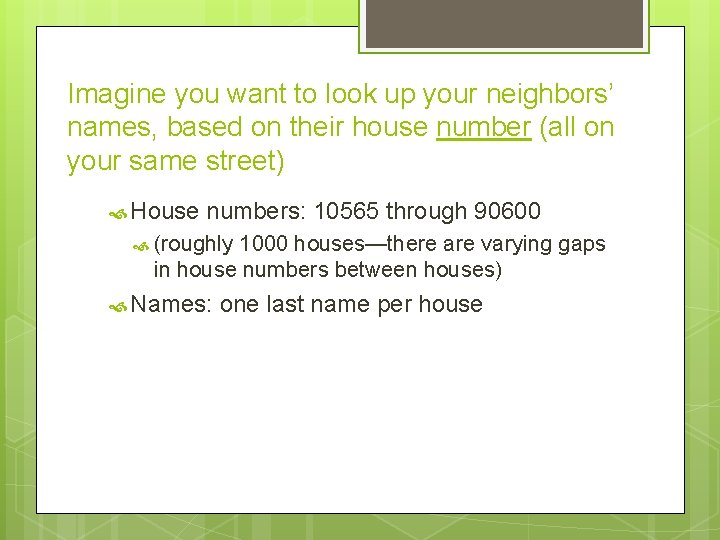

Imagine you want to look up your neighbors’ names, based on their house number (all on your same street) House numbers: 10565 through 90600 (roughly 1000 houses—there are varying gaps in house numbers between houses) Names: one last name per house

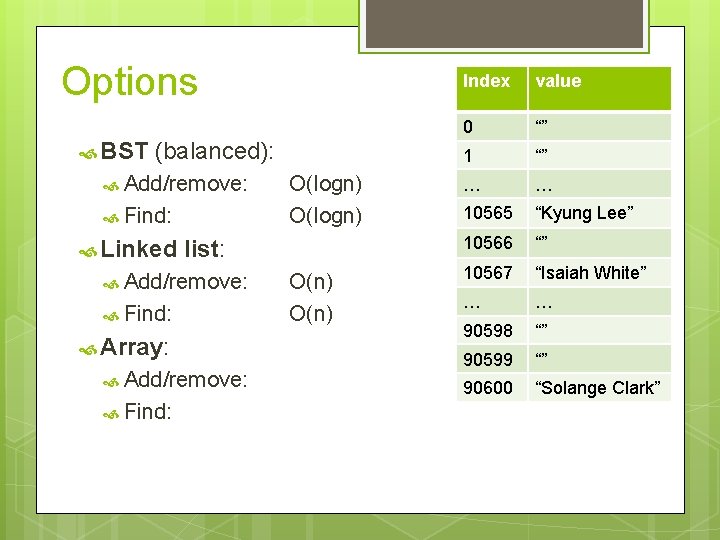

Options BST (balanced): Add/remove: Find: Linked list: Add/remove: Find: Array: Add/remove: Find: O(logn) O(n) Index value 0 “” 1 “” … … 10565 “Kyung Lee” 10566 “” 10567 “Isaiah White” … … 90598 “” 90599 “” 90600 “Solange Clark”

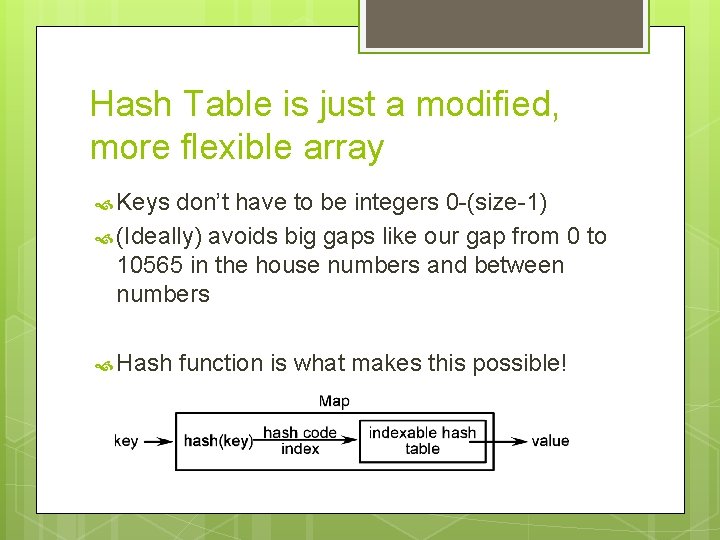

Hash Table is just a modified, more flexible array Keys don’t have to be integers 0 -(size-1) (Ideally) avoids big gaps like our gap from 0 to 10565 in the house numbers and between numbers Hash function is what makes this possible!

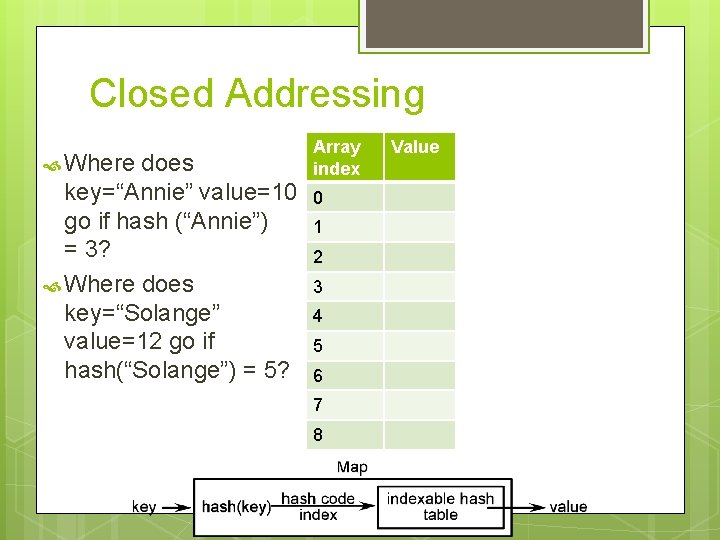

Closed Addressing Where does key=“Annie” value=10 go if hash (“Annie”) = 3? Where does key=“Solange” value=12 go if hash(“Solange”) = 5? Array index 0 1 2 3 4 5 6 7 8 Value

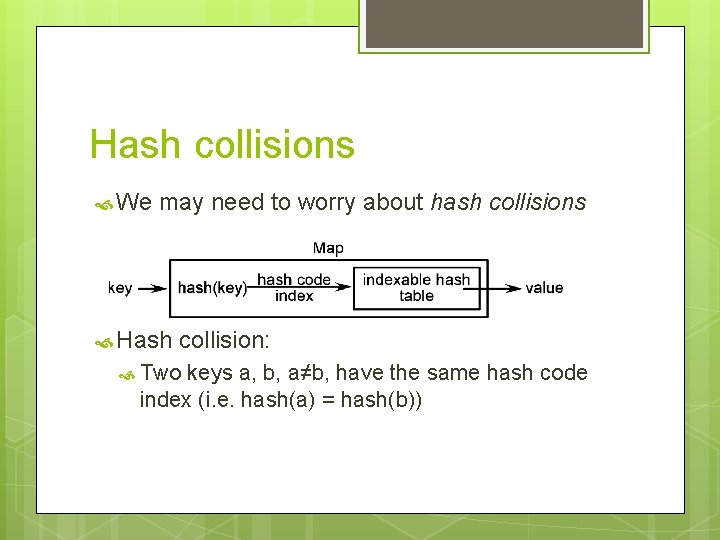

Hash collisions We may need to worry about hash collisions Hash collision: Two keys a, b, a≠b, have the same hash code index (i. e. hash(a) = hash(b))

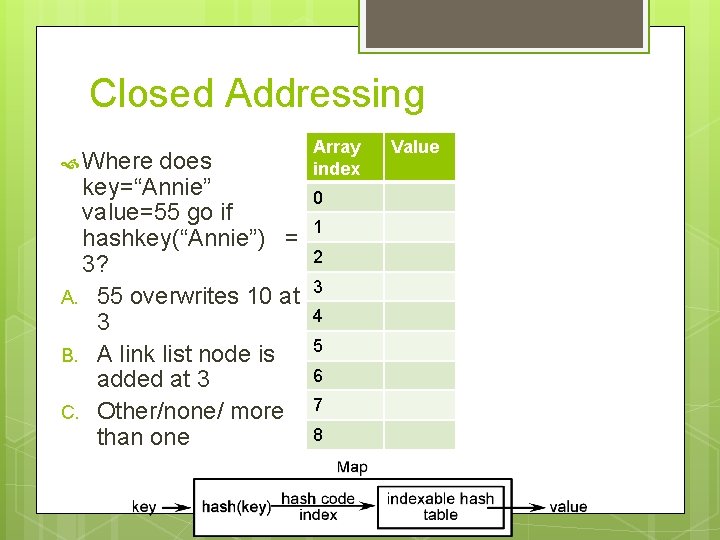

Closed Addressing Where does key=“Annie” value=55 go if hashkey(“Annie”) = 3? A. 55 overwrites 10 at 3 B. A link list node is added at 3 C. Other/none/ more than one Array index 0 1 2 3 4 5 6 7 8 Value

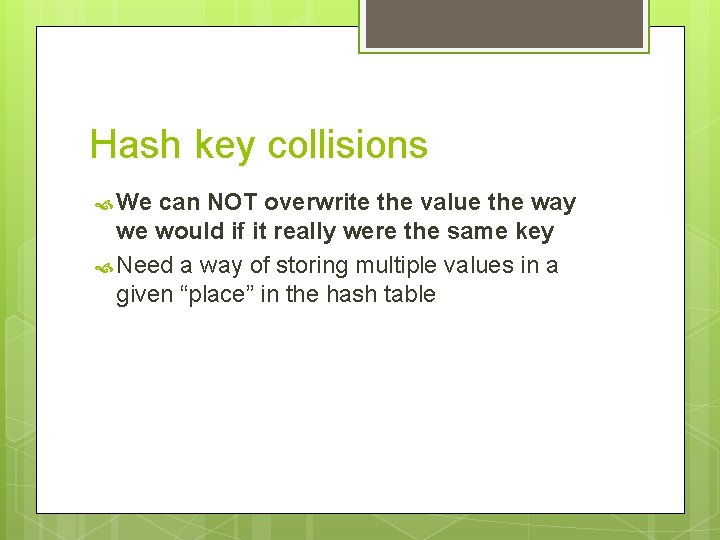

Hash key collisions We can NOT overwrite the value the way we would if it really were the same key Need a way of storing multiple values in a given “place” in the hash table
