CS 1: Wireless Communication and Mobile Programming Wireless Technologies: Short Message Service (SMS) Dr. Khaled Mahmud Laurentian University International Global Experience Program Summer– 2016
Agenda Short Message Service (SMS) SMS Architecture Types of Messages Value Added Services (VAS) using SMS Architecture Short Message Peer to Peer (SMPP) Using SMS as bearer (c) Khaled Mahmud 2
Reference Chapter 6 [TEL] Web references (c) Khaled Mahmud 3
Overlay of Mobile Data in GSM The data service make use of the followings of a GSM system Spectrum allocated to other service MAC frames Air interface Short Message Service (SMS) Make use of free time slots within the signaling channels General Packet Radio Service (GPRS) Make use of free time slots within the TCH (Traffic channel of GSM) Amount of new infrastructure is reduced to bare minimum Most of the extra components required are implemented in software Cheap Easy (c) Khaled Mahmud to deploy 4

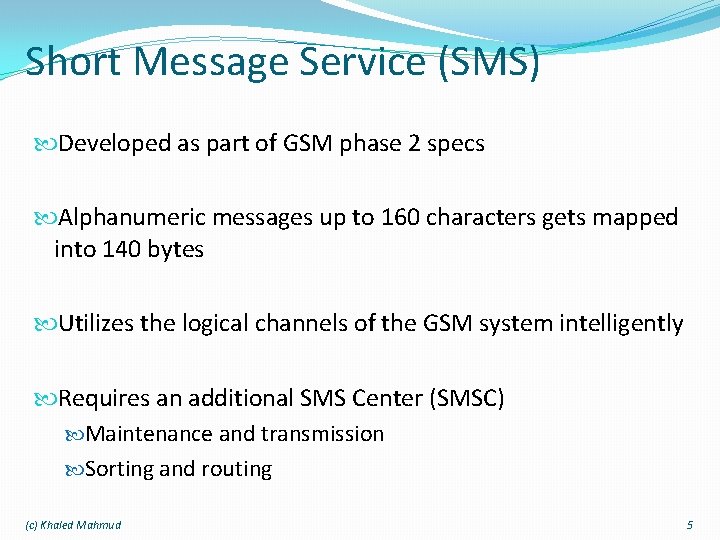

Short Message Service (SMS) Developed as part of GSM phase 2 specs Alphanumeric messages up to 160 characters gets mapped into 140 bytes Utilizes the logical channels of the GSM system intelligently Requires an additional SMS Center (SMSC) Maintenance and transmission Sorting and routing (c) Khaled Mahmud 5
Cell Broadcast SMS The message is transmitted to all MSs that are active in a cell and subscribes to the service Unconfirmed one way message used for Weather forecasts Stock quotes etc. A cell broadcast entity and a cell broadcast center broadcast to multiple BSCs for delivery The broadcast contains data and identities of the MSs that are to receive this data Employs the Broadcast Channel for this (c) Khaled Mahmud 6
Point to Point (PTP) SMS An MS can send message to another MS If the MS is in idle mode MS has to establish a connection to the network similar to a normal call set up (for MS originated SMS) or The MS has to be paged and a connection needs to be set up between the network in a manner similar to a normal call set up (c) Khaled Mahmud 7

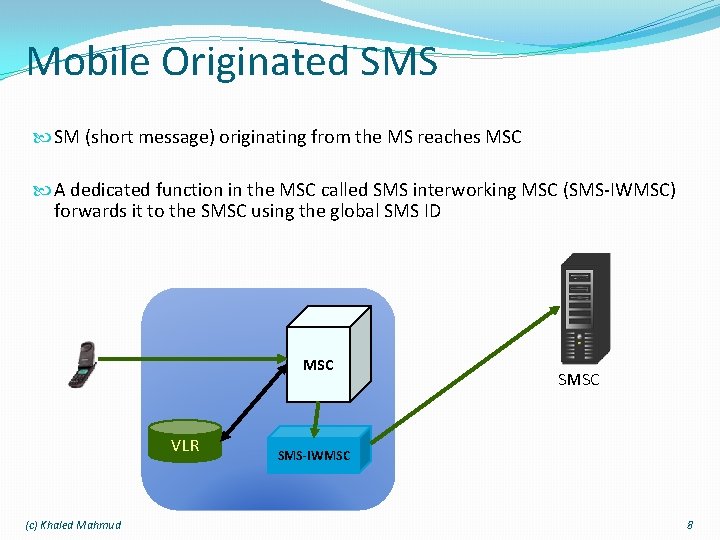

Mobile Originated SMS SM (short message) originating from the MS reaches MSC A dedicated function in the MSC called SMS interworking MSC (SMS-IWMSC) forwards it to the SMSC using the global SMS ID MSC VLR (c) Khaled Mahmud SMSC SMS-IWMSC 8
Mobile Terminated SMS SM is forwarded from the SMSC to the SMS gateway MSC (SMS-GMSC) function of the MSC The routing information is obtained from the HLR The MSC/VLR pages the MS VLR MSC SMS-GMSC (c) Khaled Mahmud SMSC HLR 9
Overall SMS Architecture Serving network SM MT Receiver's home network VLR HLR 8 5 SMSC (SC) 4 10 7 SMS-GMSC 9 11 MSC 12 SMS-IWMSC Sender's home network SM MO MSC 4 3 2 MS 2 1 MS 1 VLR Serving network (c) Khaled Mahmud 10
Misc. Information on SMS SM is transmitted through the GSM infrastructure using SS 7 SM can have Specified priority level Future delivery time Acknowledgement of message receipt Failure can occur if there is change of state of the MS when the SM is in transit (c) Khaled Mahmud 11
Value Added Service (VAS) Supplementary services, but adds value to the total service offering Stimulates incremental demand for the core service Creates revenue generation potential Sometimes can be stand-alone Can a be an add-on to the basic service, usually sold at a premium price (c) Khaled Mahmud 12

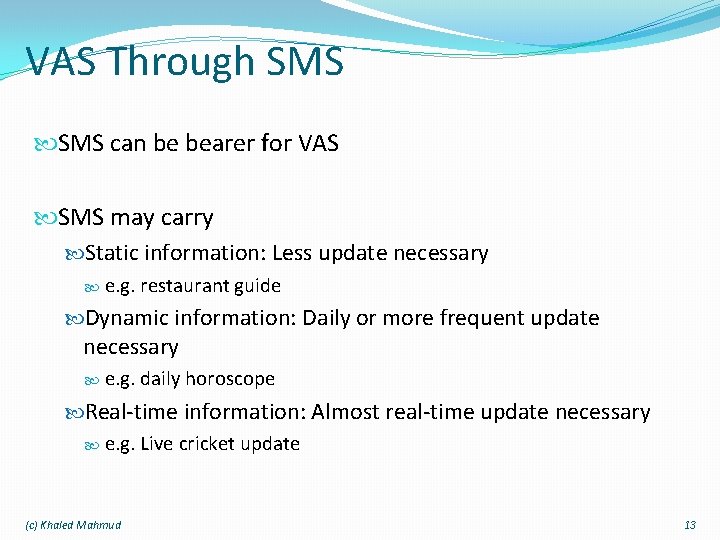

VAS Through SMS can be bearer for VAS SMS may carry Static information: Less update necessary e. g. restaurant guide Dynamic information: Daily or more frequent update necessary e. g. daily horoscope Real-time information: Almost real-time update necessary e. g. Live cricket update (c) Khaled Mahmud 13

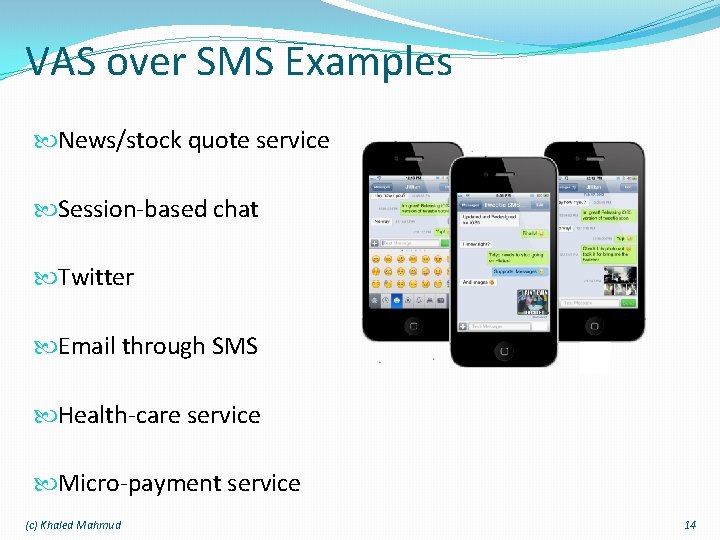

VAS over SMS Examples News/stock quote service Session-based chat Twitter Email through SMS Health-care service Micro-payment service (c) Khaled Mahmud 14
Architecture for VAS over SMS SME/ SMS gateway SMSC Content Server BSC BTS Internet Content Server Content update Data store Enterprise content Data store Mass market content (c) Khaled Mahmud SME: Short Message Entity 15

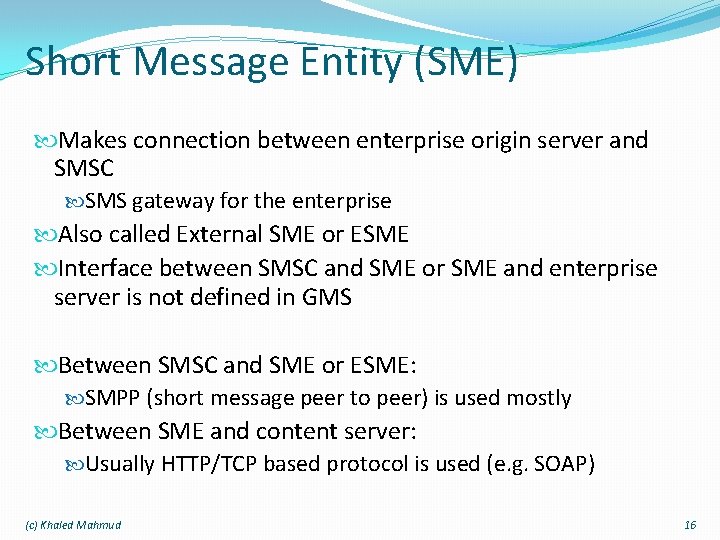

Short Message Entity (SME) Makes connection between enterprise origin server and SMSC SMS gateway for the enterprise Also called External SME or ESME Interface between SMSC and SME or SME and enterprise server is not defined in GMS Between SMSC and SME or ESME: SMPP (short message peer to peer) is used mostly Between SME and content server: Usually HTTP/TCP based protocol is used (e. g. SOAP) (c) Khaled Mahmud 16

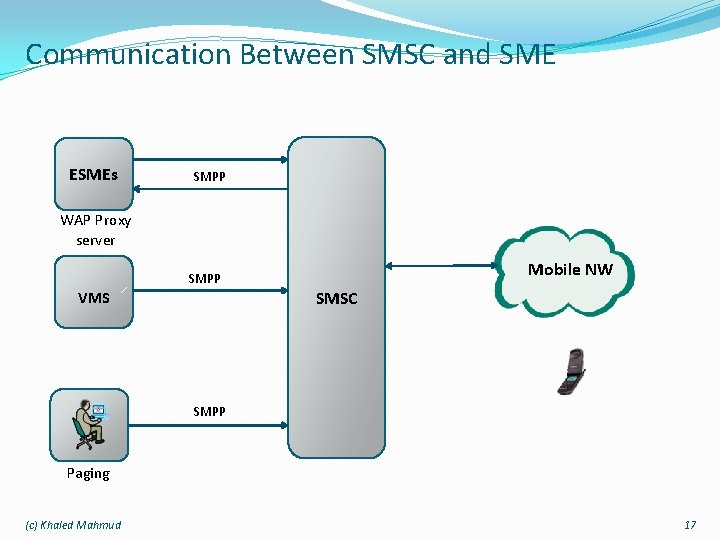

Communication Between SMSC and SME ESMEs SMPP WAP Proxy server Mobile NW SMPP SMSC VMS SMPP Paging (c) Khaled Mahmud 17
Lookout for SMS Scam : Normal SMS Operation (c) Khaled Mahmud https: //blog. lookout. com/blog/2012/10/03/avoid-premium-sms-scams/ 18
Lookout for SMS Scam : Fraud Operation (c) Khaled Mahmud 19
