CRYSTAL IMPERFECTIONS Outline 1 Introduction 2 Classification of

CRYSTAL IMPERFECTIONS

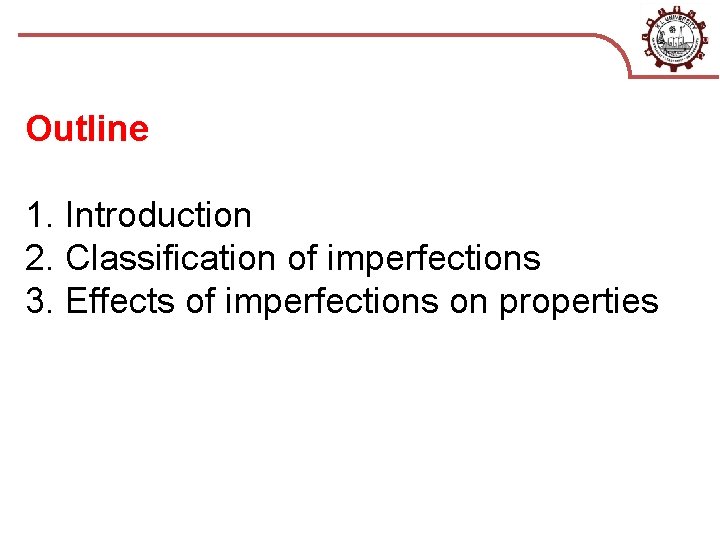

Outline 1. Introduction 2. Classification of imperfections 3. Effects of imperfections on properties

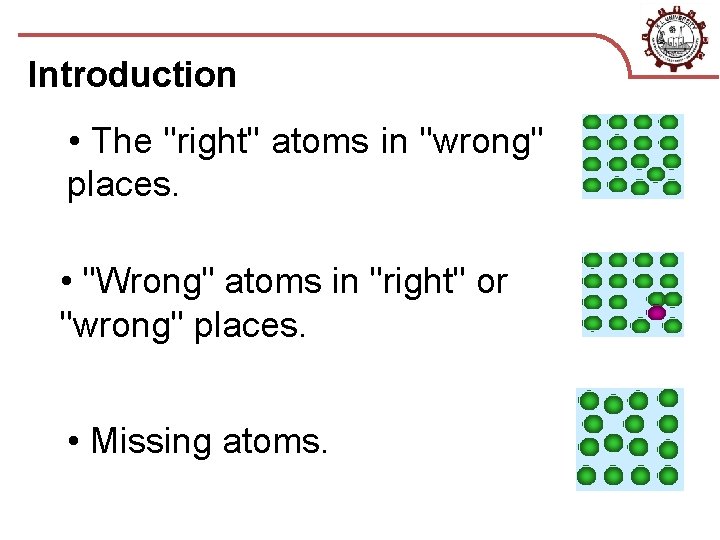

Introduction • The "right" atoms in "wrong" places. • "Wrong" atoms in "right" or "wrong" places. • Missing atoms.

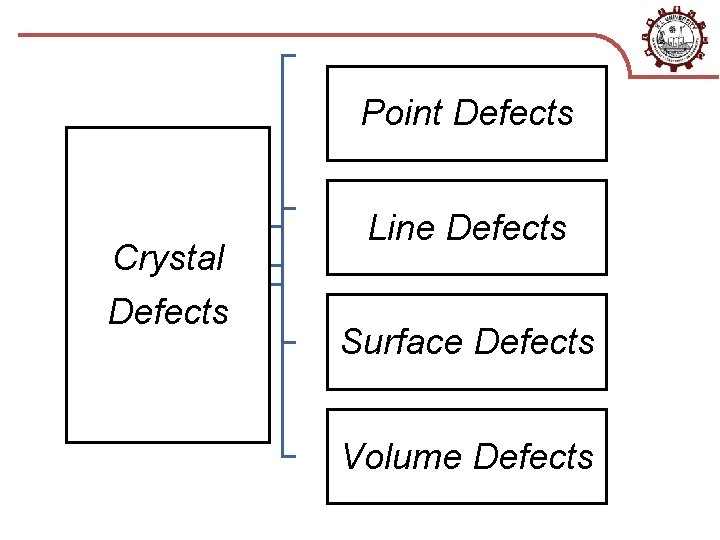

Point Defects Crystal Defects Line Defects Surface Defects Volume Defects

POINT DEFECTS

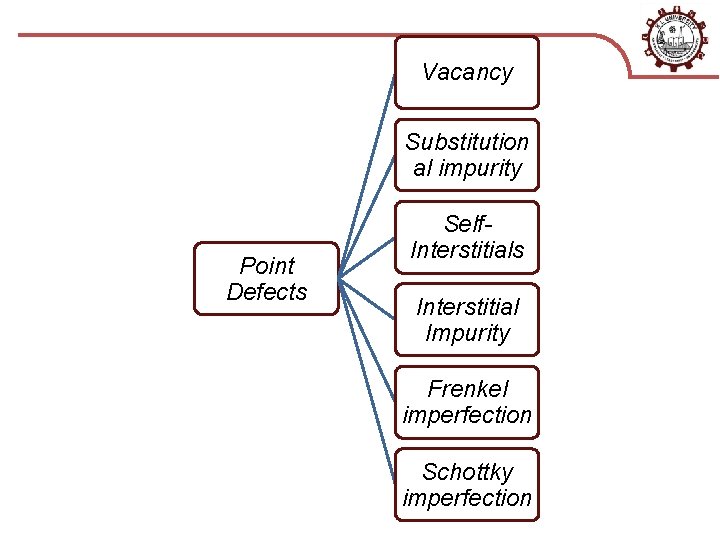

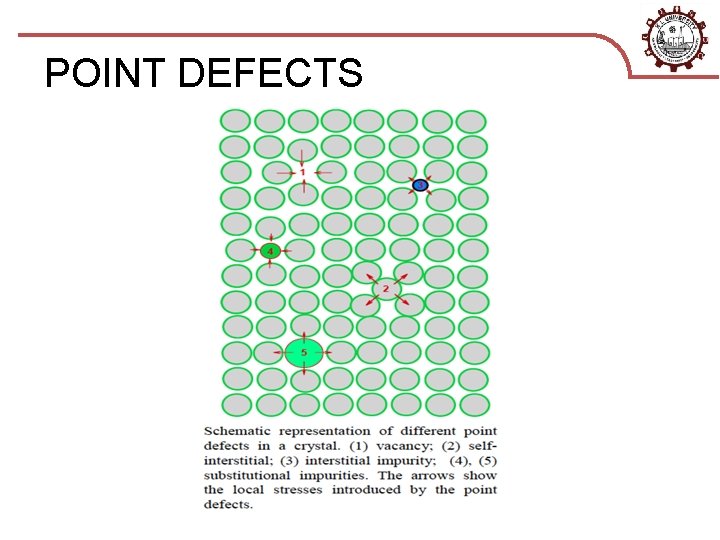

Vacancy Substitution al impurity Point Defects Self. Interstitials Interstitial Impurity Frenkel imperfection Schottky imperfection

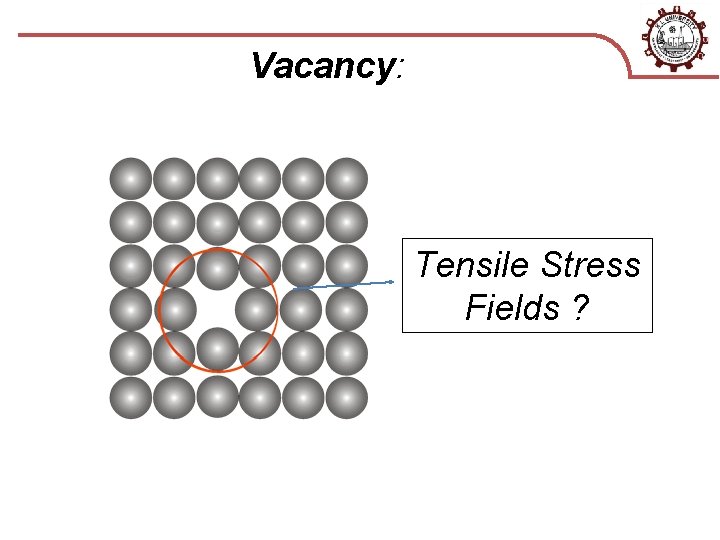

Vacancy: Tensile Stress Fields ?

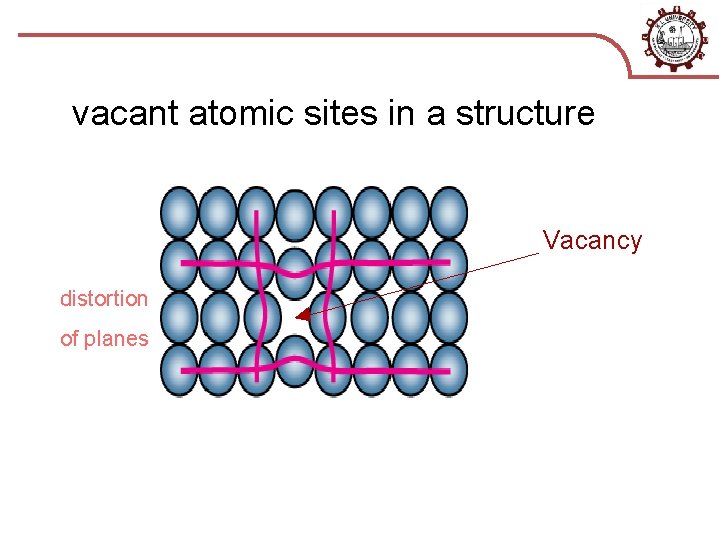

vacant atomic sites in a structure Vacancy distortion of planes

Substitutional Impurity: Compressive stress fields Tensile Stress Fields

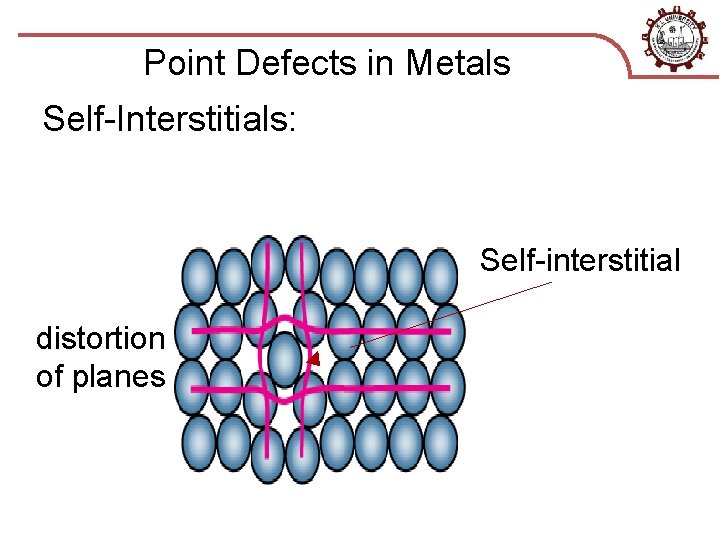

Point Defects in Metals Self-Interstitials: Self-interstitial distortion of planes

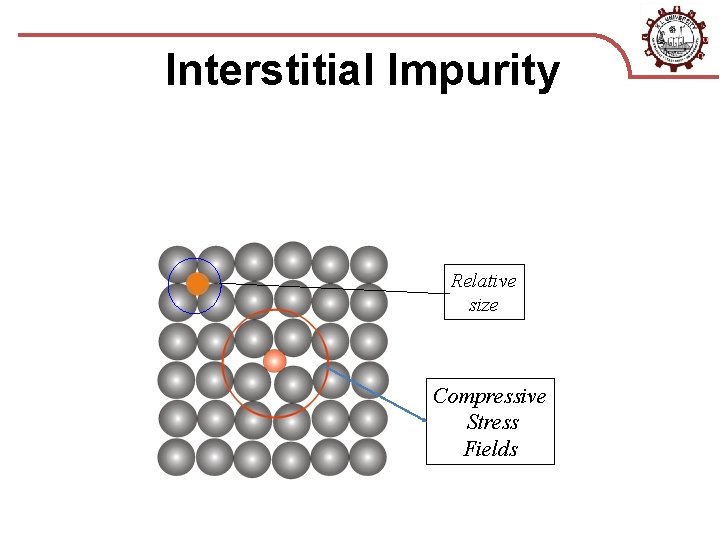

Interstitial Impurity Relative size Compressive Stress Fields

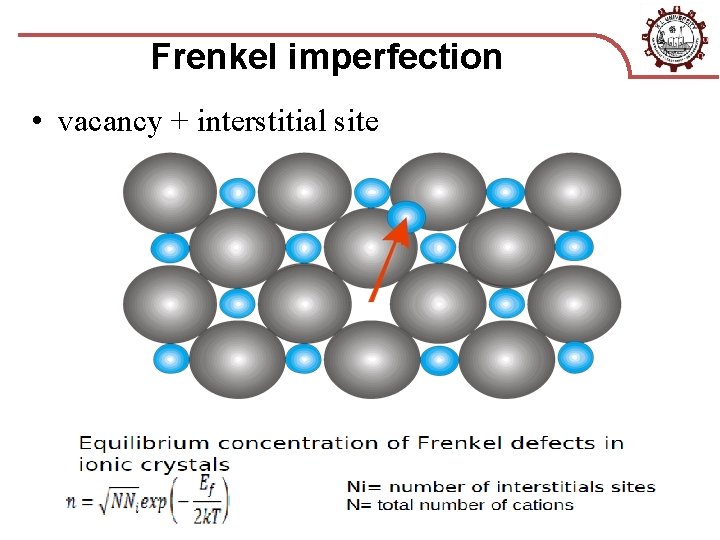

Frenkel imperfection • vacancy + interstitial site

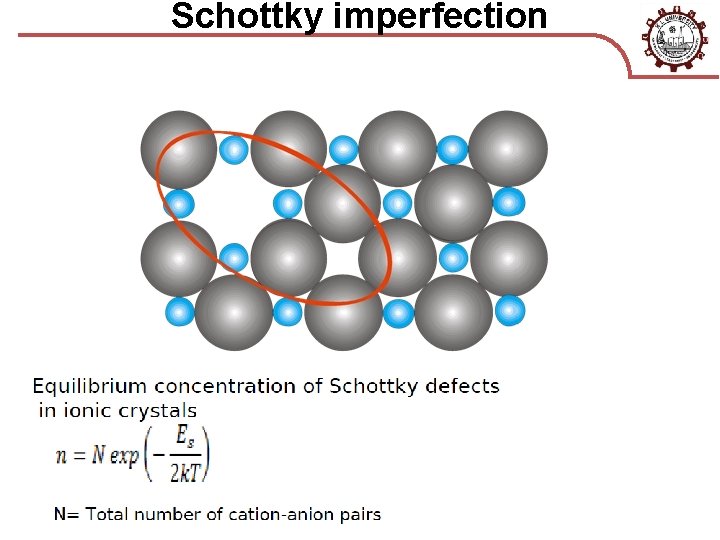

Schottky imperfection

Electronic Defects

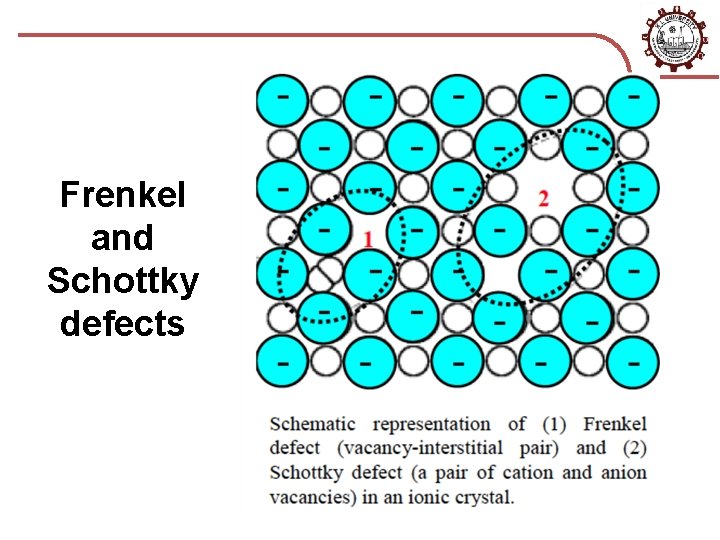

Frenkel and Schottky defects

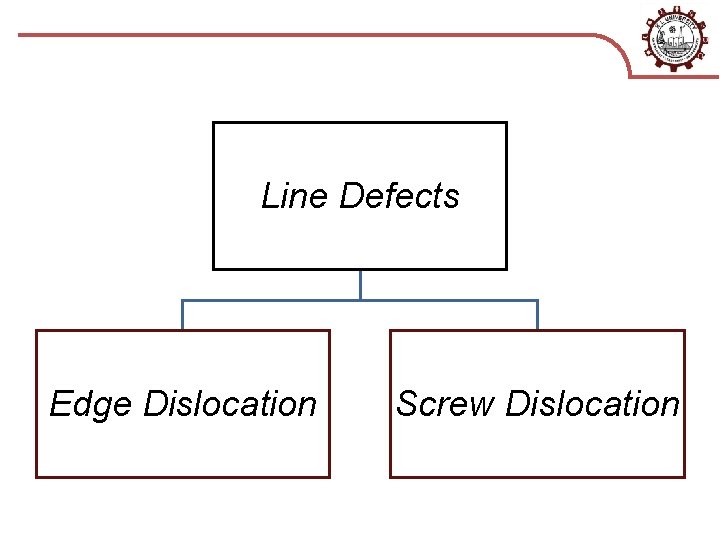

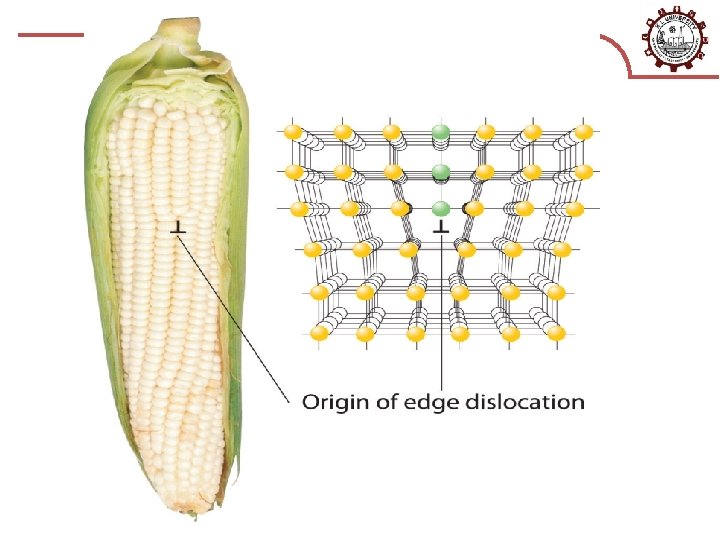

Line Defects Edge Dislocation Screw Dislocation

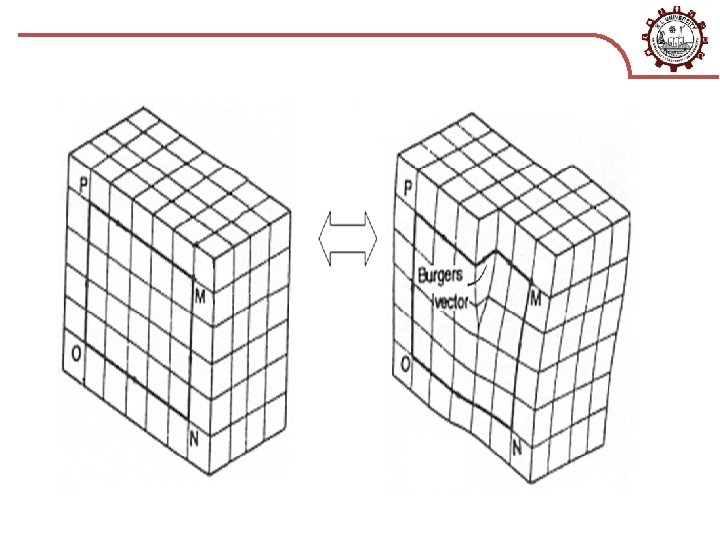

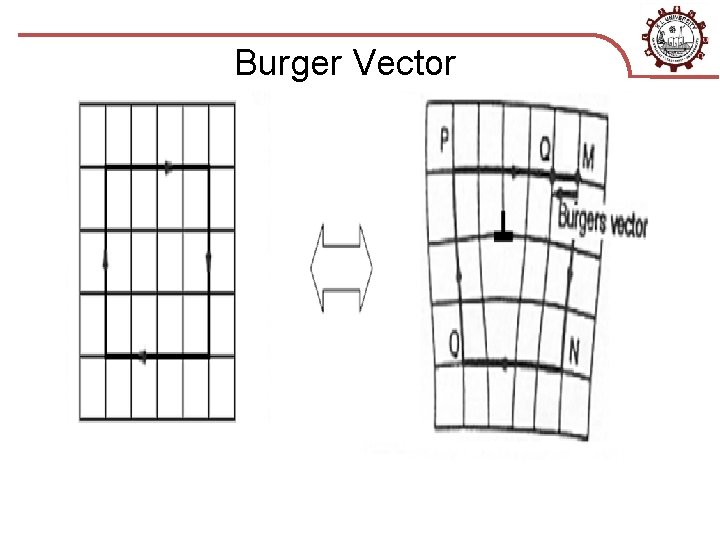

Burger Vector

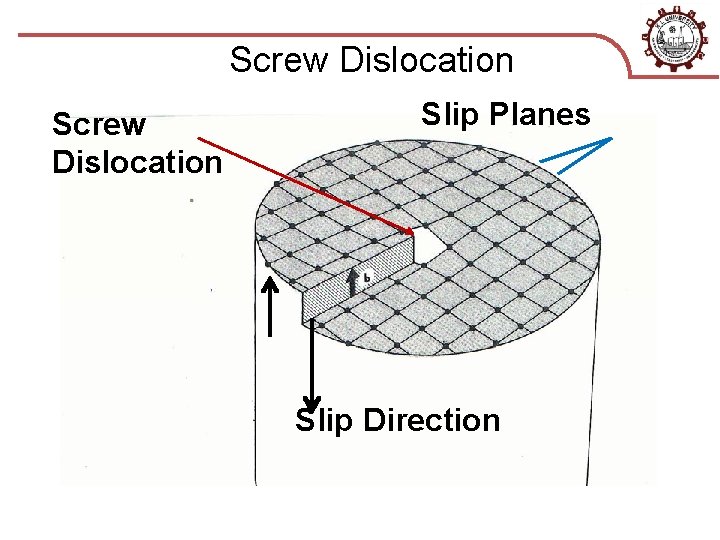

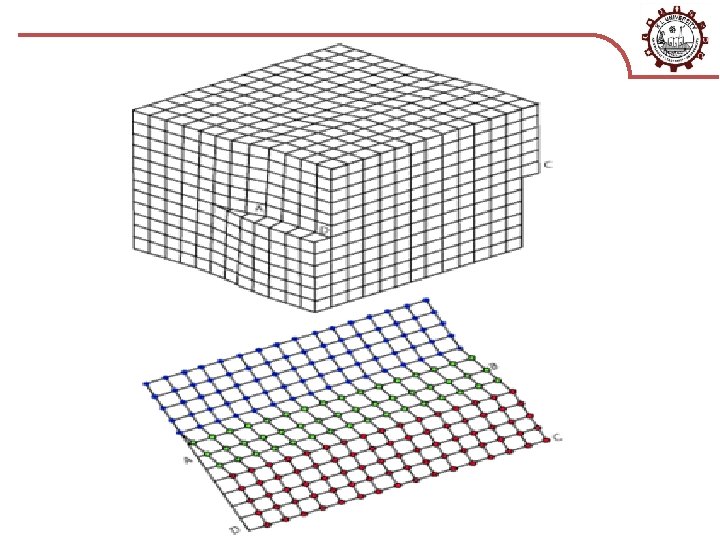

Screw Dislocation Slip Planes Slip Direction

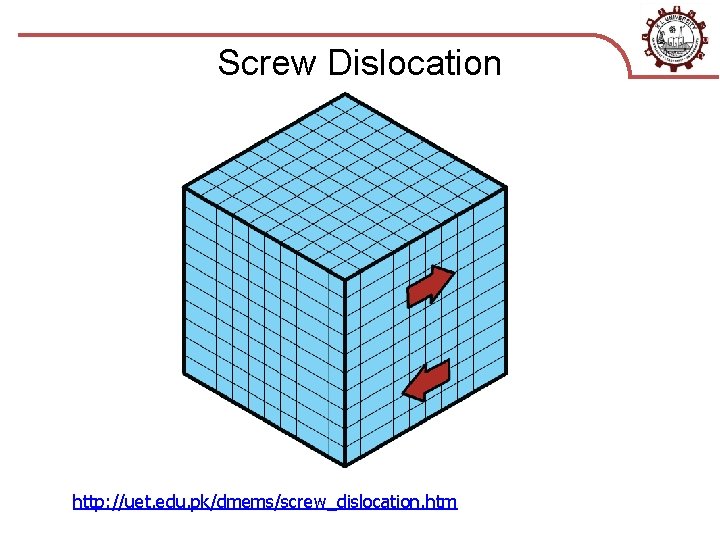

Screw Dislocation http: //uet. edu. pk/dmems/screw_dislocation. htm

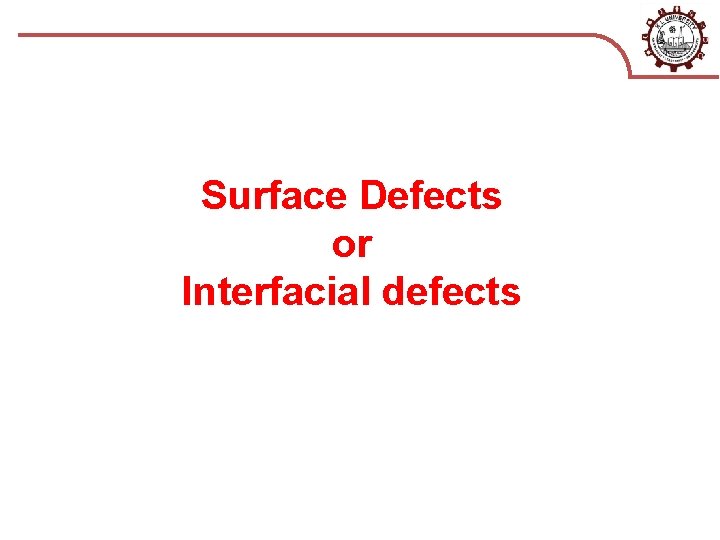

Surface Defects or Interfacial defects

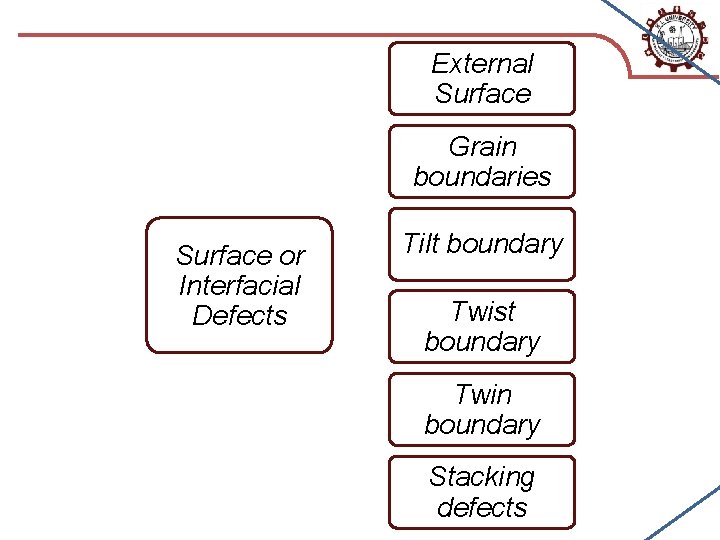

External Surface Grain boundaries Surface or Interfacial Defects Tilt boundary Twist boundary Twin boundary Stacking defects

External Surface

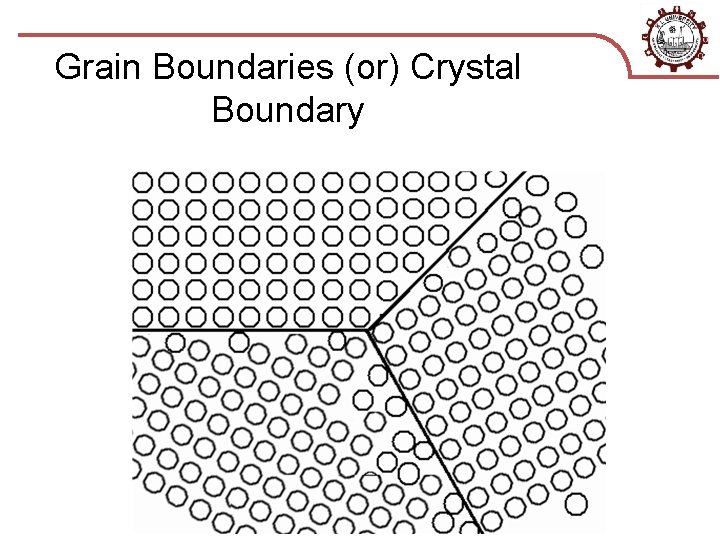

Grain Boundaries (or) Crystal Boundary

Tilt Boundaries

Twin Boundaries

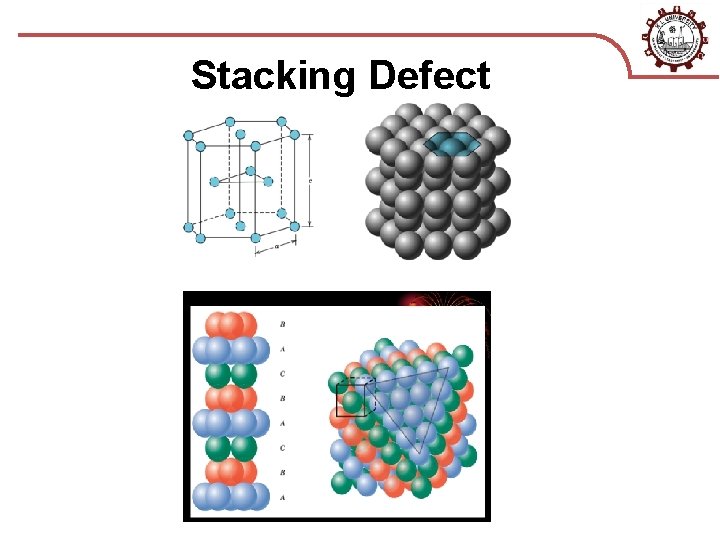

Stacking Defect

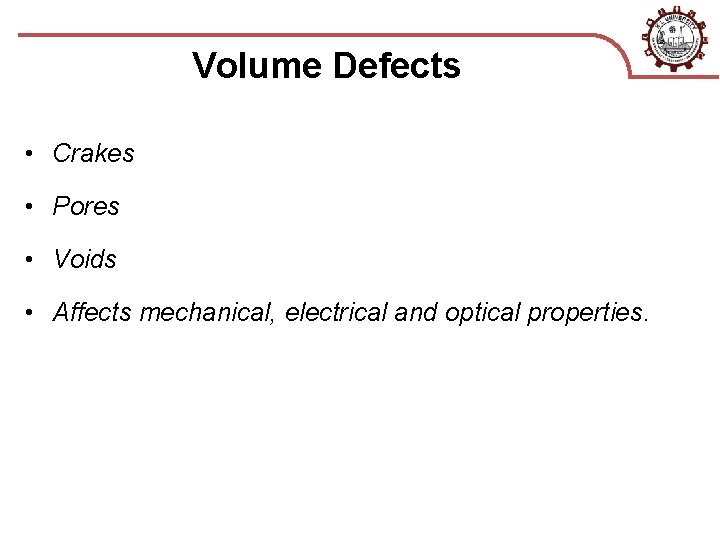

Volume Defects • Crakes • Pores • Voids • Affects mechanical, electrical and optical properties.

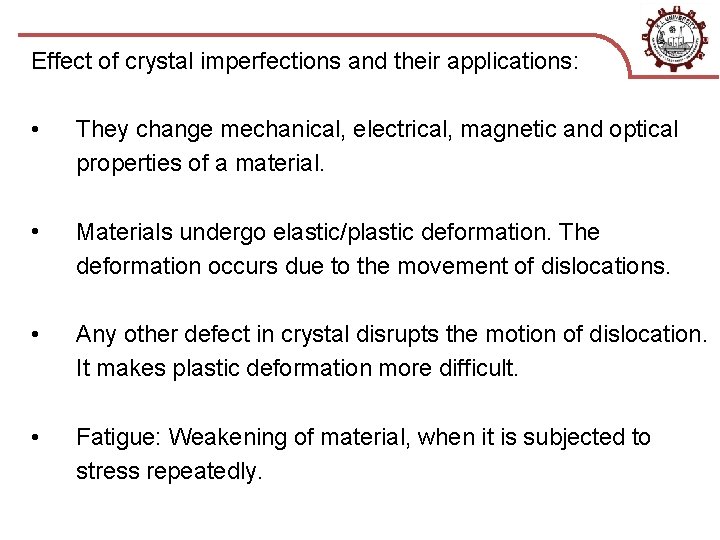

Effect of crystal imperfections and their applications: • They change mechanical, electrical, magnetic and optical properties of a material. • Materials undergo elastic/plastic deformation. The deformation occurs due to the movement of dislocations. • Any other defect in crystal disrupts the motion of dislocation. It makes plastic deformation more difficult. • Fatigue: Weakening of material, when it is subjected to stress repeatedly.
