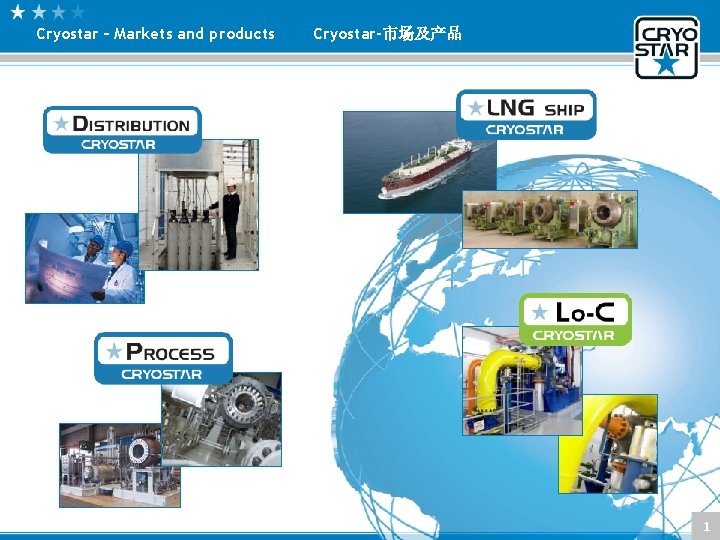

Cryostar – Markets and products Cryostar-市场及产品 1

Cryostar – Markets and products Cryostar-市场及产品 1

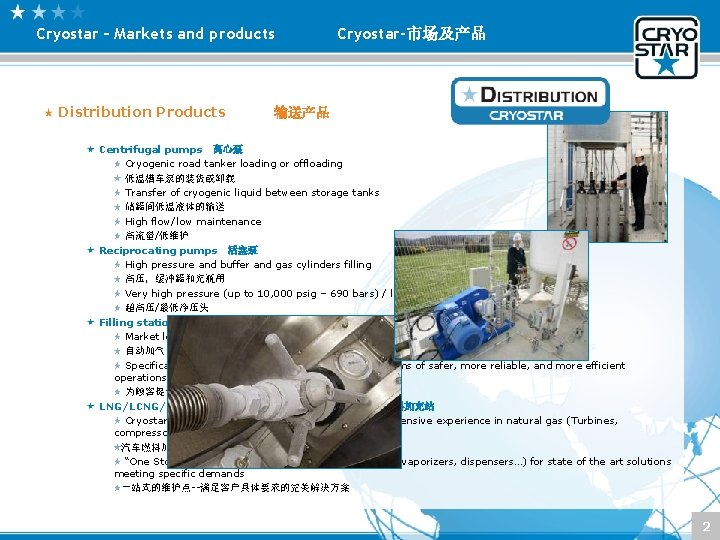

Cryostar – Markets and products Cryostar-市场及产品 Distribution Products 输送产品 Centrifugal pumps 离心泵 Cryogenic road

Cryostar – Markets and products Cryostar-市场及产品 Distribution Products 输送产品 Centrifugal pumps 离心泵 Cryogenic road tanker loading or offloading 低温槽车泵的装货或卸载 Transfer of cryogenic liquid between storage tanks 储罐间低温液体的输送 High flow/low maintenance 高流量/低维护 Reciprocating pumps 活塞泵 High pressure and buffer and gas cylinders filling 高压,缓冲罐和充瓶用 Very high pressure (up to 10, 000 psig – 690 bars) / low NPSH requirement. 超高压/最低净压头 Filling stations 加气站 Market leader in automated gas filling systems 自动加气系统的行业领先者 Specifically designed for customer requirements in terms of safer, more reliable, and more efficient operations. 为顾客提供更安全可靠的的服务和有效的操作 LNG/LCNG/LH 2 fueling stations LNG/LCNG/LH 2燃料加充站 Cryostar Vehicle Fueling Stations designs based on extensive experience in natural gas (Turbines, compressors, pumps) Cryostar 汽车燃料加充站的设计基于天然气设备方面丰富的经验 “One Stop Shop/Maintenance Point” (pumps, controls, vaporizers, dispensers…) for state of the art solutions meeting specific demands 一站式的维护点--满足客户具体要求的完美解决方案 2

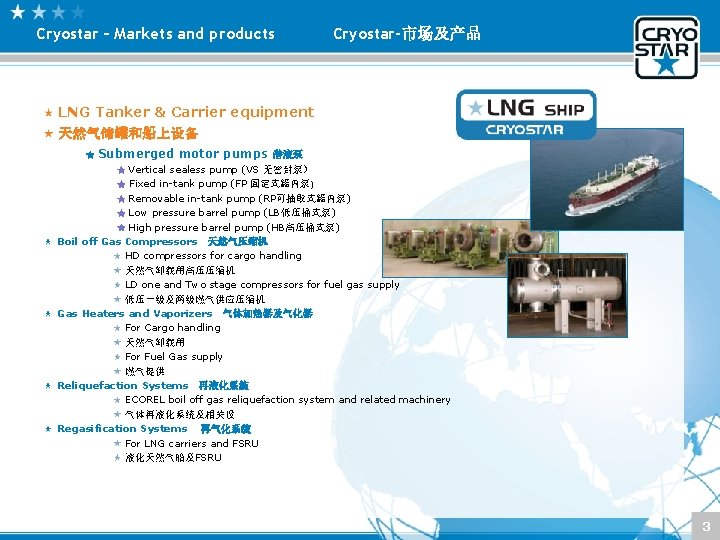

Cryostar – Markets and products Cryostar-市场及产品 LNG Tanker & Carrier equipment 天然气储罐和船上设备 ★ Submerged

Cryostar – Markets and products Cryostar-市场及产品 LNG Tanker & Carrier equipment 天然气储罐和船上设备 ★ Submerged motor pumps 潜液泵 ★ Vertical sealess pump (VS 无密封泵) ★ Fixed in-tank pump (FP 固定式罐内泵) ★ Removable in-tank pump (RP可抽取式罐内泵) ★ Low pressure barrel pump (LB低压桶式泵) ★ High pressure barrel pump (HB高压桶式泵) Boil off Gas Compressors 天然气压缩机 HD compressors for cargo handling 天然气卸载用高压压缩机 LD one and Two stage compressors for fuel gas supply 低压一级及两级燃气供应压缩机 Gas Heaters and Vaporizers 气体加热器及气化器 For Cargo handling 天然气卸载用 For Fuel Gas supply 燃气提供 Reliquefaction Systems 再液化系统 ECOREL boil off gas reliquefaction system and related machinery 气体再液化系统及相关设 Regasification Systems 再气化系统 For LNG carriers and FSRU 液化天然气船及FSRU 3

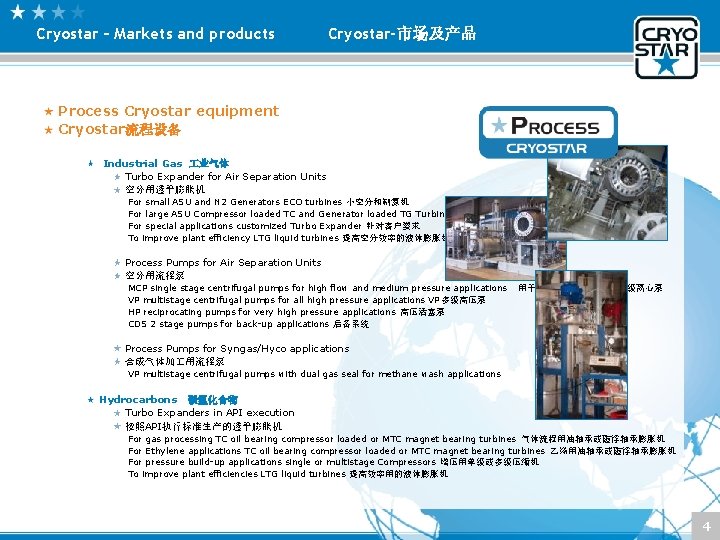

Cryostar – Markets and products Cryostar-市场及产品 Process Cryostar equipment Cryostar流程设备 Industrial Gas 业气体 Turbo

Cryostar – Markets and products Cryostar-市场及产品 Process Cryostar equipment Cryostar流程设备 Industrial Gas 业气体 Turbo Expander for Air Separation Units 空分用透平膨胀机 For small ASU and N 2 Generators ECO turbines 小空分和制氮机 For large ASU Compressor loaded TC and Generator loaded TG Turbines 用于大型空分带增压机和带发电机 For special applications customized Turbo Expander 针对客户要求 To improve plant efficiency LTG liquid turbines 提高空分效率的液体膨胀机 Process Pumps for Air Separation Units 空分用流程泵 MCP single stage centrifugal pumps for high flow and medium pressure applications 用于高流量和中压的MCP单级离心泵 VP multistage centrifugal pumps for all high pressure applications VP 多级高压泵 HP reciprocating pumps for very high pressure applications 高压活塞泵 CDS 2 stage pumps for back-up applications 后备系统 Process Pumps for Syngas/Hyco applications 合成气体加 用流程泵 VP multistage centrifugal pumps with dual gas seal for methane wash applications Hydrocarbons 碳氢化合物 Turbo Expanders in API execution 按照API执行标准生产的透平膨胀机 For gas processing TC oil bearing compressor loaded or MTC magnet bearing turbines 气体流程用油轴承或磁浮轴承膨胀机 For Ethylene applications TC oil bearing compressor loaded or MTC magnet bearing turbines 乙烯用油轴承或磁浮轴承膨胀机 For pressure build-up applications single or multistage Compressors 增压用单级或多级压缩机 To improve plant efficiencies LTG liquid turbines 提高效率用的液体膨胀机 4

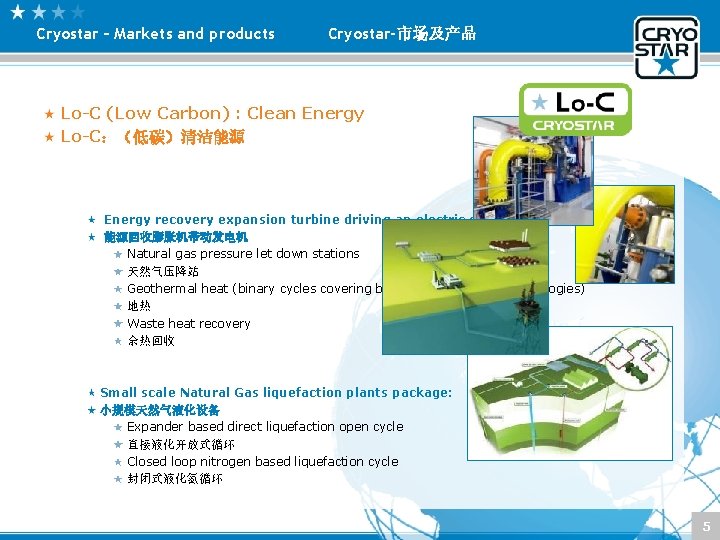

Cryostar – Markets and products Cryostar-市场及产品 Lo-C (Low Carbon) : Clean Energy Lo-C:(低碳)清洁能源 Energy

Cryostar – Markets and products Cryostar-市场及产品 Lo-C (Low Carbon) : Clean Energy Lo-C:(低碳)清洁能源 Energy recovery expansion turbine driving an electric generator for: 能源回收膨胀机带动发电机 Natural gas pressure let down stations 天然气压降站 Geothermal heat (binary cycles covering both ORC and Kalina technologies) 地热 Waste heat recovery 余热回收 Small scale Natural Gas liquefaction plants package: 小规模天然气液化设备 Expander based direct liquefaction open cycle 直接液化开放式循环 Closed loop nitrogen based liquefaction cycle 封闭式液化氮循环 5

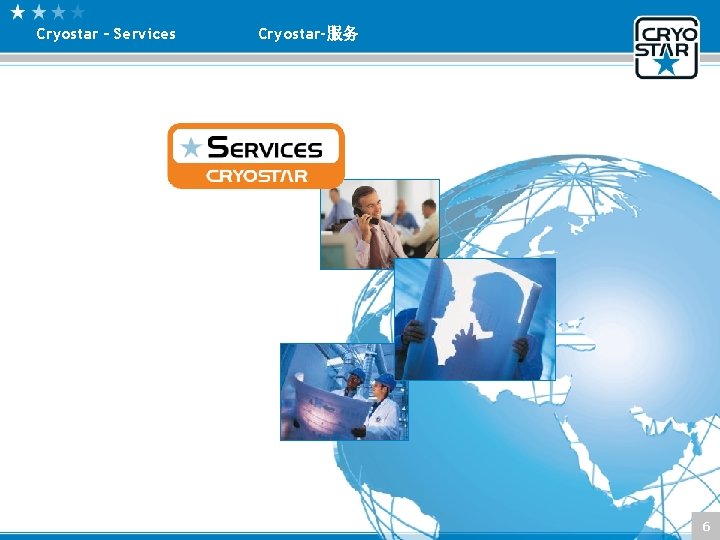

Cryostar – Services Cryostar-服务 6

Cryostar – Services Cryostar-服务 6

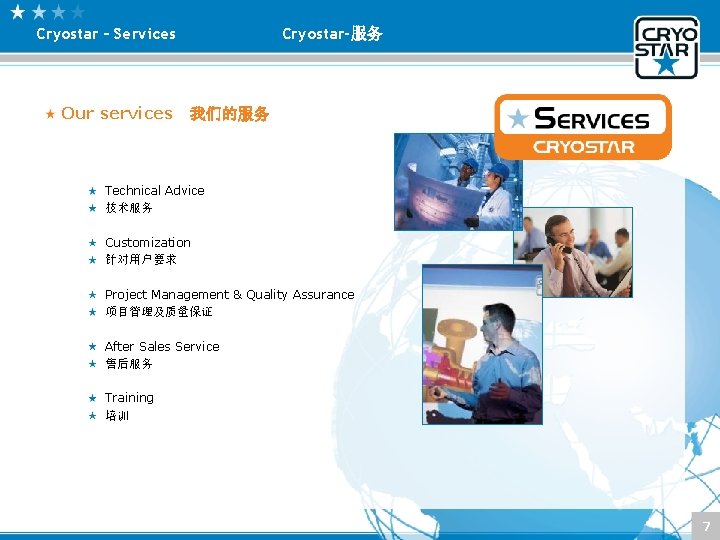

Cryostar – Services Cryostar-服务 Our services 我们的服务 Technical Advice 技术服务 Customization 针对用户要求 Project Management

Cryostar – Services Cryostar-服务 Our services 我们的服务 Technical Advice 技术服务 Customization 针对用户要求 Project Management & Quality Assurance 项目管理及质量保证 After Sales Service 售后服务 Training 培训 7

Cryostar – Production and testing Cryostar-产品及测试 Production and testing 产品及测试 8

Cryostar – Production and testing Cryostar-产品及测试 Production and testing 产品及测试 8

Cryostar – Production and testing Cryostar-产品及测试 Test facilities 测试设备 Every single rotating equipment is

Cryostar – Production and testing Cryostar-产品及测试 Test facilities 测试设备 Every single rotating equipment is tested in house 每个设备出厂前做独立测试 4 dedicated test facilities permit simultaneous testing of equipment up to 8 MW 4种专业测试设备可同时测试多达 8兆瓦 They include: 它们包括: The cryogenic LN 2 test facility for the test of pumps and liquid expansion turbines with flow up to 20 000 l/min and pressure up to 600 bar 可以测试低温泵和液体膨胀机的测试设备,其流量高达 20 000 l/min,压力高达 600 bar 1. 8 MW and 6 MW High Voltage variable frequency drives 1. 8 MW和6 MW高压变频器 3 MW HV 60 Hz generator 3 MW高压60 Hz的发电机 3 x 10 000 m 3/h 10 bar air compressors 3倍10 000 m 3/h ,10 bar空气压缩机 2 and 7 MW cooling tower, 550 m 3/h water flow 2和7 MW的冷却塔,550 m 3/h的水流量 Lifting capacity up 50 T 起重能力 50 T以上 Automated Foundation Fieldbus data acquisition 自动基础数据采集 9

Cryostar - Production and testing Cryostar-产品及测试 Production tools / infrastructure 生产 具/基础构造 3 assembly

Cryostar - Production and testing Cryostar-产品及测试 Production tools / infrastructure 生产 具/基础构造 3 assembly halls 3个组装车间 Turbine / Compressor assembly 透平膨胀机/压缩机组装 3000 m² 3000平方米 5 lifting swings of 1 ton each 5个 1吨的吊装 Cranes of 5 tons and 15 tons 5吨和15吨的吊车 Automatic TIG welding machines 自动焊接机 4 balancing machines 4个动平衡设备 1 over speed chamber 1个超速试验台 Pump assembly 泵组装 1000 m² 1000平方米 Cranes of 2 times 5 tons 2个 5吨的吊车 Automatic degreasing machine 自动除油设备 Heavy machines assembly 重型机械组装 1300 m² 1300平方米 Cranes of 2 times 50 tons 2个 50吨的吊车 8 lifting swings of 1 ton each 8个 1吨的吊装 10

Cryostar – Research and development Cryostar-研究与发展 Research and development 研究与发展 11

Cryostar – Research and development Cryostar-研究与发展 Research and development 研究与发展 11

Cryostar – Research and development Cryostar-研究与发展 Development of rotating machinery and processes 运转机械的发展和流程 40

Cryostar – Research and development Cryostar-研究与发展 Development of rotating machinery and processes 运转机械的发展和流程 40 qualified experts, engineers and technicians designing new rotating machines and processes as well as the associated control system. 40名专家, 程师和技术人员设计新的运转机械,流程以及相关的控制系统。 It guarantees the perfect match between both machines and process. 它保证了机械与流程之间的完美匹配。 The latest most advanced tools are used like NUMECA Computer fluid Dynamic calculation software for simulation, design and optimisation of fluid flow and heat transfer ANSYS Finite element analysis software, for stress calculation on mechanical parts XLROTOR Rotordynamic analysis software HYSYS, steady state process modeling software, for development of new process Multiflash for multiple phase equilibrium thermodynamic gas properties INDISS, dynamic process simulation software, for the development of control concept . . . Partnership with universities and laboratories and third party experts for specific subjects like for example material compatibility and coating research 拥有与大学和实验室的伙伴关系,及材料相容性和涂层的具体研究课题领域的第三方专家 12

Cryostar – Research and development Cryostar-研究与发展 Recent developments 最新发展动态 High Pressure piston pumps (HPP)

Cryostar – Research and development Cryostar-研究与发展 Recent developments 最新发展动态 High Pressure piston pumps (HPP) for enhanced oil recovery: LN 2 flow up to 800 l/min at 690 bar 可提高油回收的高压活塞泵:流量 800 l/min ,690 bar Piston pumps for liquefied natural gas trucks engines: flow up to 4 l/min at 320 bar 用于液化天然气引擎的活塞泵:流量 4 l/min ,320 bar Large multistage vertical pumps VP 330: flow 2000 - 4200 l/min up to 80 bar 大型立式多级泵VP 330:流量 2000 - 4200 l/min , 80 bar Shipboard reliquefaction Eco. Rel (complete onboard plant) for all Qmax vessels, the largest ever build 266 000 m 3 LNG carrier 用于大型天然气船( Qmax )的天然气再液化设备,最大为容量 266 000 m 3 In-pipe generator loaded turbine (MTG) for energy recovery in pressure letdown station with high frequency synchronous generator on magnetic bearing delivering 300 k. W to the grid 用于能源回收压降站管道的磁浮膨胀机带发电机,磁浮轴承 300 k. W的高压输电网 Large turbines for geothermal application for heat recovery in Kalina as well as in organic ranking cycles (ORC) up to 10 MW 用于地热回收和有机物的等级循环的大型膨胀机,功率最高可达 10 MW 13

Safety and quality policy 安全与质量政策 Quality 质量 ISO 9001. 2000 quality insurance system certified

Safety and quality policy 安全与质量政策 Quality 质量 ISO 9001. 2000 quality insurance system certified by Lloyd’s Register Quality Assurance France SAS 经ISO 9001. 2000质量体系认证 Directive Pressure Equipment 97/23/CE : Module H et H 1 指示压力器材 97/23/CE: Module H et H 1 Quality Assurance Management : 质保管理 Audit, measure and analyse the processes 审计,测量和分析流程 Define the compulsory procedures, make sure they are followed (management of the procedures, management of in-puts, management of product non conformities, internal audits, corrective actions, preventive actions) 定义强制性程序,以确保执行 Ensure product conformity 确保产品符合标准 Ensure conformity and improvement of the quality assurance system 确保符合质量标准及不断完善质量保证体系 Suggest to the management quality system improvements 质量系统管理的改进 14

Crostar China - testing facility 15

Crostar China - testing facility 15

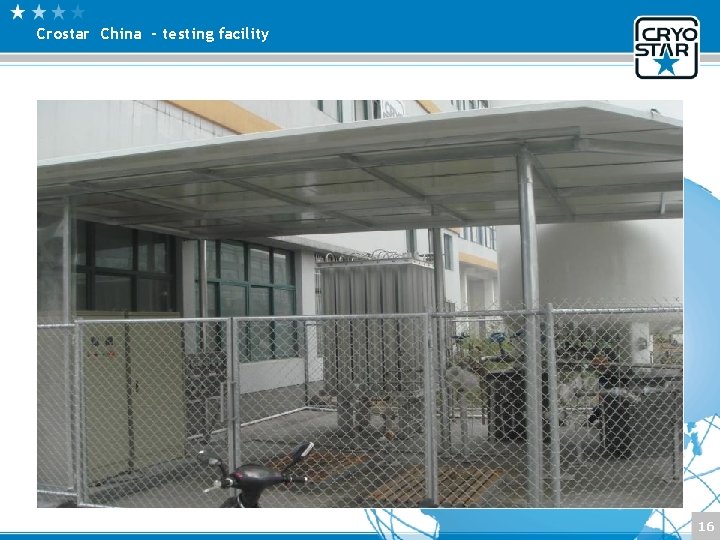

Crostar China - testing facility 16

Crostar China - testing facility 16

Crostar China - testing facility 17

Crostar China - testing facility 17

Crostar China - testing facility 18

Crostar China - testing facility 18
