Cryogenic Sour Gas Process Attractive for Acid Gas
- Slides: 18
Cryogenic Sour Gas Process Attractive for Acid Gas Injection Applications P. Scott Northrop Exxon. Mobil Upstream Research Rene F. Bialek Imperial Oil Resources 03/11/04
Cryogenic Sour Gas Process • The following items will be discussed: – Controlled-Freeze Zone (CFZ™) process overview and background – Earlier pilot plant results – CFZ™- why now? – New case study – Experimental program 03/11/04
CFZ™ Overview/Background • Problem: CO 2 Freezing in Cryogenic Separations – Solid CO 2 plugs standard distillation equipment – CO 2 is present in many natural gas streams • Solution: – Instead of trying to avoid CO 2 freezing, induce it in a specially-designed part of the distillation column • CFZ™ was originally conceived for methane/CO 2 separation, but it has general application to cases where a solid phase forms in a distillation column 03/11/04

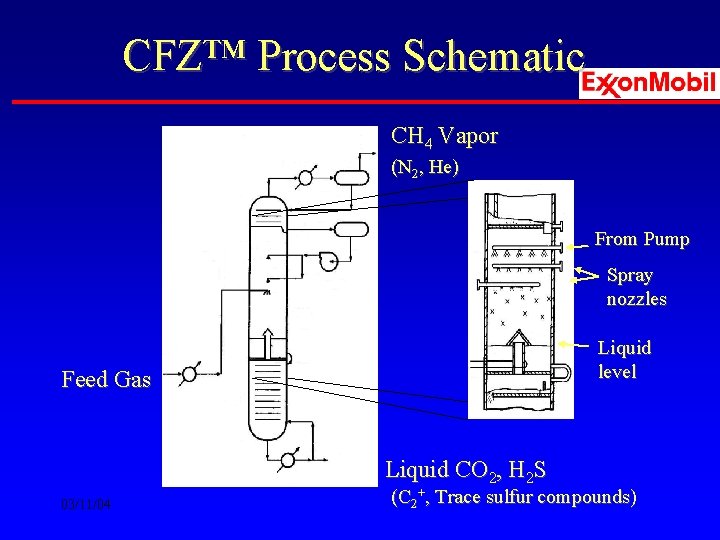

CFZ™ Process Schematic CH 4 Vapor (N 2, He) From Pump Spray nozzles Liquid level Feed Gas Liquid CO 2, H 2 S 03/11/04 (C 2+, Trace sulfur compounds)

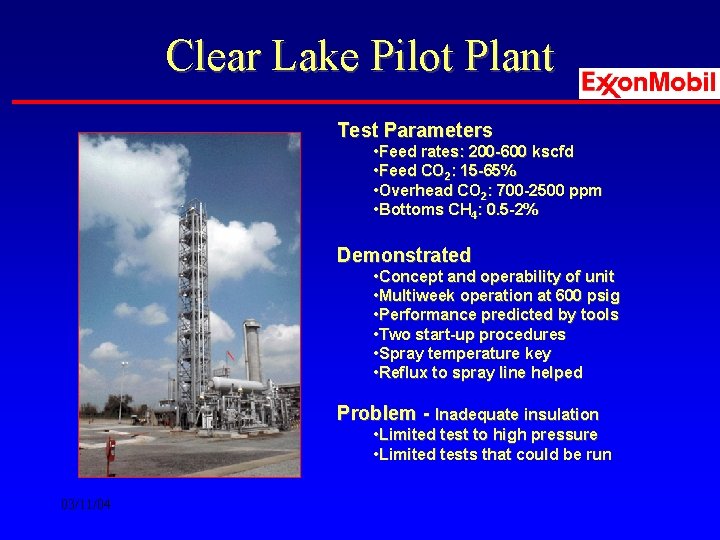

Clear Lake Pilot Plant Test Parameters • Feed rates: 200 -600 kscfd • Feed CO 2: 15 -65% • Overhead CO 2: 700 -2500 ppm • Bottoms CH 4: 0. 5 -2% Demonstrated • Concept and operability of unit • Multiweek operation at 600 psig • Performance predicted by tools • Two start-up procedures • Spray temperature key • Reflux to spray line helped Problem - Inadequate insulation • Limited test to high pressure • Limited tests that could be run 03/11/04
CH 4, N 2 Why Now? CFZ™ is easily integrated with acid gas injection (AGI)! CFZ PI Dry Gas • H 2 S/Sulfur: - Eliminates Claus/TGT units, sulfur blocks Saturated sulfur markets Slow development of alternative uses • CO 2: - Canadian producers may have Kyoto limits - Enhanced oil recovery possible 03/11/04 H 2 S, CO 2
Case Studies: General Remarks CAPEX and OPEX savings can be in the 10 -20% range over commercial technologies At moderate to high CO 2 concentrations, CFZ is competitive Major benefits: Fewer processing steps Reduction in acid gas injection costs Total contaminant removal Economic issues: Higher refrigeration loads than solvents Means of CO 2/C 2+ separation required in some cases 03/11/04

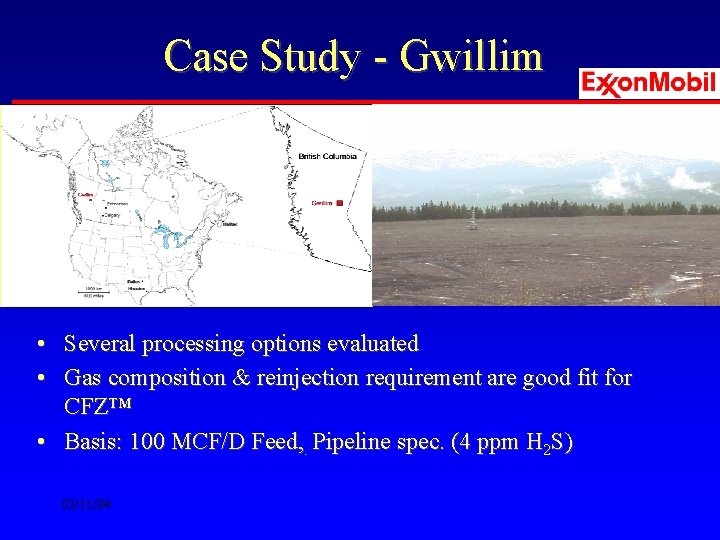

Case Study - Gwillim • Several processing options evaluated • Gas composition & reinjection requirement are good fit for CFZ™ • Basis: 100 MCF/D Feed, . Pipeline spec. (4 ppm H 2 S) 03/11/04
Gwillim Resource Overview Est’d. CH 4 Resource: Approx. 1 TCF Initial Reservoir Pressure Reservoir Temp Average Well Depth: 4500 psig 203 F 11, 000 ft Wells drilled to date 4 Gas Composition (mol %) Methane H 2 S CO 2 C 2 & C 3 C 4+ N 2 Elemental sulfur 58. 3 24. 5 16. 8 0. 00 0. 3 Trace Reservoirs with similar acid gas content are being produced by other operators in the area 03/11/04
Gwillim: Existing Infrastructure • Duke Pine plant • Duke Kweon acid gas stripper plant Pine • Burlington sweet plant (Noel) Kwoen Gwillim 03/11/04 Noel • High pressure sour gas gathering system to Pine & Kweon • No sweet fuel line • 240 KV power line nearby Challenges: • Insufficient existing plant capacity for entire development • Processing fees
Detailed Sweetening Process Screening Relative Comparison Completed by an independent consultant 100 MCF/D, 40% Acid gas & 950 psig plant inlet Selexol CFZ™ Capital Investment 1. 3 1. 0 Annual Operating Cost 1. 19 1. 0 Plant Horsepower 1. 41 1. 0 Gas sales 0. 93 1. 0 03/11/04
Preliminary Conceptual CFZ™ Processing Plant Cross Exchanger CFZ Tower Reboiler Raw Gas Chiller Aerial Cooler Expander (Optional) Reflux/Sales Comp. Sales Gas Dehy. Spray Pump Liquid Acid Gas to disposal <1% CH 4 03/11/04 CFZ Tower

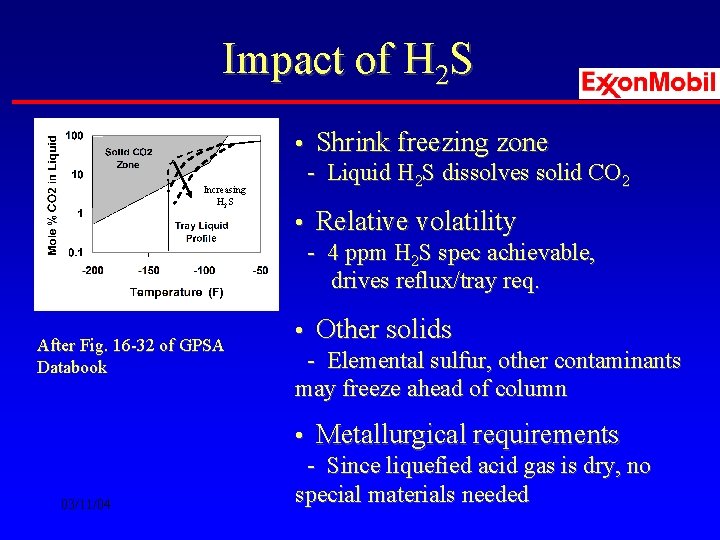

Impact of H 2 S Increasing H 2 S After Fig. 16 -32 of GPSA Databook 03/11/04 • Shrink freezing zone - Liquid H 2 S dissolves solid CO 2 • Relative volatility - 4 ppm H 2 S spec achievable, drives reflux/tray req. • Other solids - Elemental sulfur, other contaminants may freeze ahead of column • Metallurgical requirements - Since liquefied acid gas is dry, no special materials needed
Experimental Program • Cold depletion experiments – Collected wellhead sample, cooled to -80°C, expelled gas – Identified presence of elemental sulfur • CO 2 adhesion in the presence of H 2 S – “Cold finger” experiments in progress • H 2 O solubility in liquid acid gas at low T – Experiments planned • CO 2, H 2 S K-values at infinite dilution in liquid methane – verify numerical models, simulation results at top of column 03/11/04
Summary CFZ™ best fits include: • Lean gases where hydrocarbon liquids recovery is not needed • Total acid gas and mercaptan removal, e. g, pre-LNG • Acid gas injection (acid components are already liquefied) CFZ 03/11/04 AGI
Back-up Slides 03/11/04
CO 2/CH 4 Phase Behavior T vs. x, y for CO 2/CH 4 at 600 psia 03/11/04
CO 2/CH 4 Phase Behavior T vs. x, y for CO 2/CH 4 at 800 psia 03/11/04
