Cryo Assembly, Cold Mass Empty Shell Welding Results A. Vouris Empty Shell Welding Results – Cryo Meeting Feb. 4, 2019

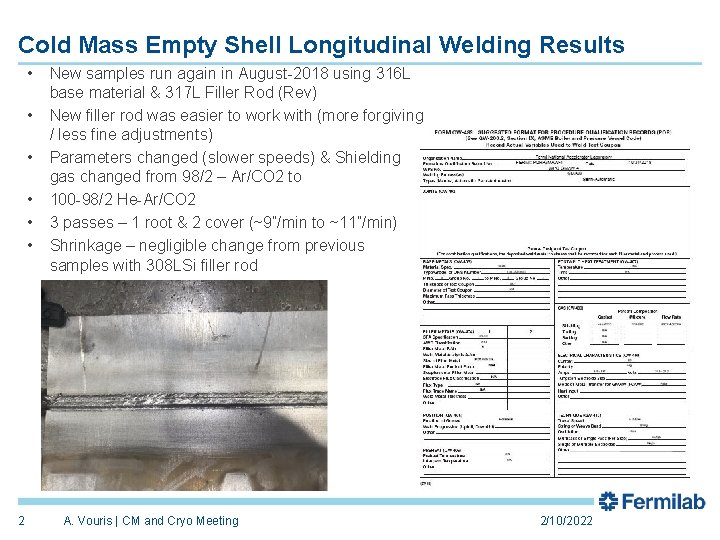

Cold Mass Empty Shell Longitudinal Welding Results • • • 2 New samples run again in August-2018 using 316 L base material & 317 L Filler Rod (Rev) New filler rod was easier to work with (more forgiving / less fine adjustments) Parameters changed (slower speeds) & Shielding gas changed from 98/2 – Ar/CO 2 to 100 -98/2 He-Ar/CO 2 3 passes – 1 root & 2 cover (~9”/min to ~11”/min) Shrinkage – negligible change from previous samples with 308 LSi filler rod A. Vouris | CM and Cryo Meeting 2/10/2022

Cold Mass Empty Shell Longitudinal Welding Results Index Pts S 1 2 3 4 5 N 6 3 East (A): Dim from Edge West (B): Dim from Edge location of (inches) Uprights (inches) 35 31 10. 5 65. 5 66 95. 5 127 137 180. 5 248 202. 5 319 287. 5 352 372. 5 A. Vouris | CM and Cryo Meeting 2/10/2022

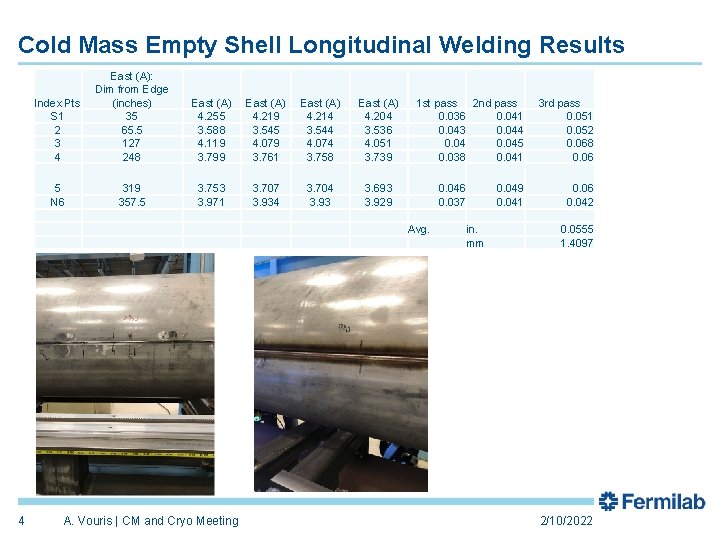

Cold Mass Empty Shell Longitudinal Welding Results Index Pts S 1 2 3 4 East (A): Dim from Edge (inches) 35 65. 5 127 248 East (A) 4. 255 3. 588 4. 119 3. 799 East (A) 4. 219 3. 545 4. 079 3. 761 East (A) 4. 214 3. 544 4. 074 3. 758 East (A) 4. 204 3. 536 4. 051 3. 739 5 N 6 319 357. 5 3. 753 3. 971 3. 707 3. 934 3. 704 3. 93 3. 693 3. 929 1 st pass 2 nd pass 0. 036 0. 041 0. 043 0. 044 0. 045 0. 038 0. 041 0. 046 0. 037 Avg. 4 A. Vouris | CM and Cryo Meeting 0. 049 0. 041 in. mm 3 rd pass 0. 051 0. 052 0. 068 0. 06 0. 042 0. 0555 1. 4097 2/10/2022

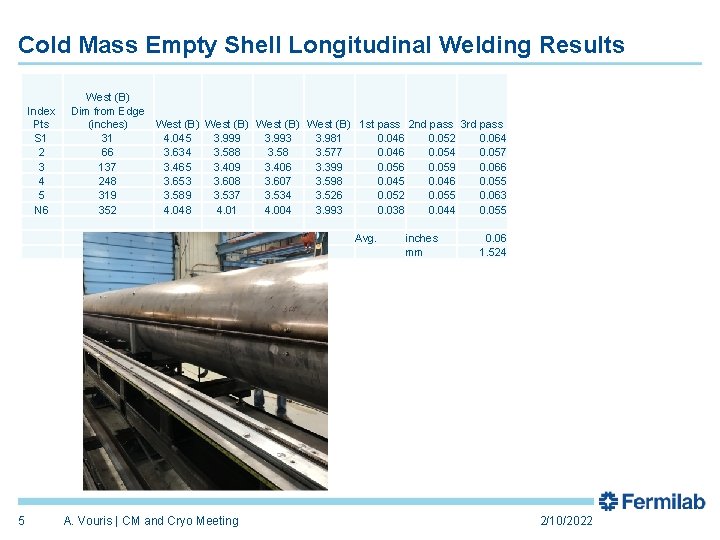

Cold Mass Empty Shell Longitudinal Welding Results Index Pts S 1 2 3 4 5 N 6 West (B) Dim from Edge (inches) 31 66 137 248 319 352 West (B) 1 st pass 2 nd pass 3 rd pass 4. 045 3. 999 3. 993 3. 981 0. 046 0. 052 0. 064 3. 634 3. 588 3. 577 0. 046 0. 054 0. 057 3. 465 3. 409 3. 406 3. 399 0. 056 0. 059 0. 066 3. 653 3. 608 3. 607 3. 598 0. 045 0. 046 0. 055 3. 589 3. 537 3. 534 3. 526 0. 052 0. 055 0. 063 4. 048 4. 01 4. 004 3. 993 0. 038 0. 044 0. 055 Avg. 5 A. Vouris | CM and Cryo Meeting inches mm 0. 06 1. 524 2/10/2022

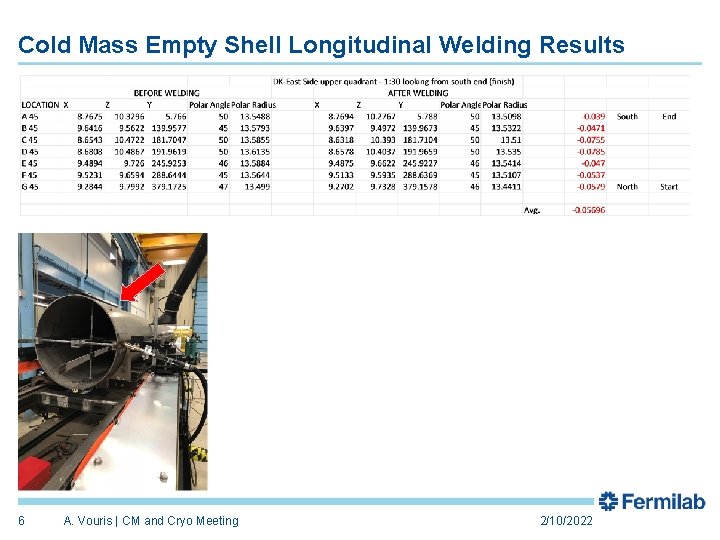

Cold Mass Empty Shell Longitudinal Welding Results 6 A. Vouris | CM and Cryo Meeting 2/10/2022

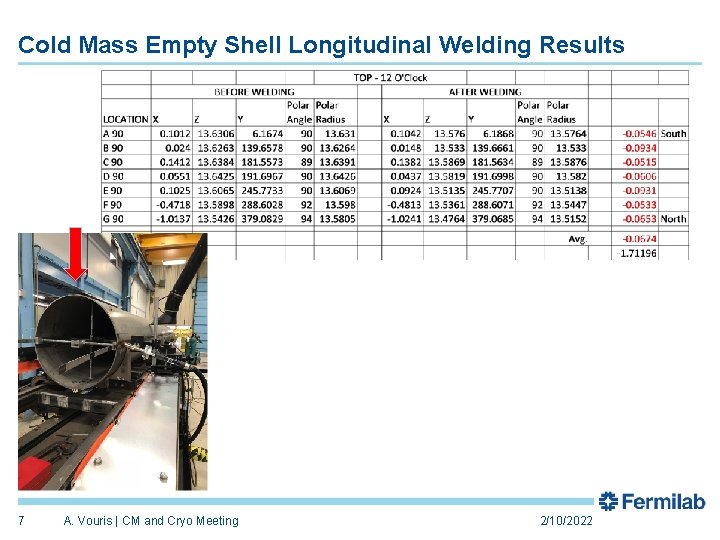

Cold Mass Empty Shell Longitudinal Welding Results 7 A. Vouris | CM and Cryo Meeting 2/10/2022

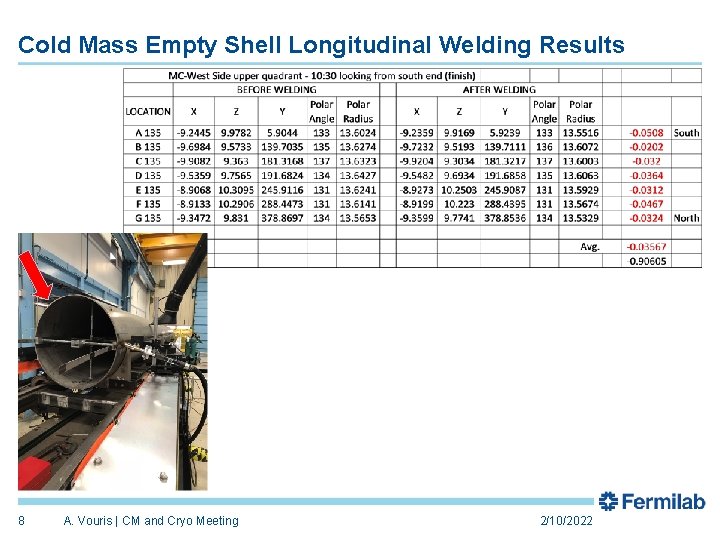

Cold Mass Empty Shell Longitudinal Welding Results 8 A. Vouris | CM and Cryo Meeting 2/10/2022

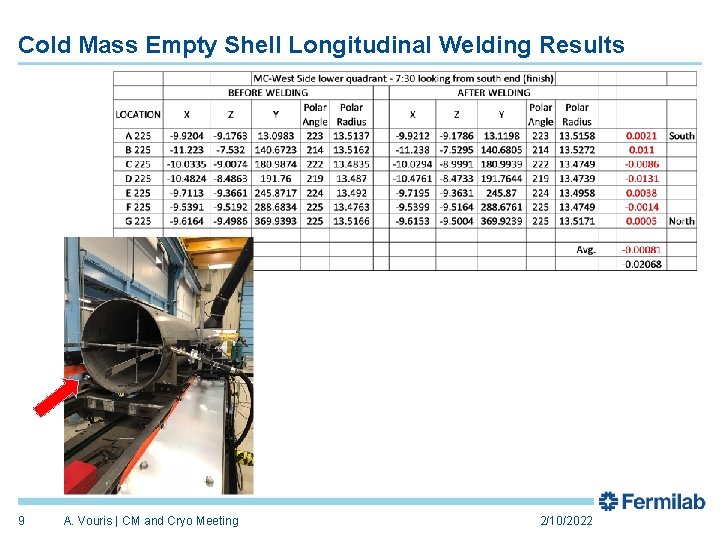

Cold Mass Empty Shell Longitudinal Welding Results 9 A. Vouris | CM and Cryo Meeting 2/10/2022

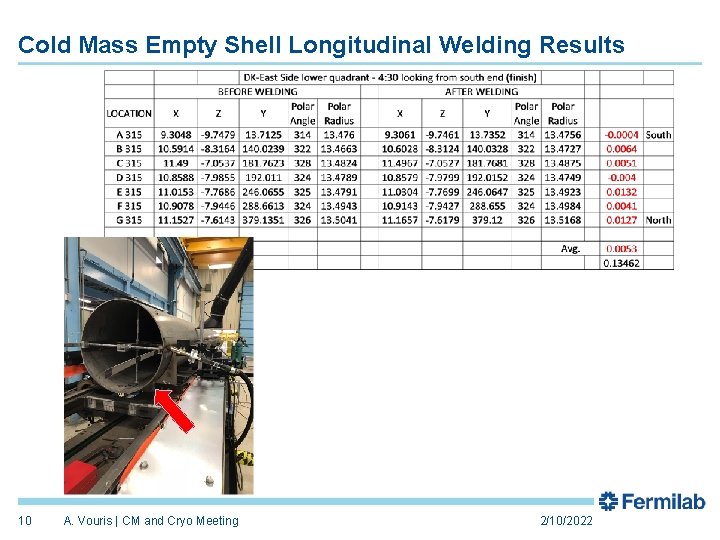

Cold Mass Empty Shell Longitudinal Welding Results 10 A. Vouris | CM and Cryo Meeting 2/10/2022
