Crowds In A Polygon Soup Next-Gen Path Planning David Miles 3/23/2006 Copyright 2006 Babel.

Crowds In A Polygon Soup Next-Gen Path Planning David Miles 3/23/2006 Copyright 2006 Babel. Flux LLC

“Large-Scale Fluid AI Navigation in Complex, Changing Worlds” 1. Build a “usable free space”

“Large-Scale Fluid AI Navigation in Complex, Changing Worlds” 1. Build a “usable free space” nav graph 2. Update graph for dynamic obstacles 3. Use graph for fluid navigation

1. Building the Nav-Graph Automated Build Process 1. Large, Complex Worlds 2. Polygon Soup

1. Building the Nav-Graph Automated Build Process 1. Large, Complex Worlds 2. Polygon Soup Mesh 3. Multiple Unit Sizes

2. Dynamic Obstacle Updates 1. Obstacles reconfigure the world 2. Dynamic areas replace static

2. Dynamic Obstacle Updates 1. Obstacles reconfigure the world 2. Dynamic areas replace static areas 3. Underlying algorithms work exactly as before

3. Fluid AI Navigation 1. 2. 3. 4. Fast ray casts Edge detection Potential

3. Fluid AI Navigation 1. 2. 3. 4. Fast ray casts Edge detection Potential Fields Path Following

Automated Build Process

Automated Build Process

1. Voxelize Polygon Soup

1. Voxelize Polygon Soup

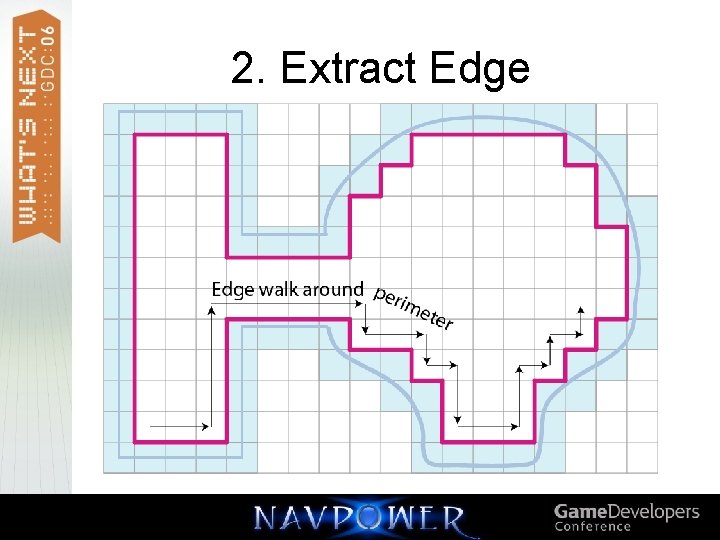

2. Extract Edge

2. Extract Edge

3. Simplify Polygon

3. Simplify Polygon

4. Partition Into Convex Areas

4. Partition Into Convex Areas

Convex Partitioning

Convex Partitioning

Recursively Partition

Recursively Partition

Convex Area Graph Complete

Convex Area Graph Complete

Pathfinding

Pathfinding

Holes in the Free-Space

Holes in the Free-Space

Splice Location

Splice Location

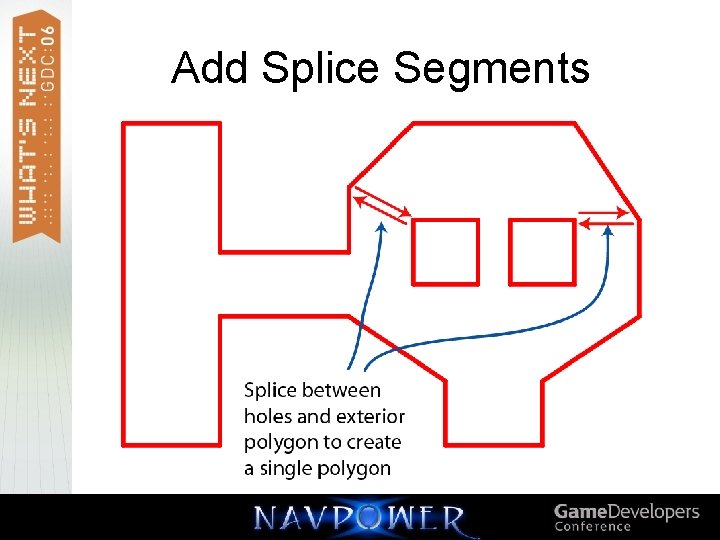

Add Splice Segments

Add Splice Segments

Single Polygon Surface

Single Polygon Surface

Convex Area Graph Complete

Convex Area Graph Complete

Overhead Obstacles

Overhead Obstacles

Walkable Surface Removal

Walkable Surface Removal

3 d overlap

3 d overlap

3 d Partitioning

3 d Partitioning

3 d Partitioning After initial split, overlap no longer exists

3 d Partitioning After initial split, overlap no longer exists

Different Creature Shapes

Different Creature Shapes

Different Creature Shapes

Different Creature Shapes

Non-Uniform Voxelization

Non-Uniform Voxelization

Part 2: Dynamic Obstacles • Dynamic obstacles reconfigure world • Underlying algorithms unchanged

Part 2: Dynamic Obstacles • Dynamic obstacles reconfigure world • Underlying algorithms unchanged

Boolean Subtract - =

Boolean Subtract - =

Partition Non-Convex Areas

Partition Non-Convex Areas

Multiple Obstacles

Multiple Obstacles

Memory Layout

Memory Layout

Part 3: Fluid AI Navigation What can I do with my convex area graph?

Part 3: Fluid AI Navigation What can I do with my convex area graph? – Very fast navigational ray-casts – Distance to edge queries – Repulsion fields on edges – Smart path following

Ray Casts

Ray Casts

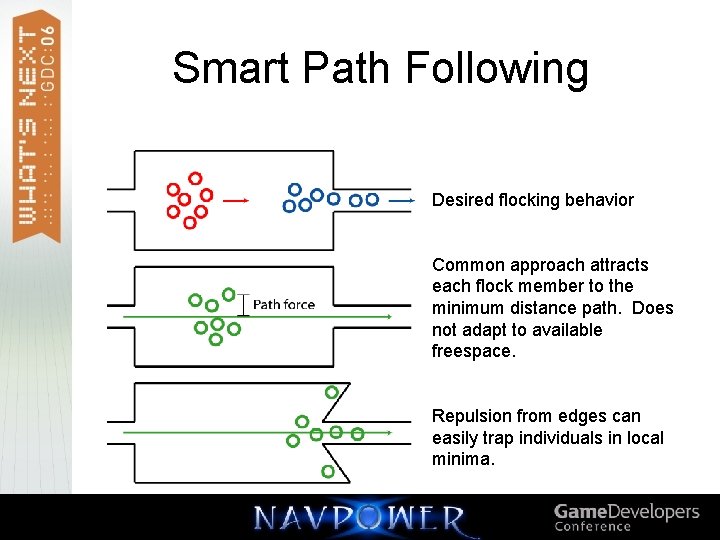

Smart Path Following Desired flocking behavior Common approach attracts each flock member to the

Smart Path Following Desired flocking behavior Common approach attracts each flock member to the minimum distance path. Does not adapt to available freespace. Repulsion from edges can easily trap individuals in local minima.

For The Pathing Connoisseur Unneeded return to the original path annoys the pathing connoisseur

For The Pathing Connoisseur Unneeded return to the original path annoys the pathing connoisseur Ahhh, much better

Next Corner Each member of the flock steers left or right to head towards

Next Corner Each member of the flock steers left or right to head towards the “next corner”.

Finding the Next Corner

Finding the Next Corner

“Portals” Between Areas

“Portals” Between Areas

Initializing the Loop

Initializing the Loop

First Iteration, Left Side

First Iteration, Left Side

First Iteration, Right Side

First Iteration, Right Side

First Iteration Complete

First Iteration Complete

Second Iteration, Left Side

Second Iteration, Left Side

Second Iteration, Right Side

Second Iteration, Right Side

Second Iteration Complete

Second Iteration Complete

Third Iteration, Left Side

Third Iteration, Left Side

Final Output

Final Output

“Next Corner” Summary • • • Easy to compute from convex graph < 2

“Next Corner” Summary • • • Easy to compute from convex graph < 2 cross-products per iteration Can limit iterations Never explicitly create min-dist path Fluid path following even with large disturbances

Conclusions • Automated build of convex area graph – efficiently represents the usable free

Conclusions • Automated build of convex area graph – efficiently represents the usable free space – operates on polygon soup mesh – settable enemy size and shape • Dynamic obstacles update graph – no speed overhead once updated • Fluid AI navigation using the graph – Many useful queries performed rapidly

Special Thanks • Meilin Wong • Hong Park and David Modiano • Crystal Dynamics

Special Thanks • Meilin Wong • Hong Park and David Modiano • Crystal Dynamics • dmiles@navpower. com • www. navpower. com
