CRO Practical Guidelines for Using CRO The Mission

  • Slides: 14
Download presentation

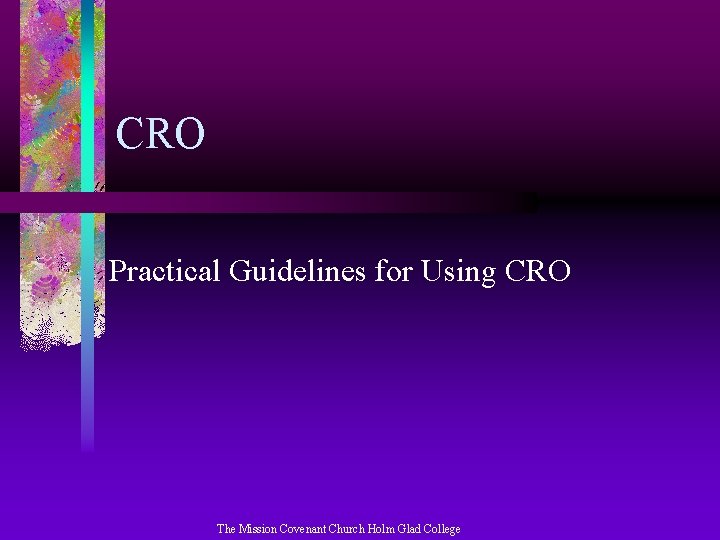

CRO Practical Guidelines for Using CRO The Mission Covenant Church Holm Glad College

CRO Practical Guidelines for Using CRO The Mission Covenant Church Holm Glad College

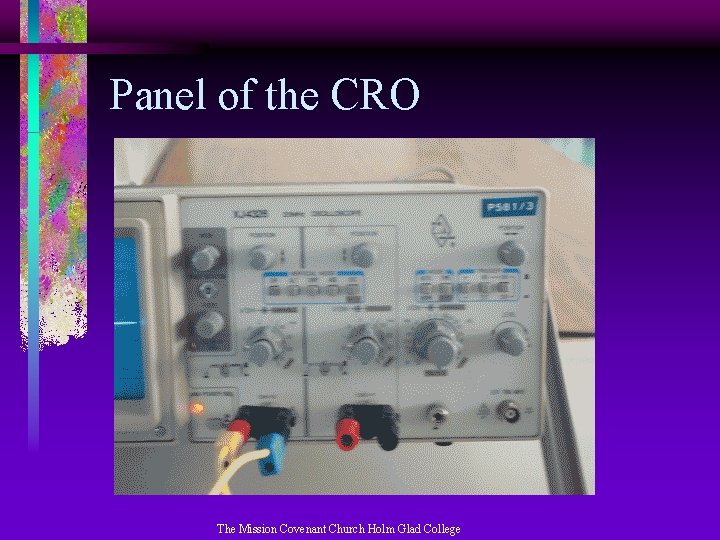

Panel of the CRO The Mission Covenant Church Holm Glad College

Panel of the CRO The Mission Covenant Church Holm Glad College

Preliminary Adjustment • Before making any measurement, ground the CRO. • Turn the “Position”

Preliminary Adjustment • Before making any measurement, ground the CRO. • Turn the “Position” knob so that the trace is at the centre (or at the bottom if required). The Mission Covenant Church Holm Glad College

Connection • Connect the CRO terminal to the component concerned. • Unearth the Y-input

Connection • Connect the CRO terminal to the component concerned. • Unearth the Y-input and select DC or AC mode as instructed. • The Earth terminal of the CRO should be connected to the Earth terminal of the circuit. The Mission Covenant Church Holm Glad College The black terminal is the earth

Adjustment of Sensitivity • Adjust the sensitivity so that the trace does not exceed

Adjustment of Sensitivity • Adjust the sensitivity so that the trace does not exceed the CRO screen. This knob should be turned fully clockwise. The Mission Covenant Church Holm Glad College

Adjustment of Timebase • Adjust the timebase so that one or two complete cycles

Adjustment of Timebase • Adjust the timebase so that one or two complete cycles can be observed on the CRO screen. This knob should be turned fully clockwise. The Mission Covenant Church Holm Glad College

Exercise 1 The following screen is seen on the CRO. What should we adjust

Exercise 1 The following screen is seen on the CRO. What should we adjust in order to get an observable trace on the screen? A. Decrease the sensitivity B. Increase the sensitivity C. Decrease the speed of timebase D. Increase the speed of timebase The Mission Covenant Church Holm Glad College

Exercise 1 You are Wrong. Try Again. See Solution. The Mission Covenant Church Holm

Exercise 1 You are Wrong. Try Again. See Solution. The Mission Covenant Church Holm Glad College

Congratulations! You are right! The Mission Covenant Church Holm Glad College

Congratulations! You are right! The Mission Covenant Church Holm Glad College

Solution to Exercise 1 In this case, the trace exceed the upper and lower

Solution to Exercise 1 In this case, the trace exceed the upper and lower boundary of the screen. So, we should decrease the sensitivity of the Yinput. The Mission Covenant Church Holm Glad College

Exercise 2 The following screen is seen on the CRO. What should we adjust

Exercise 2 The following screen is seen on the CRO. What should we adjust in order to get an observable trace on the screen? A. Decrease the sensitivity B. Increase the sensitivity C. Decrease the speed of timebase D. Increase the speed of timebase The Mission Covenant Church Holm Glad College

Exercise 2 You are Wrong. Try Again. See Solution. The Mission Covenant Church Holm

Exercise 2 You are Wrong. Try Again. See Solution. The Mission Covenant Church Holm Glad College

Congratulations! You are right! The Mission Covenant Church Holm Glad College

Congratulations! You are right! The Mission Covenant Church Holm Glad College

Solution to Exercise 2 In this case, not even one cycle was observed on

Solution to Exercise 2 In this case, not even one cycle was observed on the screen. So, the timebase must be too fast and we have to decrease the speed of the time base. The Mission Covenant Church Holm Glad College
