CRJ-200 VIP =13 to 16 pax

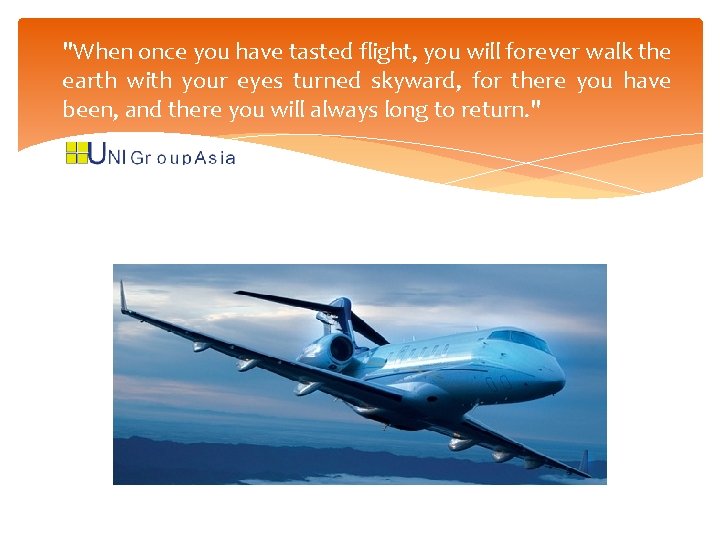

"When once you have tasted flight, you will forever walk the earth with your eyes turned skyward, for there you have been, and there you will always long to return. "

CRJ GENERAL

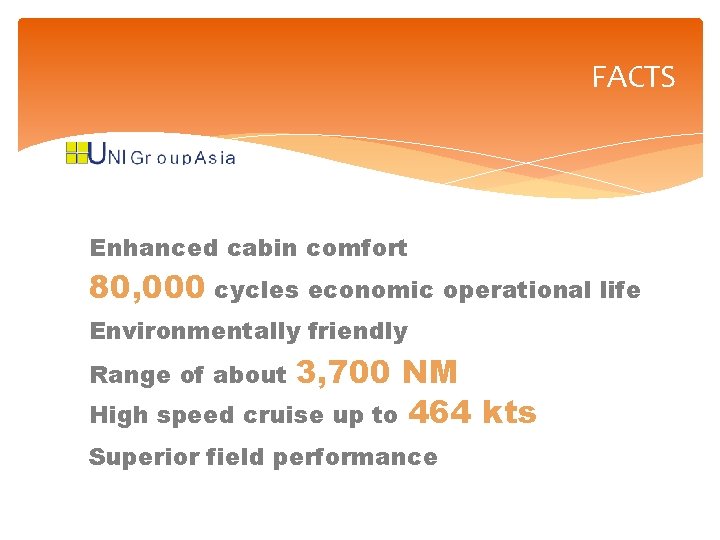

FACTS Enhanced cabin comfort 80, 000 cycles economic operational life Environmentally friendly 3, 700 NM High speed cruise up to 464 kts Range of about Superior field performance

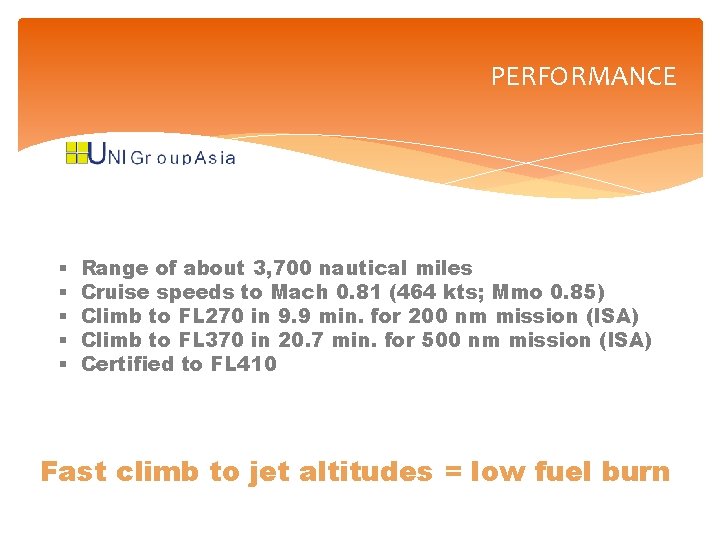

PERFORMANCE § § § Range of about 3, 700 nautical miles Cruise speeds to Mach 0. 81 (464 kts; Mmo 0. 85) Climb to FL 270 in 9. 9 min. for 200 nm mission (ISA) Climb to FL 370 in 20. 7 min. for 500 nm mission (ISA) Certified to FL 410 Fast climb to jet altitudes = low fuel burn

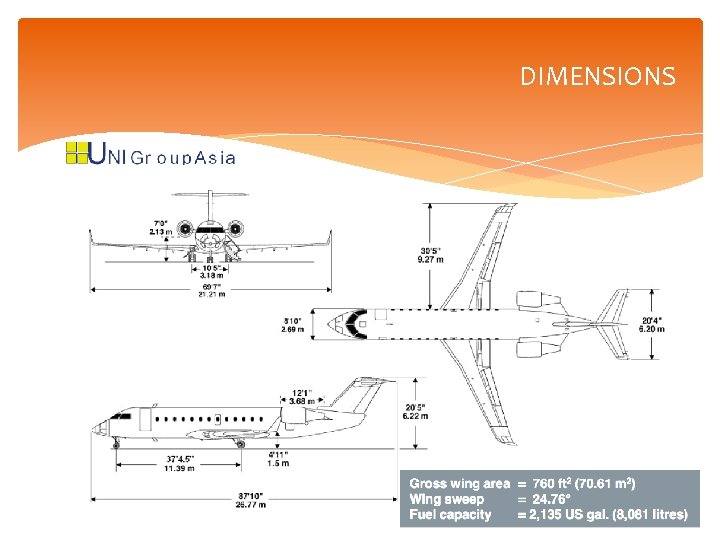

DIMENSIONS

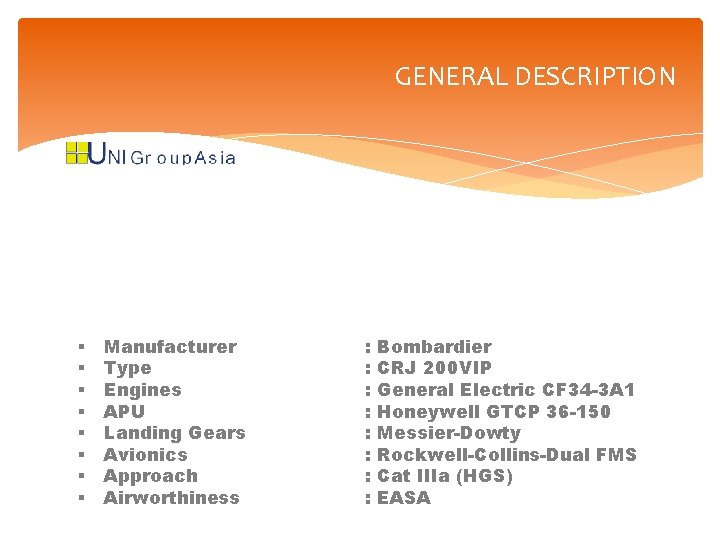

GENERAL DESCRIPTION § § § § Manufacturer Type Engines APU Landing Gears Avionics Approach Airworthiness : : : : Bombardier CRJ 200 VIP General Electric CF 34 -3 A 1 Honeywell GTCP 36 -150 Messier-Dowty Rockwell-Collins-Dual FMS Cat IIIa (HGS) EASA

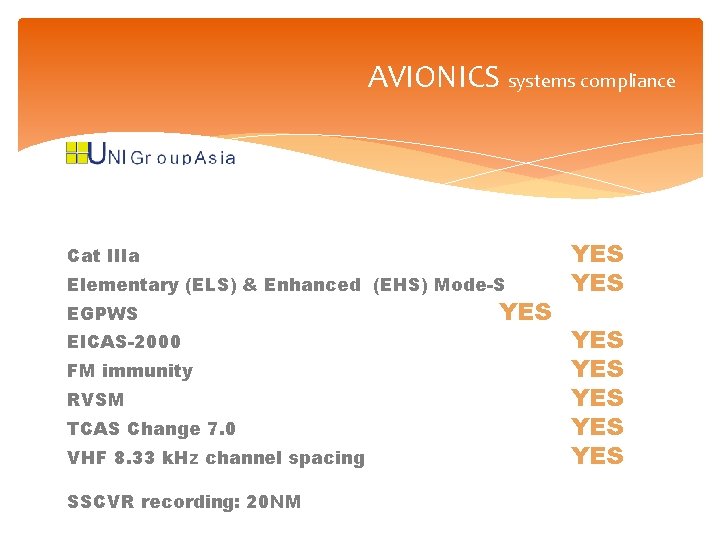

AVIONICS systems compliance Cat IIIa Elementary (ELS) & Enhanced (EHS) Mode-S EGPWS EICAS-2000 FM immunity RVSM TCAS Change 7. 0 VHF 8. 33 k. Hz channel spacing SSCVR recording: 20 NM YES YES

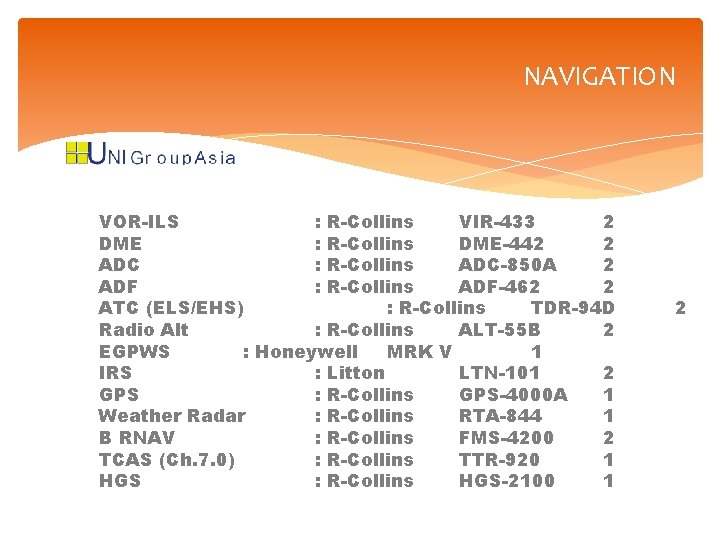

NAVIGATION VOR-ILS : R-Collins VIR-433 2 DME : R-Collins DME-442 2 ADC : R-Collins ADC-850 A 2 ADF : R-Collins ADF-462 2 ATC (ELS/EHS) : R-Collins TDR-94 D Radio Alt : R-Collins ALT-55 B 2 EGPWS : Honeywell MRK V 1 IRS : Litton LTN-101 2 GPS : R-Collins GPS-4000 A 1 Weather Radar : R-Collins RTA-844 1 B RNAV : R-Collins FMS-4200 2 TCAS (Ch. 7. 0) : R-Collins TTR-920 1 HGS : R-Collins HGS-2100 1 2

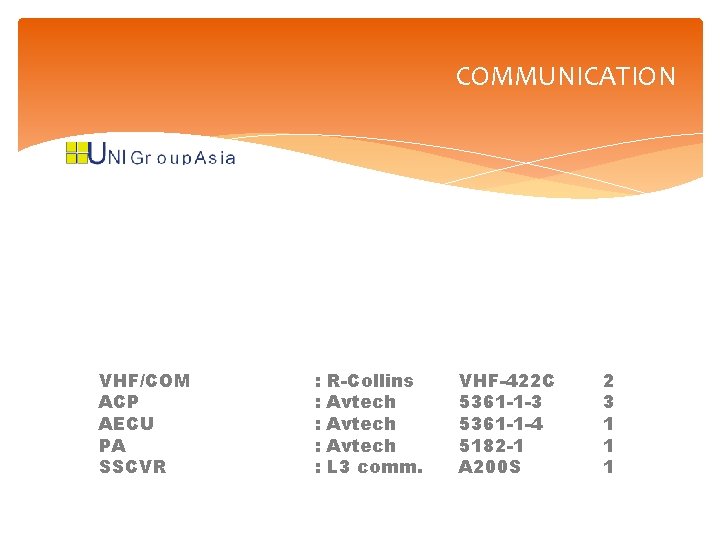

COMMUNICATION VHF/COM ACP AECU PA SSCVR : : : R-Collins Avtech L 3 comm. VHF-422 C 5361 -1 -3 5361 -1 -4 5182 -1 A 200 S 2 3 1 1 1

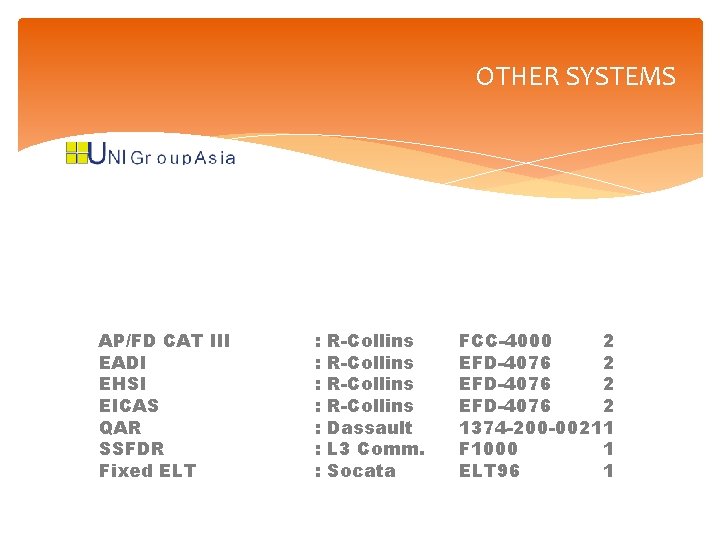

OTHER SYSTEMS AP/FD CAT III EADI EHSI EICAS QAR SSFDR Fixed ELT : : : : R-Collins Dassault L 3 Comm. Socata FCC-4000 2 EFD-4076 2 1374 -200 -00211 F 1000 1 ELT 96 1

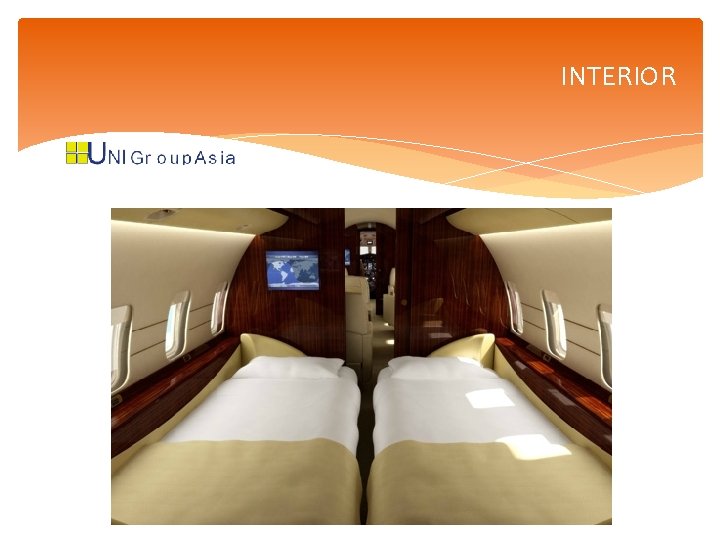

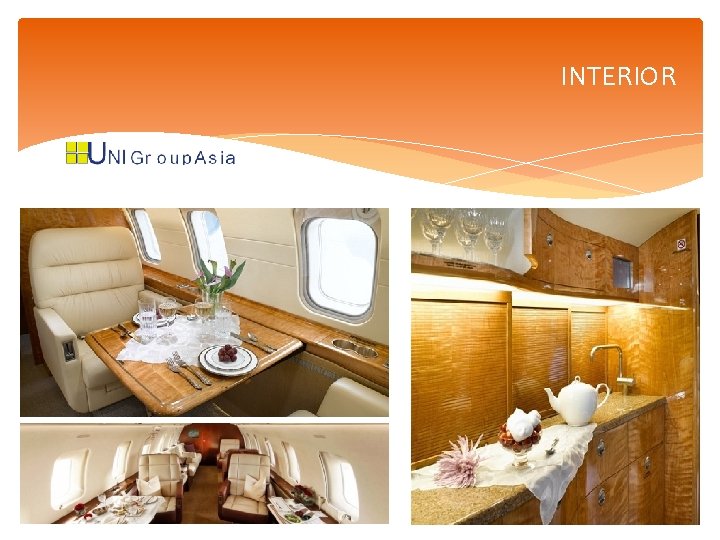

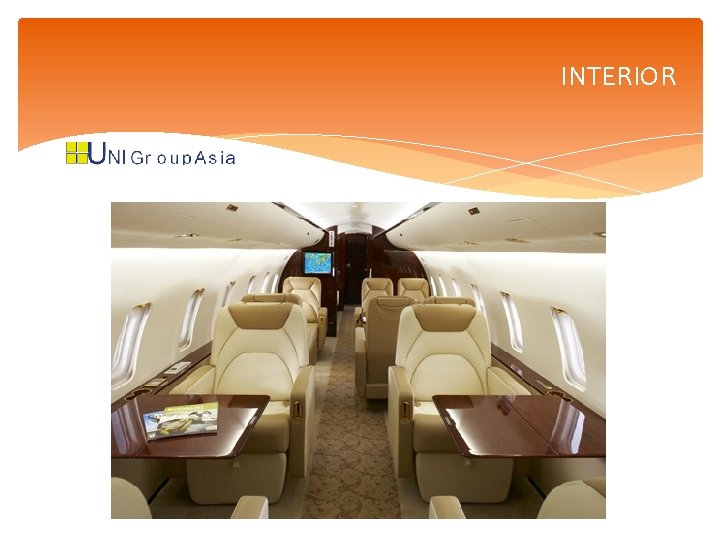

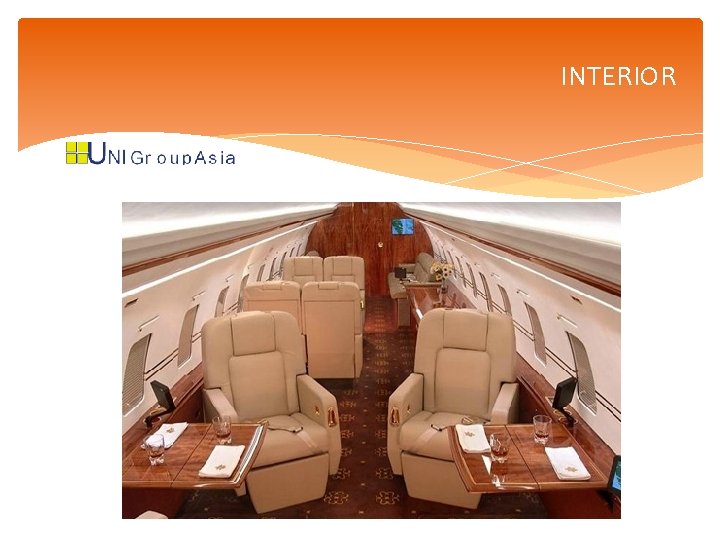

INTERIOR

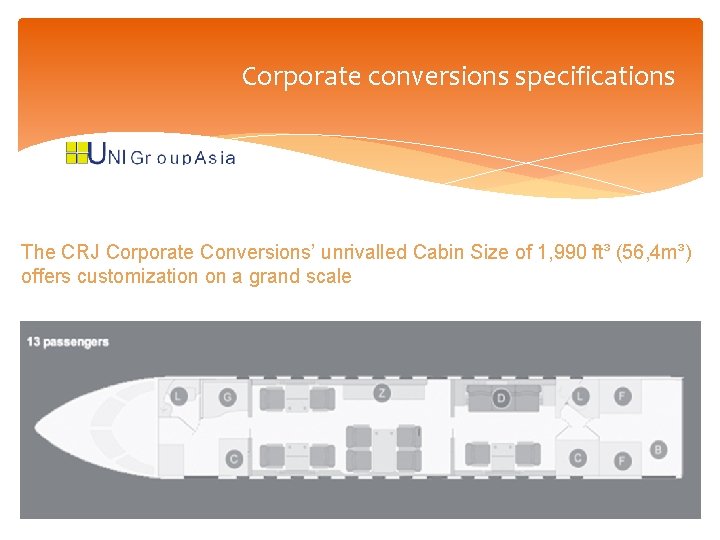

Corporate conversions specifications The CRJ Corporate Conversions’ unrivalled Cabin Size of 1, 990 ft³ (56, 4 m³) offers customization on a grand scale

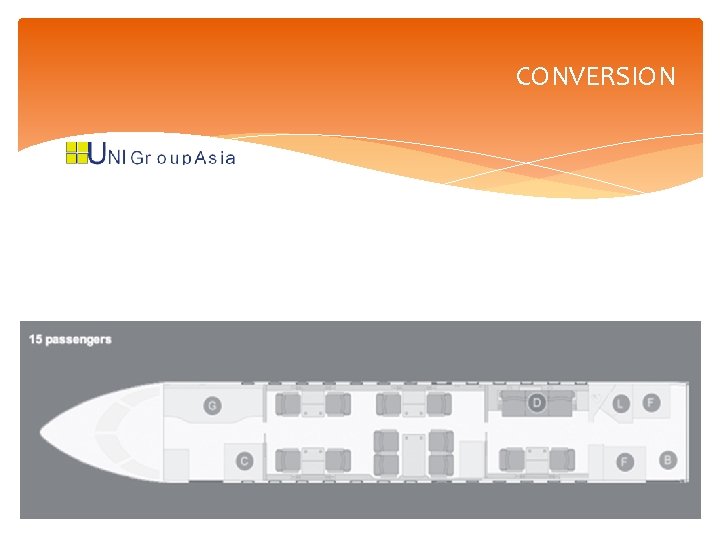

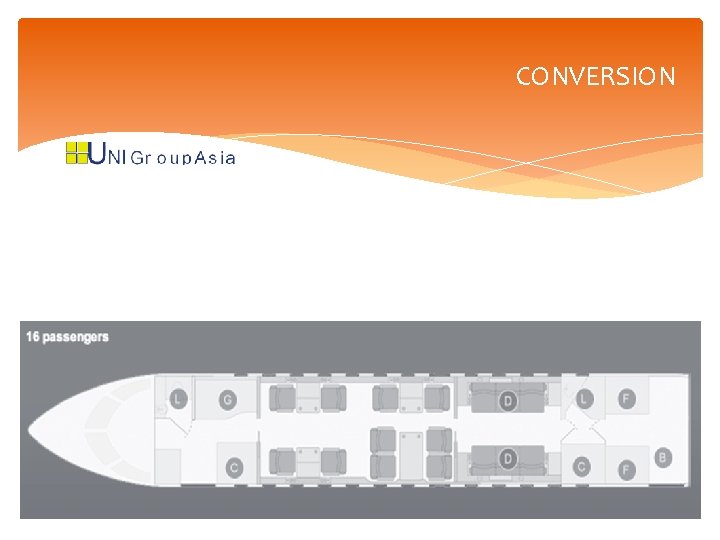

CONVERSION

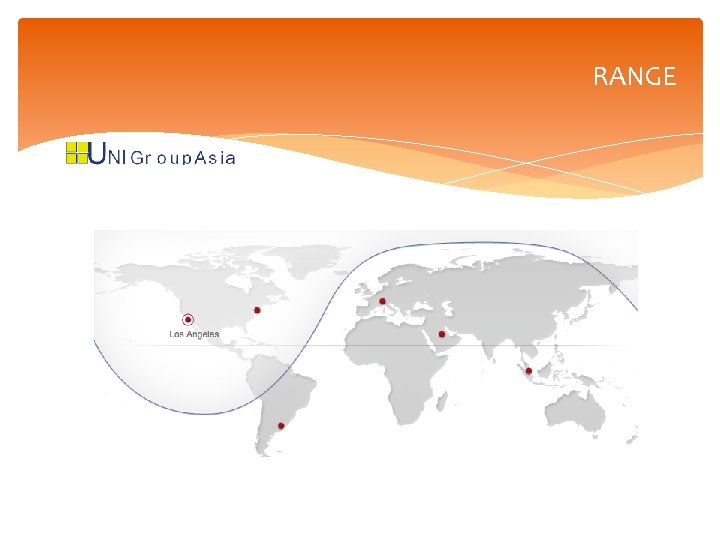

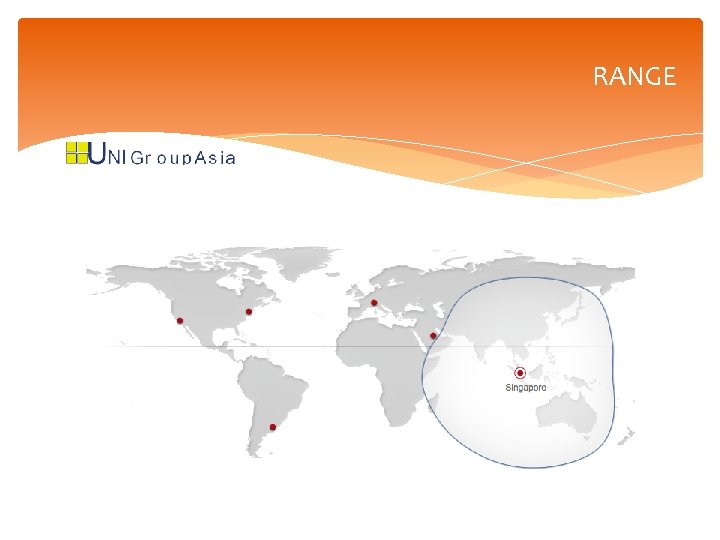

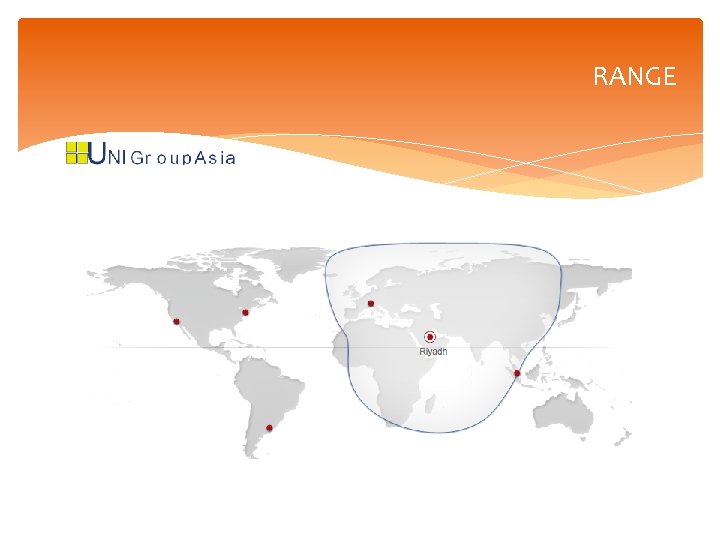

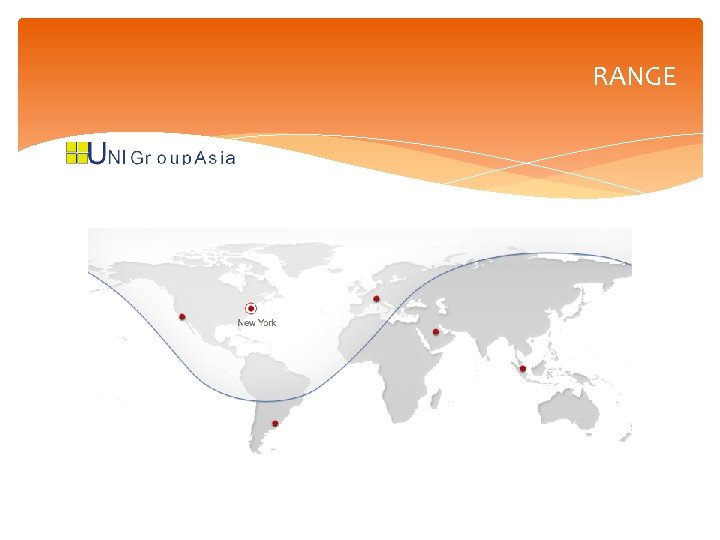

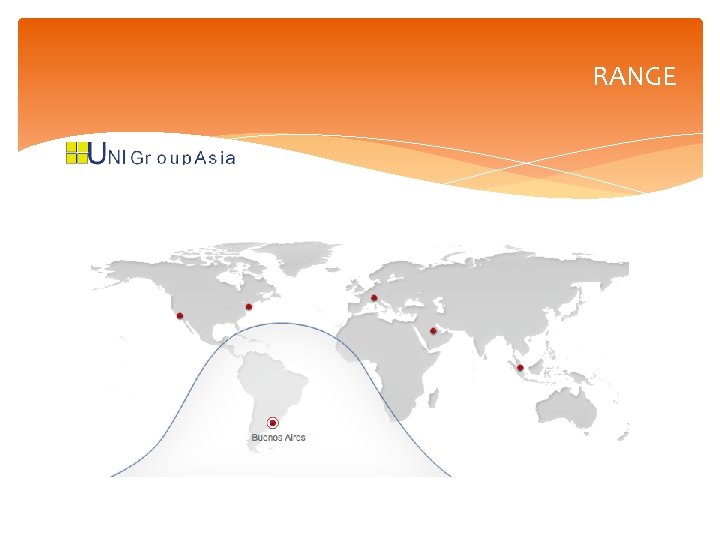

RANGE

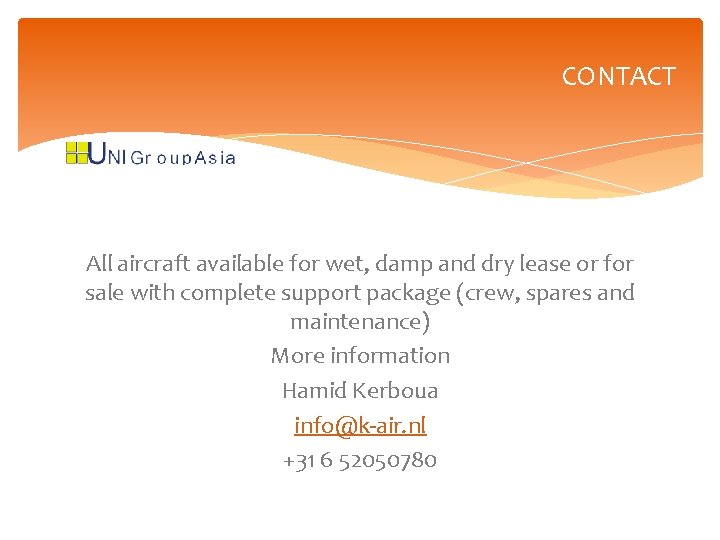

CONTACT All aircraft available for wet, damp and dry lease or for sale with complete support package (crew, spares and maintenance) More information Hamid Kerboua info@k-air. nl +31 6 52050780
