CRFS Study Force Pressure Flow Volume Force Pressure
- Slides: 21
CRFS Study Force, Pressure, Flow & Volume
Force & Pressure • • • Mechanical Strain Gauge Piezo-resistive Capacitive Inductive Optical
Mechanical Gauges • Manometers • Force summing devices
Strain Gauge • Wire or foil which thins when stretched • Resistance increases when stretched • Usually used in pairs or groups of 4
Wheatstone Bridge Circuit • Diaphragm flex stretches some & compresses others • Increases sensitivity & linearity • Full or half bridge

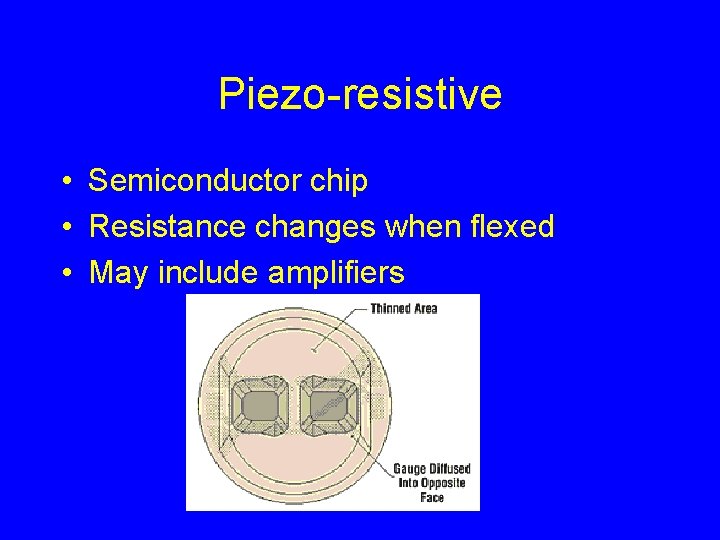

Piezo-resistive • Semiconductor chip • Resistance changes when flexed • May include amplifiers
Capacitive • Capacitance between diaphagm & 1 or 2 fixed plates • Requires AC • Limited by characteristics of gap contents
Inductive • Inductance changes produced by metal diaphragm on 2 fixed coils • Requires AC
Optical • Light intensity varies with pressure
Pressure • Absolute Gauge Differential
Flow • • Fleisch pneumotach Screen pneumotach Pitot tube Venturi / Orifice Rotating vane Mass Flow Ultrasonic Differentiation of volume
Reynold’s Number • vs - mean fluid velocity, • L - characteristic length (equal to diameter 2 r if a crosssection is circular), • μ - (absolute) dynamic fluid viscosity, • ν - kinematic fluid viscosity: ν = μ / ρ, • ρ - fluid density.

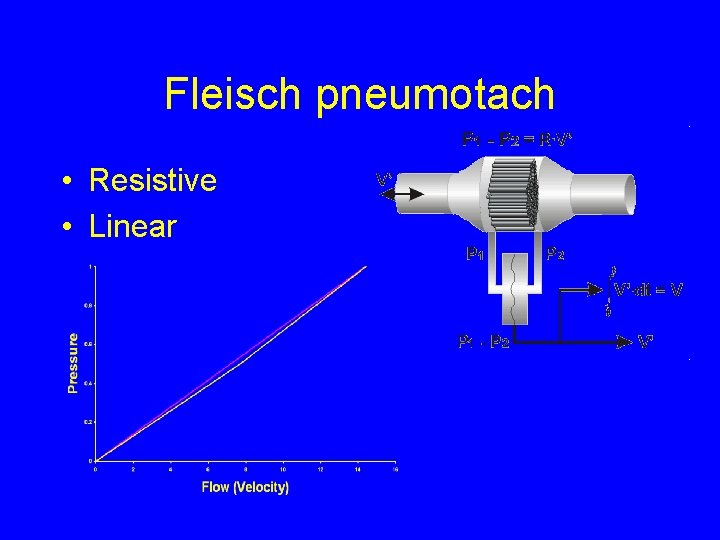

Fleisch pneumotach • Resistive • Linear
Screen pneumotach • Resistive • Linear
Pitot tube • Bernoulli equation
Venturi / Orifice • Bernoulli equation
Rotating vane • Rotating air stream • Low inertia follower • Digital counter based
Mass Flow • Thermal
Ultrasonic • Doppler effect • Accurate timing
Differentiation of volume • Direct volume measurement • Rate of change
Volume • • Watersealed Rolling seal Bellows Gasometer
