Smart 10 Smart Pipeline Crawler Overview
Smart 10 Technical Specifications and Standard System
Smart 10 Standard System
The Smart 10 Crawler is Easy to Setup and Use. The technical specifications, like four wheel drive and brake, allow for easy operations on inclined pipelines. Furthermore, the articulation between the different sections allow for higher maneuverability and a better turn radius for curved pipelines. Lastly, the 3 part sectioning of the crawler allows for an easy two man lift for each section.

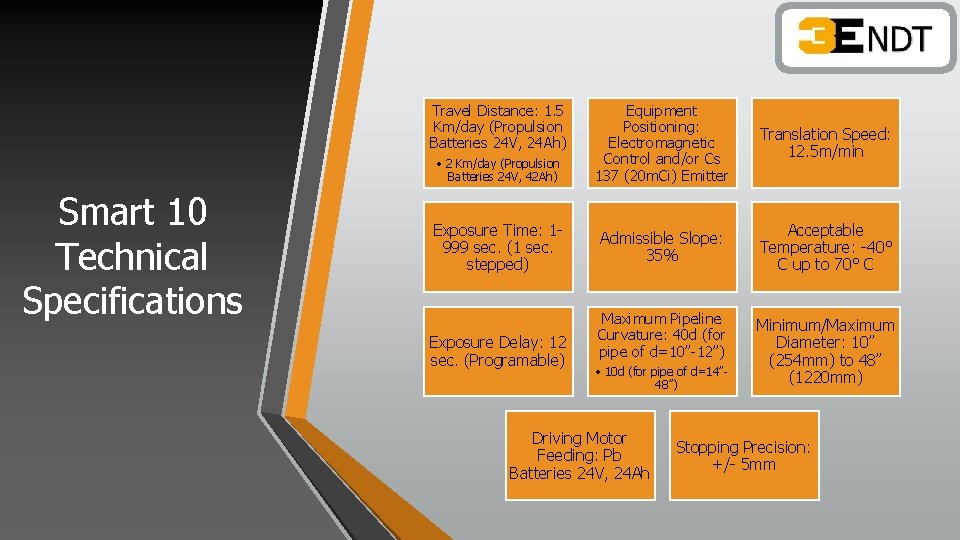

Travel Distance: 1. 5 Km/day (Propulsion Batteries 24 V, 24 Ah) • 2 Km/day (Propulsion Batteries 24 V, 42 Ah) Smart 10 Technical Specifications Exposure Time: 1999 sec. (1 sec. stepped) Exposure Delay: 12 sec. (Programable) Equipment Positioning: Electromagnetic Control and/or Cs 137 (20 m. Ci) Emitter Translation Speed: 12. 5 m/min Admissible Slope: 35% Acceptable Temperature: -40° C up to 70° C Maximum Pipeline Curvature: 40 d (for pipe of d=10”-12”) • 10 d (for pipe of d=14” 48”) Driving Motor Feeding: Pb Batteries 24 V, 24 Ah Minimum/Maximum Diameter: 10” (254 mm) to 48” (1220 mm) Stopping Precision: +/- 5 mm
4 Wheel Drive and Brake Modular Design and Interchangeability of Components Smart 10 Crawler Flexible Design Allows Tube to be Operated Independently When Crawler is Not in Use Reliable and Robust in Harsh Operating Conditions Safe and Easy to Use Allows Re-Programming of Operations Routines to Adapt its Performance to Different Working Conditions and Requirements (Programming is Performed by Qualified Personnel)
Smart 10 vs. Competition Smart 10 • Weight (Excluding X-Ray Tube) • • X-Ray Battery – 71 kg Propulsion Unit – 61 kg Two Man Lift Each Section Length • • X-Ray Battery – 950 mm Propulsion Unit – 1100 mm • • Replacement Parts Kept in Stock and can be Overnighted • 1 Battery Designated Solely for Tube and 1 Battery Designated Solely for Propulsion Modular design provides capability of utilizing X-Ray Tube for other work 3 Piece Snake Like Design Allows for High Turn Radius Warm Up Process Completed Separately from Crawlers so the Crawler Battery is Not Drained • • Weight (Excluding X-Ray Tube) – 120 kg Three to Four Man Lift Length – 1770 mm Standard Lead Time on Parts Non-Modular Design 2 Piece Ridged Design Reduces Turn Capability Requires Warm Up to be Completed Using Crawler Battery 1 Battery for Both Propulsion and X-Ray Tube power causing Tube to Loose Strength Quicker
