CRailHookBase Adapter Angle Mounting Bracket for HookA The
® C-Rail-Hook-Base. Adapter Angle Mounting Bracket for Hook-A The C-rail-Hook-Base-Adapter is vital component of the unique, corrugated “C” shape-based C-Rail. Messenger system, designed specifically for optical fiber-based aerial access networks. The C-Rail-Hook-Base-Adapter (1) is a stainless steel, sheet metal product, designed to support pole mounting of C-Rail-Hook-A kit in the area of precipitous hills and slopes. The hook base adapter turns the position of the CRail-Hook-Base (2) upwards by 15 o, which helps to reduce the breaking angle between hook (3) and anchoring frame (4). Application of the base adapter becomes necessary when the steepness of hills reaches or exceeds 25%. The adapter must be fixed to the pole by using stainless steel banding tape. Requested tape width is 19, 06 mm (3/4”), recommended min. tensile strength is 5 k. N. VERSION 1. 0 All components are made from dielectric materials (PA 6 and PA 6 GF 30), some of them are reinforced with glass fiber additives. This allows the applicability of the product on 0, 4 k. V energy poles without the need of a time-consuming and costly grounding process. Fast and simple Installation The product is designed to allow for an extremely fast and simple installation process even at the top of the poles. The usual time of installation is less than 10 seconds. In order to maximize the pulling ability of the embedded ultra compact optical cable, the bracket fixes the messenger in one possible position, where the opened part of the C-Rail-Messenger is facing upwards. The product design and its reliable materials allow for multiple usage of the product. Installation is an absolutely tool-free process, which simplifies The network construction work at the top of telecom poles. For specified application possibilities please search look at the C-Rail® Planningguide.

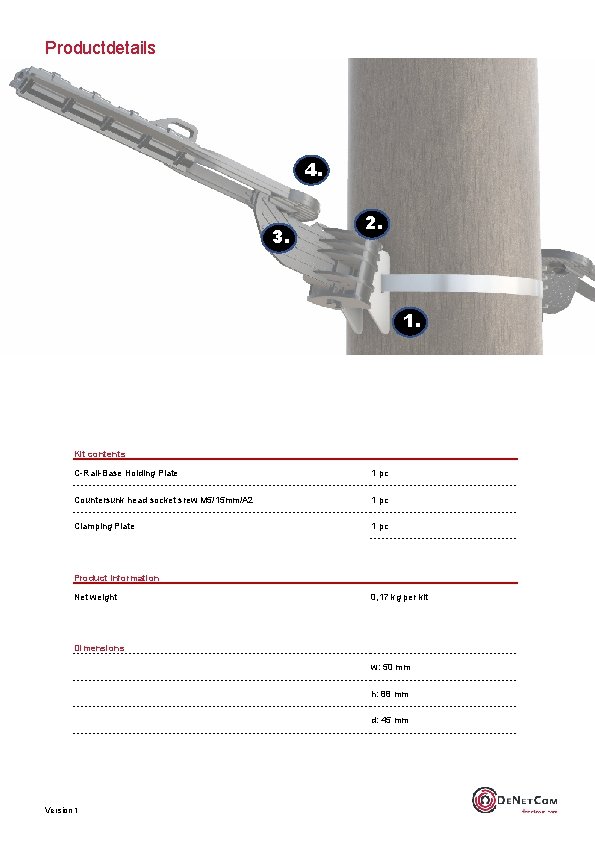

Productdetails 4. 3. 4. 2. 1. Kit contents C-Rail-Base Holding Plate 1 pc Countersunk head socket srew M 5/15 mm/A 2 1 pc Clamping Plate 1 pc Product Information Net weight 0, 17 kg per kit Dimensions w: 50 mm h: 88 mm d: 45 mm Version 1
