CRACK TREATMENT OF FLEXIBLE PAVEMENTS Crack Sealing Routine
CRACK TREATMENT OF FLEXIBLE PAVEMENTS
Crack Sealing ØRoutine maintenance ØInvolves cleaning & sealing ØPrevents/reduces intrusion of v. Water v. Incompressible materials
Conditions for Success Type of maintenance depends on crack ØDensity ØSeverity ØPattern
Crack Treatment Design ØCrack Sealing Seal out water & incompressible materials ØCrack Filling Seal out water & preserve adjacent pavement
Working vs. Nonworking Cracks ØWorking crack moves more than 1/8 in. ØNonworking crack moves less than 1/8 in.
Sealing vs. Filling ØSealing For working cracks with limited edge deterioration ØFilling For nonworking cracks with moderate/no edge deterioration
SHRP Guidelines Crack Density Low Moderate High Edge Deterioration Low Moderate High None CT ? ? CR CT CT CR ST ST Rehab. CT = Crack Treatment (Sealing / filling) CR = Crack Repair Preventive Maintenance ST = Surface Treatment
High Density, Moderate Edge Deterioration
Moderate Density, High Edge Deterioration
Low Density, Moderate Edge Deterioration

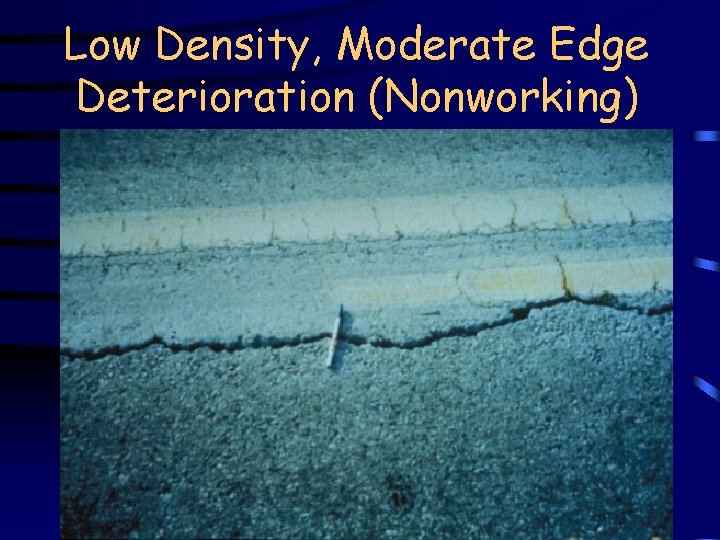

Low Density, Moderate Edge Deterioration (Nonworking)
Sealing/Filling Materials Ø Cold applied thermoplastic Ø Hot applied thermoplastic Ø Chemically cured thermosetting
Thermoplastics ØAsphalt has little flexibility & very temperaturesusceptible ØRubber & other additives improve flexibility

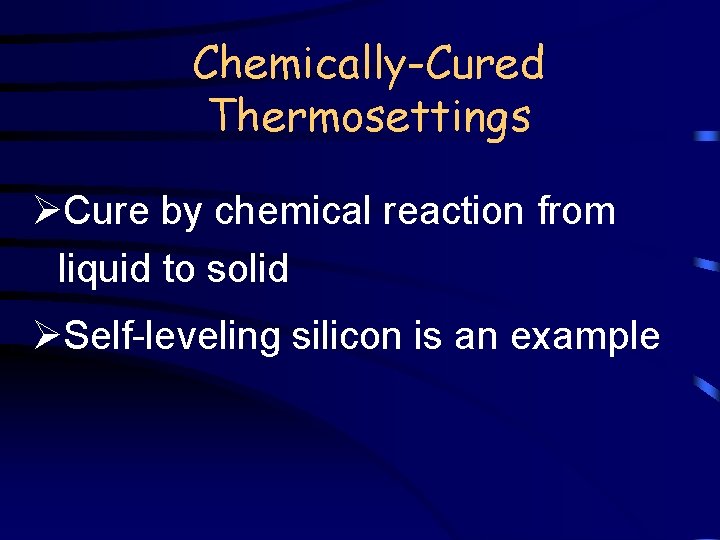

Chemically-Cured Thermosettings ØCure by chemical reaction from liquid to solid ØSelf-leveling silicon is an example

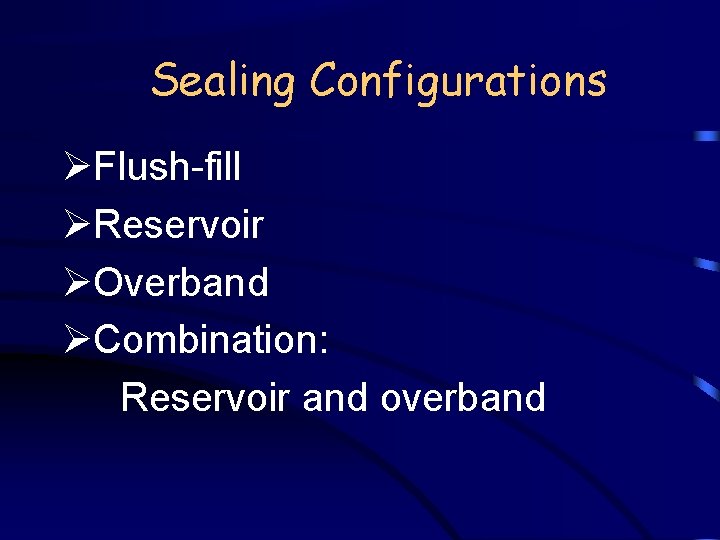

Sealing Configurations ØFlush-fill ØReservoir ØOverband ØCombination: Reservoir and overband
1/2 – 3/4 in.
3 - 5 in.
Crack Treatment Procedure ØCrack routing (Optional) ØCrack cleaning & drying ØMaterial preparation & application ØMaterial finishing/shaping (Optional) ØBlotting (Optional)
Pavement Preparation Crack routing ØRotary-impact router ØDiamond blade
Rotary Impact Router
Diamond Blade Saw
Pavement Preparation (Cont. ) Cleaning & drying ØBroom ØCompressed air ØSandblasting ØHot air blasting (heat lance)
Air Blasting

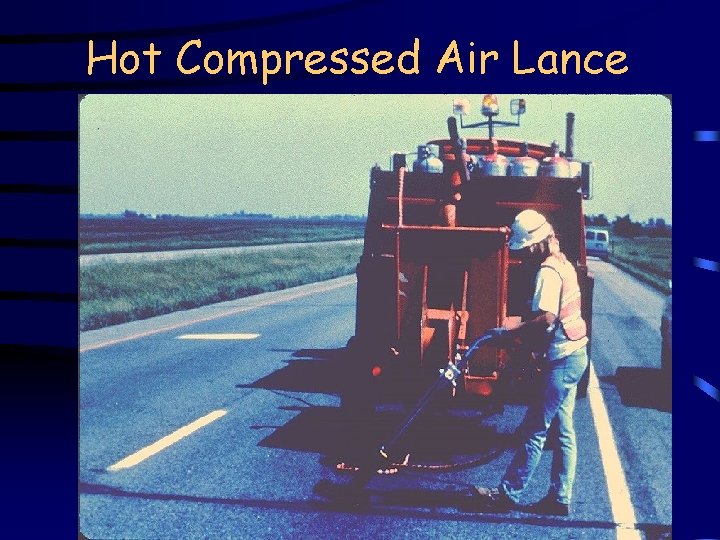

Hot Compressed Air Lance
Excessive Hot Air Lance
Sealing
Applicator with a Shoe

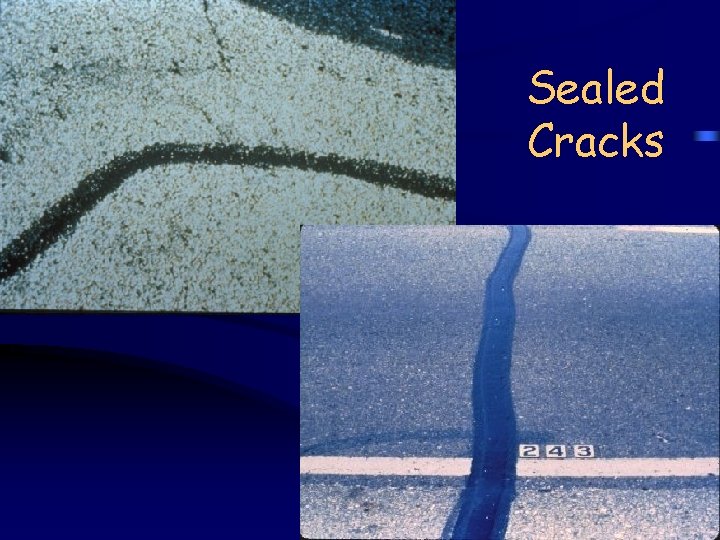

Sealed Cracks
Edge Sealing
Covering Crack Sealant
Weather Conditions ØWhen crack is open in cool weather (45 to 65 o. F) ØSpring or fall
Traffic Control ØDetour traffic until seal cures ØCover sealant with “Cleanse Oil” or sand for quick opening ØBegin filling at pavement centerline
Crack Treatment Performance ØRetards deterioration ØRetards cupping deformation ØMay extend life by 4 years

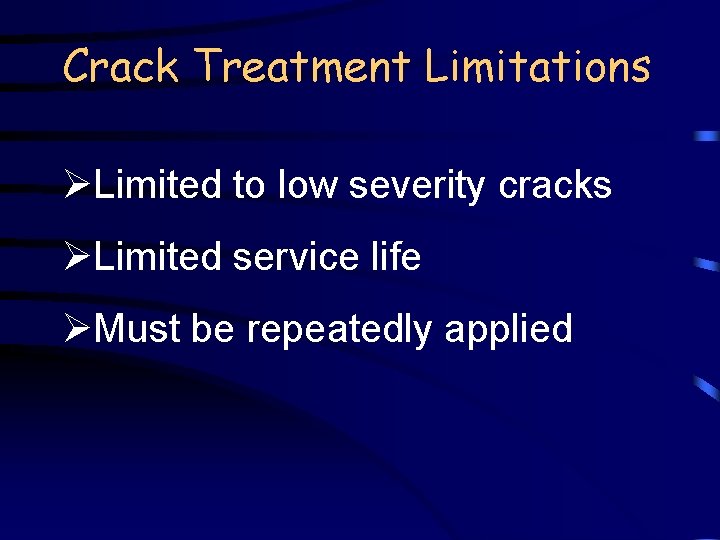

Crack Treatment Limitations ØLimited to low severity cracks ØLimited service life ØMust be repeatedly applied
