CR5 P Seismic Earthquake and Structural Monitoring System

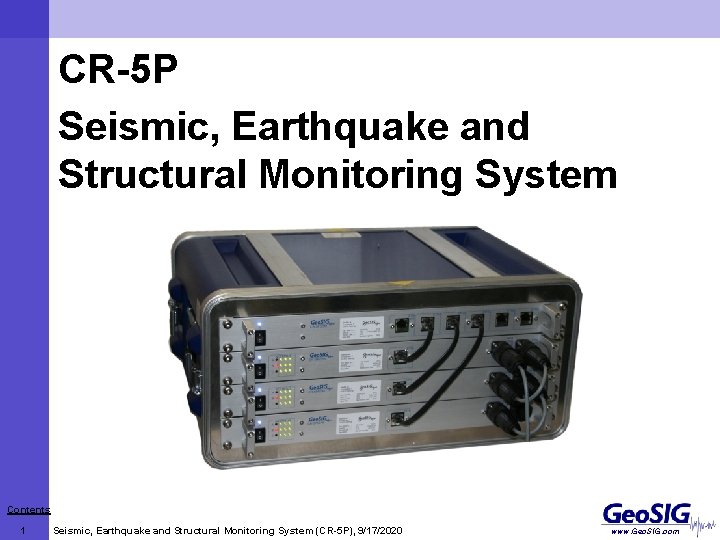

CR-5 P Seismic, Earthquake and Structural Monitoring System Contents 1 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

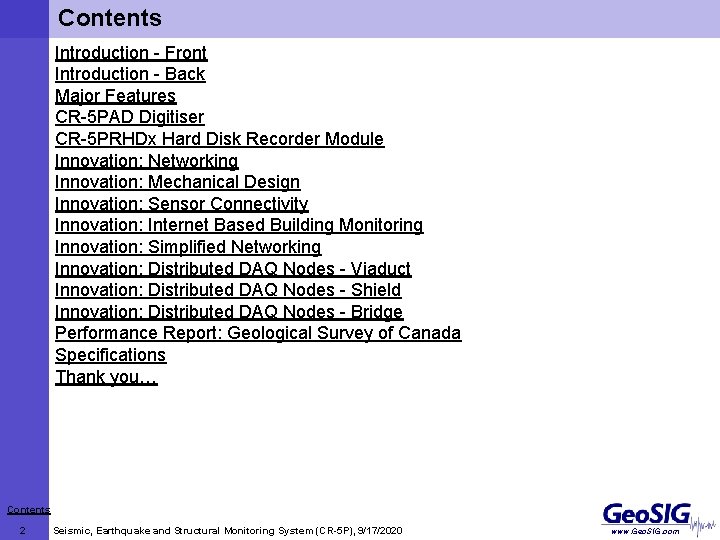

Contents Introduction - Front Introduction - Back Major Features CR-5 PAD Digitiser CR-5 PRHDx Hard Disk Recorder Module Innovation: Networking Innovation: Mechanical Design Innovation: Sensor Connectivity Innovation: Internet Based Building Monitoring Innovation: Simplified Networking Innovation: Distributed DAQ Nodes - Viaduct Innovation: Distributed DAQ Nodes - Shield Innovation: Distributed DAQ Nodes - Bridge Performance Report: Geological Survey of Canada Specifications Thank you… Contents 2 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

Introduction - Front Seismic, Earthquake and Structural Monitoring System, CR-5 P (front) Rugged industrial portable or fixed housing 19’’ rack CR-5 PRHDx CR-5 PAD GPS Antenna Contents 3 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

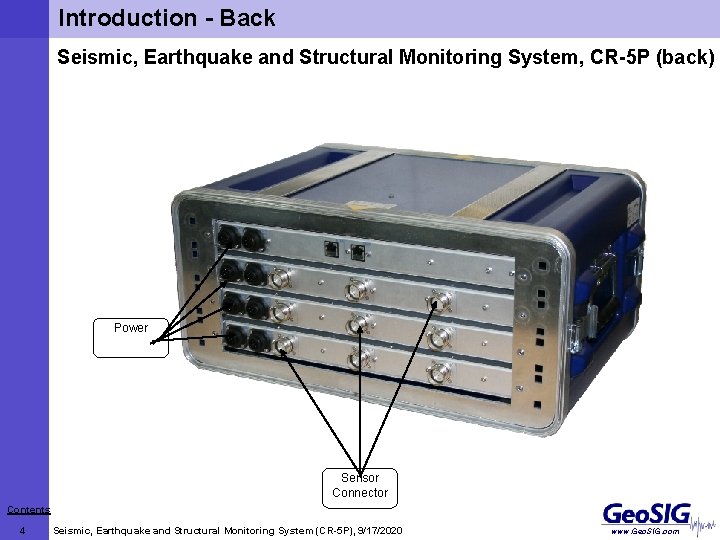

Introduction - Back Seismic, Earthquake and Structural Monitoring System, CR-5 P (back) Power Sensor Connector Contents 4 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

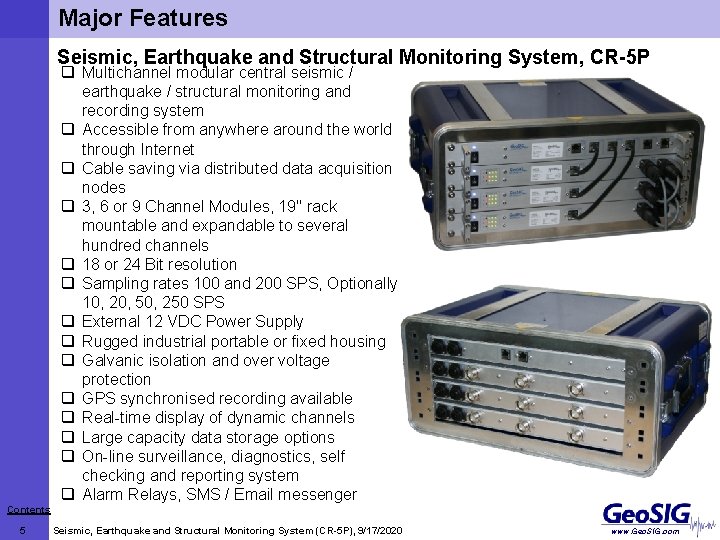

Major Features Seismic, Earthquake and Structural Monitoring System, CR-5 P q Multichannel modular central seismic / earthquake / structural monitoring and recording system q Accessible from anywhere around the world through Internet q Cable saving via distributed data acquisition nodes q 3, 6 or 9 Channel Modules, 19'' rack mountable and expandable to several hundred channels q 18 or 24 Bit resolution q Sampling rates 100 and 200 SPS, Optionally 10, 20, 50, 250 SPS q External 12 VDC Power Supply q Rugged industrial portable or fixed housing q Galvanic isolation and over voltage protection q GPS synchronised recording available q Real-time display of dynamic channels q Large capacity data storage options q On-line surveillance, diagnostics, self checking and reporting system q Alarm Relays, SMS / Email messenger Contents 5 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

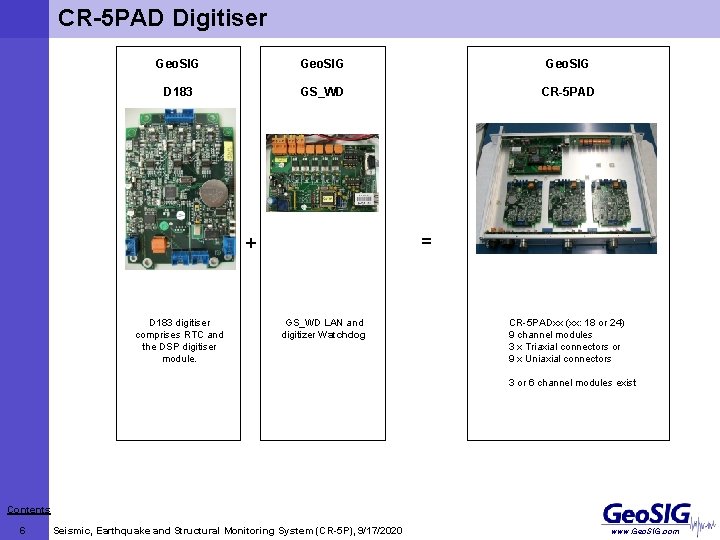

CR-5 PAD Digitiser Geo. SIG D 183 GS_WD CR-5 PAD = + D 183 digitiser comprises RTC and the DSP digitiser module. GS_WD LAN and digitizer Watchdog CR-5 PADxx (xx: 18 or 24) 9 channel modules 3 x Triaxial connectors or 9 x Uniaxial connectors 3 or 6 channel modules exist Contents 6 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

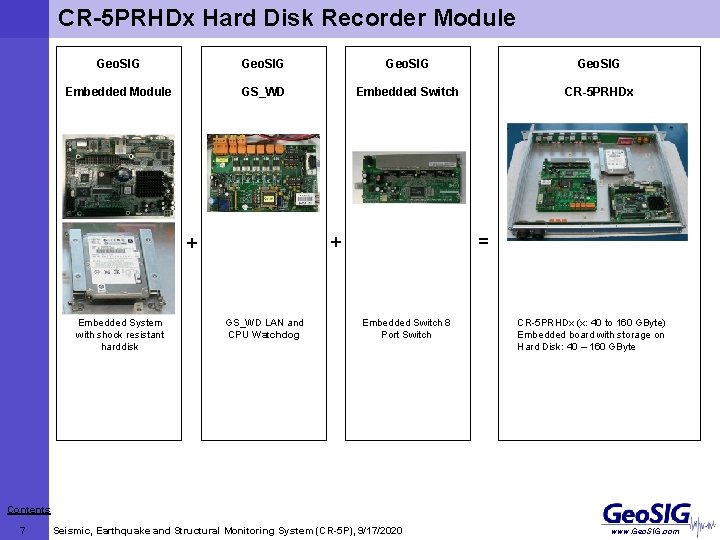

CR-5 PRHDx Hard Disk Recorder Module Geo. SIG Embedded Module GS_WD Embedded Switch CR-5 PRHDx + + Embedded System with shock resistant harddisk GS_WD LAN and CPU Watchdog = Embedded Switch 8 Port Switch CR-5 PRHDx (x: 40 to 160 GByte) Embedded board with storage on Hard Disk: 40 – 160 GByte Contents 7 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

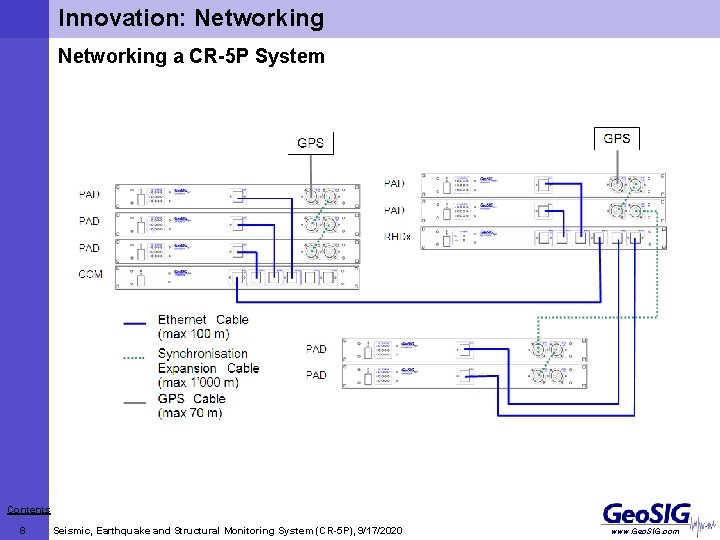

Innovation: Networking a CR-5 P System Contents 8 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

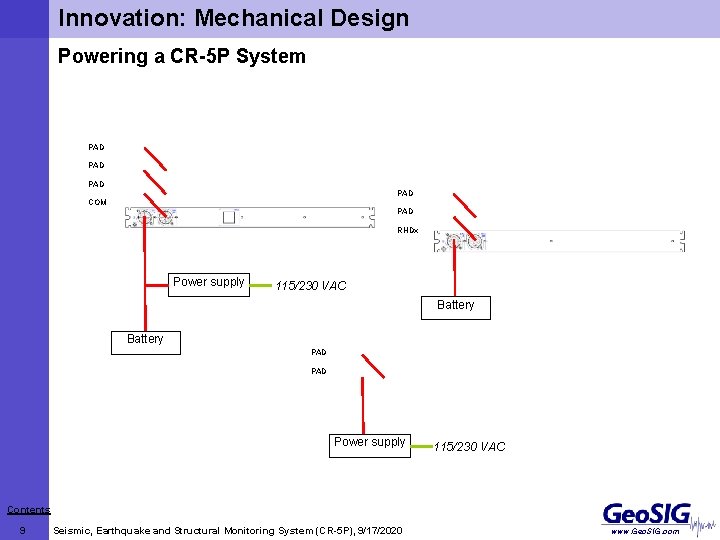

Innovation: Mechanical Design Powering a CR-5 P System PAD PAD COM PAD RHDx Power supply 115/230 VAC Battery PAD Power supply 115/230 VAC Contents 9 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

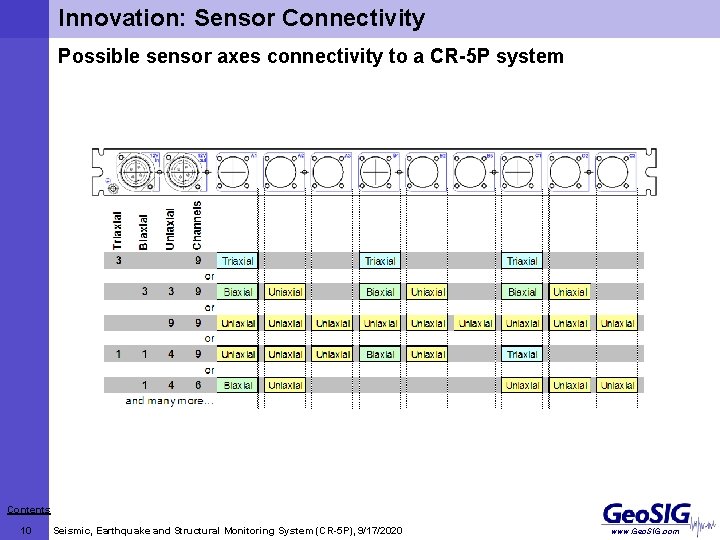

Innovation: Sensor Connectivity Possible sensor axes connectivity to a CR-5 P system Contents 10 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

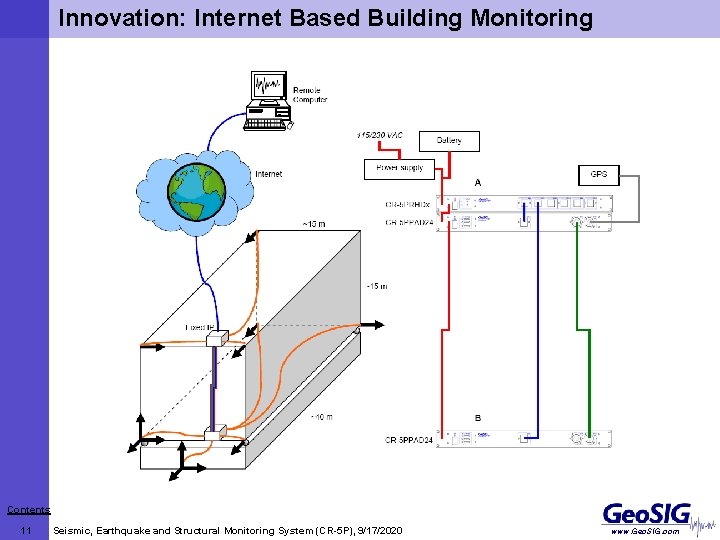

Innovation: Internet Based Building Monitoring Contents 11 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

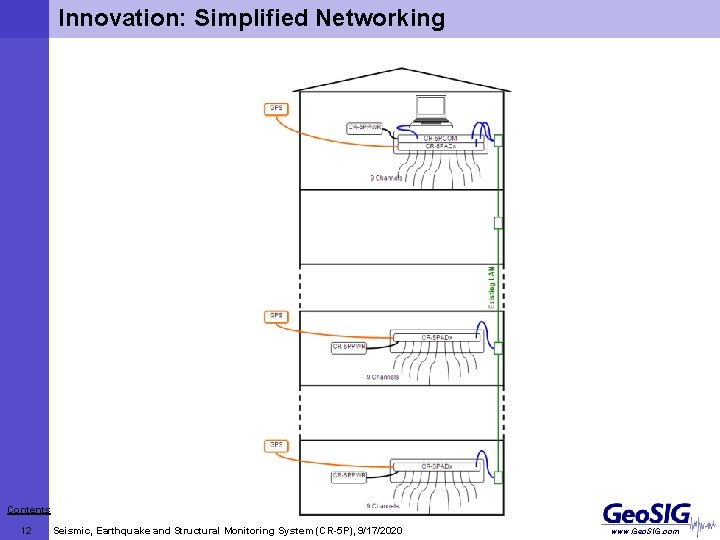

Innovation: Simplified Networking Contents 12 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

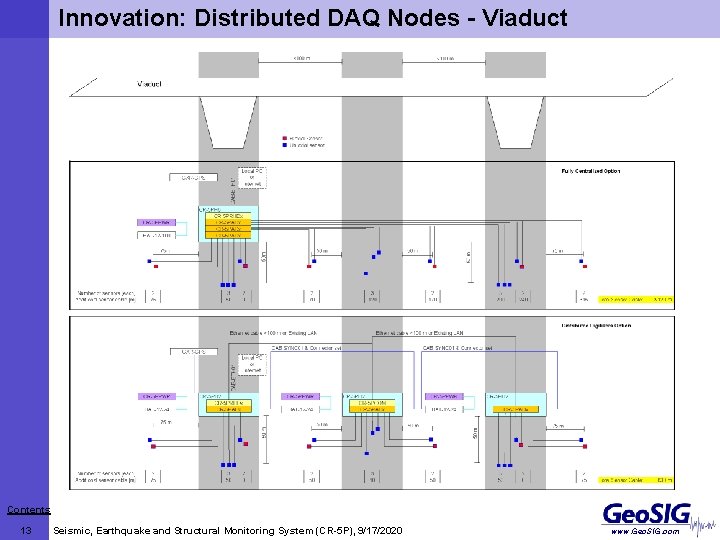

Innovation: Distributed DAQ Nodes - Viaduct Contents 13 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

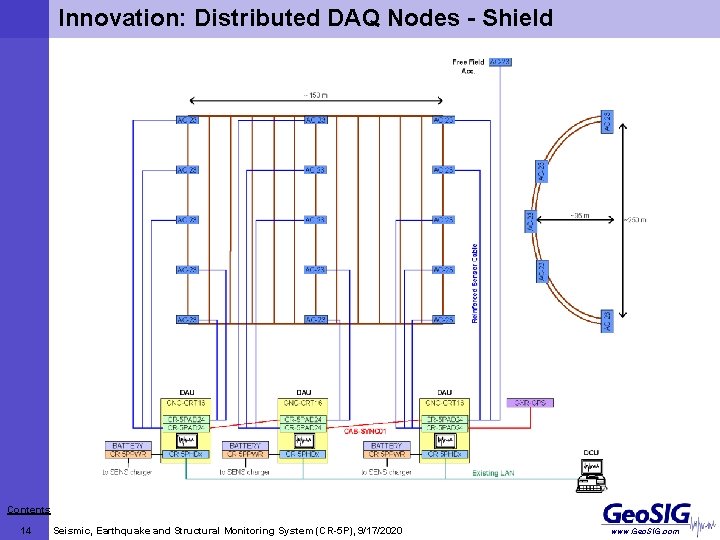

Innovation: Distributed DAQ Nodes - Shield Contents 14 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

Innovation: Distributed DAQ Nodes - Bridge Contents 15 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

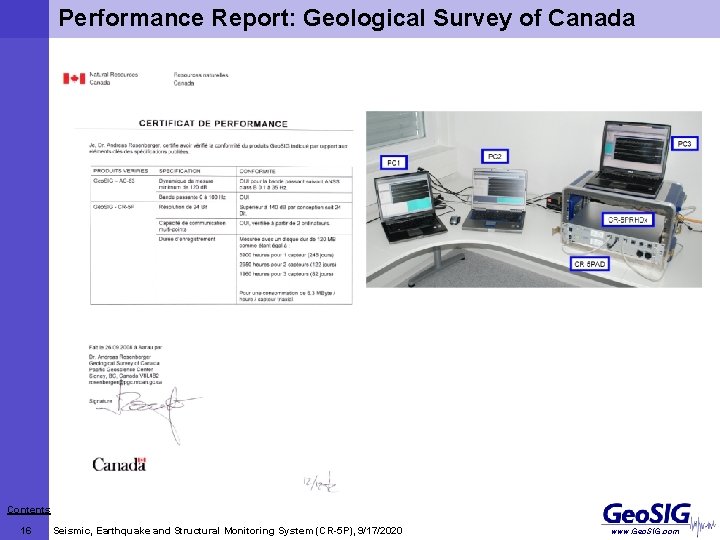

Performance Report: Geological Survey of Canada Contents 16 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

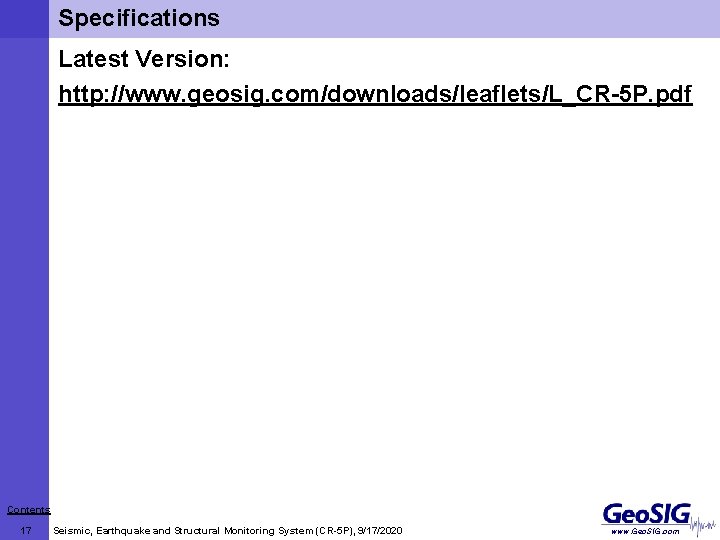

Specifications Latest Version: http: //www. geosig. com/downloads/leaflets/L_CR-5 P. pdf Contents 17 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com

Thank you… Contents 18 Seismic, Earthquake and Structural Monitoring System (CR-5 P), 9/17/2020 www. Geo. SIG. com
