The Problem Flow interference dramatically increases the flow completion time (FCT) of short delay-sensitive flows in data center networks (DCN) 2

Flow Interference • Short delay-sensitive flows (majority in DCN) have to wait a long time at switches for buffer and bandwidth resources occupied by a few of long bandwidth-greedy flows (e. g. , backup, replication) 3

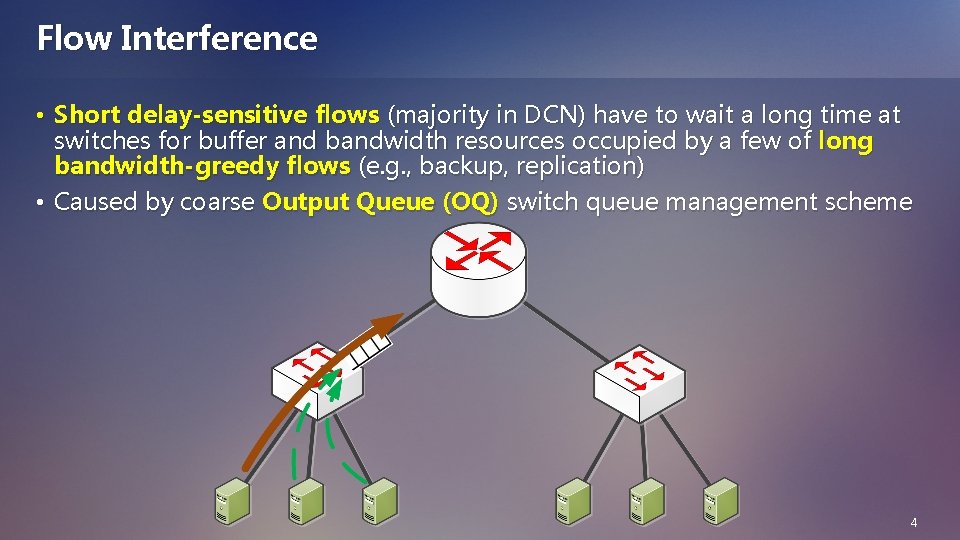

Flow Interference • Short delay-sensitive flows (majority in DCN) have to wait a long time at switches for buffer and bandwidth resources occupied by a few of long bandwidth-greedy flows (e. g. , backup, replication) • Caused by coarse Output Queue (OQ) switch queue management scheme 4

Prior solutions • Transport Layer Rate Control: • • DCTCP [SIGCOMM’ 10] HULL [NSDI’ 12] D 2 TCP [SIGCOMM’ 12] D 3 [SIGCOMM’ 11] Modification to end host and/or switch hardware • Preemptive Flow Scheduling: • PDQ [SIGCOMM’ 12] • p. Fabric [SIGCOMM’ 13] New protocol stack and switch hardware 5

Intuition of CQRD Tackling the root cause of flow interference: Need a more fine-grained queue management scheme 6

The Goal • Goal: • • • Alleviate flow interference Reduce FCT of short delay-sensitive flows Maintain high goodput of long bandwidth-greedy flows • Objectives: • • • Transparent to end host No modification to protocol stack Based on underlying techniques available in commodity productions 7

Our Solution CQRD: A fine-grained switch queue management scheme to flow interference 8

AGENDA n Background & Motivation n Flow Interference n CQRD Design n Evaluation n Conclusion 9

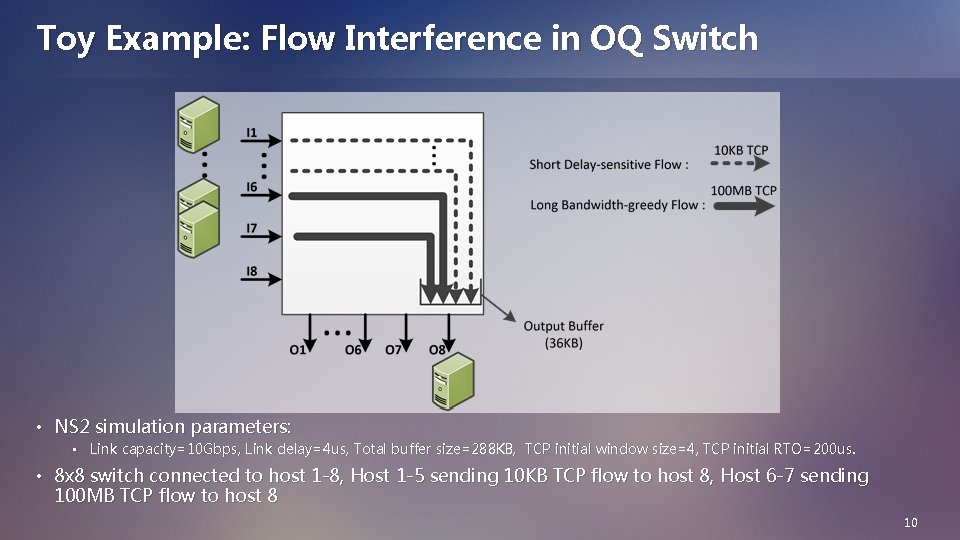

Toy Example: Flow Interference in OQ Switch • NS 2 simulation parameters: • Link capacity=10 Gbps, Link delay=4 us, Total buffer size=288 KB, TCP initial window size=4, TCP initial RTO=200 us. • 8 x 8 switch connected to host 1 -8, Host 1 -5 sending 10 KB TCP flow to host 8, Host 6 -7 sending 100 MB TCP flow to host 8 10

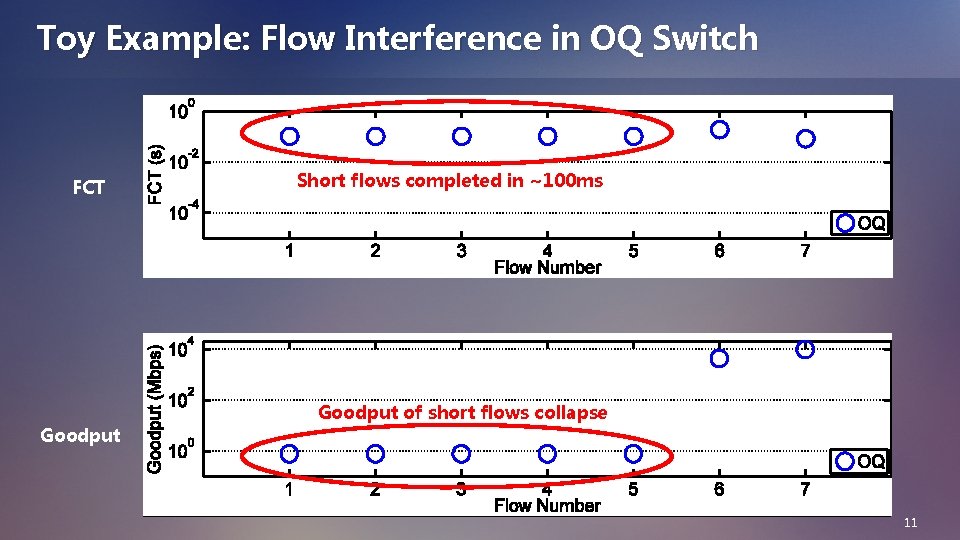

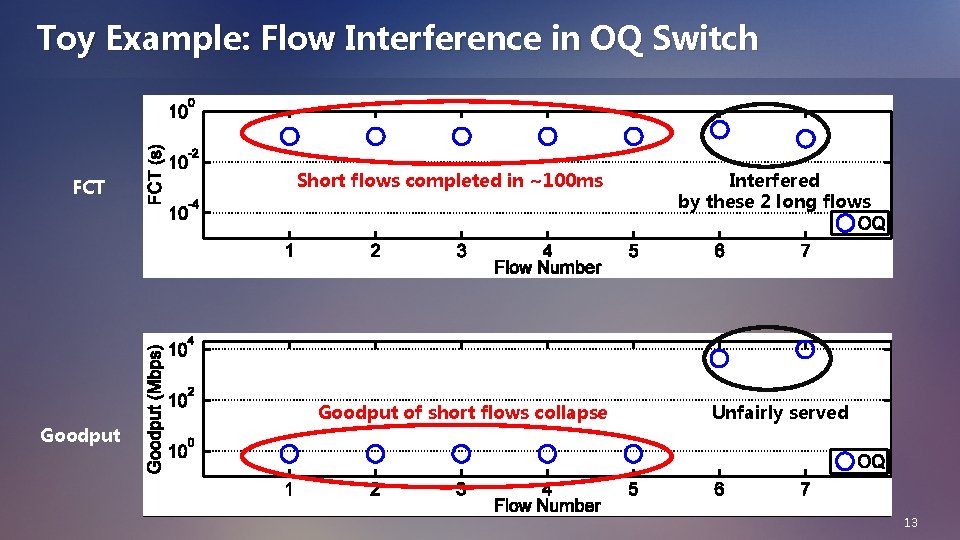

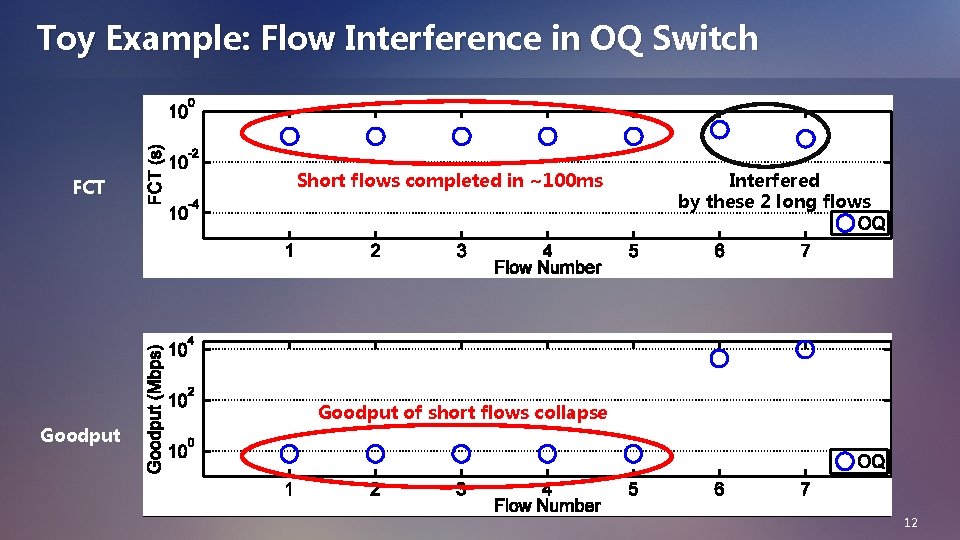

Toy Example: Flow Interference in OQ Switch FCT Goodput Short flows completed in ~100 ms Goodput of short flows collapse 11

Toy Example: Flow Interference in OQ Switch FCT Goodput Short flows completed in ~100 ms Interfered by these 2 long flows Goodput of short flows collapse 12

Toy Example: Flow Interference in OQ Switch FCT Goodput Short flows completed in ~100 ms Goodput of short flows collapse Interfered by these 2 long flows Unfairly served 13

AGENDA n Background & Motivation n Flow Interference n CQRD Design n Evaluation n Conclusion 14

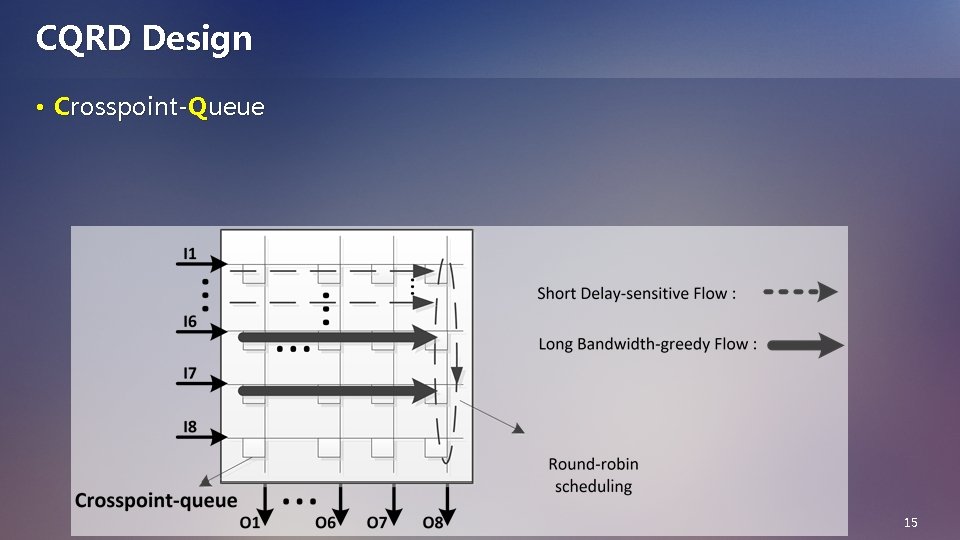

CQRD Design • Crosspoint-Queue 15

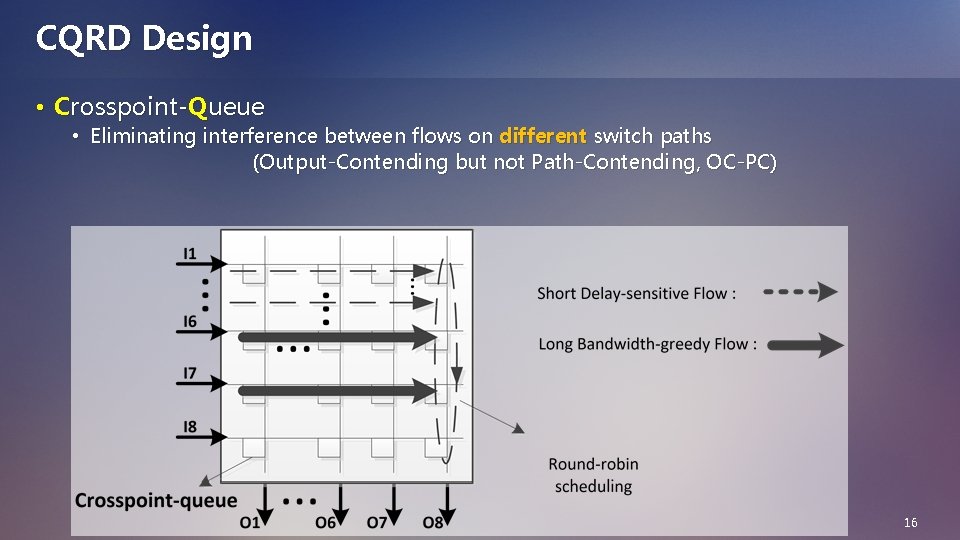

CQRD Design • Crosspoint-Queue • Eliminating interference between flows on different switch paths (Output-Contending but not Path-Contending, OC-PC) 16

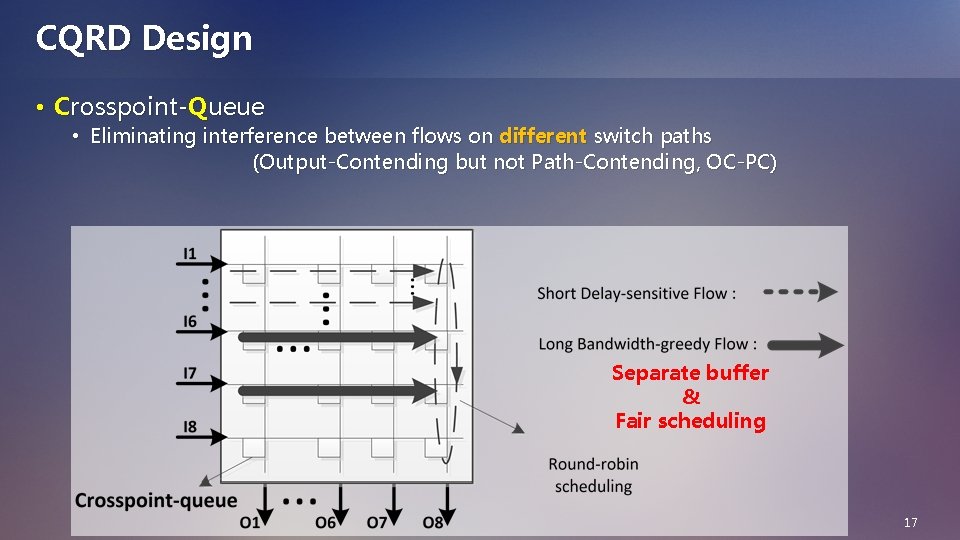

CQRD Design • Crosspoint-Queue • Eliminating interference between flows on different switch paths (Output-Contending but not Path-Contending, OC-PC) Separate buffer & Fair scheduling 17

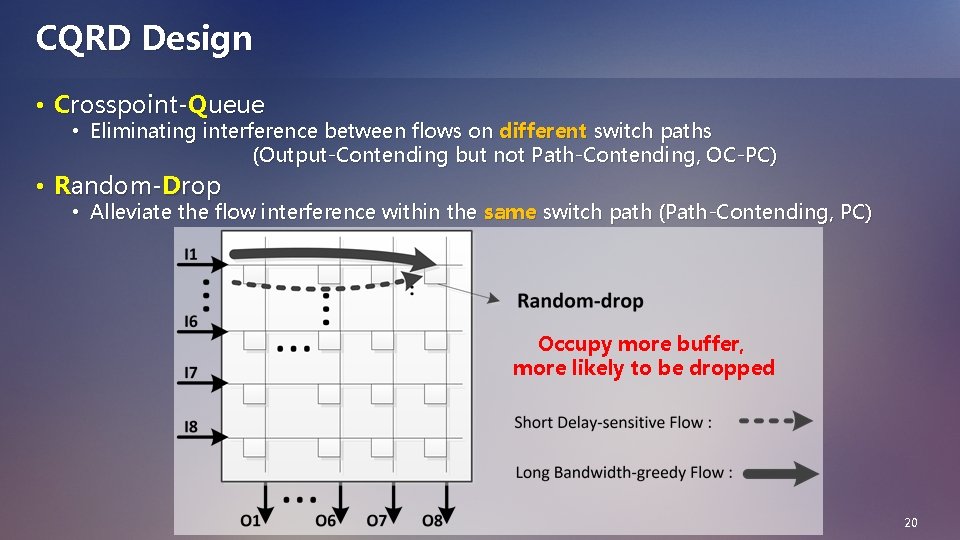

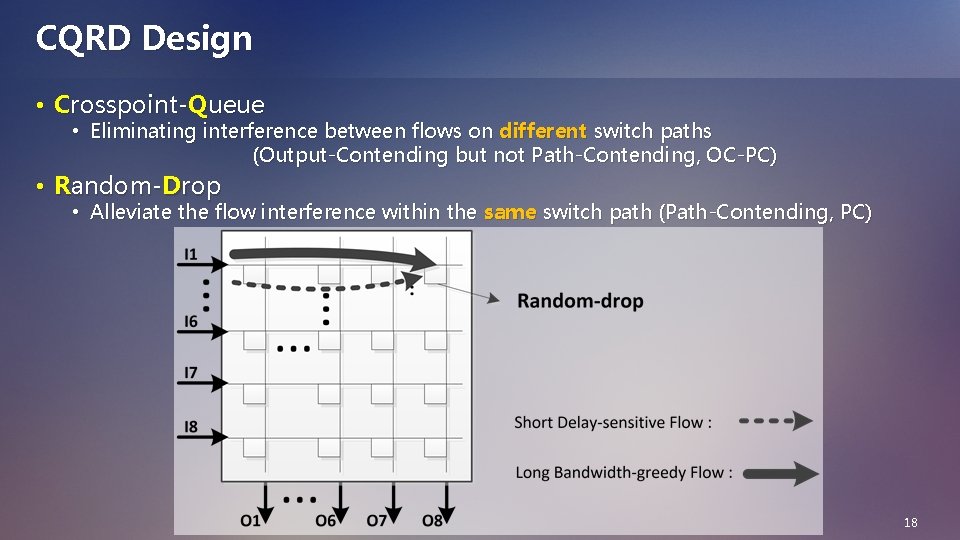

CQRD Design • Crosspoint-Queue • Eliminating interference between flows on different switch paths (Output-Contending but not Path-Contending, OC-PC) • Random-Drop • Alleviate the flow interference within the same switch path (Path-Contending, PC) 18

CQRD Design • Crosspoint-Queue • Eliminating interference between flows on different switch paths (Output-Contending but not Path-Contending, OC-PC) • Random-Drop • Alleviate the flow interference within the same switch path (Path-Contending, PC) Occupy more buffer, more likely to be dropped 19

CQRD Design • Crosspoint-Queue • Eliminating interference between flows on different switch paths (Output-Contending but not Path-Contending, OC-PC) • Random-Drop • Alleviate the flow interference within the same switch path (Path-Contending, PC) Occupy more buffer, more likely to be dropped 20

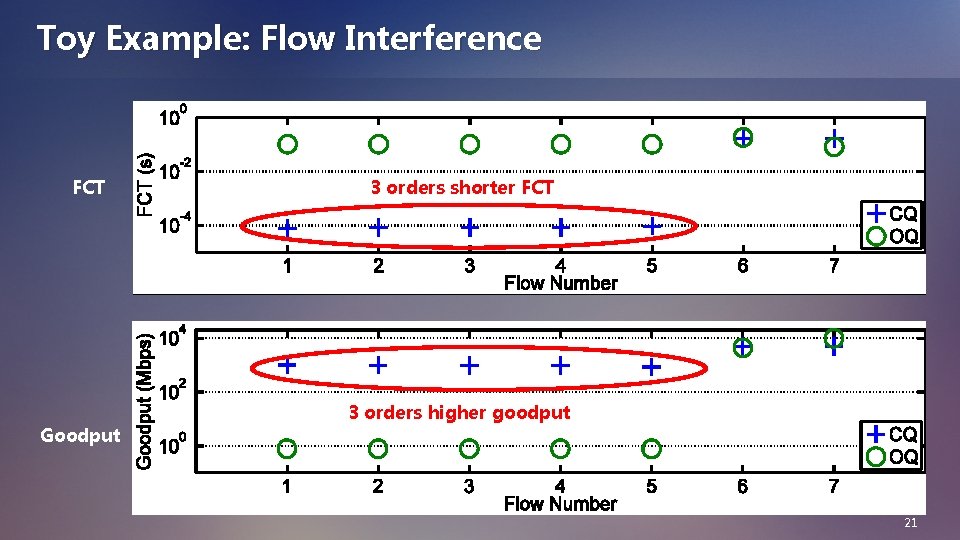

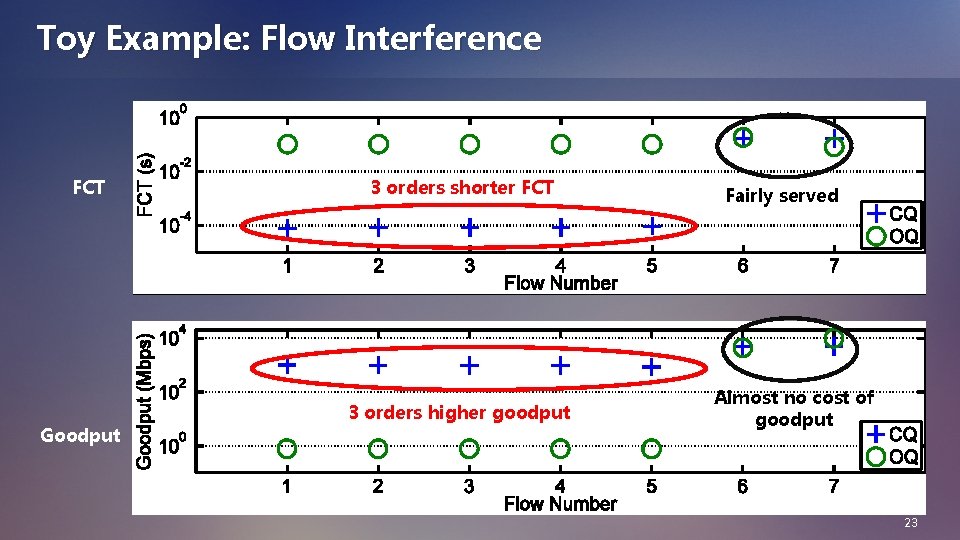

Toy Example: Flow Interference FCT Goodput 3 orders shorter FCT 3 orders higher goodput 21

Toy Example: Flow Interference FCT Goodput 3 orders shorter FCT 3 orders higher goodput Fairly served Almost no cost of goodput 22

Toy Example: Flow Interference FCT Goodput 3 orders shorter FCT 3 orders higher goodput Fairly served Almost no cost of goodput 23

AGENDA n Background & Motivation n Flow Interference n CQRD Design n Evaluation n Conclusion 24

Evaluation • 1. How much FCT of short delay-sensitive flows is reduced in CQRD? • 2. How much goodput of long bandwidth-greedy flows is sacrificed in CQRD? 25

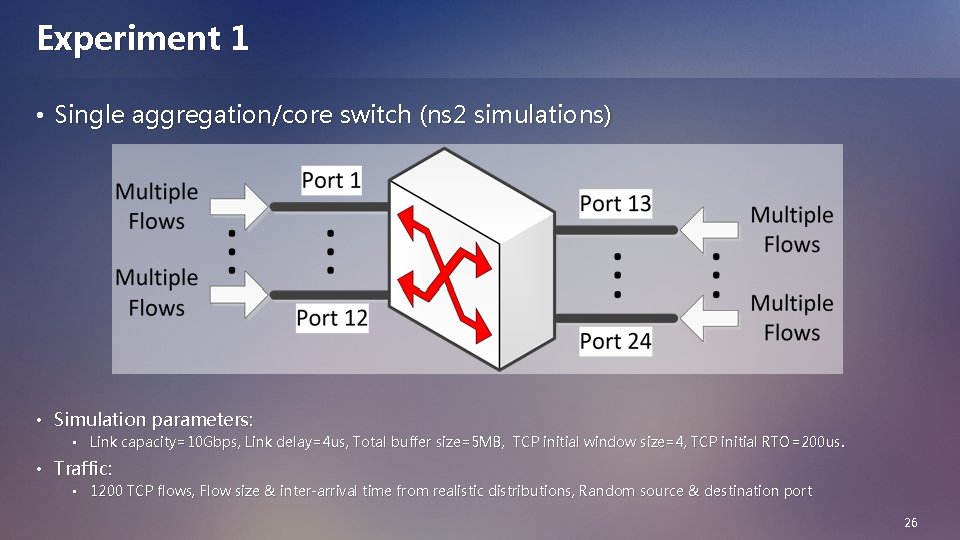

Experiment 1 • Single aggregation/core switch (ns 2 simulations) • Simulation parameters: • Link capacity=10 Gbps, Link delay=4 us, Total buffer size=5 MB, TCP initial window size=4, TCP initial RTO=200 us. • Traffic: • 1200 TCP flows, Flow size & inter-arrival time from realistic distributions, Random source & destination port 26

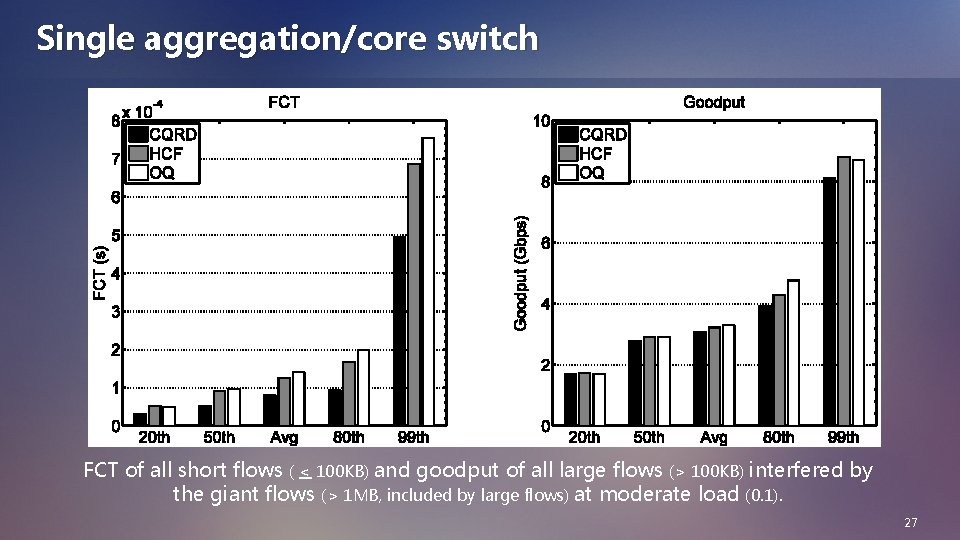

Single aggregation/core switch FCT of all short flows ( < 100 KB) and goodput of all large flows (> 100 KB) interfered by the giant flows (> 1 MB, included by large flows) at moderate load (0. 1). 27

Single aggregation/core switch ~28% lower ~7% lower ~4% lower ~36% lower FCT of all short flows ( < 100 KB) and goodput of all large flows (> 100 KB) interfered by the giant flows (> 1 MB, included by large flows) at moderate load (0. 1). 28

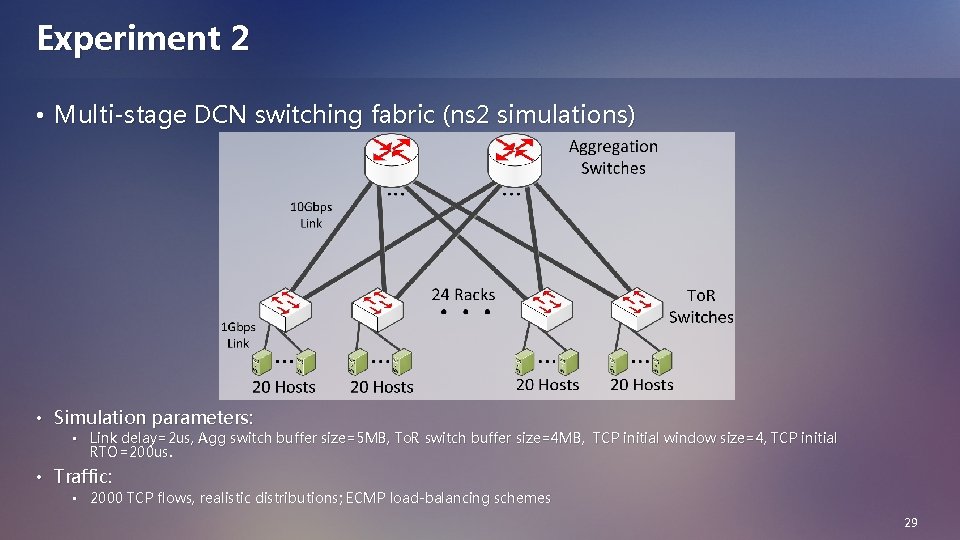

Experiment 2 • Multi-stage DCN switching fabric (ns 2 simulations) • Simulation parameters: • Link delay=2 us, Agg switch buffer size=5 MB, To. R switch buffer size=4 MB, TCP initial window size=4, TCP initial RTO=200 us. • Traffic: • 2000 TCP flows, realistic distributions; ECMP load-balancing schemes 29

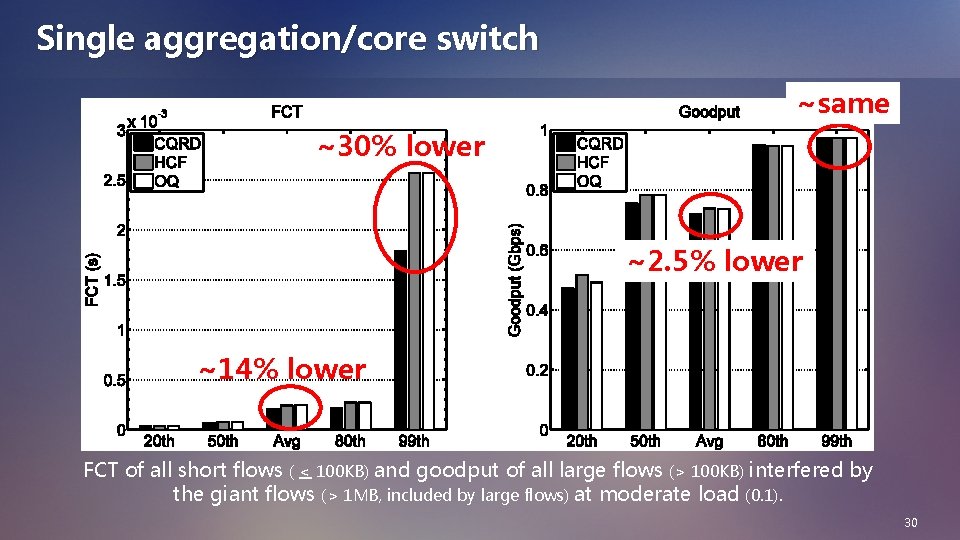

Single aggregation/core switch ~same ~30% lower ~2. 5% lower ~14% lower FCT of all short flows ( < 100 KB) and goodput of all large flows (> 100 KB) interfered by the giant flows (> 1 MB, included by large flows) at moderate load (0. 1). 30

AGENDA n Background & Motivation n Flow Interference n CQRD Design n Evaluation n Conclusion 31

Conclusion • Tackling the root cause of flow interference: • Need a more fine-grained queue management scheme • Simple solution: CQRD—switch queue management scheme • • • Transparent to end host No modification to protocol stack Based on underlying techniques available in commodity productions • Reduces the FCT of short flows by 20 -44% in a single switch and 8 -30% in a multi-stage data center switch network • At the cost of a minor goodput decrease for large flows 32
