CPRE 583 Reconfigurable Computing Tools overview Instructor Dr

CPRE 583 Reconfigurable Computing (Tools overview) Instructor: Dr. Phillip Jones (phjones@iastate. edu) Reconfigurable Computing Laboratory Iowa State University Ames, Iowa, USA http: //class. ece. iastate. edu/cpre 583/ 1 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Outline • NX: For remotely accessing Linux machines from off campus • Very basic Linux – Some on-line tutorials and quick reference cards • http: //trinity. senecac. on. ca/cadence-tutorial/Unix. pdf • http: //www. fsid. cvut. cz/cz/U 201/linux. html • https: //www. cfa. harvard. edu/~jbattat/computer/linux. Reference. Card. pdf • Creating a new ISE project • Running simulation from within ISE • Generating a bitfile • Downloading a bitfile to the FPGA board (impact) 2 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

NX • NX is an application that allows you to access Linux machines from off campus. – It is very lightweight and can be typically installed in less than 5 minutes • • • You can download NX from the following links – For Windows: http: //www. nomachine. com/download-client-windows. php – For Linux: http: //www. nomachine. com/download-client-linux. php – For MAC OS: http: //www. nomachine. com/download-client-macosx. php – For Solaris: http: //www. nomachine. com/download-client-solaris. php After you install the NX client, make sure to install any additional fonts that are available for your platform type. If you do not some application will not display properly You can login to the following ISU Linux machines using your user. ID & password – Those listed here: http: //www. it. eng. iastate. edu/remote • Note: These machine do NOT have access to FPGA hardware – xilnx-1, xilinx-2, xilinx-3. ece. iastate. edu • Note 1: the xilinx machines should only be used when testing a circuit using the FPGA hardware. • Note 2: the xilinx machines are primarily for distance students to test hardware. On campus students should use a machine in Coover 2050 3 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Very basic Linux • How to unpack a. zip or. tar. gz file –. zip • unzip my_file. zip –. tar. gz • gunzip my_file. gz. tar • tar -xvf my_file. tar • How do I know where I am – pwd (tells your current location, use this command often) • What is in my current location – ls (list all the files and directors at this location) • Changing directories – cd directory_name • cd. . (takes you up one directory level) • cd ~ (takes you to your home directory) • Making a new directory – mkdir new_directory_name 4 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project • • cd to where you want to make a directory for your project mkdir the directory for you project cd into the directory you made pwd to check that you are indeed in that directory • source. /Xilinx_12_4_src. txt – This command tells the computer where to find the tools (e. g. ise). You must run this command any time you open a new Linux terminal. In this case, I’m assuming you are running the “source” command where your “Xilinx_12_4_src. txt” file is located. • start ise: ise & • Note: If you already have a project: ise project_name. xise & 5 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project Note you already have a project for the AND gate. Use these directions to get you going for the OR gate. 6 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project 7 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project Browse to the location of the directory you created 8 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project Give your project a name 9 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project • Make your setting match this • click Next 10 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project You project summary should look something like this. Click finish 11 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project You have no files! Here are your choices. Very rarely do I start a VHDL file from scratch. Lets create a new source files. Then use some existing VHDL to fill it. For example for the OR gate. Add new source files for the testbench and OR gate. Then copy/paste from the given AND example to get you going. 12 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project Right click to pop up options 13 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

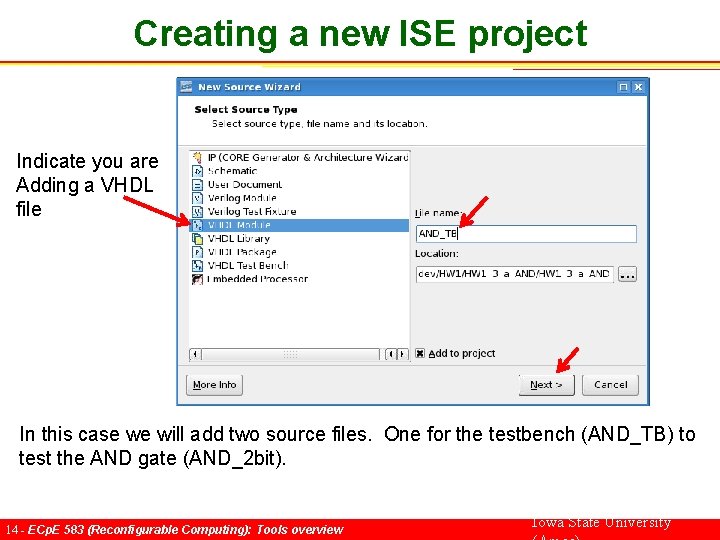

Creating a new ISE project Indicate you are Adding a VHDL file In this case we will add two source files. One for the testbench (AND_TB) to test the AND gate (AND_2 bit). 14 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project You can add the port names, direction and width here. Since we are going to copy VHDL source code form somewhere else we will skip this step. Note: This is a step for convince for when you do not have code to start from. 15 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

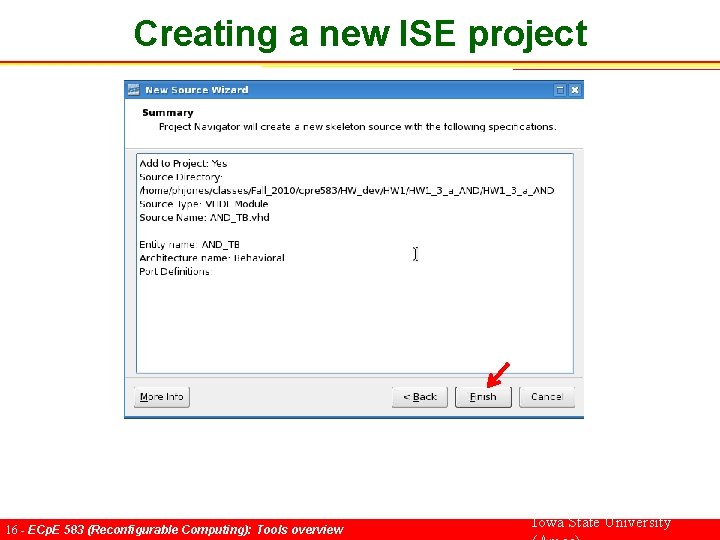

Creating a new ISE project 16 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project The tool tries to be helpful by adding some VHDL for you. I would suggest deleting this and copying from the AND gate example, until you get more comfortable with the tools. 17 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project Now let’s add a source file for the 2 -bit AND gate component. 18 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

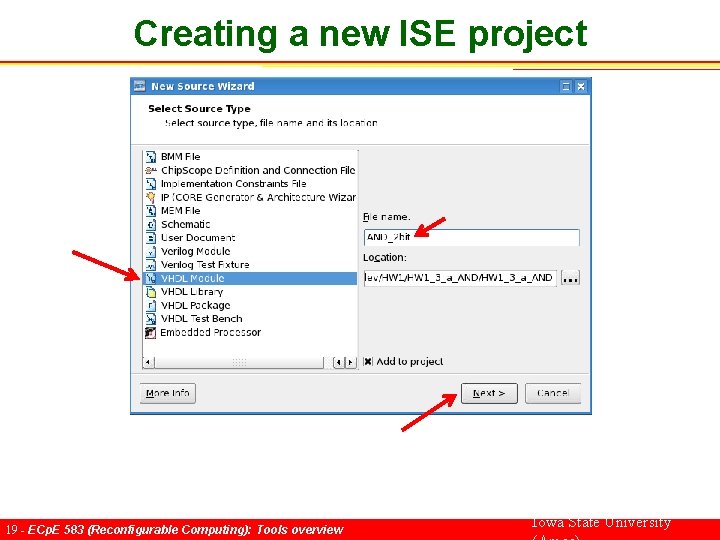

Creating a new ISE project 19 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project 20 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project 21 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project You have some files Note: The Hierarchy window should show the strutural relationship between your files. At this point it shows AND_TB and AND_2 bit at the same level 22 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project The 2 -bit AND gate is a subcomponent of AND_TB. After updating your VHDL files with the appropriating “entity” and “component” names. ISE will figure out the hierarchy. 23 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project If you see a question mark, this could mean ISE lost track of your file when you were editing it. If your file is indeed in the project directory, then just tell ISE 24 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project Remind ISE where it is Note: The “? ” can also appear if you incorrectly named you entity in the VHDL 25 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Creating a new ISE project 26 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design Set “View” to Simulation Select at what level you want to compile or simulate. In this case the whole design 27 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design Set simulation properties. For example how long to run for 28 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design For this case I’ve set the simulation to run for 1000 ns 29 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design Now simulate 30 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design Modelsim compiles your VHDL before simulating it. In this case it caught a syntax error. Missing semicolon 31 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design It looks like this version of ISE does syntax checking every time you save a file. So this error could have been caught earlier. 32 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design Now that you can run simulation. You need to add signals and dividers. Right click in the “Wave” window to Insert a Divider 33 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design 1 2 3 To add signals for the AND gate. 1) select it in “Instance”, this instance of the AND gate is called “my_dut”, 2) select the signals in the “Objects window, 3) Drag and drop the signals into the “Wave” window 34 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design Typically you will want ALL of your signal in “Hexadecimal”. To do this 1) select all of the signals, 2) right in wave window, 3) Radix->Hexadecimal 35 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Saving wave formats To keep from having to reformat you signals EVERY time for the same Design, save you wave format 36 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

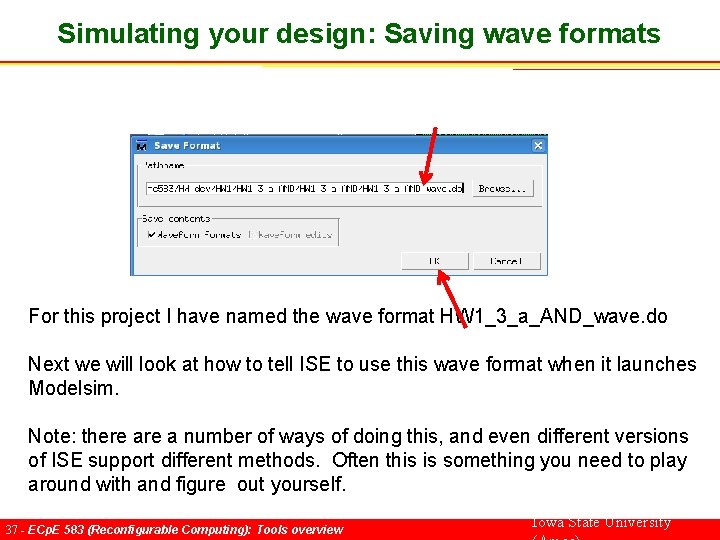

Simulating your design: Saving wave formats For this project I have named the wave format HW 1_3_a_AND_wave. do Next we will look at how to tell ISE to use this wave format when it launches Modelsim. Note: there a number of ways of doing this, and even different versions of ISE support different methods. Often this is something you need to play around with and figure out yourself. 37 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Saving wave formats ISE file that will call your wave format Contents of your project directory “cat” prints the contents of a file Wave format you just created This is how I modified AND_TB_wave. fdo Tell ISE to only call your wave format file After you make this updates, restart Modelsim from ISE to see if it worked 38 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Saving datasets Some times you want to save the dataset (. wlf) for a simulation run. Often this is used to compare the behavior of one version of a design to another while debugging. And for this class you will save datasets so that I can review the behavior of your circuits without needed your source code. 39 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Saving datasets 1. Modelsim typically saves the current dataset as “vsim. wlf” 2. Rename it to the name you want. In this case HW 1_2_a_AND_dat. wlf 40 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Loading Dataset • To check if your dataset saved correctly open Modelsim standalone (vsim &), and load the wave dataset (. wlf), and then the associated wave format 41 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Loading Datasets Open a wave window, then readjust/resize the windows of Modelsim 42 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Loading Datasets Find and open the dataset 43 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Loading Datasets 2 6 1 5 2 4 Find and open the dataset 44 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Loading Datasets Now load the wave format (. do) associated with this dataset 45 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Loading Datasets Browse to find the correct wave format (. do) 46 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Loading Datasets Your dataset and associated waveform should appear 47 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Simulating your design: Useful Buttons Zoom mode (VERY useful!!) Zoom out Select mode Zoom in Jump to previous or next signal value transition (VERY useful!!) Zoom full Toggle between short and full signal names Useful Buttons in Modelsim 48 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Generating a bitfile View can be set to simulation or Implementation only shows those files that will go on the hardware. Simulation typically shows files that will be simulated and/or put on the hardware 49 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Generating a bitfile Any source file that will only be simulated should have its properties set to reflect this. In this case AND_TB will be set to Simulation. And my_dut (AND_2 bit) will be set to ALL (i. e. both simulation and implementation) 50 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Generating a bitfile Any source file that will only be simulated should have its properties set to reflect this. In this case AND_TB will be set to Simulation. And my_dut (AND_2 bit) will be set to ALL (i. e. both simulation and implementation) 51 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Generating a bitfile Now when the view is switch to “Implementation” only VHDL that will be put on the hardware is shown. Also note in the “Processes” we have new options. One of which is “Generate Programming File” 52 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Generating a bitfile One typically selects the top level component and runs “Generate Programming File” to generate a bitfile to download to the FPGA. Note we’ve switched to MP 1 because the AND_2 bit example does not have a user constraint file (. ucf) defined to tell the tools how to connect the design to the FPGA I/O pins 53 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Generating a bitfile If all goes well, then after some time you should get a GREEN check next the “Generate Programming File”. And a file called <top_level>. bit, in this case MP 1_top. bit, should be placed in your project directory. 54 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Downloading a bitfile to the FPGA Go to the directory where your bitfile is located and start impact Note: You must be on a machine that has an FPGA board connected to it. 55 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Downloading a bitfile to the FPGA Yes should be fine as well 56 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Downloading a bitfile to the FPGA 57 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Downloading a bitfile to the FPGA 58 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Downloading a bitfile to the FPGA Bypass until you get to the FX 70 59 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

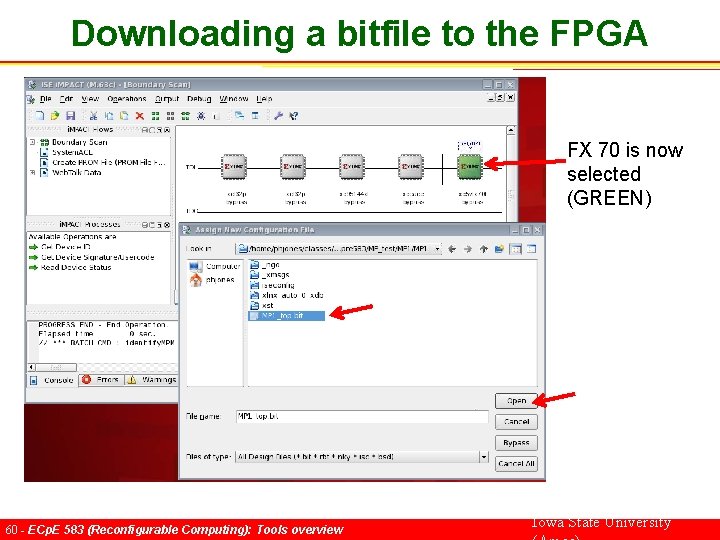

Downloading a bitfile to the FPGA FX 70 is now selected (GREEN) 60 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Downloading a bitfile to the FPGA 61 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Downloading a bitfile to the FPGA 62 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Downloading a bitfile to the FPGA 63 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Downloading a bitfile to the FPGA 64 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University

Generating a bitfile: Fixing a locked cable • For various reasons “impact” will have an issue downloading your bitfile. This can be caused by more than one person trying to run impact to connect to the board, or impact crashing, or power being turned off to the board. • In the worst case one as to reboot the machine. We like to avoid this because you do not have administrative rights to reboot the machine. Though one campus students can power cycle. • Some things to try – In impact: output -> cable reset – From the command line > impact -batch > set. Mode -bscan > cleancablelock > quit – From the command line > xmd > xclean_cablelock – Send me an email, and/or a “wall” message 65 - ECp. E 583 (Reconfigurable Computing): Tools overview Iowa State University
