CPE 426 Computer Networks Week 15 PART IV
- Slides: 50
CPE 426 Computer Networks Week 15: PART IV in Textbook Chapter 28: NW Performance (Qo. S and Diff. Serv) Chapter 29: IP Telephony

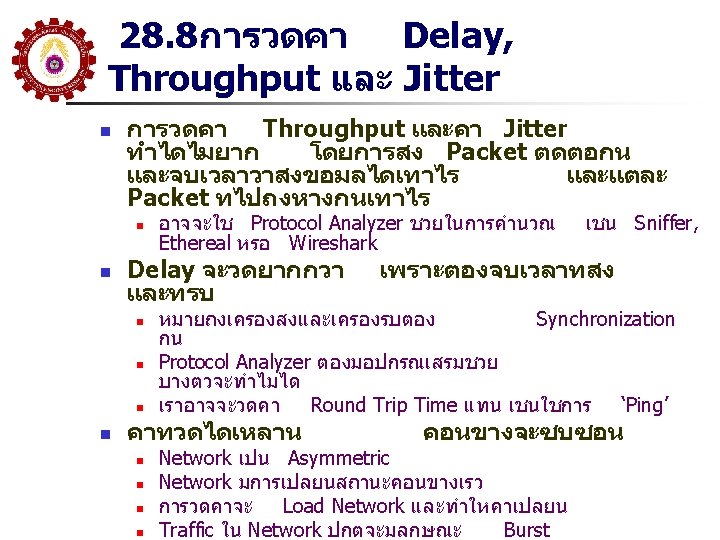

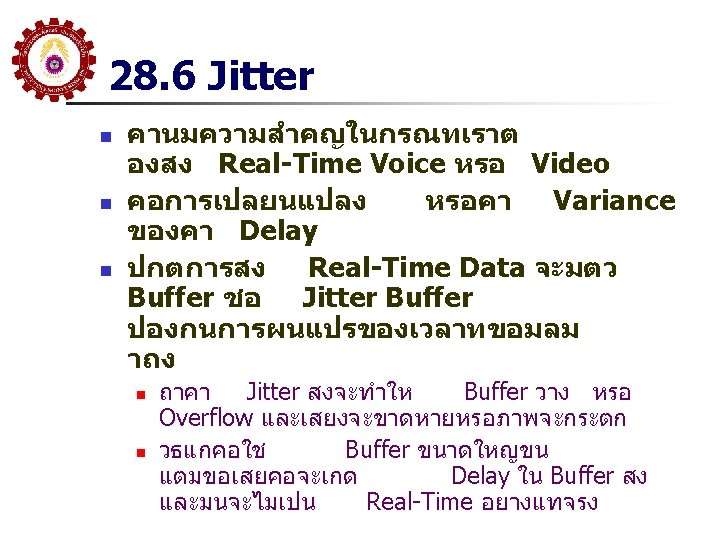

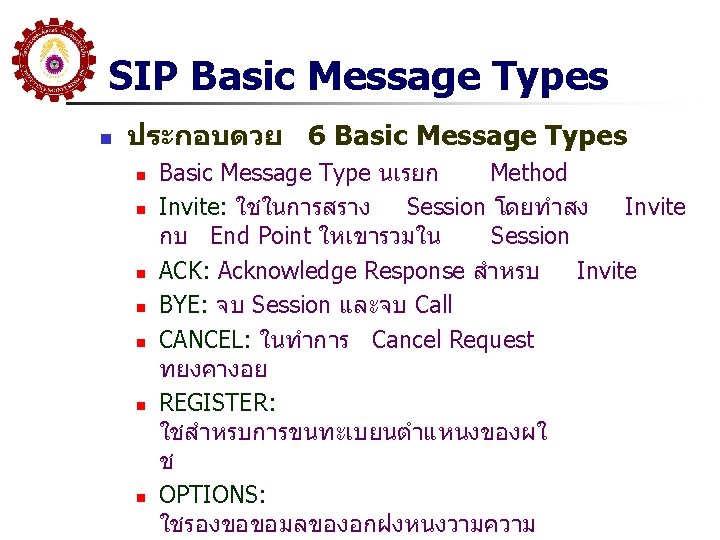

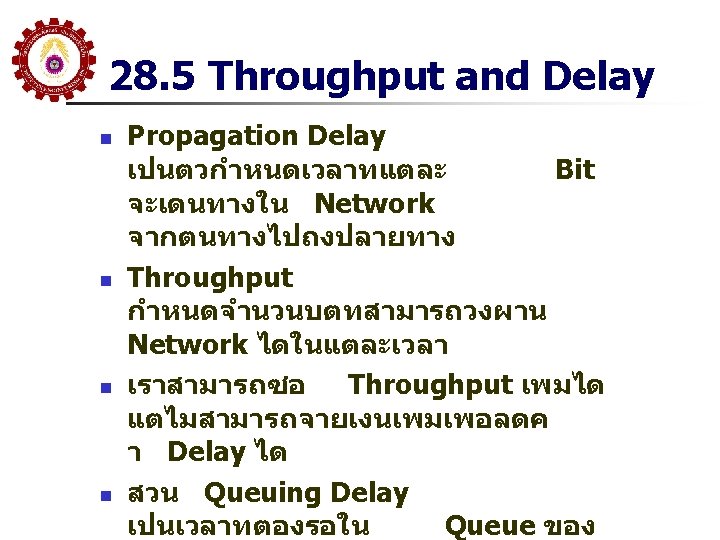

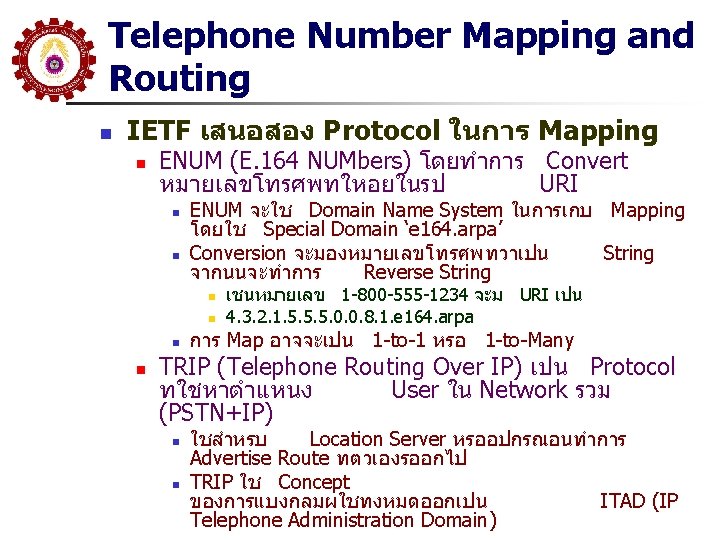

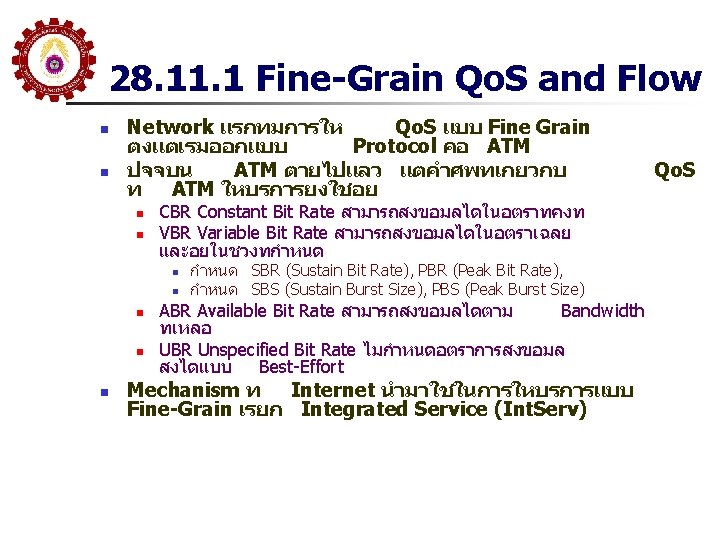

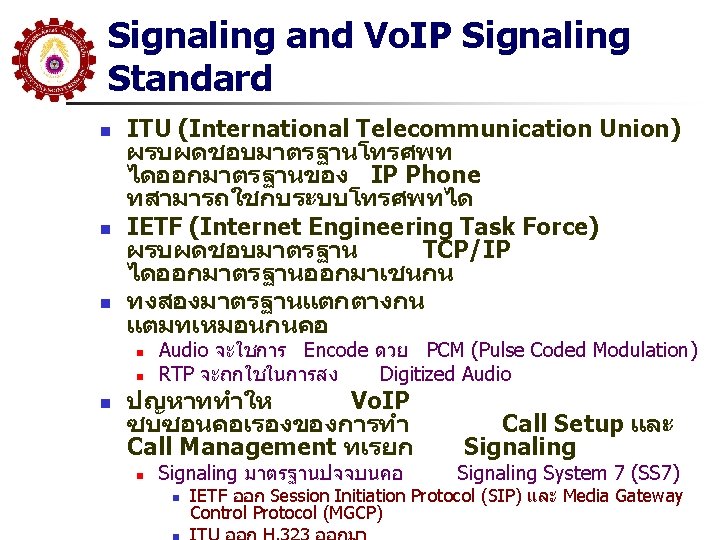

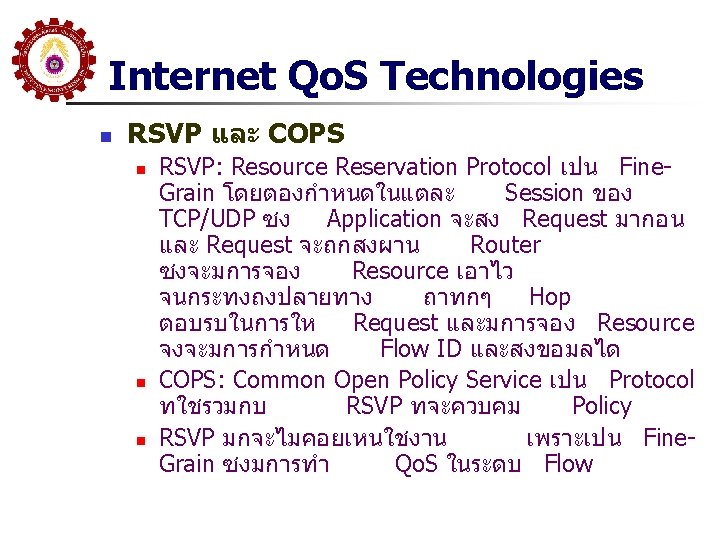

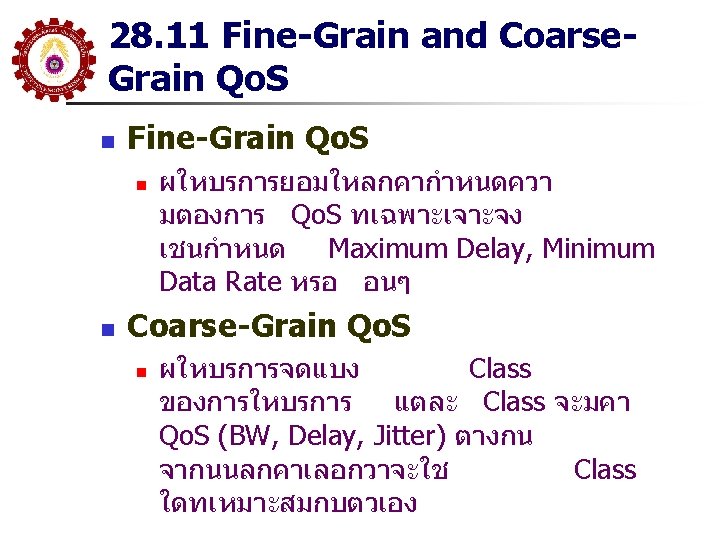

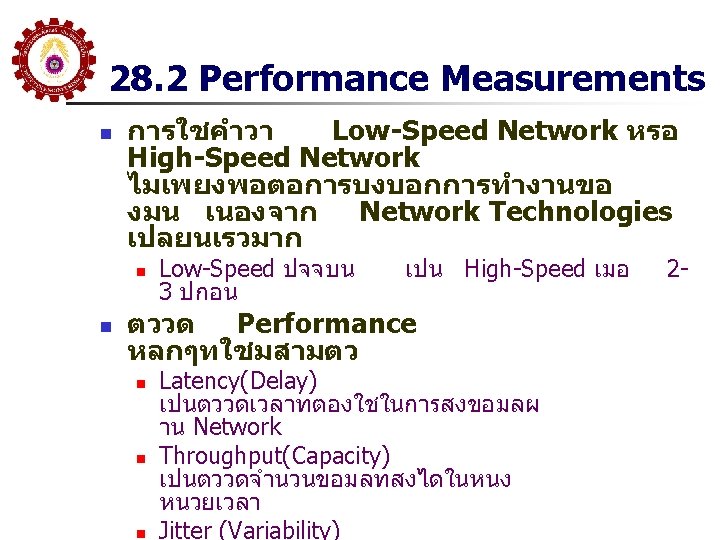

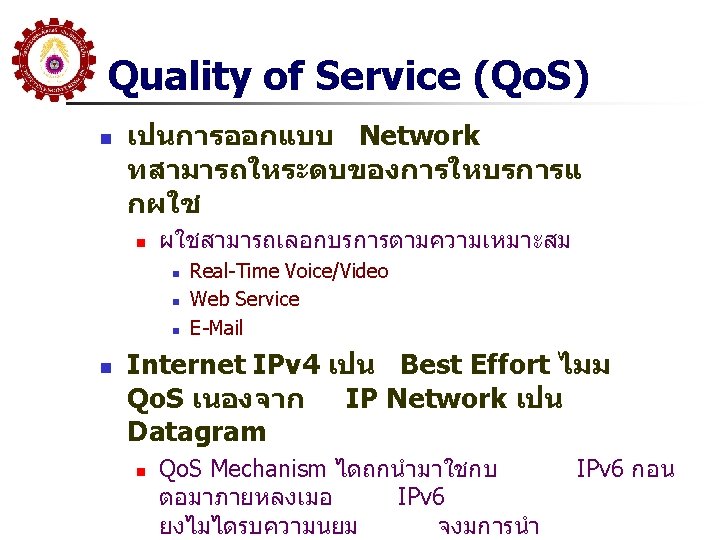

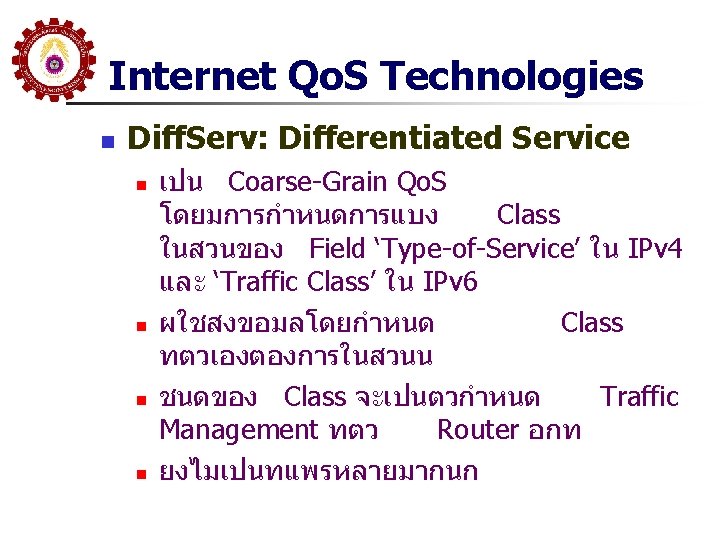

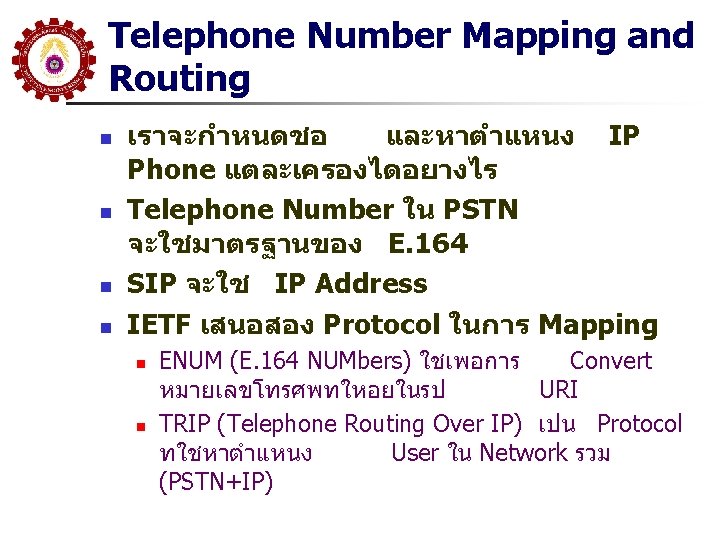

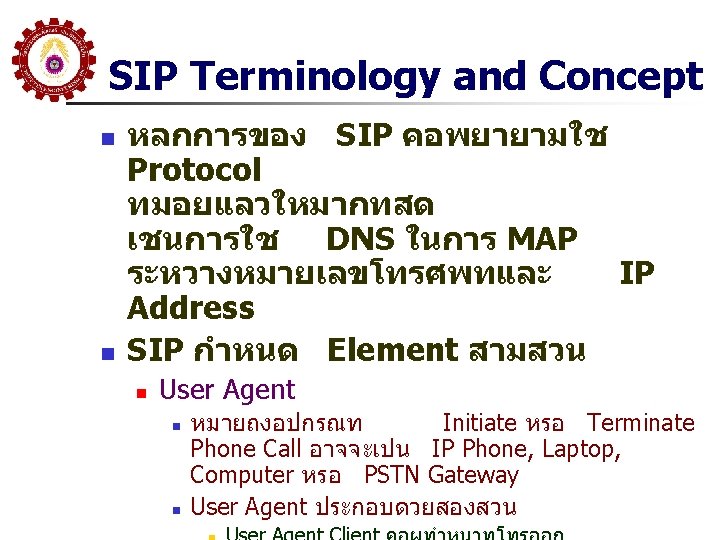

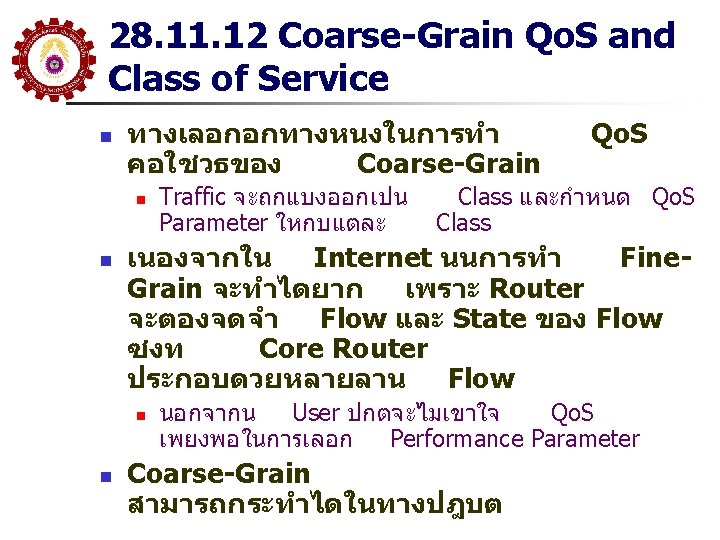

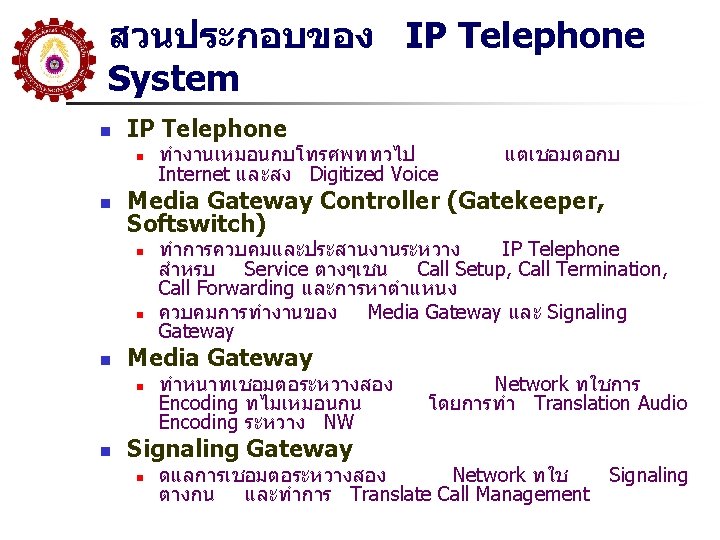

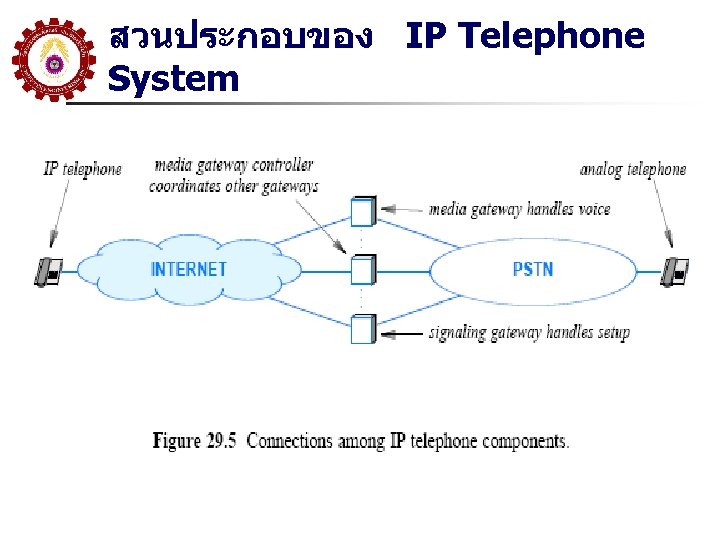

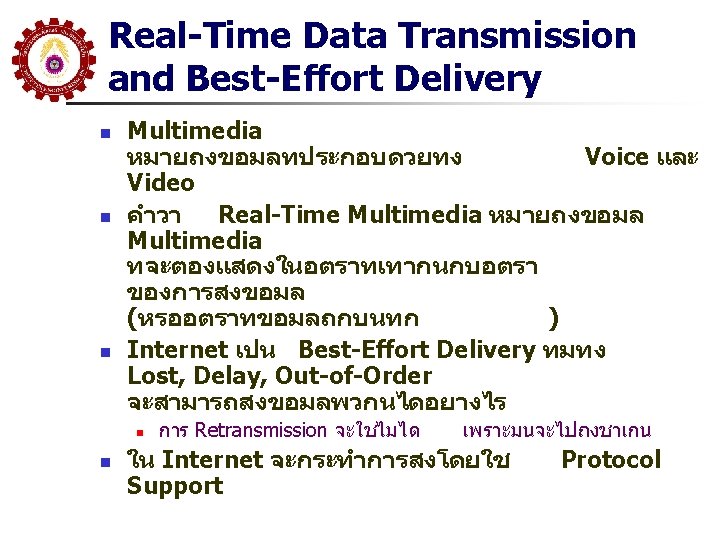

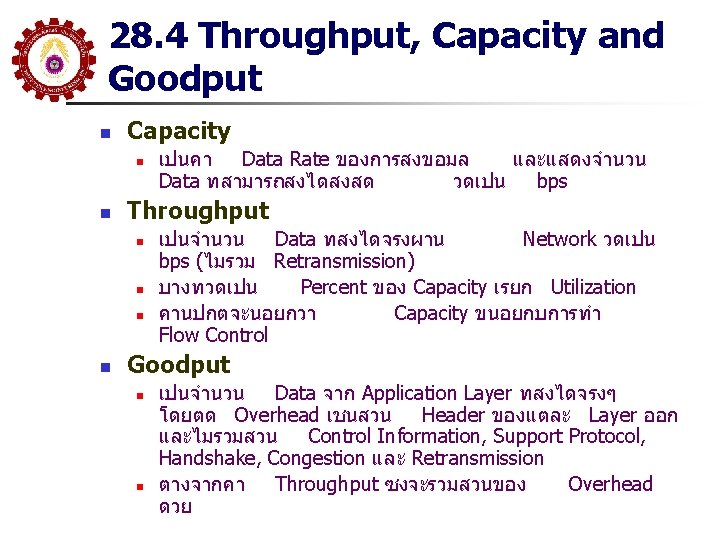

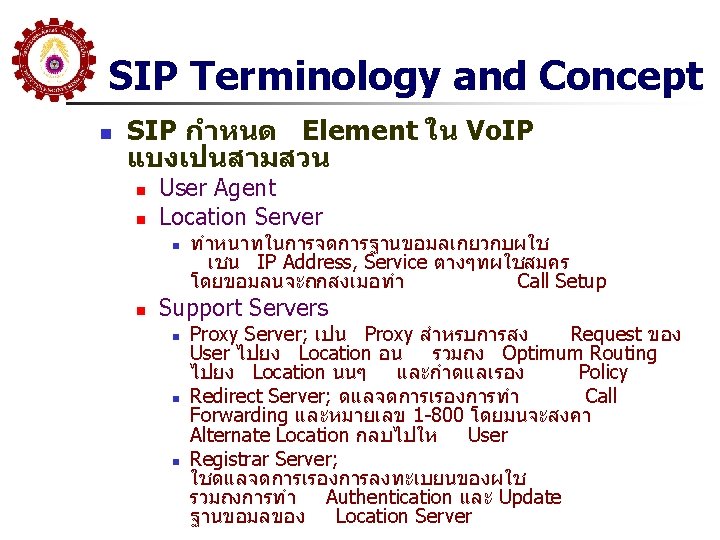

TOPICS n Chapter 28 (Only Selected Topics) n n n n 28. 2 Performance Measurement 28. 3 Latency or Delay 28. 4 Throughput, Capacity and Goodput 28. 5 Understanding Throughput and Delay 28. 6 Jitter 28. 7 Relationship Between Throughput and Delay 28. 8 Measuring Delay, Throughput and Jitter 28. 9 Passive Measurement, Small Packet and Netflow 28. 10 Qo. S 28. 11 Fine-Grain and Coarse-Grain Qo. S 28. 12 Implementation of Qo. S 28. 13 Internet Qo. S Technologies Breaks Chapter 29 (Only Selected Topics) n n n n n Real-Time Transmission Delay and Jitter RTP IP Telephony Signaling IP Telephone System Components Protocol and Layering H. 323 SIP Telephone Number Maping

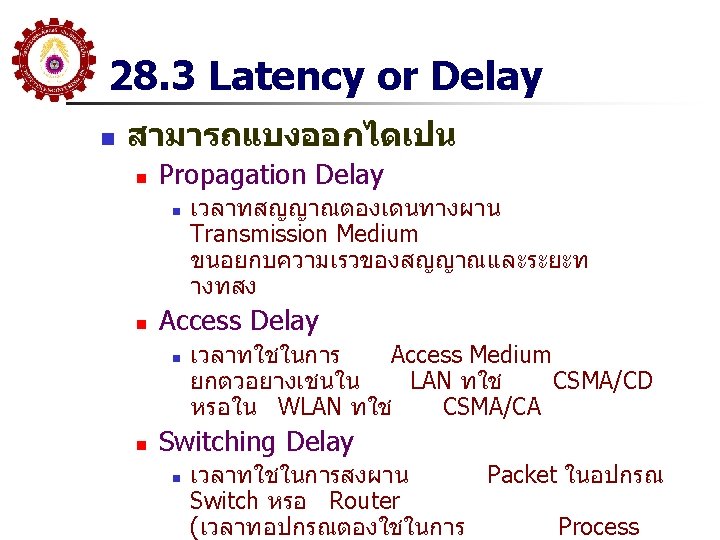

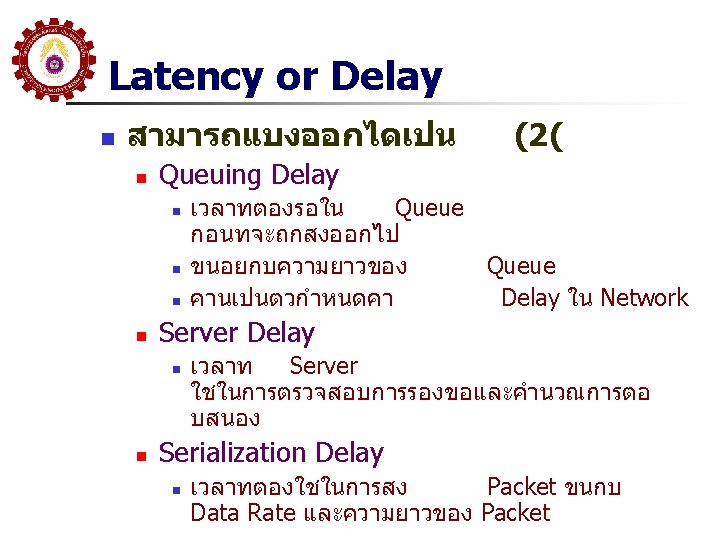

Latency Serialization Delay Propagation Delay Switching Delay Queuing Delay

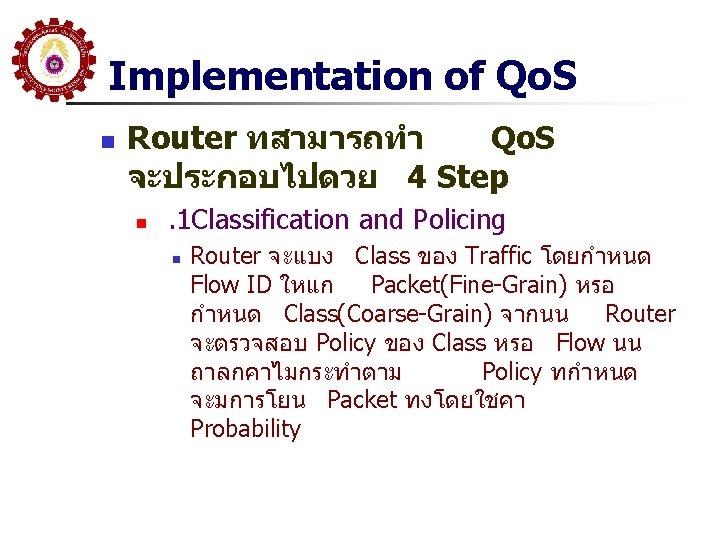

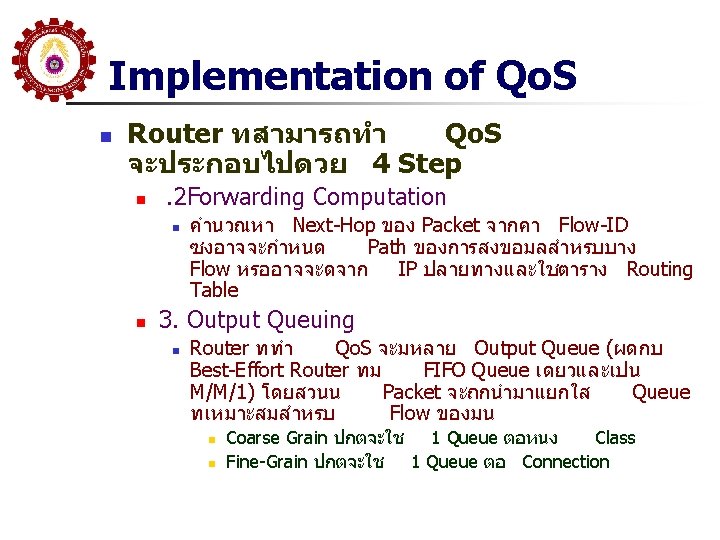

28. 12 Implementation of Qo. S n Router ทสามารถทำ Qo. S จะประกอบไปดวย 4 Step

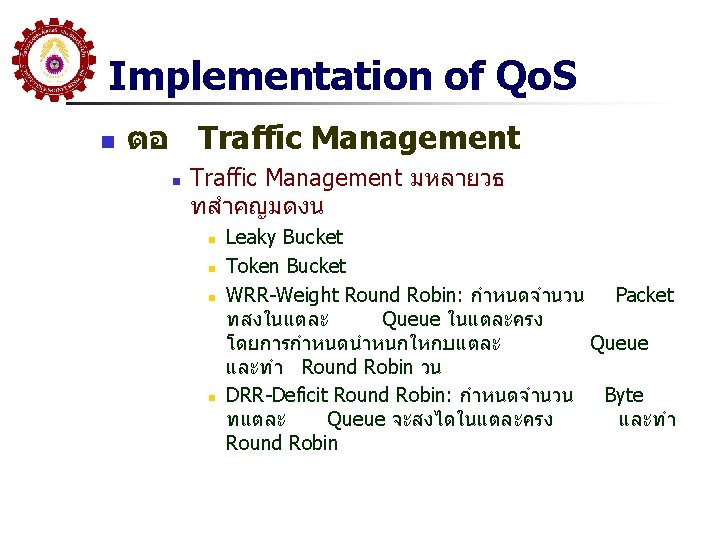

Leaky Bucket
Token Bucket

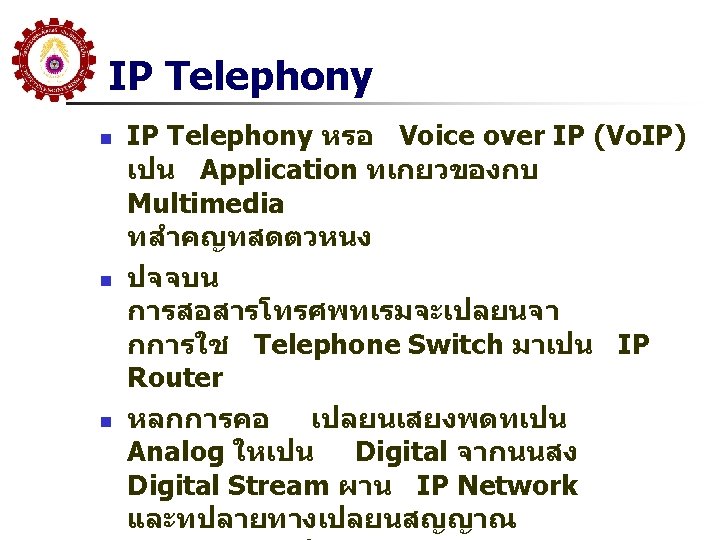

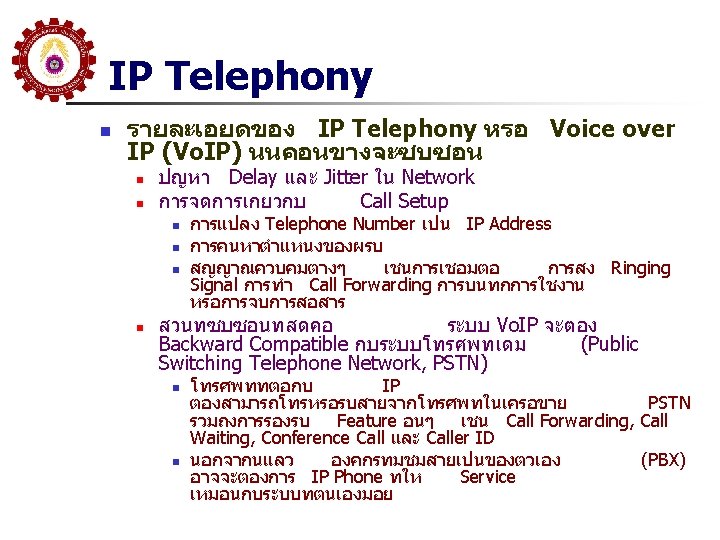

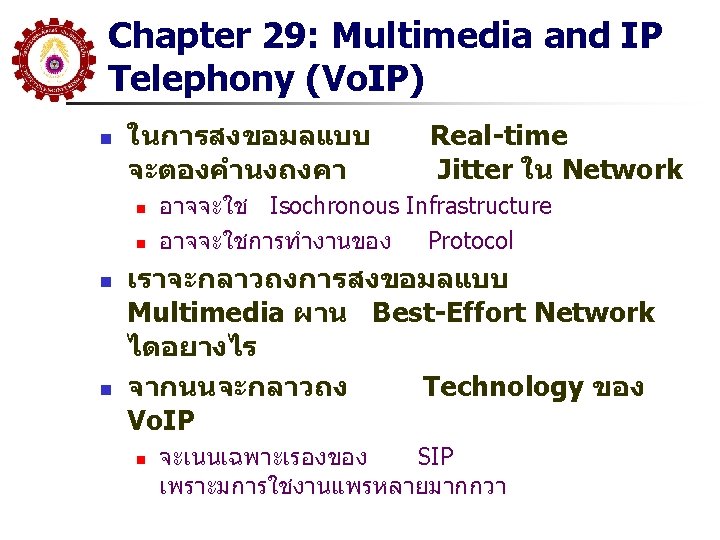

BREAKS n After Break: Chapter 29 n IP Telephony

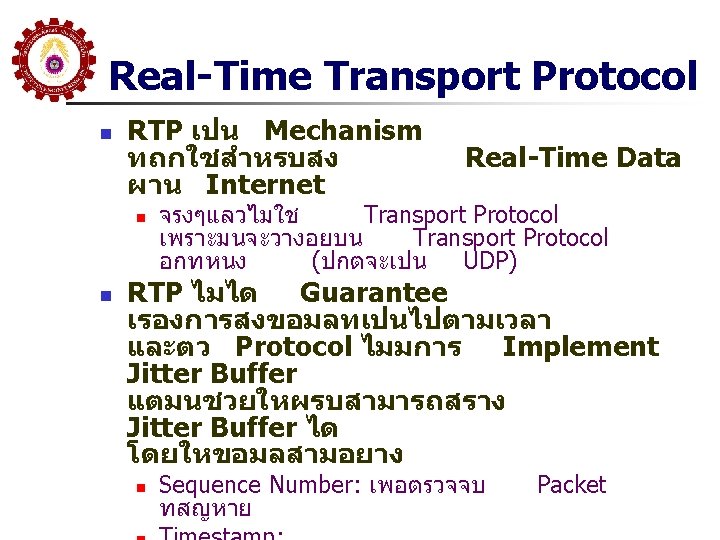

Real-Time Transport Protocol n RTP Basic Header n n n n Ver ปจจบนคอ 2 P=ม Zero Padded in Payload หรอไม , X=Extension Header Exist, CC = Source Count, M = Mark Bit สำหรบ Mark บาง Frame PAYTYPE: Payload Type Sequence ใช Random Number และจะ Increment ทละหนงในแตละ Packet Timestamp จะเรมจาก Random Time เชนกน และจะไมกำหนดหนวยเวลา ขนอยกบ Payload Type Synchronization Source Identifier และ Contributing Source Identifier จะบงบอก Source ของขอมล ปกต RTP จะถกบรรจใน UDP และอาจจะถกสงแบบ Broadcast หรอ Multicast (หรอ Unicast)
Real-Time Transport Protocol
H. 323 Terminology and Concept n มาตรฐานของ H. 323 กวางมาก ประกอบเปนชดของ Protocol ทสามารถรองรบไดทง Voice และ Video n Terminal n n Gatekeeper n n H. 323 Gatekeeper จะทำหนาทหาตำแหนง Signaling และประสานงานกบ Gateway ทเชอมตอกบ PSTN Gateway n n H. 323 Terminal จะให Function ของ IP Telephone ซงอาจจะรวมถงอปกรณทใชในการสง Video H. 323 ใชเพยง Gateway เดยวซงจะดแลทง Signaling และ Media Translation Multipoint Control Unit (MCU) n ให Service เชนใน Multipoint Conferencing (Video/Audio) และทำ
H. 323 Layering
End of Chapter 28 -29 (Week 15) n HW 9 Download
