CPD Seminar “Specifying appropriate rainwater systems to achieve your Architectural vision” Presented by …………………

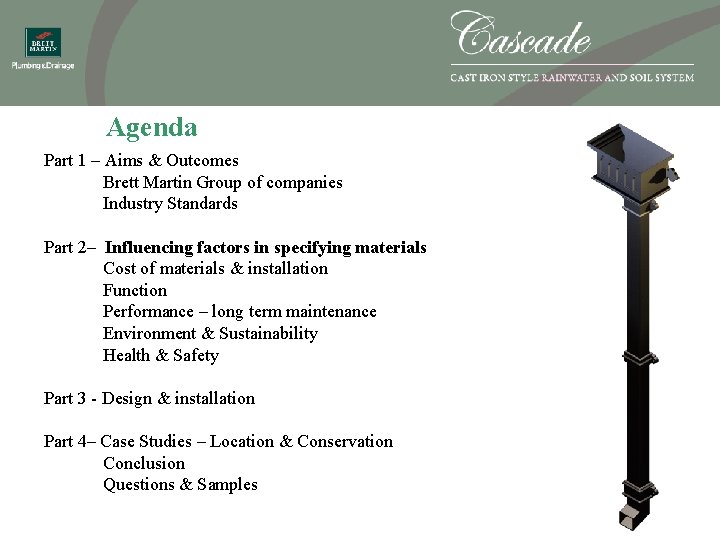

Agenda Part 1 – Aims & Outcomes Brett Martin Group of companies Industry Standards Part 2– Influencing factors in specifying materials Cost of materials & installation Function Performance – long term maintenance Environment & Sustainability Health & Safety Part 3 - Design & installation Part 4– Case Studies – Location & Conservation Conclusion Questions & Samples
Aims To outline the influencing factors when specifying traditional rainwater systems. To Improve the understanding of Rainwater & Soil systems and the requirements for these products. To offer an alternative; A product which combines authentic detailing & period design together with the economic & practical benefits associated with modern materials.
Outcomes Alter Attitudes Gain a better understanding Improve knowledge Make informed choices Offer an alternative
The Brett Martin Group Manufacturing GRP profiled sheet in 1958. Manufacturing sites in N Ireland & Derbyshire. 3 Manufacturing sectors Roofing Products Semi-Finished Products Plumbing & Drainage Brett Martin Plumbing & Drainage Products are sold through a network of Independent Builders & Plumbers Merchants

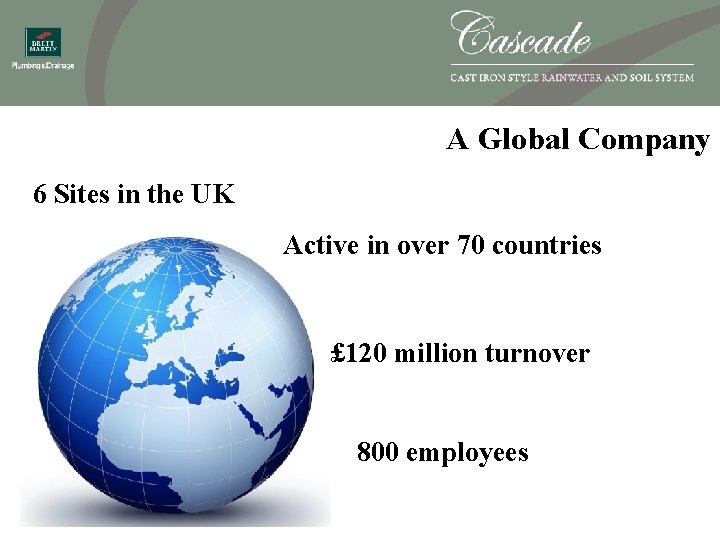

A Global Company 6 Sites in the UK Active in over 70 countries £ 120 million turnover 800 employees
Brett Martin – reducing it’s impact on the environment All products are manufactured in the UK All vehicles are Euro 5 – which conforms to the highest levels of emissions reduction for the UK & European market. A selection of products are manufactured using recycled materials. The company have set targets for reducing it’s impact on the environment through onsite activities
Industry Standards Products comply with Building Regulations Part H Drainage & Waste disposal
Industry Standards Rainwater systems satisfy the requirements of the following; European Standards BS EN ISO 9001 EN 12200 -1: 2000 EN 607: 1996 EN 1462: 1997 EN 1329 -1: 2000 EN 681: 1996 Standards apply to extruded gutters & downpipes and injection moulded fittings.
Industry Standards Soil & Waste systems are manufactured, as applicable, to the following standards; BS 4514: 1983 Replaced by EN 1329: 2000 Standards apply to extruded pipes and injection moulded fittings.
Industry Standards As a BSI Registered Company all sites have achieved BS EN ISO 9001: 2008
Part 2– Influencing factors when specifying materials Cost of materials & installation Function Design features Performance – long term maintenance Environment – sustainability Health & Safety

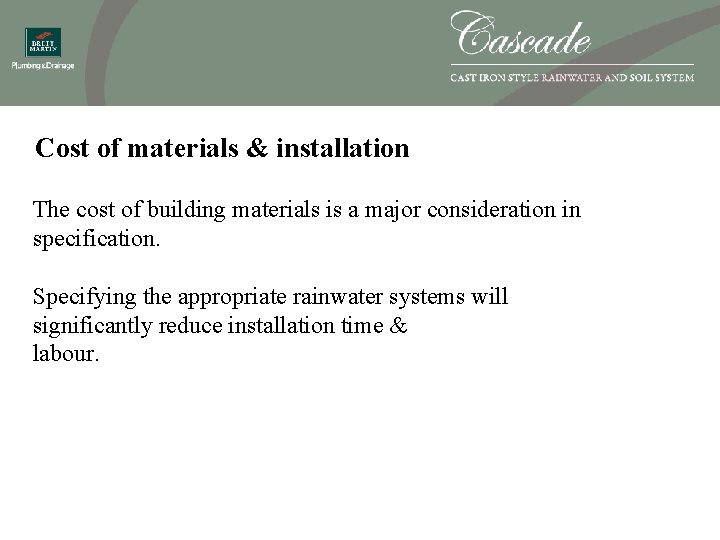

Cost of materials & installation The cost of building materials is a major consideration in specification. Specifying the appropriate rainwater systems will significantly reduce installation time & labour.

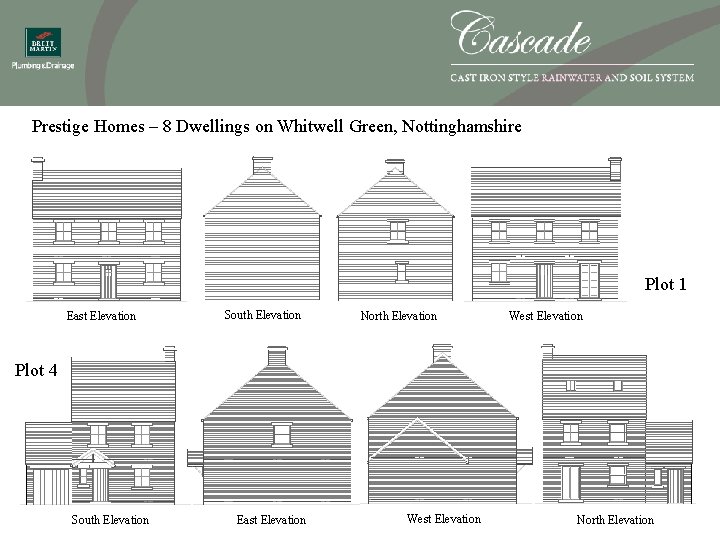

Prestige Homes – 8 Dwellings on Whitwell Green, Nottinghamshire Plot 1 East Elevation South Elevation North Elevation West Elevation Plot 4 South Elevation East Elevation West Elevation North Elevation
Prestige Homes – 8 Dwellings on Whitwell Green, Nottinghamshire
Prestige Homes – 8 Dwellings, Whitwell Green, Nottinghamshire Brett Martin Cascade price list dated April 2010 Marley Alutec price list dated April 2010 Saint Gobain Classic CI price list, April 2009 Brett Martin STD Plastic price list dated April 2010
Influencing factors when specifying materials Std Plastics Cost of materials & installation Low cost Design Features Aluminium No primers or paint Expensive material Installation is costly & labour intensive Complicated jointing methods Requires primers & topcoat Expensive material Installation is costly & labour intensive Complicated jointing methods Lightweight material Functional, does a job Established material Systems are reliable 10 yr Guarantee Installed for over 100 years Life expectancy 50 years Modern clean lines No traditional features Original material Feature & design Replicates Cast Iron Quick installation Simple systems Function Cast Iron
Influencing factors when specifying materials Std Plastics Performance & Long Maintenance free term maintenance Aluminium Durable material Regular maintenance & redecoration Costly & labour intensive Little maintenance Corrosion resistance Oil based products 100% virgin material Manufactured using recycled material Can be recycled Energy intensive process % of product is recycled Energy intensive process Green energy used Low replacement cost Environment & Sustainability Cast Iron 50 years life expectancy
Performance & Long Term Maintenance Cast Iron Redecoration to prevent corrosion, Gutters may facture and leak where bolt fixings rust Leaking pipe work leads to external & internal damp problems Staining of external walls
Design & Installation The amount of rainwater collected by a given roof area largely Part 2– Influencing when specifying determines the choice factors of gutter system used and the materials number & positioning of the Health &outlets. Safety
Part 2 – Influencing factors – Health & Safety Construction has the largest number of injuries compared to other main industry groups. Compared to other industries, construction has the highest proportion of reported injuries caused by falls from height. On average 12 people a year die at work falling from ladders.
Influencing factors - Health & Safety Plastic is a lightweight material Safer to handle-reduces risk of injury Simple cutting methods - No power tools required Low maintenance material, reducing the requirements for ladders or scaffolding. Safer to work with at height Reduced chance of injury caused by falling gutters due to weather extremities, such as heavy snow fall.
Part 3 - Design & Installation
Design & Installation Rainfall Record Rainfall Summer 2007 Summer (May to July) 2007 recorded the wettest period since records began in 1766 England & Wales received 414 mm, (16 inches) of rainfall. The insurance costs to home & Business is estimated £ 3 billion.
Design & Installation Rainfall 2008 Flooding of homes and businesses across parts of the South-West Midlands, South and Mid Wales. On the 6 th September, flooding affected North East England. Morpeth in Northumberland was badly hit with some 1000 properties flooded.
Design & Installation Rainfall 2009 Cumbria In Workington a road bridge collapsed, effectively cutting off half the town, The town centre of Cockermouth was under 2 metres of flood water
Design & Installation Domestic Rainwater Systems
Design & Installation Domestic Rainwater Systems Choosing the right gutter! 106 mm Pro-Style & 115 mm Deep-style The profiles offer high levels of efficiency Up to 50% greater flow capacity. The potential to reduce downpipes & underground drainage Complement building design Reduce cost.
Design & Installation Domestic Rainwater Systems 100 m² Roof Area 100 m² Roof area Assuming gutter run is level

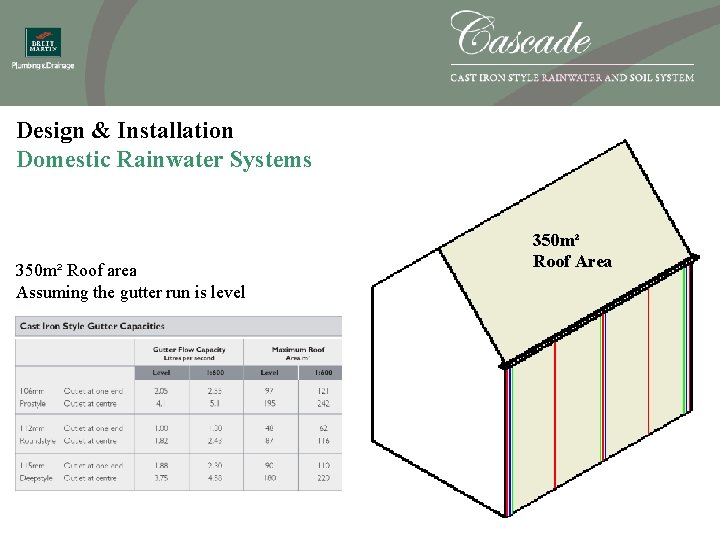

Design & Installation Domestic Rainwater Systems 350 m² Roof area Assuming the gutter run is level 350 m² Roof Area
Design & Installation Domestic Rainwater Systems Sloping Roof In the case of simple roof slopes, the effective roof area is derived from the formula B+(C/2)x. L. B=half roof span (4 m) C=ridge to eaves height (4 m) L=slope length (10 m) E=effective roof area (60 m²)
Design & Installation Domestic Rainwater Systems Building Regulations H 3 Formula – D x L x 1. 50 = 60 m² 4 M - D 10 M 45°
Design & Installation Domestic Rainwater Systems Typical Installation of gutters fitted to fascia board
Design & Installation Alternative gutter support methods Rise & Fall Brackets Top/Side Rafter Brackets

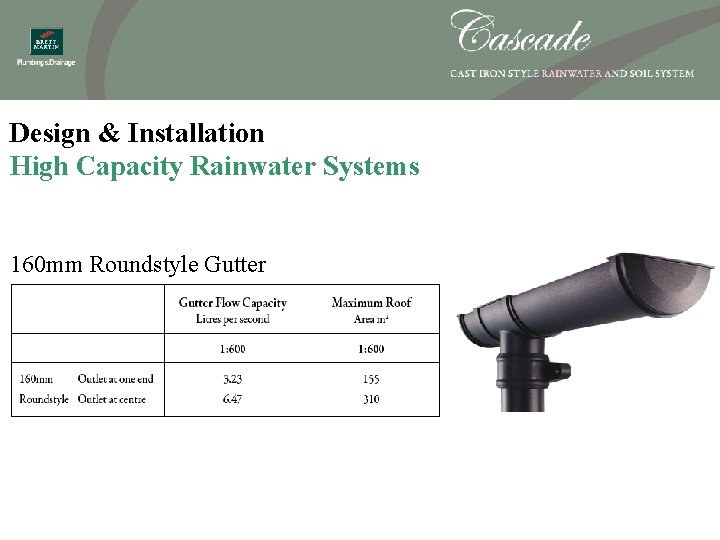

Design & Installation High Capacity Rainwater Systems 160 mm Roundstyle Gutter

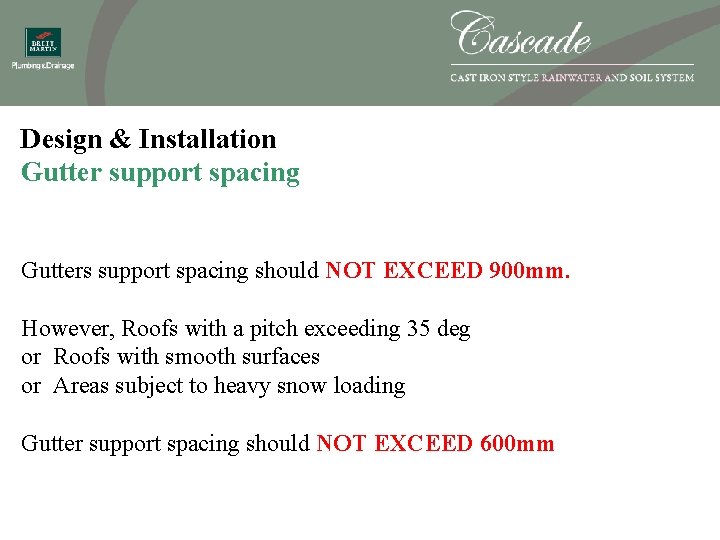

Design & Installation Gutter support spacing Gutters support spacing should NOT EXCEED 900 mm. However, Roofs with a pitch exceeding 35 deg or Roofs with smooth surfaces or Areas subject to heavy snow loading Gutter support spacing should NOT EXCEED 600 mm
Design & Installation Downpipes Pipes are 1. 8 m in length, Socketed with fixing lugs
Design & Installation of Downpipes Expansion allowance should be taken into consideration for thermal movement Pipes should be retracted 5 mm (68 mm) & 10 mm (105 mm) before being fixed to the building.
Design & Installation - Hoppers Authentic Hopper styles & designs provide an opportunity for the client to individualise their rainwater systems

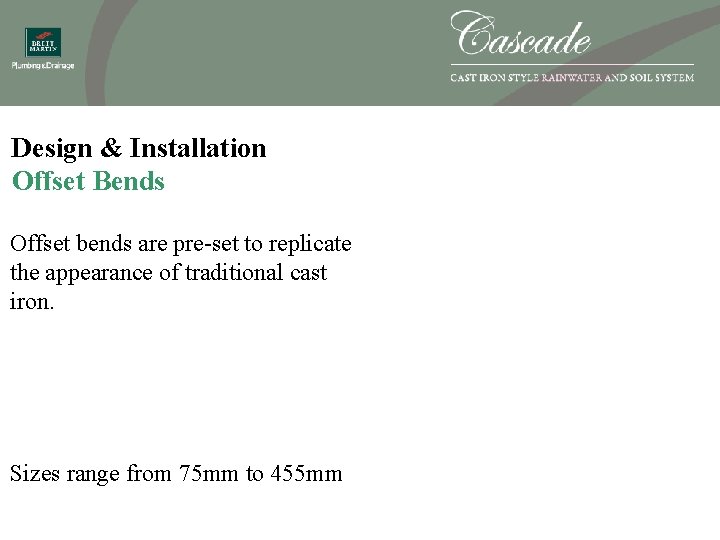

Design & Installation Offset Bends Offset bends are pre-set to replicate the appearance of traditional cast iron. Sizes range from 75 mm to 455 mm
Design & Installation Downpipe Shoes The shoe adds authentic detailing to maximise the traditional appearance. A shoe is used to divert water into a drainage outlet or onto a paved area away from the building
Design & Installation Soil system To compliment the rainwater systems: The soil system is ‘push-fit’ a standard system with a textured paint coating applied • 110 mm socketed pipes • Lengths of 2. 5 m
Design & Installation Soil system - Shroud To maximise the traditional appearance a shrouded collar is used, developed to fit around pipe sockets and connections between pipes & fittings.
Design & Installation - Colour Options 5 heritage colours available
Part 4 - Case Studies – Location & Conservation Conclusion Questions & Samples
Location & Conservation English Heritage – Conservation Principles, Policies & Guidance ‘The use of materials or techniques with proven longevity, and which are close matches for those being repaired or replaced, tends to carry a low risk of future harm. By contrast, the long-term effects of using materials or techniques that are innovative and relatively untested are much less certain. ’ ‘Sometimes the use of original materials and techniques for repair can destroy more of the original fabric, and any decoration it carries,

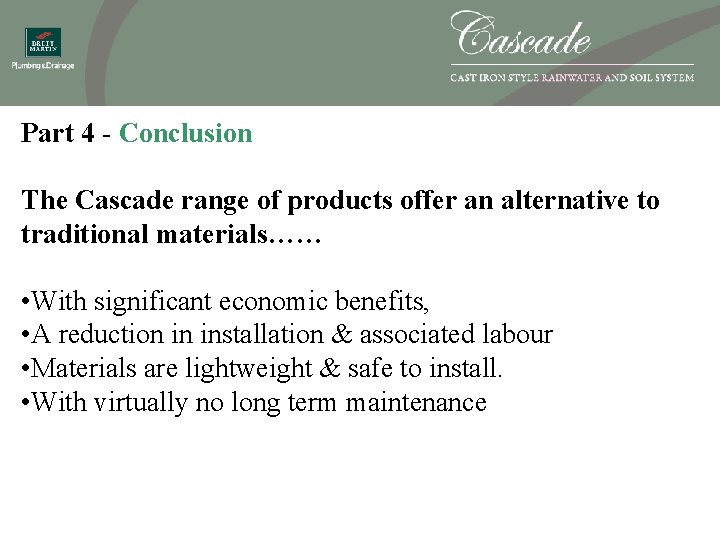

Part 4 - Conclusion The Cascade range of products offer an alternative to traditional materials…… • With significant economic benefits, • A reduction in installation & associated labour • Materials are lightweight & safe to install. • With virtually no long term maintenance
Part 4 – Conclusion, continue………. . Cast Iron has shaped the Architectural landscape of our towns & cities since the industrial revolution…… By combing authentic, period design together with the benefits of modern plastic products the Architectural vision is achieved.
Questions & Samples Thank You Technical Information www. brettmartin. com www. ribaproductselector. com
