CPCS 212 LAB 1 APPLIED COMPUTING WITH MATLAB

(CPCS 212) LAB – 1 APPLIED COMPUTING WITH MATLAB DR. ABBAS SYED NASRULLAH

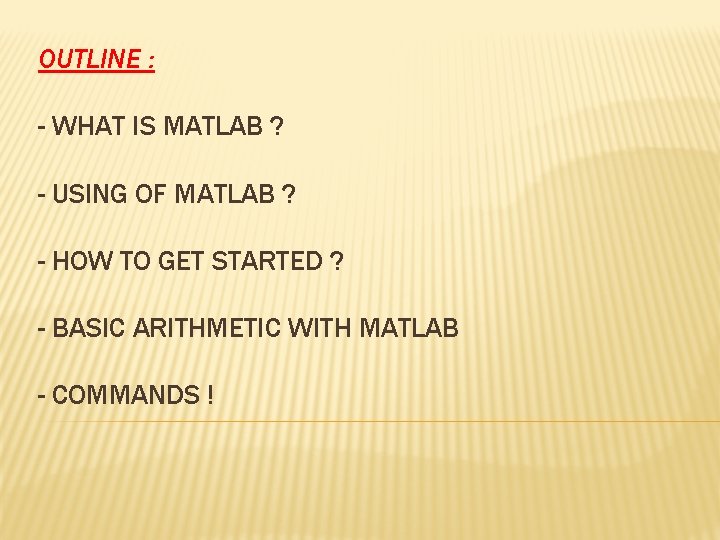

OUTLINE : - WHAT IS MATLAB ? - USING OF MATLAB ? - HOW TO GET STARTED ? - BASIC ARITHMETIC WITH MATLAB - COMMANDS !

- WHAT IS MATLAB ? MATLAB (Matrix Algebra laboratory), distributed by The Math. Works, is a technical computing environment for high performance numeric computation and visualization. It integrates numerical analysis, matrix computation, signal processing, and graphics in an easy-to-use environment. MATLAB also features a family of application-specific solutions called toolboxes. Toolboxes are comprehensive collections of MATLAB functions that extend its environment in order to solve particular classes of problems.

- USING OF MATLAB ? • using Matlab as a numerical calculator • entering row vectors and column vectors • entering matrices • forming matrix and vector products • doing matrix products, sums etc • using Matlab to solve linear equations • Matlab functions that operate on arrays • Plotting basic graphs using Matlab.

- HOW TO GET STARTED ? Workspace window Command History Command Window

- HOW TO GET STARTED ? This is the Matlab screen – it broken into 3 parts On the right you have the Command Window – this is where you type commands and usually the answers (or error messages) appear here too On the top left you have the Workspace window – if you define new quantities (called variables) there names should be listed here. On the bottom left you have Command History window – this is where past commands are remembered. If you want to re-run a previous command or to edit it you can drag it from this window to the command window to re-run it.

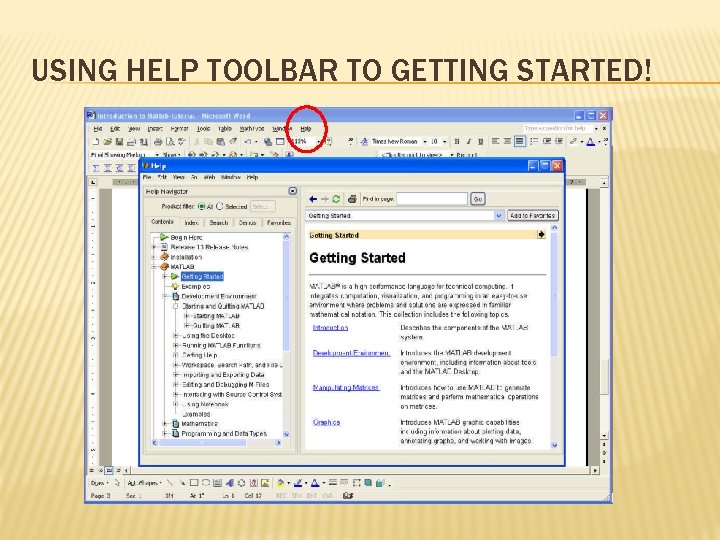

USING HELP TOOLBAR TO GETTING STARTED!

LETS GET STARTED !! - Double clicking on the MATLAB icon that should be on the desktop of your computer. - The Command Window allows a user to enter simple commands. - Next press the Enter or Return key. For instance, >> s = 1 + 2 s = 3 Note that the results are saved in variables whose names are chosen by the user. If they will be needed during your current MATLAB session, then you can obtain their values typing their names and pressing the Enter or Return key. For instance, >> s s = 3 To close MATLAB type exit in the Command Window and next press Enter or Return key. A second way to close your current MATLAB session is to select File in the MATLAB's toolbar and next click on Exit MATLAB option. All unsaved information residing in the MATLAB Workspace will be lost.

Matlab as a Calculator (1) Enter formulas at the command prompt >> 2 + 6 - 4 (press return after ‘‘ 4’’) ans = 4 >> ans/2 ans = 2

MATLAB AS A CALCULATOR (2) Define and use variables >> a = 5 >> b = 6 >> c = b/a c = 1. 2000

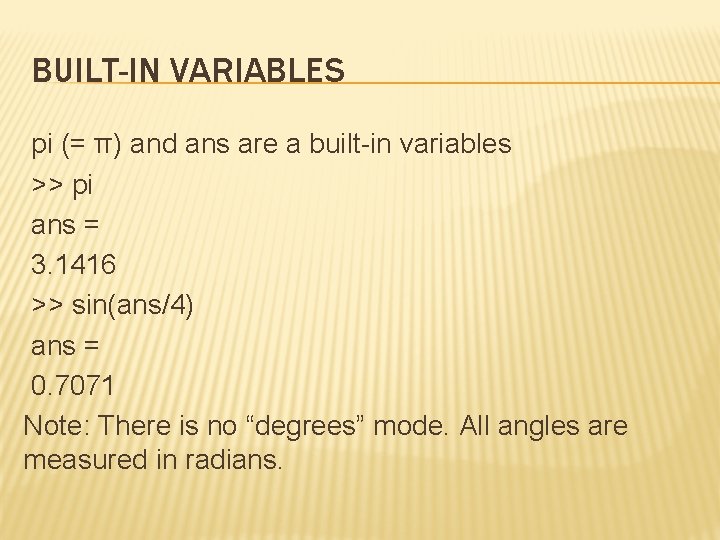

BUILT-IN VARIABLES pi (= π) and ans are a built-in variables >> pi ans = 3. 1416 >> sin(ans/4) ans = 0. 7071 Note: There is no “degrees” mode. All angles are measured in radians.

BUILT-IN FUNCTIONS Many standard mathematical functions, such as sin, cos, log, and log 10, are built-in >> log(256) log(x) computes the natural logarithm of x ans = 5. 5452 >> log 10(256) log 10(x) is the base 10 logarithm ans = 2. 4082 >> log 2(256) log 2(x) is the base 2 logarithm ans = 8

SUPPRESS OUTPUT WITH SEMICOLON (1) Results of intermediate steps can be suppressed with semicolons. Example: Assign values to x, y, and z, but only display the value of z in the command window: >> x = 5; >> y = sqrt(59); >> z = log(y) + x^0. 25 z = 3. 5341

SUPPRESS OUTPUT WITH SEMICOLON (2) Type variable name and omit the semicolon to print the value of a variable (that is already defined) >> x = 5; >> y = sqrt(59); >> z = log(y) + x^0. 25 z = 3. 5341 >> y y = 7. 6811 ( = log(sqrt(59)) + 5^0. 25 )

MULTIPLE STATEMENTS PER LINE Use commas or semicolons to enter more than one statement at once. Commas allow multiple statements per line without suppressing output. >> a = 5; b = sin(a), c = cosh(a) b = -0. 9589 c = 74. 2099

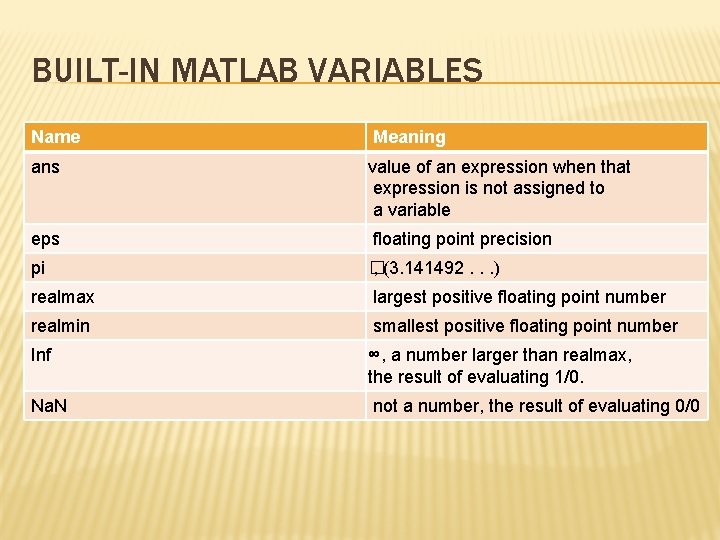

BUILT-IN MATLAB VARIABLES Name Meaning ans value of an expression when that expression is not assigned to a variable eps floating point precision pi � , (3. 141492. . . ) realmax largest positive floating point number realmin smallest positive floating point number Inf ∞, a number larger than realmax, the result of evaluating 1/0. Na. N not a number, the result of evaluating 0/0

Then the Basic Arithmetic is : + Addition - Subtraction * Multiplication / Division ^ Power ' Complex conjugate transpose

POINTS ! Ø The >> is the default command prompt in Matlab Ø All text after % sign is taken as comment. Ø A semicolon at the end of the line will prevent MATLAB from echoing the information you type on the screen. Ø Multiple commands can be placed on the line seperated by commas or semicolons. Ø Typing who at the prompt will display all variables in the workspace. Ø Typing clear will remove all variables. Ø You can stop Matlab execution at any time by pressing Ctrl-C at any time

EXERCISE : Using matlab to calculate :

Commands sin - Sine. cos - Cosine. tan - Tangent. sec - Secant. cot - Cotangent. exp - Exponential log - Natural logarithm. sqrt - Square root.

COMMANDS SUMMARY Operators Commands + Plus; addition operator. - Minus; subtraction operator. * Multiplication operator. ^ Exponentiation operator. . ^ Array exponentiation operator. / division operator. % For comment. = Assignment (replacement) operator.

Commands for Managing a Session clc Clears Command window. clear Removes variables from memory. exist Checks for existence of file or variable. help Searches for a help topic. quit Stops MATLAB. who Lists current variables. whos Lists current variables (long display).
