Covalent Bonding Orbitals The Central Themes of VB

Covalent Bonding: Orbitals

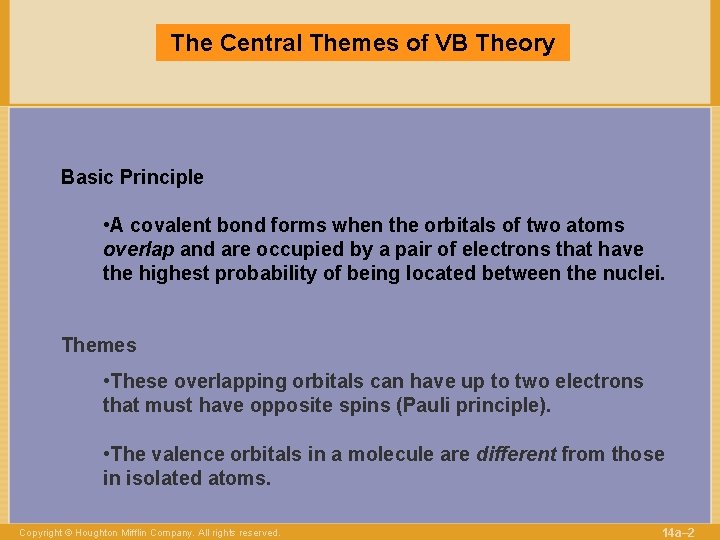

The Central Themes of VB Theory Basic Principle • A covalent bond forms when the orbitals of two atoms overlap and are occupied by a pair of electrons that have the highest probability of being located between the nuclei. Themes • These overlapping orbitals can have up to two electrons that must have opposite spins (Pauli principle). • The valence orbitals in a molecule are different from those in isolated atoms. Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 2

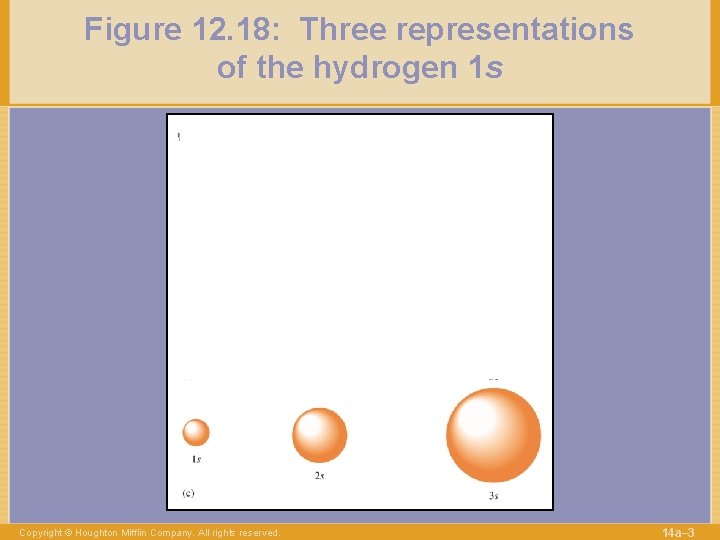

Figure 12. 18: Three representations of the hydrogen 1 s Copyright © Houghton Mifflin

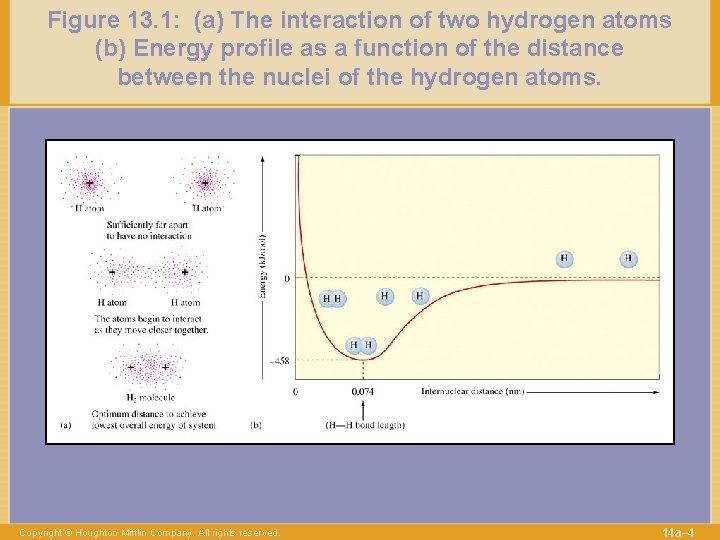

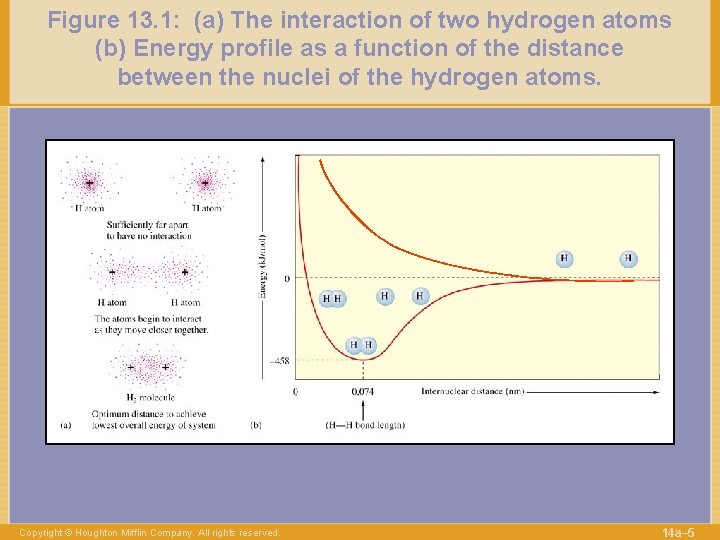

Figure 13. 1: (a) The interaction of two hydrogen atoms (b) Energy profile as a function of the distance between the nuclei of the hydrogen atoms. Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 4

Figure 13. 1: (a) The interaction of two hydrogen atoms (b) Energy profile as a function of the distance between the nuclei of the hydrogen atoms. Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 5

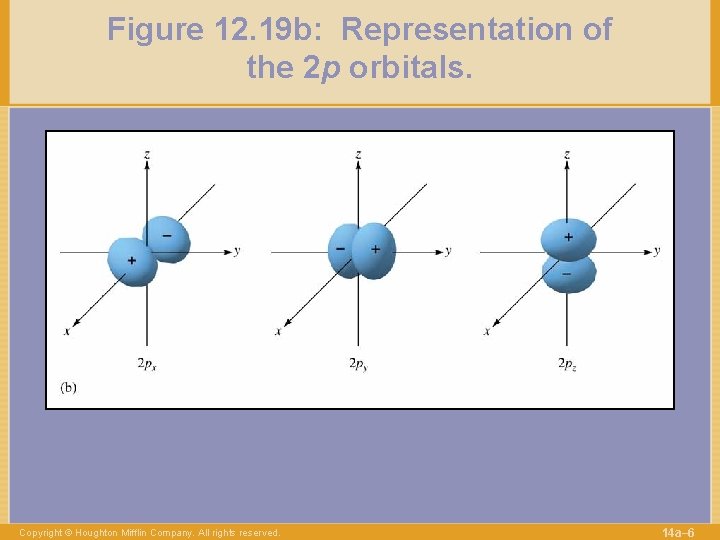

Figure 12. 19 b: Representation of the 2 p orbitals. Copyright © Houghton Mifflin

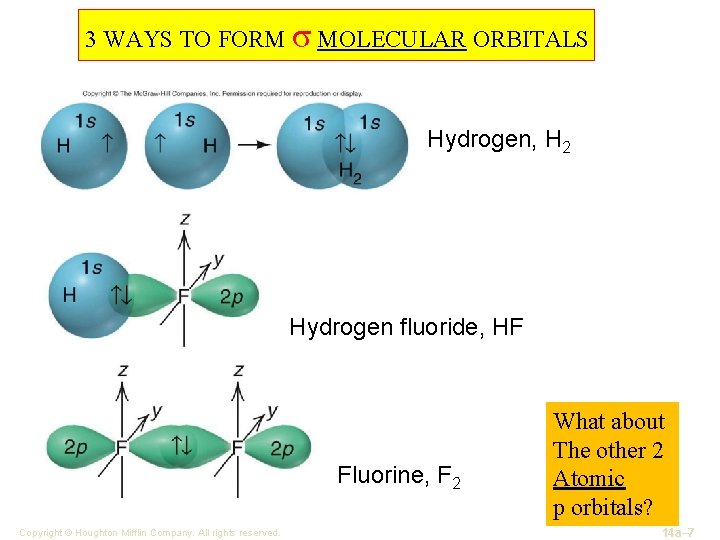

3 WAYS TO FORM σ MOLECULAR ORBITALS Hydrogen, H 2 Hydrogen fluoride, HF Fluorine,

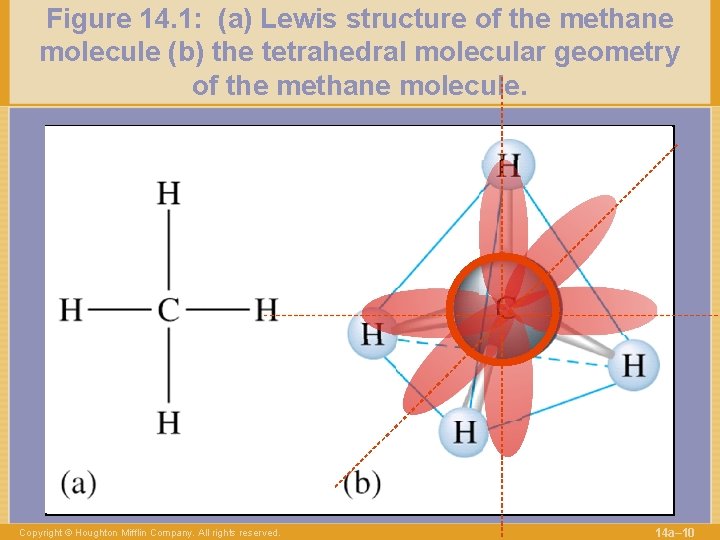

Figure 14. 1: (a) Lewis structure of the methane molecule (b) the tetrahedral molecular

Figure 14. 2: valence orbitals on a free carbon atom Copyright © Houghton Mifflin

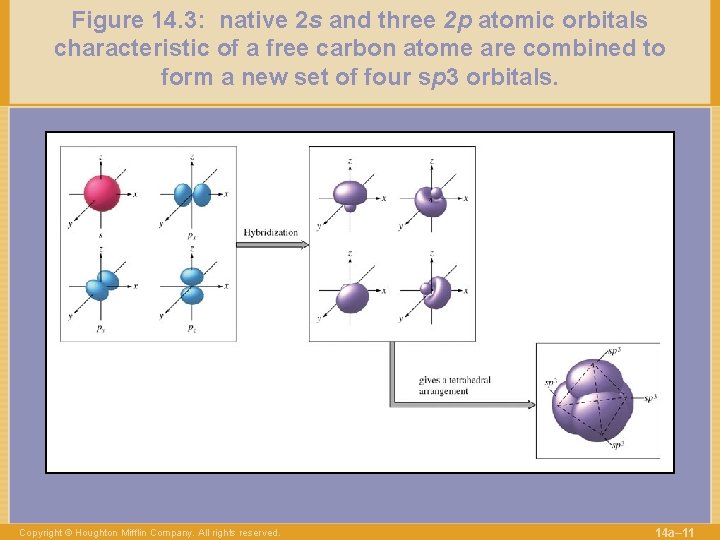

Figure 14. 3: native 2 s and three 2 p atomic orbitals characteristic of a free carbon atome are combined to form a new set of four sp 3 orbitals. Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 11

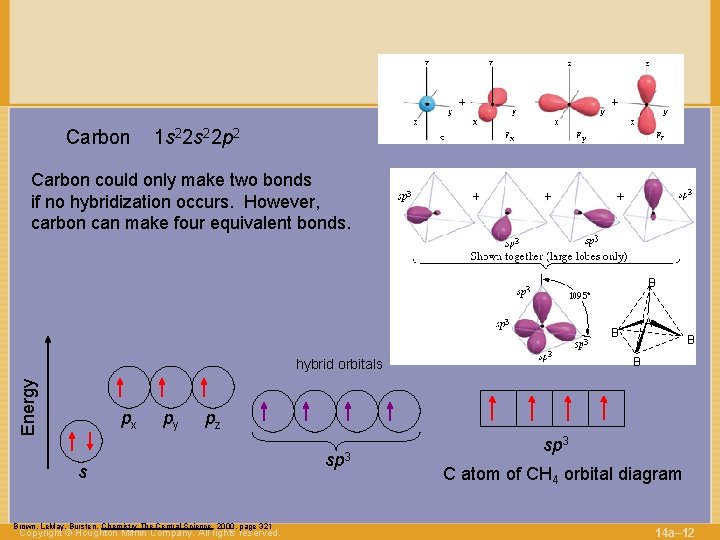

Carbon 1 s 22 p 2 Carbon could only make two bonds if no hybridization occurs. However, carbon can make four equivalent bonds. B A B B Energy hybrid orbitals px py B pz s Brown, Le. May, Bursten, Chemistry The Central Science, 2000, page 321 Copyright © Houghton Mifflin Company. All rights reserved. sp 3 C atom of CH 4 orbital diagram 14 a– 12

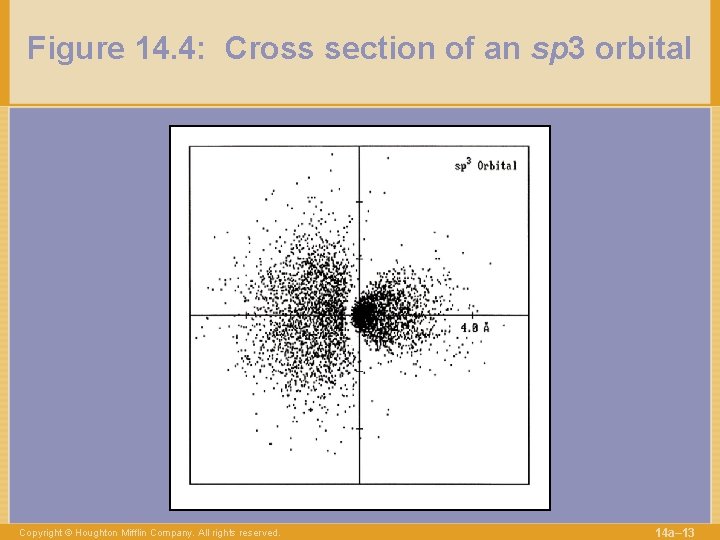

Figure 14. 4: Cross section of an sp 3 orbital Copyright © Houghton Mifflin

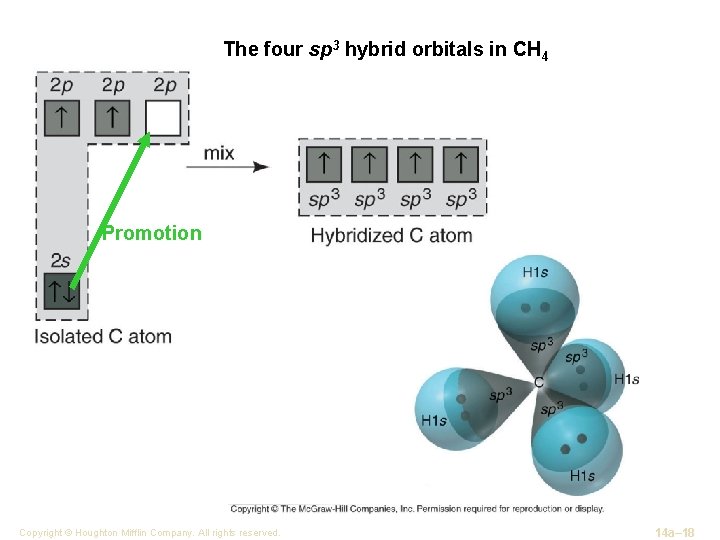

The four sp 3 hybrid orbitals in CH 4 Promotion Copyright © Houghton Mifflin

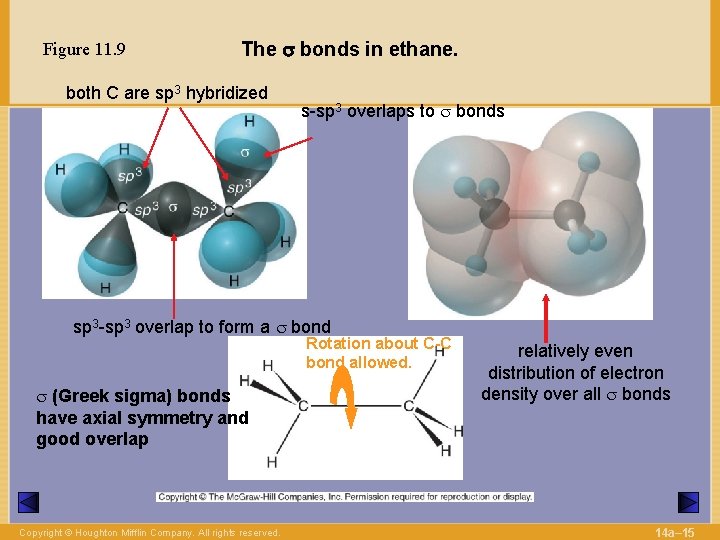

Figure 11. 9 The s bonds in ethane. both C are sp 3 hybridized s-sp 3 overlaps to s bonds sp 3 -sp 3 overlap to form a s bond Rotation about C-C bond allowed. s (Greek sigma) bonds have axial symmetry and good overlap Copyright © Houghton Mifflin Company. All rights reserved. relatively even distribution of electron density over all s bonds 14 a– 15

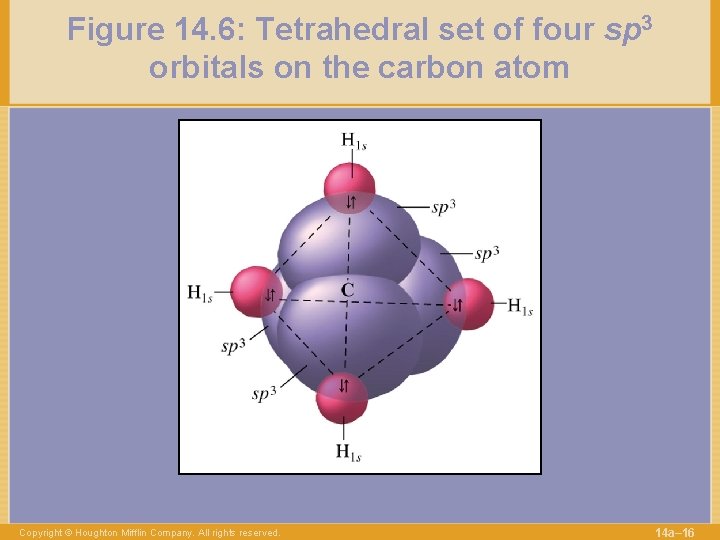

Figure 14. 6: Tetrahedral set of four sp 3 orbitals on the carbon atom

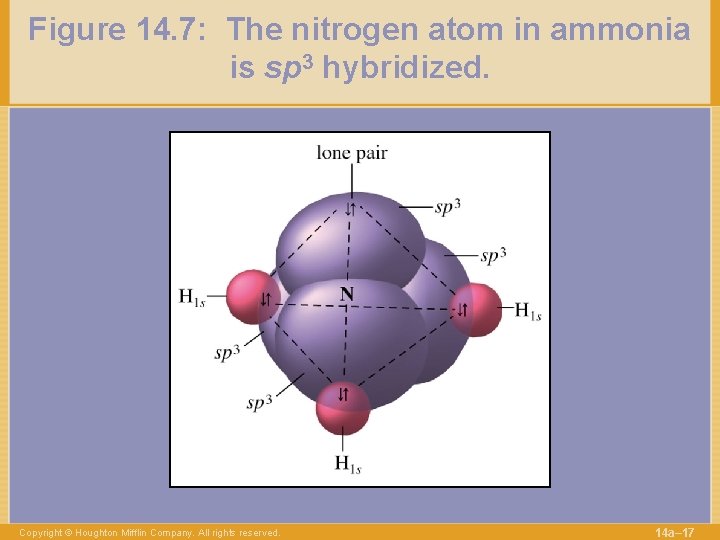

Figure 14. 7: The nitrogen atom in ammonia is sp 3 hybridized. Copyright ©

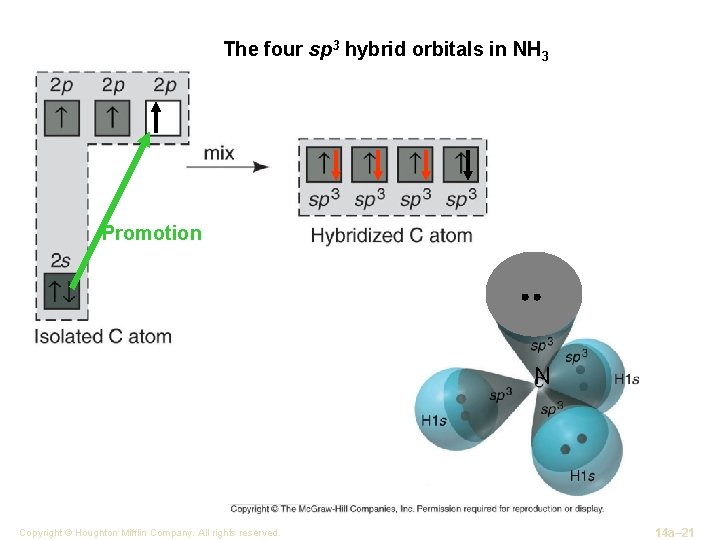

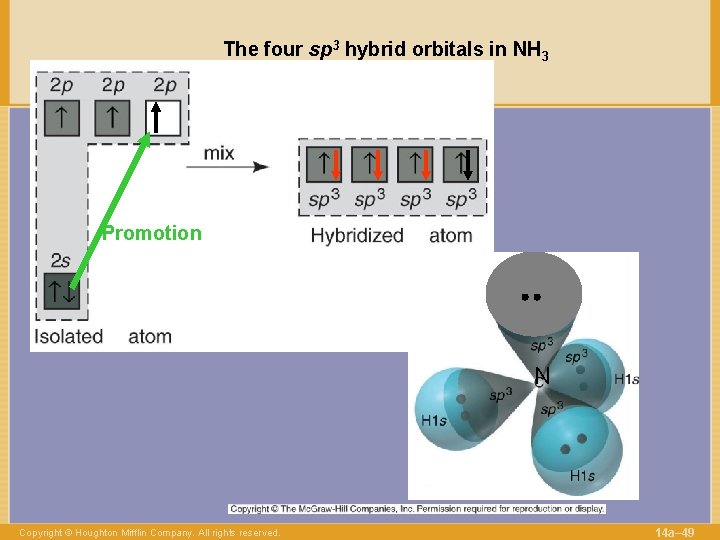

The four sp 3 hybrid orbitals in NH 3 Promotion N Copyright © Houghton

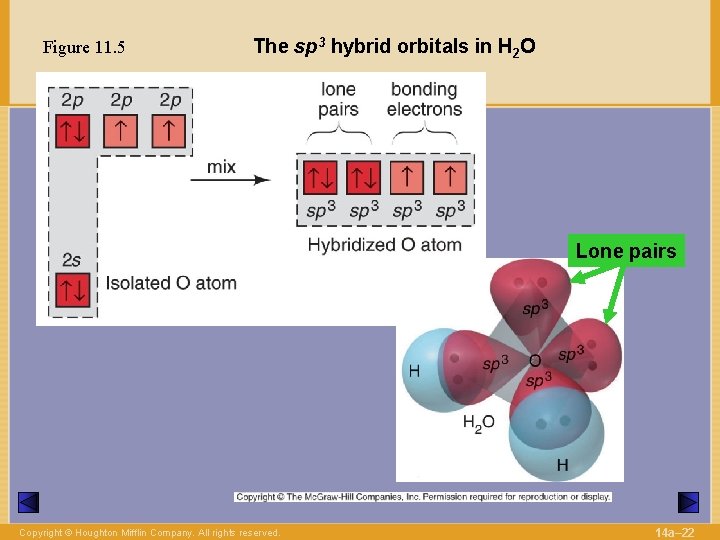

Figure 11. 5 The sp 3 hybrid orbitals in H 2 O Lone pairs

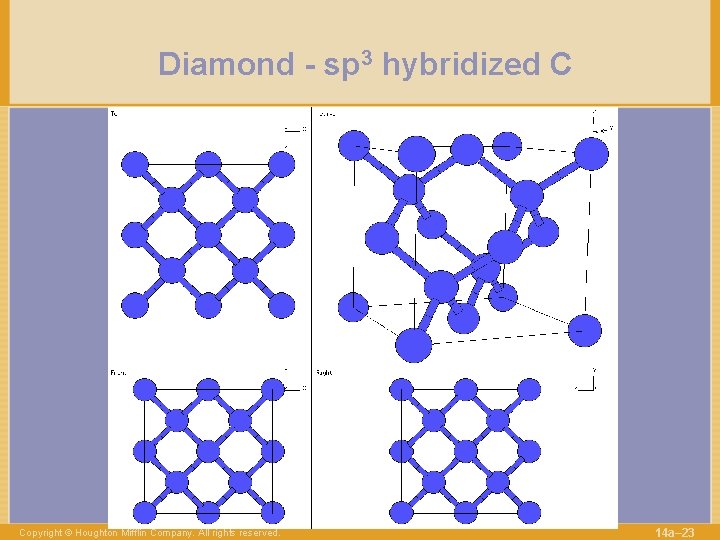

Diamond - sp 3 hybridized C Copyright © Houghton Mifflin Company. All rights reserved.

Figure 14. 8: The hybridization of the s, px, and py atomic orbitals results in the formation of three sp 2 orbitals centered in the xy plane. NB: The remaining p orbital can be empty or serve another function Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 24

The three sp 2 hybrid orbitals in BF 3 Promotion Note the single left

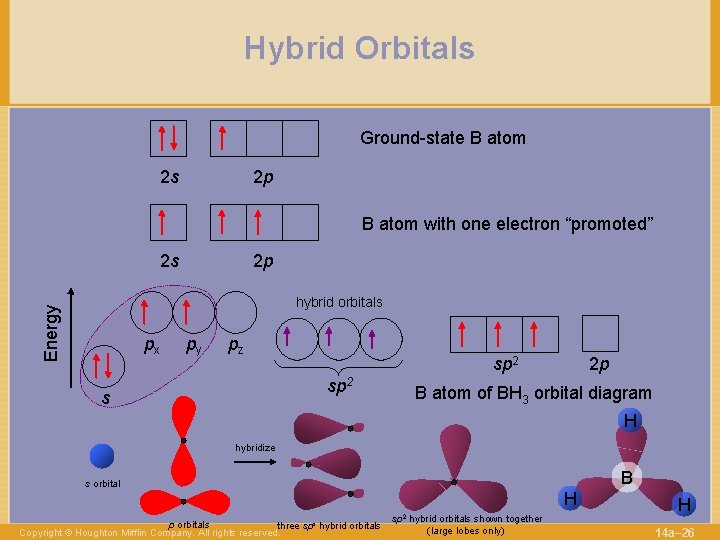

Hybrid Orbitals Ground-state B atom 2 s 2 p B atom with one electron “promoted” 2 s 2 p Energy hybrid orbitals px py pz sp 2 s 2 p B atom of BH 3 orbital diagram H hybridize B s orbital p orbitals three sps hybrid orbitals Copyright © Houghton Mifflin Company. All rights reserved. H sp 2 hybrid orbitals shown together (large lobes only) H 14 a– 26

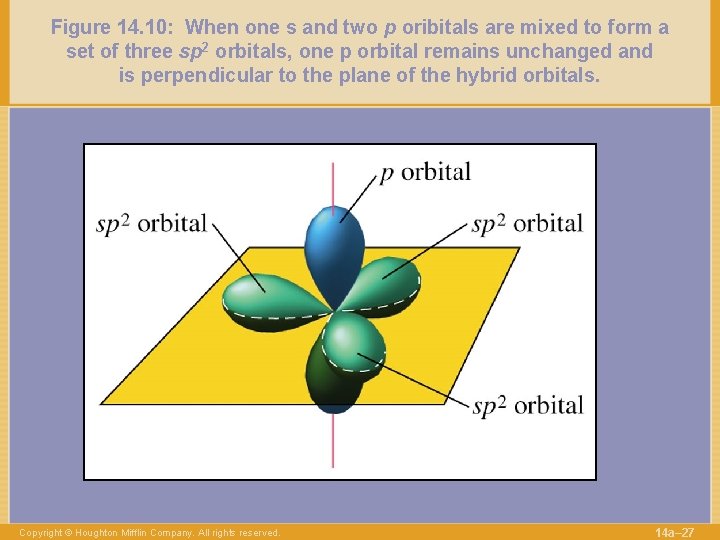

Figure 14. 10: When one s and two p oribitals are mixed to form a set of three sp 2 orbitals, one p orbital remains unchanged and is perpendicular to the plane of the hybrid orbitals. Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 27

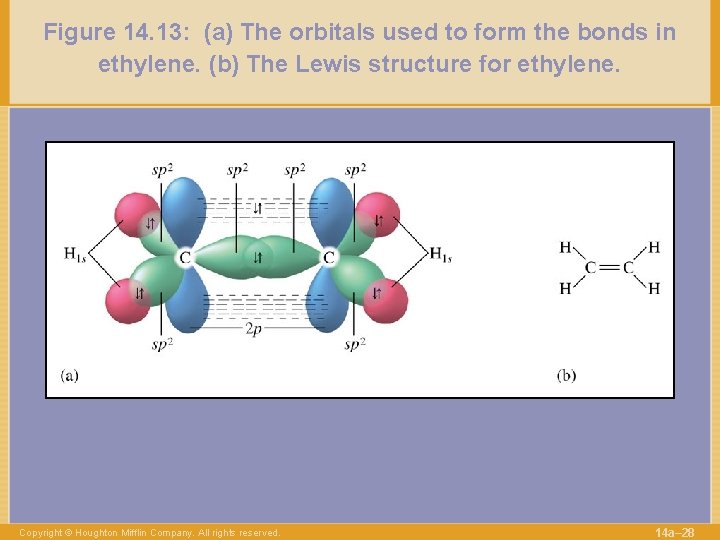

Figure 14. 13: (a) The orbitals used to form the bonds in ethylene. (b)

The plastics shown here were manufactured with ethylene. Source: Comstock - Mountainside, NJ Copyright

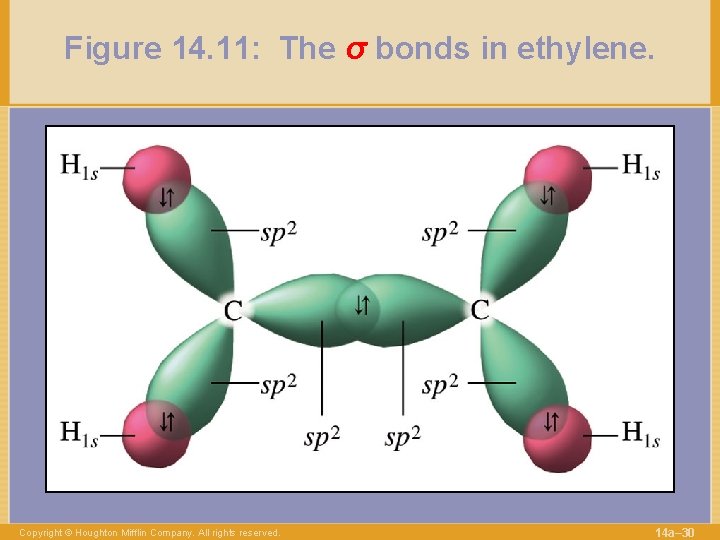

Figure 14. 11: The σ bonds in ethylene. Copyright © Houghton Mifflin Company. All

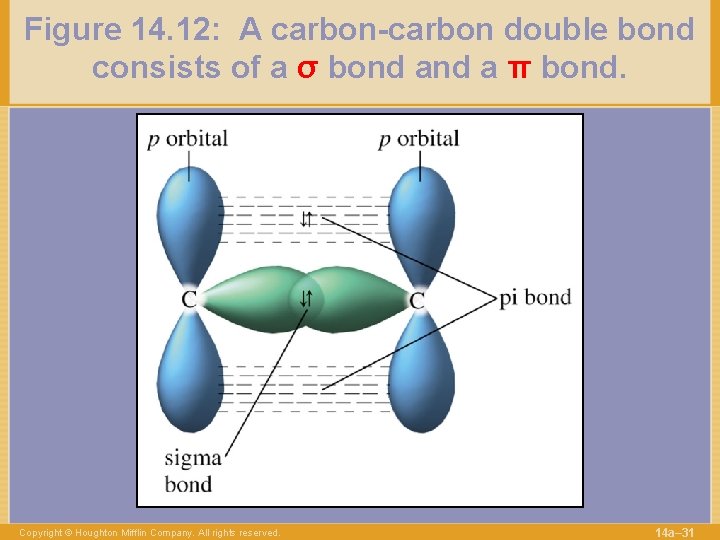

Figure 14. 12: A carbon-carbon double bond consists of a σ bond a π

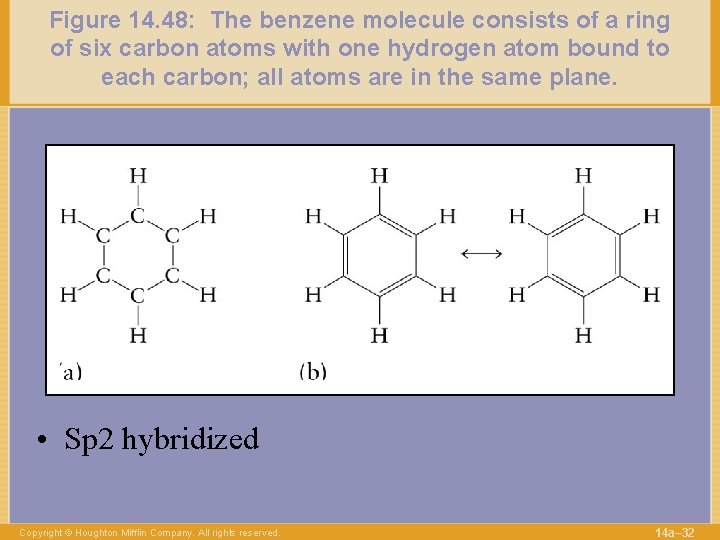

Figure 14. 48: The benzene molecule consists of a ring of six carbon atoms with one hydrogen atom bound to each carbon; all atoms are in the same plane. • Sp 2 hybridized Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 32

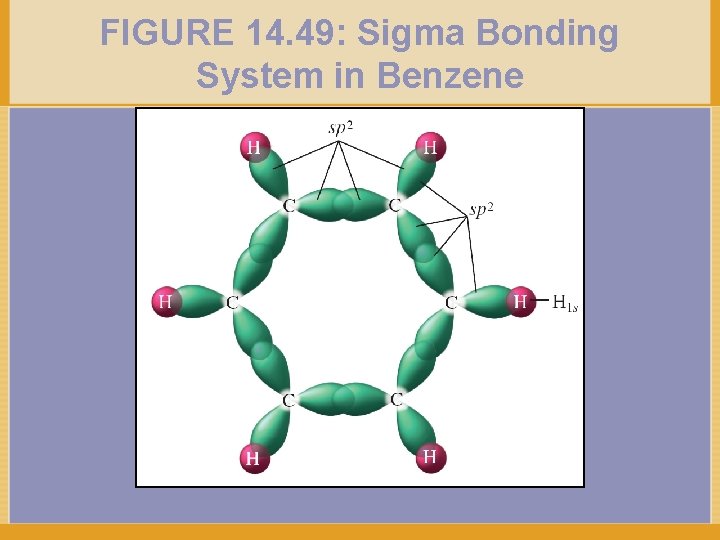

FIGURE 14. 49: Sigma Bonding System in Benzene

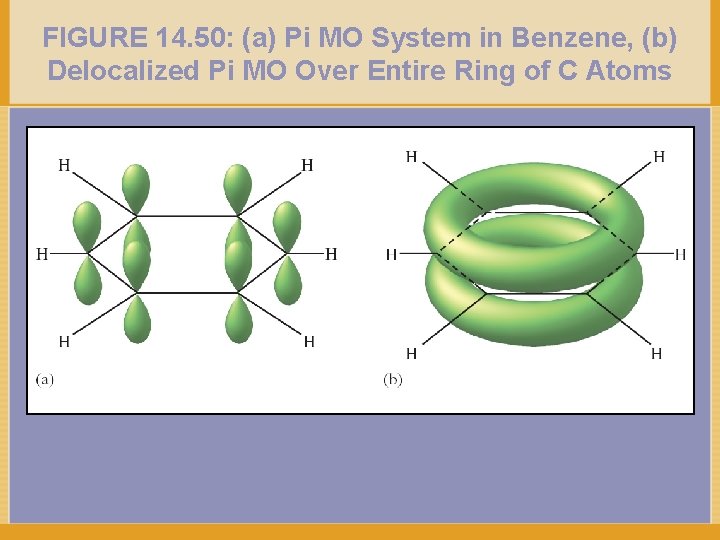

FIGURE 14. 50: (a) Pi MO System in Benzene, (b) Delocalized Pi MO Over Entire Ring of C Atoms

Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 35

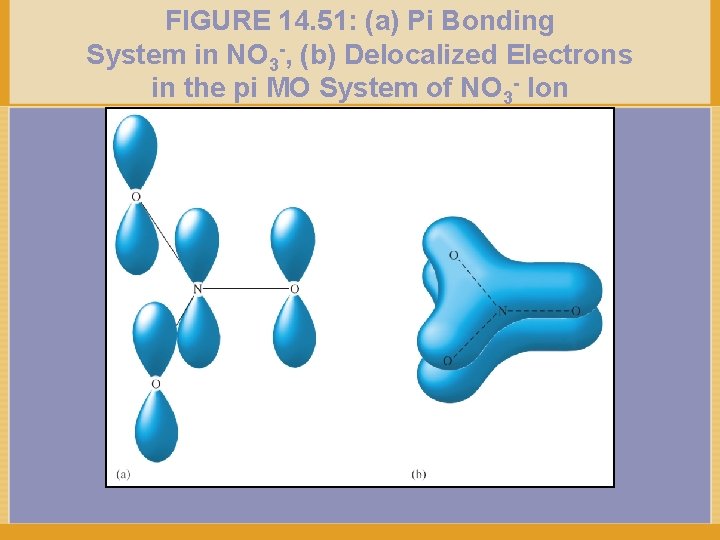

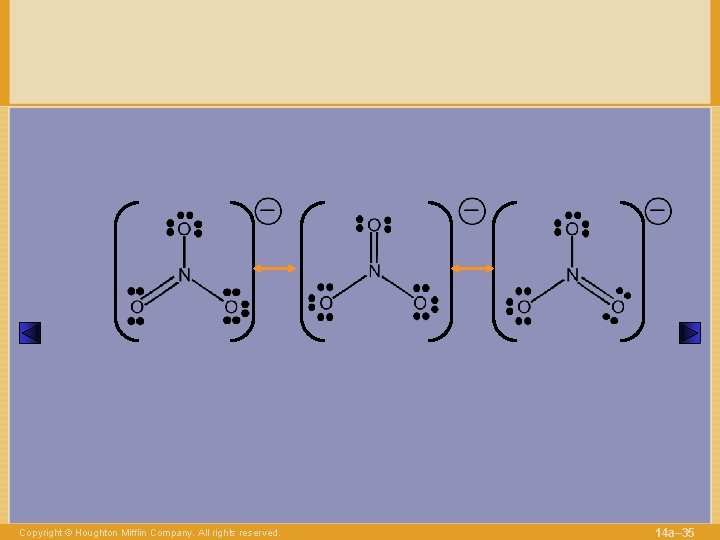

FIGURE 14. 51: (a) Pi Bonding System in NO 3 -, (b) Delocalized Electrons in the pi MO System of NO 3 - Ion

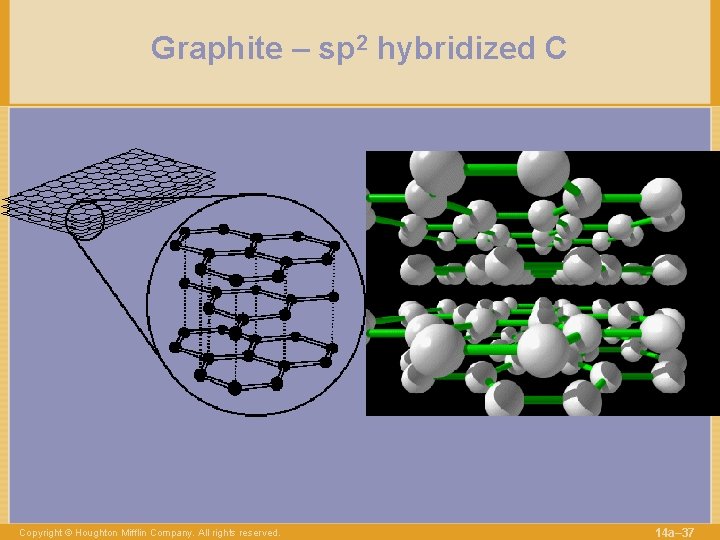

Graphite – sp 2 hybridized C Copyright © Houghton Mifflin Company. All rights reserved.

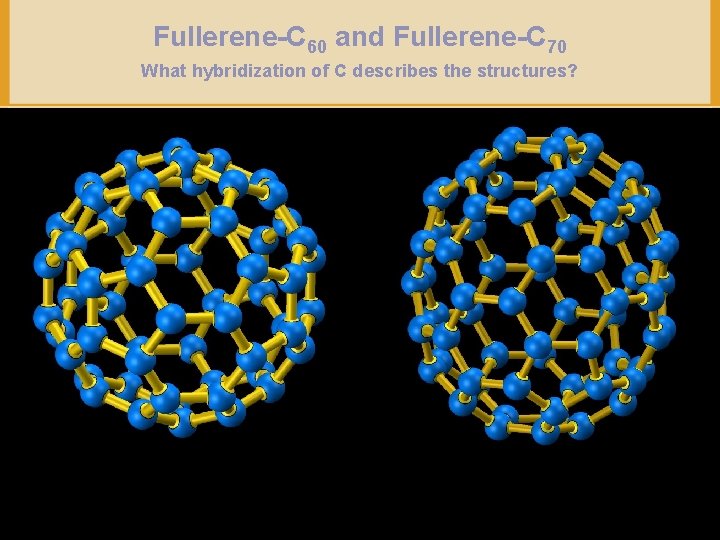

Fullerene-C 60 and Fullerene-C 70 What hybridization of C describes the structures? Copyright ©

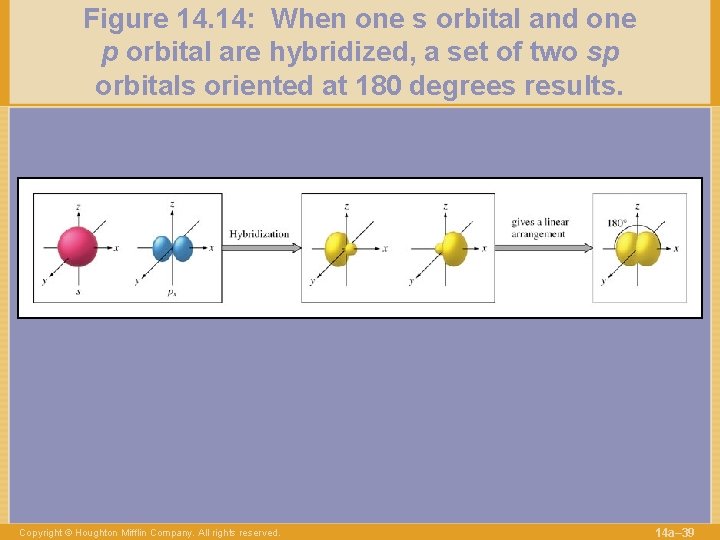

Figure 14. 14: When one s orbital and one p orbital are hybridized, a

The sp hybrid orbitals in gaseous Be. Cl 2 Promote to create two half filled orbitals that participate in bond formation Promotion Filled 2 s orbital can’t bond to Cl Why are sp hybrids invoked? Because if Be made one bond with its 2 s and one bond with a 2 p orbital, then the two Be-Cl bonds would have different strengths & lengths. But both bonds are identical. Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 40

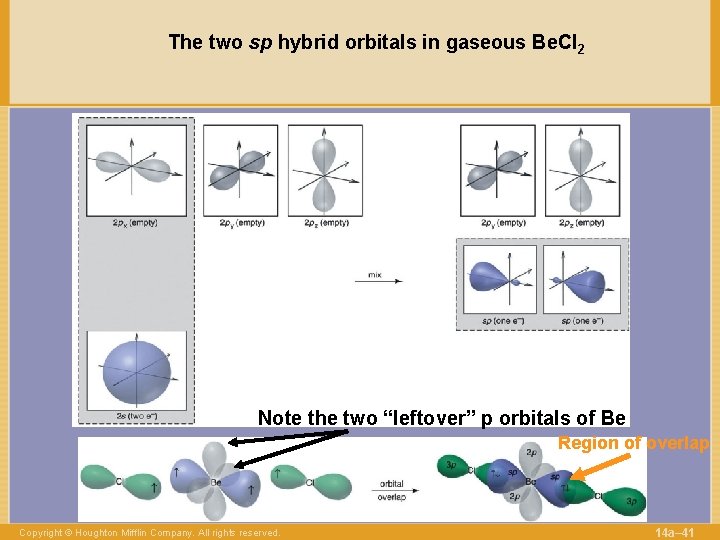

The two sp hybrid orbitals in gaseous Be. Cl 2 Note the two “leftover”

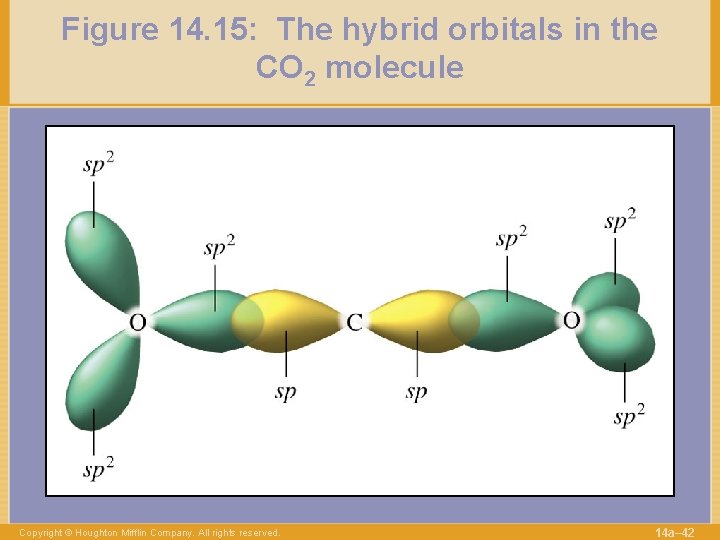

Figure 14. 15: The hybrid orbitals in the CO 2 molecule Copyright © Houghton

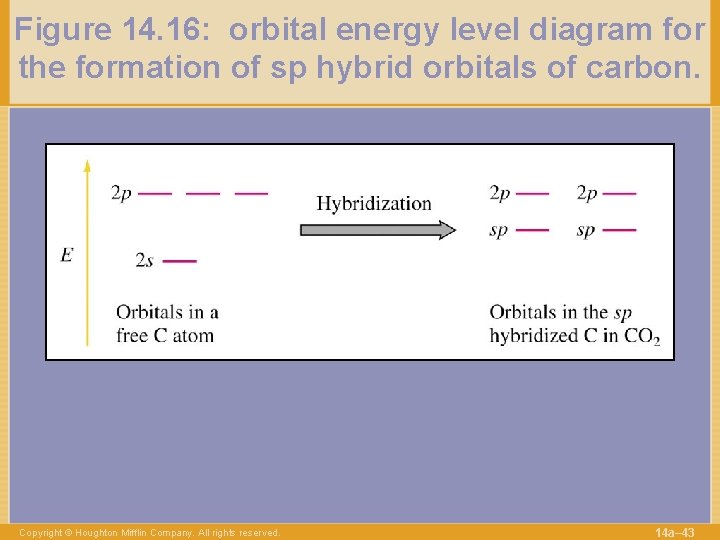

Figure 14. 16: orbital energy level diagram for the formation of sp hybrid orbitals

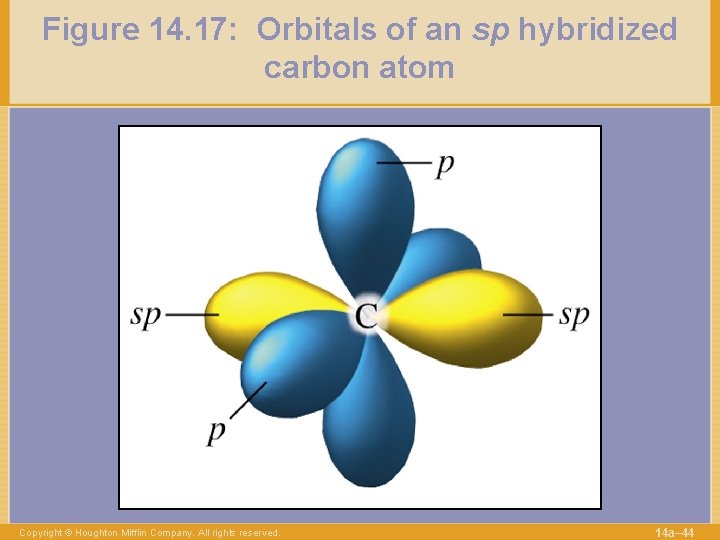

Figure 14. 17: Orbitals of an sp hybridized carbon atom Copyright © Houghton Mifflin

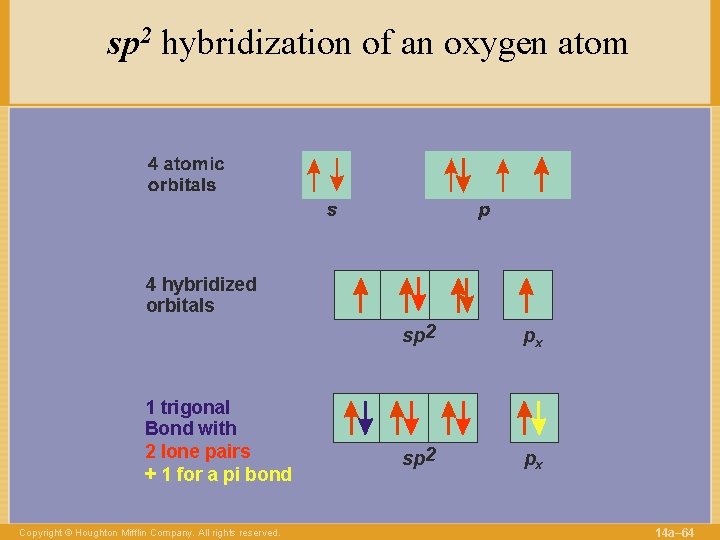

sp 2 hybridization of an oxygen atom 4 hybridized orbitals 1 trigonal Bond with

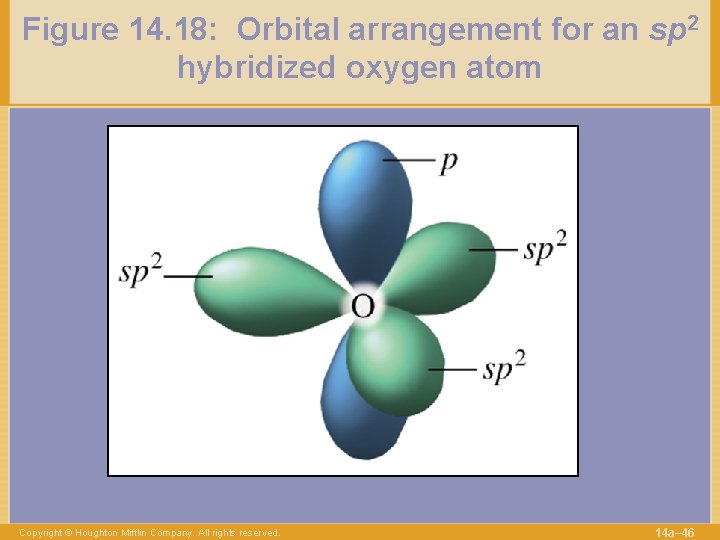

Figure 14. 18: Orbital arrangement for an sp 2 hybridized oxygen atom Copyright ©

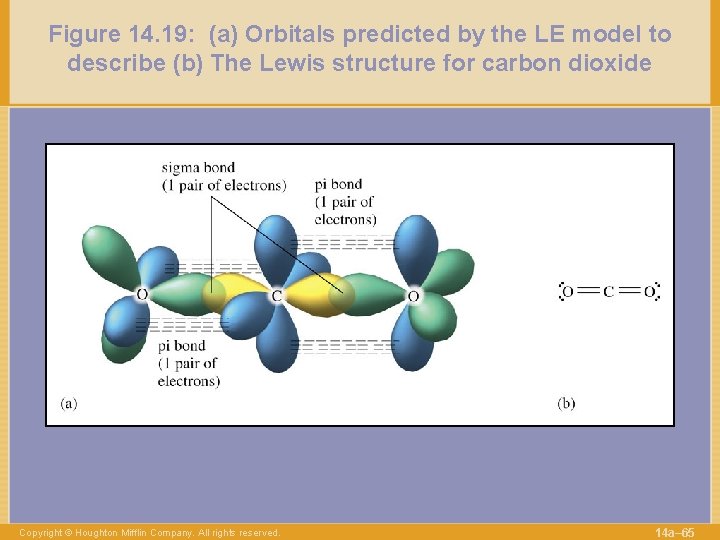

Figure 14. 19: (a) Orbitals predicted by the LE model to describe (b) The

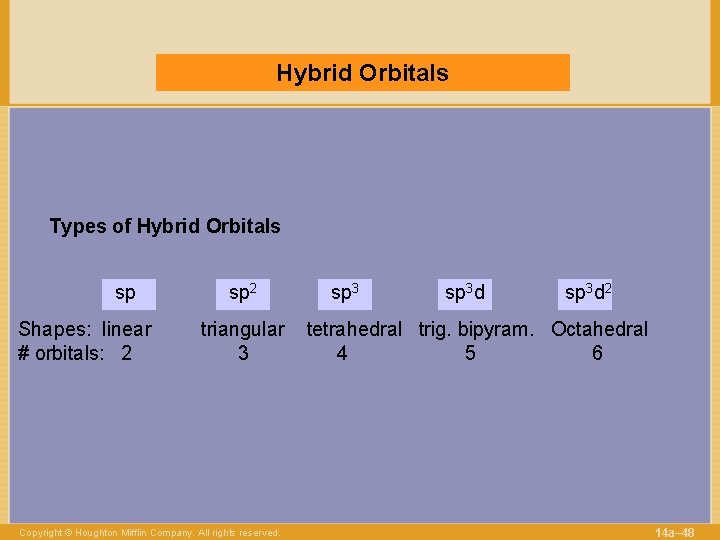

Hybrid Orbitals Types of Hybrid Orbitals sp Shapes: linear # orbitals: 2 sp 2 triangular 3 Copyright © Houghton Mifflin Company. All rights reserved. sp 3 d 2 tetrahedral trig. bipyram. Octahedral 4 5 6 14 a– 48

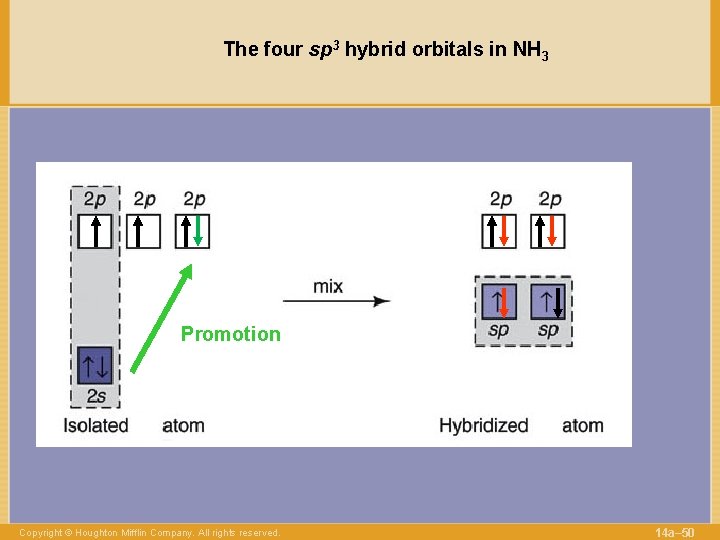

The four sp 3 hybrid orbitals in NH 3 Promotion Copyright © Houghton Mifflin

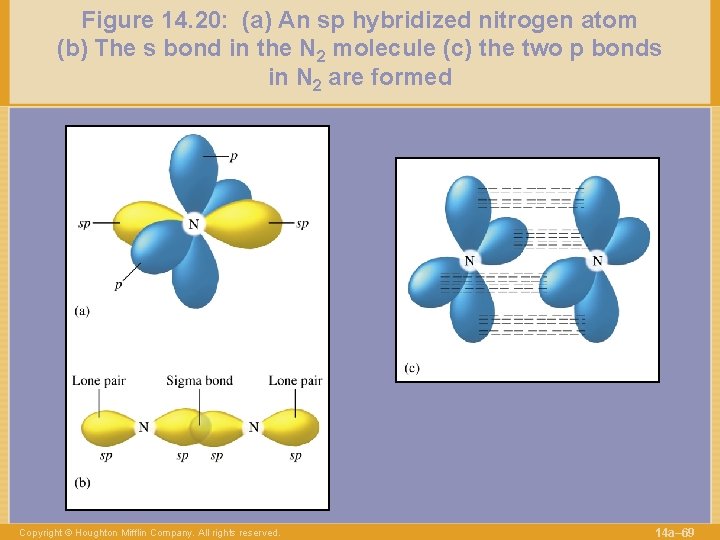

Figure 14. 20: (a) An sp hybridized nitrogen atom (b) The s bond in

The conceptual steps from molecular formula to the hybrid orbitals used in bonding. Step 1 Molecular formula Step 2 Lewis structure Copyright © Houghton Mifflin Company. All rights reserved. Step 3 Molecular shape and e- group arrangement Hybrid orbitals 14 a– 52

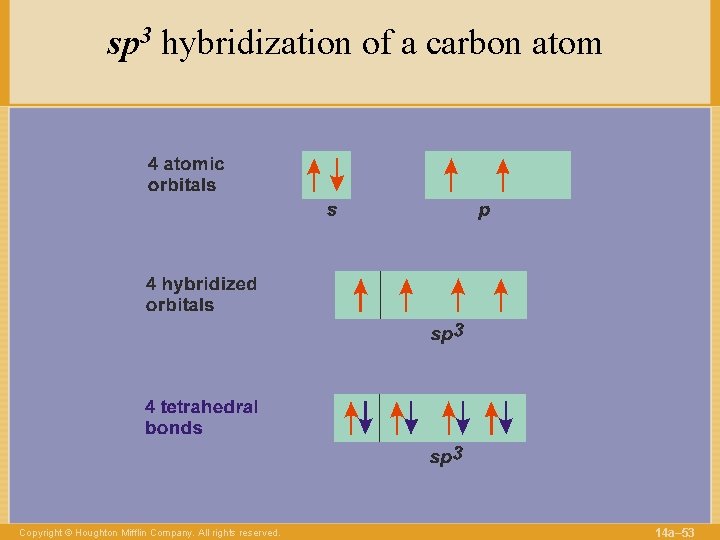

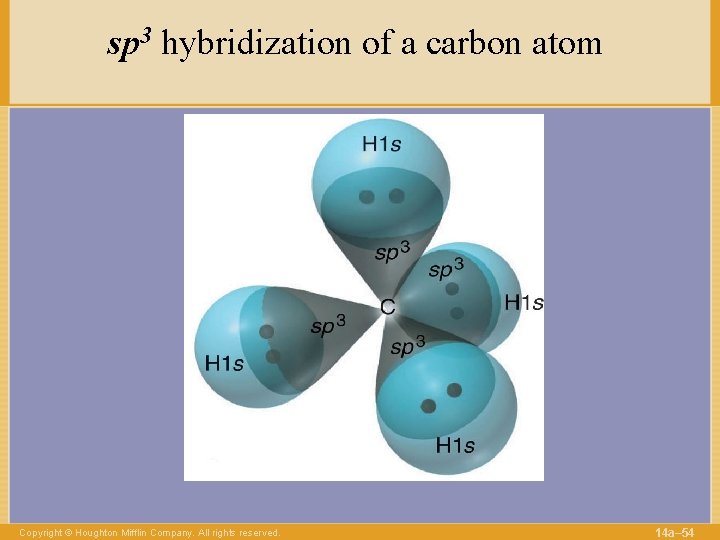

sp 3 hybridization of a carbon atom Copyright © Houghton Mifflin Company. All rights

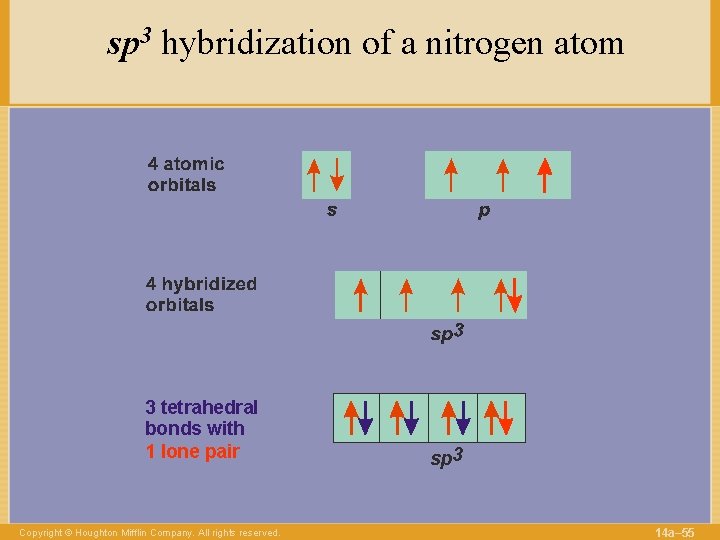

sp 3 hybridization of a nitrogen atom 3 tetrahedral bonds with 1 lone pair

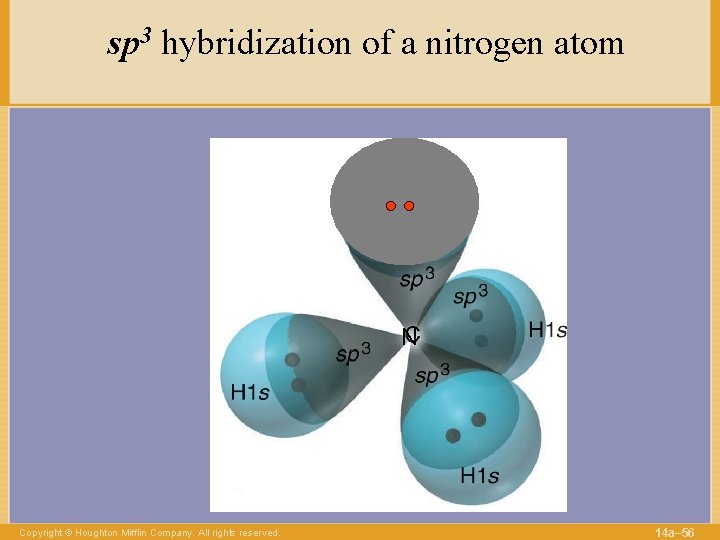

sp 3 hybridization of a nitrogen atom N Copyright © Houghton Mifflin Company. All

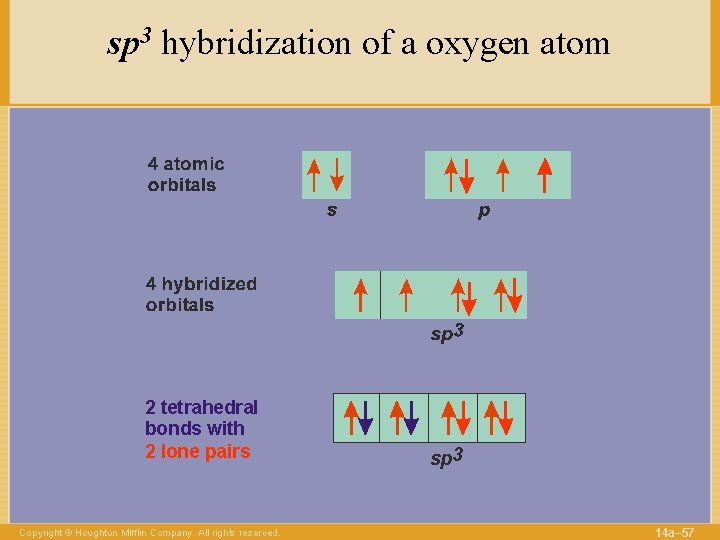

sp 3 hybridization of a oxygen atom 2 tetrahedral bonds with 2 lone pairs

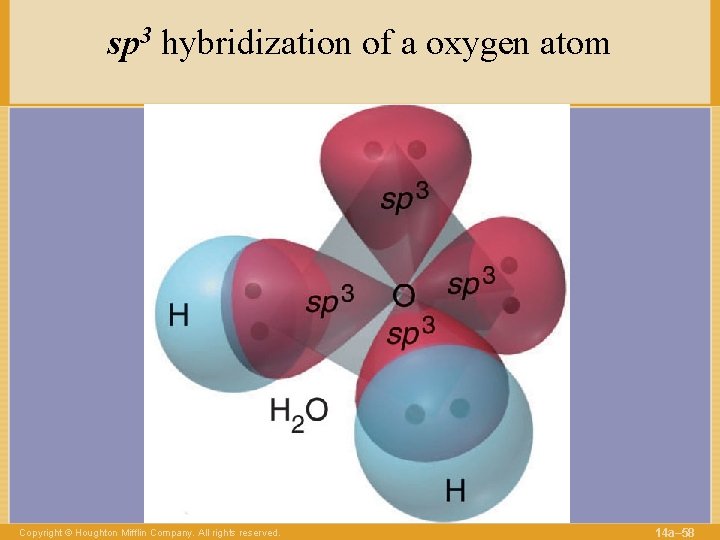

sp 3 hybridization of a oxygen atom Copyright © Houghton Mifflin Company. All rights

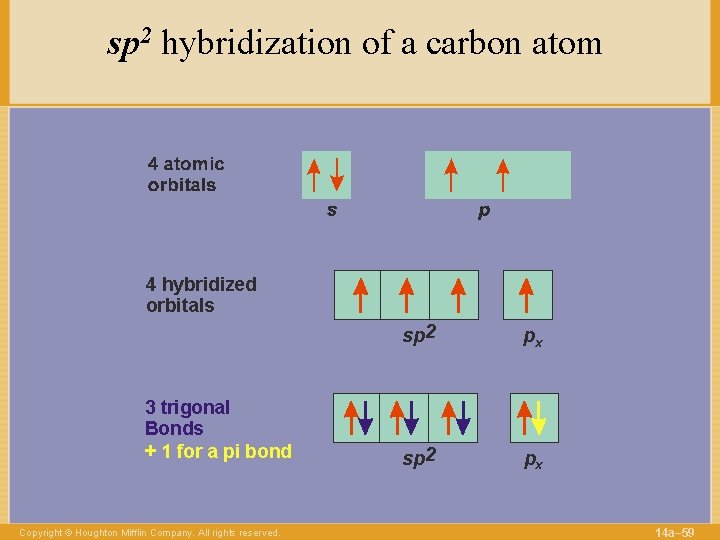

sp 2 hybridization of a carbon atom 4 hybridized orbitals 3 trigonal Bonds +

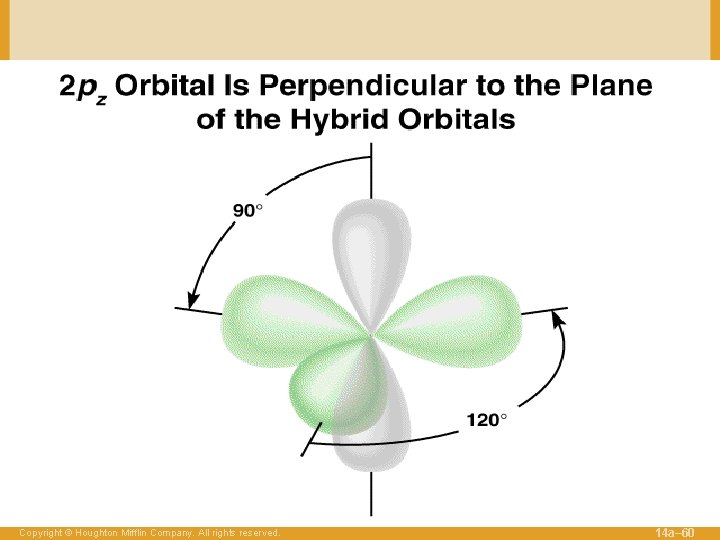

Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 60

Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 61

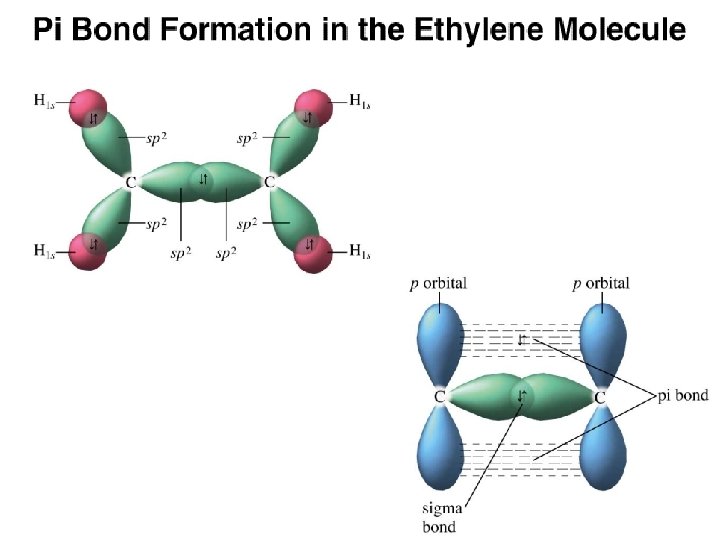

Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 62

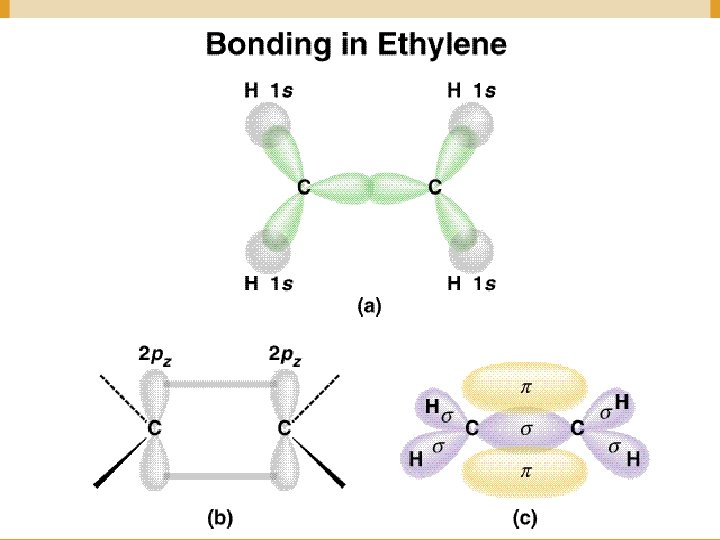

Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 63

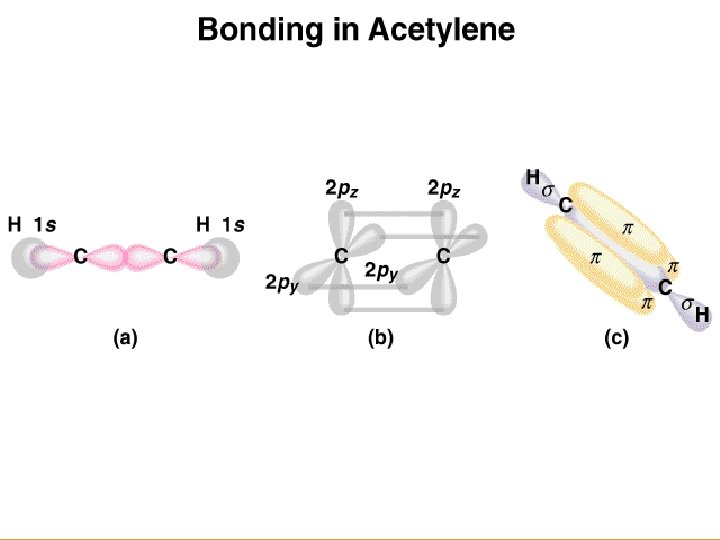

sp hybridization of a carbon atom 4 hybridized orbitals 2 linear bonds + 2

Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 67

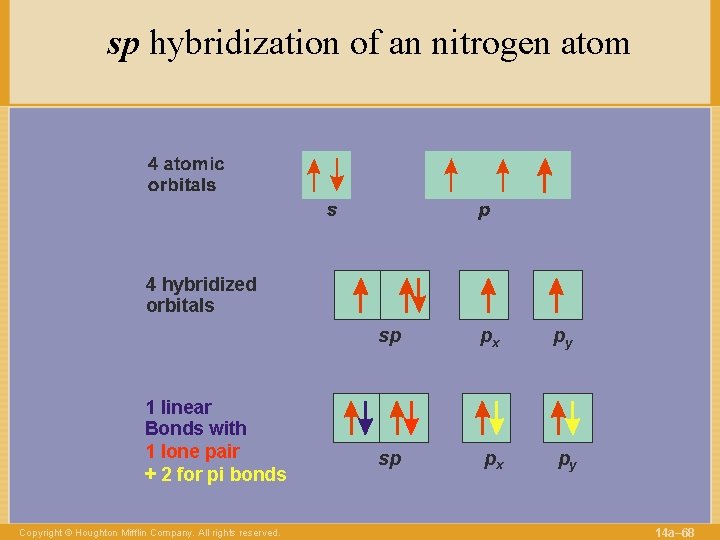

sp hybridization of an nitrogen atom 4 hybridized orbitals 1 linear Bonds with 1

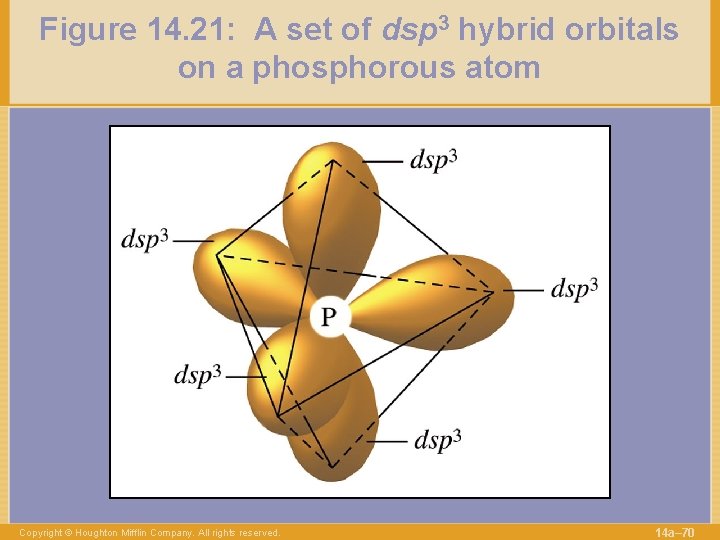

Figure 14. 21: A set of dsp 3 hybrid orbitals on a phosphorous atom

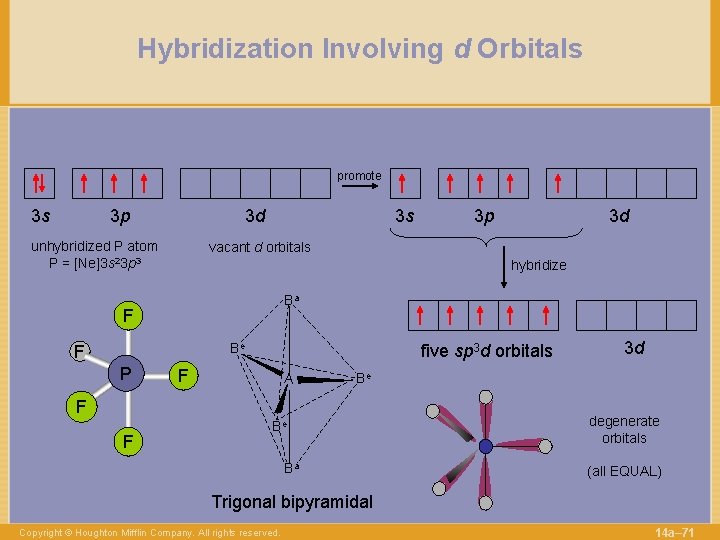

Hybridization Involving d Orbitals promote 3 s 3 p 3 d unhybridized P atom P = [Ne]3 s 23 p 3 3 s hybridize Ba Be F five sp 3 d orbitals F A 3 d Be F F 3 d vacant d orbitals F P 3 p Be Ba degenerate orbitals (all EQUAL) Trigonal bipyramidal Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 71

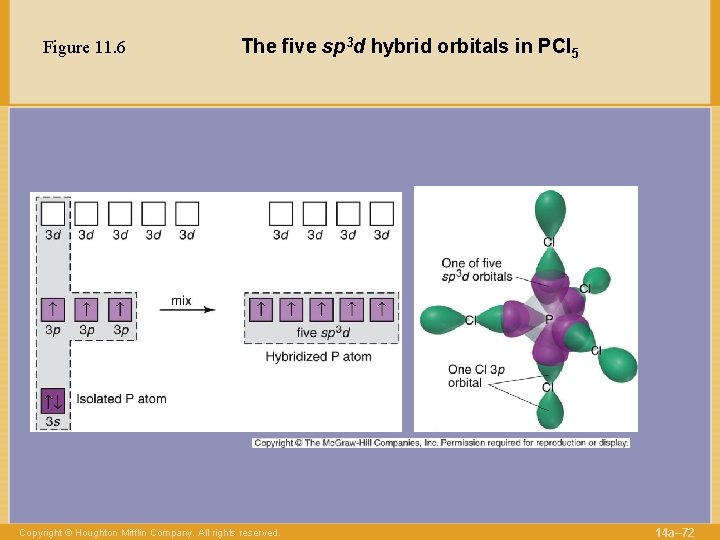

Figure 11. 6 The five sp 3 d hybrid orbitals in PCl 5 Copyright

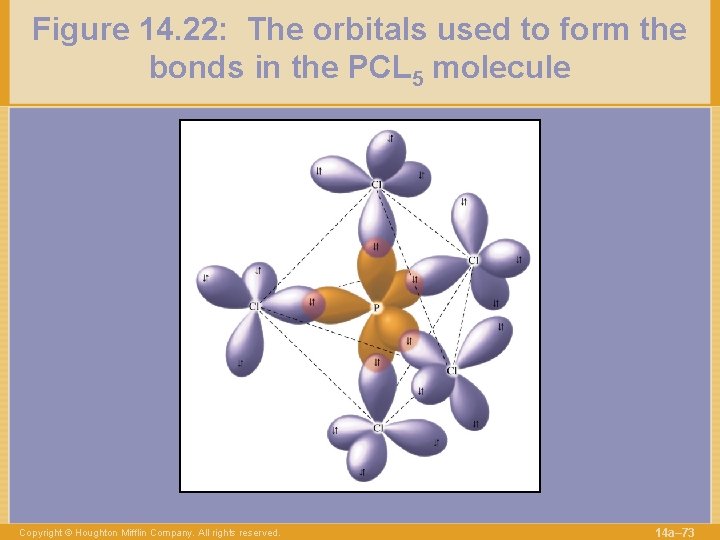

Figure 14. 22: The orbitals used to form the bonds in the PCL 5

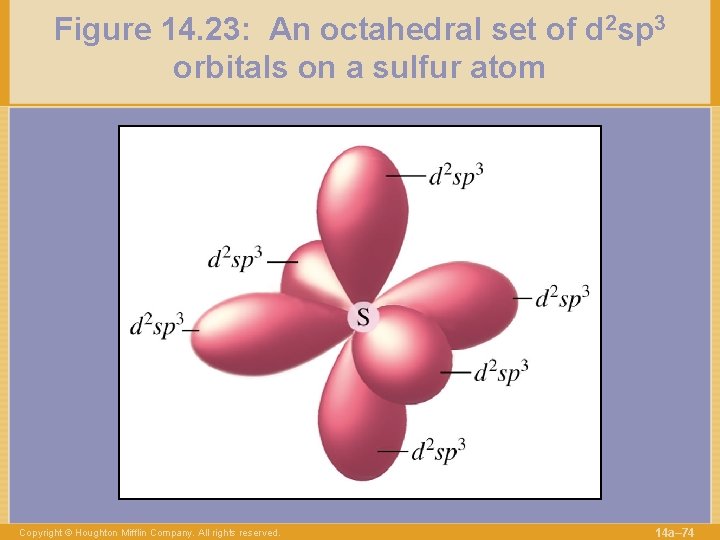

Figure 14. 23: An octahedral set of d 2 sp 3 orbitals on a

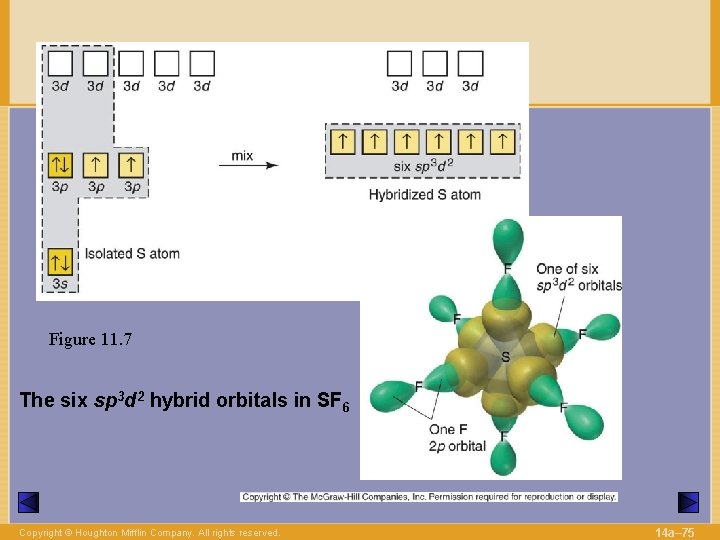

Figure 11. 7 The six sp 3 d 2 hybrid orbitals in SF 6

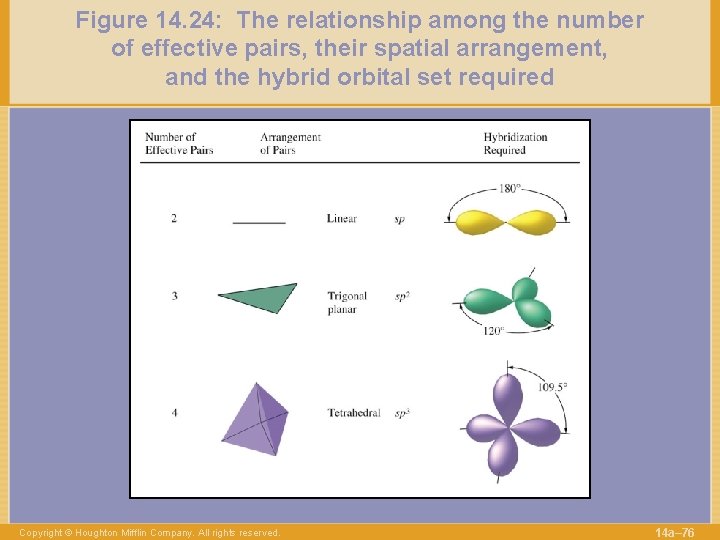

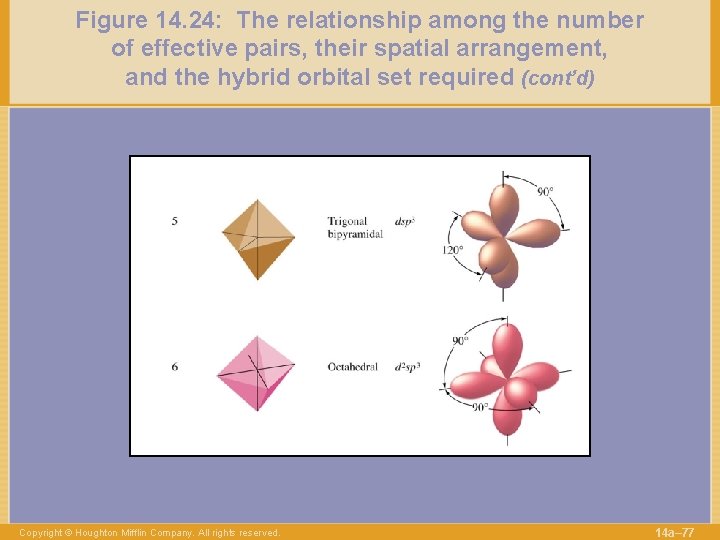

Figure 14. 24: The relationship among the number of effective pairs, their spatial arrangement, and the hybrid orbital set required (cont’d) Copyright © Houghton Mifflin Company. All rights reserved. 14 a– 77

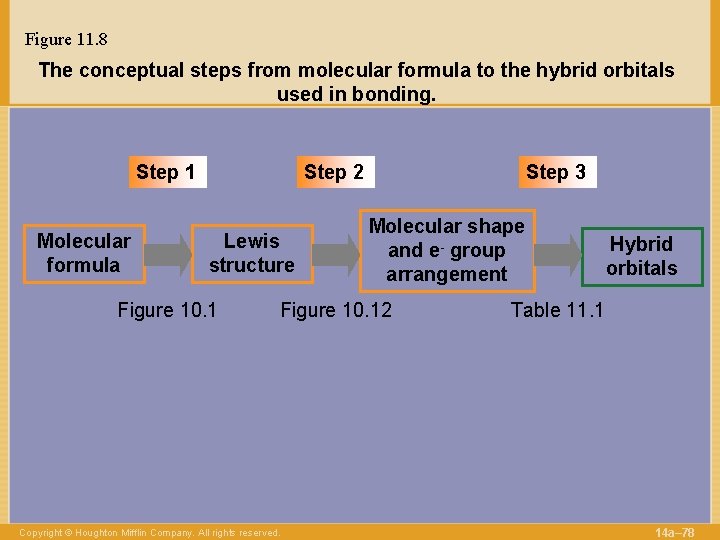

Figure 11. 8 The conceptual steps from molecular formula to the hybrid orbitals used in bonding. Step 1 Molecular formula Step 2 Lewis structure Figure 10. 1 Step 3 Molecular shape and e- group arrangement Figure 10. 12 Copyright © Houghton Mifflin Company. All rights reserved. Hybrid orbitals Table 11. 1 14 a– 78
