Course Description Parallel Computer Architecture 12232021 courseeleg 652
- Slides: 27
Course Description: Parallel Computer Architecture 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 1
Reading List Slides: Topic 1 x Henn&Patt: Chapter 1 Culler. Singh 98: Chapter 1 Other assigned readings from homework and classes 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 2

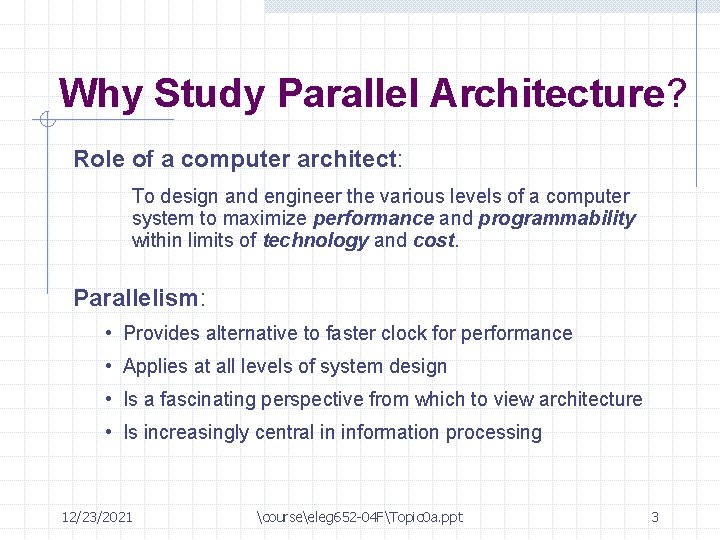

Why Study Parallel Architecture? Role of a computer architect: To design and engineer the various levels of a computer system to maximize performance and programmability within limits of technology and cost. Parallelism: • Provides alternative to faster clock for performance • Applies at all levels of system design • Is a fascinating perspective from which to view architecture • Is increasingly central in information processing 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 3
Inevitability of Parallel Computing Application demands Technology Trends Architecture Trends Economics 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 4
Application Trends Demand for cycles fuels advances in hardware, and vice-versa Range of performance demands Goal of applications in using parallel machines: Speedup Productivity requirement 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 5
Summary of Application Trends Transition to parallel computing has occurred for scientific and engineering computing In rapid progress in commercial computing Desktop also uses multithreaded programs, which are a lot like parallel programs Demand for improving throughput on sequential workloads Demand on productivity 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 6
Technology: A Closer Look Basic advance is decreasing feature size ( ) n Clock rate improves roughly proportional to improvemen in n Number of transistors improves like (or faster) Performance > 100 x per decade; clock rate 10 x, rest transistor count How to use more transistors? n n n Parallelism in processing Locality in data access Both need resources, so tradeoff 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt Proc $ Interconnect 7
• 30% per year Clock Frequency Growth Rate 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 8
Transistor Count Growth Rate • 1 billion transistors on chip in early 2000’s A. D. • Transistor count grows much faster than clock rate - 40% per year, order of magnitude more contribution in 2 decades 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 9
Similar Story for Storage Divergence between memory capacity and speed more pronounced Larger memories are slower n Need deeper cache hierarchies Parallelism and locality within memory systems Disks too: Parallel disks plus caching 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 10
Moore’s Law and Headcount Along with the number of transistors, the effort and headcount required to design a microprocessor has grown exponentially 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 11
Architectural Trends Architecture: performance and capability Tradeoff between parallelism and locality n Current microprocessor: 1/3 compute, 1/3 cache, 1/3 off-chip connect Understanding microprocessor architectural trends Four generations of architectural history: tube, transistor, IC, VLSI 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 12
Technology Progress Overview Processor speed improvement: 2 x per year (since 85). 100 x in last decade. DRAM Memory Capacity: 2 x in 2 years (since 96). 64 x in last decade. DISK capacity: 2 x per year (since 97). 250 x in last decade. 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 13
Motorola’s Power. PC 604 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt Pentium 14
12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 15
Technology Progress Overview Processor speed improvement: 2 x per year (since 85). 100 x in last decade. DRAM Memory Capacity: 2 x in 2 years (since 96). 64 x in last decade. DISK capacity: 2 x per year (since 97). 250 x in last decade. 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 16
Summary: Parallel Architecture? Increasingly attractive n Economics, technology, architecture, application Parallelism exploited at many levels Same story from memory system perspective Wide range of parallel architectures make sense 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 17
12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 18
12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 19
12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 20
12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 21
12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 22
The Earth Simulator Machine in Japan Earth Simulator (2002) n Max 40 TFLOPS n No. 1 in TOP 500 list n General purpose n Parallel vector processors n 400 M$(development) 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 23
12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 24
HPC Architecture Vector Processor ⇒ 1976~ (CRAY-1) Parallel Processors ⇒ 1985~ MPU Cluster、Grid ⇒ 1997~ (CM-1) (ASCI-RED) massively PP ⇒ 2008~ 2010 (DARPA-HPCS machines GRAPE-DR Blue. Gene/L BG/C 64 ) 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 25
Cluster computer of commodity MPU ⇒ 1997~ ASCI Project n n n ASCI-Q 20 TFLOPS(2003) ASCI-Purple 100 TFLOPS(2005) OLNL project (2004) 8, 192 CPUs、 12, 544 CPUs Limitation of current cluster n n Low utilization of CPU due to high-latency in interconnection No automatic parallelization Limitation by size and power n ASCI-Purple (12, 544 CPUs) w 3 MW ASCI-Q 20 TFLOPS 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 26
New generation parallel systems 2008~ ⇒ IBM Blue. Gene/L Project (360 TFLOPS、2005) High density parallel processor (65, 536 CPU chips in 64 racks、 131, 072 processors) IBM Blue. Gene/C 64 Project (1. 1 PFlops, 2007 ? ) n HPCS Project n IBM PERCS n Cray Cascade n SUN Hero project IBM Blue Gene/L w 12/23/2021 courseeleg 652 -04 FTopic 0 a. ppt 27
