Counters Dr. Rebhi S. Baraka rbaraka@iugaza. edu Logic Design (CSCI 2301) Department of Computer Science Faculty of Information Technology The Islamic University of Gaza

Outline • • • Asynchronous Counter Operation Synchronous Counter Operation Up/Down Synchronous Counters Design of Synchronous Counter Application

Asynchronous Counter Operation • A 2 -Bit Asynchronous Binary Counter – FF 0 is triggered by the clock; at the positive going edge of. – FF 1 is triggered by the Q 0 output of FF 0; at the positive going transition.

Timing diagram for the 2 -bit counter.

• A 3 -Bit Asynchronous Binary Counter – FF 0 is triggered by the clock; at the positive going edge of. – FF 1 is triggered by the Q 0 output of FF 0; at the positive going transition. – FF 2 is triggered by the Q 1 output of FF 1; at the positive going transition.

3 -bit asynchronous binary counter and its timing diagram for one cycle.

• A 4 -Bit Asynchronous Binary Counter – FF 0 is triggered by the clock; at the positive going edge of. – FF 1 is triggered by the Q 0 output of FF 0; at the positive going transition. – FF 2 is triggered by the Q 1 output of FF 1; at the positive going transition. – FF 3 is triggered by the Q 2 output of FF 2; at the positive going transition.

Four-bit asynchronous binary counter and its timing diagram.

Asynchronous Decade Counters • These counters have 10 states in their sequence. • A decade counter of states from 0000 to 1001 is called a BCD decade counter. • Since the counter would have 16 states, it is forces to recycle before going through all of its possible state. • The BCD decade counter is recycled to 0000 after the 1001 state. – This is done as shown in the next slide by decoding count 1010 with an NAND gate and – connecting the output of the NAND gate to the clear inputs of the flip-flops. • What is Partial decoding? – Two unique states (in this case) are sufficient to decode the count of ten.

An asynchronously clocked decade counter with asynchronous recycling.

Synchronous Counter Operation • 2 -Bit Synchronous Binary Counter – Both flip-flops are triggered by the clock. – FF 0 is in the toggle mode. – The J and K inputs of FF 1 are having 00 or 11 depending on Q 0

Timing diagram for the 2 -bit synchronous counter.

Timing details for the 2 -bit synchronous counter operation (the propagation delays of both flip-flops are assumed to be equal).

3 -bit synchronous binary counter

4 -bit synchronous binary counter

Synchronous BCD decade counter • J 0 = K 0 = 1 • J 1 = K 1 = Q 0 Q 3 • J 2 = K 2 = Q 0 Q 1 • J 3 = K 3 = Q 0 Q 1 Q 2 + Q 0 Q 3

Timing diagram for the BCD decade counter (Q 0 is the LSB).

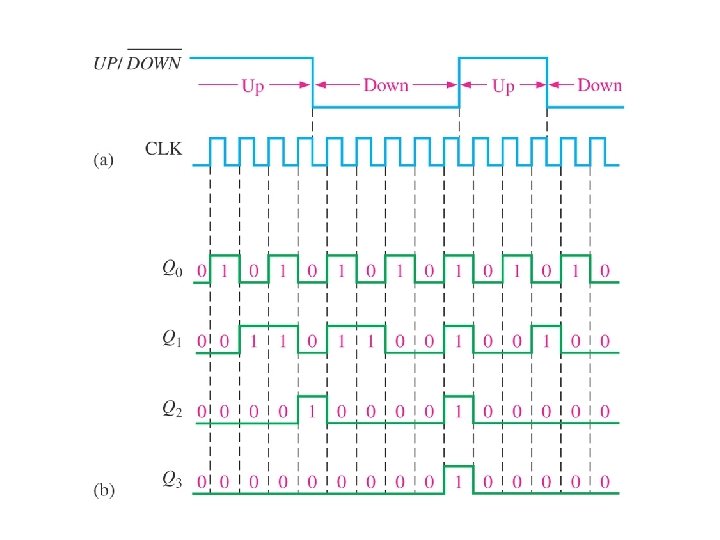

Up/Down Synchronous Counters • Called also bidirectional counter • It is capable of progressing in either direction up or down in a certain sequence • We study 3 -bit up/down synchronous counter

3 -bit up/down synchronous counter J 0 = K 0 = 1 J 1 = K 1 = Q 0·UP + Q 0·DOWN J 2 = K 2 = Q 0 Q 1·UP + Q 0·Q 1·DOWN

A basic 3 -bit up/down synchronous counter.

Design of Sequential Circuit • A sequential circuit (state machine) consists of a combinational logic section and a memory section (flip-flops).

Design of Sequential Circuit • The information in the memory and the inputs to them combinational logic are required for the operation of the circuit. • Not all sequential circuits are required to have inputs and outputs. • All sequential circuits have excitation variables and state variables.

Design Procedure for Sequential Circuits as Applied to Counters • Steps: – State diagram – Next-State Table – Transition Table – Karnaugh Maps – Input Logic – Implementation

State Diagram State diagram for a 3 -bit Gray code counter.

Next-State Table Examples of the mapping procedure for the counter sequence represented.

Karnaugh maps for present-state J and K inputs.

Three-bit Gray code counter.

Example: Designing a counter with the irregular binary sequence 1 -> 2 -> 5 -> 7 We work this example entirely on the black board.

These slides are based on Digital Fundamentals 9 th ed. By Thomas Floyd End of the slides
