Countering Kernel Rootkits with Lightweight Hook Protection Zhi

Countering Kernel Rootkits with Lightweight Hook Protection Zhi Wang, Xuxian Jiang, Weidong Cui, Peng Ning 16 th ACM Conference on Computer and Communications Security (CCS), November 2009 Presentation by Rajiv Marothu

Outline n n n n Introduction Example scenario Traditional Defense Mechanisms Motivation Design and Implementation Performance Closing Remarks University of Central Florida

Introduction - Kernel Space n n n The core of Operating System resides Can be accessed through systems calls Similar to running in real mode assembly language University of Central Florida

Introduction - Hooking n Definition - Hook ¨ n Function pointers, return addresses, e. g. ext 3_dir_operations->readdir Definition - Hooking ¨ Techniques used to alter or augment the behavior of an operating system, of applications, or of other software components by intercepting function calls or messages or events passed between software components. University of Central Florida

Introduction - Rootkits n n Rootkit is a software program designed to gain control over a system or network. Hide presence and activities ¨ n Hijack control by modifying kernel spaces Rootkits can not only hide their presence but also tamper with OS functionalities to launch various attacks. Opening backdoors ¨ Stealing private information ¨ Escalating privileges of malicious processes ¨ Disable defense mechanisms ¨ University of Central Florida

Example (TDL 4 Rootkit) n n n From the Rootkit. Win 32. TDSS family Installs in Master Boot Record Runs before the Operating System Blocks programs from running Delivers advertisements Google redirects Source: Google/images University of Central Florida

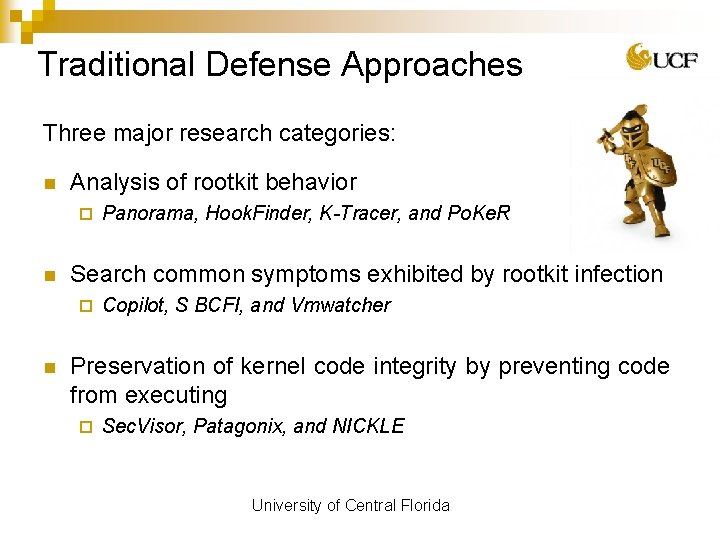

Traditional Defense Approaches Three major research categories: n Analysis of rootkit behavior ¨ n Search common symptoms exhibited by rootkit infection ¨ n Panorama, Hook. Finder, K-Tracer, and Po. Ke. R Copilot, S BCFI, and Vmwatcher Preservation of kernel code integrity by preventing code from executing ¨ Sec. Visor, Patagonix, and NICKLE University of Central Florida

Motivation n Hijacking attack on return address and function pointers n In addition to the preservation of kernel code integrity, it is also equally important to safeguard relevant kernel control data n By preserving the kernel control flow integrity, it enables the system to block out all rootkit infections in the first place. University of Central Florida

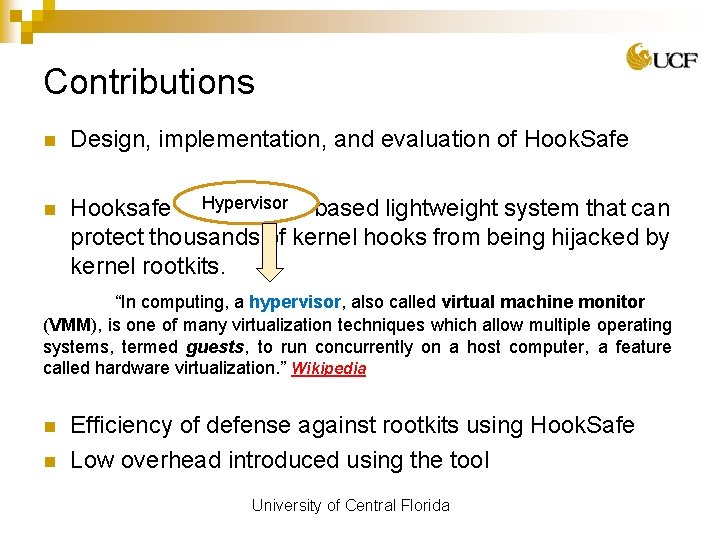

Contributions n Design, implementation, and evaluation of Hook. Safe n Hypervisor Hooksafe - Hypervisor-based lightweight system that can protect thousands of kernel hooks from being hijacked by kernel rootkits. “In computing, a hypervisor, also called virtual machine monitor (VMM), is one of many virtualization techniques which allow multiple operating systems, termed guests, to run concurrently on a host computer, a feature called hardware virtualization. ” Wikipedia n n Efficiency of defense against rootkits using Hook. Safe Low overhead introduced using the tool University of Central Florida

Hook Safe n Challenge: Protection granularity gap Hook protection requires byte granularity ¨ Hardware only provides page level protection ¨ n Kernel hooks (function pointers), after initialized have frequent read access, less write access n Move hooks to page-aligned memory and protect with traditional page protection ¨ n Any write access can be monitored Small overhead effect University of Central Florida

Experiment n They analyzed a typical Ubuntu 8. 04 server using a whole emulator called QEMU. n They used 5881 Linux Kernel Hooks n They found that these Kernel hooks are scattered across 41 Pages and some of them located in dynamic kernel heap University of Central Florida

Hooks per Page Histogram Fig: Distribution of Kernel hooks in running Ubuntu system University of Central Florida

Pages and Page Processing Fundamental to use non-continuous memory blocks n Creates a mapping between a physical and virtual address, n n Provides virtual RAM Source: http: //www. answers. com/topic/page-table University of Central Florida

Problems Overview n Classification of kernel rootkits Kernel Object Hooking (KOH) - hijack kernel control flow ¨ Dynamic Kernel Object Manipulation (DKOM) - modify dynamic data objects ¨ n n Majority of kernel rootkits are KOH rootkits (96%) KOH can gain control over kernel execution Code hooks ¨ Data hooks - most common type ¨ n n Kernel hooks are scattered across kernel space Prior techniques are not suitable for protecting significant amount of hooks University of Central Florida

Hook. Safe Architecture Fig: Hooksafe Architecture n n Offline Hook Profiler Online Hook Protector University of Central Florida

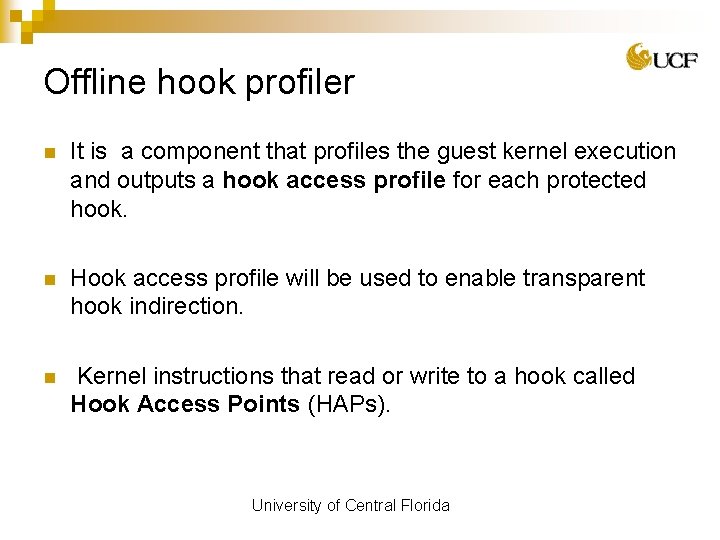

Offline hook profiler n It is a component that profiles the guest kernel execution and outputs a hook access profile for each protected hook. n Hook access profile will be used to enable transparent hook indirection. n Kernel instructions that read or write to a hook called Hook Access Points (HAPs). University of Central Florida

Offline hook profiler Static analysis n n n Dynamic analysis It is Performed on OS kernel source code, Utilize known program analysis technique to automatically collect hook access profile. More complete, but less precise. n n n Doesn’t need OS kernel source code Run the target system on the top of an emulator and monitor every memory access to derive the hook access instruction. Allow for recording precise runtime information, but less coverage University of Central Florida

Offline hook profiler Implementation n n It is based on an open source whole system emulator QEMU uses binary translation technique which rewrites guest’s binary instruction. Then records executions of instructions that read or write memories. If instruction accesses any kernel hook it is recorded as HAP and the value. At the end, collected HAP instructions and values will be compiled as corresponding hook access profile. University of Central Florida

Offline Hook Profiler Implementation n Run in emulation and hooks are recorded with set of read/write (HAPs) and values Fig: Hook access profile University of Central Florida

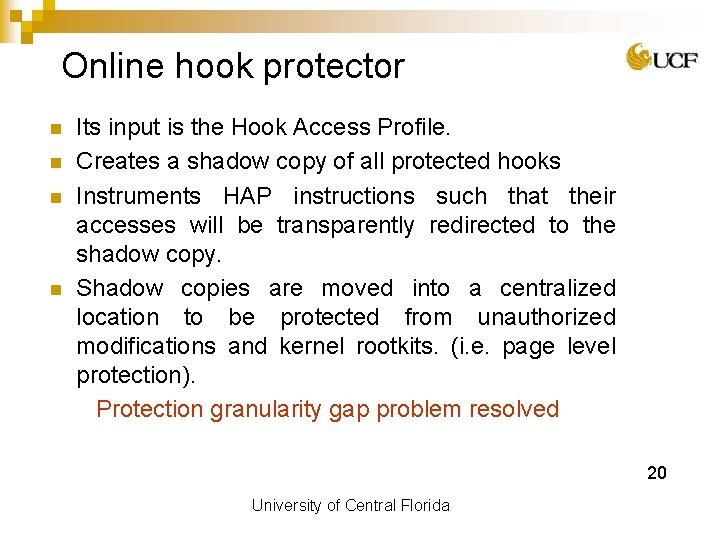

Online hook protector Its input is the Hook Access Profile. n Creates a shadow copy of all protected hooks n Instruments HAP instructions such that their accesses will be transparently redirected to the shadow copy. n Shadow copies are moved into a centralized location to be protected from unauthorized modifications and kernel rootkits. (i. e. page level protection). Protection granularity gap problem resolved n 20 University of Central Florida

Online hook protector Three processes of design: n Initialization: 1. Uses a short-lived kernel module (temporary) to create shadow copy of kernel hooks and load the code for indirection layer. 2. Use the online patching that provided by the hypervisor in order to instrument HAPs in guest kernel. 21 University of Central Florida

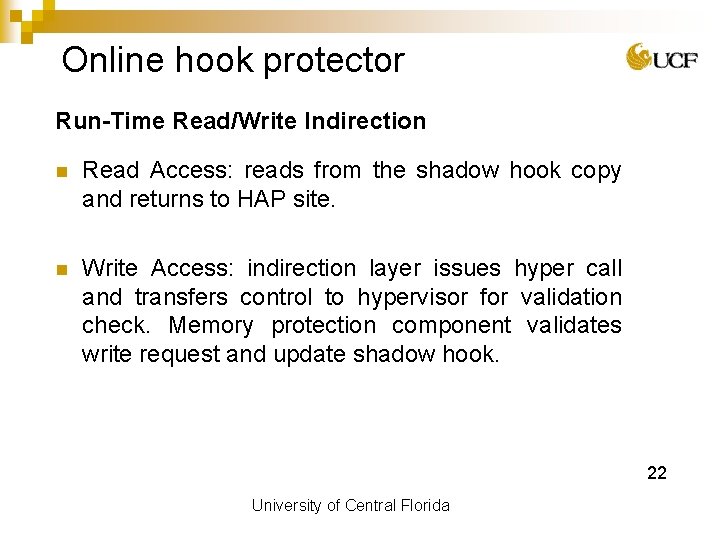

Online hook protector Run-Time Read/Write Indirection n Read Access: reads from the shadow hook copy and returns to HAP site. n Write Access: indirection layer issues hyper call and transfers control to hypervisor for validation check. Memory protection component validates write request and update shadow hook. 22 University of Central Florida

Online hook protector Run-Time Tracking of Dynamically Allocated Hooks n Dynamically Allocated Hooks are embedded in Dynamic Kernel Object. n If one such kernel object is being allocated, a hypercall will be issued to Hook. Safe to create a shadow copy of the hook n Another hypercall is triggered to remove the shadow copy when kernel object is released. 23 University of Central Florida

Online hook protector Implementation n It is developed based on Xen Hypervisor replaces the HAP instruction at runtime with ‘jmp’ instruction to allow execution flow to trampoline code in Hook indirection layer. n Trampoline code collects runtime info which is used by hook redirector to determine exact kernel hook being accessed. n After hook redirector processes the actual read or write on shadow hook, trampoline executes HAP specific overwritten instruction. 24 University of Central Florida

Online hook protector Fig: Architecture of Online Hook Protection University of Central Florida 25

Online hook protector Fig: Implementation of hook indirection 26 University of Central Florida

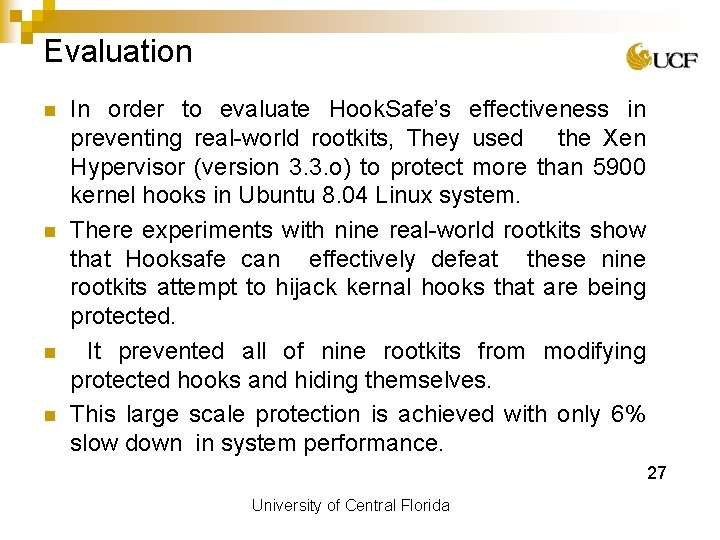

Evaluation n n In order to evaluate Hook. Safe’s effectiveness in preventing real-world rootkits, They used the Xen Hypervisor (version 3. 3. o) to protect more than 5900 kernel hooks in Ubuntu 8. 04 Linux system. There experiments with nine real-world rootkits show that Hooksafe can effectively defeat these nine rootkits attempt to hijack kernal hooks that are being protected. It prevented all of nine rootkits from modifying protected hooks and hiding themselves. This large scale protection is achieved with only 6% slow down in system performance. 27 University of Central Florida

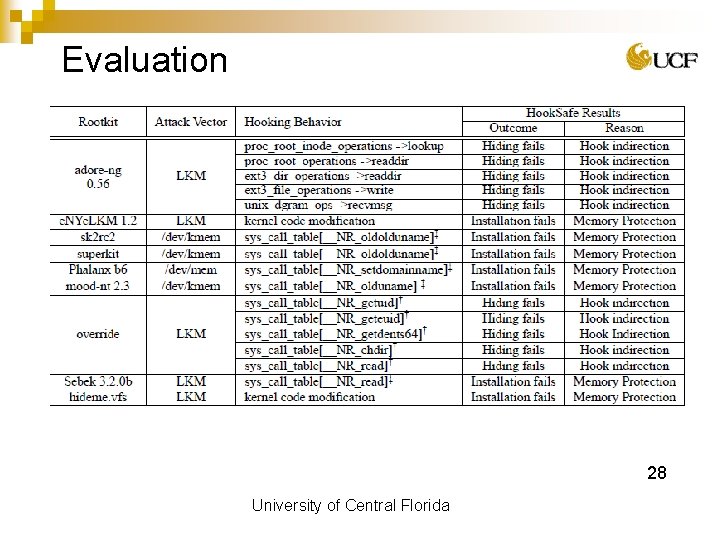

Evaluation 28 University of Central Florida

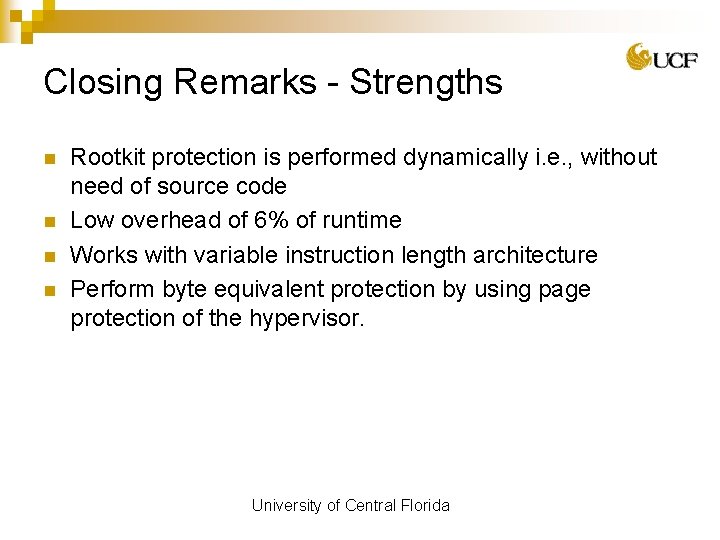

Closing Remarks - Strengths n n Rootkit protection is performed dynamically i. e. , without need of source code Low overhead of 6% of runtime Works with variable instruction length architecture Perform byte equivalent protection by using page protection of the hypervisor. University of Central Florida

Closing Remarks - Weakness n Do not record what caused the rootkit infection. It can detect, but not defend against future attempts. n When discrepancy is found it automatically assumes the original hook was compromised. n Memory usage for creating shadow copies University of Central Florida

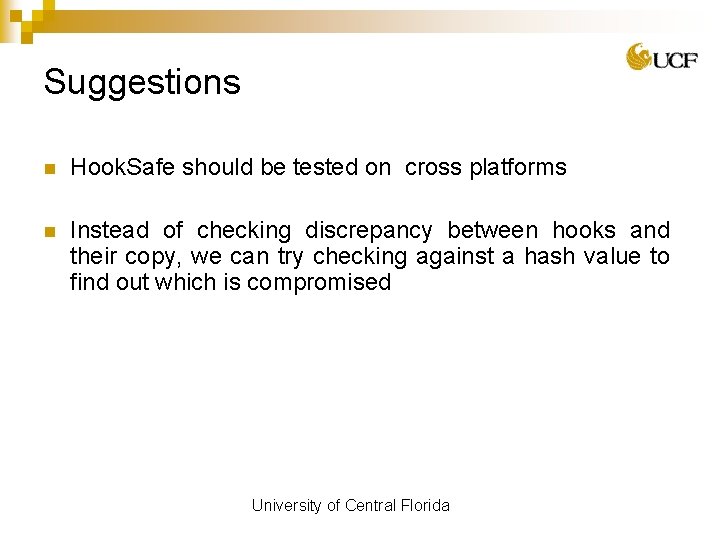

Suggestions n Hook. Safe should be tested on cross platforms n Instead of checking discrepancy between hooks and their copy, we can try checking against a hash value to find out which is compromised University of Central Florida
