COTILE VOLUNTEER FIRE DEPARTMENT STANDARD OPERATING GUIDELINE for

COTILE VOLUNTEER FIRE DEPARTMENT STANDARD OPERATING GUIDELINE for THERMAL IMAGING CAMERA

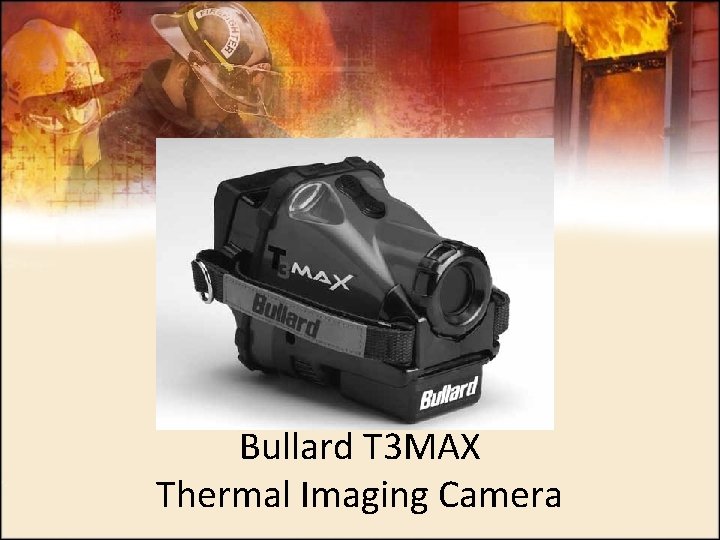

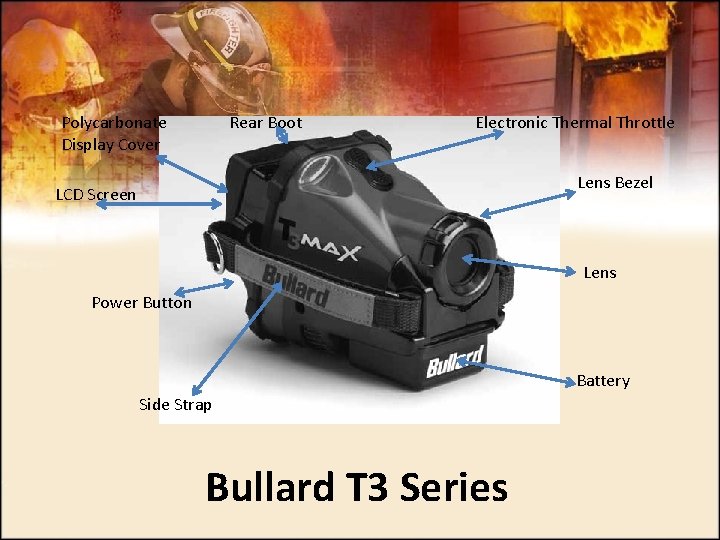

Bullard T 3 MAX Thermal Imaging Camera

Polycarbonate Display Cover Rear Boot Electronic Thermal Throttle Lens Bezel LCD Screen Lens Power Button Battery Side Strap Bullard T 3 Series

ON/OFF BUTTON View screen of camera

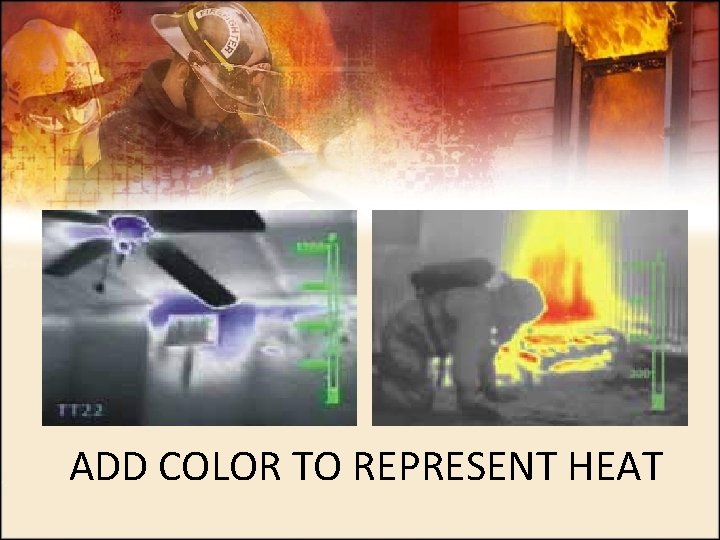

ADD COLOR TO REPRESENT HEAT

Checks pressurized containers in Haz-Mat situations

CARDBOARD BOXES ON FIRE 1200 DEGREES AT SOURCE LOCATES SEAT OF FIRE

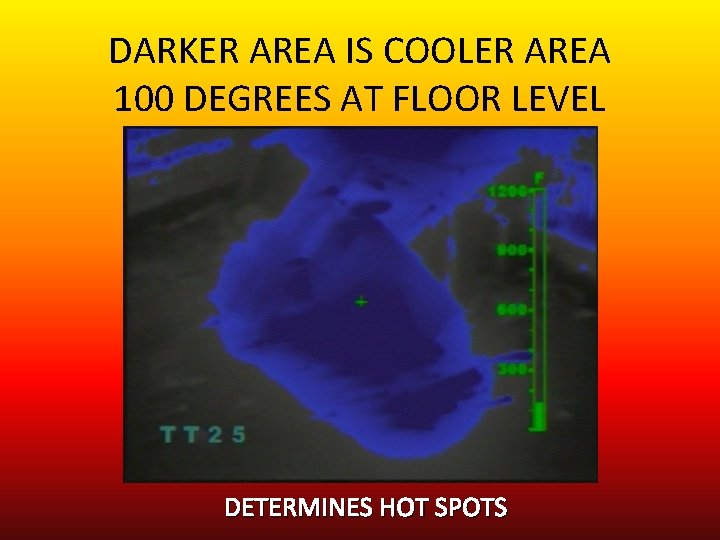

DARKER AREA IS COOLER AREA 100 DEGREES AT FLOOR LEVEL DETERMINES HOT SPOTS

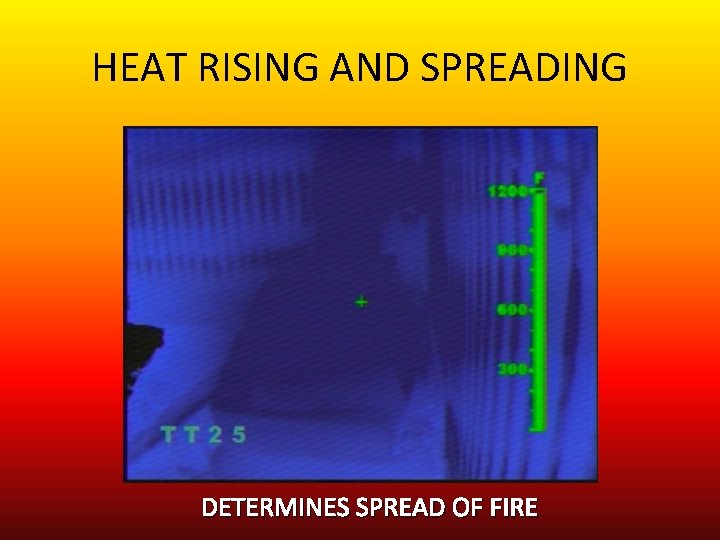

HEAT RISING AND SPREADING DETERMINES SPREAD OF FIRE

BOXES FALL TO FLOOR TO SPREAD FIRE IDENTIFIES POTENTIAL FLASHOVER and BACKDRAFT CONDITIONS

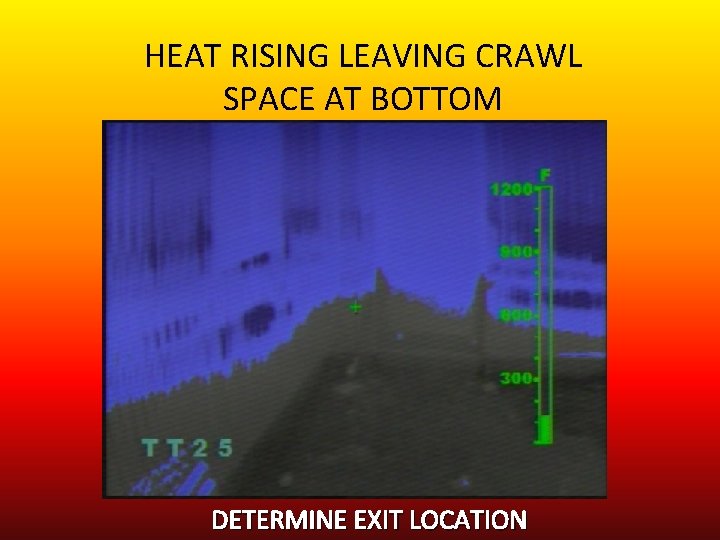

HEAT RISING LEAVING CRAWL SPACE AT BOTTOM DETERMINE EXIT LOCATION

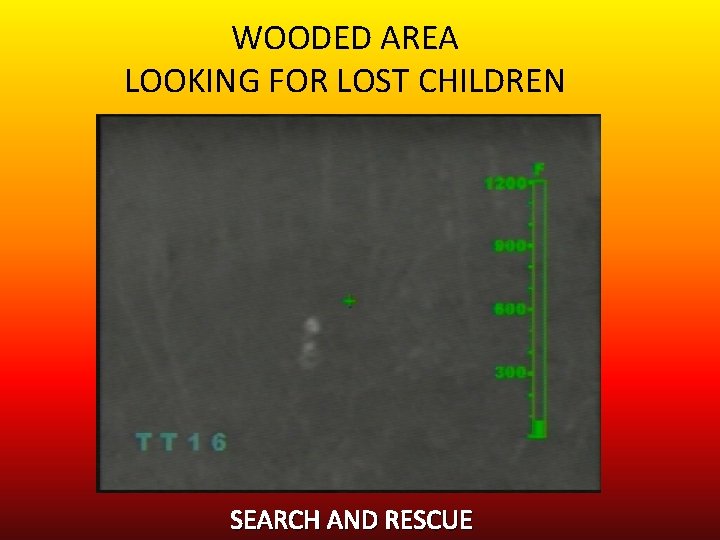

WOODED AREA LOOKING FOR LOST CHILDREN SEARCH AND RESCUE

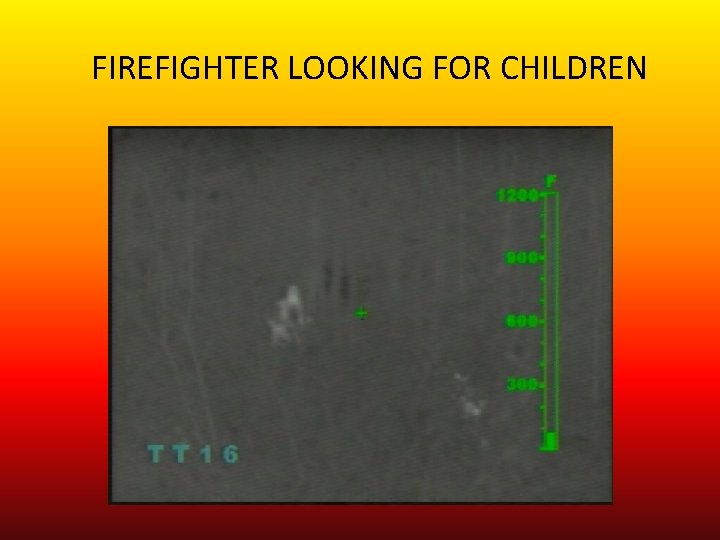

FIREFIGHTER LOOKING FOR CHILDREN

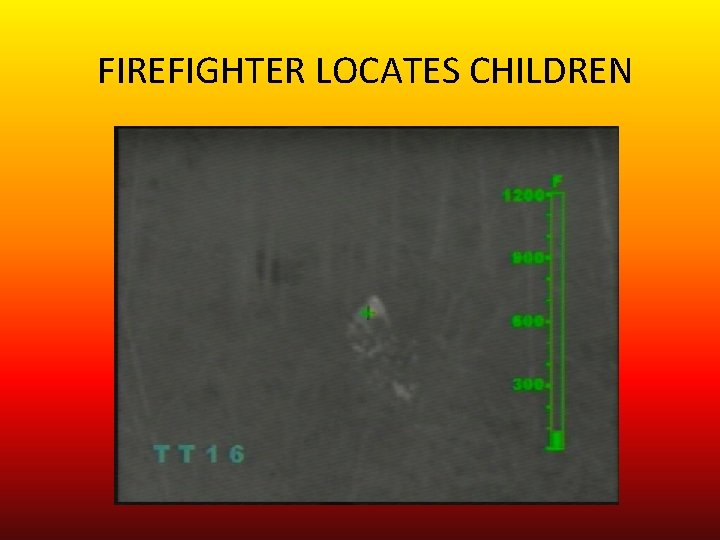

FIREFIGHTER LOCATES CHILDREN

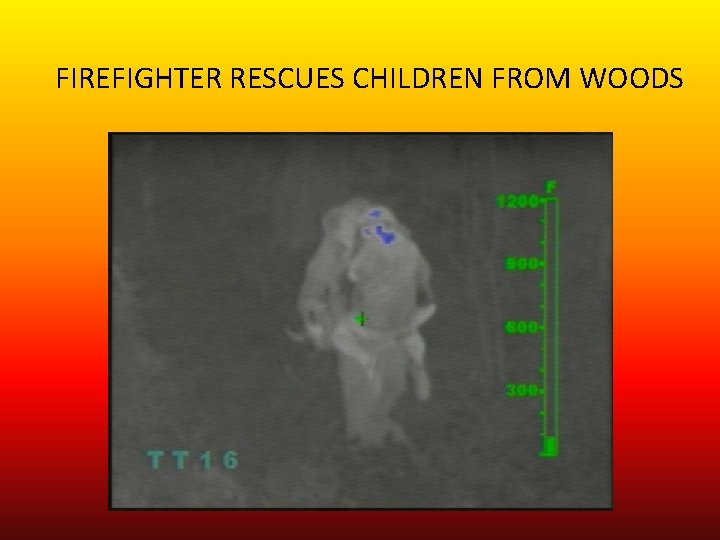

FIREFIGHTER RESCUES CHILDREN FROM WOODS

CHILDREN SAFE

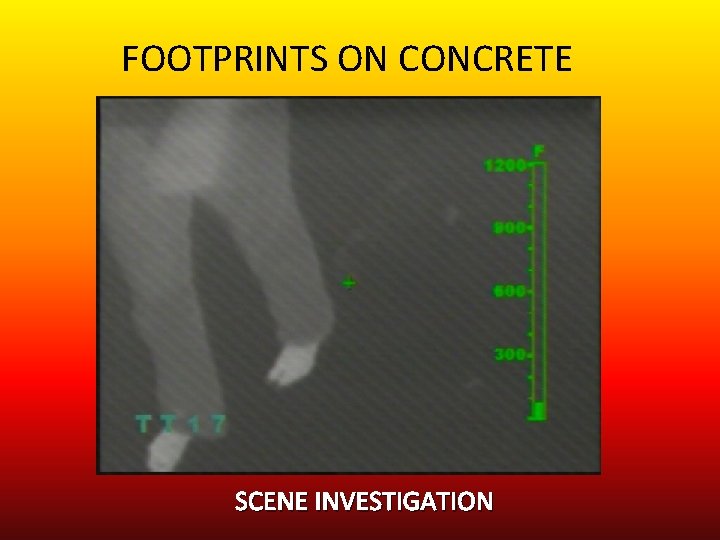

FOOTPRINTS ON CONCRETE SCENE INVESTIGATION

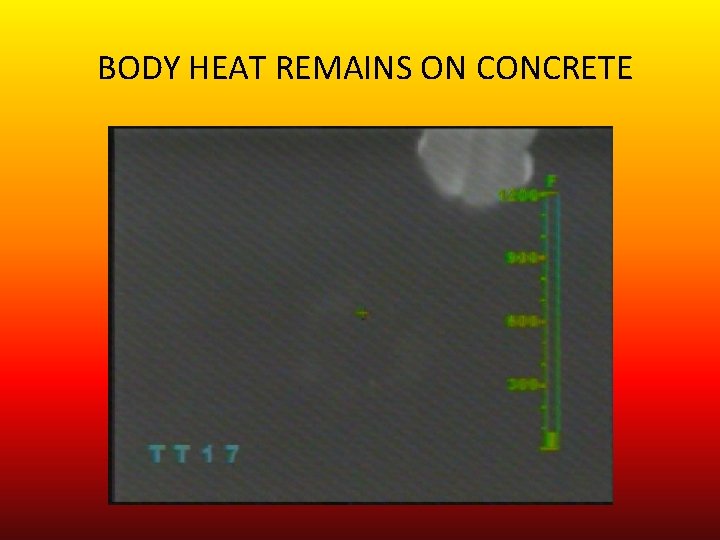

BODY HEAT REMAINS ON CONCRETE

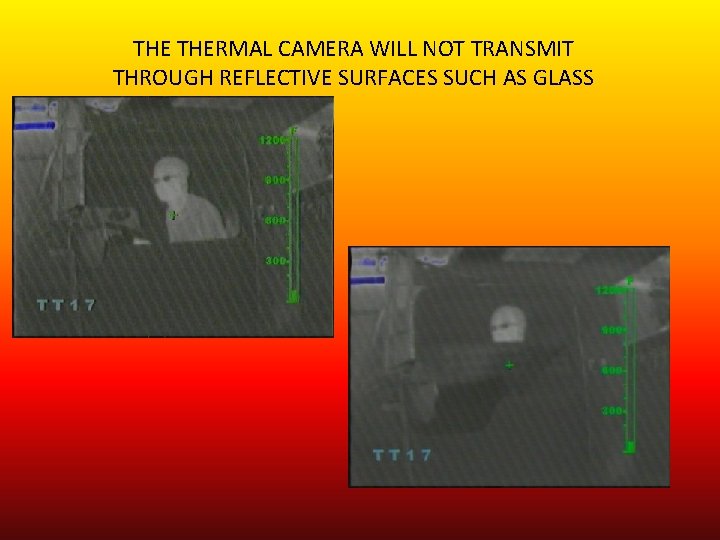

THE THERMAL CAMERA WILL NOT TRANSMIT THROUGH REFLECTIVE SURFACES SUCH AS GLASS

THE THERMAL CAMERA WILL NOT TRANSMIT THROUGH REFLECTIVE SURFACES

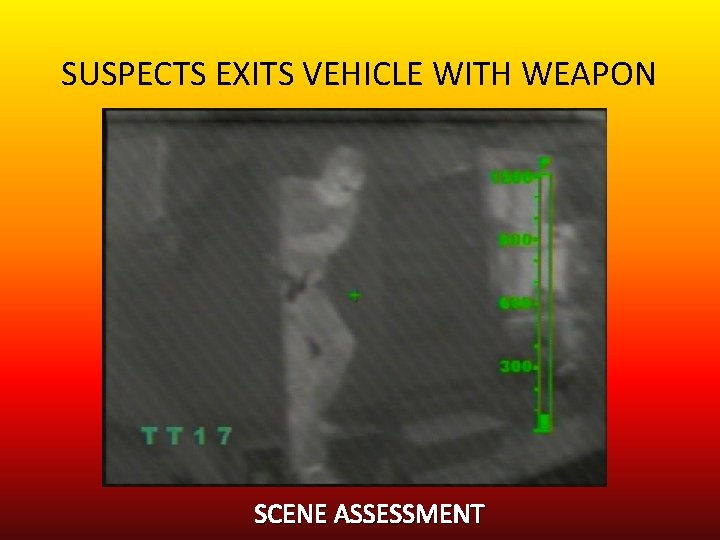

SUSPECTS EXITS VEHICLE WITH WEAPON SCENE ASSESSMENT

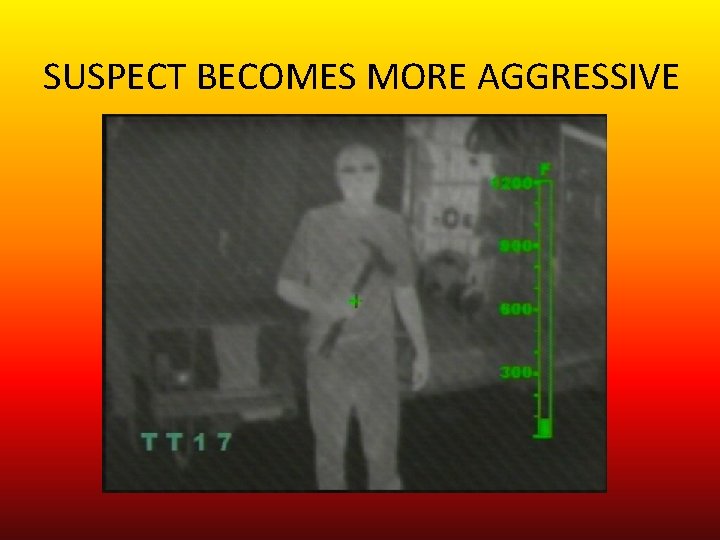

SUSPECT BECOMES MORE AGGRESSIVE

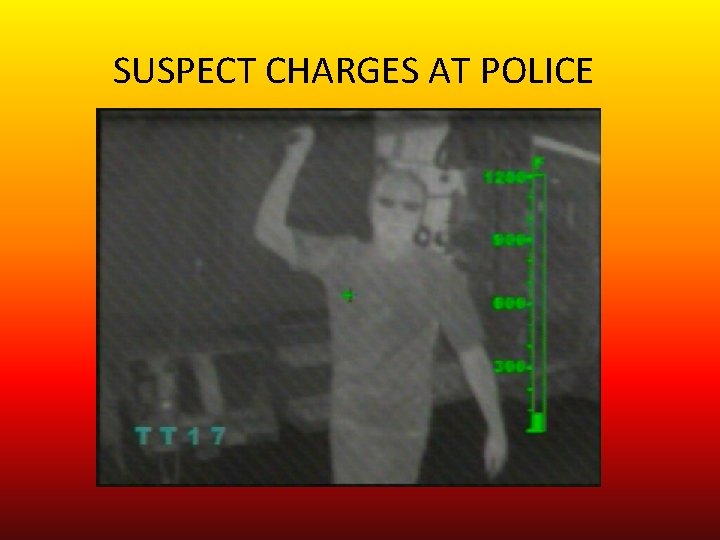

SUSPECT CHARGES AT POLICE

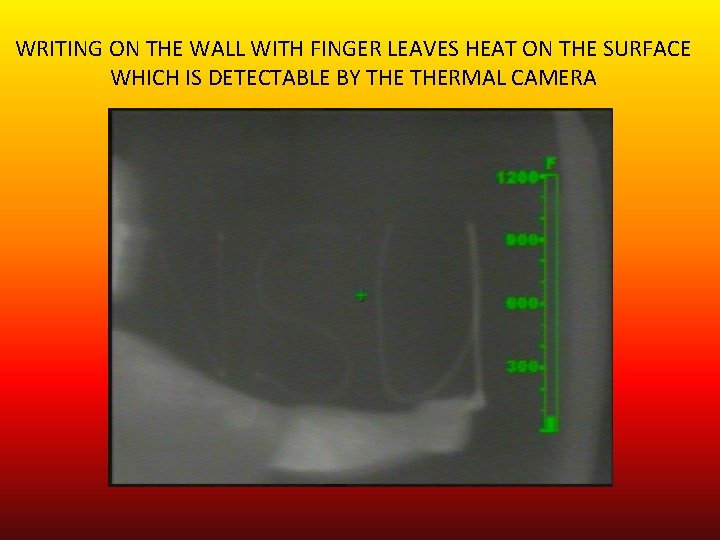

WRITING ON THE WALL WITH FINGER LEAVES HEAT ON THE SURFACE WHICH IS DETECTABLE BY THERMAL CAMERA

THE THERMAL IMAGING CAMERA SHOULD NOT BE USED IN AN ILLEGAL AND UNETHICAL MANNER.

THERMAL IMAGING CAMERA SAVES LIVES, SAVES PROPERTY AND PREVENTS LAWSUITS
