Cost Effective Jumbo Accumulator Head Blow Molding Pet

Cost Effective Jumbo Accumulator Head Blow Molding Pet All Manufacturing Inc.

Pet All Manufacturing Inc. Overview Based in Toronto, Ontario Established in 2001 Engineering, Technical, Parts and Service based in Toronto Manufacturing in Asia using OEM Partners and Asian based PET ALL Staff Single State and Two Stage PET Machines Injection Blow Molding Machines including all electric options Full line of Continuous Extrusion Blow Molding Machines Accumulator Head Machines up to 1, 500 lb Shot Sizes Downstream equipment including Leak Detection, Vision Systems, and Packout

Rotational Molding vs Blow Molding -Rotational molding has historically been the go to technology for large containers -Rotational molding uses resin that has been flaked which adds cost to the material -In Rotational Molding, the resin is placed into the mold and is then heated along with the Mold as the mold spins. Results in long cycle Times. -Rotational molded parts have a very consistent wall thickness and near square corners can be molded -Limited material options for rotomolding -Long cycle times

Blow Molding vs Rotational Molding -Many material choices available -Much faster cycle times than rotational molding -Parison programming for molding thicker and thinner Sections of the parts -More wall thickness variation than rotational molding -Large corner radii needed for part design considerations -Options for multi-layer products -Easily use regrind in the process without needing an extra step to flake the resin

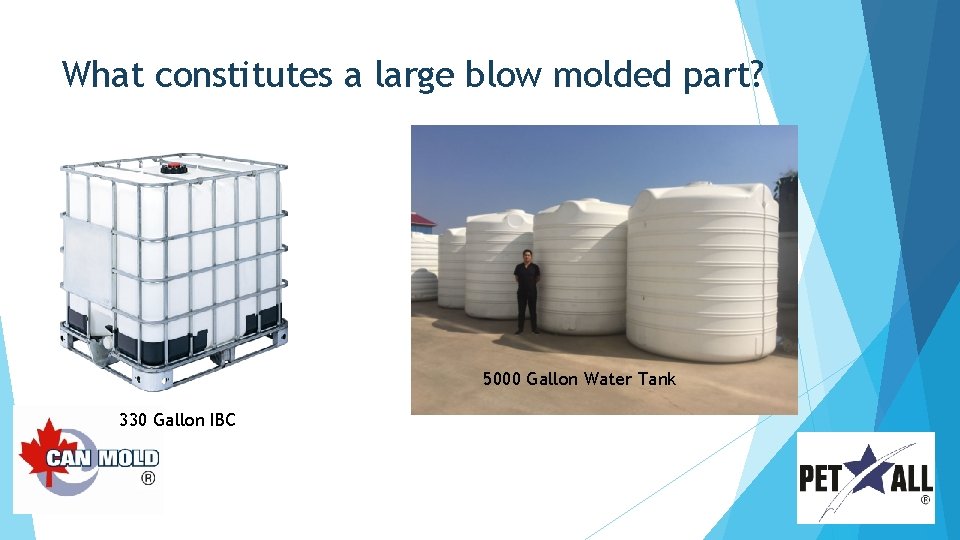

What constitutes a large blow molded part? 5000 Gallon Water Tank 330 Gallon IBC

OEM Partner Manufacturing Facility

Pet All Jumbo Machine Capabilities -Head Sizes up to 700 kg/1, 540 lbs shots -Single and Dual Head Options (limited sizes for dual heads) -Up to 4 Layers -Platens up to 6, 000 mm/236” tall and 4, 500 mm/177” wide -Head tooling up to 1, 800 mm/70” in diameter -Standard machine sizes available -Custom machines can be requested based on customer specifications

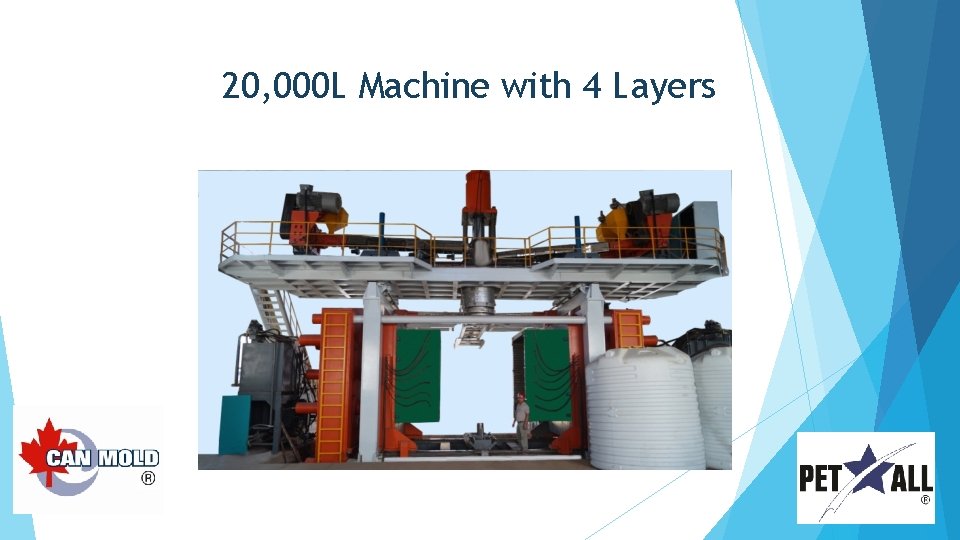

20, 000 L Machine with 4 Layers

10, 000 L Machine with 4 Layers

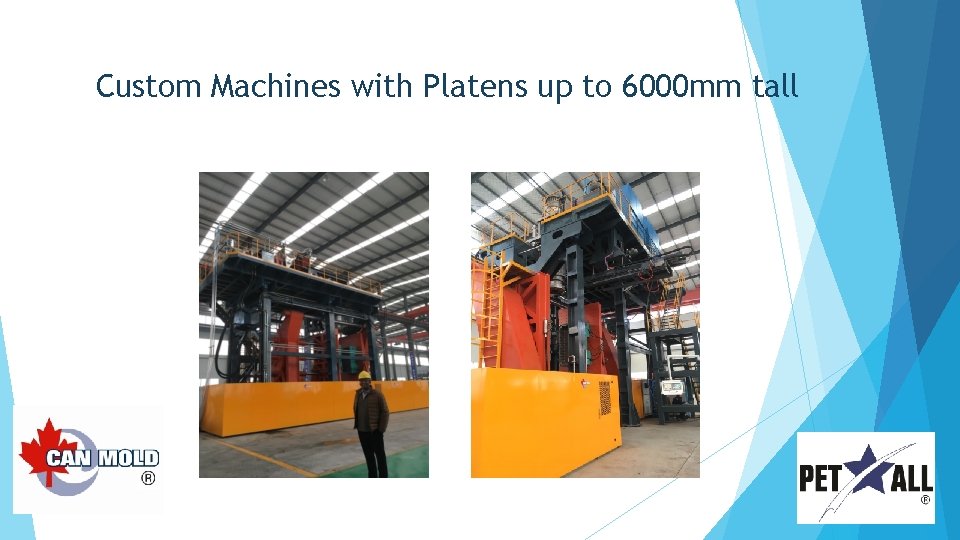

Custom Machines with Platens up to 6000 mm tall

Drum & IBC Machines

Large Tanks

Large Tanks 5, 000 US Gallon/20, 000 L Blow Molded Tank 3, 000 Liter Tank

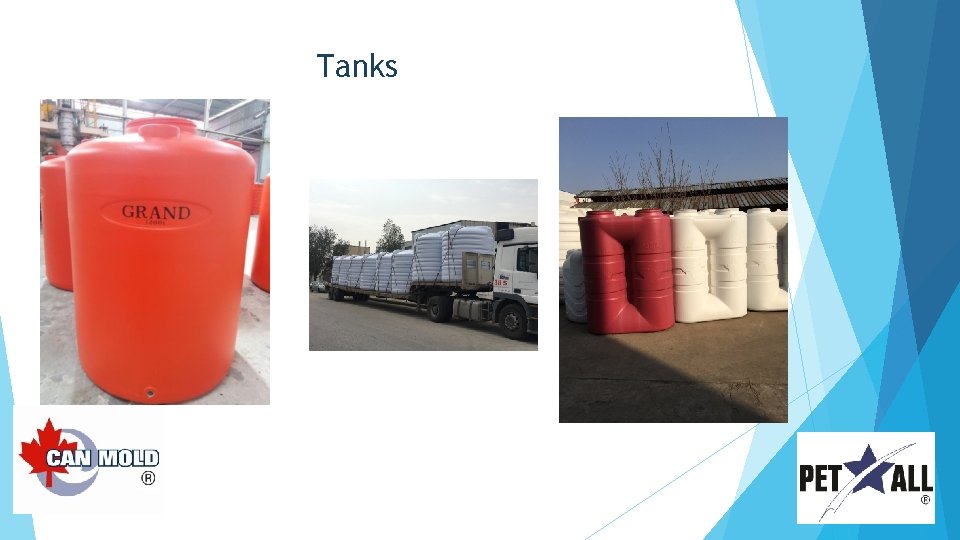

Tanks

Portable Toilets

Minnesota Technology Center-Opening November 2018 74 lb Shot-Three Layer Machine 10, 000 Sq. Ft. Facility

Please Contact: Ottmar Brandau – President obrandau@petallmfg. com Pet All Manufacturing Inc. 85 Royal Crest Court Units 1&2 Markham, Ontario L 3 R 9 X 5 Canada Phone: 905 -305 -1797 www. petallmfg. com www. canmoldplastics. com
