Cosc 5/4730 Broadcast Receiver

Cosc 5/4730 Broadcast Receiver

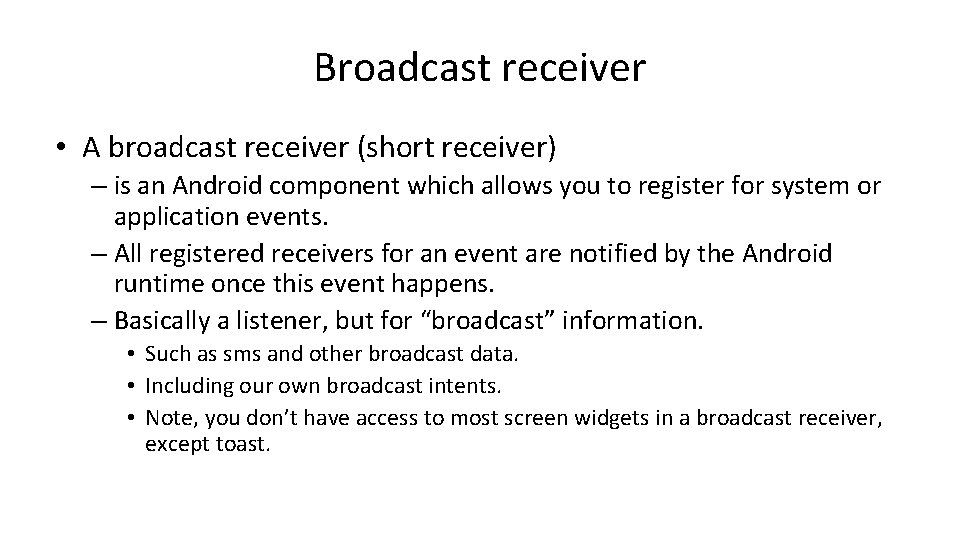

Broadcast receiver • A broadcast receiver (short receiver) – is an Android component which

Broadcast receiver • A broadcast receiver (short receiver) – is an Android component which allows you to register for system or application events. – All registered receivers for an event are notified by the Android runtime once this event happens. – Basically a listener, but for “broadcast” information. • Such as sms and other broadcast data. • Including our own broadcast intents. • Note, you don’t have access to most screen widgets in a broadcast receiver, except toast.

Uses • You app registers which events it wants to receive – Your receiver

Uses • You app registers which events it wants to receive – Your receiver will then receive an intent when the “event” happens. • Boot_completed is popular to start a background service on a reboot. » Note the app has to be launched once before this works, but it can be many reboots ago. • Text messages • custom messages like in the notifications lecture.

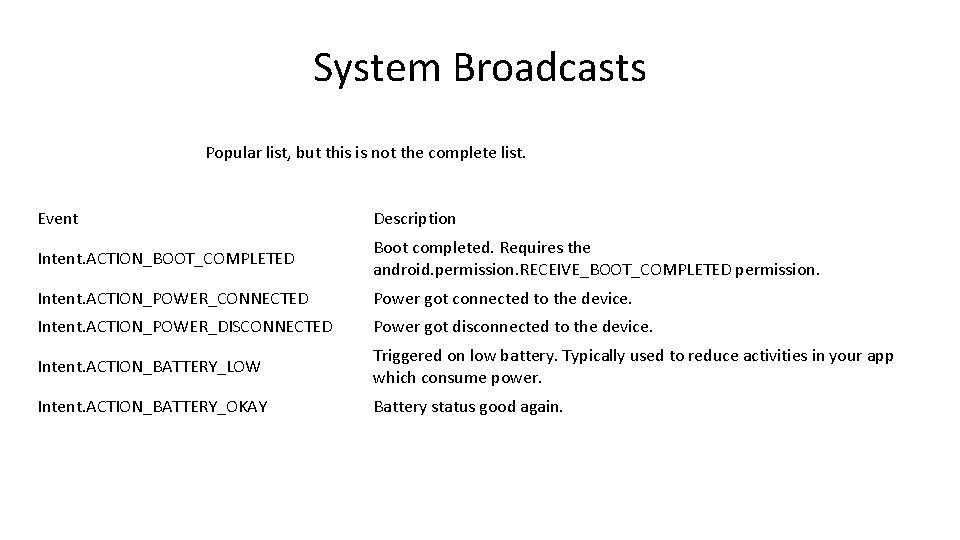

System Broadcasts Popular list, but this is not the complete list. Event Description Intent.

System Broadcasts Popular list, but this is not the complete list. Event Description Intent. ACTION_BOOT_COMPLETED Boot completed. Requires the android. permission. RECEIVE_BOOT_COMPLETED permission. Intent. ACTION_POWER_CONNECTED Power got connected to the device. Intent. ACTION_POWER_DISCONNECTED Power got disconnected to the device. Intent. ACTION_BATTERY_LOW Triggered on low battery. Typically used to reduce activities in your app which consume power. Intent. ACTION_BATTERY_OKAY Battery status good again.

The Basics • You can register a receiver in the (statically) Android. Manifest. xml

The Basics • You can register a receiver in the (statically) Android. Manifest. xml or using (dynamically) the context. register. Receiver() method • When an intent is received, then the on. Receive() method is called. – A receiver then does it’s work and finishes. • In API 11+, you can call go. Async() and then the receiver can stay alive until Pending. Result. finish() is called.

Declaration. public class My. Receiver extends Broadcast. Receiver { @Override public void on. Receive(Context

Declaration. public class My. Receiver extends Broadcast. Receiver { @Override public void on. Receive(Context context, Intent intent) { //now do something with the intent. } } • Intent Tells you what it is, via the get. Action() method.

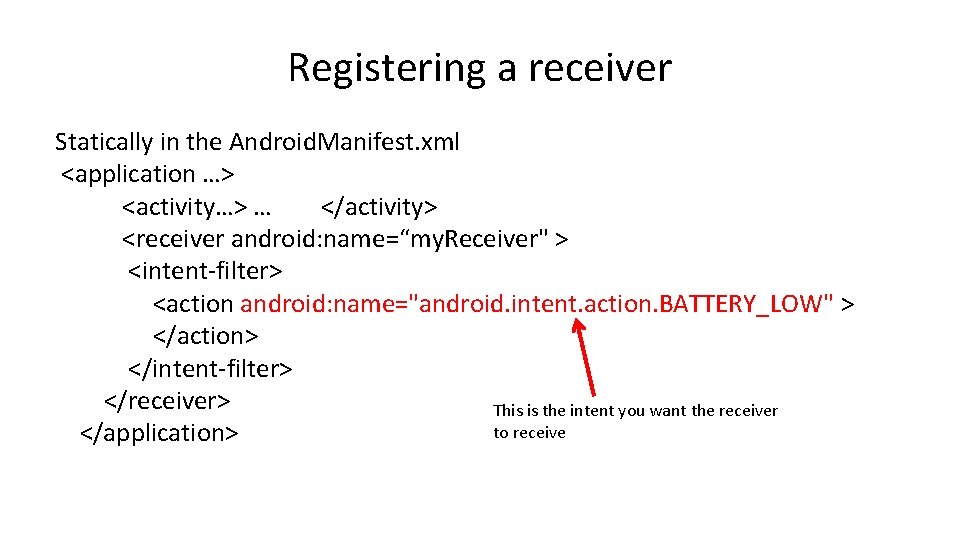

Registering a receiver Statically in the Android. Manifest. xml <application …> <activity…> … </activity>

Registering a receiver Statically in the Android. Manifest. xml <application …> <activity…> … </activity> <receiver android: name=“my. Receiver" > <intent-filter> <action android: name="android. intent. action. BATTERY_LOW" > </action> </intent-filter> </receiver> This is the intent you want the receiver to receive </application>

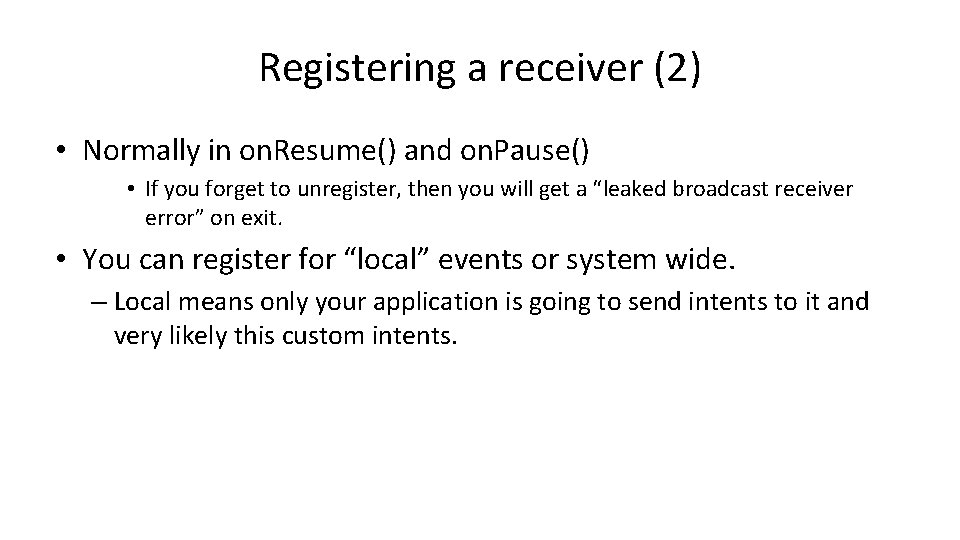

Registering a receiver (2) • Normally in on. Resume() and on. Pause() • If

Registering a receiver (2) • Normally in on. Resume() and on. Pause() • If you forget to unregister, then you will get a “leaked broadcast receiver error” on exit. • You can register for “local” events or system wide. – Local means only your application is going to send intents to it and very likely this custom intents.

Dynamic Local broadcast • Example: Where m. Receiver is a variable of type Broadcast.

Dynamic Local broadcast • Example: Where m. Receiver is a variable of type Broadcast. Receiver(). @Override public void on. Resume() { super. on. Resume(); // Register m. Receiver to receive messages. Local. Broadcast. Manager. get. Instance(this). register. Receiver(m. Receiver, new Intent. Filter("CUSTOM_EVENT")); } @Override protected void on. Pause() { //or on. Destory() // Unregister since the activity is not visible Local. Broadcast. Manager. get. Instance(this). unregister. Receiver(m. Receiver); super. on. Pause(); } Must use Local. Broadcast. Manager. get. Instance(get. Context()). send. Broadcast(i); in order to Receive if they are registered local.

Send a broadcast • Easy to do: Intent i = new Intent("SOME_ACTION"); • Global

Send a broadcast • Easy to do: Intent i = new Intent("SOME_ACTION"); • Global send. Broadcast(i); – get. Activity(). send. Broadcast(i); • Local must use – Local. Broadcast. Manager. get. Instance(get. Context()). send. Broadcast(i); • Remember, you can add more data/information to the intent as we have done in many places. • NOTE: you can not send system broadcast, like boot_completed.

Dynamic system Wide broadcast • Where m. Receiver is a variable of type Broadcast.

Dynamic system Wide broadcast • Where m. Receiver is a variable of type Broadcast. Receiver(). @Override public void on. Resume() { super. on. Resume(); // Register m. Receiver to receive messages. get. Base. Context(). register. Receiver(m. Receiver, new Intent. Filter(Intent. ACTION_BATTERY_LOW)); } @Override protected void on. Pause() { //or on. Destory() get. Base. Context()unregister. Receiver(m. Receiver); super. on. Pause(); }

Now what? • So now your application can respond to an event. – Like

Now what? • So now your application can respond to an event. – Like launch an activity – Start a service – Or just doing something quickly in the receiver. • Remember an intent can contain data in the bundle – so an intent you create, send via a pending. Intent through say alarm or notification service. – Others system events maybe have information as well.

System Broadcasts. • A common one is for a application to start a service

System Broadcasts. • A common one is for a application to start a service when the devices finishes it boot. – IE Run on startup and continue to run. – These services are common for polling for notifications and sort of thing. • Example: – Snap. Chat (and many apps), It running in the background as a service polling every so often their services for new “messages”. Setups a notification when there are new messages. • Should be noted, this a drain on the battery.

Battery and Charging. • You app may want to know when the battery state

Battery and Charging. • You app may want to know when the battery state changes. – You can be notified when the battery state and charging state changes. • Using a receiver and intents listed before. • Note, for immediate info, see the following: – http: //developer. android. com/training/monitoring-devicestate/battery-monitoring. html

Screen on/off • There is a broadcast to any running applications for the Screen

Screen on/off • There is a broadcast to any running applications for the Screen On or Off – Intent. ACTION_SCREEN_OFF and Intent. ACTION_SCREEN_ON – Your activity or service must be running • Or the system will ignore your application. – This is an odd one because when the screen turns “off”, your activity likely just received an on. Pause() call too.

API 26+ • Static register broadcast receivers (androidmanifest. xml) – Most implicit broads no

API 26+ • Static register broadcast receivers (androidmanifest. xml) – Most implicit broads no longer work (almost many services too) – Only the following are except: https: //developer. android. com/guide/components/broadcast-exceptions. html • Note action_boot_completed is on the list, but not the ac or battery. • All dynamic register broadcast receivers work. • Implicit and explicit broadcasts. – Implicit is a system wide broadcast, which is what most of the previous slides show. • Most of these no longer work. – Explicit broadcasts are directed at an application only. • These all work.

Explicit broadcasts • We need the action and the package for explicit • So

Explicit broadcasts • We need the action and the package for explicit • So the code now looks like this (and works all API 9+) Intent i = new Intent(Main. Activity. ACTION 1); i. set. Package("edu. cs 4730. broadcastdemo 1"); //explicit get. Activity(). send. Broadcast(i);

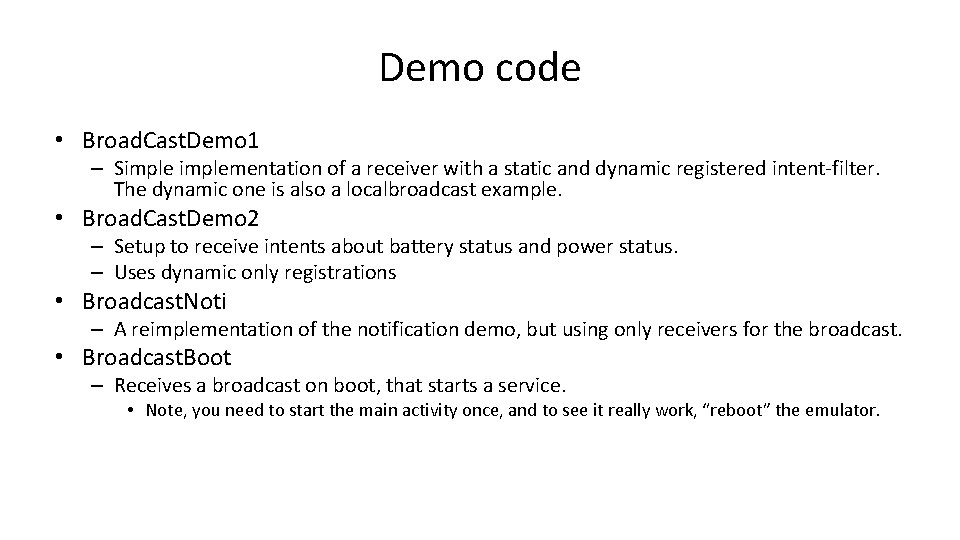

Demo code • Broad. Cast. Demo 1 – Simplementation of a receiver with a

Demo code • Broad. Cast. Demo 1 – Simplementation of a receiver with a static and dynamic registered intent-filter. The dynamic one is also a localbroadcast example. • Broad. Cast. Demo 2 – Setup to receive intents about battery status and power status. – Uses dynamic only registrations • Broadcast. Noti – A reimplementation of the notification demo, but using only receivers for the broadcast. • Broadcast. Boot – Receives a broadcast on boot, that starts a service. • Note, you need to start the main activity once, and to see it really work, “reboot” the emulator.

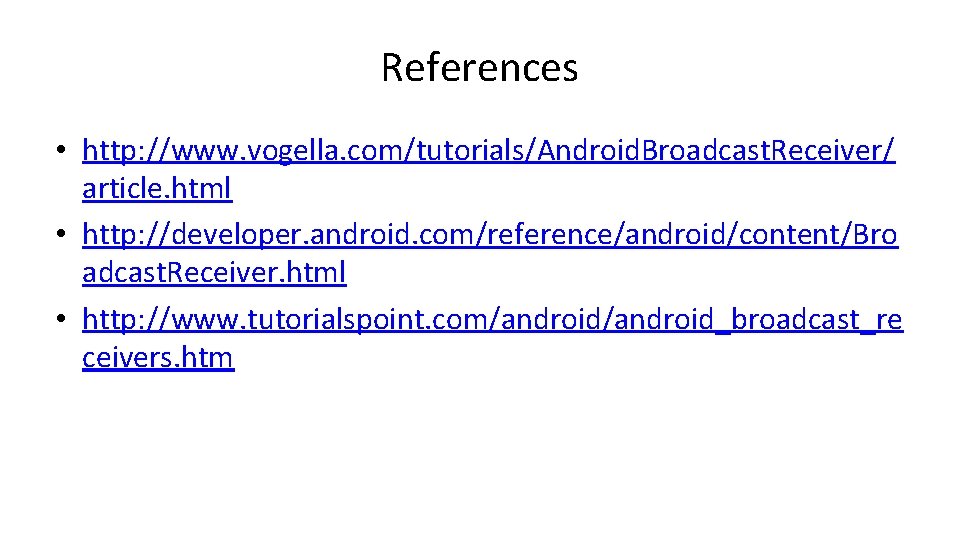

References • http: //www. vogella. com/tutorials/Android. Broadcast. Receiver/ article. html • http: //developer. android.

References • http: //www. vogella. com/tutorials/Android. Broadcast. Receiver/ article. html • http: //developer. android. com/reference/android/content/Bro adcast. Receiver. html • http: //www. tutorialspoint. com/android_broadcast_re ceivers. htm
