COSC 3 P 92 Cosc 3 P 92 Week 11 Lecture slides Violence is the last refuge of the incompetent. Isaac Asimov, Salvor Hardin in "Foundation" 1

COSC 3 P 92 Input/ Output • There are two general types of I/O devices: 1. physical I/O devices eg. output port to printer 2. virtual (logical) I/O devices: operating system abstractions eg. spooled print file, files vs. sectors on disk » Telephony Application Programmed Interface (TAPI) » Telephony Service Provider Programming Interface (TSPI) Physical I/O • To transfer information between CPU and physical I/O devices, one may use the following techniques: 1. programmed I/O 2. interrupt (-driven) I/O 3. direct memory access (DMA) 2

COSC 3 P 92 1. Programmed I/O • I/O ports may be addressed using: 1. standard (isolated) I/O address space – eg. Intel – In and OUT instructions – pin on CPU chip indicates whether IO or memory address space being used. [See next slide] 2. memory-mapped I/O address space – eg. Motorola – devices reside at specific memory locations. 3

COSC 3 P 92 8088 i/o port control 4

COSC 3 P 92 1. Programmed I/O • Advantages Memory-mapped I/O: – – no special I/O opcodes all instns that reference memory can access IO # I/O ports is unlimited hardware bus simplified • Disadvantages: – I/O interfaces may need more circuitry to recognize larger addresses. – possible slow down in bus performance. 5

COSC 3 P 92 • An I/O operation may be performed: 1. unconditionally – CPU sends data to device at any time 2. conditionally – checking the status of the device before the operation (i. e. handshaking). – CPU may have to poll and wait for device -> inefficient • The CPU communicates with an I/O devices via one or more registers called I/O ports. – Bit-serial ports » Every bit in the port may be configured as either input or output. Data-direction register 0 1 1 0 1=output 0=input I/O port 6

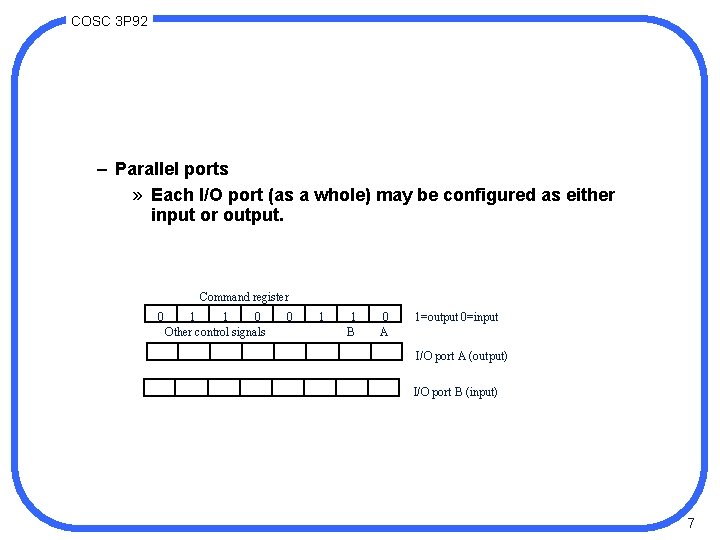

COSC 3 P 92 – Parallel ports » Each I/O port (as a whole) may be configured as either input or output. Command register 0 1 1 0 Other control signals 0 1 1 B 0 A 1=output 0=input I/O port A (output) I/O port B (input) 7

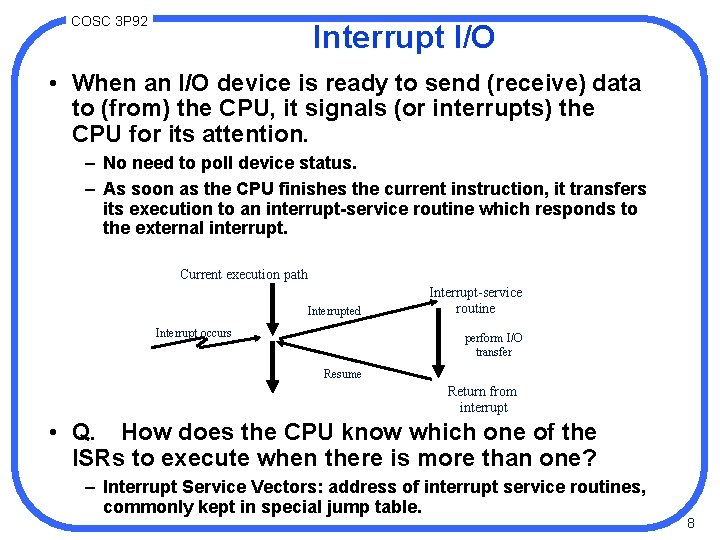

COSC 3 P 92 Interrupt I/O • When an I/O device is ready to send (receive) data to (from) the CPU, it signals (or interrupts) the CPU for its attention. – No need to poll device status. – As soon as the CPU finishes the current instruction, it transfers its execution to an interrupt-service routine which responds to the external interrupt. Current execution path Interrupted Interrupt occurs Interrupt-service routine perform I/O transfer Resume Return from interrupt • Q. How does the CPU know which one of the ISRs to execute when there is more than one? – Interrupt Service Vectors: address of interrupt service routines, commonly kept in special jump table. 8

COSC 3 P 92 Interrupt I/O example code: Setting up interrupt I/O. . . move. b #$81, #$00, #$81, #$01, DDRA DDRB PORTA ; data direction ; registers ; start pulse ; to device . . . Device will cause interrupt when ready/done, and an interrupt routine will complete transaction. . . move. b rte PORTB, D 1 ; interrupt service rtn. 9

COSC 3 P 92 Interrupt I/O (continued) • Polled • Daisy-chain 10

COSC 3 P 92 Direct Memory Access (DMA) • It is a technique of transferring data between memory and I/O devices without CPU intervention. – CPU sets up transfer with DMA controller; then transaction occurs without CPU 11

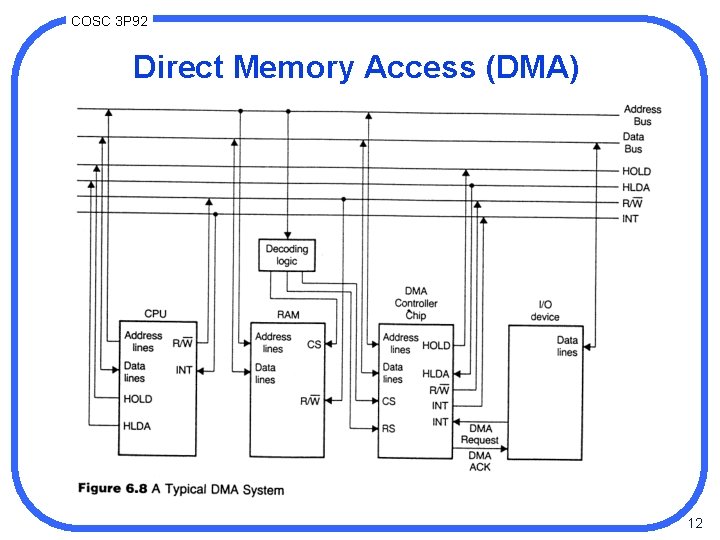

COSC 3 P 92 Direct Memory Access (DMA) 12

COSC 3 P 92 DMA 3 techniques: 1. Block transfer - whole data block transferred - CPU can do non-related bus activities in the meanwhile 2. Cycle stealing - DMA controller freezes the CPU, and then does a DMA while CPU frozen - word-by-word transfer 3. Interleaved - DMA controller uses CPU cycles that aren't using the bus, letting DMA xfers and CPU alternate use of the bus 13

COSC 3 P 92 I/O Processor (data channel) • Independent dedicated I/O processors (smart DMA controllers) are used in mainframe computer systems to communicate with I/O devices. 14

COSC 3 P 92 I/O processors • Each IOP uses DMA to communicate with devices • Some considerations: – priority system for IOP's sharing system bus – priority system for devices on one IO bus – IOP requires software or hardware to manage different devices 15

COSC 3 P 92 IO example: LED • Encoder, part of kbd. – Converts key press into ASCII encoded byte. – Bus Interface communicates data to I/O bus. 16

COSC 3 P 92 8086 Programmed IO 17

COSC 3 P 92 8086 Programmed IO 18

COSC 3 P 92 68000 IO 20

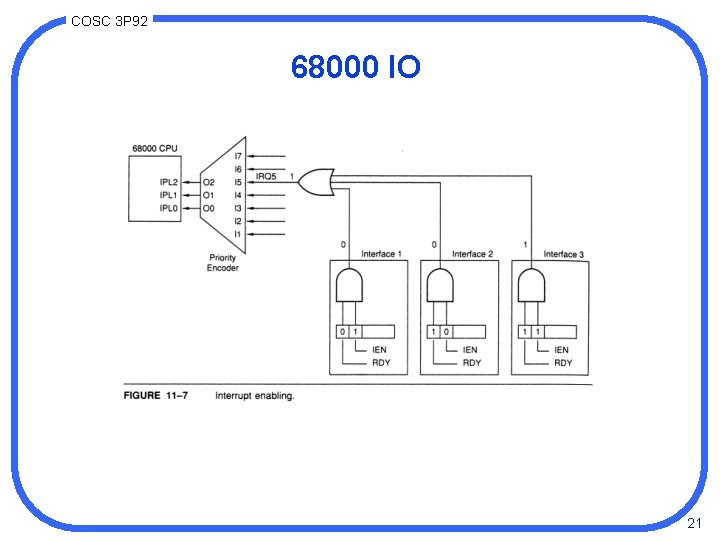

COSC 3 P 92 68000 IO 21

COSC 3 P 92 68000 memory 22

COSC 3 P 92 The end 26
