CORROSION POLICY AND OVERSIGHT OFFICE OF THE UNDER SECRETARY OF DEFENSE MATERIAL READINESS: CORROSION OFFICE Do. D Corrosion Prevention & Control Standards for Aerospace Weapon Systems Allied Nations Technical Corrosion Conference (Aug 2019) Distribution Statement A: Approved for Public Release; Distribution is Unlimited

Topics for Presentation Ø Why Target Do. D Aerospace Ø Specifications and Standards Background Ø Which Key Aerospace CPC Standards Ø Individual Standard Discussions Ø How These Standards fit Together Ø Questions? ? ? 2

Why Target Do. D Aerospace? Aerospace Corrosion Costs Represent ~50% of Do. D’s Total Annual Corrosion Costs $19. 1 Billion annual direct cost of corrosion to Do. D Note: stated costs do not include up front investment in design, materials, development, production, and testing for corrosion prevention and mitigation during system acquisition 3

Specifications and Standards Background Ø Do. D mandates corrosion prevention and control (CPC) planning be incorporated as part of the design, manufacture, construction, operation & sustainment of products & facilities Ø To facilitate incorporation of CPC processes, Do. D utilizes both government and industry standards for CPC and materials and processes (M&P) q Standards developed based on lessons learned from development, operation and maintenance of equipment and facilities Ø Many CPC-related Specifications and Standards eliminated during 1990’s Acquisition Reform q Causes corrosion requirements to be negotiated individually during acquisition 4

Specifications and Standards Background (cont. ) Ø Reestablish/Revise needed Standards (Working with Mil. Deps) q MIL-STD-1568 C/MIL-STD-1568 D, Materials and Processes for Corrosion Prevention and Control in Aerospace Weapon Systems–Reinstituted/Revised v Supported by DI-MFFP-81403, Corrosion Prevention and Control Plan, and DIMFFP-81402, Metal Finishes and Finishing Processes and Procedures (a. k. a. finish specification) q MIL-STD-1587 D/MIL-STD-1587 E, Materials and Processes Requirements for Aerospace Weapon Systems–Reinstituted/Revised v Supported by DI-MFFP-81403, Corrosion Prevention and Control Plan, and DIMFFP-81402, Metal Finishes and Finishing Processes and Procedures q MIL-STD-889 C, Dissimilar Metals–Revised Ø Migrating some requirements to commercial standards q SAE AS 12500 Corrosion Prevention and Deterioration Control in Electronic Components and Assemblies q Joint SSPC-NACE Standard for CPC Planning 5

Which Key Aerospace CPC Standards? Ø MIL-STD-1568 D: Aviation Corrosion Prevention & Control Ø SSPC CPC-1/NACE SP 21412 -2016 CPC Planning Standard Ø MIL-STD-1587 E: Materials & Processes for Aerospace Weapon Systems Ø MIL-STD-889 C: Dissimilar Metals Ø MIL-STD-7179 B: Aerospace Finishing System Requirements Ø SAE-AS-12500: Avionics/Electronics CPC Standard Ø Various Additional Standards 6

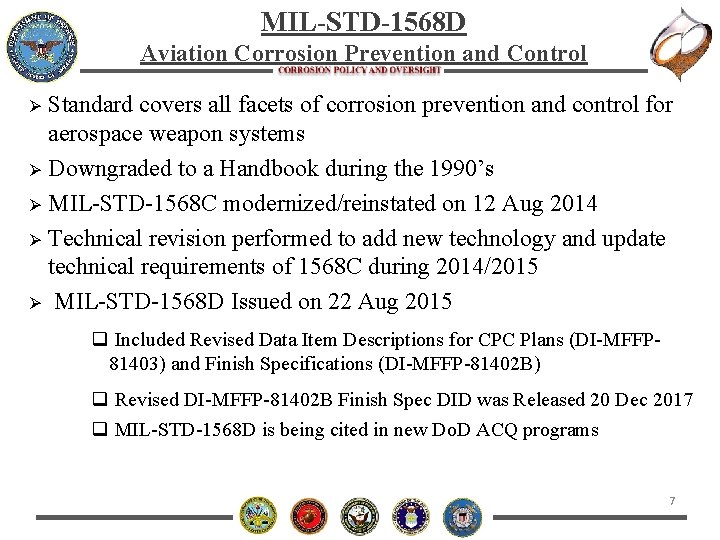

MIL-STD-1568 D Aviation Corrosion Prevention and Control Standard covers all facets of corrosion prevention and control for aerospace weapon systems Ø Downgraded to a Handbook during the 1990’s Ø MIL-STD-1568 C modernized/reinstated on 12 Aug 2014 Ø Technical revision performed to add new technology and update technical requirements of 1568 C during 2014/2015 Ø MIL-STD-1568 D Issued on 22 Aug 2015 Ø q Included Revised Data Item Descriptions for CPC Plans (DI-MFFP 81403) and Finish Specifications (DI-MFFP-81402 B) q Revised DI-MFFP-81402 B Finish Spec DID was Released 20 Dec 2017 q MIL-STD-1568 D is being cited in new Do. D ACQ programs 7

SSPC CPC-1/NACE SP 21412 -2016 CPC Planning Standard Ø NACE & SSPC established a Joint Task Group (JTG-527) in Dec 2014 to develop a joint Industry Standard for the key elements of CPC Planning Ø Standard applies to both products and facilities and includes detailed guidance on key CPC Planning elements Ø After a 2 year development effort, Standard was approved on 1 Dec 2016 and is available via NACE & SSPC websites Ø Do. D Tier I Adoption (NAVAIR Cog Adopting Agency) completed in Dec 2017 Ø Technical revision effort began in 2018 q Revision targeting two new elements; additional element details/characteristics; and an assessment methodology q Targeted completion for revision and Do. D adoption is early 2020 8

MIL-STD-1587 E Material &Process Reqts for Aerospace Weapon Systems Ø Standard covers a wide array of material & process requirements for aerospace weapon systems including: metals/alloys, composites, sealants, adhesives, Welding, Brazing, etc. Ø Downgraded to a Handbook during the 1990’s Ø MIL-STD-1587 D modernized/reinstated on 21 Jun 2017 Ø Technical Revision effort performed during 2017/2018 to add new technology and update the technical requirements of 1587 D and include support equipment Ø MIL-STD-1587 E Issued on 23 Jul 2018 q. Included Data Item Descriptions for Program Unique Material or Process Specifications (DI-MFFP-82119) q. MIL-STD-1587 E being used in new Do. D ACQ programs 9

MIL-STD-889 C Dissimilar Metals ØStandard covers dissimilar metal couples via potential differences and based on Sea Water exposure ØPrevious B Revision released in 1976 (over 40 years ago!) ØMIL-STD-889 C was modernized/released on 22 Aug 2016 ØTechnical revision effort began in FY 17: q New approach to assessing dissimilar couples using current vice just potential differences q Includes information on additional substrate materials q Appendix will include new test methodology q Release of MIL-STD-889 D is targeted for sometime in FY 20 10

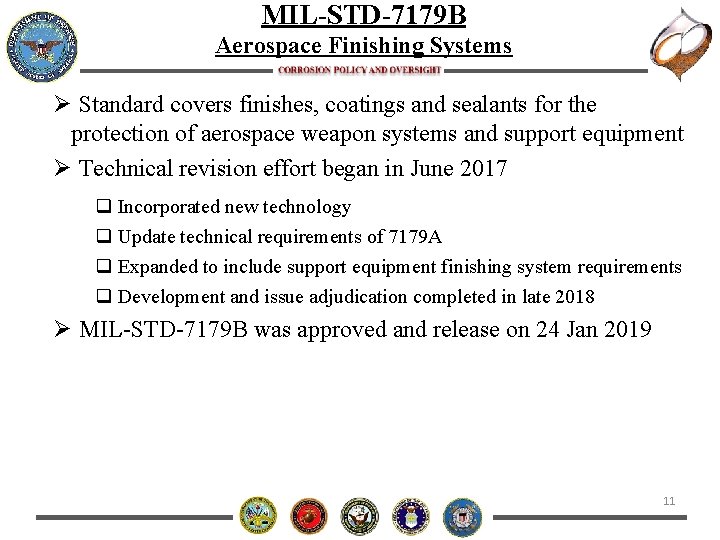

MIL-STD-7179 B Aerospace Finishing Systems Ø Standard covers finishes, coatings and sealants for the protection of aerospace weapon systems and support equipment Ø Technical revision effort began in June 2017 q Incorporated new technology q Update technical requirements of 7179 A q Expanded to include support equipment finishing system requirements q Development and issue adjudication completed in late 2018 Ø MIL-STD-7179 B was approved and release on 24 Jan 2019 11

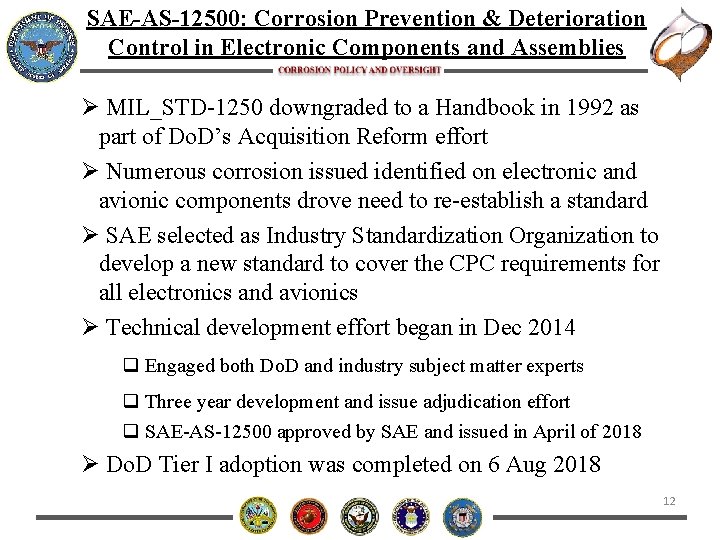

SAE-AS-12500: Corrosion Prevention & Deterioration Control in Electronic Components and Assemblies Ø MIL_STD-1250 downgraded to a Handbook in 1992 as part of Do. D’s Acquisition Reform effort Ø Numerous corrosion issued identified on electronic and avionic components drove need to re-establish a standard Ø SAE selected as Industry Standardization Organization to develop a new standard to cover the CPC requirements for all electronics and avionics Ø Technical development effort began in Dec 2014 q Engaged both Do. D and industry subject matter experts q Three year development and issue adjudication effort q SAE-AS-12500 approved by SAE and issued in April of 2018 Ø Do. D Tier I adoption was completed on 6 Aug 2018 12

Additional CPC Standards Ø MIL-STD-1530 D: Aircraft Structural Integrity Program q. Standard covers structural Integrity requirements for Air Force Aircraft. q. CPC Requirements include: CPC Plans, Finish Specifications, etc. q. Standard updated in Aug 2016 (Change 13 Oct 2016) v MIL-STD-1530 D is being cited in Air Force Acquisition Programs. Ø MIL-STD-810: Testing q. During last years’ MIL-STD-810 technical revision process, significant changes to the corrosion test requirements were submitted by NAVAIR. q. During the revision adjudication process (Army Lead), the Army decided to approach these changes by establishing a joint Service working group in 2019 to reconcile the proposed changes. Group establishment effort in progress. Ø MIL-HDBK-808: Finish Systems for Support Equipment q. During late FY 17 MIL-HDBK-808 was assessed for revision q. Based on joint service concurrence, decision made to incorporate support equipment requirements into 1587 and 7179, where applicable. Completed. 13

How These Standards Fit Together Recent Completions In Revision In Line/Next MIL-STD-1568 D (JTG-527) SSPC/NACE CPC Planning Standard Material and Processes for CPC in Aerospace Weapon Systems DIDs for CPC Plan and Finish Spec MIL-STD-810 Testing Standard Key Elements of CPC Planning MIL-STD-1530 MIL-STD-889 C A/C Structural Integrity Program (ASIP) Dissimilar Metals Overarching A/C Operations & Sustainment NAVAIR-01 -1 A-509 (Vol 1 -4) AF T. O. 1 -1 -689 (Vol 1, 3, 5) Joint Service CPC Maintenance Manual DID SAE-AS-12500 CPC for Electronic Components & Assemblies {MIL_HDBK-1250) Design Requirements Coating/Finishing Systems AF TO 1 -1 -691 MIL-DTL-5002 E CPC Maintenance Manual Surface Treatments and Inorganic Coatings for Metal Surfaces of Weapon Systems MIL-HDBK-6870 A AF TO 1 -1 -700 AF TO 1 -1 -686 NDI Program Requirements: NDI for Aircraft and Missile Materials and Parts MIL-STD-1587 E M&P Requirements for Air Force Weapon M&P Systems CPC Ground Comm & Electrical Equipment Preservation TO 1 -1 -8 MIL-STD-7179 B Finishes, Coatings & Sealants for Protection of Aerospace Weapon Systems MIL-DTL-18264 E Application and Control of Application/Removal of Organic Finishes for Weapon Organic Coatings MIL-HDBK-808 Systems Finish, Protective & Codes for Finishing Schemes for Ground 14 Support Equipment

QUESTIONS? ? ? 15
