Correctness of Algorithms Guilin Wang The School of

Correctness of Algorithms Guilin Wang The School of Computer Science 3 Nov 2009 (L 11) Sumber dari : www. uow. edu. au/~guilin/teaching/ICS/Lectures/L 11 -ICS-Slides. ppt

Outline q Correctness - q Introduction Induction Assertions Termination Nonprocedural Algorithms - Brief Introduction (Functional programming & Logic programming) 2

1. Correctness: Introduction ■ Correctness is a very important issue for all algorithm designers. ■ Unfortunately, most computer programs contain errors, or bugs. ■ Those bugs could cause programs to fail in certain circumstances, though they may work well usually. ■ Indeed, programmers spend much efforts for debugging (finding and correcting bugs in their programs). ■ So, how can we guarantee that an algorithm or a program carries out the desired process? 3

1. Correctness: Introduction Here, we shall discuss the following topics: ■ The meaning of correctness ■ Different types of correctness ■ Methods of increasing our confidence that an algorithm /program is correct 4

1. Correctness: Introduction Correctness of an algorithm or program is related to its purpose (the process to be carried out). ■ A set of beliefs about the purposes of an algorithm is called the specifications of this algorithm. ■ We say an algorithm is correct w. r. t. its specifications if it produces the desired results for all input data defined by the specifications. ■ However, determining whether or not a program is correct w. r. t. its specification is a non-computable problem. 5

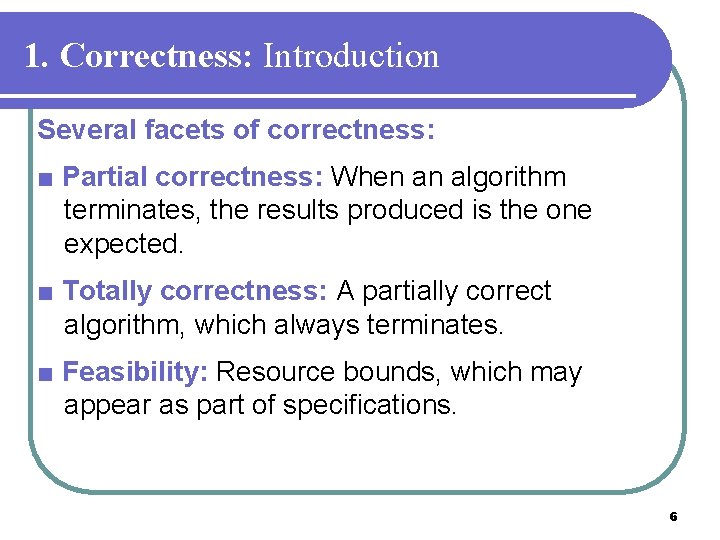

1. Correctness: Introduction Several facets of correctness: ■ Partial correctness: When an algorithm terminates, the results produced is the one expected. ■ Totally correctness: A partially correct algorithm, which always terminates. ■ Feasibility: Resource bounds, which may appear as part of specifications. 6

1. Correctness: Introduction For producing programs without bugs, or with fewer bugs (i. e. , showing its correctness), we have two main kinds of methods: Testing and Proving. ■ Testing: Executing a program on a particular set of data (called test data). - Useful and easy to do. - Not very reliable, as from testing we only know the effect of a program on the limited test data. 7

1. Correctness: Introduction ■ Proving: Certifying the correctness of a program on all permissible input data. - More reliable but usually more difficult. - The proof for correctness may contain mistakes. - Experience has shown that even short, informal proofs can significantly increase our confidence in a program’s correctness. - Except crucial applications, producing extremely formal proof is an expensive (tedious and also challenging) exercise. - So, for most applications, we need some balance. 8

1. Correctness: Introduction ■ An informal proof of correctness is just a representation of well understanding of the program at hand. - A good practice is to write down useful remarks when an algorithm is designed. This procedure is also called documentation or desk-checking. ■ To increase our confidence about the correctness of an algorithm, we can make such an informal proof more formal by adding more details. 9

1. Correctness: Induction is a very useful technique to show the correctness of an algorithm/program. ■ Inductive Hypothesis: The purpose is to prove that a statement is true in every case under consideration. ■ Basis: First, we prove that the statement is true for a small case. ■ Inductive step: Then, we show that if the statement is true for a particular case, it is also true for the next larger case. ■ Conclusion: The statement must be true for every case. 10

1. Correctness: Induction Example 1: How to show the following algorithm is partially correct? module exponentiate(x) {Output 2 x assuming x is a non-negative integer} set SUM equal to 1. repeat x times set SUM equal to SUM+SUM {(A) If the nth time this point is reached, SUM will equal 2 n} endrepeat output SUM endmodule 11

1. Correctness: Induction We now use induction to prove the partial correctness of the above algorithm. Inductive hypothesis: Once point A is reached for n times, SUM= 2 n. Basis: When n=1, SUM is set to 1+1, which equal repeat 2 1. Inductive step: If the inductive hypothesis is true for n, we need to show it is also true for n+1. … Conclusion: SUM= 2 n for any n>=1. 12

1. Correctness: Induction More examples on showing the partial correctness of algorithms using induction: ■ Euclid’s GCD algorithm (pp. 103 -104) ■ outputtree(T) (pp. 105) ■ Mc. Carthy’s 91 algorithm (pp. 106) ■ The algorithm for moving the Towers of Hanoi (exercise!) 13

1. Correctness: Assertions Induction can also be used to show the correctness of large algorithms. ■ A human is difficult to visualize the entire operations of a large algorithm. ■ So, the remedy is to use modules, as we do for designing algorithms. ■ The independence among modules is of prime important. ■ In this way, it is usually possible to conclude the correctness of whole algorithm from that of each module. 14

1. Correctness: Assertions The specifications of each module consist of two parts, or two assertions: ■ Pre-conditions: permissible input upon which the module is expected to operate. ■ Post-conditions: the desired effect of the module on input data. ■ These two conditions describe two computation states. ■ In practice, more assertions can be added in the middle of a module, especially at some key points. 15

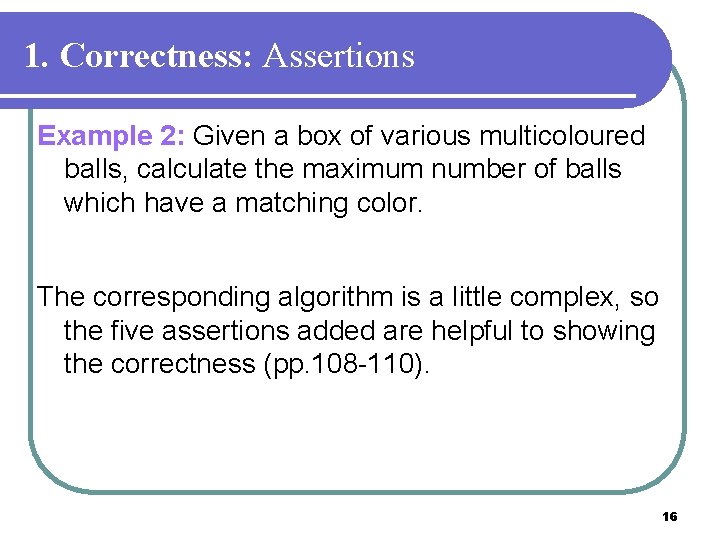

1. Correctness: Assertions Example 2: Given a box of various multicoloured balls, calculate the maximum number of balls which have a matching color. The corresponding algorithm is a little complex, so the five assertions added are helpful to showing the correctness (pp. 108 -110). 16

1. Correctness: Termination ■ To get total correctness, we need to show termination for any partially correct algorithm. ■ However, there exists no mechanical method of deciding whether an algorithm halts. ■ So, as proving partial correctness, showing termination may also require creativity in many cases. ■ The basic idea to show why a loop or recursion must terminate is to observe that this computation will gradually become simpler. ■ Usually, this means that some value will continuously decrease (or increase) as the loop or recursion is executed every time. 17

1. Correctness: Termination Example 3: Why the algorithm for Ackermann’s function A will terminate for any input pair (x, y)? module A(x, y) {Compute Ackermann’s function on any input (x, y), which are non-negative integers} if x=0 then answer is y+1 else if y=0 then answer is A(x-1, 1) else answer is A(x-1, A(x, y-1)) endmodule 18

2. Nonprocedural Algorithms Procedural Algorithms: ■ Define an algorithm as a set of basic operations controlled by sequence, selection, and iteration. ■ Namely, an algorithm is viewed as a procedure to be followed in order to carry out a task. ■ Two features of this procedural definition: - It defines what operations the processor needs to do; - It specifies the order in which these operations are to be executed. 19

2. Nonprocedural Algorithms ■ Procedural definition of algorithms has some deficiencies. ■ So some alternative definitions have been proposed. - Functional (or applicative) programming, derived from Church’s lambda calculus. - Logic programming, derived from predicate calculus. 20

Summary This Lecture: ■ Correctness ■ Nonprocedural algorithms Next Lectures: - Computer Architecture 21
