Corpora and Statistical Methods Lecture 10 Albert Gatt

Part 1 POS Tagging continued

Transformation-based error-driven learning

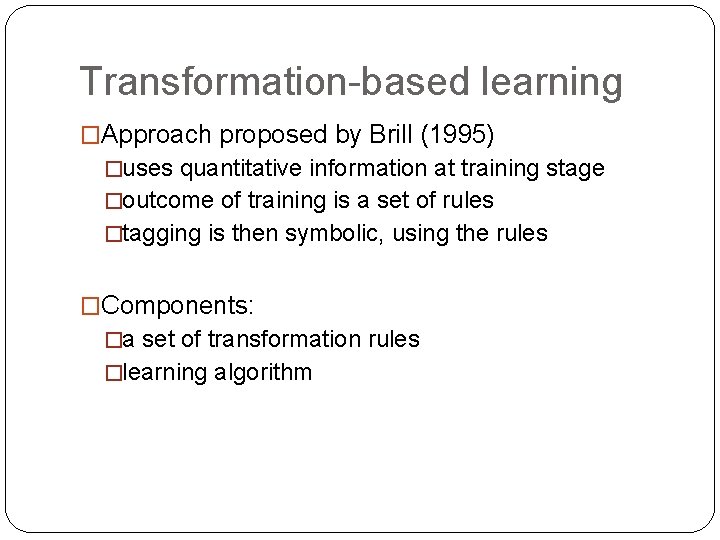

Transformation-based learning �Approach proposed by Brill (1995) �uses quantitative information at training stage �outcome of training is a set of rules �tagging is then symbolic, using the rules �Components: �a set of transformation rules �learning algorithm

Transformations � General form: t 1 t 2 �“replace t 1 with t 2 if certain conditions are satisfied” � Examples: �Morphological: Change the tag from NN to NNS if the word has the suffix "s" � dogs_NNS �Syntactic: Change the tag from NN to VB if the word occurs after "to" � go_NN to_TO go_VB �Lexical: Change the tag to JJ if deleting the prefix "un" results in a word. � uncool_XXX uncool_JJ � uncle_NN -/-> uncle_JJ

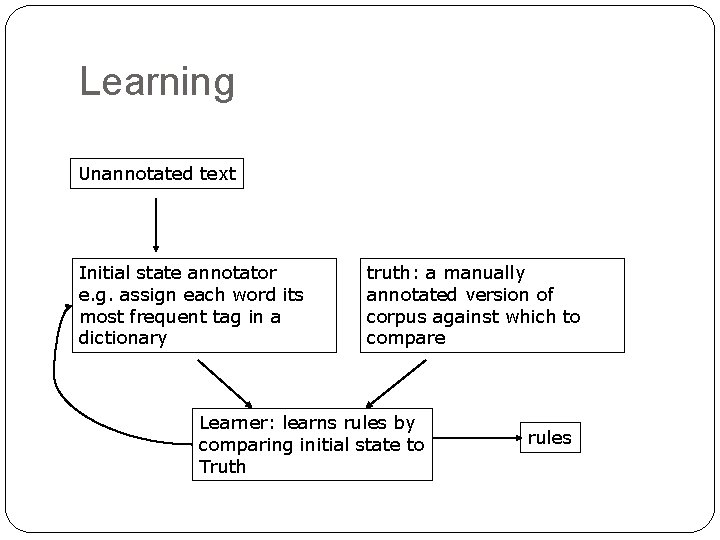

Learning Unannotated text Initial state annotator e. g. assign each word its most frequent tag in a dictionary truth: a manually annotated version of corpus against which to compare Learner: learns rules by comparing initial state to Truth rules

Learning algorithm �Simple iterative process: �apply a rule to the corpus �compare to the Truth �if error rate is reduced, keep the results �A priori specifications: �how initial state annotator works �the space of possible transformations �Brill (1995) used a set of initial templates �the function to compare the result of applying the rules to the truth

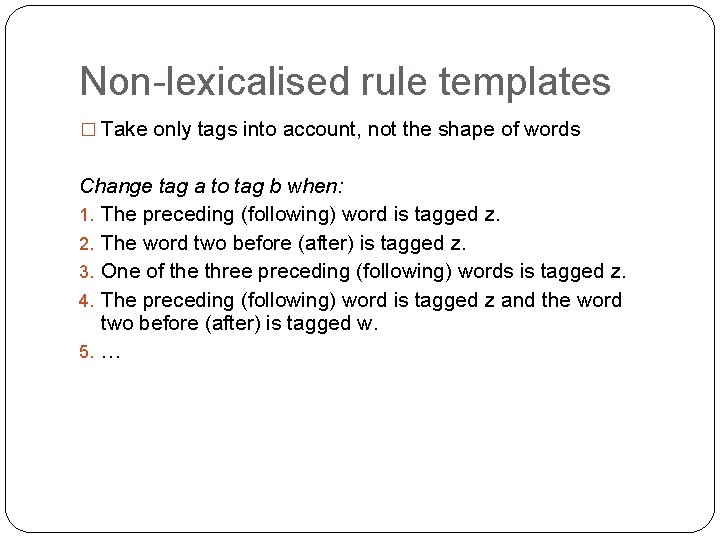

Non-lexicalised rule templates � Take only tags into account, not the shape of words Change tag a to tag b when: 1. The preceding (following) word is tagged z. 2. The word two before (after) is tagged z. 3. One of the three preceding (following) words is tagged z. 4. The preceding (following) word is tagged z and the word two before (after) is tagged w. 5. …

Lexicalised rule templates � Take into account specific words in the context Change tag a to tag b when: 1. The preceding (following) word is w. 2. The word two before (after) is w. 3. The current word is w, the preceding (following) word is w 2 and the preceding (following) tag is t. 4. …

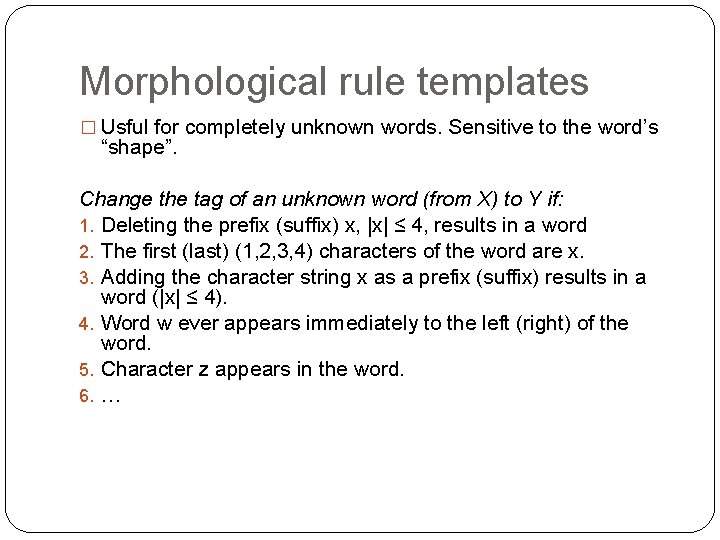

Morphological rule templates � Usful for completely unknown words. Sensitive to the word’s “shape”. Change the tag of an unknown word (from X) to Y if: 1. Deleting the prefix (suffix) x, |x| ≤ 4, results in a word 2. The first (last) (1, 2, 3, 4) characters of the word are x. 3. Adding the character string x as a prefix (suffix) results in a word (|x| ≤ 4). 4. Word w ever appears immediately to the left (right) of the word. 5. Character z appears in the word. 6. …

Order-dependence of rules �Rules are triggered by environments satisfying their conditions �E. g. “A B if preceding tag is A” �Suppose our sequence is “AAAA” �Two possible forms of rule application: �immediate effect: applications of the same transformation can influence eachother �result: ABAB �delayed effect: results in ABBB �the rule is triggered multiple times from the same initial input �Brill (1995) opts for this solution

More on Transformation-based tagging �Can be used for unsupervised learning �like HMM-based tagging, the only info available is the allowable tags for each word �takes advantage of the fact that most words have only one tag �E. g. word can = NN in context AT ___ BEZ because most other words in this context are NN � therefore, learning algorithm would learn the rule “change tag to NN in context AT ___ BEZ” �Unsupervised method achieves 95. 6% accuracy!!

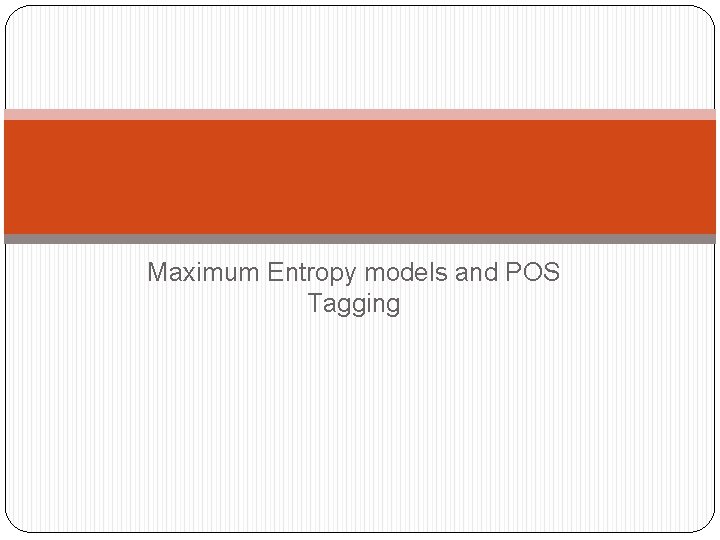

Maximum Entropy models and POS Tagging

Limitations of HMMs � An HMM tagger relies on: �P(tag|previous tag) �P(word|tag) �these are combined by multiplication � TBL includes many other useful features which are hard to model in HMM: �prefixes, suffixes �capitalisation �… � Can we combine both, i. e. have HMM-style tagging with multiple features?

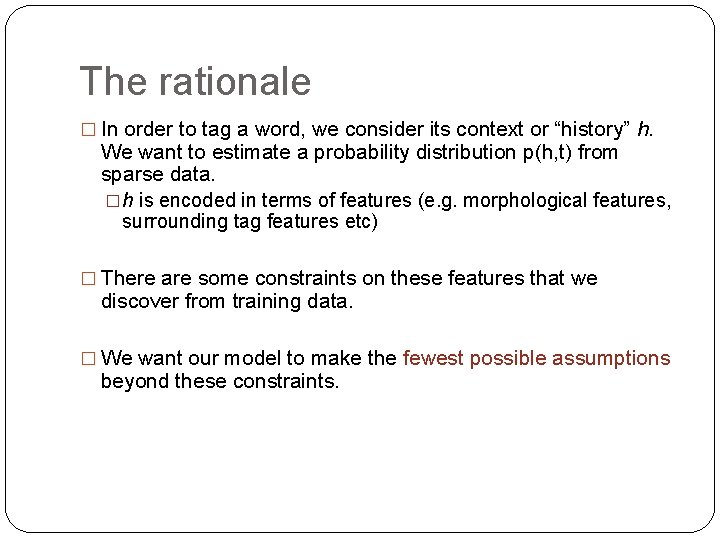

The rationale � In order to tag a word, we consider its context or “history” h. We want to estimate a probability distribution p(h, t) from sparse data. �h is encoded in terms of features (e. g. morphological features, surrounding tag features etc) � There are some constraints on these features that we discover from training data. � We want our model to make the fewest possible assumptions beyond these constraints.

Motivating example �Suppose we wanted to tag the word w. �Assume we have a set T of 45 different tags: T ={NN, JJ, NNS, NNP, VVS, VB, …} �The probabilistic tagging model that makes fewest assumptions assigns a uniform distribution over the tags:

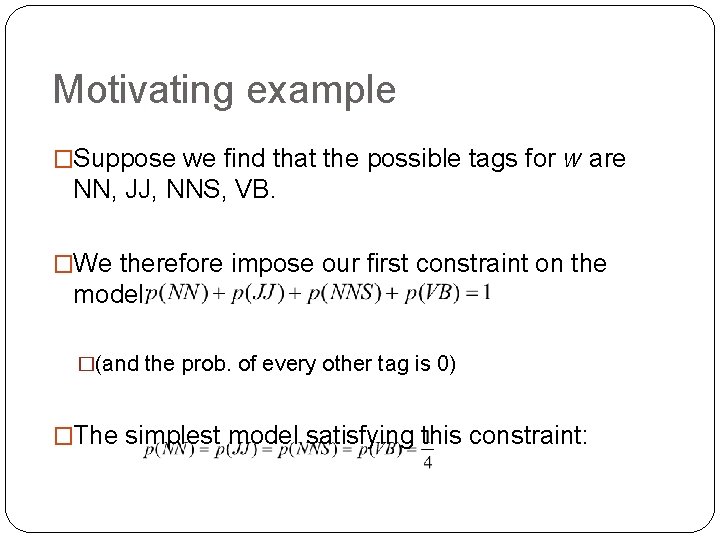

Motivating example �Suppose we find that the possible tags for w are NN, JJ, NNS, VB. �We therefore impose our first constraint on the model: �(and the prob. of every other tag is 0) �The simplest model satisfying this constraint:

Motivating example � We suddenly discover that w is tagged as NN or NNS 8 out of 10 times. � Model now has two constraints: � Again, we require our model to make no further assumptions. Simplest distribution leaves probabilities for all tags except NN/NNS equal: �P(NN) = 4/10 �P(NNS) = 4/10 �P(JJ) = 1/10 �P(VB) = 1/10

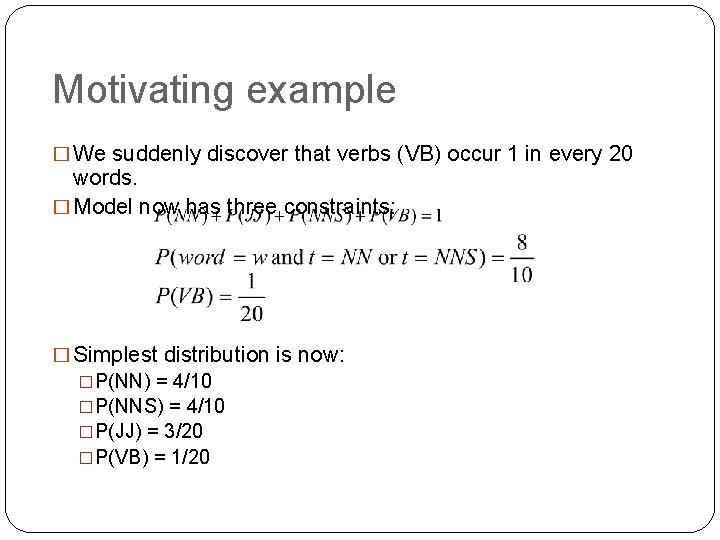

Motivating example � We suddenly discover that verbs (VB) occur 1 in every 20 words. � Model now has three constraints: � Simplest distribution is now: �P(NN) = 4/10 �P(NNS) = 4/10 �P(JJ) = 3/20 �P(VB) = 1/20

What we’ve been doing �Maximum entropy builds a distribution by continuously adding features. �Each feature picks out a subset of the training observations. �For each feature, we add a constraint on our total distribution. �Our task is then to find the best distribution given the constraints.

Features for POS Tagging � Each tagging decision for a word occurs in a specific context or “history” h. � For tagging, we consider as context: �the word itself �morphological properties of the word �other words surrounding the word �previous tags � For each relevant aspect of the context hi, we can define a feature fj that allows us to learn how well that aspect is associated with a tag ti. � Probability of a tag given a context is a weighted function of the features.

Features for POS Tagging � In a maximum entropy model, this information is captured by a binary or indicator feature � each feature fi has a weight αi reflecting its importance � NB: each αi is uniquely associated with a feature

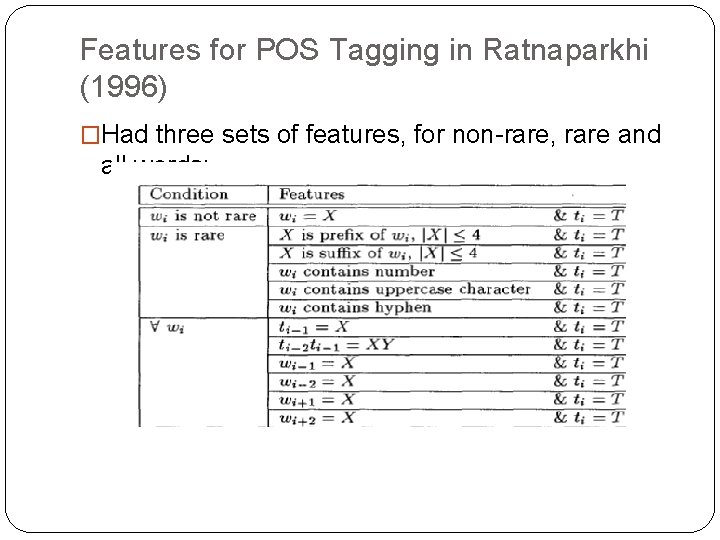

Features for POS Tagging in Ratnaparkhi (1996) �Had three sets of features, for non-rare, rare and all words:

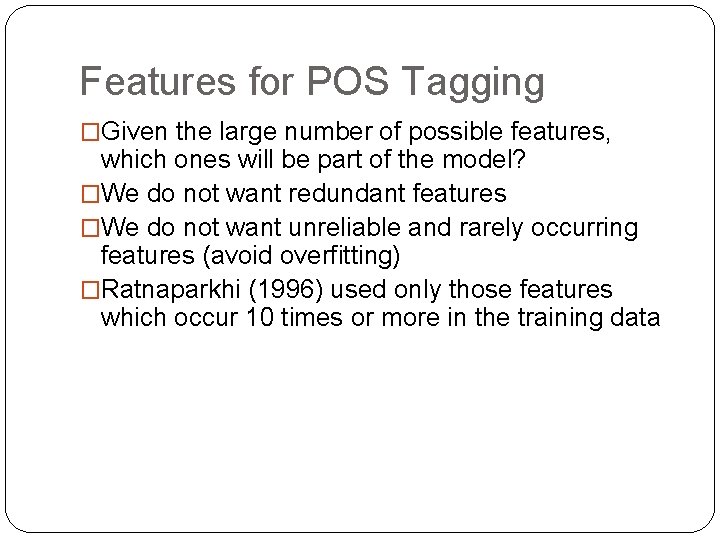

Features for POS Tagging �Given the large number of possible features, which ones will be part of the model? �We do not want redundant features �We do not want unreliable and rarely occurring features (avoid overfitting) �Ratnaparkhi (1996) used only those features which occur 10 times or more in the training data

The form of the model �Features fj and their parameters are used to compute the probability p(hi, ti): �where j ranges over features & Z is a normalisation constant �Transform into a linear equation:

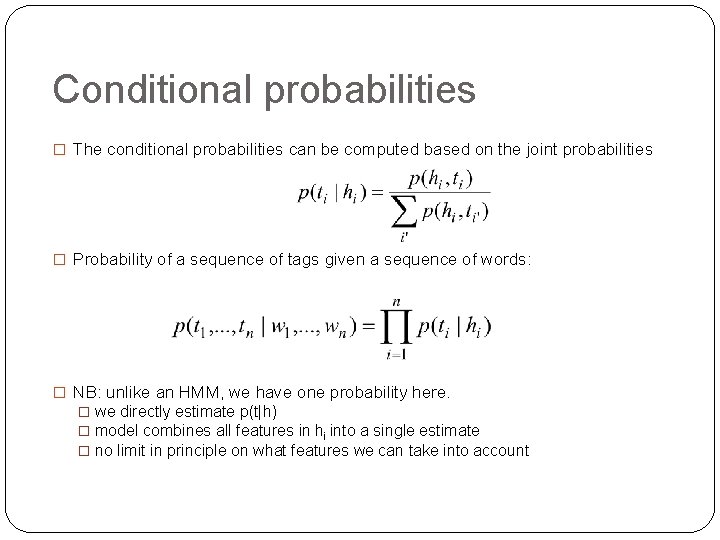

Conditional probabilities � The conditional probabilities can be computed based on the joint probabilities � Probability of a sequence of tags given a sequence of words: � NB: unlike an HMM, we have one probability here. � we directly estimate p(t|h) � model combines all features in hi into a single estimate � no limit in principle on what features we can take into account

The use of constraints �Every feature we have imposes a constraint or expectation on the probability model. We want: the model p’s expectation of fj �Where: the empirical expectation of fj

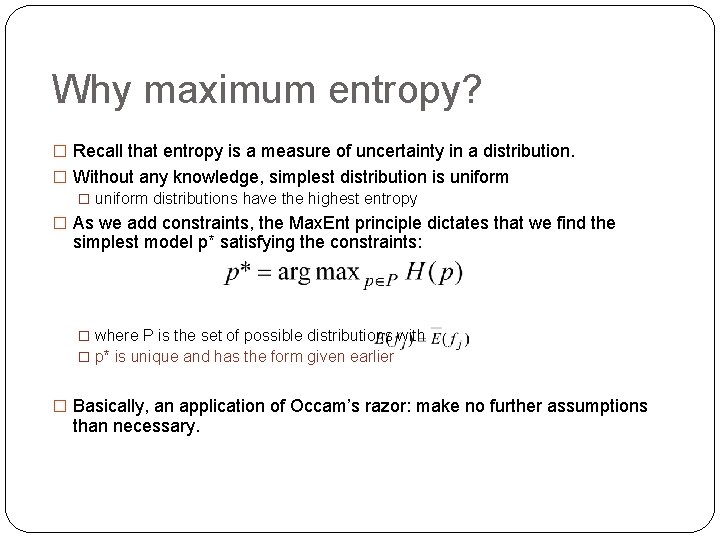

Why maximum entropy? � Recall that entropy is a measure of uncertainty in a distribution. � Without any knowledge, simplest distribution is uniform � uniform distributions have the highest entropy � As we add constraints, the Max. Ent principle dictates that we find the simplest model p* satisfying the constraints: � where P is the set of possible distributions with � p* is unique and has the form given earlier � Basically, an application of Occam’s razor: make no further assumptions than necessary.

Training a Max. Ent model

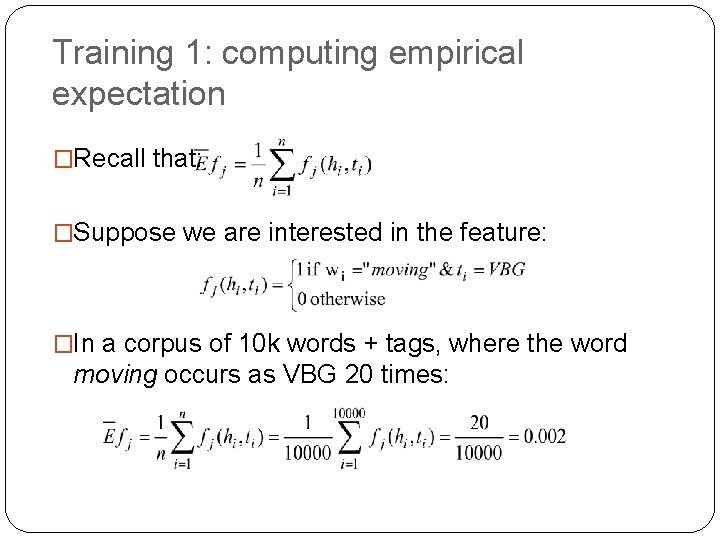

Training 1: computing empirical expectation �Recall that: �Suppose we are interested in the feature: �In a corpus of 10 k words + tags, where the word moving occurs as VBG 20 times:

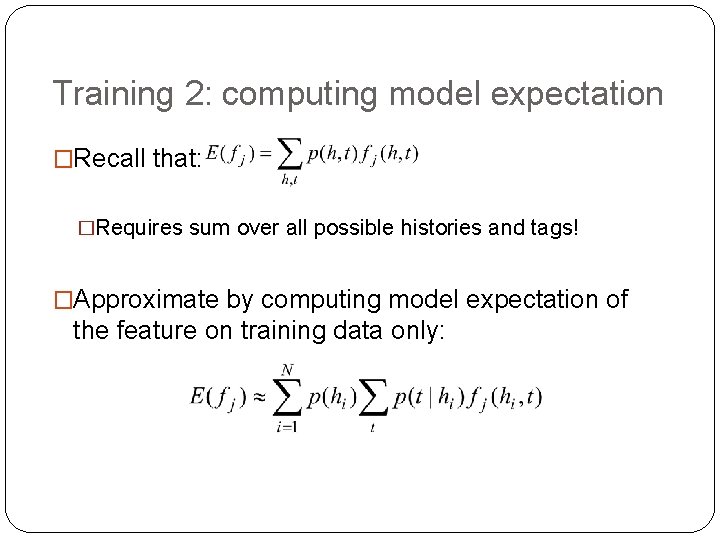

Training 2: computing model expectation �Recall that: �Requires sum over all possible histories and tags! �Approximate by computing model expectation of the feature on training data only:

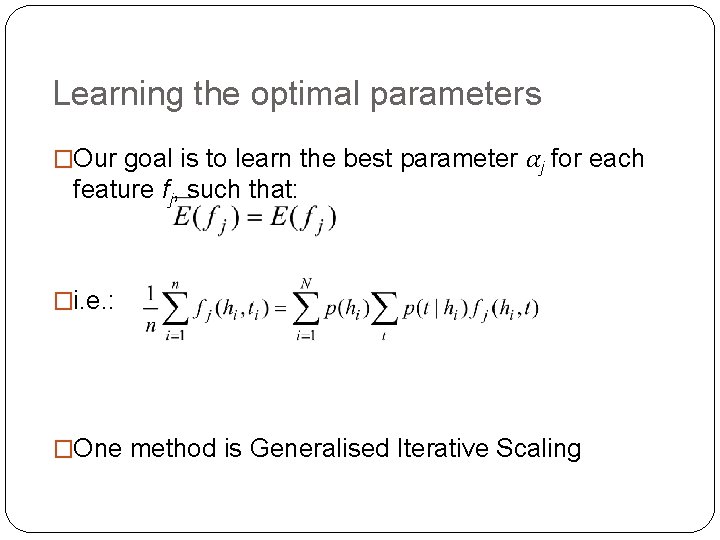

Learning the optimal parameters �Our goal is to learn the best parameter αj for each feature fj, such that: �i. e. : �One method is Generalised Iterative Scaling

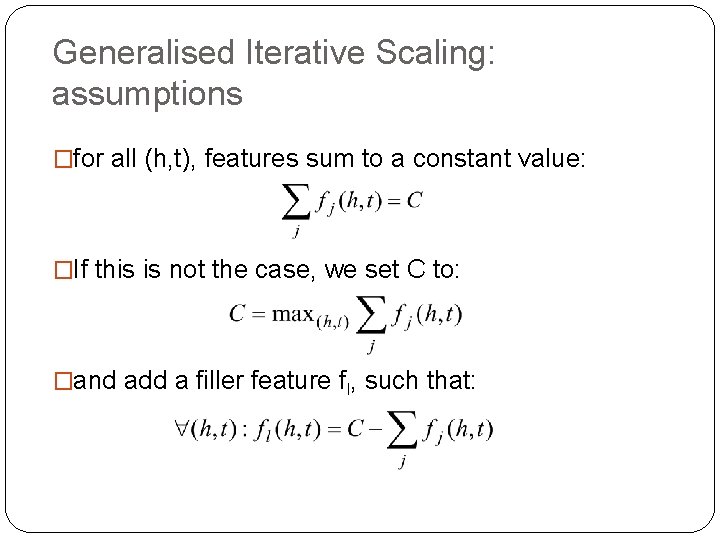

Generalised Iterative Scaling: assumptions �for all (h, t), features sum to a constant value: �If this is not the case, we set C to: �and add a filler feature fl, such that:

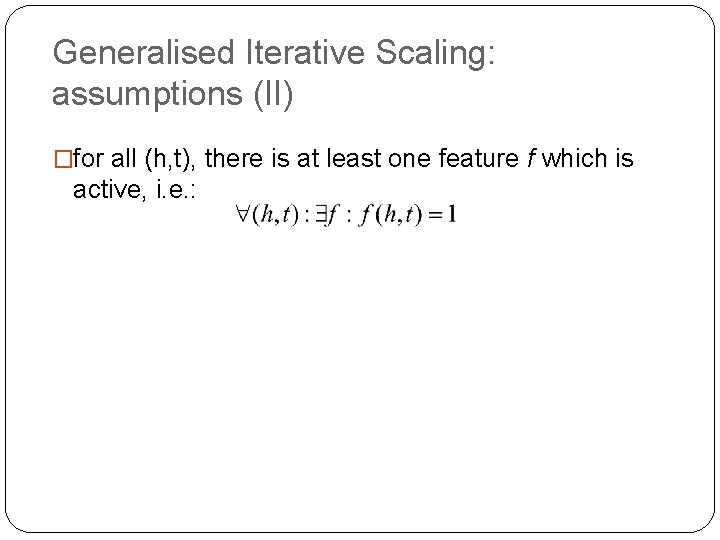

Generalised Iterative Scaling: assumptions (II) �for all (h, t), there is at least one feature f which is active, i. e. :

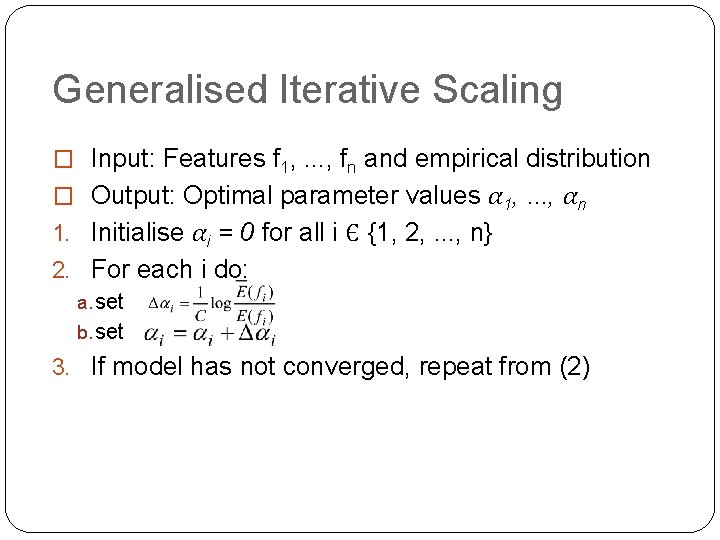

Generalised Iterative Scaling � Input: Features f 1, . . . , fn and empirical distribution � Output: Optimal parameter values α 1, . . . , αn 1. Initialise αi = 0 for all i Є {1, 2, . . . , n} 2. For each i do: a. set b. set 3. If model has not converged, repeat from (2)

Finding tag sequences with Max. Ent models

Tagging sequences �We want to tag a sequence w 1, . . . , wn �This can be decomposed into: �The history hi consists of the words w 1, . . . , wi-1 and previous tags t 1, . . . , ti− 1

Finding the best tag sequence: beam search (Ratnaparki, 1996) � � To find the best sequence of n tags given N features. sij = the jth highest probability tag sequence up to word i. 1. Generate all tags for w 1 a. find the top N tags b. set s 1 j for 1 ≤ j ≤ N 2. for i = 2 to n do: a. for j = 1 to N do: i. ii. b. 3. Generate tags for wi given s(i-1)j Append each tag to s(i-1)j to create new sequence Find the N highest probability sequences generated by loop 2 a. Return sn 1

Worked example �Suppose our data consists of the sequence: a, b, c �Assume the correct tags are A, B, C �Assume that N = 1 (i. e. we only ever consider the top most likely tag)

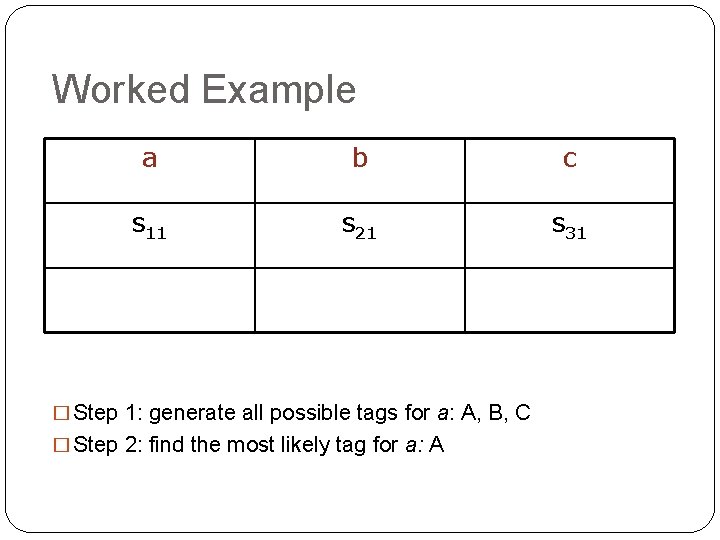

Worked Example a b c s 11 s 21 s 31 � Step 1: generate all possible tags for a: A, B, C � Step 2: find the most likely tag for a: A

Worked Example a b c s 11 s 21 s 31 A � Step 2: generate all possible tags for b: A, B, C � merge with s 11: A-A, A-B, A-C � Find the most likely sequence: A-B

Worked Example a b c s 11 s 21 s 31 A A-B � Step 3: generate all possible tags for w 3: A, B, C � merge with s 21: A-B-A, A-B-B, A-B-C � Find the most likely: A-B-C

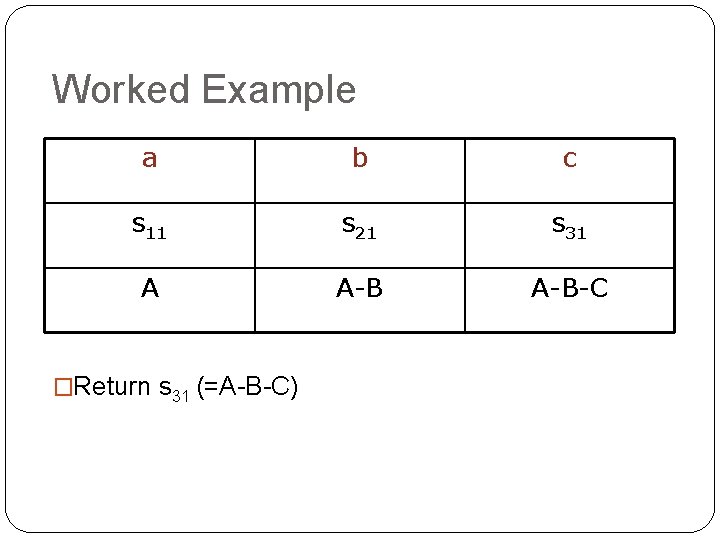

Worked Example a b c s 11 s 21 s 31 A A-B-C �Return s 31 (=A-B-C)

Markov Models vs. Max. Ent

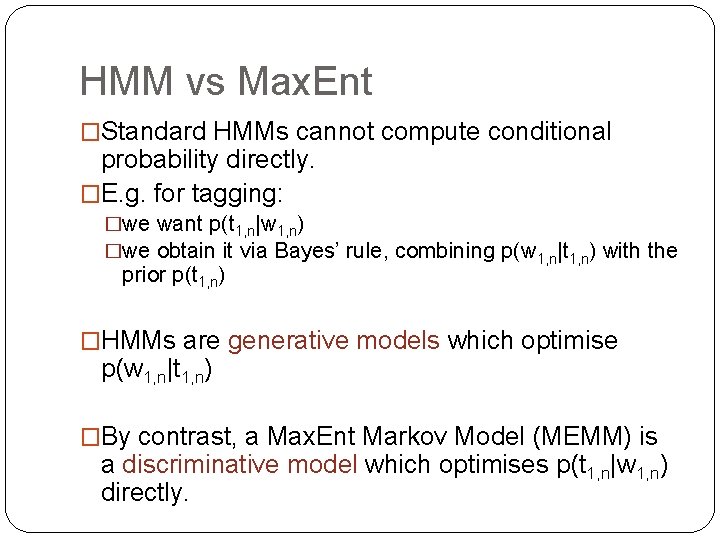

HMM vs Max. Ent �Standard HMMs cannot compute conditional probability directly. �E. g. for tagging: �we want p(t 1, n|w 1, n) �we obtain it via Bayes’ rule, combining p(w 1, n|t 1, n) with the prior p(t 1, n) �HMMs are generative models which optimise p(w 1, n|t 1, n) �By contrast, a Max. Ent Markov Model (MEMM) is a discriminative model which optimises p(t 1, n|w 1, n) directly.

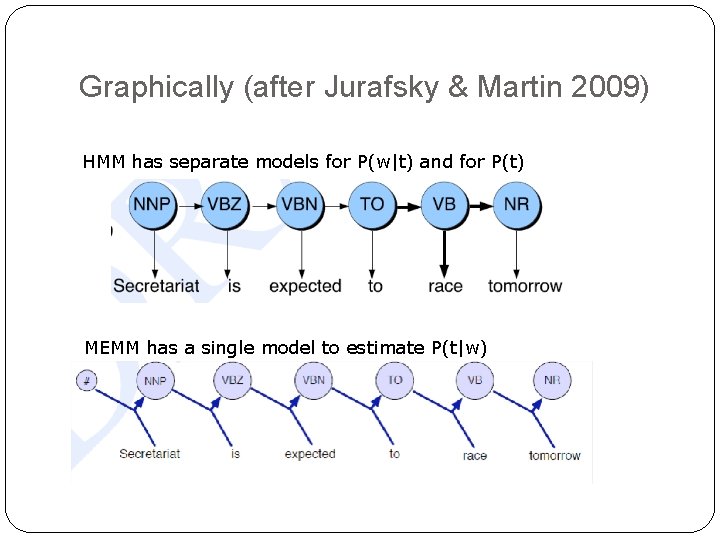

Graphically (after Jurafsky & Martin 2009) HMM has separate models for P(w|t) and for P(t) MEMM has a single model to estimate P(t|w)

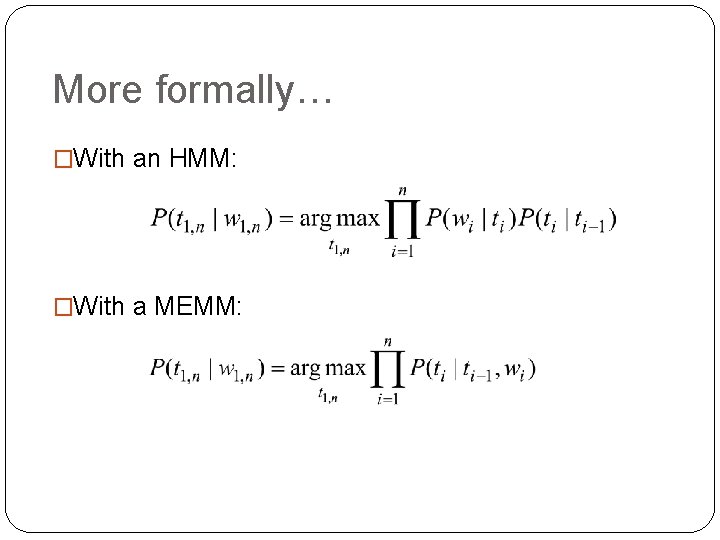

More formally… �With an HMM: �With a MEMM:

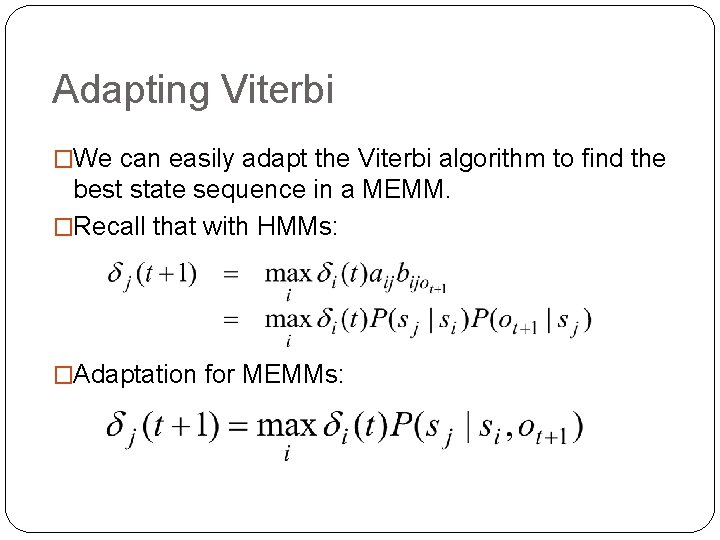

Adapting Viterbi �We can easily adapt the Viterbi algorithm to find the best state sequence in a MEMM. �Recall that with HMMs: �Adaptation for MEMMs:

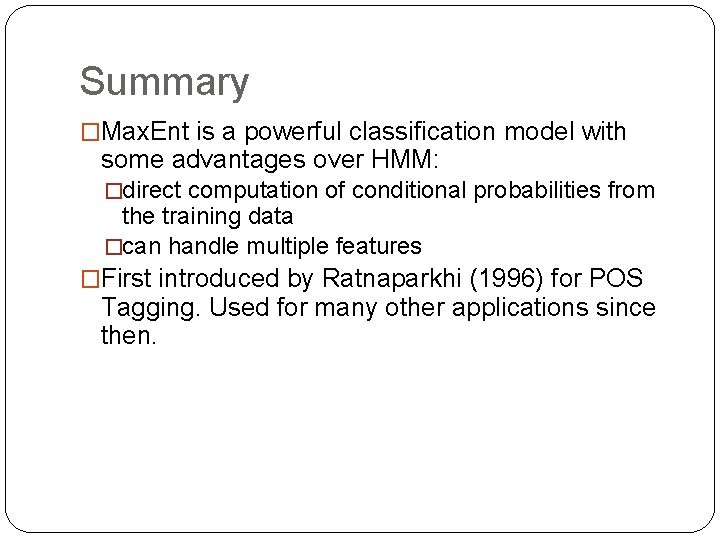

Summary �Max. Ent is a powerful classification model with some advantages over HMM: �direct computation of conditional probabilities from the training data �can handle multiple features �First introduced by Ratnaparkhi (1996) for POS Tagging. Used for many other applications since then.
