Coronal T 2 weighted cut Brain MRI Image

Coronal T 2 -weighted cut. Brain MRI. - Image 2 1, Superior frontal gyrus. 2, Temporal Muscle. 3, Masseter muscle. 4, Turbinate. 5, Medial rectus muscle.

Coronal T 2 -weighted cut. Brain MRI. - Image 5 1, Superior frontal gyrus. 2, Optic nerve. 3, Temporal pole. 4, Medial pterygoid muscle. 5, Lateral pterygoid muscle. 6, Ethmoid sinuses. 7, Gyrus rectus. 8, Inferior frontal gyrus. 9, Middle frontal gyrus. Arrow, Meningioma.

Coronal T 2 -weighted cut. Brain MRI. - Image 7 1, Inferior frontal gyrus. 2, Middle frontal gyrus. 3, Superior frontal gyrus. 4, Cingulate gyrus. 5, Corpus callosum. 6, Lateral ventricle. 7, Temporal pole. 8, Sphenoid sinus. 9, Internal carotid artery

Coronal T 2 -weighted cut. Brain MRI. - Image 8 1, Superior frontal gyrus. 2, Middle frontal gyrus. 3, Inferior frontal gyrus. 4, Lenticular nucleus. 5, Internal carotid artery. 6, Optic chiasm. 7, Inferior temporal gyrus. 8, Middle temporal gyrus. 9, Middle cerebral artery. 10, Superior temporal gyrus. 11, Anterior limb internal capsule. 12, Caudate nucleus.

Coronal T 2 -weighted cut. Brain MRI. - Image 9 1, Lateral ventricle. 2, Superior frontal gyrus. 3, Middle frontal gyrus. 4, Inferior frontal gyrus. 5, Sylvian fissure. 6, Amygdale. 7, Pituitary stalk. 8, Inferior temporal gyrus. 9, Middle temporal gyrus. 10, Superior temporal gyrus. 11, Insula.

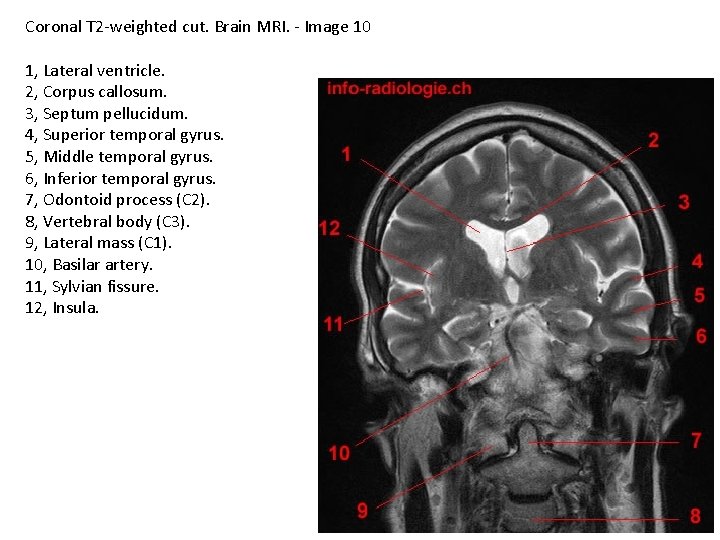

Coronal T 2 -weighted cut. Brain MRI. - Image 10 1, Lateral ventricle. 2, Corpus callosum. 3, Septum pellucidum. 4, Superior temporal gyrus. 5, Middle temporal gyrus. 6, Inferior temporal gyrus. 7, Odontoid process (C 2). 8, Vertebral body (C 3). 9, Lateral mass (C 1). 10, Basilar artery. 11, Sylvian fissure. 12, Insula.

Coronal T 2 -weighted cut. Brain MRI. - Image 11 1, Lateral ventricle. 2, Cingulate gyrus. 3, Corpus callosum. 4, Superior temporal gyrus. 5, Middle temporal gyrus. 6, Inferior temporal gyrus. 7, Lateral mass (C 1). 8, Basilar artery. 9, Pons. 10, Sylvian fissure. 11, Insula.

Coronal T 2 -weighted cut. Brain MRI. - Image 12 1, Lateral ventricle. 2, Cingulate gyrus. 3, Corpus callosum. 4, Superior temporal gyrus. 5, Middle temporal gyrus. 6, Inferior temporal gyrus. 7, Spinal cord. 8, Medulla. 9, Pons. 10, Red nucleus. 11, Thalamus.

Coronal T 2 -weighted cut. Brain MRI. - Image 15 1, Lateral ventricle. 2, Fornix. 3, Colliculus. 4, Cerebellar hemisphere. 5, Middle cerebellar peduncle. 6, 4 th ventricle. 7, Tentorium cerebelli.

Coronal T 2 -weighted cut. Brain MRI. - Image 19 1, Superior sagittal sinus. 2, Interhemispheric fissure. 3, Calcarine fissure. 4, Cerebellar hemisphere. 5, Transverse sinus. 6, Sraight sinus.

Coronal T 2 -weighted cut. Brain MRI. - Image 20 1, Superior sagittal sinus. 2, Calcarine fissure. 3, Cerebellar hemisphere. 4, Transverse sinus. 5, Sraight sinus. 6, Interhemispheric fissure.

Venous sinuses: axial cuts (MRI of the brain after medium contrast administration). Image 1 1, internal jugular vein. 2, nasopharynx. 3, internal carotid artery. 4, cerebellum.

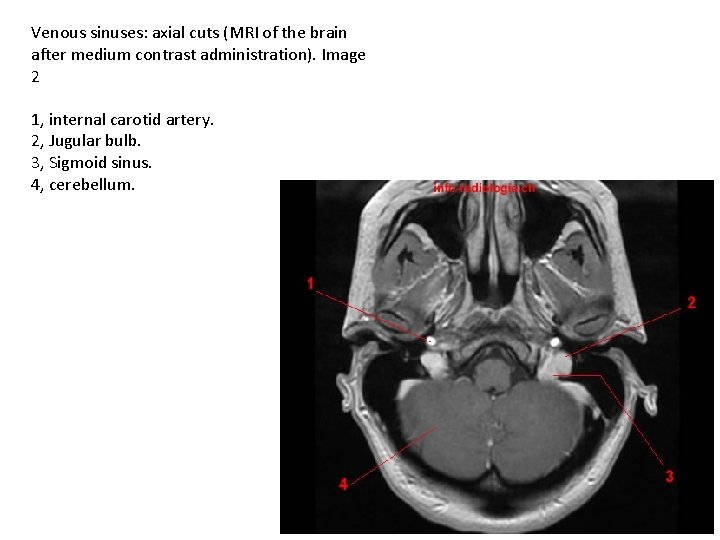

Venous sinuses: axial cuts (MRI of the brain after medium contrast administration). Image 2 1, internal carotid artery. 2, Jugular bulb. 3, Sigmoid sinus. 4, cerebellum.

Venous sinuses: axial cuts (MRI of the brain after medium contrast administration). Image 4 1, Transverse sinus (Right side). 2, Transverse sinus (Left side).

Venous sinuses: axial cuts (MRI of the brain after medium contrast administration). Image 6 1, Straight sinus.

Venous sinuses: axial cuts (MRI of the brain after medium contrast administration). Image 8 1, Straight sinus. 2, Superior sagittal sinus.

Venous sinuses: axial cuts (MRI of the brain after medium contrast administration). Image 13 1, Inferior sagittal sinus. 2, Anterior end of superior sagittal sinus. 3, Posterior end of superior sagittal sinus.

Venous sinuses: axial cuts (MRI of the brain after medium contrast administration). Image 16 1, Anterior end of superior sagittal sinus. 2, Posterior end of superior sagittal sinus.

Venous sinuses: axial cuts (MRI of the brain after medium contrast administration). Image 18 1, Superior sagittal sinus.

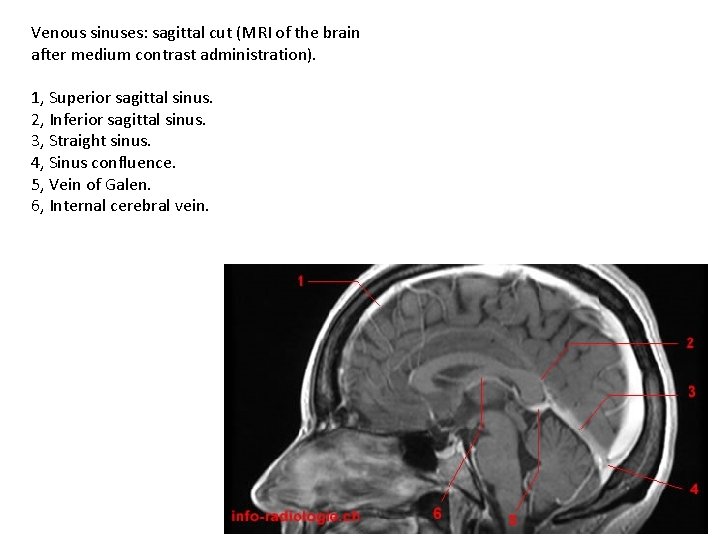

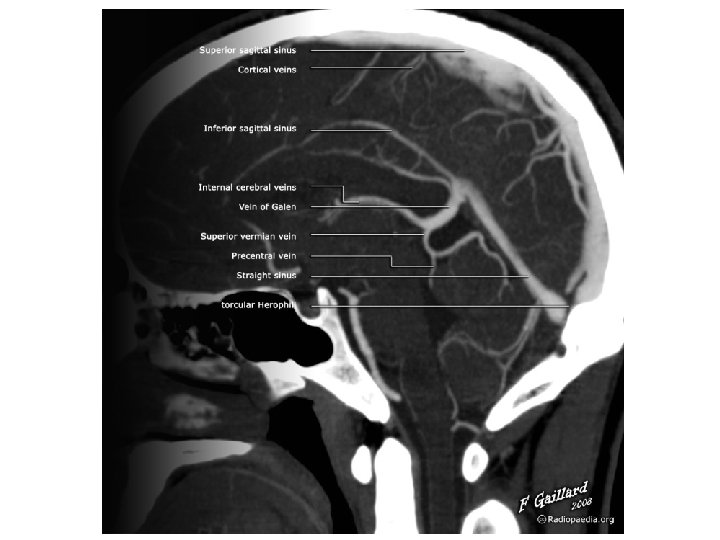

Venous sinuses: sagittal cut (MRI of the brain after medium contrast administration). 1, Superior sagittal sinus. 2, Inferior sagittal sinus. 3, Straight sinus. 4, Sinus confluence. 5, Vein of Galen. 6, Internal cerebral vein.

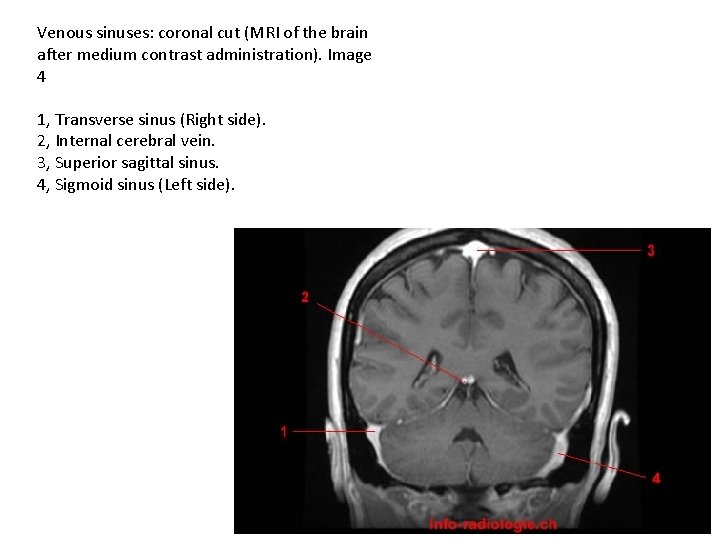

Venous sinuses: coronal cut (MRI of the brain after medium contrast administration). Image 4 1, Transverse sinus (Right side). 2, Internal cerebral vein. 3, Superior sagittal sinus. 4, Sigmoid sinus (Left side).

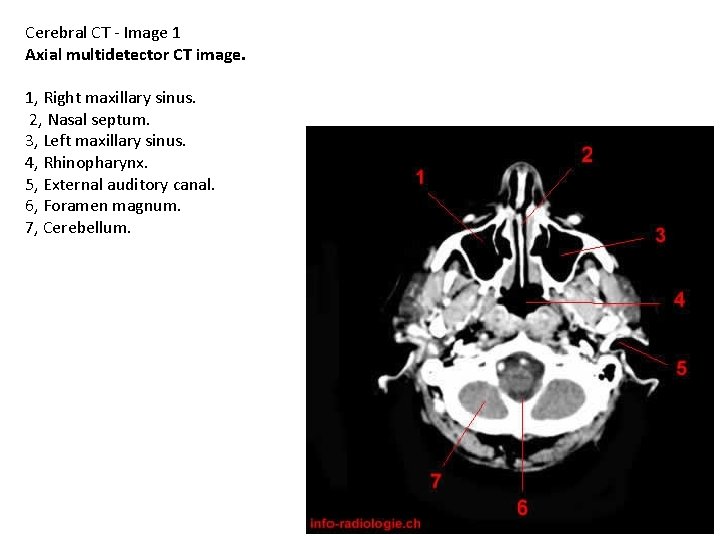

Cerebral CT - Image 1 Axial multidetector CT image. 1, Right maxillary sinus. 2, Nasal septum. 3, Left maxillary sinus. 4, Rhinopharynx. 5, External auditory canal. 6, Foramen magnum. 7, Cerebellum.

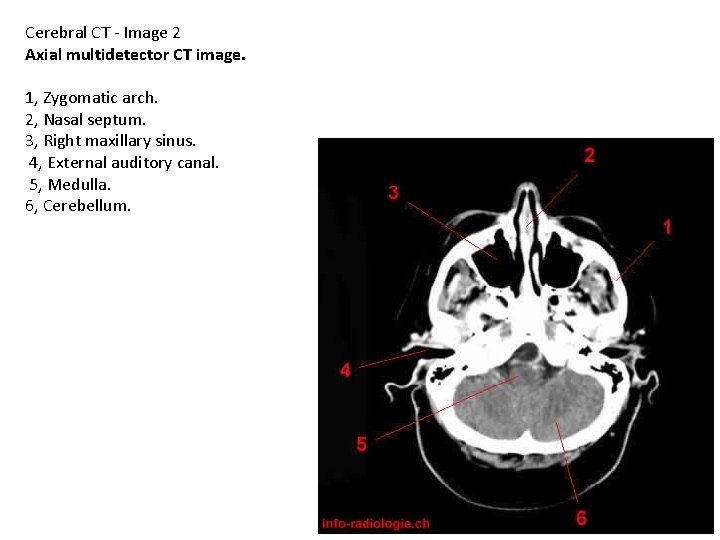

Cerebral CT - Image 2 Axial multidetector CT image. 1, Zygomatic arch. 2, Nasal septum. 3, Right maxillary sinus. 4, External auditory canal. 5, Medulla. 6, Cerebellum.

Cerebral CT - Image 3 Axial multidetector CT image. 1, Globe. 2, Sphenoid sinus. 3, Right temporal lobe. 4, Mastoid sinuses. 5, Pons. 6, Fourth ventricle. 7, Cerebellar hemisphere.

Cerebral CT - Image 4 Coupe axiale. 1, Ethmoid sinuses. 2, Globe. 3, Optic nerve. 4, Vermis. 5, Midbrain. 6, Temporal gyri.

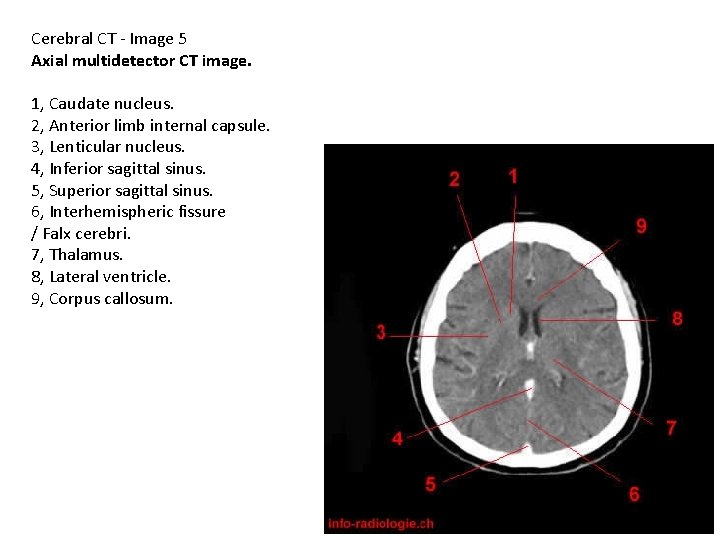

Cerebral CT - Image 5 Axial multidetector CT image. 1, Caudate nucleus. 2, Anterior limb internal capsule. 3, Lenticular nucleus. 4, Inferior sagittal sinus. 5, Superior sagittal sinus. 6, Interhemispheric fissure / Falx cerebri. 7, Thalamus. 8, Lateral ventricle. 9, Corpus callosum.

Cerebral CT - Image 6 Axial multidetector CT image. 1, Superior frontal gyrus. 2, Lateral ventricle. 3, Caudate nucleus.

Cerebral CT - Image 9 Coronal reconstructed image. 1, Frontal Gyri. 2, Zygomatic arch. 3, Mandible. 4, Nasal turbinate. 5, Alveolar arch. 6, Right maxillary sinus.

Cerebral CT - Image 10 Coronal reconstructed image. 1, Frontal Gyri. 2, Temporal gyri. 3, Zygomatic arch. 4, Mandible. 5, Alveolar arch. 6, Sphenoid sinus.

Cerebral CT - Image 12 Coronal reconstructed image. 1, Interhemispheric fissure / Falx cerebri. 2, Superior frontal gyrus. 3, Caudate nucleus. 4, Third ventricule. 5, Basilar artery. 6, Lenticular nucleus. 7, Internal capsule. 8, Lateral ventricle.

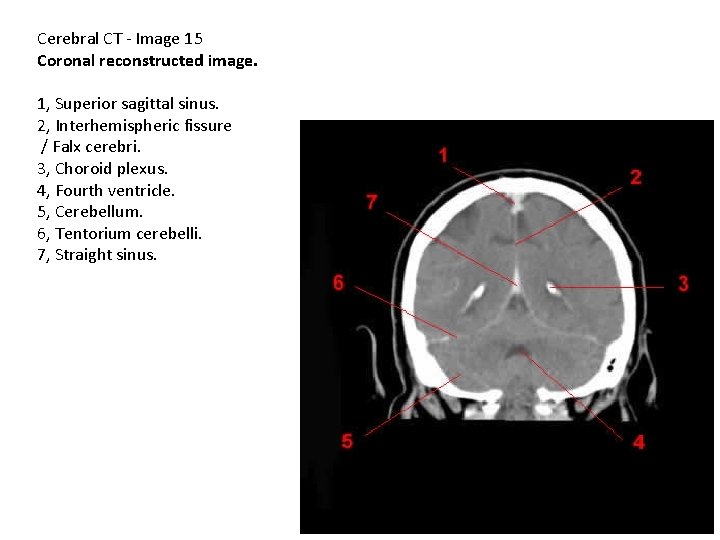

Cerebral CT - Image 15 Coronal reconstructed image. 1, Superior sagittal sinus. 2, Interhemispheric fissure / Falx cerebri. 3, Choroid plexus. 4, Fourth ventricle. 5, Cerebellum. 6, Tentorium cerebelli. 7, Straight sinus.

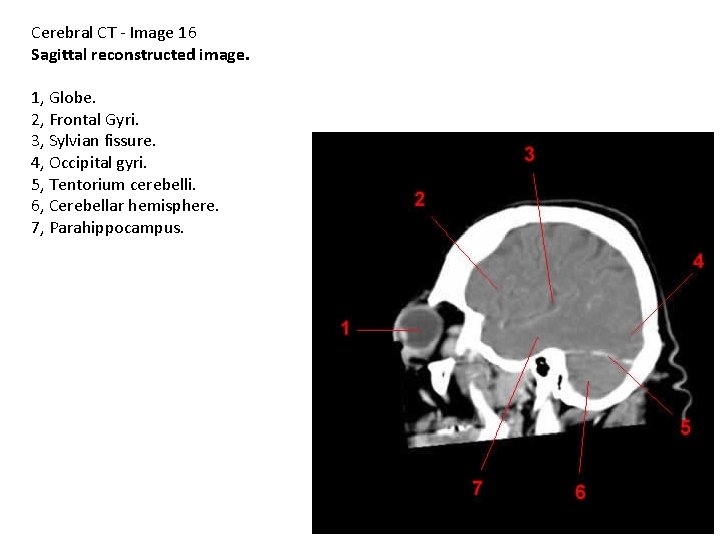

Cerebral CT - Image 16 Sagittal reconstructed image. 1, Globe. 2, Frontal Gyri. 3, Sylvian fissure. 4, Occipital gyri. 5, Tentorium cerebelli. 6, Cerebellar hemisphere. 7, Parahippocampus.

Cerebral CT - Image 18 Sagittal reconstructed image. 1, Sphenoid sinus. 2, Maxillary sinus. 3, Optic nerve. 4, Caudate nucleus. 5, Lateral ventricle. 6, Thalamus. 7, Tentorium cerebelli. 8, Cerebellar hemisphere.

Cerebral CT - Image 19 Sagittal reconstructed image. 1, Bony palate. 2, Nasal fossa. 3, Sphenoid sinus. 4, Turcic sellae. 5, Lateral ventricle. 6, Corpus callosum. 7, Internal cerebral vein. 8, Inferior sagittal sinus. 9, Straight sinus. 10, Confluens sinuum. 11, Fourth ventricle. 12, Cerebellar hemisphere. 13, Pons.

Cerebral CT - Image 20 Sagittal reconstructed image. 1, Oropharynx. 2, Nasal turbinate. 3, Frontal Gyri. 4, Corpus callosum. 5, Lateral ventricle. 6, Cerebral trunk. 7, Occipital gyri. 8, Cerebellar hemisphere.
