Core 510 i Q-SYS platform Q-SYS unified core DESCRIPTION IMAGE Q-SYS™ Core 510 i

Core 510 i Q-SYS platform Q-SYS unified core DESCRIPTION IMAGE Q-SYS™ Core 510 i 프로세서는 오디오, 비디오 및 제어 처리 시스 템이며 인텔 ™ CPU 및 마더보드뿐 만 아니라 전용, linux ™ 실시간 운영 체제를 개발 및 사용하여 모든 규모의 AV 시스템에 대해 QSC 만의 압도적 역량을 제공합니다. Q-SYS Core 510 i 프로세서는 Q-SYS 카탈로그에서 모든 core 중가 장 유연한 오디오 I/O 제공하므로 다양한 아날로그, 디지털 및 네트 워크 오디오 연결이 필요한 어플리케이션에 이상적입니다. FEATURES § 활용도 높은 8개의 Onboard I/O 카드 슬롯을 탑재 § 어떤 종류의 Q-SYS I/O 카드 조합도 호환 가능하며 최대한의 편 리성을 강조 § 오디오와 비디오 그리고 컨트롤유닛까지 해당 linux에서 실시간 모 니터링 가능 § TCP/IP, RS 232 그리고 GPIO 외부입력 장치를 사용한 통합된 조 작법 § 이해하기 쉽고 강력한 Q-SYS 디자이너 소프트웨어 어플리케이션 을 사용 SPECIFICATIONS Q-SYS Core 510 i integrated processor Description System processor and control engine with integrated I/O(or I/O expander when configured via software as I/O 510 i) Configuration modes “Q-SYS Core” - centralized processor and control engine for a Q-SYS system“I/O-510 i configuration suited to integrating high channel-count networked I/O cards (dante, cobranet, AVB)” - peripheral to an additional Q-SYS core processor on the system Supported peripherals (when configured as a Q-SYS core processor. ) I/O-8 Flex channel expander, I/O-USB Bridge, PTZ-IP camera series, I/O Frame, I/O-Frame 8 s, I/O-22, I/O-11 series, page station series, TSC series touch screens Software requirements § Q-SYS AV-to-USB 연결을 통한 매끄러운 통합시스템 § QSC 앰프 그리고 스피커와 간단하게 통합 연결 가능 § 여러 수준의 시스템 이중화 Multitrack player capacity 16 tracks, expandable to 128 tracks (available when configured as a QSYS Core Processor only) Media drive capacity Approximately 6 GB on the default drive (when configured as a Q-SYS core processor only, upgrade options are available) Configure to rder Inputs/outputs options Audio I/O cards Q-SYS Designer 6. x. x Channel capacity Network channel capacity 256 x 256(in Q-SYS Core mode)/128 x 128(in I/O Frame mode) Local audio I/O capacity 8 audio I/O card slots accommodates up to 128 x 128 total onboard I/O channels AEC channel capacity 64 at 200 ms tail length(available when configured as a Q-SYS core processor only) COL 4: Line output card(4 channels) CODP 4: Dataport card(4 channels) CIML 4: Mic/line input card(4 channels) CIML 4 -HP: High performance mic/line input card(4 channels) CAES 4: AES 3 digital I/O card(4 x 4 channels) CIAES 16: AES 3 digital input card(16 channels) CCN 32: Cobranet network bridge card (up to 32 x 32 channels) CAN 32: AVB network bridge card(up to 32 channels) CDN 64: Dante network bridge card(up to 64 x 64 channels) Media drives (in Q-SYS core mode) M 2 -MD-S: 128 GB M 2 -MD-M: 256 GB M 2 -MD-L: 512 GB Multi. Track Players (MTP) (in Q-SYS core mode) MTP-32: 32 tracks MTP-64: 64 tracks MTP-128: 128 tracks [계속]

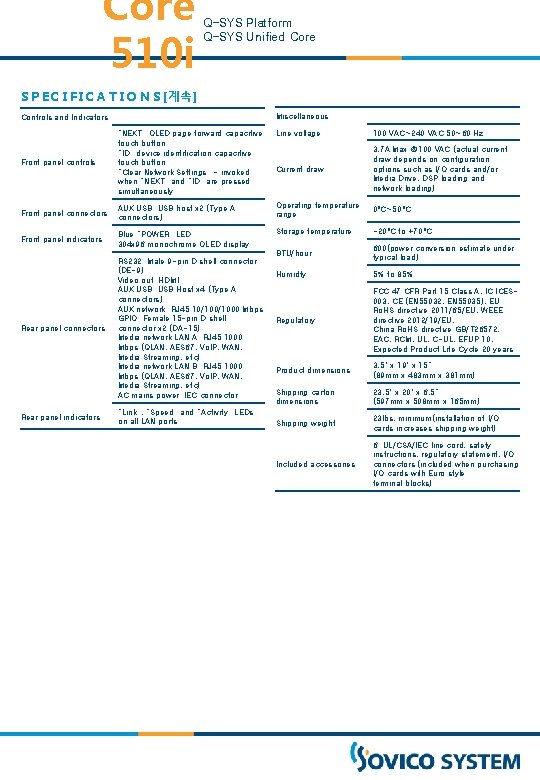

Core 510 i Q-SYS Platform Q-SYS Unified Core S P E C I F

Core 510 i Q-SYS Platform Q-SYS Unified Core S P E C I F I C A T I O N S [계속] Miscellaneous Controls and Indicators Line voltage 100 VAC~240 VAC 50~60 Hz Front panel controls “NEXT” OLED page forward capacitive touch button “ID” device identification capacitive touch button “Clear Network Settings” - invoked when “NEXT” and “ID” are pressed simultaneously Current draw 3. 7 A Max @100 VAC (actual current draw depends on configuration options such as I/O cards and/or Media Drive, DSP loading and network loading) Front panel connectors AUX USB: USB host x 2 (Type A connectors) Operating temperature range 0°C~50°C Blue “POWER” LED 304 x 96 monochrome OLED display Storage temperature -20°C to +70°C Front panel indicators BTU/hour 600(power conversion estimate under typical load) Humidty 5% to 85% Regulatory Rear panel connectors RS 232: Male 9 -pin D shell connector (DE-9) Video out: HDMI AUX USB: USB Host x 4 (Type A connectors) AUX network: RJ 45 10/1000 Mbps GPIO: Female 15 -pin D shell connector x 2 (DA-15) Media network LAN A: RJ 45 1000 Mbps (QLAN, AES 67, Vo. IP, WAN, Media Streaming, etc) Media network LAN B: RJ 45 1000 Mbps (QLAN, AES 67, Vo. IP, WAN, Media Streaming, etc) AC mains power: IEC connector FCC 47 CFR Part 15 Class A, IC ICES 003, CE (EN 55032, EN 55035), EU Ro. HS directive 2011/65/EU, WEEE directive 2012/19/EU, China Ro. HS directive GB/T 26572, EAC, RCM, UL, C-UL, EFUP 10, Expected Product Life Cycle 20 years Product dimensions 3. 5" x 19" x 15“ (89 mm x 483 mm x 381 mm) Shipping carton dimensions 23. 5" x 20" x 6. 5“ (597 mm x 508 mm x 165 mm) Shipping weight 23 lbs. minimum(installation of I/O cards increases shipping weight) Included accessories 6’ UL/CSA/IEC line cord, safety instructions, regulatory statement, I/O connectors (included when purchasing I/O cards with Euro style terminal blocks) Rear panel indicators “Link”, “Speed” and “Activity” LEDs on all LAN ports
