The Ear & The Brain

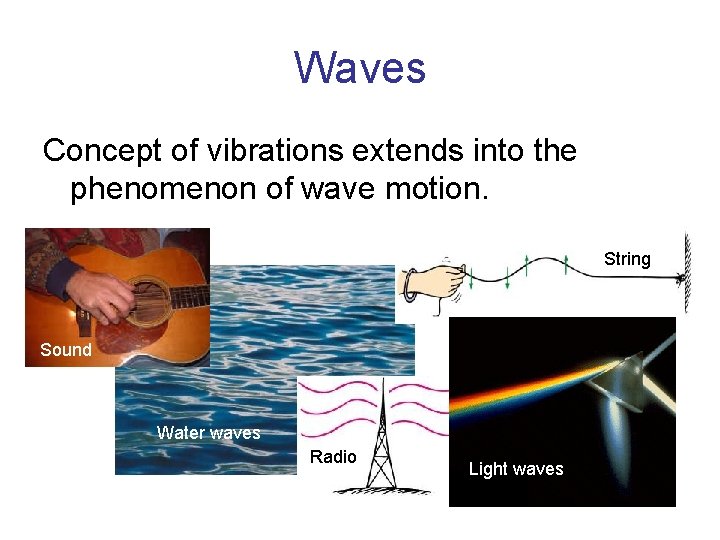

Waves Concept of vibrations extends into the phenomenon of wave motion. String Sound Water waves Radio Light waves

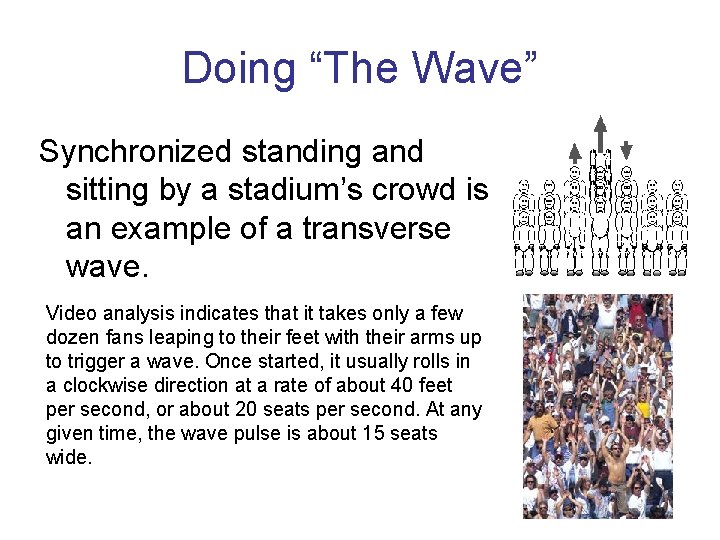

Doing “The Wave” Synchronized standing and sitting by a stadium’s crowd is an example of a transverse wave. Video analysis indicates that it takes only a few dozen fans leaping to their feet with their arms up to trigger a wave. Once started, it usually rolls in a clockwise direction at a rate of about 40 feet per second, or about 20 seats per second. At any given time, the wave pulse is about 15 seats wide.

Demo: Sound is not Wind With sound, air molecules oscillate in place. With wind, air moves from place to place. Smoke rings are not sound because the air moves from place to place.

Media That Transmit Sound travels better through elastic liquids and solids, such as water and rocks, than through air. This is due to the close proximity of the atoms as they vibrate. Hear richer, louder sound transmitted by string

What Your Voice Sounds Like Your voice sounds different to you when you hear it from a recording. This is because when you are speaking aloud, most sound waves reach your ear traveling through the solid flesh and bone of your skull. Leave yourself a voice-mail

Transverse Waves For transverse waves the wave’s amplitude is perpendicular to the wave’s motion. Amplitude Wave Motion Amplitude

Longitudinal Waves For longitudinal waves, amplitude and wave motion are parallel. Wave Motion Amplitude

Nature of Sound in Air Sound in air is a longitudinal wave created by compressions and rarefactions.

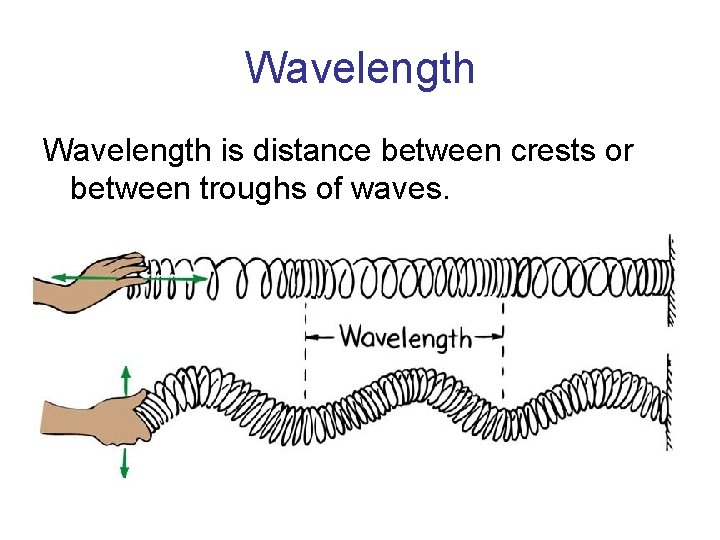

Wavelength is distance between crests or between troughs of waves.

Standing Waves When a wave interferes with its reflection, this may create a standing wave.

Standing Waves & Phase

Playing Brass Instruments Depending on how the musician blows into the mouthpiece, different standing waves of different frequencies (different notes) are produced.

Fundamental & Overtones The Fundamental is the lowest frequency standing wave. The Overtones are twice, three times, etc. , the frequency of the Fundamental. 110 Hz (A 2) 220 Hz (A 3) 330 Hz (E 4) Frequencies of standing waves for a pipe that is 151 cm long

Harmonic Series Music for natural horns and bugles is limited by harmonic series, the frequencies of the fundamental and overtones. Fundamental

Changing the Length To play notes beyond the harmonic series requires changing the frequency of the fundamental by changing the length of tube. Crooks Finger-holes Cornett Disadvantage: Reduced amplitude Disadvantage: Clumsy

Changing the Length Trombone uses a continuous slide to vary its length Cornett

Changing the Length Valves used in trumpet, tuba, and French horn Cornett Similar to using a crook but easy to open & close

Speed of Sound in Air Speed of sound in air is about 340 m/s. Sound travels about one kilometer in three seconds, about one mile in five seconds. Light is a million times faster than sound.

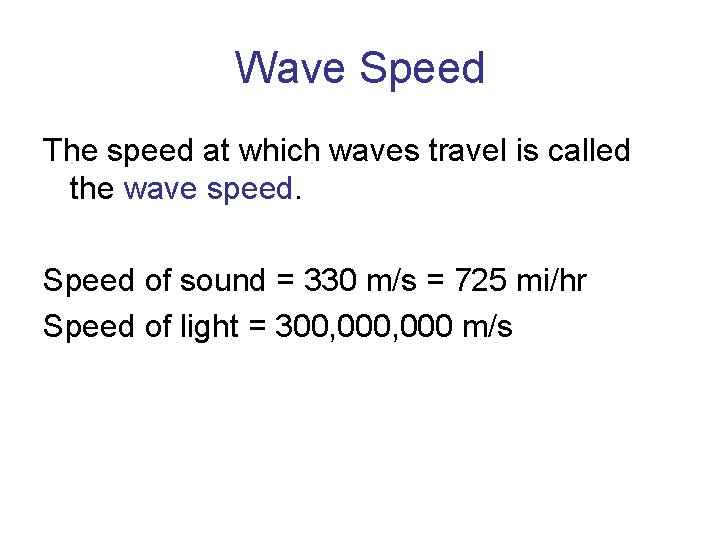

Wave Speed The speed at which waves travel is called the wave speed. Speed of sound = 330 m/s = 725 mi/hr Speed of light = 300, 000 m/s

Wave Relations Wave speed, wavelength & frequency related. (Wave speed) = (Wavelength) x (Frequency) (Wave speed) (Wave length) = (Frequency) (Wave speed) (Frequency) = (Wavelength)

Demo: Helium Voice Sound speed in helium is higher than speed in air. Wavelength of sound unchanged (size of vocal cords is unchanged). Frequency of voice is higher since (Wave speed) (Frequency) = (Wavelength) Breath Helium… He Talk like me!

Human Ear Pressure variations of sound waves push the eardrum, whose vibrations are transmitted by the ossicles (ear bones) to the cochlea (hearing canal)

Cochlea Vibrations transmitted by the ear bones create oscillations in the fluid with the cochlea (snail in Latin), which is a spiral-wrapped tube. These oscillations within the cochlea cause the basilar membrane to ripple, like a waving flag.

Organ of Corti The organ of Corti forms a ribbon of sensory epithelium that runs lengthwise down the entire cochlea. The hair cells of the organ of Corti selectively transform the oscillations of the basilar membrane into nerve signals.

Demo: Hearing Sound Different frequencies stimulate different groups of hair cells depending on the resonance region on the basilar membrane. Range of human hearing is roughly 20 Hertz to 20, 000 Hertz.

Hearing in Animals Frequency range varies widely, depending on natural adaptation using sound to communicate, locate food, avoid predators, etc.

Loudness & Amplitude Loudness depends on amplitude of pressure and density variations in sound waves.

Loudness of sound depends on the amplitude of pressure variations in the sound waves. Loudness is measured in decibels (d. B), which is a logarithmic scale (since our perception of loudness varies logarithmically). From the threshold of hearing (0 d. B) to the threshold of pain (120 d. B) the pressure increase is a million times higher. At the threshold of pain (120 db) the pressure variation is only about 10 Pascals, which is one ten thousandths atmospheric pressure.

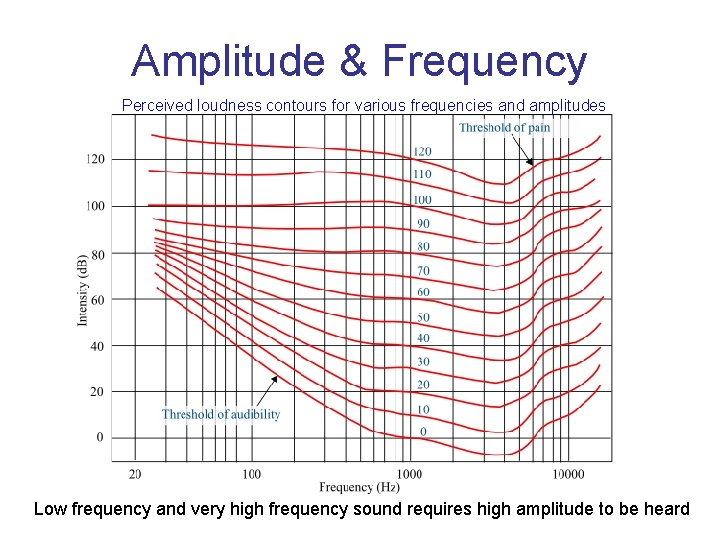

Amplitude & Frequency Perceived loudness contours for various frequencies and amplitudes Low frequency and very high frequency sound requires high amplitude to be heard

Hearing by Age & Sex Absolute thresholds of hearing by age in males and females Male, Age 60 Male, Age 50 Female, Age 60 Male, Age 40 Male, Age 30 Male, Age 20 Hearing acuity decreases with age, especially in the high frequencies. In general, women have greater acoustic sensitivity than men.

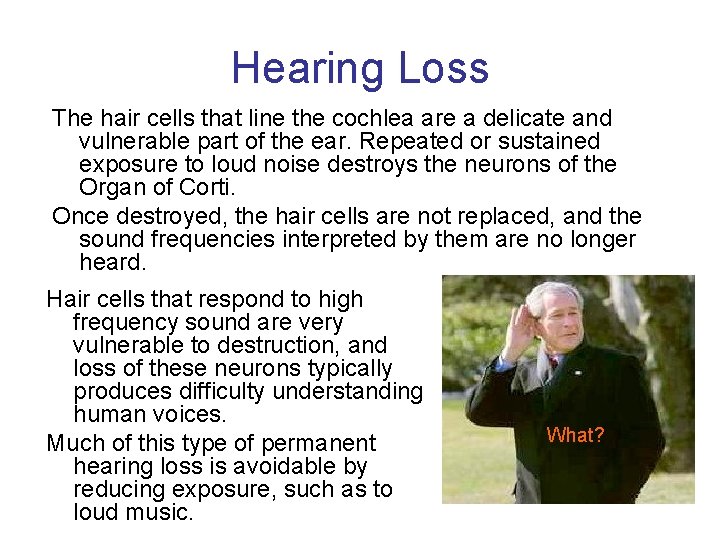

Hearing Loss The hair cells that line the cochlea are a delicate and vulnerable part of the ear. Repeated or sustained exposure to loud noise destroys the neurons of the Organ of Corti. Once destroyed, the hair cells are not replaced, and the sound frequencies interpreted by them are no longer heard. Hair cells that respond to high frequency sound are very vulnerable to destruction, and loss of these neurons typically produces difficulty understanding human voices. Much of this type of permanent hearing loss is avoidable by reducing exposure, such as to loud music. What?
