CORBA Why We Need CORBA Need a solution
CORBA
Why We Need CORBA? Need a solution to develop, deploy, and integrate systems in a distributed heterogeneous environment. • Diverse OS – Unix, Windows, Mac. OS etc. • Diverse Network – TCP/IP, Ethernet, ATM, etc. • Diverse Programming Language – applications programmed in C++, JAVA, COBOL etc. • Diverse Hardware Platform. • Coexist with legacy systems.
CORBA • It is a Middleware Technology used for the communication of heterogeneous Distributed Objects of a distributed application. • CORBA is standard for distributed object created by OMG • Goal of OMG: • Reusability • Portability • Interoperability of object based software in distributed environment • There are two types of OMG models: • OMG Object Model • OMG reference Model
Object Management Architecture OMG object model : Client operation() OMG reference model Object : Interface X Middleware
Developed specifically for given application. User defined, application specific Similar to object services & common facilities but domain specific eg. (CORBATel)telecomm Collection of services that many applications can share eg. email 1. Object transparently send /receive request/response in distributed environment. 2. Provides error handling, security policies & integration to legacy application 3. uniform access service & discovery of resources Collection of services which support basic function for using & implementing object eg. Naming & trading services for search by name & properties resp.
CORBA Components • OMG provides specification to encapsulate application data & business logic within object in distributed environment • These objects are called as component s • Each component is significant portion of an overall system • Interaction between component is called component collaboration • CORBA component is like a normal reusable object which provides inheritance, polymorphism , and encapsulation • Unlike normal object it is independent of language, OS, hardware, location, network
CORBA Components Characteristics of CORBA component are as follows: • Independent development: • Independent business entity • Packagable • Buildable • Rapid development • Extensible • Configurable • Scalable • Flexible • Extended object

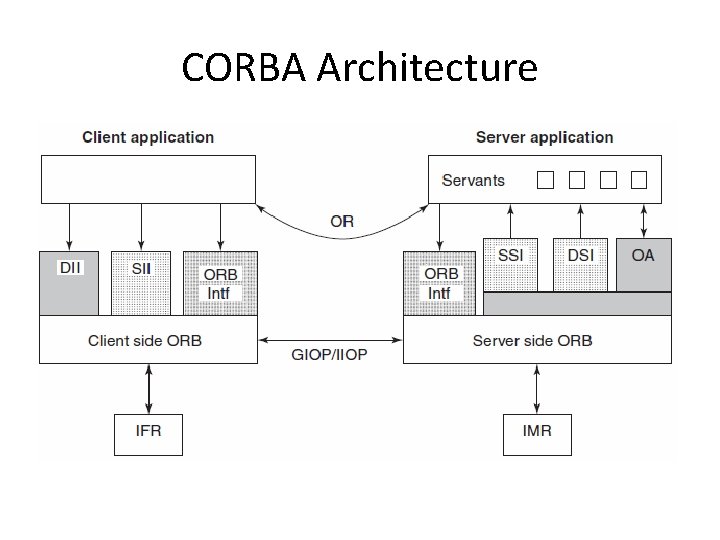

CORBA Architecture
CORBA Architecture • CORBA ORBs deliver client requests to servants (server objects) and return responses to clients. • CORBA automates many common network programming tasks such as – objects registration, location and activation, request demultiplexing, error-handling, parameter marshalling and demarshalling and operation dispatching. • It allows applications to communicate with one another in a uniform way, – transparent to the object location, hardware, operating system , programming language and communication protocol.
CORBA Architecture 1. Object Request Broker (ORB): ORB provides the communication and activation infrastructure for distributed object applications. To make a request, the client specifies the target object by using an object reference (OR). ORB core facilitates the following transparencies in client-server communication: • Object Location: the client has no knowledge of whether the target object is in-process or out-process • Object implementation: Here the client does not know the language, platform of hardware in which object is implemented. • Object execution state: Here the client does not know whether the object active or inactive. ORB transparently activates object when required by client. • Object communication mechanism: ORB can use memory, RPC and TCP/IP for communication.

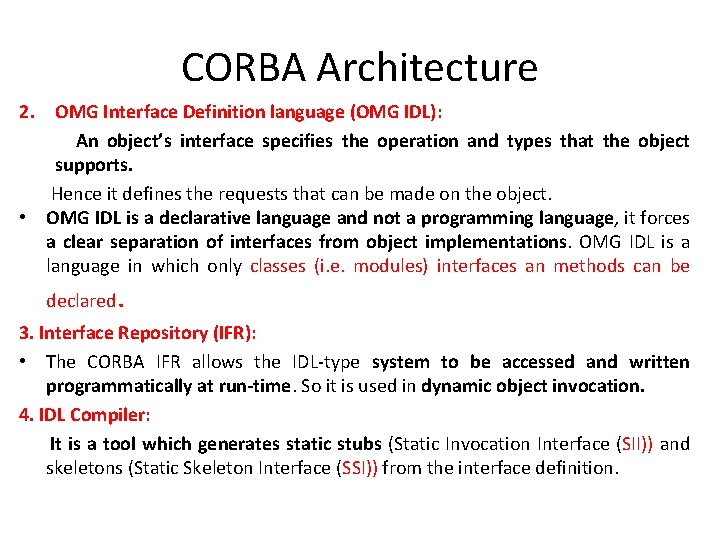

CORBA Architecture 2. OMG Interface Definition language (OMG IDL): An object’s interface specifies the operation and types that the object supports. Hence it defines the requests that can be made on the object. • OMG IDL is a declarative language and not a programming language, it forces a clear separation of interfaces from object implementations. OMG IDL is a language in which only classes (i. e. modules) interfaces an methods can be declared . 3. Interface Repository (IFR): • The CORBA IFR allows the IDL-type system to be accessed and written programmatically at run-time. So it is used in dynamic object invocation. 4. IDL Compiler: It is a tool which generates static stubs (Static Invocation Interface (SII)) and skeletons (Static Skeleton Interface (SSI)) from the interface definition.

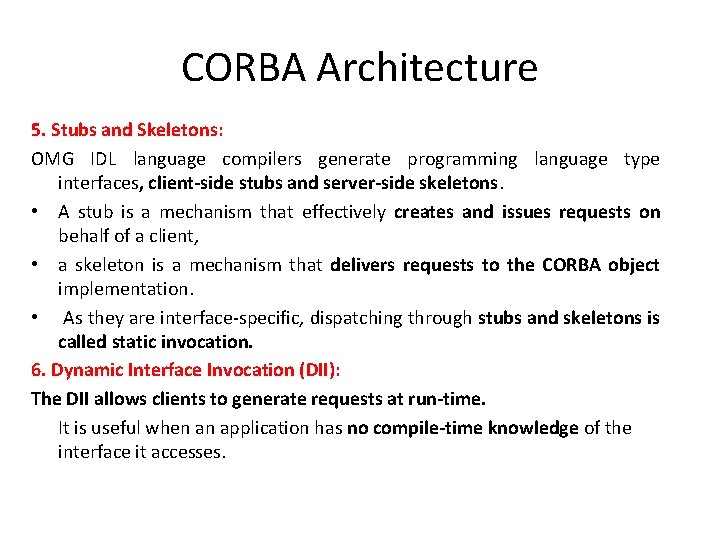

CORBA Architecture 5. Stubs and Skeletons: OMG IDL language compilers generate programming language type interfaces, client-side stubs and server-side skeletons. • A stub is a mechanism that effectively creates and issues requests on behalf of a client, • a skeleton is a mechanism that delivers requests to the CORBA object implementation. • As they are interface-specific, dispatching through stubs and skeletons is called static invocation. 6. Dynamic Interface Invocation (DII): The DII allows clients to generate requests at run-time. It is useful when an application has no compile-time knowledge of the interface it accesses.

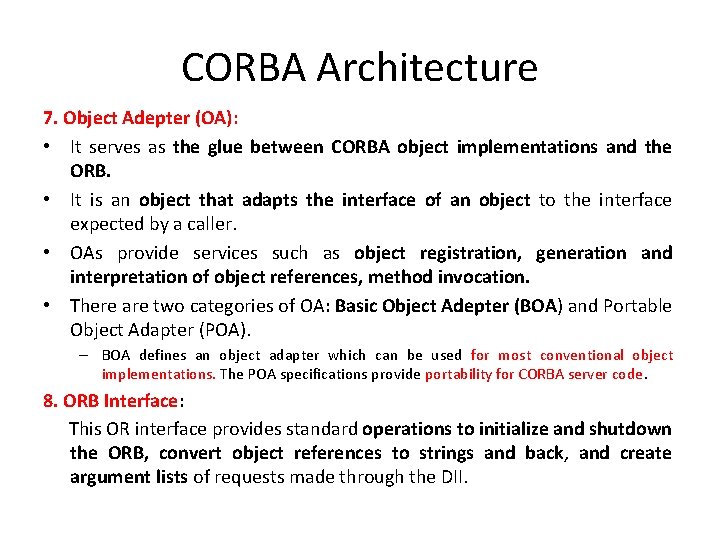

CORBA Architecture 7. Object Adepter (OA): • It serves as the glue between CORBA object implementations and the ORB. • It is an object that adapts the interface of an object to the interface expected by a caller. • OAs provide services such as object registration, generation and interpretation of object references, method invocation. • There are two categories of OA: Basic Object Adepter (BOA) and Portable Object Adapter (POA). – BOA defines an object adapter which can be used for most conventional object implementations. The POA specifications provide portability for CORBA server code. 8. ORB Interface: This OR interface provides standard operations to initialize and shutdown the ORB, convert object references to strings and back, and create argument lists of requests made through the DII.
CORBA Architecture 9. Inter-ORB Protocols: To support interoperability, CORBA proposes General Interoperable Protocol (GIOP) and Interoperable OR(IOR). • It describes a Common/Character Data Representation (CDR) format and message formats for sending requests and responses between ORBs. • GIOP is defined independently of any particular transport protocol in order to accommodate a wide range of networking infrastructures. • Internet Interoperable protocol (IIOP) provides full-duplex, connectionoriented communication channel through the TCP/IP protocol. 10. Implementation Repository (IMR): IMR contains the information that allows an ORB to activate servers on demand.

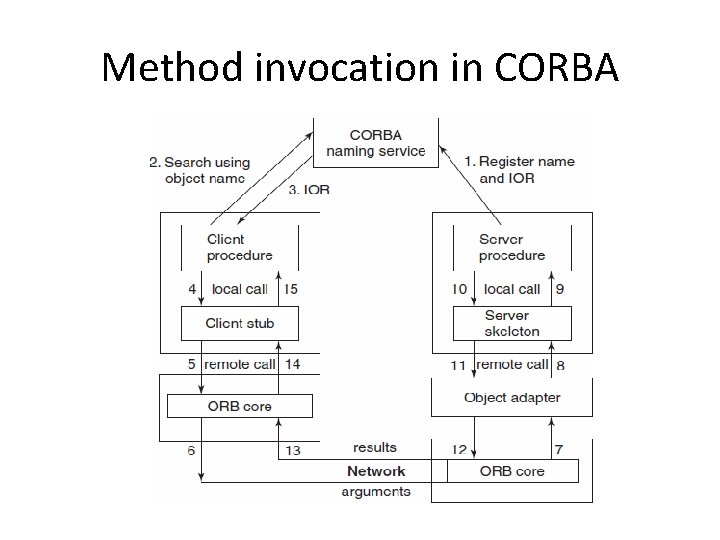

Method invocation in CORBA
Method invocation in CORBA • The invocation of the remote CORBA object is done as follows: 1. The remote CORBA object registers itself in the CORBA naming server. It provides a mapping for the remote object name and IOR. 2. The client refers the CORBA naming service using the object name. 3. The CORBA naming service returns the IOR of the remote object. 4. Client procedure calls client stub using a local procedure call. Conceptually, a client stub contains a set of functions with the same name as the remote function. Stubs can be generated automatically using the IDL compilers and are included in code during compilation. 5. The client stub calls the network routines using system calls. 6. In this step, the local kernel sends the message to the remote kernel. 7. Once the message is successfully received by the remote kernel, it is transferred to the OA. 8. OA then transfers the call to the server skeleton.
Method invocation in CORBA
Method invocation in CORBA 9. Once the control is handed to the server skeleton, it unpacks the parameters and calls the server procedure. This process is called as unmarshalling. 10. Server does the work and returns the result to the skeleton. 11. The skeleton then packs the results in a message to OA. 12. OA contacts the RPC layer protocol (ORB core). 13. ORB then transmits the results to the client. 14. The client’s kernel gives the results to the client stub. 15. The client stub unpacks the results and returns them to the client procedure.

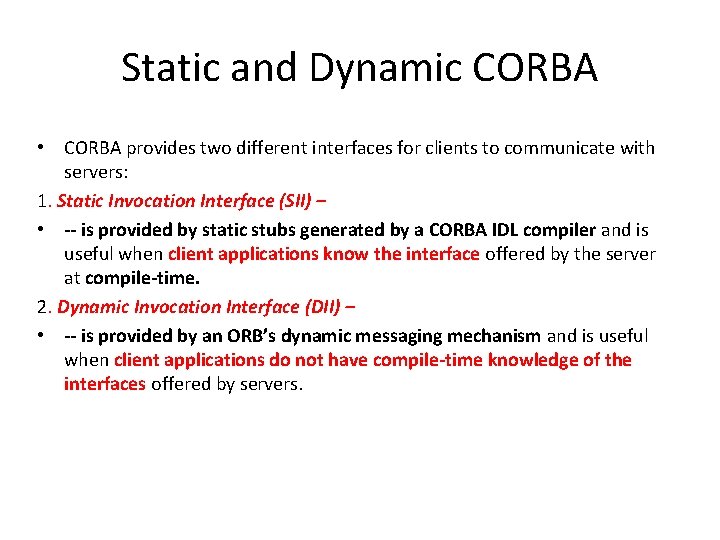

Static and Dynamic CORBA • CORBA provides two different interfaces for clients to communicate with servers: 1. Static Invocation Interface (SII) – • -- is provided by static stubs generated by a CORBA IDL compiler and is useful when client applications know the interface offered by the server at compile-time. 2. Dynamic Invocation Interface (DII) – • -- is provided by an ORB’s dynamic messaging mechanism and is useful when client applications do not have compile-time knowledge of the interfaces offered by servers.

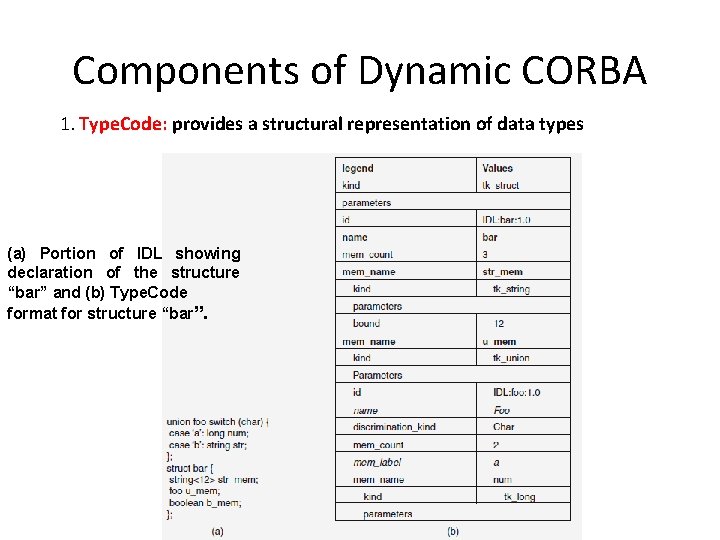

Components of Dynamic CORBA 1. Type. Code: provides a structural representation of data types (a) Portion of IDL showing declaration of the structure “bar” and (b) Type. Code format for structure “bar”.

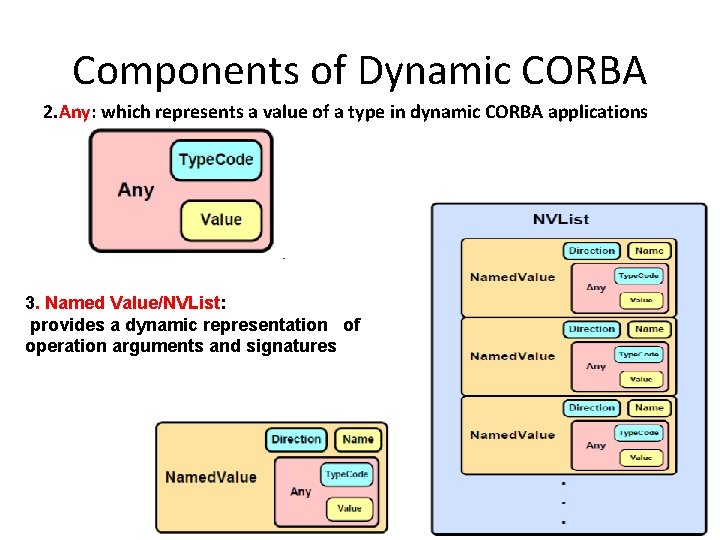

Components of Dynamic CORBA 2. Any: which represents a value of a type in dynamic CORBA applications 3. Named Value/NVList: provides a dynamic representation of operation arguments and signatures
Components of Dynamic CORBA 4. Dynamic Invocation Interface (DII): which defines the client-side interface for dynamic CORBA applications, 5. Dynamic Skeleton Interface (DSI): which works as DII at the server-side 6. Type. Code. Factory: which is used to create types dynamically 7. Dynamic Any: which is used to create and examine values in dynamic CORBA applications 8. Interface Repository (IFR): which is a distributed service that provides run-time access to CORBA type information 9. IFR loader: which populates the Interface Repository with entries that correspond to IDL declarations.

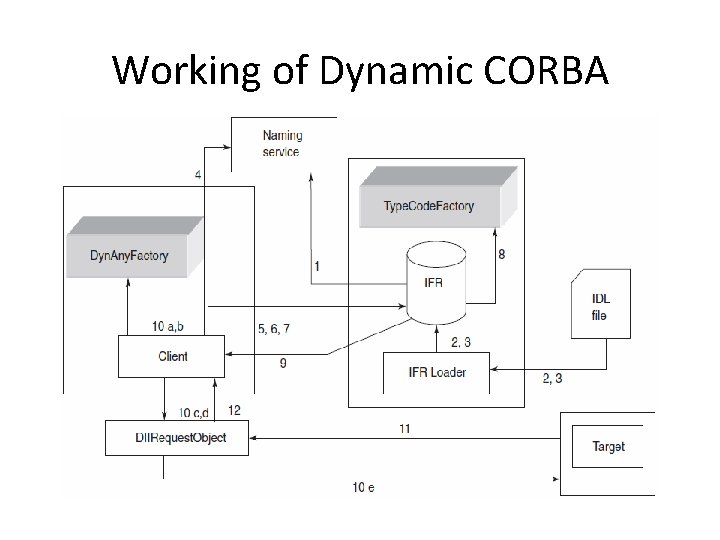

Working of Dynamic CORBA
Working of Dynamic CORBA 1. Registering IFR in the naming service. 2. IFR loader gets the interface details from the IDL file & stores it in IFR. 3. IFR loader gets the operation details from the IDL file & stores it in IFR. 4. Client looks up & identifies the location of IFR. 5. Client looks up for the interfaces details from IFR. 6. Client looks up for the operation details from IFR. 7. Client gets argument types details from IFR. 8. IFR creates Type. Code using Type. Code. Factory. 9. Client returns the Type. Code to the client.
Working of Dynamic CORBA
Working of Dynamic CORBA 10. The following sequence of actions is performed at the client side. A. Client uses Dynamic. Any. Factory to create Dynamic. Any type. B. Client stores the inout values in this type & forms the Any type. C. The DIIRequest. Object is formed by the client. D. The Any type parameters are stored in the Request. Object. E. The target object is now invoked using this Request. Object. 11. The response is now sent by the target object to the client. 12. The DIIRequest. Object receives this response & returns the result to the client.
CORBA IDL • The CORBA Interface Definition Language (IDL) is used to define interfaces to objects in your network. • The first step in developing a CORBA application is to define the interfaces to the objects required in your distributed system. • To define these interfaces, you use CORBA IDL.

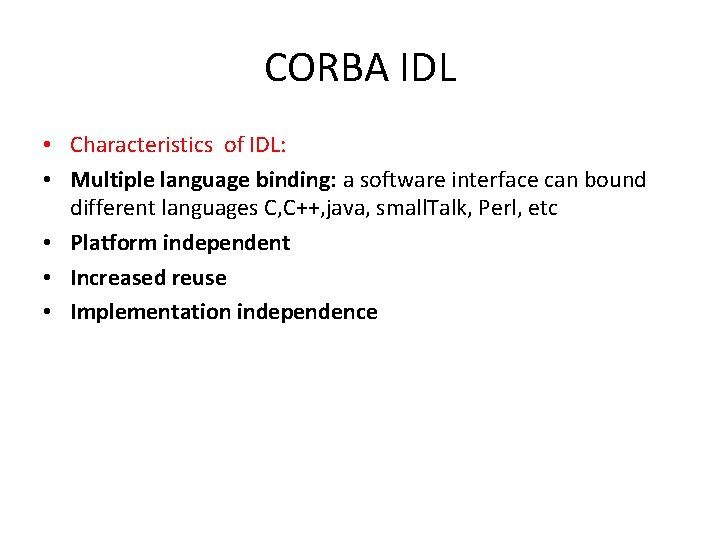

CORBA IDL • Characteristics of IDL: • Multiple language binding: a software interface can bound different languages C, C++, java, small. Talk, Perl, etc • Platform independent • Increased reuse • Implementation independence

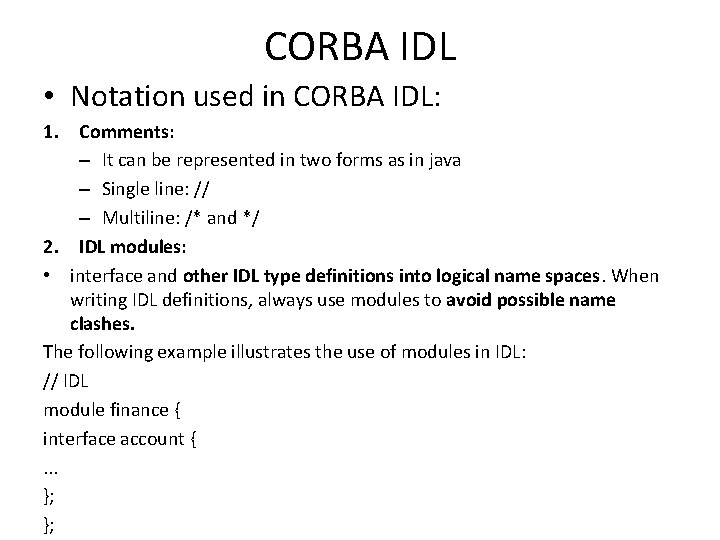

CORBA IDL • Notation used in CORBA IDL: 1. Comments: – It can be represented in two forms as in java – Single line: // – Multiline: /* and */ 2. IDL modules: • interface and other IDL type definitions into logical name spaces. When writing IDL definitions, always use modules to avoid possible name clashes. The following example illustrates the use of modules in IDL: // IDL module finance { interface account {. . . }; };
3. IDL Interfaces • An IDL interface describes the functions that an object supports in a distributed application. Interface definitions provide all the information that clients need to access the object across a network. • Inheritance of IDL Interfaces • IDL supports inheritance of interfaces. An IDL interface can inherit all the elements of one or more other

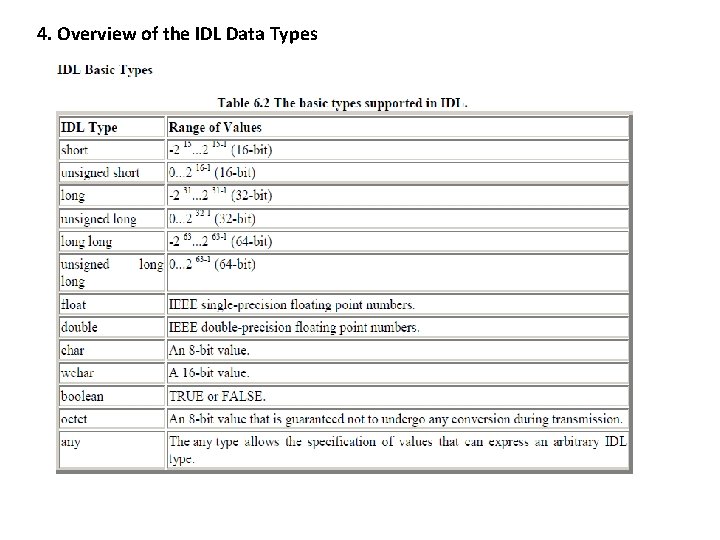

4. Overview of the IDL Data Types
5. IDL constants: value of an IDL constant cannot change 6. IDL Exception: ORB returns exception for eg. SYSTEM_EXCEPTION, OBJECT_NOT_EXIST 7. Pre complier directives: e. g: #include<Cos. Naming. idl>: Naming service 8. IDL Type Declaration: Creation of user defined types e. g. Struct, Union
8. Sequence : variable length arrays. • it has two characteristics: • a maximum size : fixed at compile time, • a length : which is determined at runtime. 9. IDL Forward: An interface must be declared before it is referenced. • A forward declaration declares the name of an interface without defining it.
Interface repository • The Interface Repository is the component of the ORB that provides persistent storage of interface • definitions—it manages and provides access to a collection of object definitions specified in OMG IDL. • An ORB provides distributed access to a collection of objects using the objects’ publicly defined interfaces specified in OMG IDL • The Interface Repository provides for the storage, distribution, and management of a collection of related objects’ interface definitions • Some of the entities in an interface repository are: • 1. Repository IDs: They uniquely identify modules, interfaces, constants, typedefs, exceptions, attributes, and operations. • 2. Type. Codes: It determines the complete structure of the type.
3. Interface Repository Objects (IRO): They determine the IDL definitions. Some examples of interface repository objects are Repository. Def, Module. Def, Interface. Def, Value. Def, Operation. Def, Typedef. Def, Constant. Def.
Industries • Aerospace/Defense, Banking/Finance/Chemical/Petrochemical, • Electronic Commerce, Government, Healthcare/Insurance, Manufacturing, Publishing/Multimedia , Telecommunications.

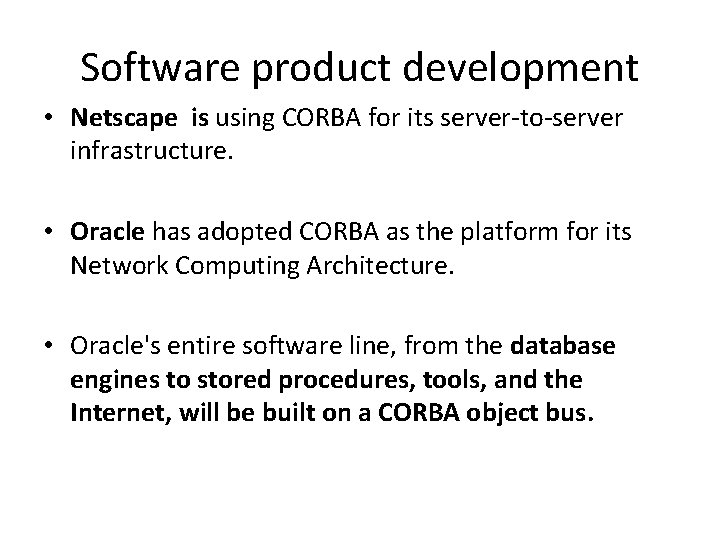

Software product development • Netscape is using CORBA for its server-to-server infrastructure. • Oracle has adopted CORBA as the platform for its Network Computing Architecture. • Oracle's entire software line, from the database engines to stored procedures, tools, and the Internet, will be built on a CORBA object bus.

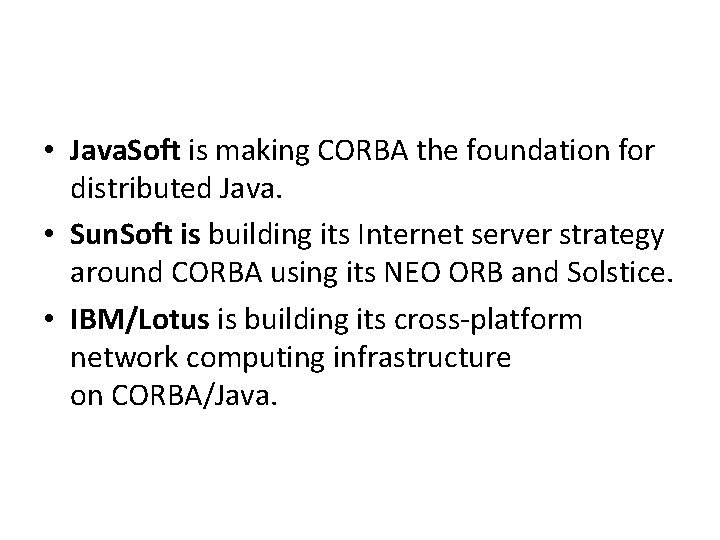

• Java. Soft is making CORBA the foundation for distributed Java. • Sun. Soft is building its Internet server strategy around CORBA using its NEO ORB and Solstice. • IBM/Lotus is building its cross-platform network computing infrastructure on CORBA/Java.
