Copyright 2015 AIC Rail www aic Rail com
- Slides: 18
Copyright © 2015, AIC Rail www. aic. Rail. com
Current Data Collection Copyright © 2015, AIC Rail www. aic. Rail. com
WSMS Data Collection Copyright © 2015, AIC Rail www. aic. Rail. com
WSMS Data Collection § The Wheel Shop Management Suite “builds” the data as the wheelset is assembled § All data is available in Real-time reporting (no batched data) § Data fields are fully customizable Copyright © 2015, AIC Rail www. aic. Rail. com

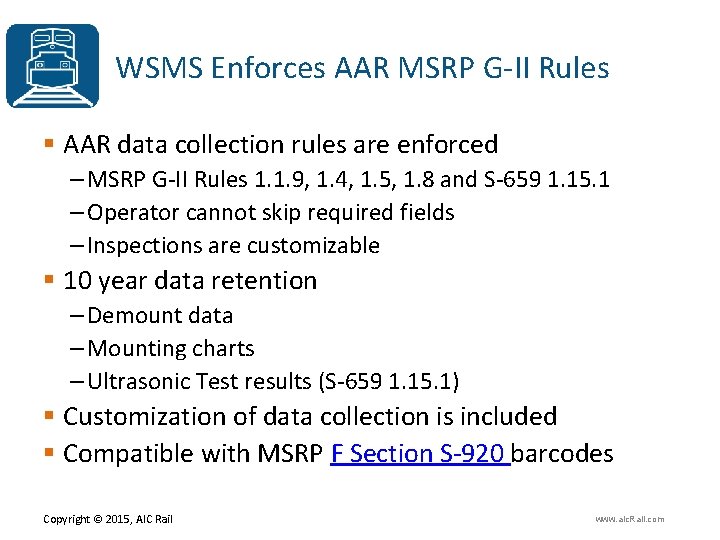

WSMS Enforces AAR MSRP G-II Rules § AAR data collection rules are enforced – MSRP G-II Rules 1. 1. 9, 1. 4, 1. 5, 1. 8 and S-659 1. 15. 1 – Operator cannot skip required fields – Inspections are customizable § 10 year data retention – Demount data – Mounting charts – Ultrasonic Test results (S-659 1. 15. 1) § Customization of data collection is included § Compatible with MSRP F Section S-920 barcodes Copyright © 2015, AIC Rail www. aic. Rail. com
WSMS is Customizable § Data fields for each station can be customized – At the time of installation – By the end user § All stations support manual data entry or scanned barcodes § All fields from all stations are available for reporting § Automatic data collection is available by – OPC – Barcodes – Web Services – SQL Stored Procedures Copyright © 2015, AIC Rail www. aic. Rail. com
Increase Data / Product Quality No Duplication of Data Entry Verifies Work Flow Eliminates inadvertent processing of scrap parts Verifies correct components are used in the finished product • Tracks inventory • Tracks Scrap Components • • Copyright © 2015, AIC Rail www. aic. Rail. com
WSMS uses Standard Tools § Microsoft SQL Database § Microsoft Reporting Services § Industry Standard OPC machine communications § Microsoft. NET standards § Web Services – SOAP § AAR MSRP F S-920 barcodes Copyright © 2015, AIC Rail www. aic. Rail. com
WSMS Data Capture Methods OPC Machine Communication WSMS SQL Database Web Services (SOAP) Copyright © 2015, AIC Rail SQL Stored Procedures www. aic. Rail. com
AAR MSRP Section F S-920 Compliant Copyright © 2015, AIC Rail www. aic. Rail. com
Non-AAR Compliant Barcodes Copyright © 2015, AIC Rail www. aic. Rail. com

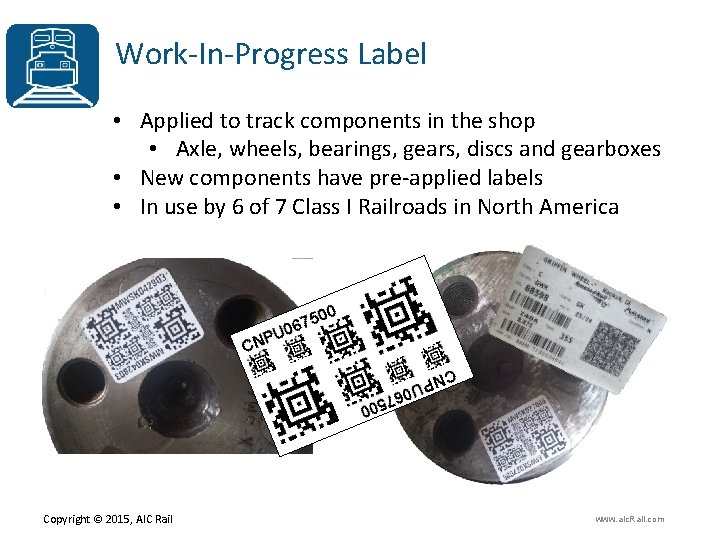

Work-In-Progress Label • Applied to track components in the shop • Axle, wheels, bearings, gears, discs and gearboxes • New components have pre-applied labels • In use by 6 of 7 Class I Railroads in North America Introduction Copyright © 2015, AIC Rail www. aic. Rail. com
Wheelset Work Flow Loose Axle Inspection (Manual) Wheel Demount Copyright © 2015, AIC Rail Axle Lathe Wheel Storage APIS Wheel Press Bearing, Disc, Gearbox Press Wheel Boring www. aic. Rail. com
WSMS Wheelset Work Flow Loose Axle Inspection (Manual) Wheel Demount Copyright © 2015, AIC Rail Axle Lathe Wheel Storage APIS Wheel Press Bearing, Disc, Gearbox Press Wheel Boring www. aic. Rail. com
WSMS Axle Work Flow Axle Inspection (Manual) • Enter Data • Apply Barcode • • Copyright © 2015, AIC Rail Axle Lathe • Scan Axle Barcode • Store Data Axle Inspection (APIS) • Scan Axle Barcode • Enter Data Wheel Press • Scan Barcode • Axle • Wheel • Bearing • Enter Data No Duplication of Data Entry Verification of Work Flow Verifies correct components are used in the finished product Eliminates processing of scrap parts www. aic. Rail. com
WSMS Wheel Work Flow Wheel Demount • Enter Data • Apply Barcode • Scan Axle Wheel Storage Boring • • • Copyright © 2015, AIC Rail Barcode • Scan Wheel Barcode • Add Data Wheel Press Barcode • Axle • Wheel • Bearing • Add Data Finished Wheelset Apply Barcode Uses AAR Standard Barcodes (MSRP F S-920) and WIP Labels Verification of Work Flow Verifies correct components are used in the finished product Eliminates processing of scrap parts Assigns a “serial number” to the wheelset www. aic. Rail. com
It is all tied together by the WSMS Introduction Copyright © 2015, AIC Rail www. aic. Rail. com
+1 501 -834 -9540 Sales@aic. Rail. com Copyright © 2015, AIC Rail www. aic. Rail. com
